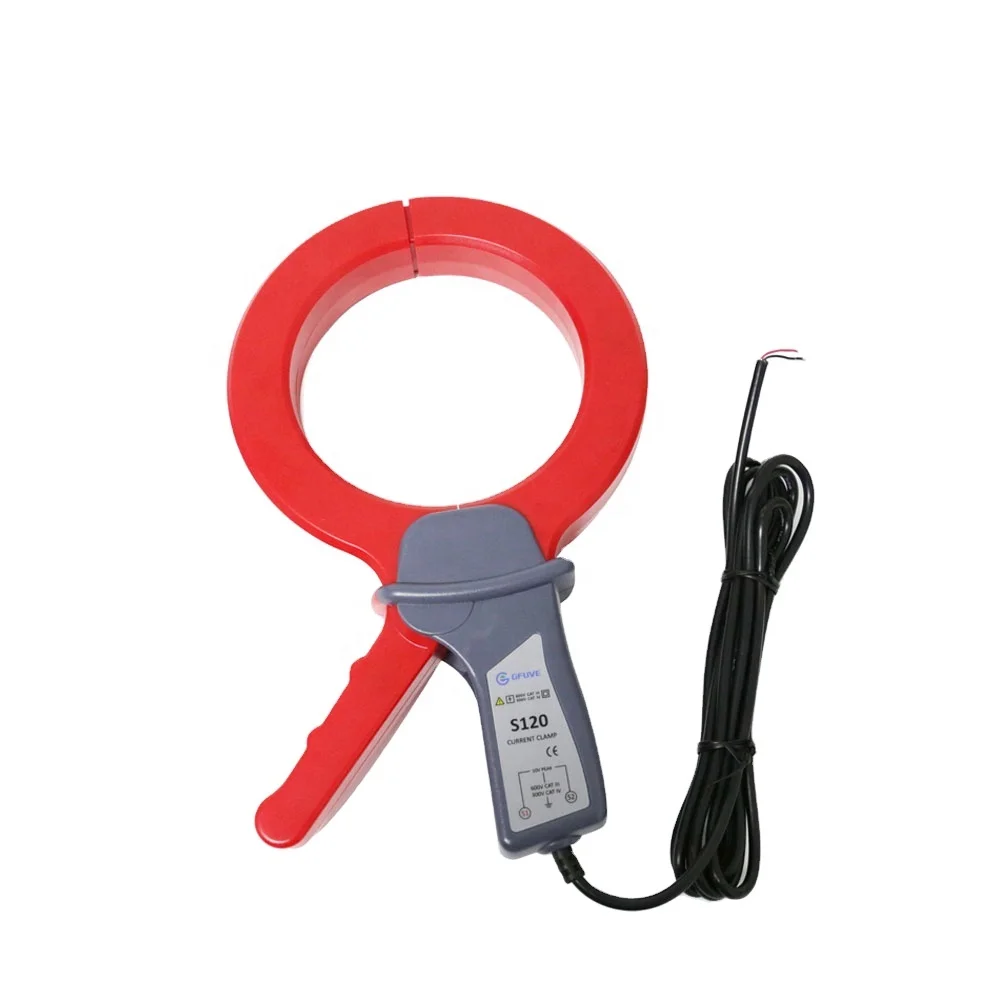

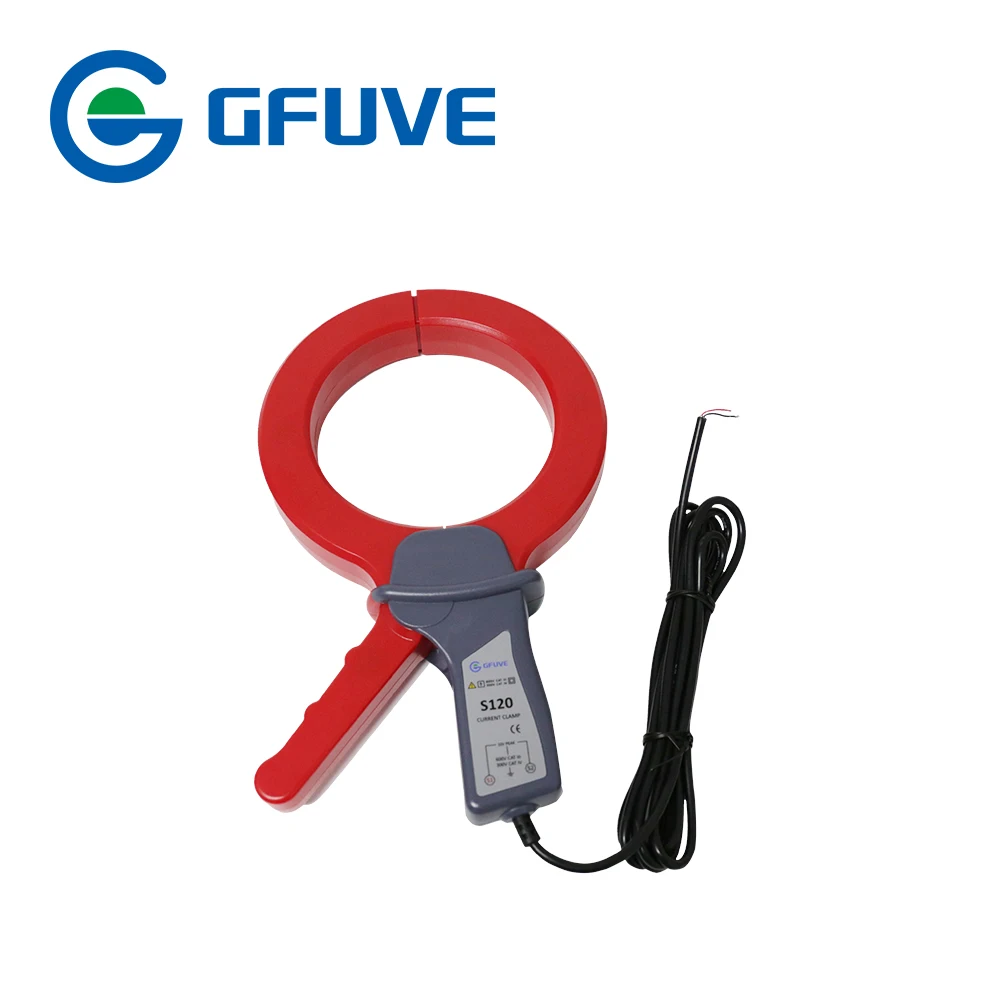

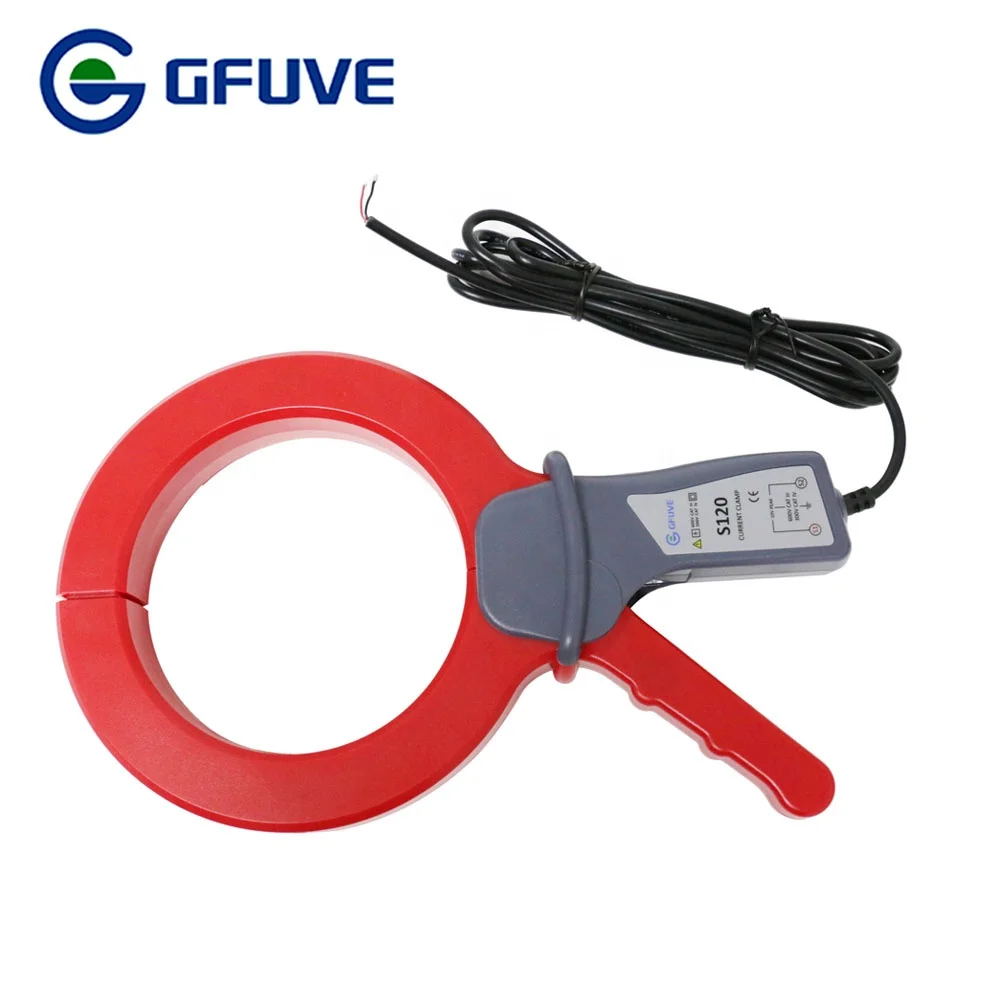

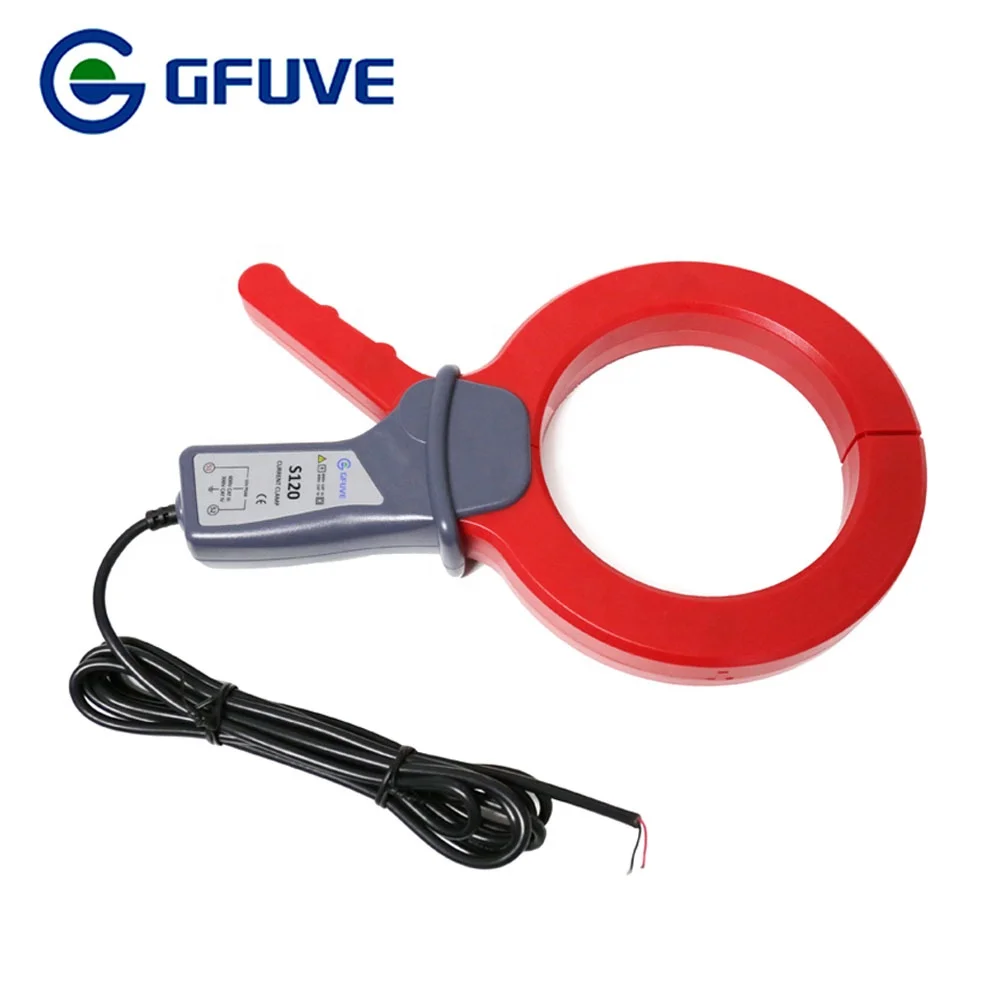

The S120 clamp current transformer is a general-purpose 3000A AC clamp current probe transformer designed for DMMs and BNCs, cable fault analysis, and recorders with current inputs. The "ring" jaws of S120 can achieve good magnetic conduction and cable positioning, providing excellent RMS capability and reliable signal reproduction. Its ratio is 1000:1 or 2000:1, and the output measured in the jaws is 1mA or 1mV per ampere. S120 has a 2.5 meter or 5 meter overall lead termination.








Features


UL, CE CNAS mark;
Frequency 10-2MHz;
Holding wire diameter: φ120mm;
Conforms to EN 61010, 600V CAT III;
Low phase shift for power measurement;
Industrial design & beautiful appearance;
High content nickel metal permalloy core;
Measurement range of 1mA to 3000A AC;
Transformation ratio: 1000:1, 2000:5, 3000:5;
Improved ergonomic design & easy operation;
High precision 0.1% for current measurement;
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters;





Parameters
























































































































































Electrical parameters
Ratio1000: 1, 2000:5 or 3000:5(customized)
Accuracy class0.1%, 0.2%, 0.5%
Primary current0 - 3000A AC
Secondary current0-1A or 0 - 5A AC (customized)
Secondary voltage0-2V , 0-5V AC (customized)
Max. Cont. Input current3600A
Load capacity≤20Ω, standard 4Ω
Over voltage categoryCAT III 600V
Output signal (AC current)500mA, 1A,2A,5A AC at nominal input current
Output signal (AC voltage)1V, 2V, 5V, 10V AC at nominal input current
Frequency range10Hz-2MHz
Dielectric strength3KV 50Hz/60Hz at 1 minute
Temperature range-40°C to +55°C
Output2.5 meter cable with D01 connector or BNC
Max. voltage not insulated conductors600 V
StandardEN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installationclamp type
Output modelead output(2.5m, 5m or 10m)
ConnectorBNC, 4mm banana, signal cable(2 cores),customized
Range version100A, 200A, 400A, 500A, 1000A, 2000A, 3000A
Accuracy (3000A Range)
0-10A≤0.5%
10-100≤0.2%
100-3000A≤0.1%
Phase Shift(3000A Range)
0-10A≤0.5°
10-100≤0.2°
100-3000A≤0.1°
Mechanical parameters
Dimensions (L x W x H) (mm)178 x 290 x 30
Weight (g)1200
Holding wire diameter (mm)φ120
Max. jaw opening (mm)120
Jaw colorRed & Grey
MaterialPC+ABS, UL94 V0




Selection Guide























































































































































































































































































































































































































































































































ModelRate CurrentMax CurrentSecondary CurrentCoil RatioBurden ResistanceAccuracy
S120-200200A240A5A40:12.5VA0.5%
S120-300300A360A5A60:12.5VA0.5%
S120-400400A480A5A80:12.5VA0.5%
S120-500500A600A5A100:12.5VA0.5%
S120-600600A720A5A120:12.5VA0.5%
S120-800800A960A5A160:12.5VA0.5%
S120-10001000A1200A5A200:12.5VA0.5%
S120-15001500A1800A5A300:12.5VA0.5%
S120-20002000A2400A5A400:12.5VA0.5%
S120-30003000A3600A5A600:12.5VA0.5%
S120A1-200200A240A1A200:1customized0.2%
S120A1-300300A360A1A300:1customized0.2%
S120A1-400400A480A1A400:1customized0.2%
S120A1-500500A600A1A500:1customized0.2%
S120A1-600600A720A1A600:1customized0.2%
S120A1-800800A960A1A800:1customized0.2%
S120A1-10001000A1200A1A1000:1customized0.1%
S120A1-15001500A1800A1A1500:1customized0.1%
S120A1-20002000A2400A1A2000:1customized0.1%
S120A1-30003000A3600A1A3000:1customized0.1%
S120A2-500500A600A500mA1000:1customized0.1%
S120A2-600600A720A500mA1200:1customized0.1%
S120A2-800800A960A500mA1500:1customized0.1%
S120A2-10001000A1200A500mA2000:1customized0.1%
S120A3-800800A960A400mA2000:1customized0.1%
S120A3-10001000A1200A400mA2500:1customized0.1%
S120A4-250250A300A250mA1000:1customized0.1%
S120A4-500500A600A250mA2000:1customized0.1%
S120A4-10001000A1200A250mA4000:1customized0.1%
S120V5-200200A240A1V1000:1customized0.1%
S120V5-300300A360A1V1000:1customized0.1%
S120V5-400400A480A1V1000:1customized0.1%
S120V5-500500A600A1V1000:1customized0.1%
S120V5-600600A720A1V1000:1customized0.1%
S120V5-800800A960A1V1000:1customized0.1%
S120V5-10001000A1200A1V1000:1customized0.1%
S120V5-20002000A2400A2V1000:1customized0.1%
S120V5-30003000A3600A3V1000:1customized0.2%
S120V6-200200A240A5V1000:1customized0.1%
S120V6-300300A360A5V1000:1customized0.1%
S120V6-400400A480A5V1000:1customized0.1%
S120V6-500500A600A5V1000:1customized0.1%
S120V6-600600A720A5V1000:1customized0.1%
S120V6-800800A960A5V1000:1customized0.1%
S120V6-10001000A1200A5V1000:1customized0.1%
S120V6-20002000A2400A5V1000:1customized0.1%
S120V6-30003000A3600A5V1000:1customized0.2%
S120V8-200200A240A10V1000:1customized0.1%
S120V8-300300A360A10V1000:1customized0.1%
S120V8-400400A480A10V1000:1customized0.1%
S120V8-500500A600A10V1000:1customized0.1%
S120V8-600600A720A10V1000:1customized0.1%
S120V8-800800A960A10V1000:1customized0.1%
S120V8-10001000A1200A10V1000:1customized0.1%
