RC DDX02 (50KW) Medical DR X Ray Digital Radiography System Medical X Ray xray machine
- Category: >>>
- Supplier: Shanghai Ro-Chain Medical Co. Ltd.
Share on (1601022654569):
Product Overview
Description
Product Description

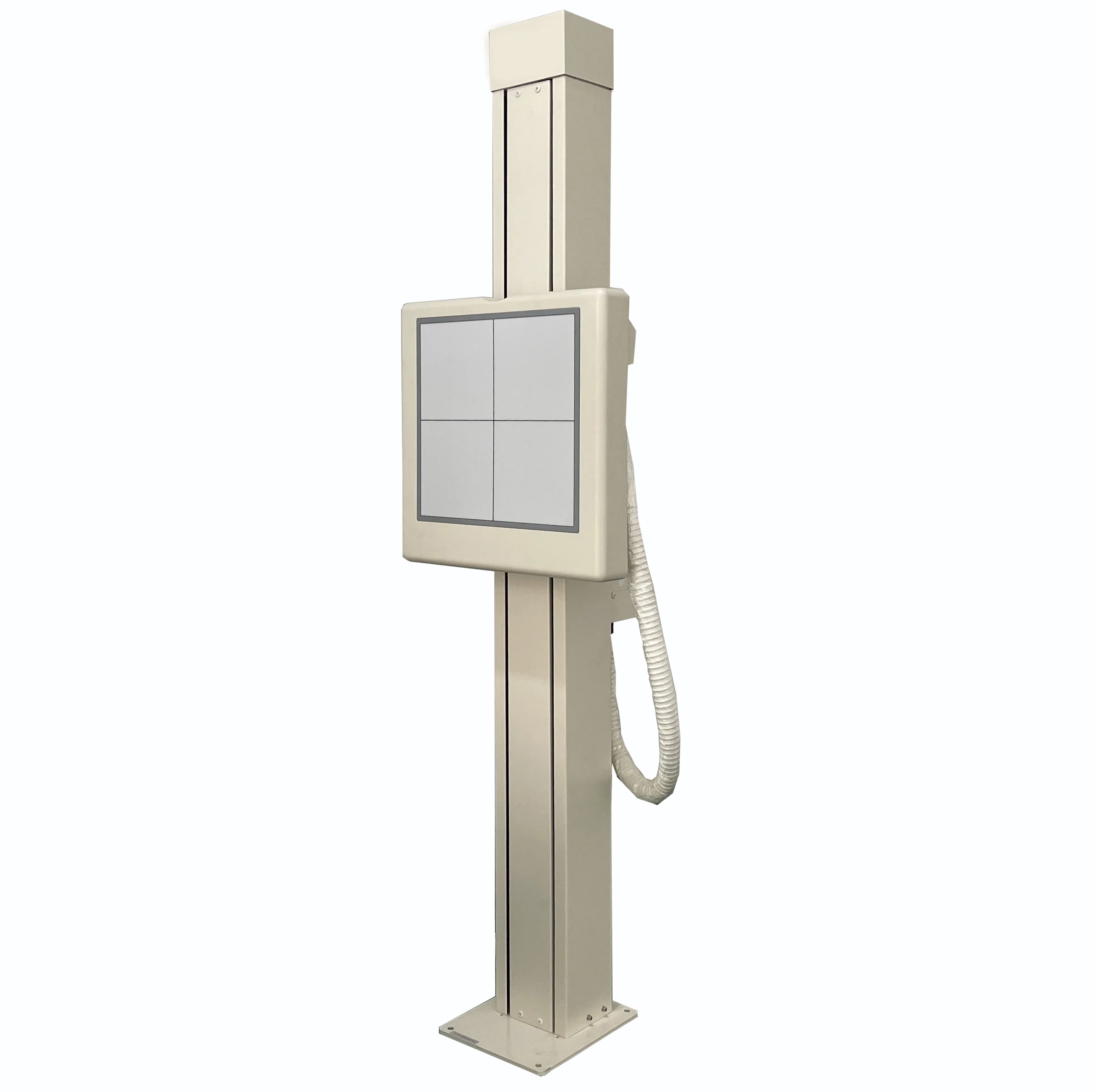

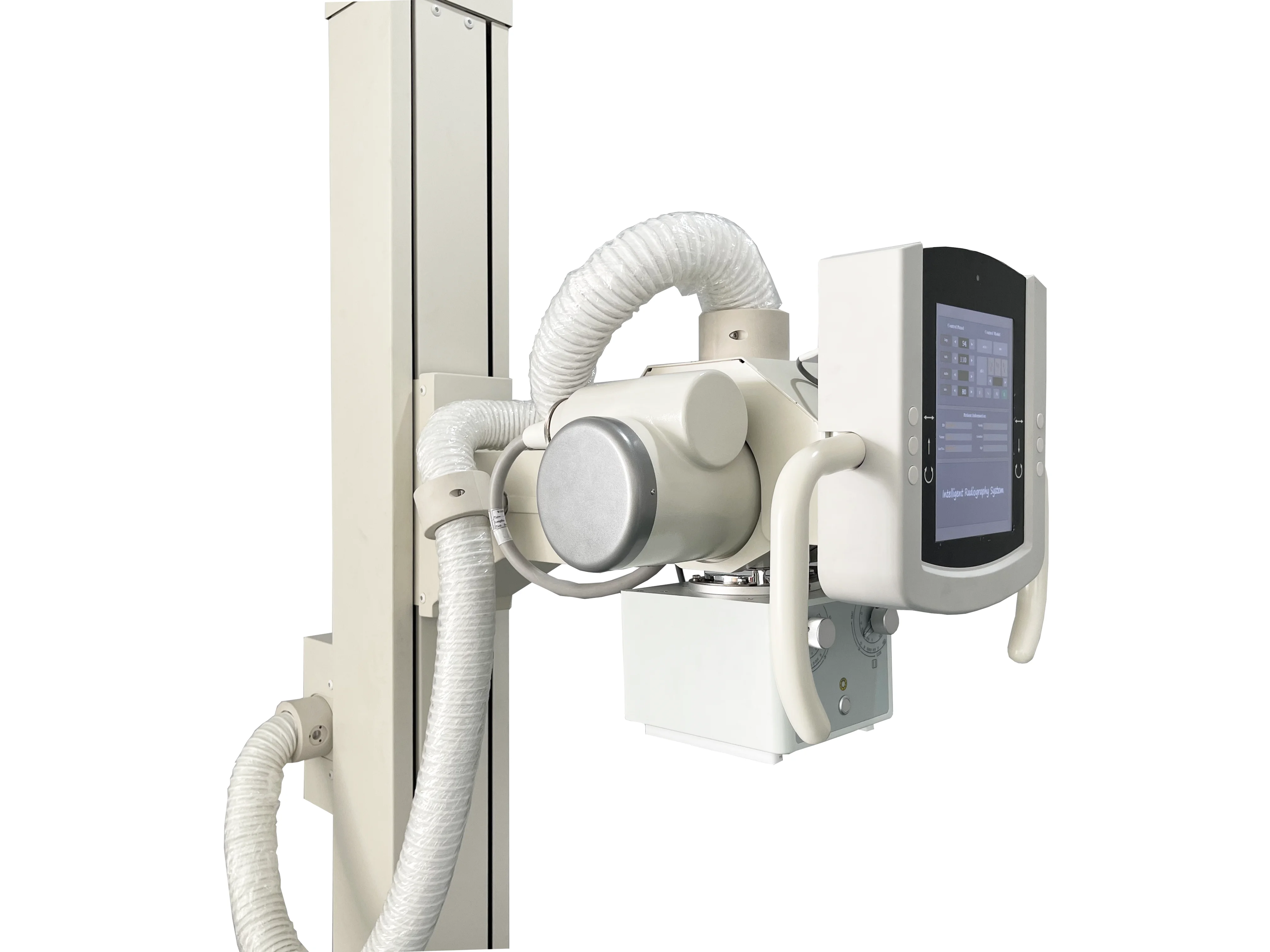

Floor-mounted Digital Radiography System X-ray Generator
Product Model : RC-DDX02 (50KW)
Product Introduction:

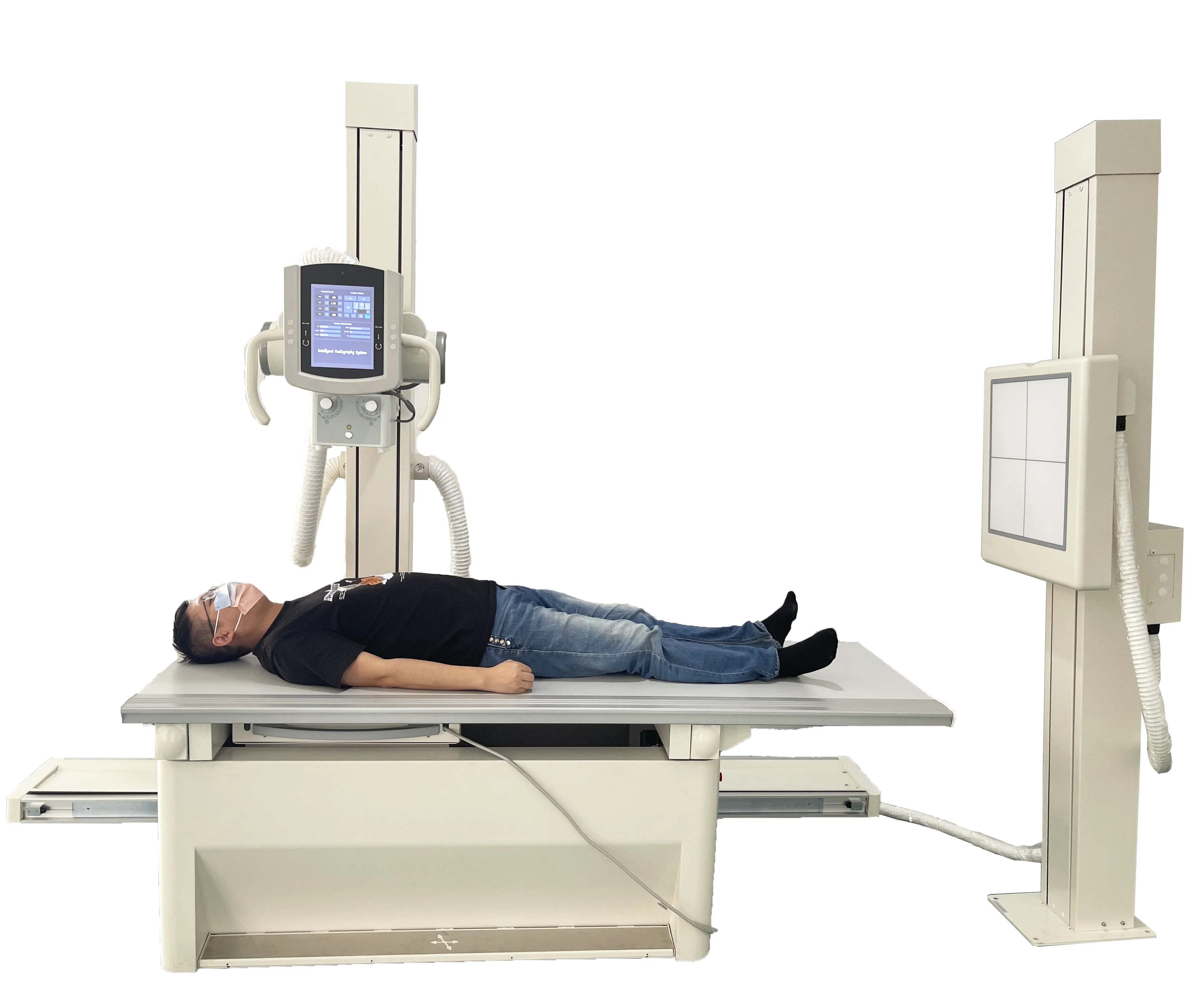

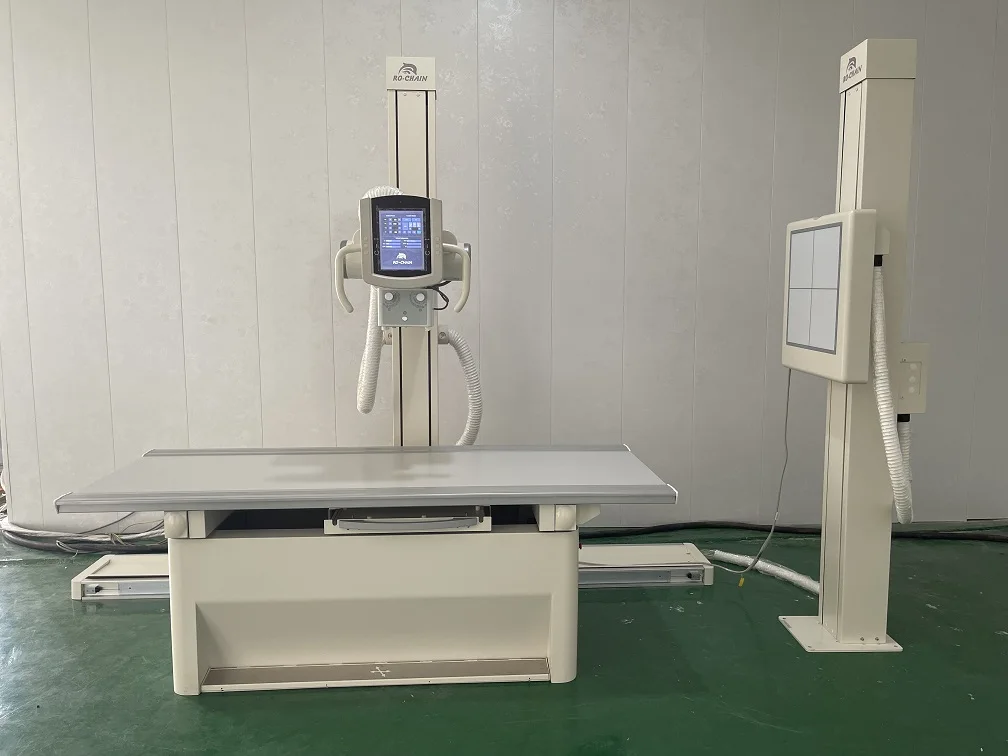

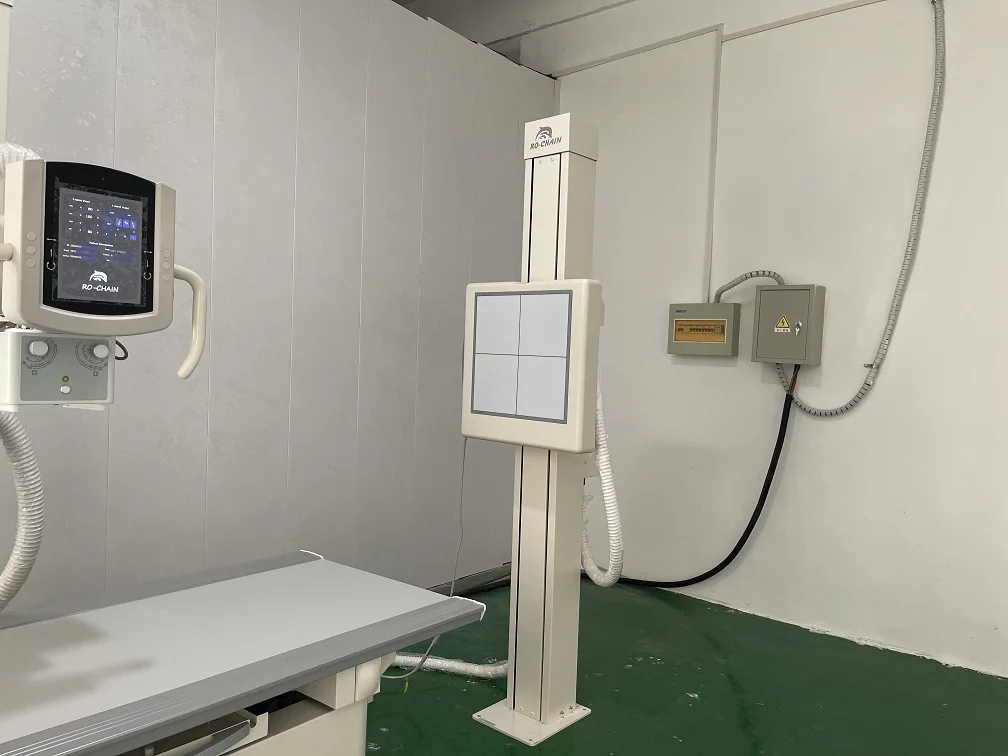

Floor-mounted Digital X-ray Radiography System adopts floor-mounted table and wall stands. Its smart design,flexible movement, easy operation and high working efficiency provide more imaging positions. It is a high-end digital radiography device with wide range of applications, which could perform routine imaging of human head, chest, abdomen, lumbar vertebra and limbs with PA, LAT and clinostatism in hospitals at all levels.
Product Features of RC-DDX02 Floor-mounted Digital Radiography System X-ray Generator
◆Sophisticated technology, high rotating speed, good heat dissipation, high heat capacity, suitable for long-time clinical examination, long product life.
◆High frequency generator with high X-ray inverse frequency, large power and good X-ray quality.

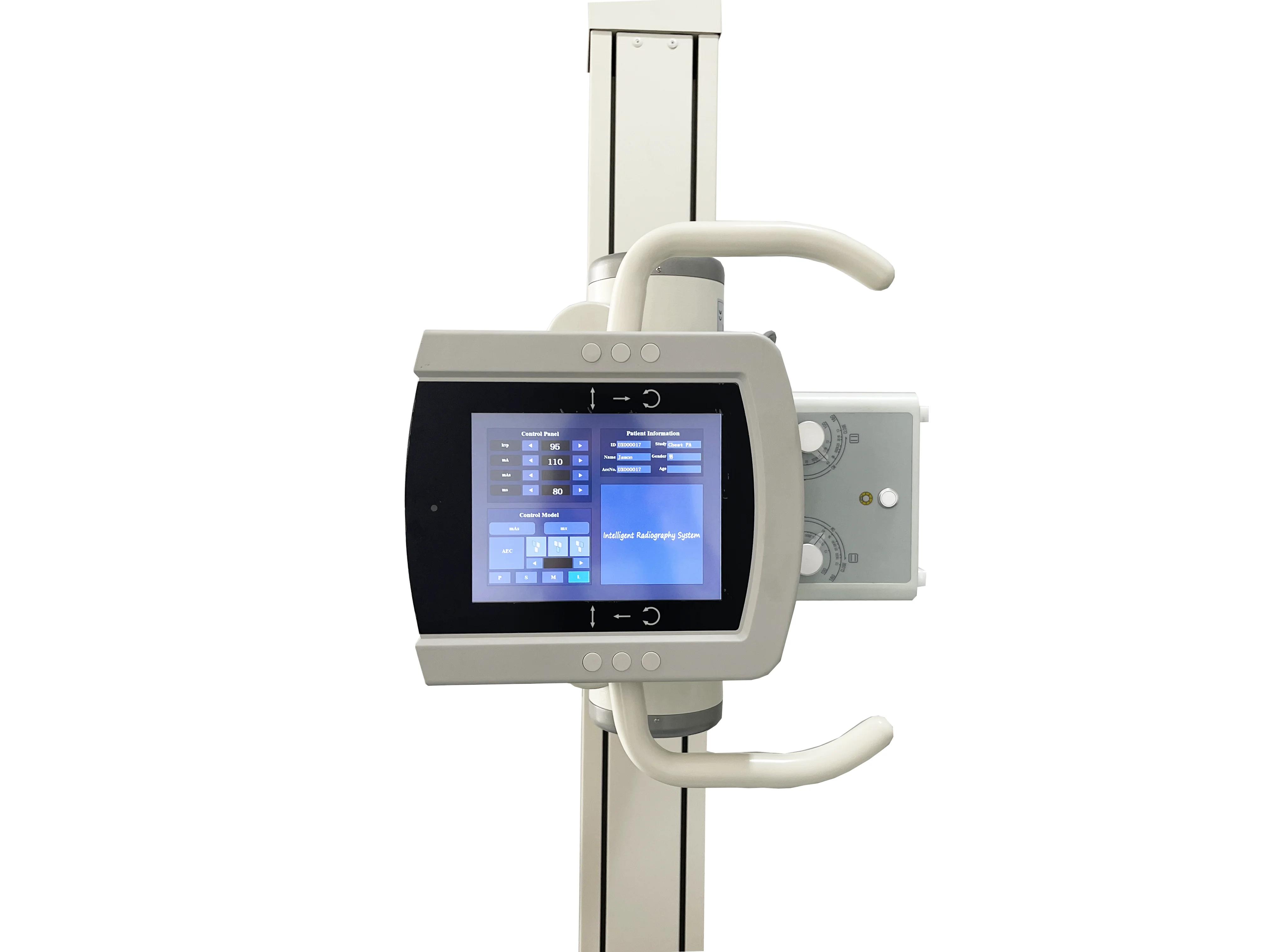

◆Intelligence high voltage control system with various APR.
◆New generation a-Si Csl flat panel detector with high conversion rate achieves digital image acquisition with low dose.

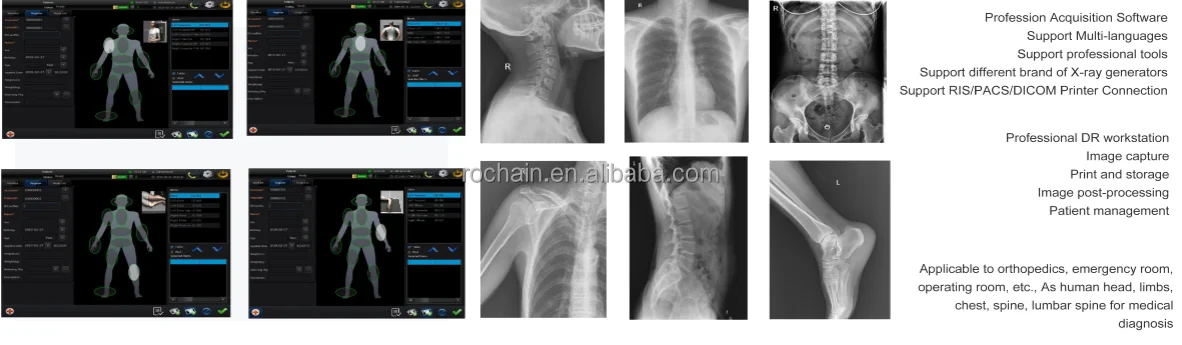

◆High standard digital image processing system provides more post-processing and meets clinical needs.
Specifications | ||
Ambient Conditions | ||
Ambient temperature | 10℃～40℃ | |
Relative humidity | 30％～75％ | |
Atmospheric | 70～106kPa | |
X-ray Generator | ||
Output power | 50KW | |
Frequency | ≧25KHZ | |
Current | 10～630mA | |
Voltage | 40～150KV | |
mAs | 0.1～630mAs | |
Exposure time | 1ms～6300ms | |
APR program | Equipped | |
Intelligent protection system | It has self-protection system. It will give an alarm and check fault code. | |

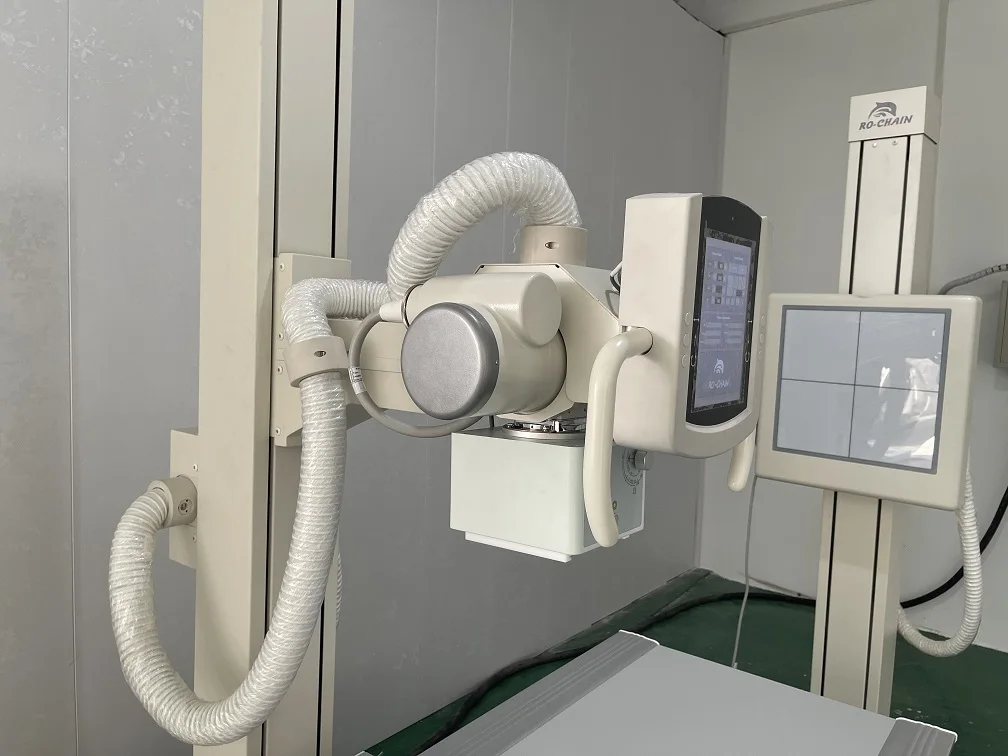

X-ray Tube | ||
Anode type | Rotating Anode | |
Focal Spot value | 0.6mm /1.2mm | |
Maximum voltage | 150KV | |
Revolving speed of anode | 2800rpm | |
Inherent filtration | 1.0mmAl | |
Anode heat storage capacity | 300kHU | |
Maximum cooling rate of anode | 870W | |
Housing heat storage capacity | 900kJ | |

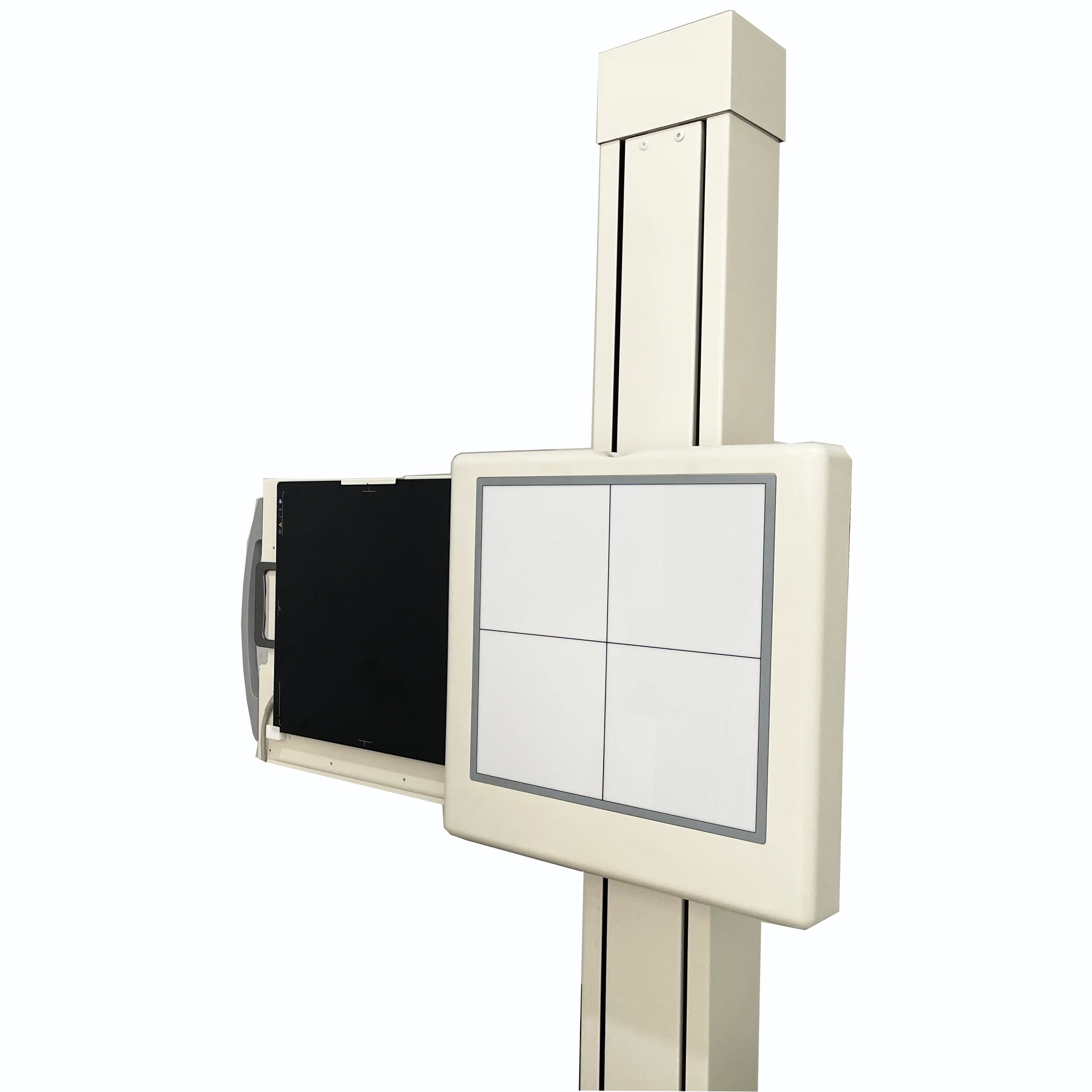

X-ray detector(Flat Panel Detector) | ||
Type | Amorphous Silicon | |
Scintillator | Cesium Iodide | |
Active Area | 17x17Inch(43cm*43cm) | |
Active Pixel | 3072*3072 | |
Pixel Pitch | 139um | |
A/D Conversion | 16bits | |
DQE | ≧70% | |
Spatial Resolution | 36Lp/cm | |
Acquisition time | ≤2S | |
