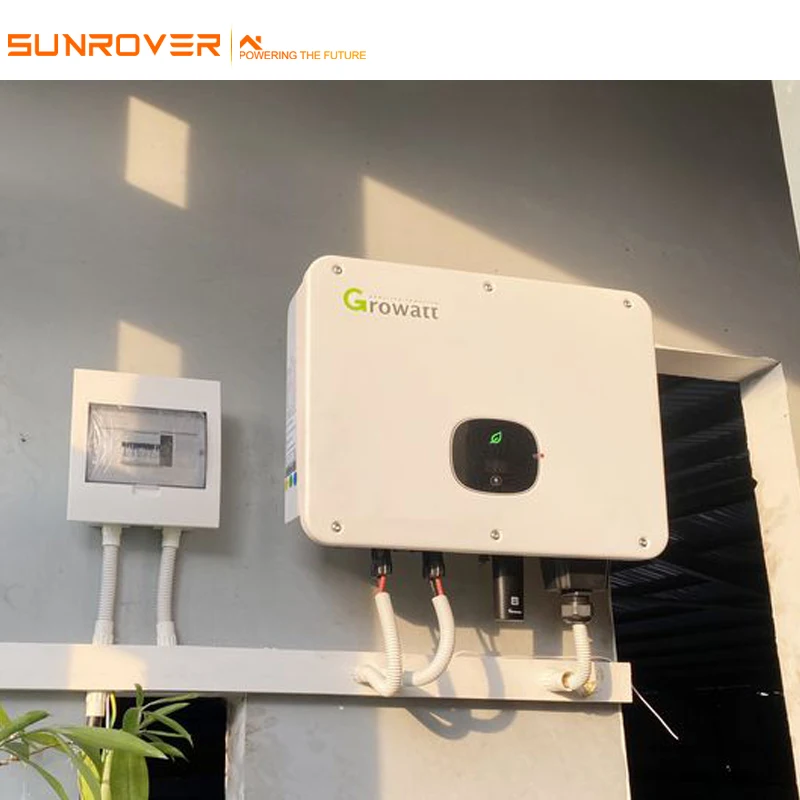

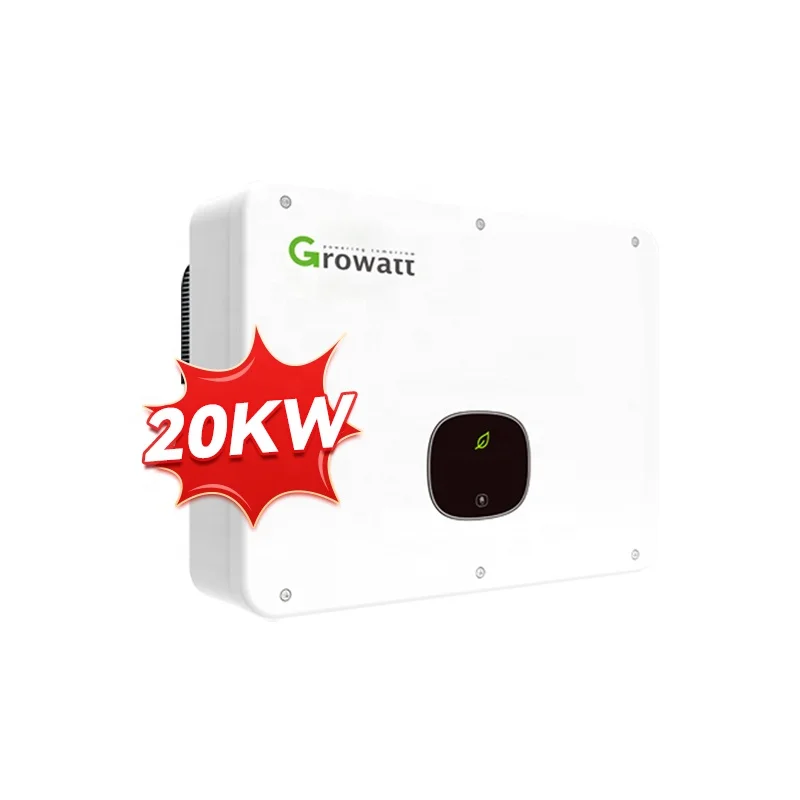

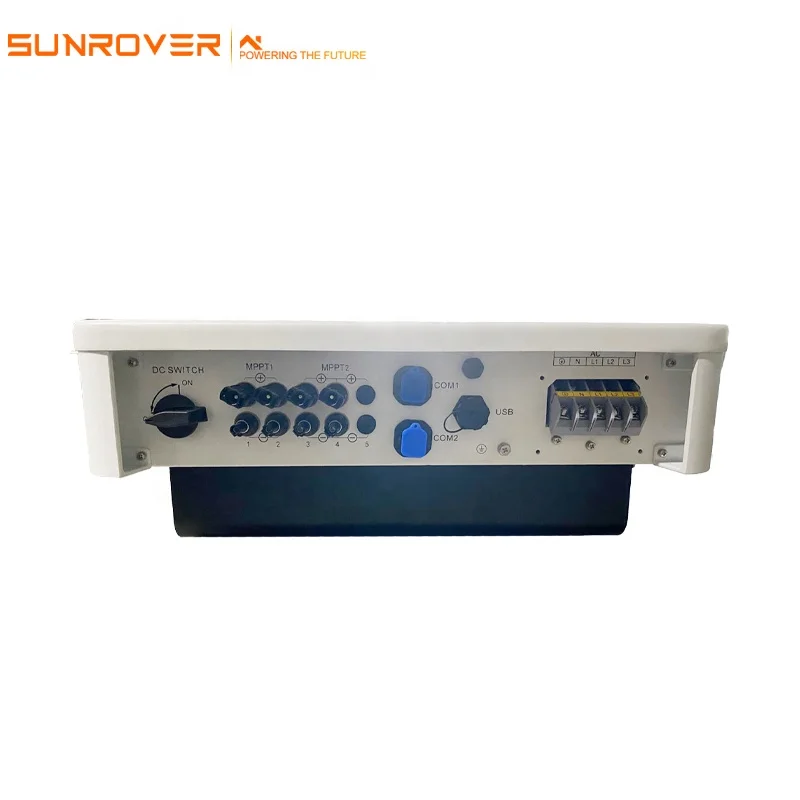

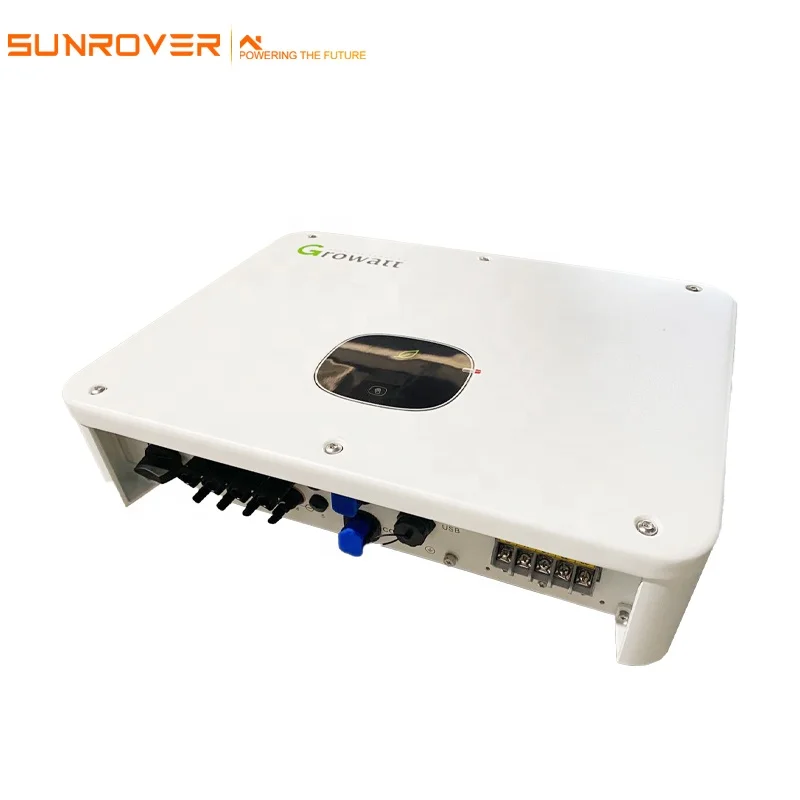

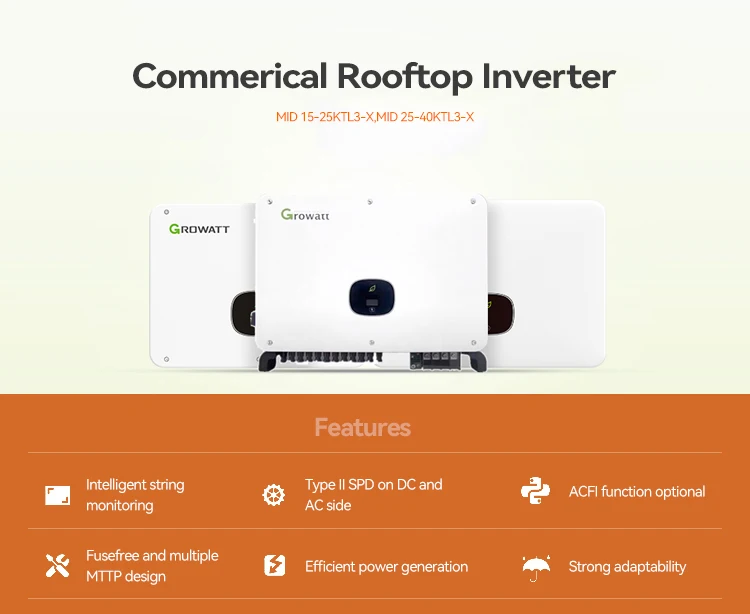

Growatt on grid system MID 15 25KTL3 X 15KW 20KW 25KW grid tie inverter for home use
- Category: >>>
- Supplier: Sunrover Power Co. Ltd.
Share on (1601022702435):
Product Overview
Description
Products Description
Specification
Model Type | MID 15KTL3-X | MID 20KTL3-X | MID 25KTL3-X | |||
Input Data(DC) | ||||||
Max.recommended PV power (for modules STC) | 22500W | 30000W | 37500W | |||
Max.DC voltage | 1100V | |||||
Start voltage | 250V | |||||
Nominal voltage | 580V | |||||
MPP voltage range | 160V-1000V | |||||
No.of MPP trackers | 2 | |||||
No.of PV string per MPP tracker | 2 | 2 | 2 | |||
Max.input current per MPP tracker | 25A | 25A/37.5A | ||||
Max.short-circuit current per MPP tracker | 32A | 32A/48A | ||||
Output Data(AC) | ||||||
AC nominal power | 15000W | 20000W | 25000W | |||
Max.AC apparent power | 16600VA | 22000VA | 27700VA | |||
Nominal AC voltage range | 220V/380V,230V/400V(340-440V) | |||||
AC grid frequency range | 50/60Hz(45-55Hz/55-65Hz) | |||||
Max.output current | 24.2A | 31.9A | 40.2A | |||
Adjustable power factor | 0.8 leading…0.8 lagging | |||||
THDi | ﹤3% | |||||
AC grid connection type | 3W+N+PE | |||||
Efficiency | ||||||
Max.efficiency | 98.75% | |||||
European efficiency | 98.60% | |||||
MPPT efficiency | 99.90% | |||||
Protection Devices | ||||||
DC reverse polarity protection | yes | |||||
DC switch | yes | |||||
AC/DC surge protection | Type II/Type III | |||||
Insulation resistance monitoring | yes | |||||
AC short-circuit protection | yes | |||||
Ground fault monitoring | yes | |||||
Grid monitoring | yes | |||||
Anti-islanding protection | yes | |||||
Residual-current monitoring unit | yes | |||||
String monitoring | Optional | |||||
AFCI protection | Optional | |||||
General Data | ||||||
Dimensions(W/H/D) | 525x395x222mm | |||||
Weight | 23kg | |||||
Operating temperature range | -25℃-+60℃ | |||||
Noise emission(typical) | ≦40 dB(A) | |||||
Self-Consumption (night) | ﹤1W | |||||
Topology | Transformerless | |||||
Cooling | Smart air cooling | |||||
Protection degree | IP 65 | |||||
Relative humidity | 0-100% | |||||
Altitude | 4000m | |||||
DC connection | H4/MC4 (Optional) | |||||
AC connection | Cable gland+OT terminal | |||||
Display | OLED+LED/WIFI+APP | |||||
Interfaces:RS485/USB/WIFI/GPRS/RF/LAN | Yes/Yes/Optional/Optional/Optional/Optional | |||||
Warranty:5 years/10 years | Yes/Optional | |||||
CE,VDE0126,Greece,EN50549,C10/C11,UTE C 15-712,IEC62116,IEC61727,IEC 60068,IEC 61683,CEI0-21,N4105,TOR Erzeuger,G98/G99,G100,UNE206007,PO12.2,KSC8565 | ||||||

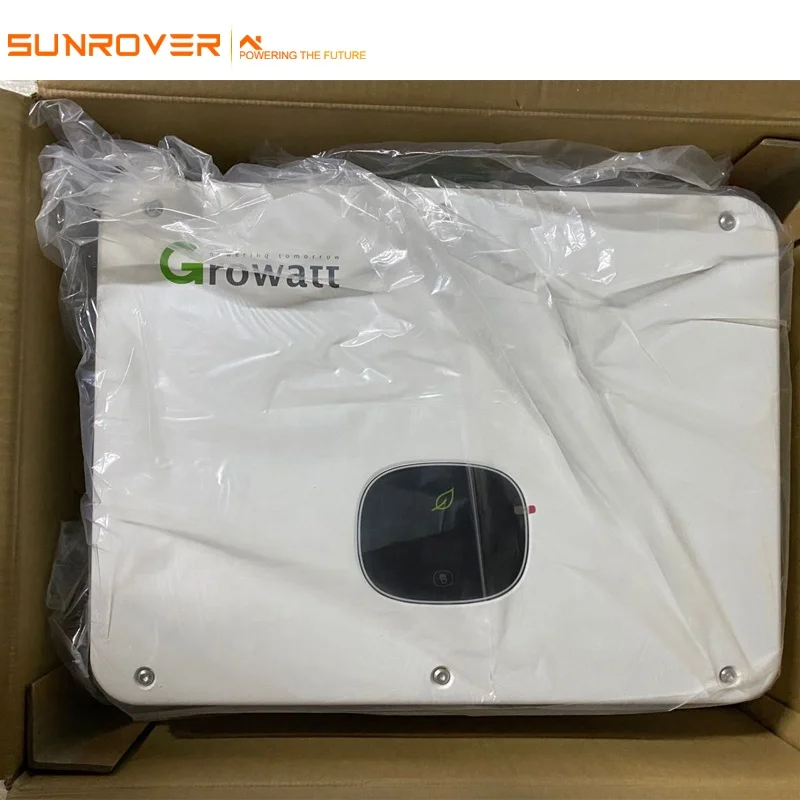

Packing & Delivery

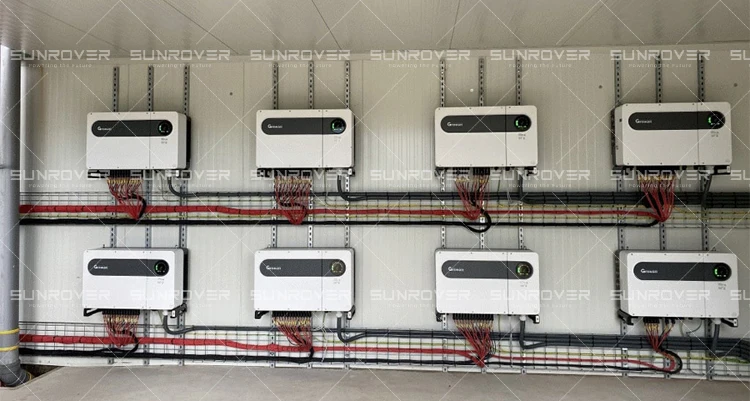

Project Case
