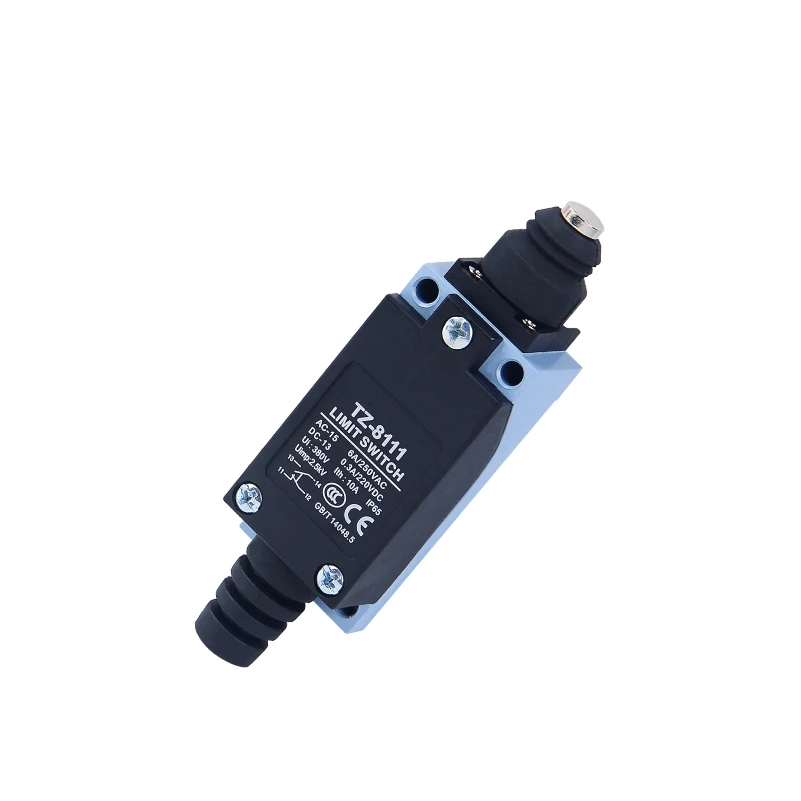

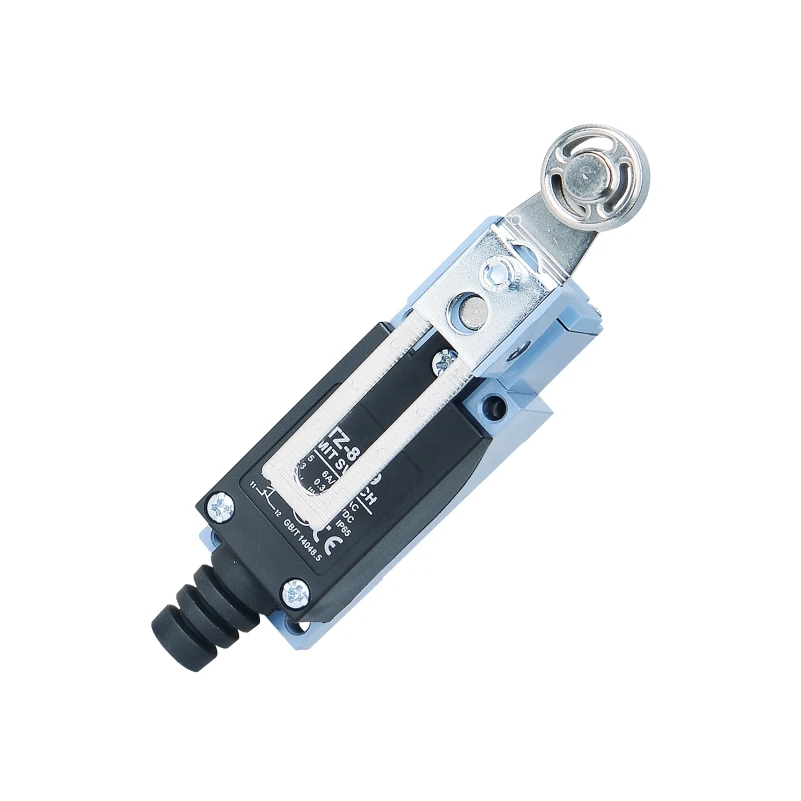

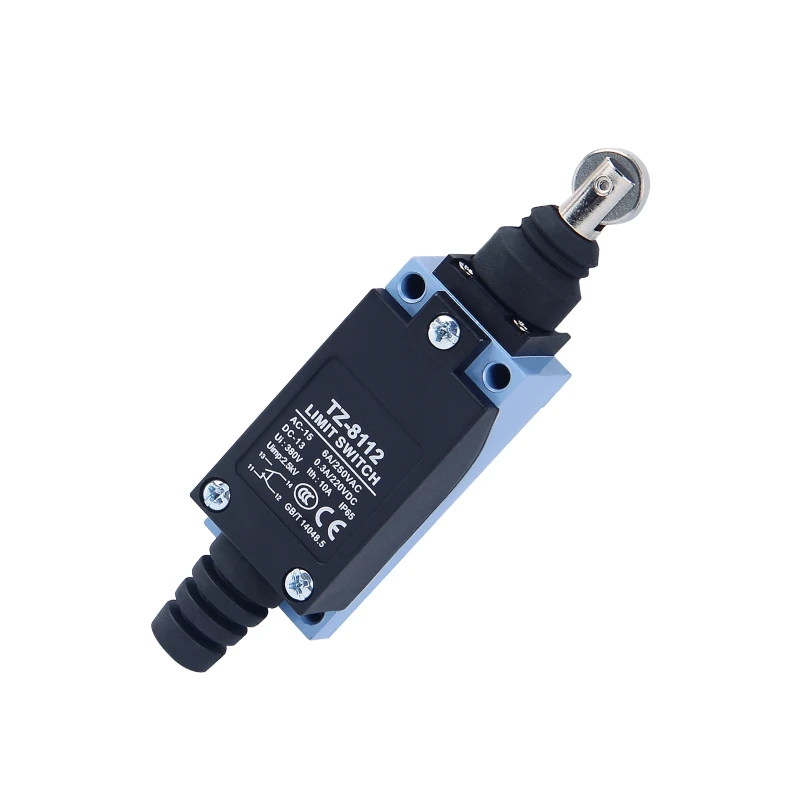

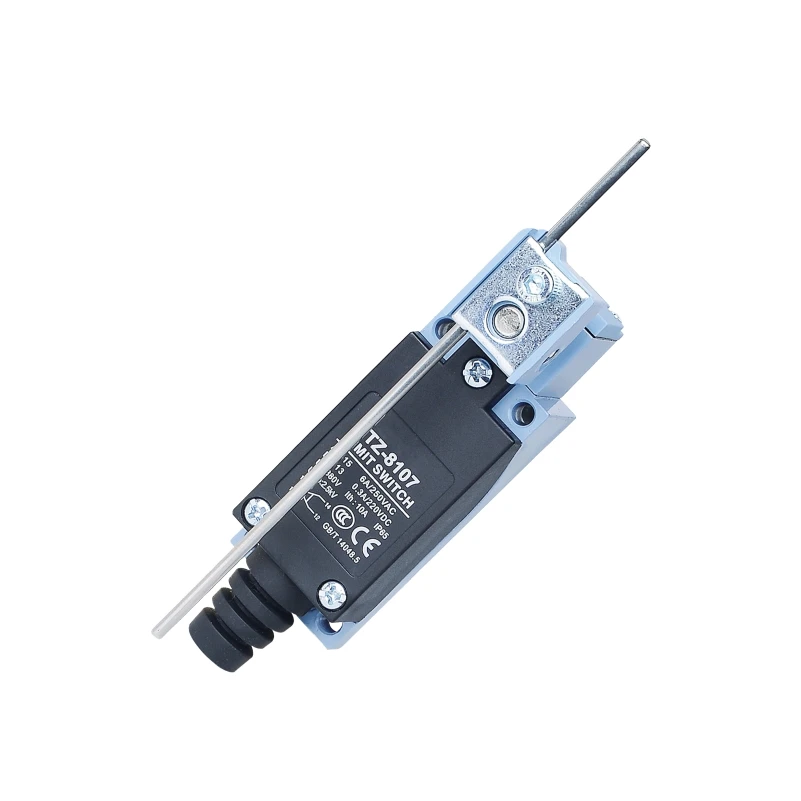

TZ 8 TZ Series Limit Switch Magnetic Compact Spring Stick Rod Type Dc Voltage Limit Switch Electrical Switch China Supplier
- Category: >>>
- Supplier: Yueqing Okey trade Co Ltd
Share on (1601022966727):
Product Overview
Description
Product Description
Specification
Operation Speed | 5mm-0.5m/s |
Operating Frequency | Electrical: 30 operations/min |
Contact Resistance | 25mΩ max. (initial value) |
Insulation Resistance | 100mΩ min. (below 500VDC) |
Dielectric Strength | 1000VAC,50/60Hz for 1 minute between terminals of the same polarity |
1500VAC,50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
1500VAC,50/60Hz for 1 minute between each terminal and ground | |
Vibration | 10-55Hz, 1.5mm double ampliude |
Shock | Mechanical durable: 1,000m/Sec² (about 100G'S) |
Malfunction: 300m/Sec² (about 30G'S) | |
Ambient Temperature | Using: -20~+70℃ (With no icing) |
Humidity | <95% RH |
Electrical Life | 500,000 operations above |
Degree of Protection | IP65 |
Noninductive Load (A) | Inductive Load (A) | ||||||||||||||
Rated Voltage | Resistance Load | Lamp Load | Inductice Load | Motor Load | |||||||||||
NC | NO | NC | NO | NC | NO | NC | NO | ||||||||
125VAC | 5 | 5 | 1.5 | 0.7 | 3 | 3 | 2 | 1 | |||||||
250VAC | 5 | 5 | 1 | 0.5 | 3 | 3 | 1.5 | 0.8 | |||||||
8VDC | 5 | 5 | 3 | 3 | 5 | 4 | 3 | 3 | |||||||
14VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 | |||||||
30VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 | |||||||
125VDC | 0.4 | 0.4 | |||||||||||||
250VDC | 0.2 | 0.2 | |||||||||||||
Inrush Current | N.C: below 24A, N.O: below 12A | ||||||||||||||

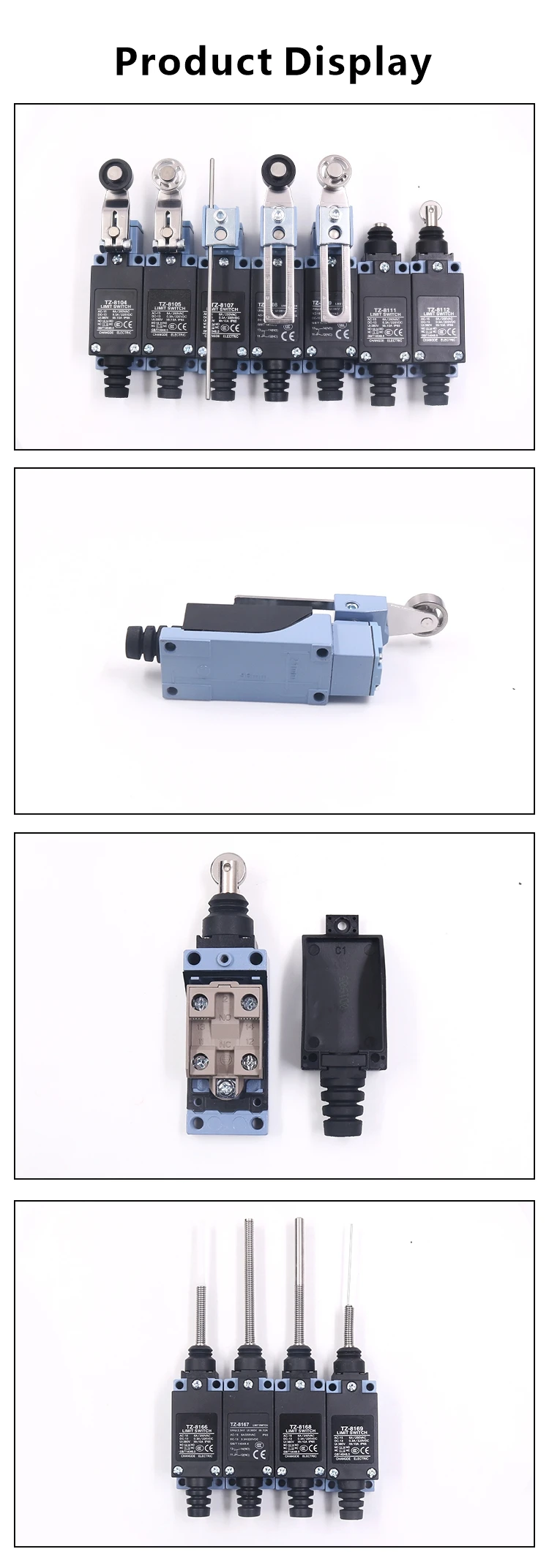

Details Images
Company Profile
Packing & Delivery
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2014,sell to Domestic Market(30.00%),South America(25.00%),Southeast Asia(15.00%),Western Europe(10.00%),South Asia(10.00%),North America(5.00%),Eastern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switching power supply,Power inverter,Solar controller,Scrolling system,Cable ties
4. why should you buy from us not from other suppliers?
Our company now has over 60 staffs ,5 senior engineers ,10 export sales ,also our company have established the strong partner-ship with over 50 factories .
Quality management is the life of our company
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Hindi
We are based in Zhejiang, China, start from 2014,sell to Domestic Market(30.00%),South America(25.00%),Southeast Asia(15.00%),Western Europe(10.00%),South Asia(10.00%),North America(5.00%),Eastern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switching power supply,Power inverter,Solar controller,Scrolling system,Cable ties
4. why should you buy from us not from other suppliers?
Our company now has over 60 staffs ,5 senior engineers ,10 export sales ,also our company have established the strong partner-ship with over 50 factories .
Quality management is the life of our company
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Hindi
