J3455 CPU 2 POE Lan port vehicles small pc X86 fanless embedded industrial pc
- Category: >>>
- Supplier: Shenzhen Pontron technology Limited
Share on (1601022997781):
Product Overview
Description
Product Description
Main Feature:
« Compacting fanless design
« Support Intel Celeron J3455
« Support 3*Gigabit LAN(2*POE Intel I211AT)
« Support DC9~36V power supply
Introduction:

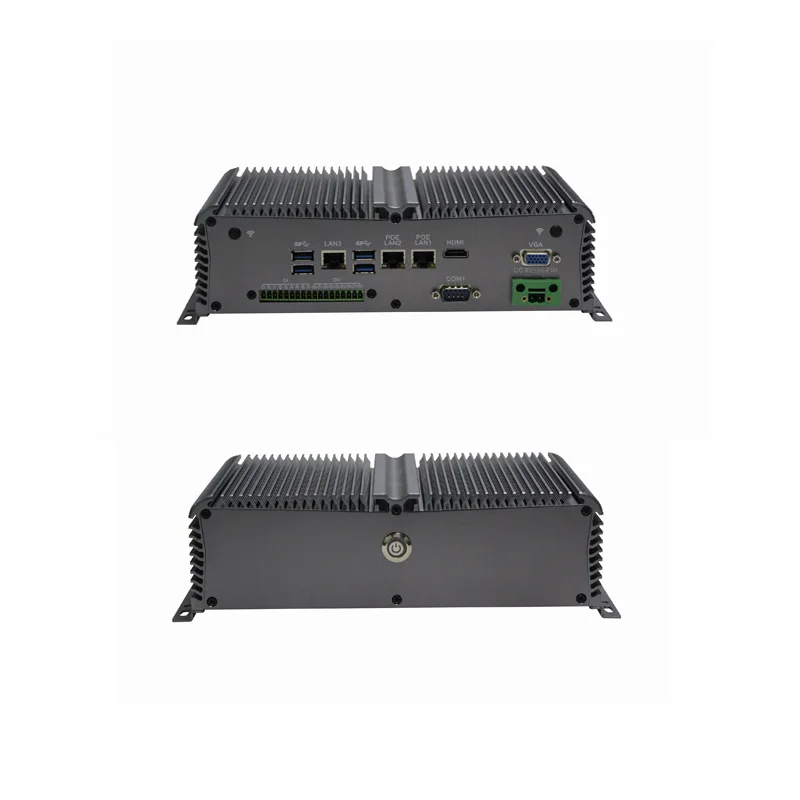

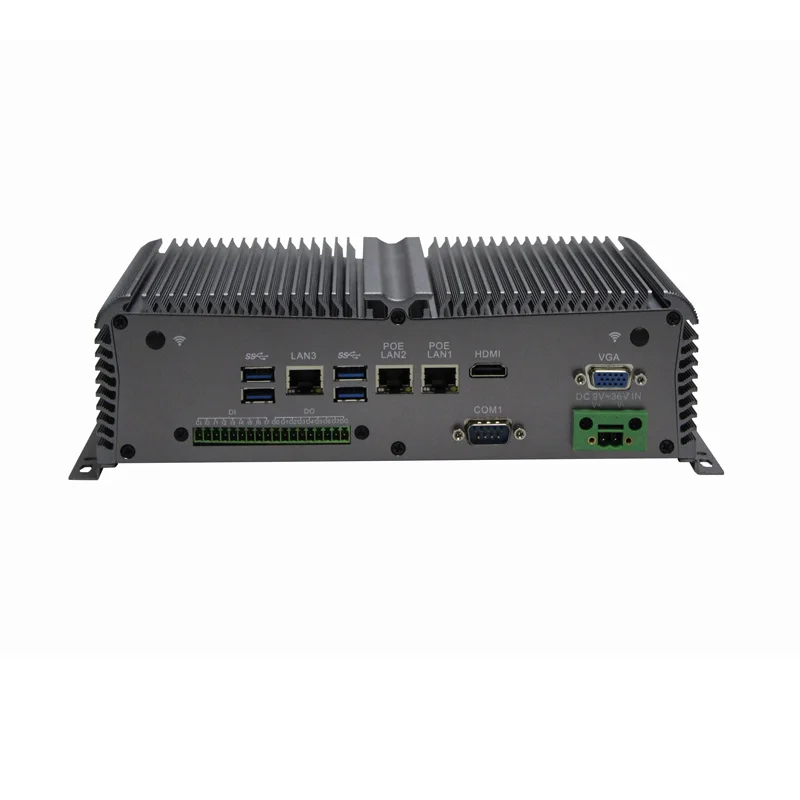

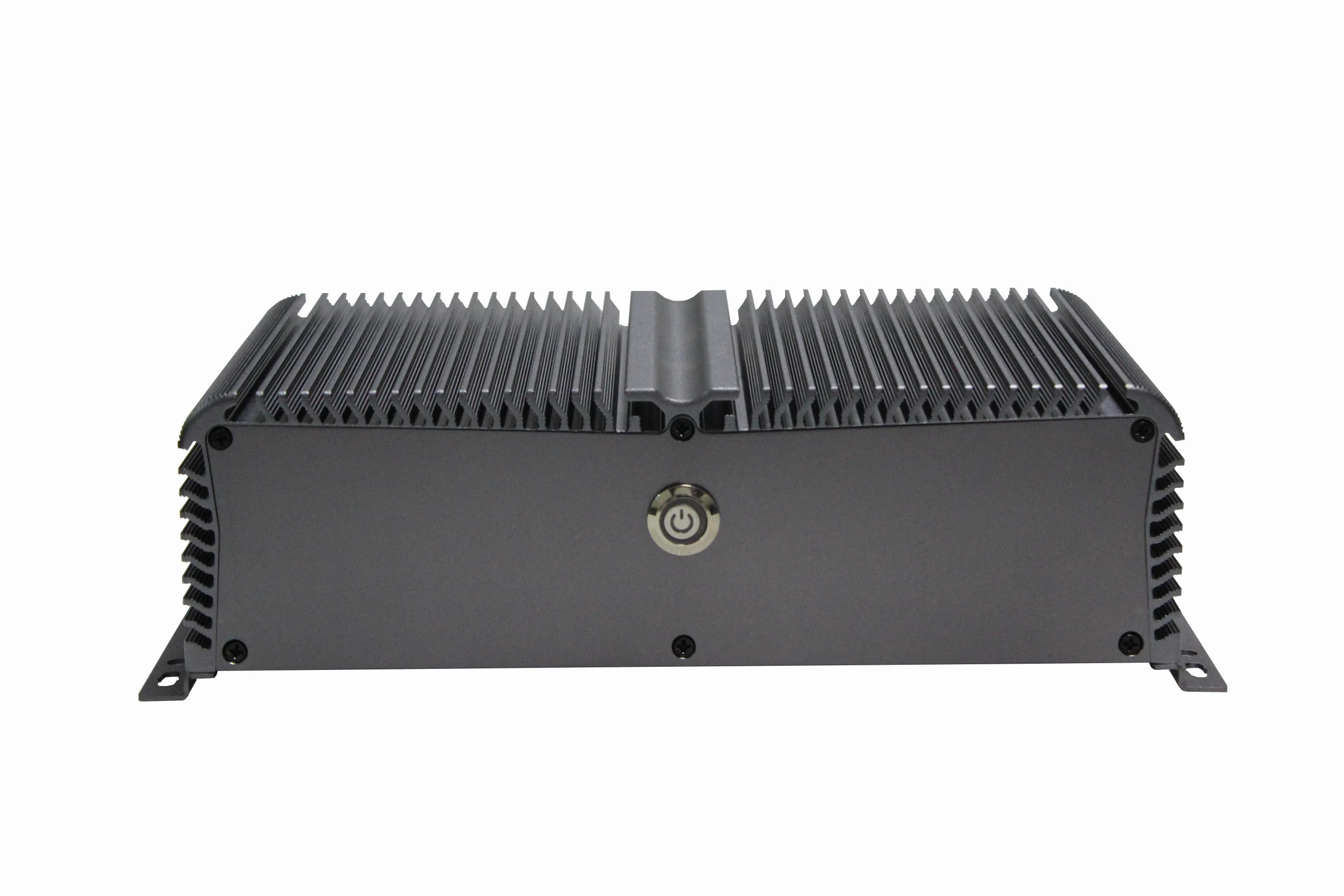

« IBOX-35L2-J3455 series is Industrial embedded computer with Intel Celeron J3455, which comes with 1*VGA, 1*HDMI, 1*COM, 2*USB2.0, 2*USB3.0, 3*Gigabit LAN(2*POE Intel I211AT), DC 9~36V Input with compacting fanless design.
« It’s very good heat scattering and beautiful appearance, being popular in the whole market. Industrial computer help user to save space with multi-functions which can be used to Intelligent car, Environmental control, equipment, industrial line, transportation, automation, communication etc.
Specification:
Material | Industrial Al-alloy |
CPU | Intel Celeron J3455 |
Memory | Onboard DDR3 4GB |
Storage | 64GB/128GB/256GB SSD / 500GB HDD |
Expansion slot | 1*2.5’’ HDD Expansion slot, 1*mSATA |
I/O | 1*Audio |
1 * VGA + 1*HDMI | |
1*LAN, 2*POE LAN Intel I211AT | |
2*USB 2.0, 2*USB 3.0 | |
1* COM | |
8*DI & 8*DO(optional) | |
WIFI/4G(optional) | |
Power supply | DC 9~36V Input |
Watchdog timer | Programmable overtime interrupt or recovery |
Color | Black (optional) |
OS | Windows 10, Linux, Unix |
Dimension | 248(L) x 150(W) x 78(H) mm |
N.W | 1.86KG |
Operating Temperature | -10°C ~60°C |
Storage Temperature | -30°C ~ 80°C |
Humidity | |
Vibration | 5 grms / 5 ~ 500Hz in working status(SSD) 1 grms / 5 ~ 500Hz in working status(Built-in HDD module) |
Shock | 50 g peak acceleration(11ms duration)(SSD) 20 g peak acceleration(11ms duration)(Built-in HDD module) |
Ordering Information:
IBOX-35L2-J3455 | Industrial embedded computer with Intel J3455 CPU, W/DDR3 4GB, W/Msata 64GB SSD, W/2*LAN POE, W/1*LAN, W/1*COM, W/2*USB3.0, W/USB2.0, W/HDMI, W/VGA, W/DC IN 9~36V. |
