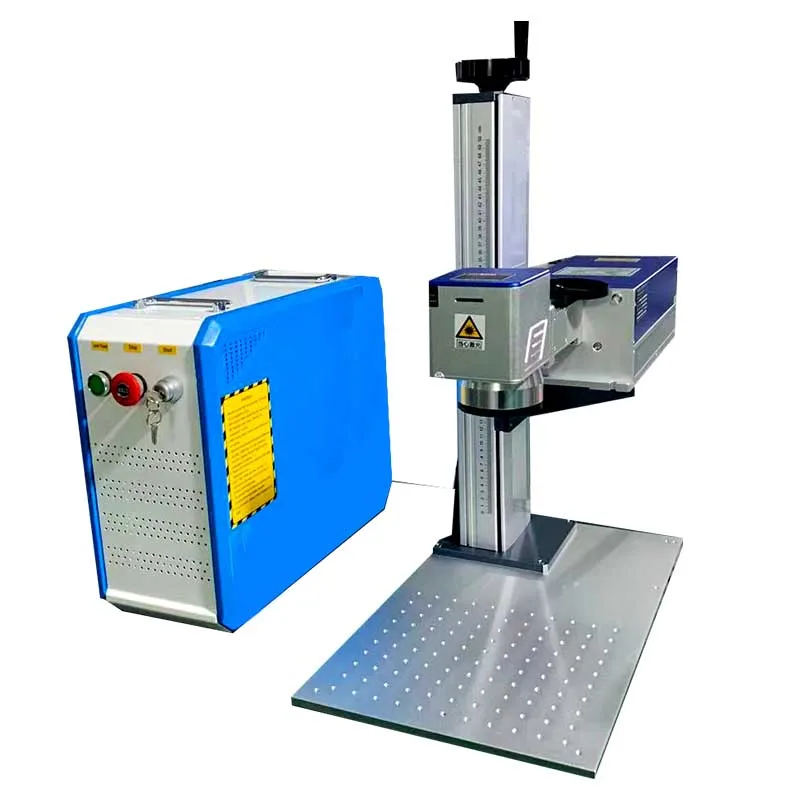

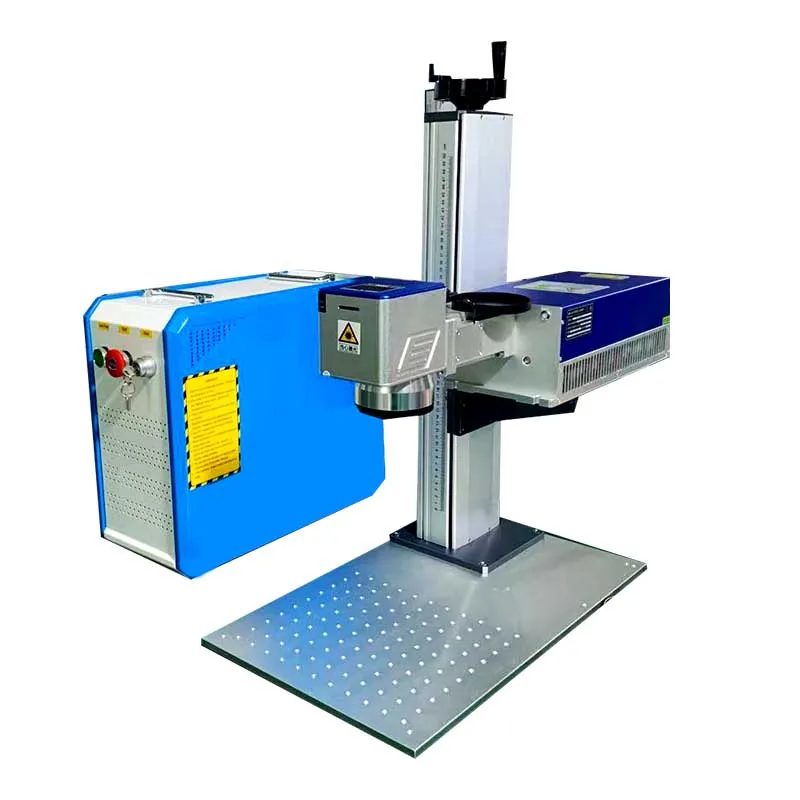

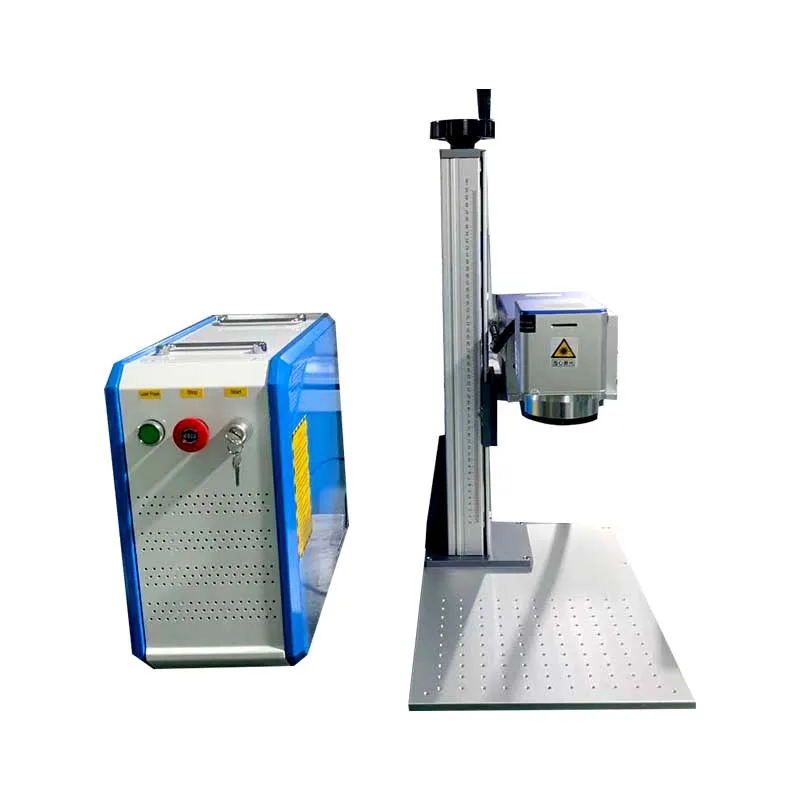

5W UV Laser Marking Machine and Laser Engraving Machine Glass Plastic Paper Cloth Ceramic

Model

YK-3W

YK-5W

Wavelength

355nm

Marking power

≥3W

≥5W

Beam quality M²

<1.2

Beam diameter

1.8±0.1mm

Laser working mode

Pluse

Repetition rate

10~120KHZ

Standard engraving range

110*110mm

Optional engraving range

110*110mm/ 150*150mm/ 200*200mm

Minimum line width

0.03mm

Minimum character

0.1mm

Repeat accuracy

±0.02mm

Electrical requirements

100~240V,50/60HZ

Cooling method

Air cooling or water cooling

Other features

Electric control box and laser head interconnection cable length of 2.5 meters

Ambient temperature: 18~35℃

Power consumption

800W

Standard accessories

Cabinet work table, size: 600 * 1130 * 1543mm Lifting range: 80-500mm

Display, keyboard, mouse, pad

Foot switch, laser control panel

Optional accessories

Smoke purifier: beneficial to clean and beautify work space
