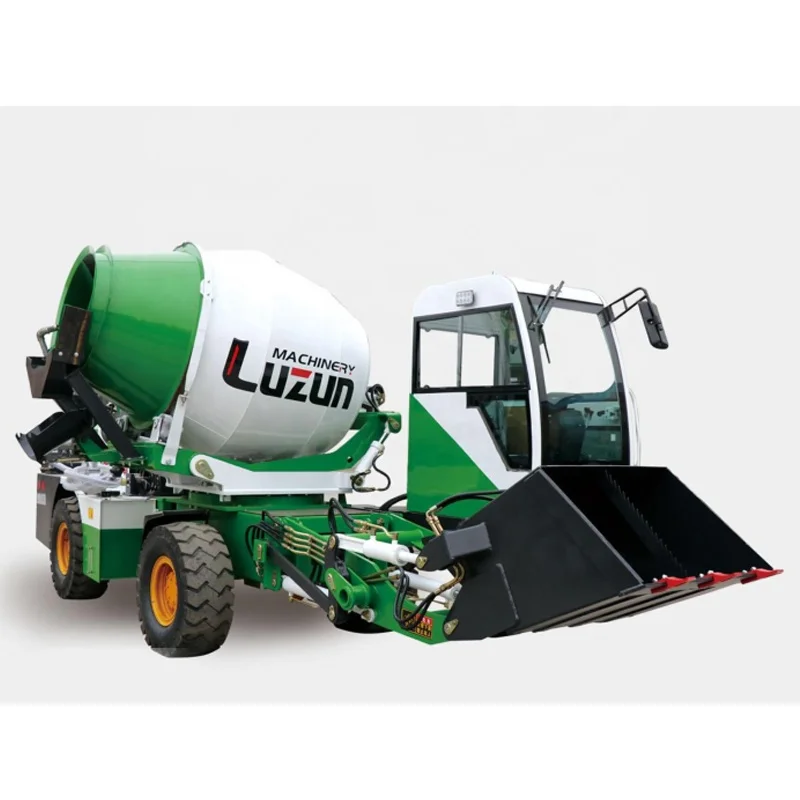

LUZUN original factory sale small mobile 1M3 self loading concrete mixer truck
- Category: >>>
- Supplier: Laizhou Luzun Machinery Co. Ltd.
Share on (1601023084629):
Product Overview
Description

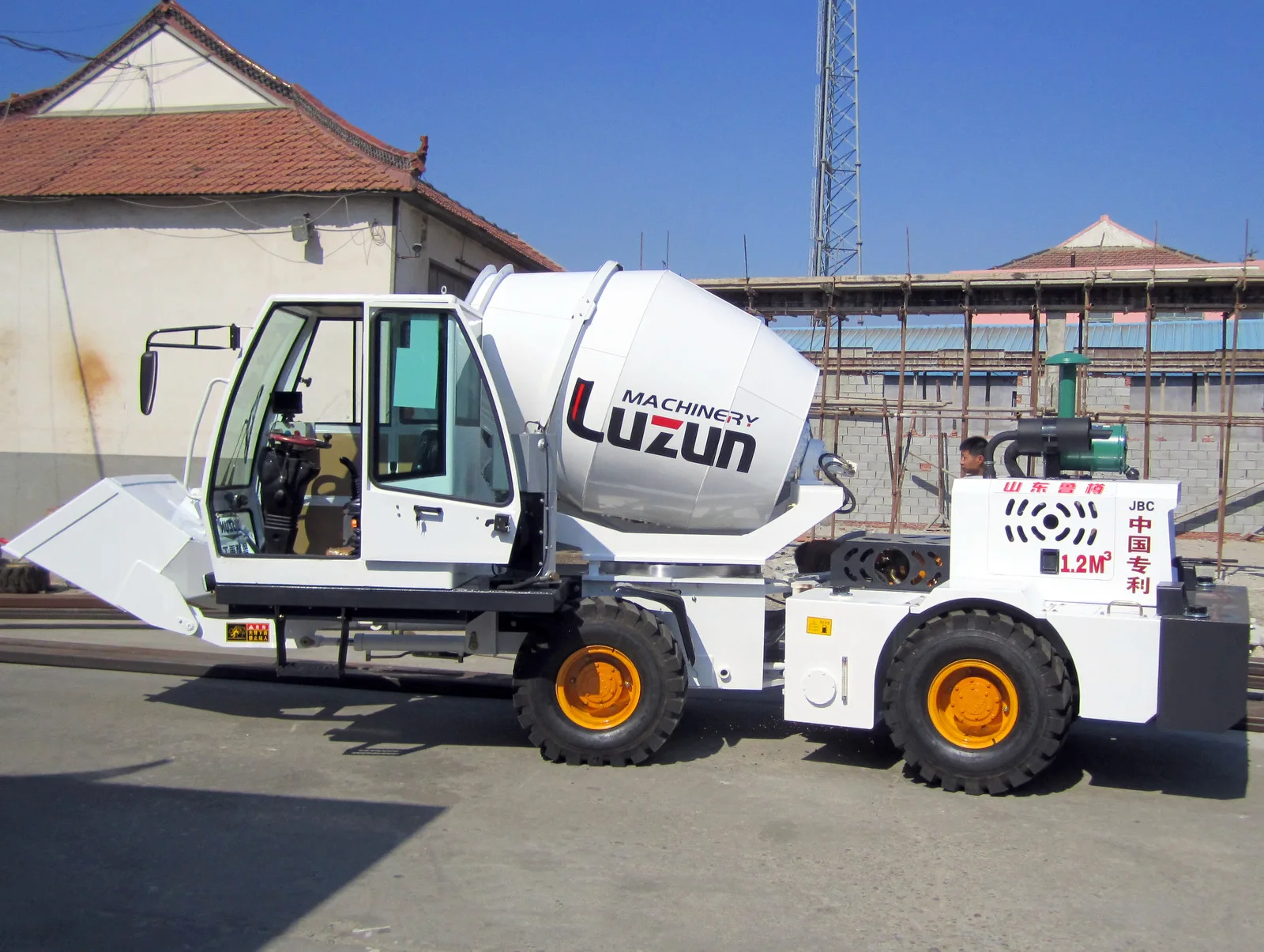

1.2M3 small portable self loading concrete mixer
Luzun self loading concrete mixer truck is used to solve the problem that the prior mixer truck has a single function and can only carry out the concrete conveying task. The self loading mixer truck comprises a mixing body, and the body is equipped with a mixing drum. The drum is driven to rotate by the hydraulic mechanism. The drum is inclined, with an opening at the highest end. At the opening there is a feeding port fixed to the mixer truck. The drum is equipped with stirring screws. The two sides of the mixing drum are symmetrically provided with a boom. One end of the boom is hinged on the mixing body, and the body is further provided with a lifting cylinder to lift and lower the booms. A hopper is fixed between the two booms, and is provided with a door at the end near the feeding port. A discharging cylinder for controlling opening and closing of the door is provided on the hopper. The fully automatic loading mixer has a simple structure and is easy to use. It can realize the loading, mixing and unloading of concrete without excessive staff operation, which is economical and practical.
PRODUCT SPECIFICATIONS
Engine | Yunnei/Yuchai/ Cummins |
Rated Power | 55KW (75HP) |
Type | 4-cylinders |
Max Torque | 330nm/2400rpm |
Chassis | articulated chassis |
Driving type | 4*4 |
Tyre | 12-16.5-12PR |
Hopper volume | 700L |
Generator | 28V-500Wa(18A) |
Geometrical volume | 2.6 cbm |
Concrete output | 1.2 cbm/batch, 4.8-5 cbm/hour |
Drum rotating speed | 15rpm |
Drum slewing angle | 0/180/270 |
Water tank | 2*260L |
Water pump | 24v self priming pump |
Hydraulic gear pump | Dehong/Permco/Sunny |
Gradient | 30% full loaded |
Max speed | 25km/h |
Size | 4880*2800*3150mm |
Weight | 4800kg |
Max.total weight | 7680kg |
Cab | colsed, with warm/cool air conditioner |
Fuel tank | 100L |
Total hydraulic capacity | 100L |
Engine oil | 16L |
Details Images
Articulated chassis and steering, transmission by hydraulic
External water pump with big suction for filling water into the water tank
Comfortable and closed cabin
high pressure washer to clean the machine

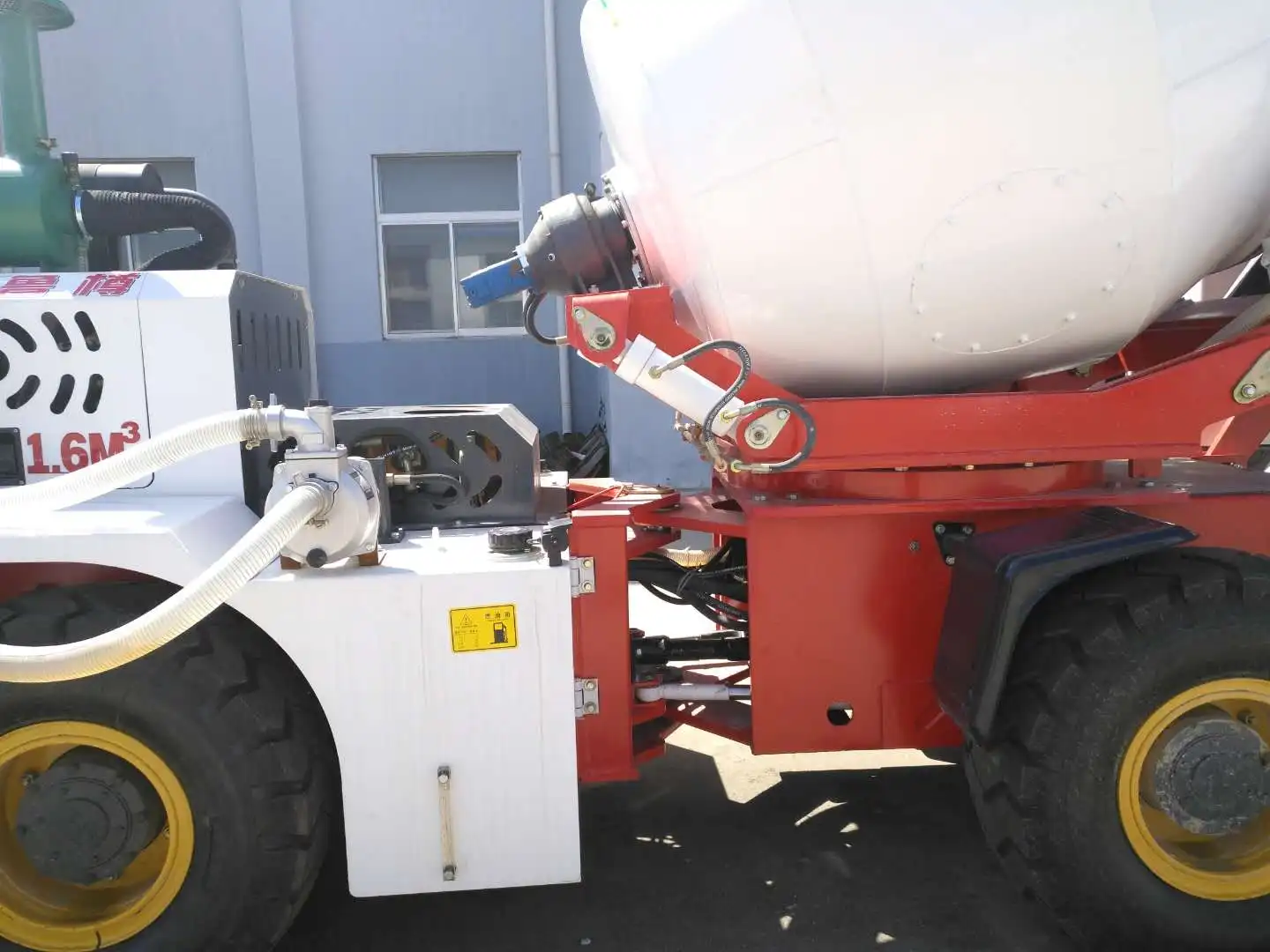

Cycloid motor for mixing drum

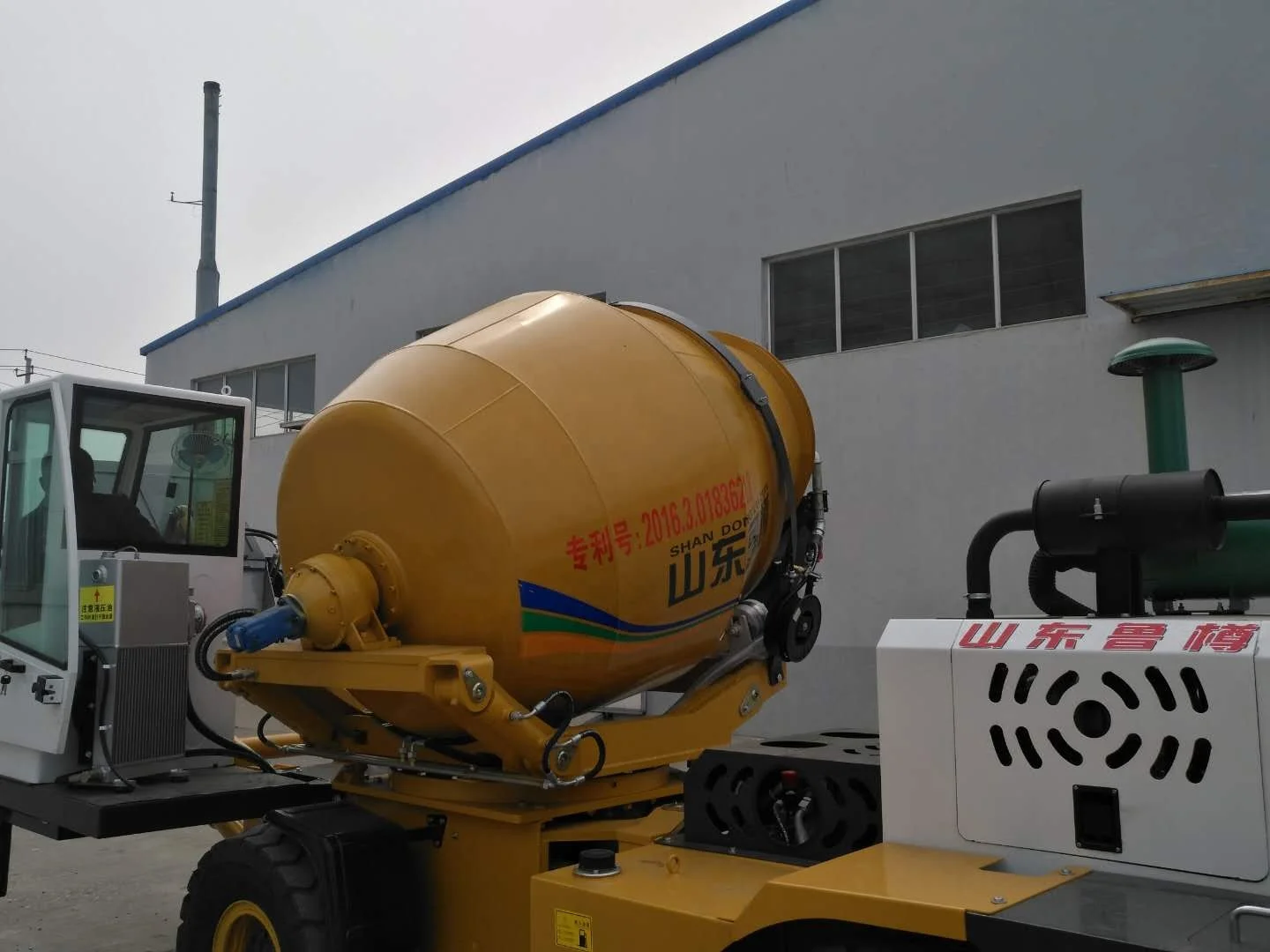

The drum can rotate 270 degree to discharge
Customers & Expos
LUZUN self-loading concrete mixer has been continuously exported to dozens of countries like Hungary, Saudi Arabia, Algeria, Panama, Venezuela, Russia, Uzbekistan, Kazakhstan, India, Malaysia, the Philippines, Vietnam, Cambodia, Kenya, Somalia, etc. and has become the most popular mixer trucks in local markets.
Client Projects
Luzun self loading mixer truck has the characteristics of narrow body, short wheelbase and small turning radius, thus it has strong advantages in the working environment of limited height, width and length. For projects with narrow construction roads, the machine can realize multi-angle unloading without moving on the ground, as its tank can be rotated by 270°. Therefore, it is very suitable for road construction.
It is used for the grouting pump equipment for the mixing of cement slurry, mortar and so on. It can be used in construction and maintenance of construction metallurgy, railway bridges, prestressing, etc. The mixer is small in size, light in weight, easy to install and move, simple to operate, easy to use, and trusted by users.
