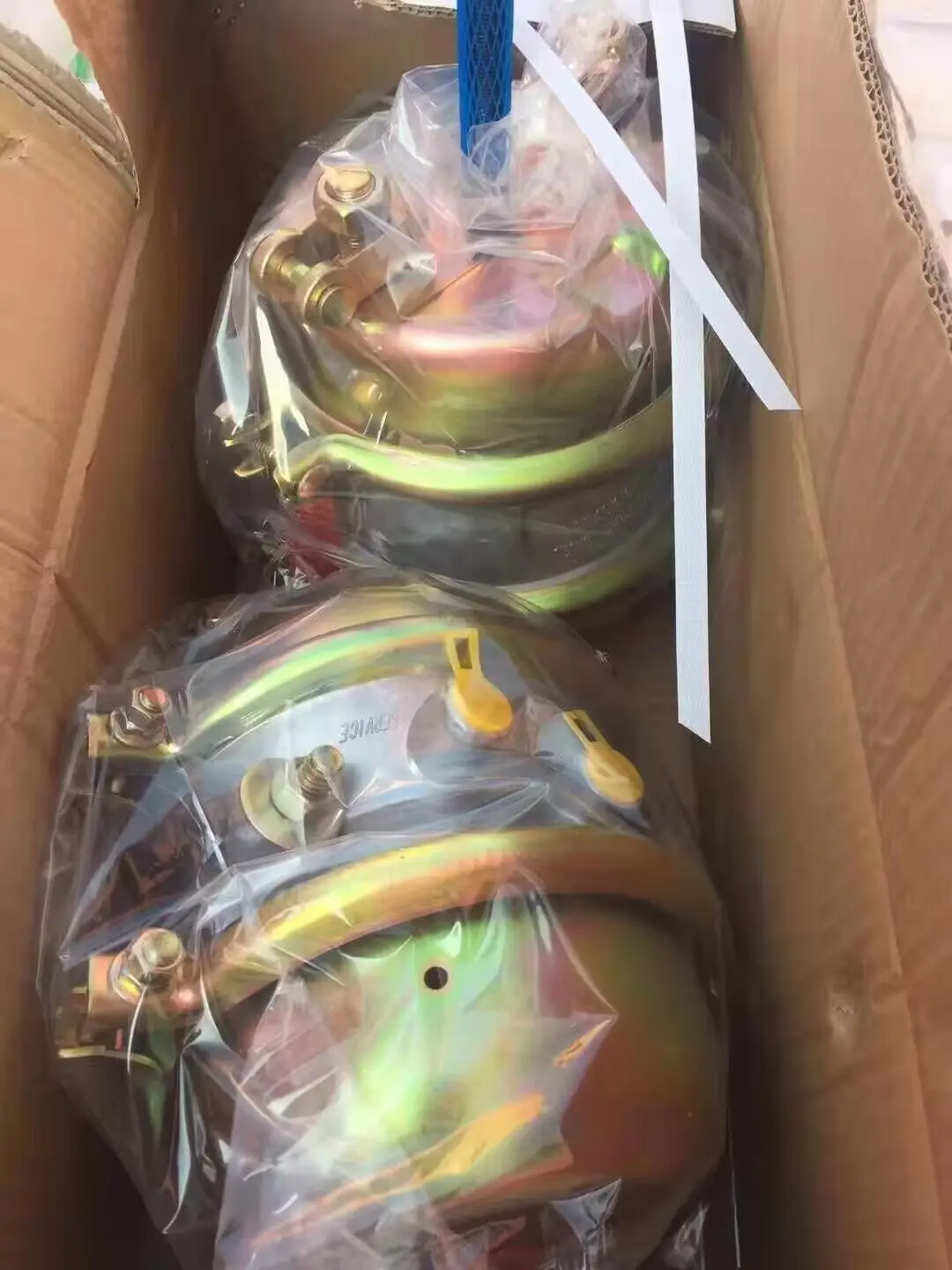

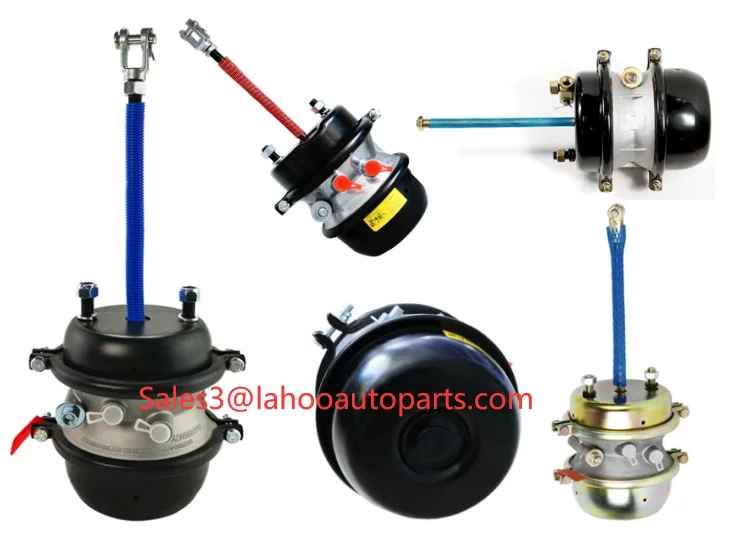

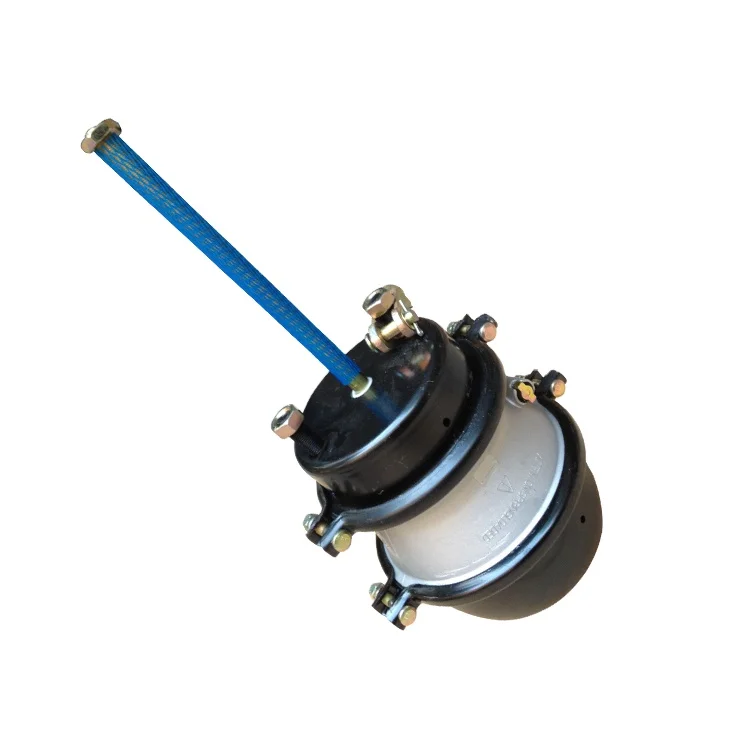

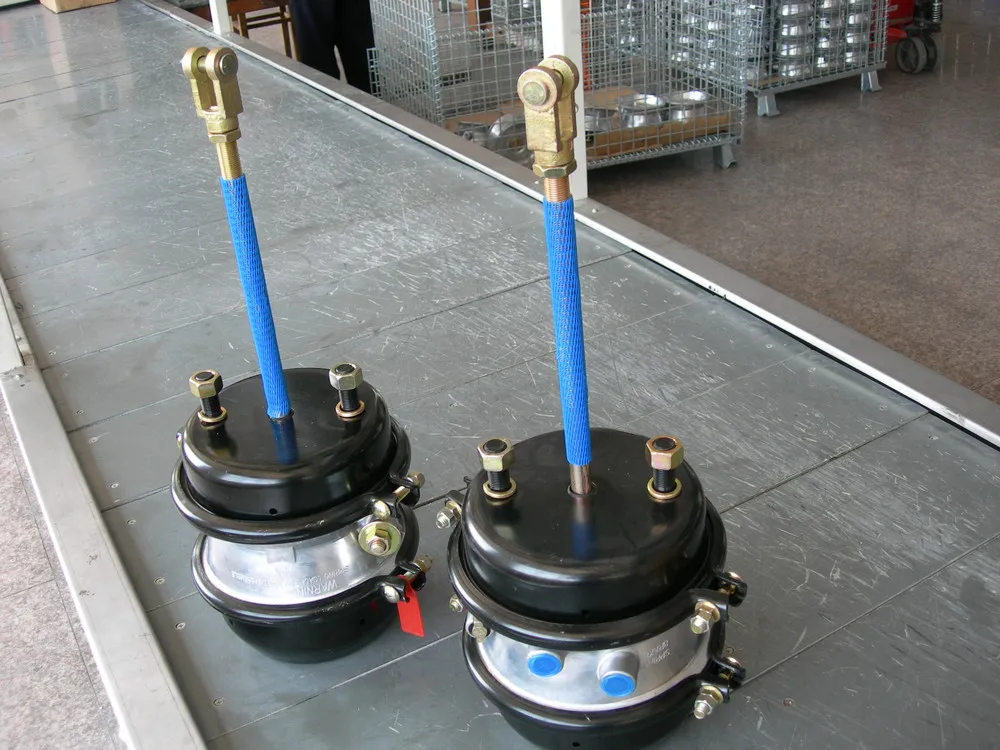

Truck Trailer Parts Air Brake Chamber T3030 T2424 for Truck Trailers
1.Product Introduction
Air brake chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply
the brakes and stop the vehicle.There are two kinds of air brake chambers: service brake chamber and spring brake chamber.

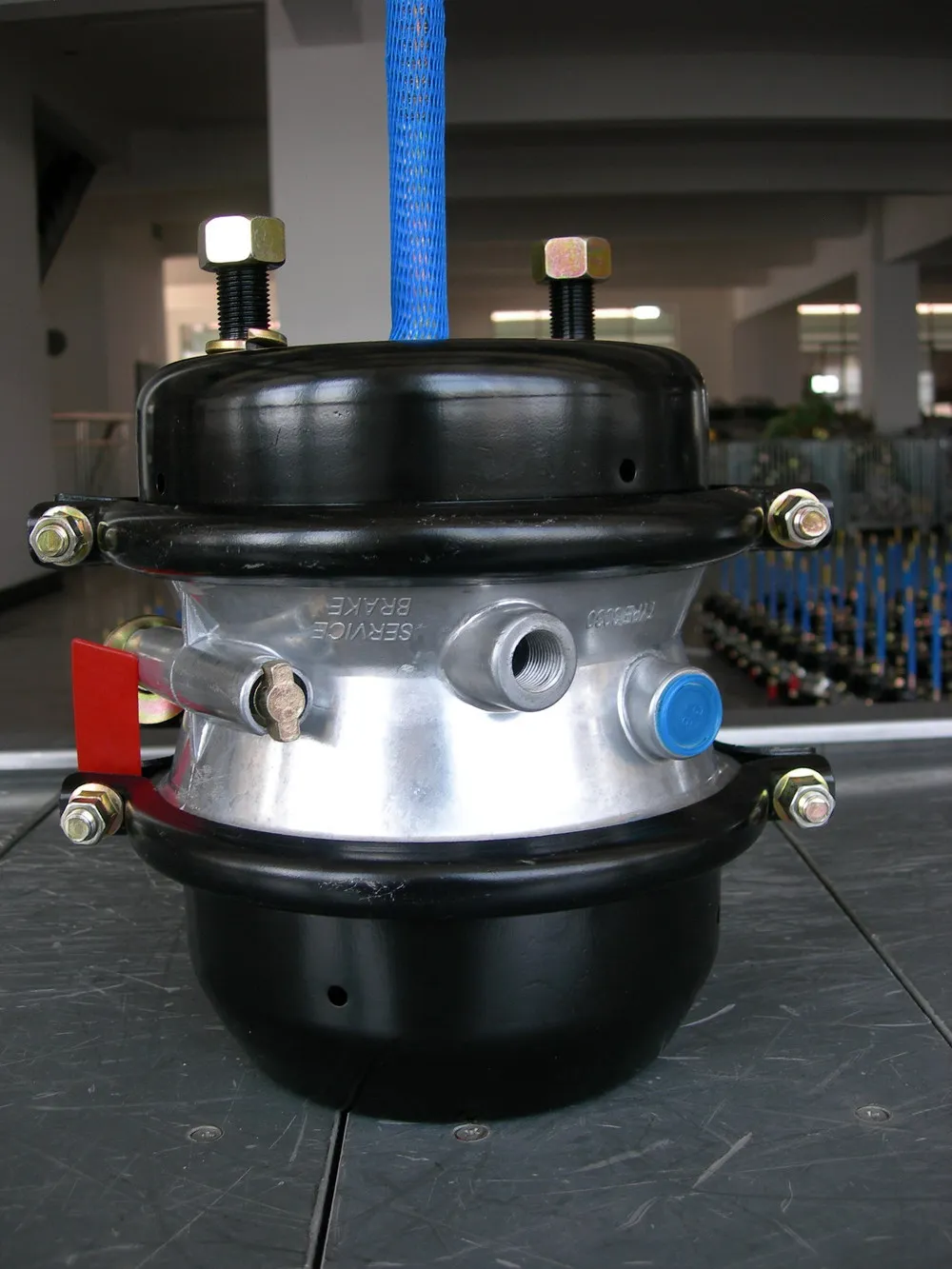

Service Brake Chamber(T09/T12/T16/T20/T24/T30)
The service brake chamber is used when only the application of service brake air is required on an axle.
There will be no emergency braking provided on this axle.
2.Product Specification

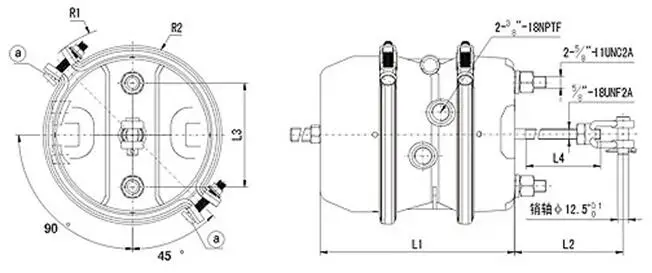

Item No. Stroke
R1 R2 L1 L2 L4 Push Rod Thread Air Inlet Thread Mounting Bolt Thread mm mm mm mm mm mm LHC-T3030 64 125 105 238±5 285±5 255±5 5/8''-18UNF2A 3/8''-18NPTF 5/8''-11UNC2A
3.Product Features
Material: Steel & rubber
Max operating pressure: 800Kpa ~ 1Mpa
Operating temperature: -40 °C~+80 °C
Stroke: 0-76mm
Life-time: Service Chamber: ≥1000000 times
Life-time: Parking Chamber: ≥200000 times
Application: Volvo, Iveco, Man, Benz, Hino, etc.
Leading Standard: SAE J1469-95 by Society of Automobile Engineers USA
