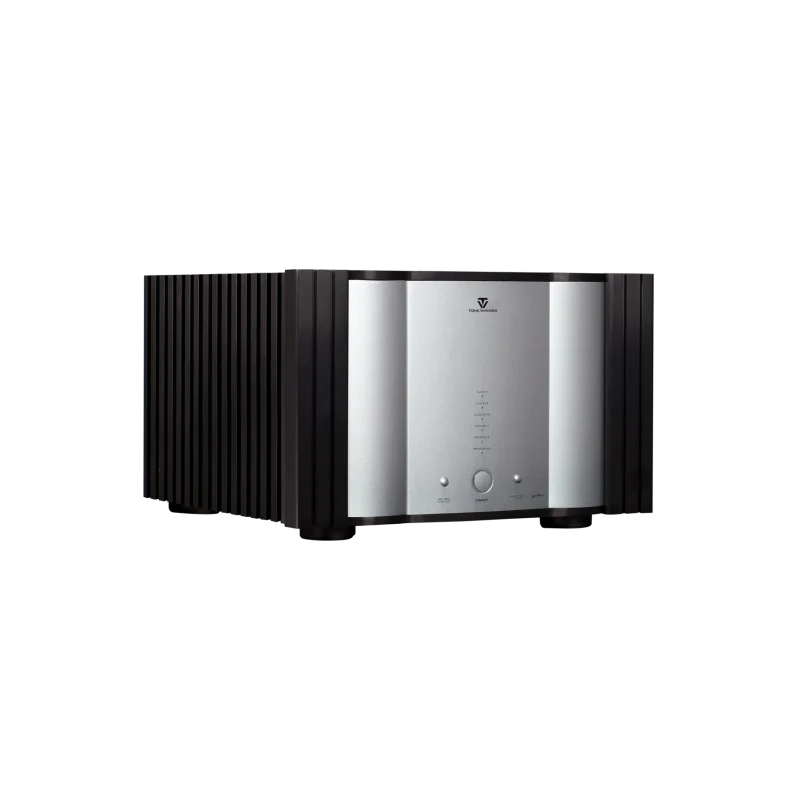

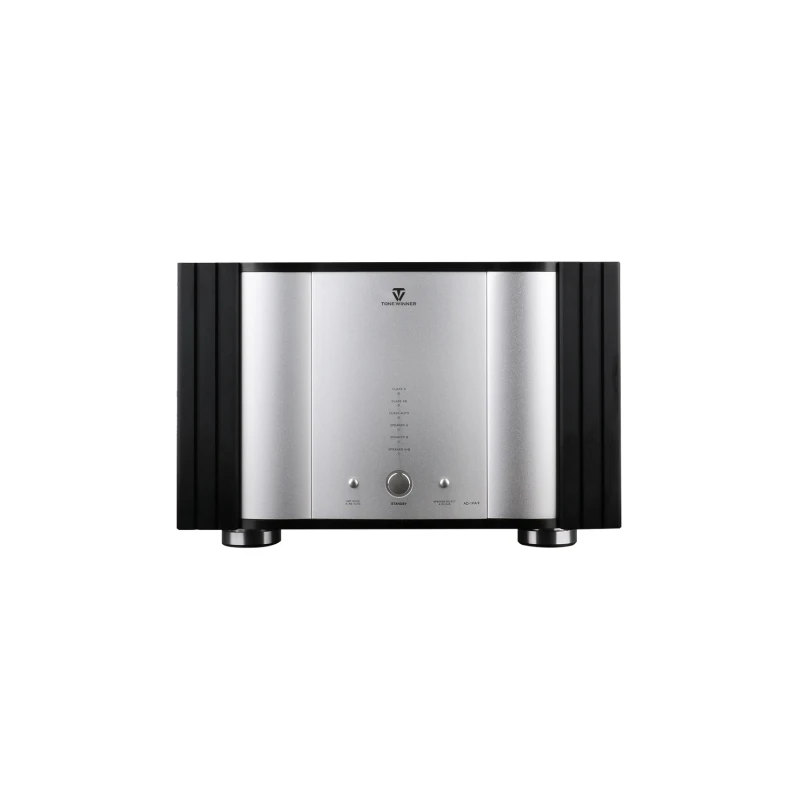

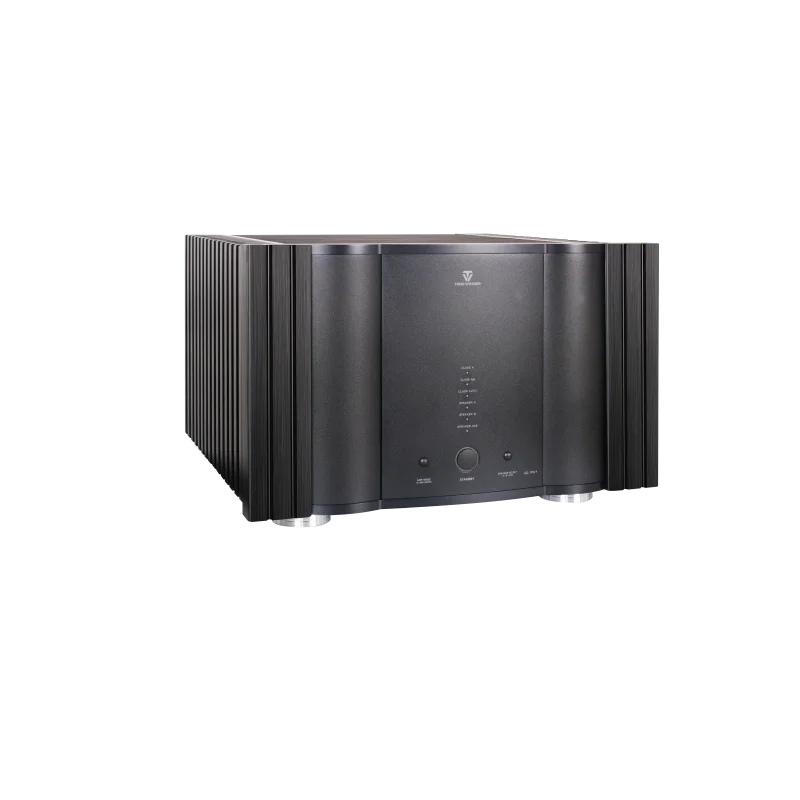

AD 1PA Hi Fi pure amplifier high power high end amp 2 channel Professional Audio Pure Power Amplifier
- Category: >>>
- Supplier: Guangzhou Tonewinner Electronics Co. Ltd.
Share on (1601023149503):
Product Overview
Description
Product Description
600W home use power amplifier dual channels audio amplifier best price high quality hifi amplifier
Introduction
Main Features
* Class A circuit that adopts full balance, full symmetry, differential input to differential BTL power output.
* Both left and right channels adopt independent power supply, which boost the channel seperation to the highest degree.
* Output power 300W/8Ω each channel. It uses 1,200W high quality toroidal transformer and audio special capacitor up to 180,000uF. It also uses high power transistors to parallel output, offering 60A current output.
* High end aluminum chassis, rigorous intenal layout, and strong anti-interference ability.
* Specially gold plated IC socket for audiophiles to replace operational amplifier.
* lt adopts Tonewinner's patented technology: High/low voltage power supply intelligently switch management. It can meet the needs for Hi-Fi Class A power output, and also conforms to energy conservation and environment protection concept (patented number: ZL201420783891.8).
* Multiple circuit protection: short circuit protection, overheating protection and DC protection.
* It adopts Tonewinner's patented technology: ~110-115V/~220-230V power supply auto-switch(patented number: ZL.201420543195.X).
* Both left and right channels adopt independent power supply, which boost the channel seperation to the highest degree.
* Output power 300W/8Ω each channel. It uses 1,200W high quality toroidal transformer and audio special capacitor up to 180,000uF. It also uses high power transistors to parallel output, offering 60A current output.
* High end aluminum chassis, rigorous intenal layout, and strong anti-interference ability.
* Specially gold plated IC socket for audiophiles to replace operational amplifier.
* lt adopts Tonewinner's patented technology: High/low voltage power supply intelligently switch management. It can meet the needs for Hi-Fi Class A power output, and also conforms to energy conservation and environment protection concept (patented number: ZL201420783891.8).
* Multiple circuit protection: short circuit protection, overheating protection and DC protection.
* It adopts Tonewinner's patented technology: ~110-115V/~220-230V power supply auto-switch(patented number: ZL.201420543195.X).
Parameter
Model | AD-1PA+ | THD | ≤0.008%(1kHz, nomal working condition) |
Channel | 2 | Dimension | 444×294×449 mm(W×H×D) |
SNR | ≥108dB (A weighted, balance inpuit) ≥110dB (A weighted, unbalance inpuit) | Net weight | 42KGS |
Frequency | 10Hz-100kHz(+1/-3dB) | Impedance | 8 ohms |
Standby power consumption | ≤ 0.5W | Channel separation | ≥80dB |
Power consumption | Class A 260-300W or Class AB 70W-110W | Gain | 29.5dB±1dB |
Output power | 300W（8Ω，THD=1%,1KHz, single channel) | Application | living room, demo room, etc. |
Configuration | AD-1PRE+ preamp, TY-1CD CD player, TD-8 floor standing speaker | Accessories | power cord |
