380V AC 10Lpm 0.8kw cooling capacity Hydraulic oil air cooler air cooled oil radiator cooler hydraulic heat exchanger AF0510T
- Category: >>>
- Supplier: Shandong Maiyuesen Trading Co. Ltd.
Share on (1601023175921):

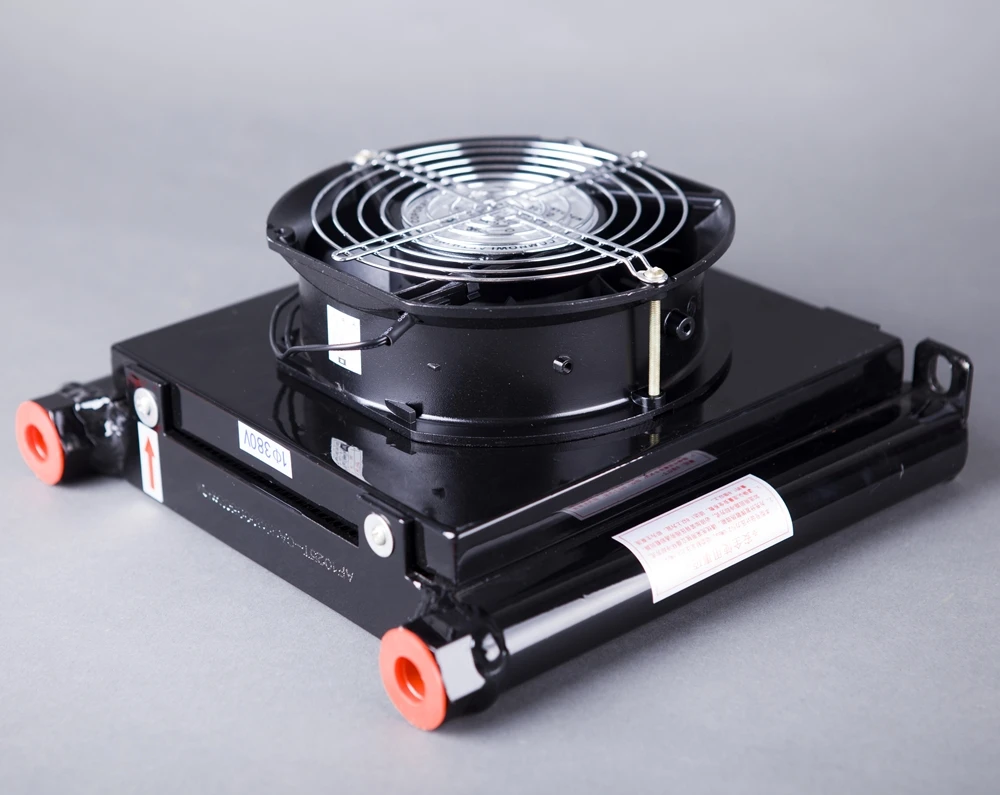

Product Overview
Description
Product Overview

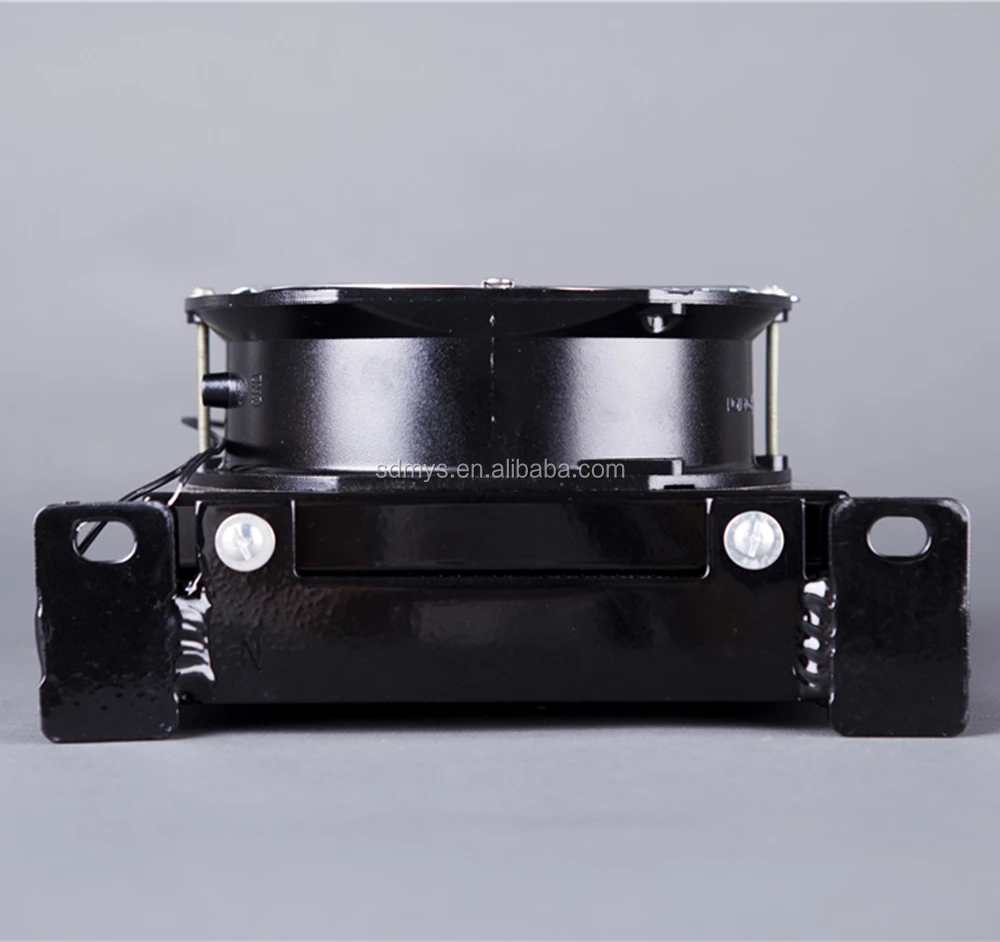

Right elevation
Left elevation
Front elevation

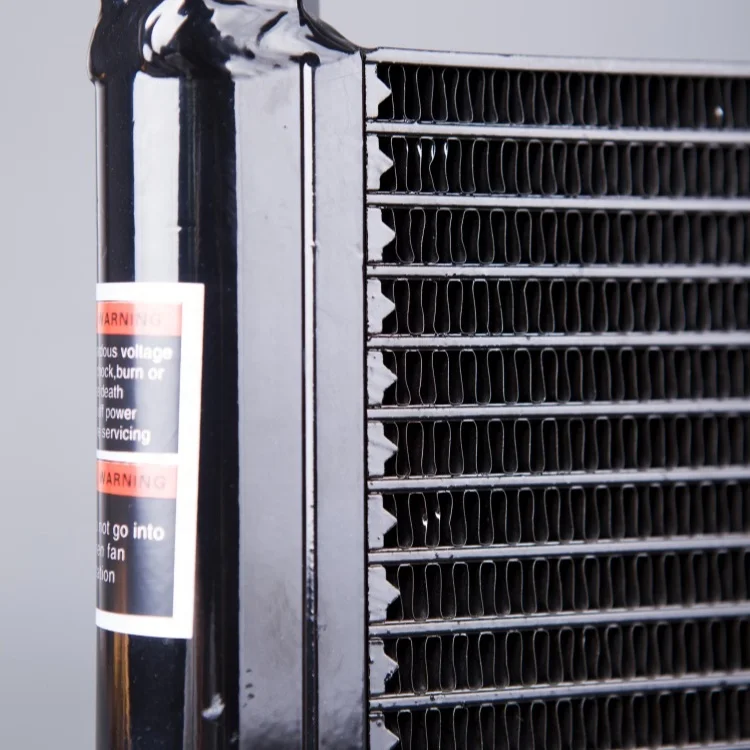

All aluminum build core
German seamless welding process
Pure copper high-power waterproof motor
Perfect Electrostatic spraying surface
Direct Manufacturer
German seamless welding process
Pure copper high-power waterproof motor
Perfect Electrostatic spraying surface
Direct Manufacturer
aluminum oil cooler radiator
This oil cooler radiators are made of aluminum alloy material with light weight, good seismic intensity, high heat transfer efficiency. In the structure, channel, adopt efficient fin, the maximum increase the heat transfer area, increase the total heat transfer coefficient.AF aluminum oil cooler radiator Paramenters | ||||||
Size | AF1025T-25L | Size | AF0510T-10L | |||
Rate Of Flow | 25L/min | Rate Of Flow | 10L/min | |||
Max Pressure | 2MPa | Max Pressure | 2MPa | |||
Fan Power | 48W | Fan Power | 48W | |||
Cooling Area | 1.3M2 | Cooling Area | 0.8M2 | |||
Blade diameter | φ170mm | Blade diameter | φ170mm | |||
Cooling Capacity | 800Kcal/h | Cooling Capacity | 720Kcal/h | |||
Package Size | 29*29*15cm | Package Size | 27*23.5*15cm | |||
Fan Voltage | AC220V/AC380V DC12V/DC24V | Fan Voltage | AC220V/AC380V DC12V/DC24V | |||
Air Output | 200M3/h | Air Output | 200M3/h | |||
Thread size | PT1/2'' | Thread size | PT1/2'' | |||

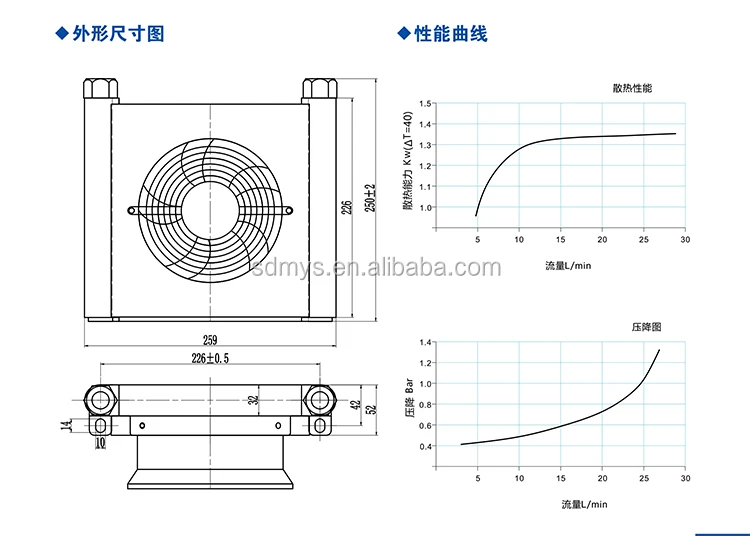

AF1025T aluminum oil cooler radiator
SIZE AND PERFORMANCE

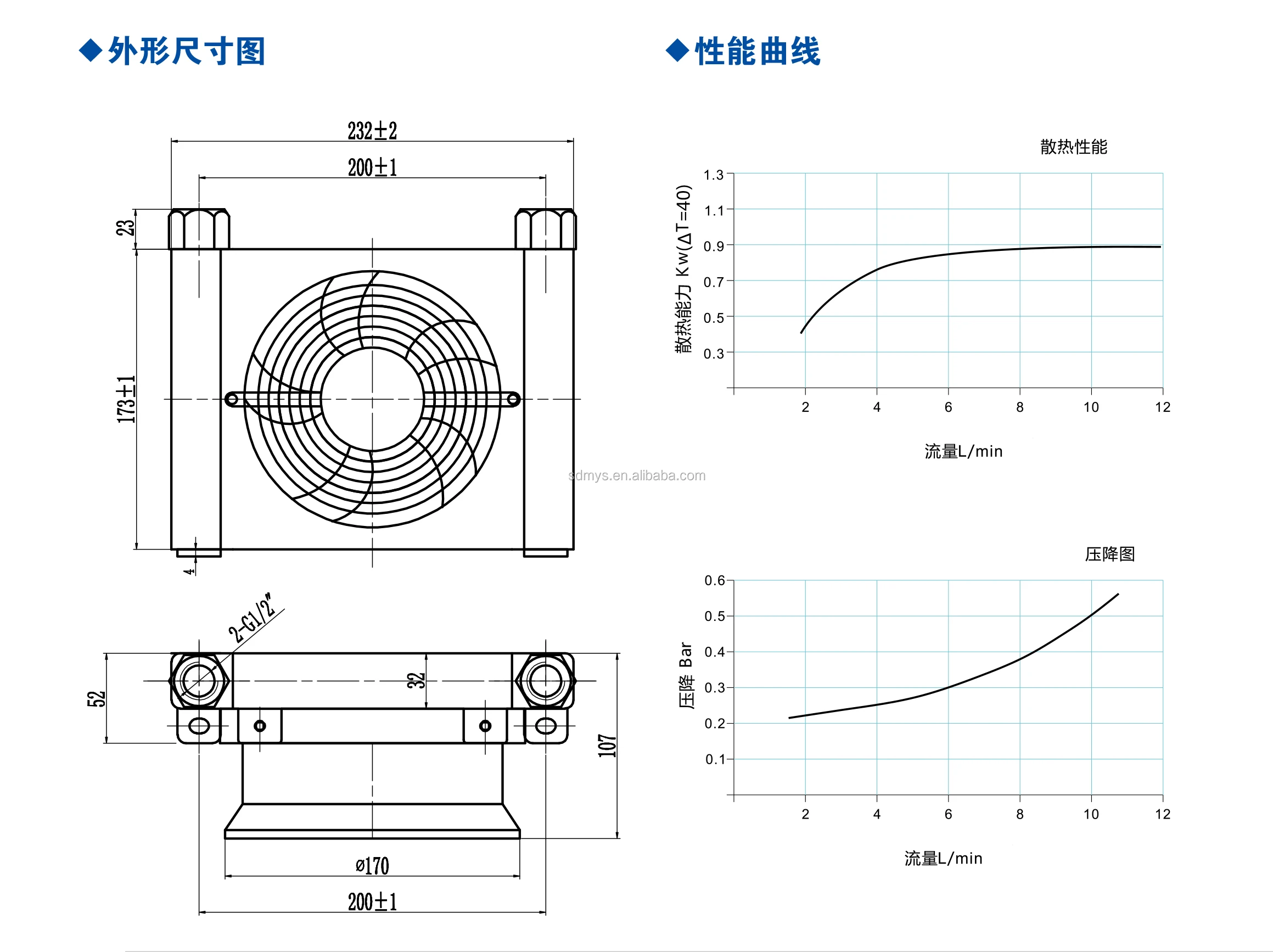

AF0510T aluminum oil cooler radiator
SIZE AND PERFORMANCE
Our Advantages
Direct Manufacture
From raw materials to final products, one-stop processing, comprehensive control. We can control the cost, delivery time and quality.
Fast delivery, common order delivery in 7 days.
First Class Quality
Our Company has got the IS09001 international quality system certification in 2008 and the ISO/TS16949 international quality
system certification issued by SGS in 2013, and we also won multiple honors in domestic market during 16 years.
system certification issued by SGS in 2013, and we also won multiple honors in domestic market during 16 years.
Good Servise
Before delivery we can accept SGS OR video inspect, And 12 months warranty period for full range products.
Certifications
Our Company has got the IS09001 international quality system certification in 2008 and the ISO/TS16949 international quality system certification issued by SGS in 2013, and we also won multiple honors in domestic market during 16 years.
Application
oil cooler radiator are widely used in all kinds of hydraulic station, sawing machine, concrete mixer truck, engineering machinery, wind power equipment, concrete pump, cutting machine, woodworking sawing machine, packing machine, plastic machinery, metallurgical machinery, shipbuilding and other fields, for the equipment of the hydraulic system and lubrication system to reduce fluid hydraulic oil temperature, provide solution for the normal operation of equipment stability.
Product packaging
oil aluminum cooler radiator packed by carton box, the package size is 29*29*15cm.
20ft container load 2000 pcs,
40ft container load 4000-5000 pcs
Company Profile
Shandong maiyuesen trading is belong to Weifang Haimao Radiator Co., Ltd. which is located in Linqu, Shandong province, Covering an area of 31,680 square meters, we specializes in design, manufacturing and marketing of aluminum profiles, air cooled hydraulic radiators, cultivation and breeding radiators, automotive radiators, automotive condensers, intercoolers and other heat exchange systems.
We has obtained the IS09001 international quality system certification in 2008 and the ISO/TS16949 international quality system certification in 2013, and won multiple honors.
Our products are highly accepted by the national key hydraulic equipment manufacturing and automobile industries, and are the first choice for Weichai Power, Futian Group, Shifeng Group, Hongwuhuan Group, etc.
