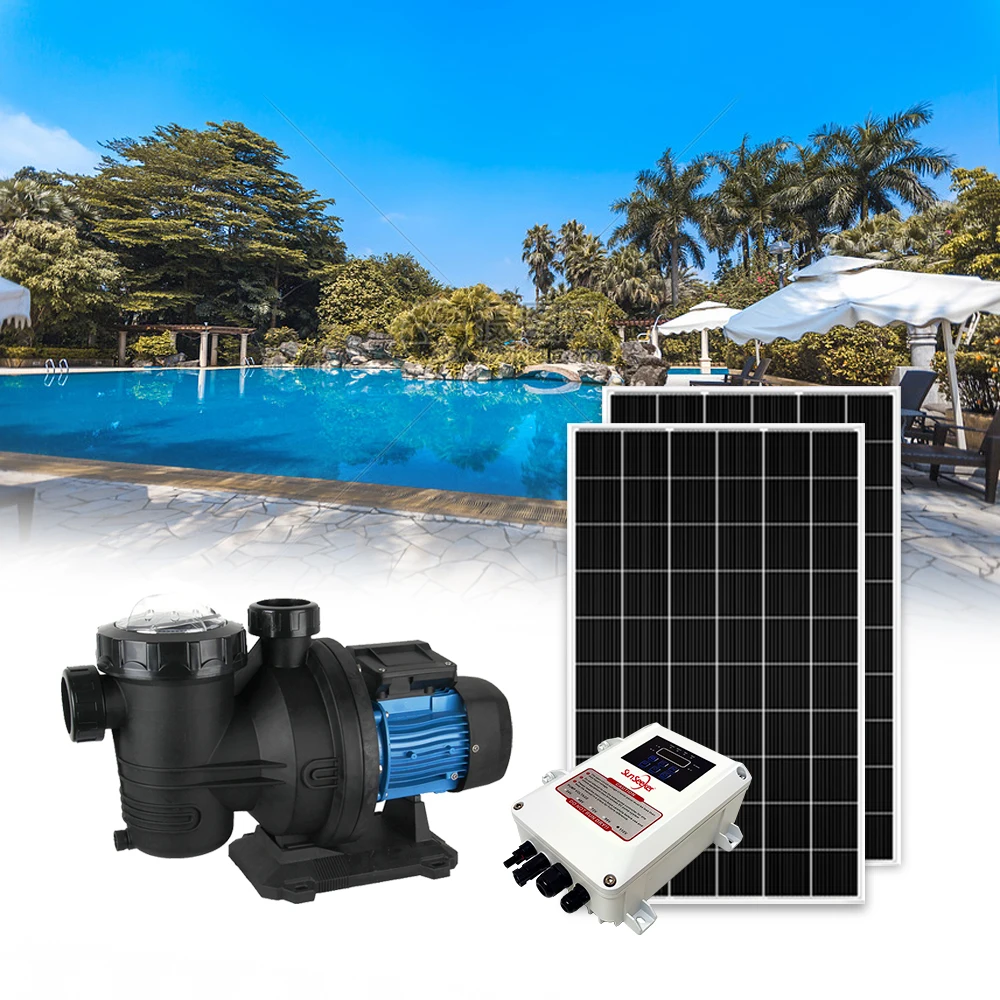

550w dc solar pool pump kit with solar panels 48v solar powered swimming pool water pump solar pool pump
- Category: >>>
- Supplier: Hangzhou Zhongyi Solar Technology Co. Ltd.
Share on (1601023203786):
Product Overview
Description
Service capabilities
1. No MOQ required, Most solar water pumps ready in stock(fast lead time)
2. Two Years Warranty
3. Experienced manufacturer of over 15 years
4. Manufacture more than 50000pcs per year
5. Exported more than 60 countries
2. Two Years Warranty
3. Experienced manufacturer of over 15 years
4. Manufacture more than 50000pcs per year
5. Exported more than 60 countries
Product Introduction
Solar DC Swimming Pool Pump
Our solar pool pump are with special materials used, suitable for salty water.
Our solar pool pump are with special materials used, suitable for salty water.
Pls select the right pump below yourself, or pls inform us below information, then we can select the right pump for you.
1. Where will the pump be used?
2. How much water discharge ( liters or gallon or m3) required per day or per hour?
3. Do you need a submersible pump or surface pump?
4. If you want to pump the water from borehole(deep well), the depth of borehole?
5. The pipe distance from the top of borehole or river to destination tank? Is the distance slope or horizontal?
6. The height of tank?
2. How much water discharge ( liters or gallon or m3) required per day or per hour?
3. Do you need a submersible pump or surface pump?
4. If you want to pump the water from borehole(deep well), the depth of borehole?
5. The pipe distance from the top of borehole or river to destination tank? Is the distance slope or horizontal?
6. The height of tank?
Recommend Products

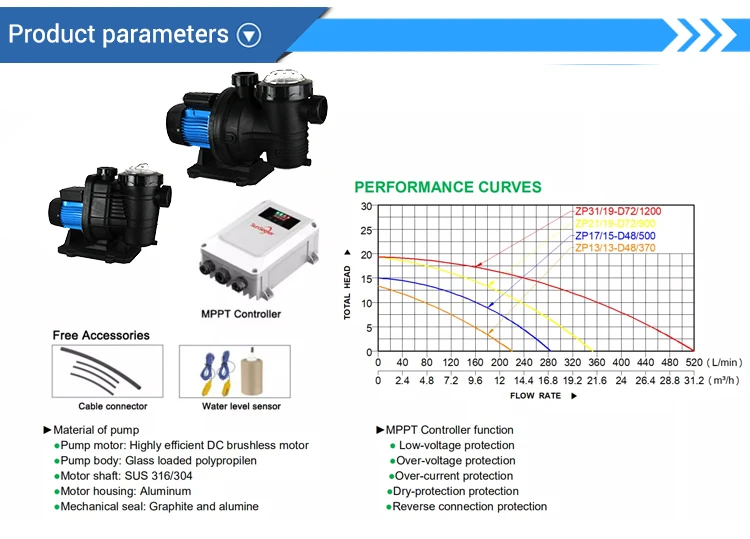

Model | Impeller | voltage | Pump Power | Max Flow | Max Head | Max Suction | Inlet/Outlet | Solar panel | ||
(V) | (W) | (HP) | (m3/h) | (M) | (M) | (inch) | (W) | |||
ZP17-15-D48-550 | Plastic | 48 | 500 | 0.75 | 17 | 15 | 5 | 2"x2" | 800 | |
ZP21-19-D72-900 | Plastic | 48 | 900 | 1.2 | 21 | 19 | 5 | 2"x2" | 1200 | |
ZP31-19-D72-1200 | Plastic | 72 | 1200 | 1.5 | 31 | 19 | 5 | 2.5"x2.5" | 1980 | |
what's the size of your pool?
1,our pump ZP17-15-D48-550
is suitable for pool less than 75 m3 (75,000 liters or 19,000gallons)
2,our pump ZP21-19-D72-900
is suitable for pool less than 90 m3 (90,000 liters or 23,000gallons)
3,our pump ZP31-19-D72-1200
is suitable for pool less than 140 m3 (140,000 liters or 36,000gallons)
is suitable for pool less than 75 m3 (75,000 liters or 19,000gallons)
2,our pump ZP21-19-D72-900
is suitable for pool less than 90 m3 (90,000 liters or 23,000gallons)
3,our pump ZP31-19-D72-1200
is suitable for pool less than 140 m3 (140,000 liters or 36,000gallons)
Application area:
This pump is mainly used in residential and commercial swimming pool and spas.

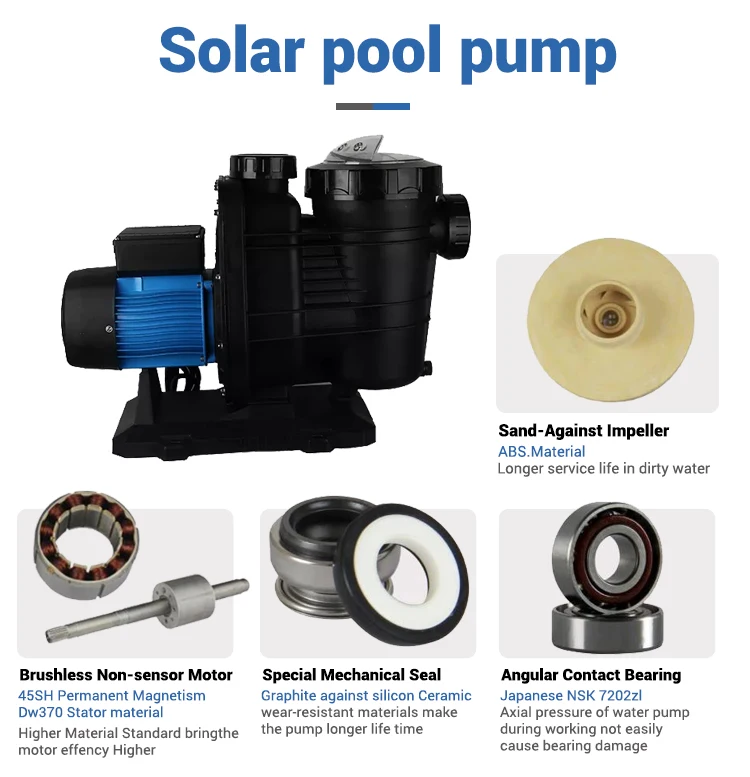

Advanced technology:
1.Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism, direct current, brushless, non-sensor motor.
2.Adopt double plastic package for rotor and stator, motor insulation≥300MΩ, the motor security was much improved.
3.Oil filling, convenient installation and environmental protection.
4.High technique products adopting MPPT and DSP chip technique.
5.100% copper wire,cold-rolled silicon steel sheet.
6.Advanced three phase brushless DC motor.
Advanced technology:
1.Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism, direct current, brushless, non-sensor motor.
2.Adopt double plastic package for rotor and stator, motor insulation≥300MΩ, the motor security was much improved.
3.Oil filling, convenient installation and environmental protection.
4.High technique products adopting MPPT and DSP chip technique.
5.100% copper wire,cold-rolled silicon steel sheet.
6.Advanced three phase brushless DC motor.
● Low-voltage protection
●Over-voltage protection
●Over-current protection
●Dry-protection protection
● Reverse connection protection
● Soft starting protection
●Lack of water protection
►VOC RANGE:
●24V controller:26-50V
●48V controller:50-100V
●72V controller:76-150V
●96V controller:100-200V
●MAX input current:15A
●Ambient temperature:-15℃-70℃
►VOC RANGE:
●24V controller:26-50V
●48V controller:50-100V
●72V controller:76-150V
●96V controller:100-200V
●MAX input current:15A
●Ambient temperature:-15℃-70℃

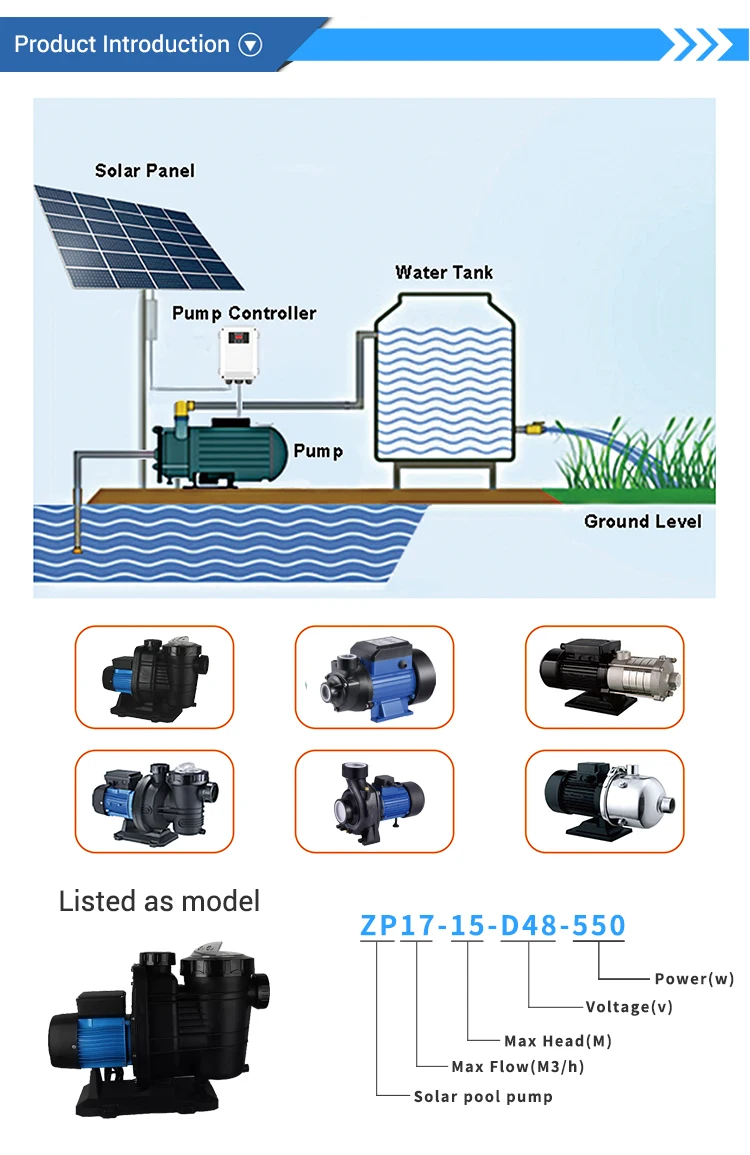

Installation Diagram
Solar pumping system mainly consists of PV modules, solar pumping controller / inverter and water pumps, Solar panels convert sunlight to electrical energy which is passed to the solar pump controller, The solar controller stabilizes the voltage and output power to drive the pump motor, Even on cloudy days,it can pump 10% water flow per day. Sensors are also connected to the controller to protect the pump from running dry as well as to automatically stop the pump working when the tank is full.
Solar panel collects sunlight→DC electricity energy → Solar Controller (rectification,stabilization, amplification,filtering)
→available DC electricity→(charge the batteries)→pumping water
Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency,The recommended solar panels power = Pump Power * (1.2-1.5)
Solar panel collects sunlight→DC electricity energy → Solar Controller (rectification,stabilization, amplification,filtering)
→available DC electricity→(charge the batteries)→pumping water
Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency,The recommended solar panels power = Pump Power * (1.2-1.5)

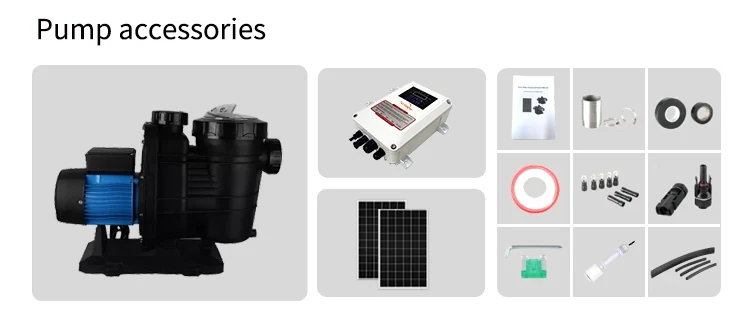

Brushless DC Pump:
1 PCS Solar pump with 2m cable, longer cable is available if required

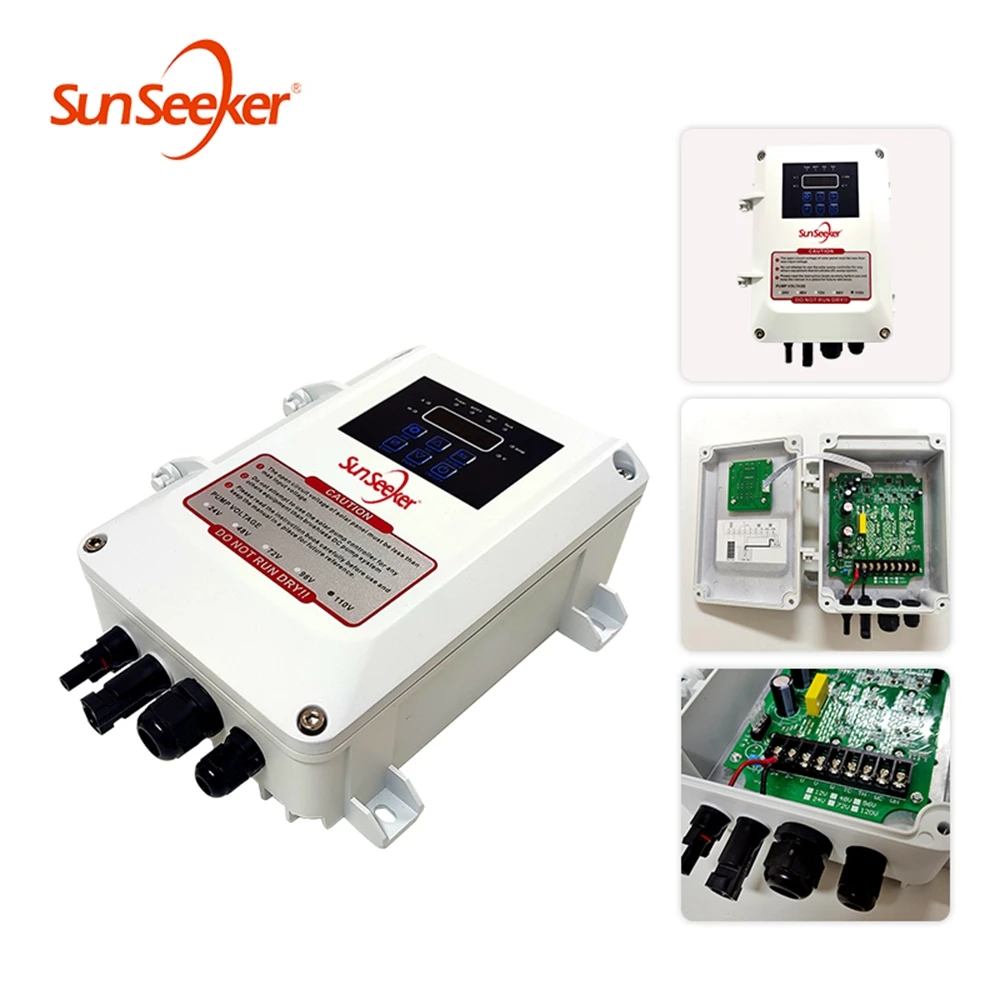

MPPT Solar Pump Controller:
1 PCS High-efficiency and full-automatic MPPT Solar Pump Controller

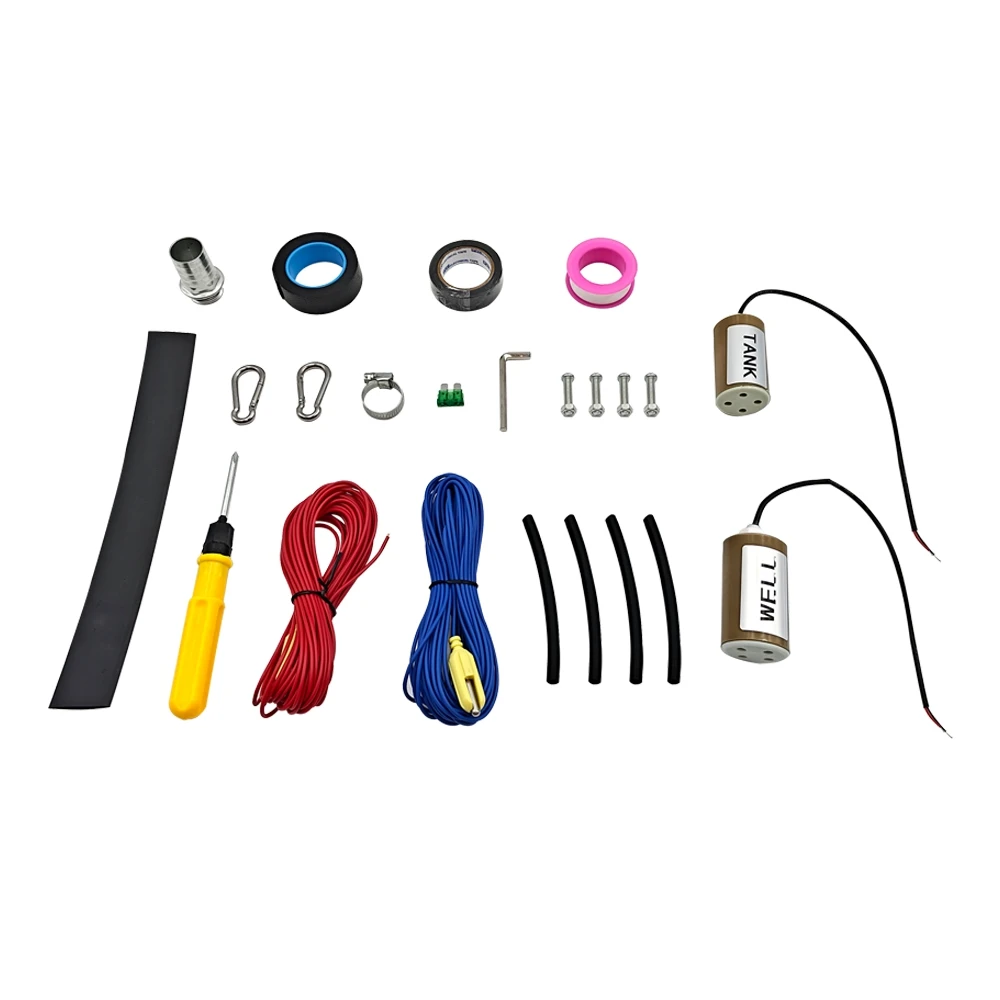

Installation Accessiories:
1 PCS Water level sensor or float switch
1 PAIR MC4 PV Connector
1 ROPE PTFE Tape
1 ROPE Electric tape
1 PCS screwdriver
1 PCS Pipe Conector
1 PCS Installation Manual
1 PCS Solar pump with 2m cable, longer cable is available if required
MPPT Solar Pump Controller:
1 PCS High-efficiency and full-automatic MPPT Solar Pump Controller
Installation Accessiories:
1 PCS Water level sensor or float switch
1 PAIR MC4 PV Connector
1 ROPE PTFE Tape
1 ROPE Electric tape
1 PCS screwdriver
1 PCS Pipe Conector
1 PCS Installation Manual

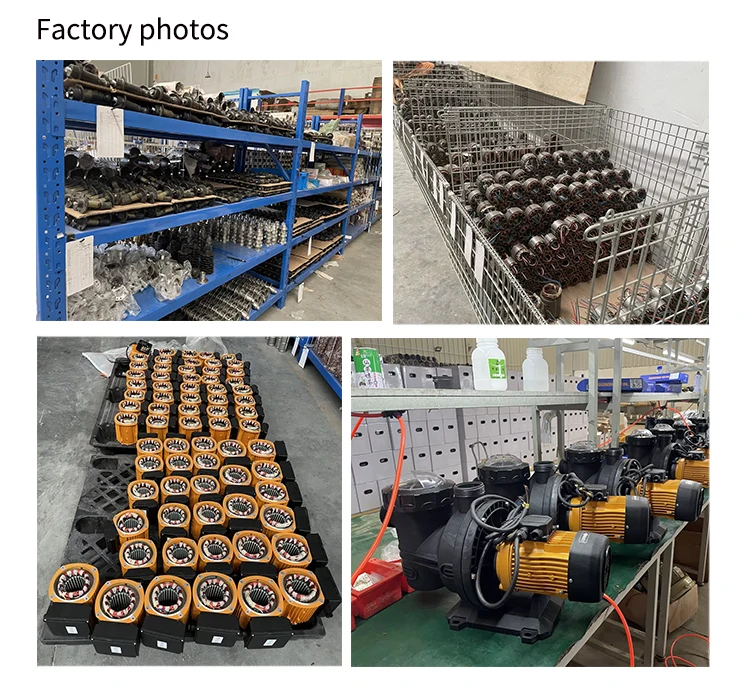

Company Profile
Exhibition and Certifications
Customer reviews
Packing and shipping
FAQ
Q: Are you a manufacture or trading company?
A: We are a manufacture special for solar Brushless DC pump;
Q: Which payment way you accept?
A: Paypal, Alipay, T/T, L/C ,D/P.
Q: What’s the MOQ?
A: For trail sample order, 1pcs is available.
Q.How can I get the solar pumps?
A: We can send the pump to customers by express like DHL, Fedex, or send by air and sea.
Q: What’s your delivery time?
A:1) We have stock for most of regular model and the sample can be sent to you within 2-3 days.
2) The quantity order can be shipped to you within 10-15 days after order confirmation.
Q: What about your product warranty& after sales service?
A: Three years warranty for all solar pump.
Q: Can you supply completely solar pump system?
A: Yes, we can supply whole solar pump system with solar panel, PV box, Panel structure and cable.
