Huepar BOX 1G Electronic Laser Level Self Leveling Cross Green Rotary 360 Laser Celling Stand
Huepar BOX-1G Electronic Laser Level Self-Leveling Cross Green Rotary 360 Laser Celling Stand
Huepar BOX-1G Electronic Laser Level Self-Leveling Cross Green Rotary 360 Laser Celling Stand
Huepar BOX-1G Electronic Laser Level Self-Leveling Cross Green Rotary 360 Laser Celling Stand
Huepar BOX-1G Electronic Laser Level Self-Leveling Cross Green Rotary 360 Laser Celling Stand
Huepar BOX-1G Electronic Laser Level Self-Leveling Cross Green Rotary 360 Laser Celling Stand
Huepar BOX-1G Electronic Laser Level Self-Leveling Cross Green Rotary 360 Laser Celling Stand

Huepar BOX 1G Electronic Laser Level Self Leveling Cross Green Rotary 360 Laser Celling Stand

Share on (1601023204042):


Price:

Quantity:


Product Overview

Description



Product Description

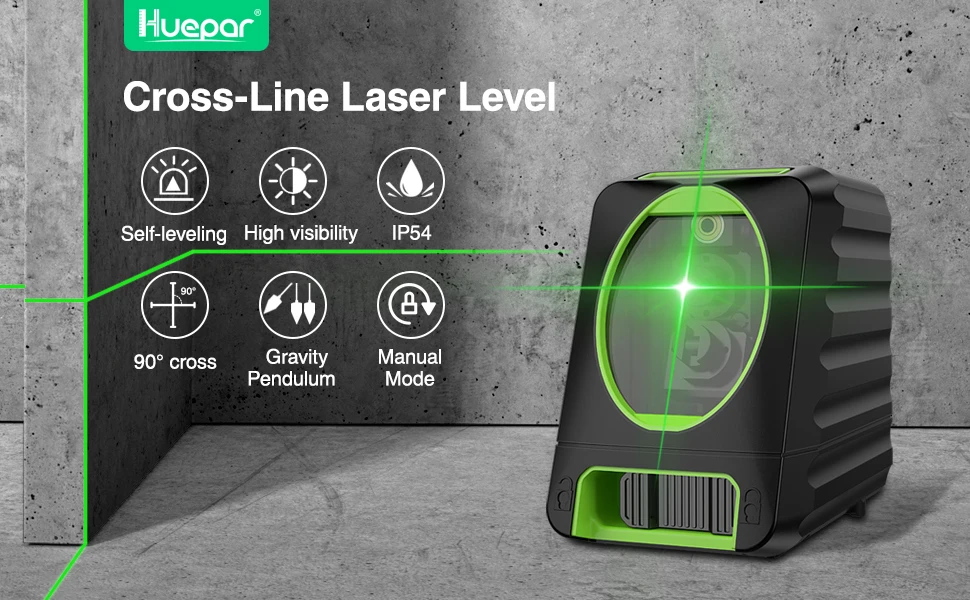

BOX-1G Laser Level Features:
\\uD83D\\uDD39 RUGGED FOR OUTDOOR USE: Full-time pulse mode allows for good outdoor visibility up to 150ft/45m at full brightness for maximum visibility. We used an German made, Osram green laser, currently rated as the best green laser unit in the word. It is 2 times brighter than red lasers utilizing the same power source. Or Osram laser maintains consistently high performance in ambient temperatures as low as 14°F /-10°C.
\\uD83D\\uDD39 H&V SWITCHABLE: One button operation makes it easy to select Cross lines, Horizontal or Vertical line. 4*AA alkaline batteries power this level for up to 5 hours of continuous use with both green beams on.
\\uD83D\\uDD39PROFESSIONAL ACCURACY: ±2mm/10m;±1/13 In. at 33 Ft., bright Class II laser 510nm wavelength, protected by whole TPR soft rubber design, makes Huepar laser level shock resistant, wear resistant and impact resistant.
\\uD83D\\uDD39 VERTICAL BEAM SPREAD COVERS 150°+: An expansion angle of 150°+ easily projects a vertical line from the floor to the ceiling. The Portable Size makes it easy to carry and pack.
\\uD83D\\uDD39 KIT INCLUDES: HUEPAR Box-1G Self-Leveling Laser, Easy-to-Adjust magnetic base, Target plate card, Carry pouch, Easy-to-understand Instruction Manual


Our service




Product Features

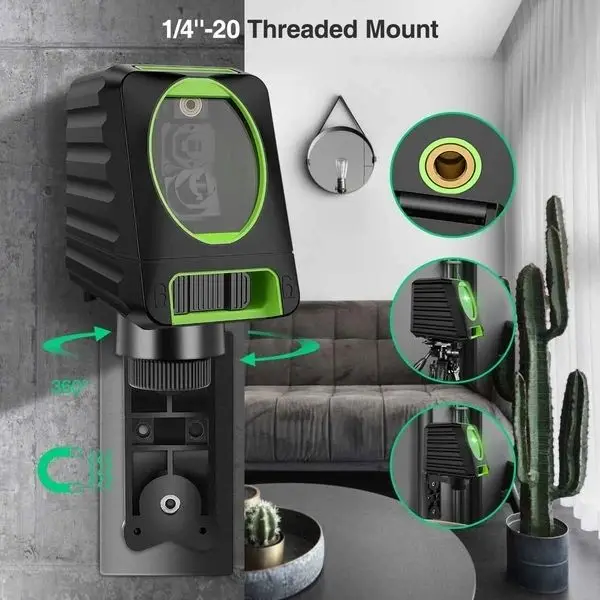

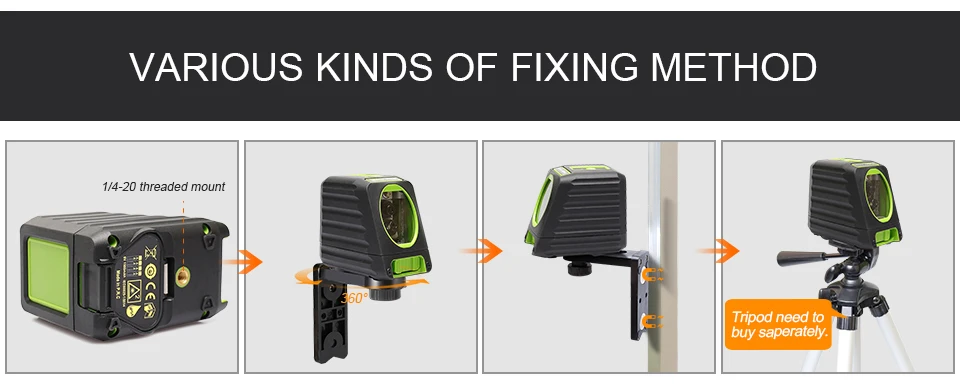

Various kinds of fixing method
* Strong Magnetic L mount with triop thread can attaches the laser to any steels easily, turning around 180-degree as you like.
* It can also accepts a standard tripod screw to do height adjustment.

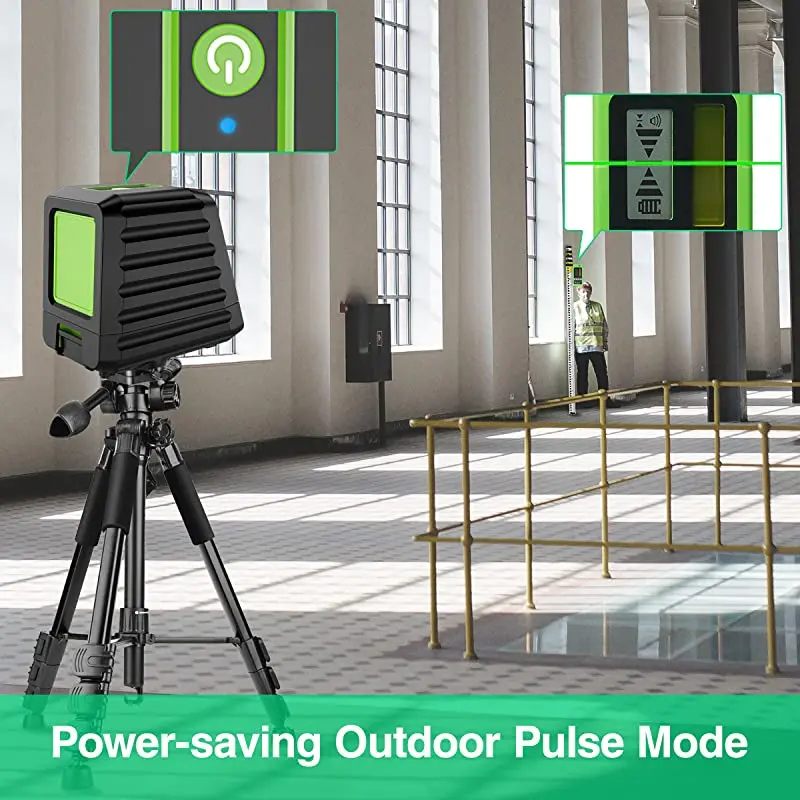

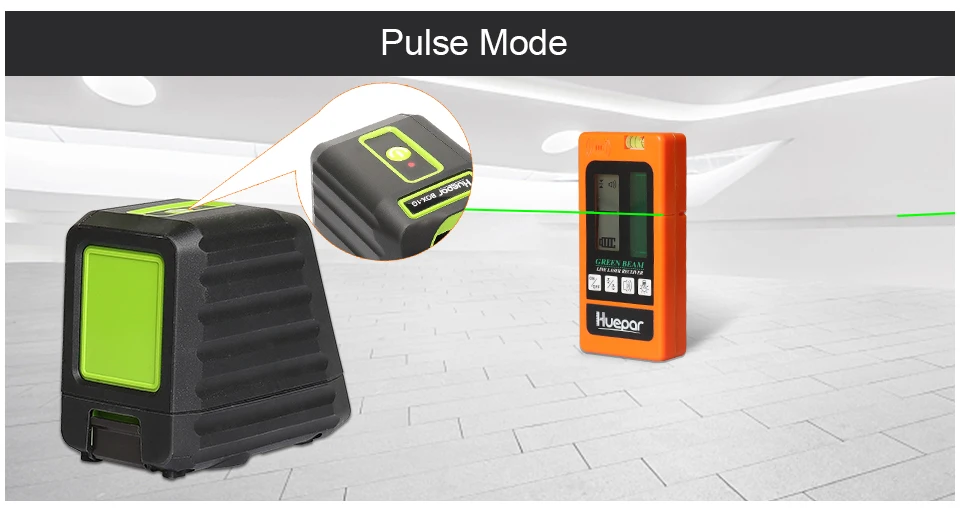

➤Unlock the pendulum, press and hold the power button (for about 5 seconds) to turn on the pulse mode, then turn it on red.
➤When outdoor work is required (the receiver needs to be purchased separately), the laser receiver LG510 can receive pulses.
➤The receiver frequency is 10khz and the Huepar brand is the best pairing.

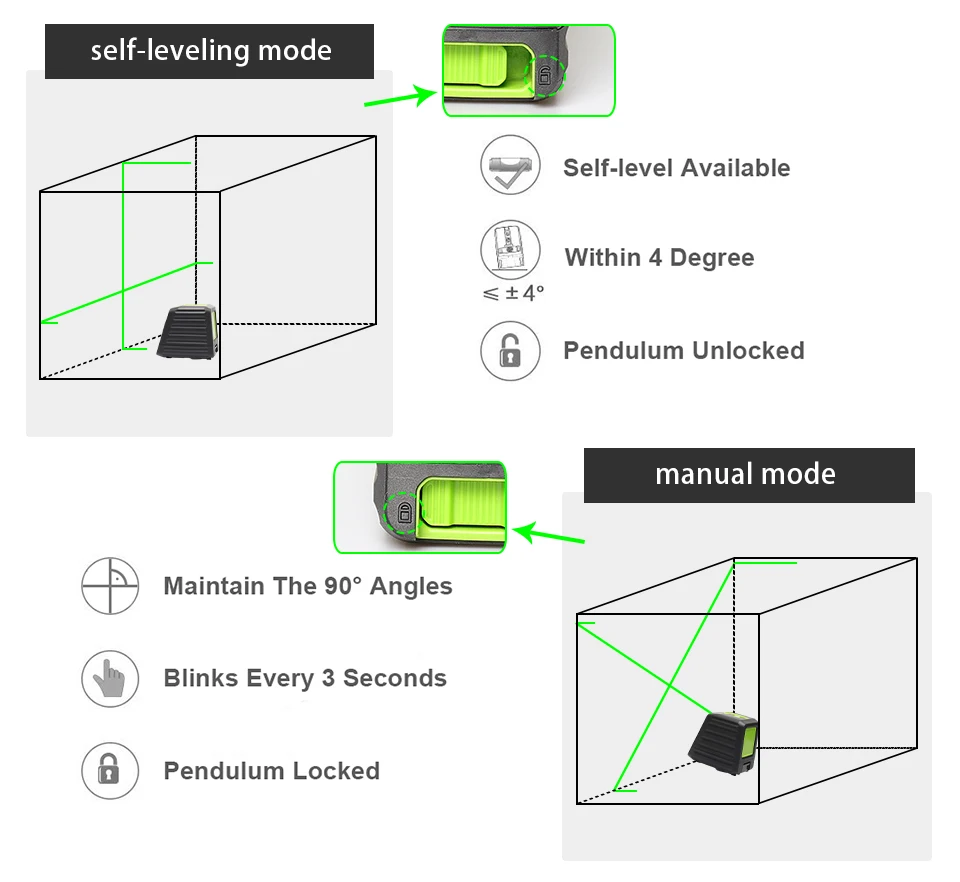

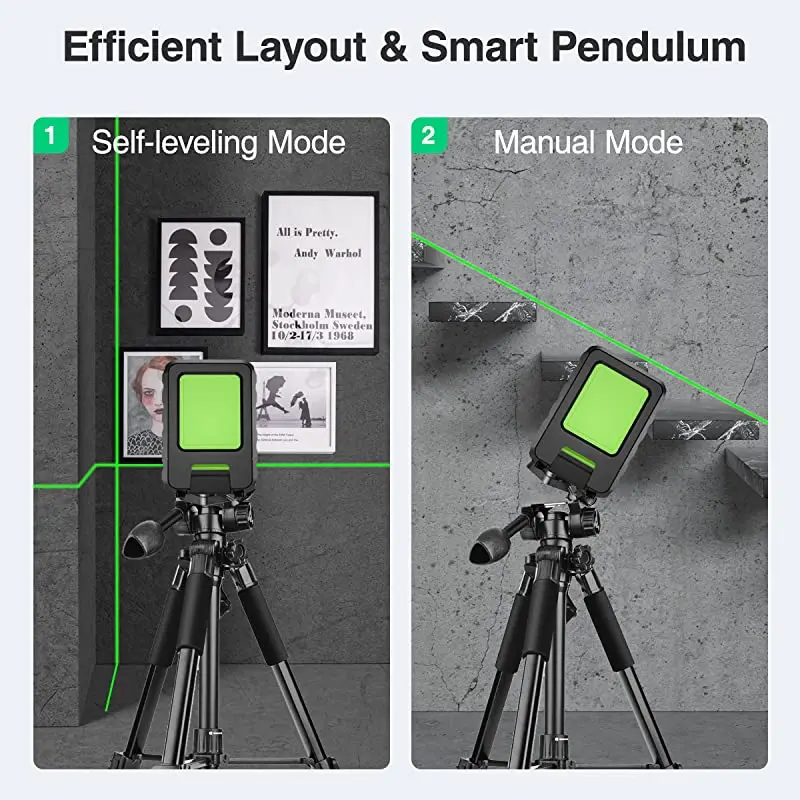

Self-leveling mode & Manual mode
Self-leveling mode:
Unlock the pendulum, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool
is beyond
self-leveling range (4°±1°).

Manual mode:
Lock the pendulum, you can place the laser tool at various angles to project non-level straight laser lines. The laser
beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

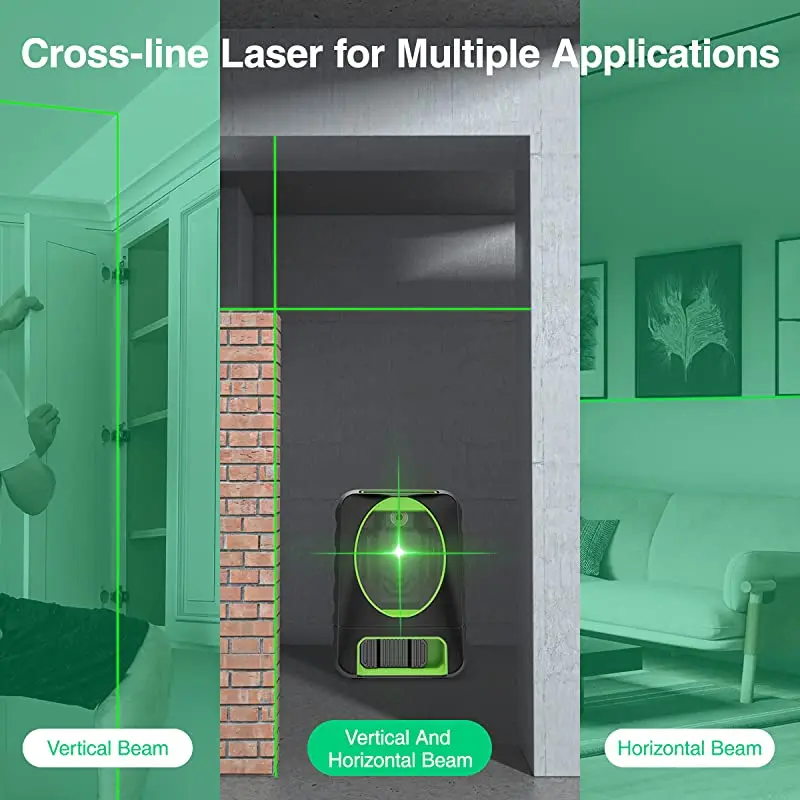

THREE KINDS OF CIRCUIT SWITCHING FUNCTIONS:
* This professional cross-line laser includes vertical, horizontal and cross-line modes, which can project two lines independently or together. The Huepar BOX-1G has a manual mode that allows the user to lock the cross-line, to use the tool at any angle.
* Each time the power button is pressed once, the laser tool projects horizontal lines, vertical lines, and cross lines in sequence.
* 130° cover horizontal line and 150° vertical line (H130°/V150°)






Warning:
Avoid direct exposure of the laser beam to the eyes.


Customer Praise




Specification


Laser Class:
 Class 2 (IEC/EN60825-1/2014), output power <1mW
Laser Wavelength:
510nm
Leveling Accuracy:
±2mm/10m(±1/13 In/33 Ft)
Expanded Angle:
H130°/V150°
Beam source:
Green Beam
Self-leveling range:
4°±1°
Self-leveling time:
≤3s
Working distance (Line):
45m/150Ft (150 LUX)，up to 60m with detector
Power source:
4 * AA(LR6)
IP rating:
IP54
Operating time:
Normally 4 - 8 hours with all laser beams on
Operating Temp:
-10°C to 50°C
Storage Temp:
-20°C to 70°C
Mount size:
1/4''-20


Packing & Delivery

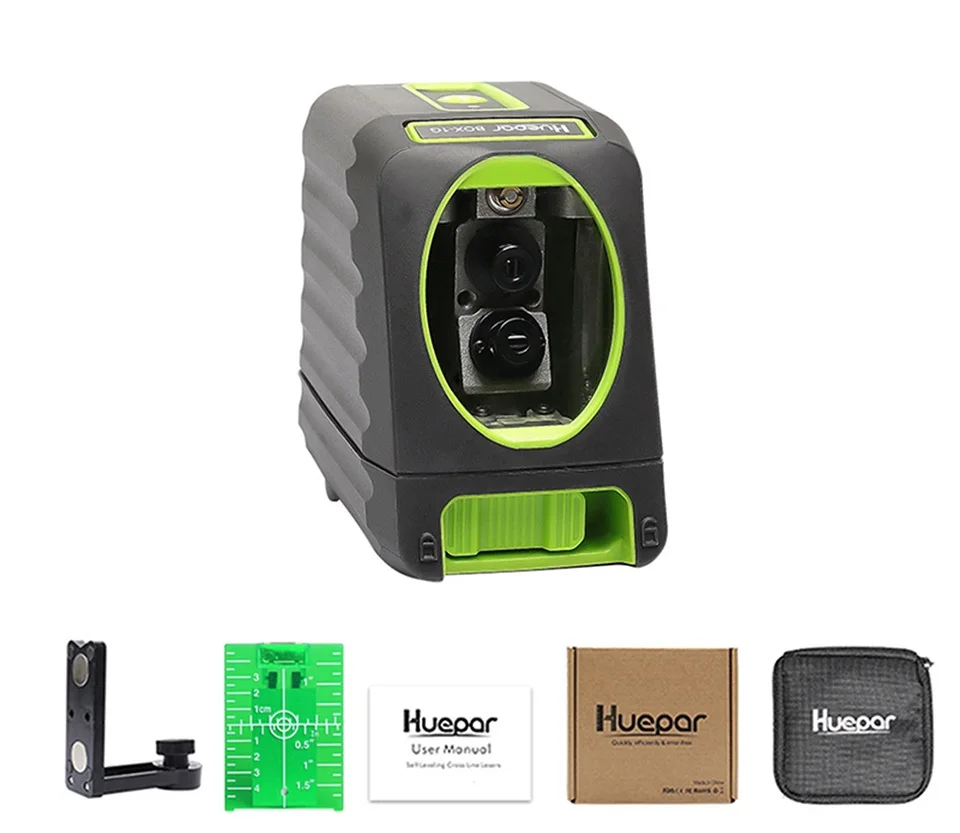

Packing Includes:

1* Huepar Box-1G green laser level
1* 360 Degree Rotating Base
1* Target plate
4* AA Batteries
1* Pouch
1* Multi-language User's Manual

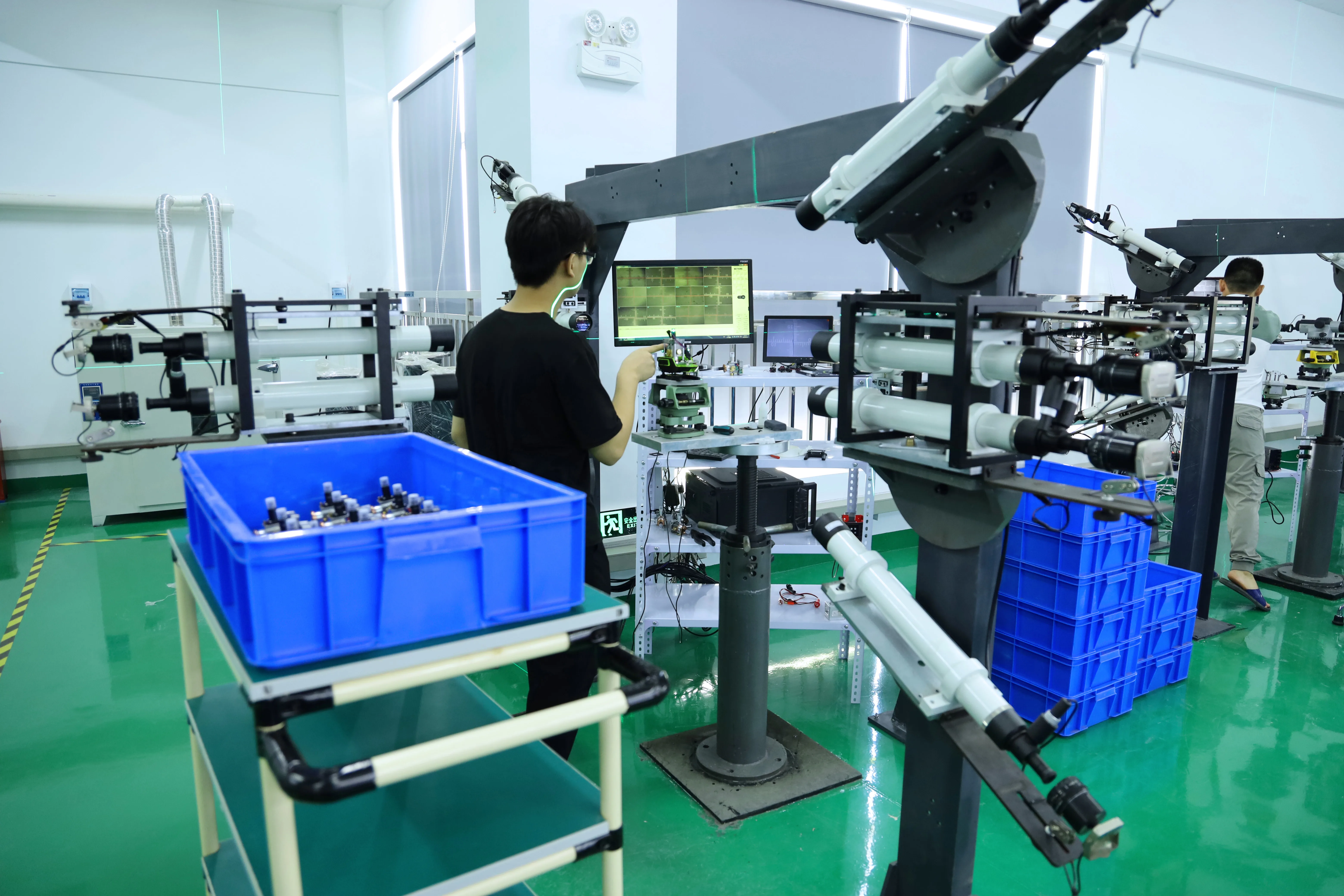

Company Profile


A quality oriented manufacturer for measuring tools that have been dedicating to supply reliable quality&high cost-effective&satisfactory after service to the high-end market.










FAQ


1.How can you guarantee payment safety?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt

2. What kinds of shipment for goods and how long time it takes?
Our company supports DHL, FEDEX, UPS, by sea and other methods. Shippment day is 3-5 workdays after payment receipt.

3.what can you buy from us?
Laser Level,Laser Distance Meter,Accessories,Power Tool,Garden Tool

4. What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba and PayPal

5. Do you have other items not displayed on your website?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time.
