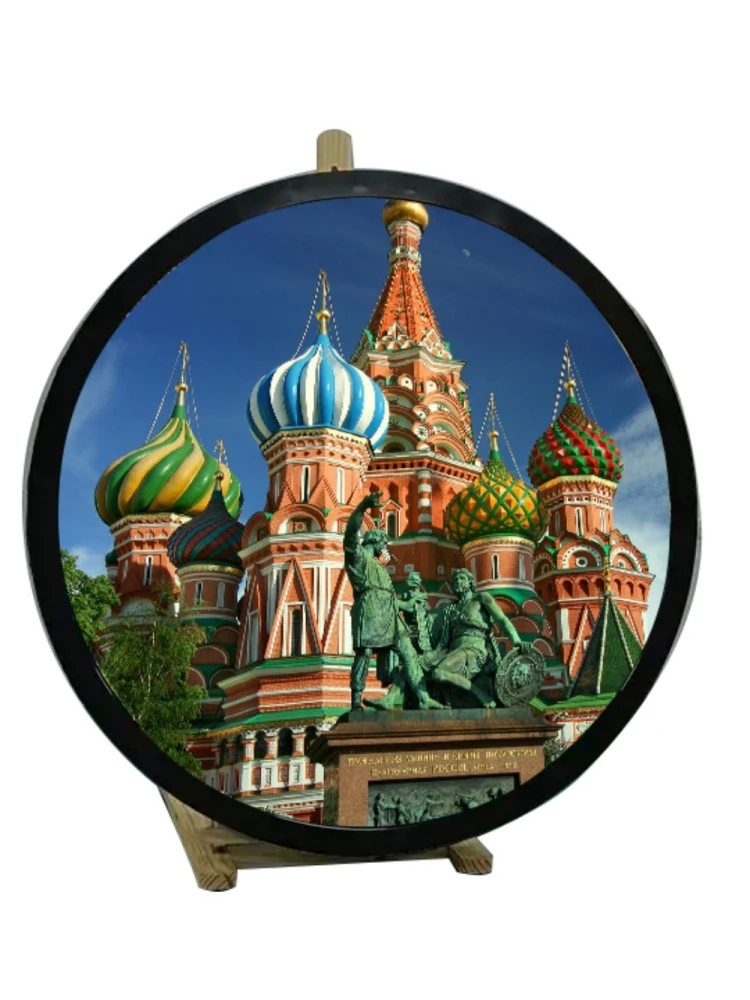

Full HD Round Screen LED LCD Display Panels Media Player Digital Signage Circular for Advertising Video Logo
- Category: >>>
- Supplier: Shanghai Betvis Information Technology Co. Ltd.
Share on (1601023310059):
Product Overview
Description
Introduction
Main Features

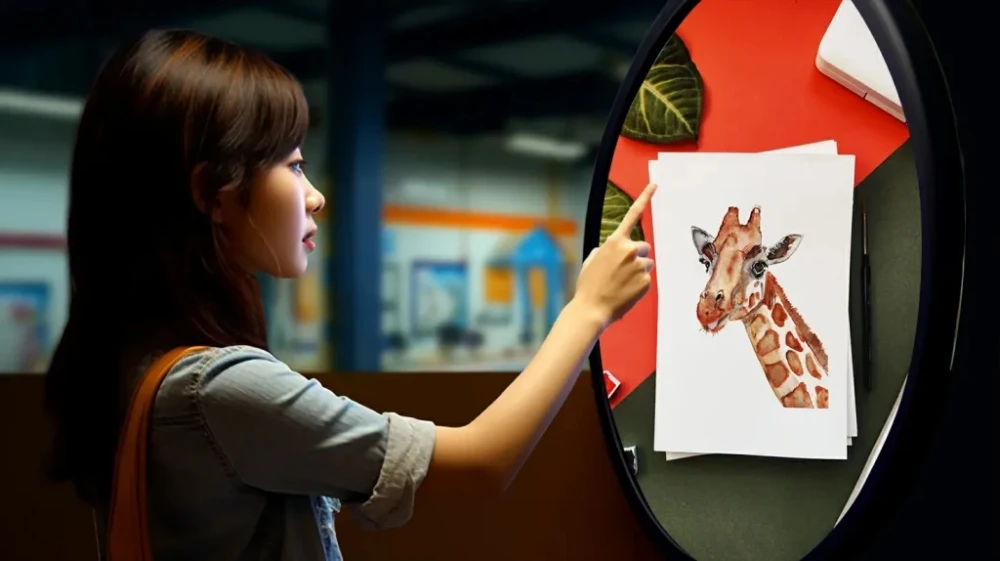

Supports capacitive and other touch screen inputs
Remote management with one- click publishing

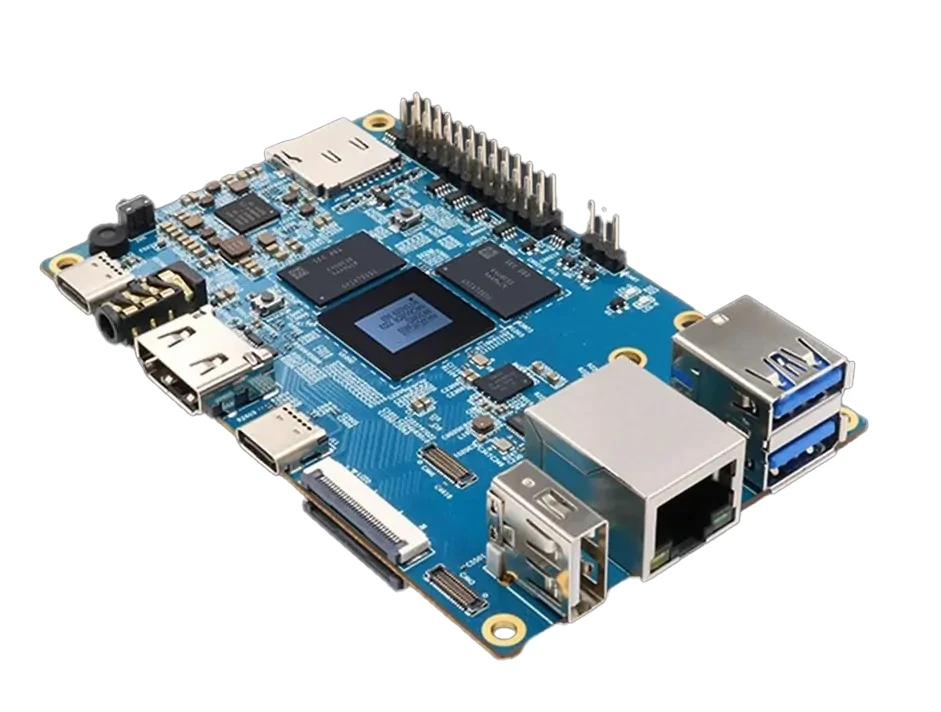

Adopts Rexchip RK3288 chip, the system platform is based on Android 4.4 or above version
Stock and Delivery
Hot sale and ready stock with quick delivery

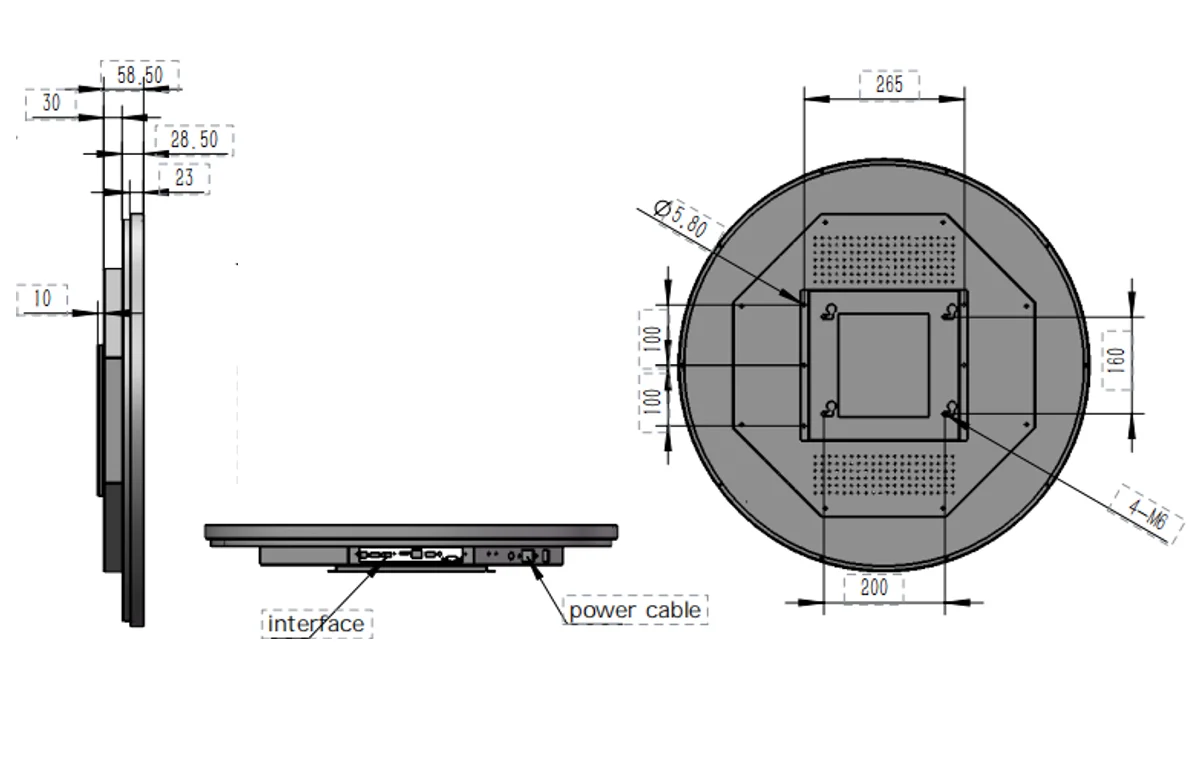

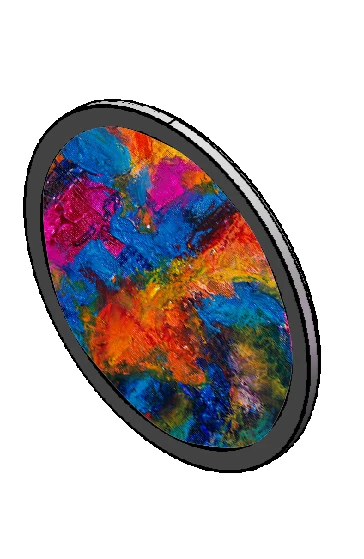

Design Drawing
Data Sheet
MODEL | BV-R2411 | ||
Display | Size | 23.6 inch | |
Diagonal Length | 599*681mm | ||
Resolution | 1280x1280 | ||
Display Area | 599.42mm (H) x599.42mm (V) | ||
Backlight | LED | ||
Brightness | 700cd/m2 | ||
Display colors | 16.7M , 72% NTSC | ||
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | ||
Contrast Ratio | 1000:1 | ||
Response Time | 16ms | ||
Android Solution | CPU | Rockchip RK3288, Quad-Core Cortex-A17 at 1.8G | |
Running memory | 2G DDR3 | ||
Storage | 16G FLASH | ||
Decode Resolution | Support up to 1080P | ||
Interface | SD*1,RJ45*1,HDMI OUT*1,USB*2,LVDS*1 | ||
Language | Support Chinese and English | ||
Monitor Solution | I/O | HDMI-in*1, USB*1, SD card slot*1 | |
Play Mode | Loop display of video / image/ image + audio | ||
Support Media | Video, Image, Audio | ||
FILE FORMAT | Video | RMVB，FLV，MPEG1/2/4，AVI，DIVX，XDIV，WMV9，H.264，VC-1， MOV，MKV， MP4，TS，M2T，VOB | |
Picture | BMP/PNG/GIF/JPEG | ||
Music | MP3，WMA，WAV，EAAC+， MP2 dec，Vorbis(Ogg)，AC3，FLAC，APE，BSAC； | ||
Others | Speaker | 2*5W (8Ω) | |
Package Size | 850*850*130mm | ||
Net weight | 14KG | ||
Gross weight | 16KG | ||
Other | Installation | Vertical | |
Product Size | 609.25*1700*60mm | ||
Colour | Black | ||
Gross Weight | 25KG | ||

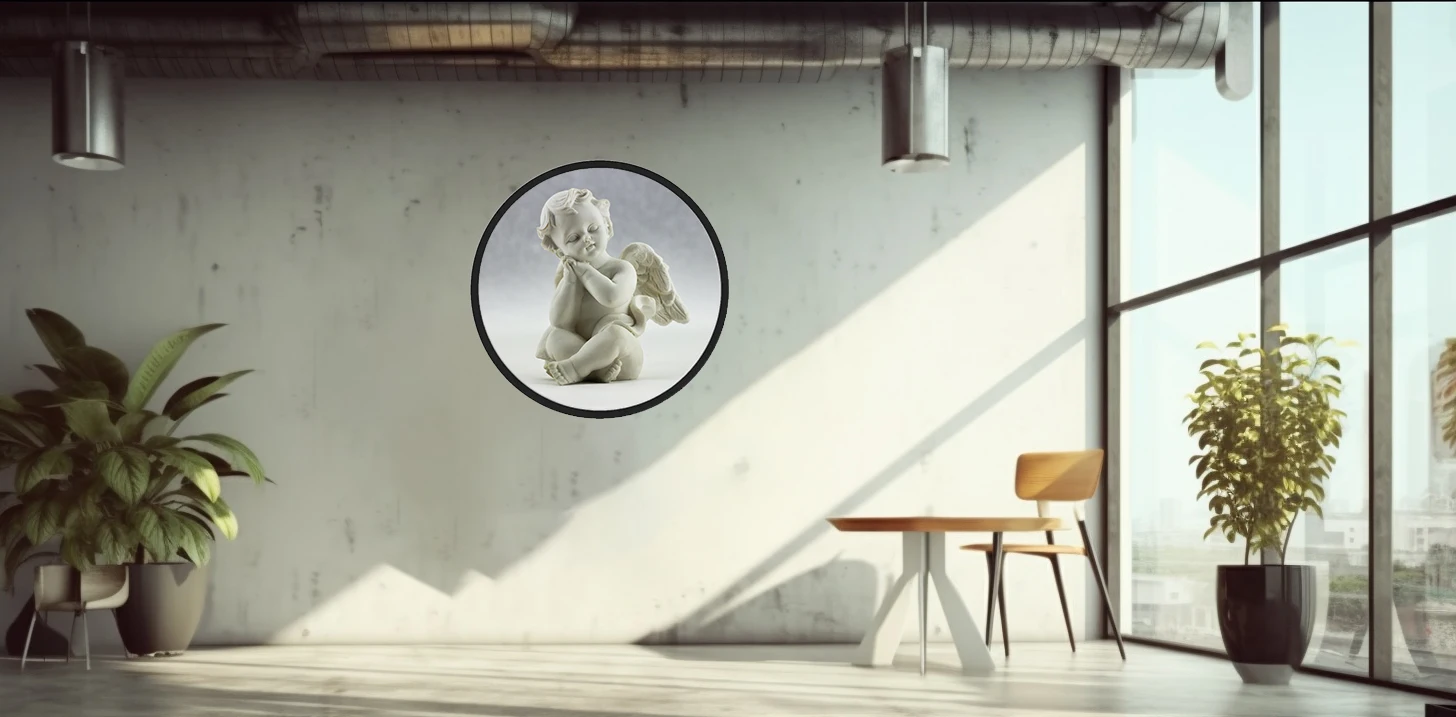

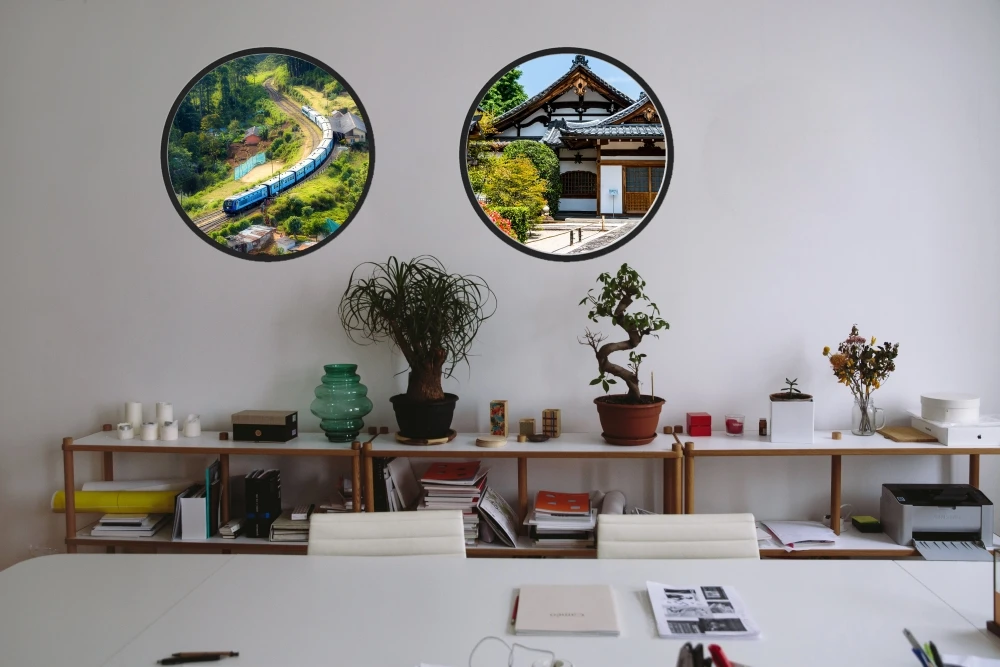

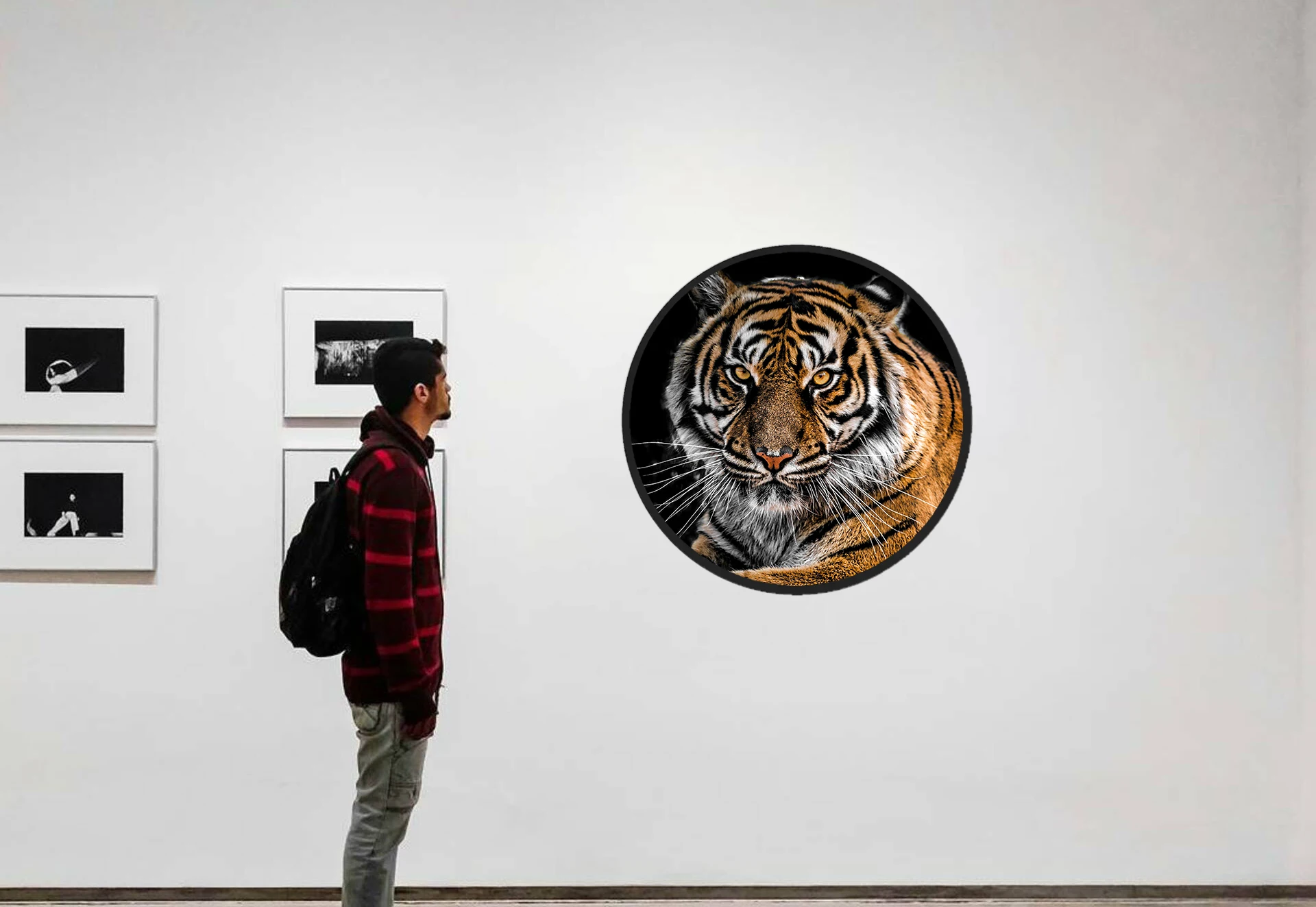

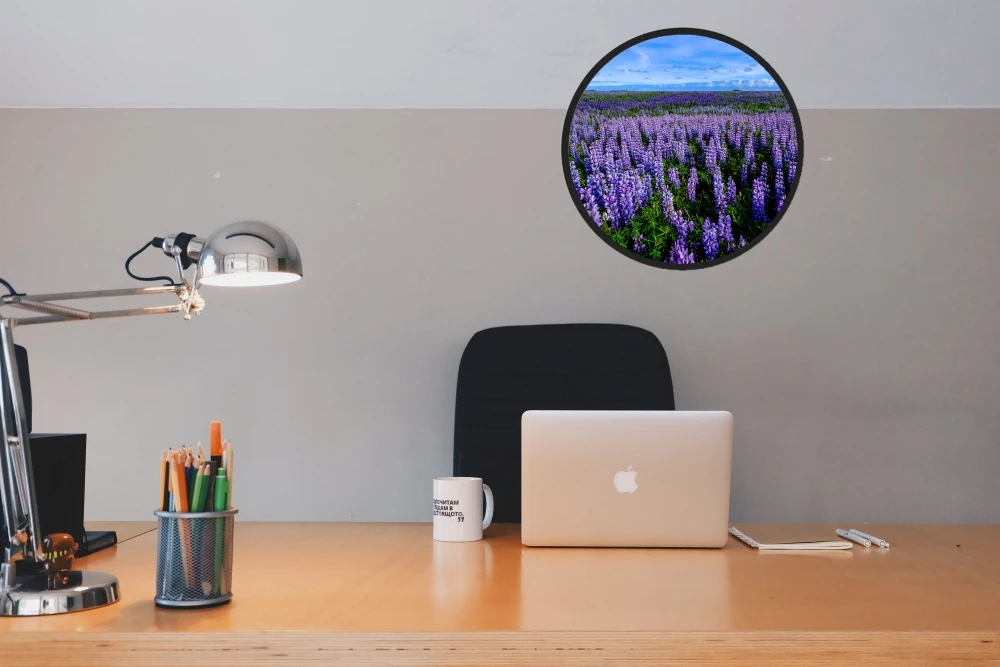

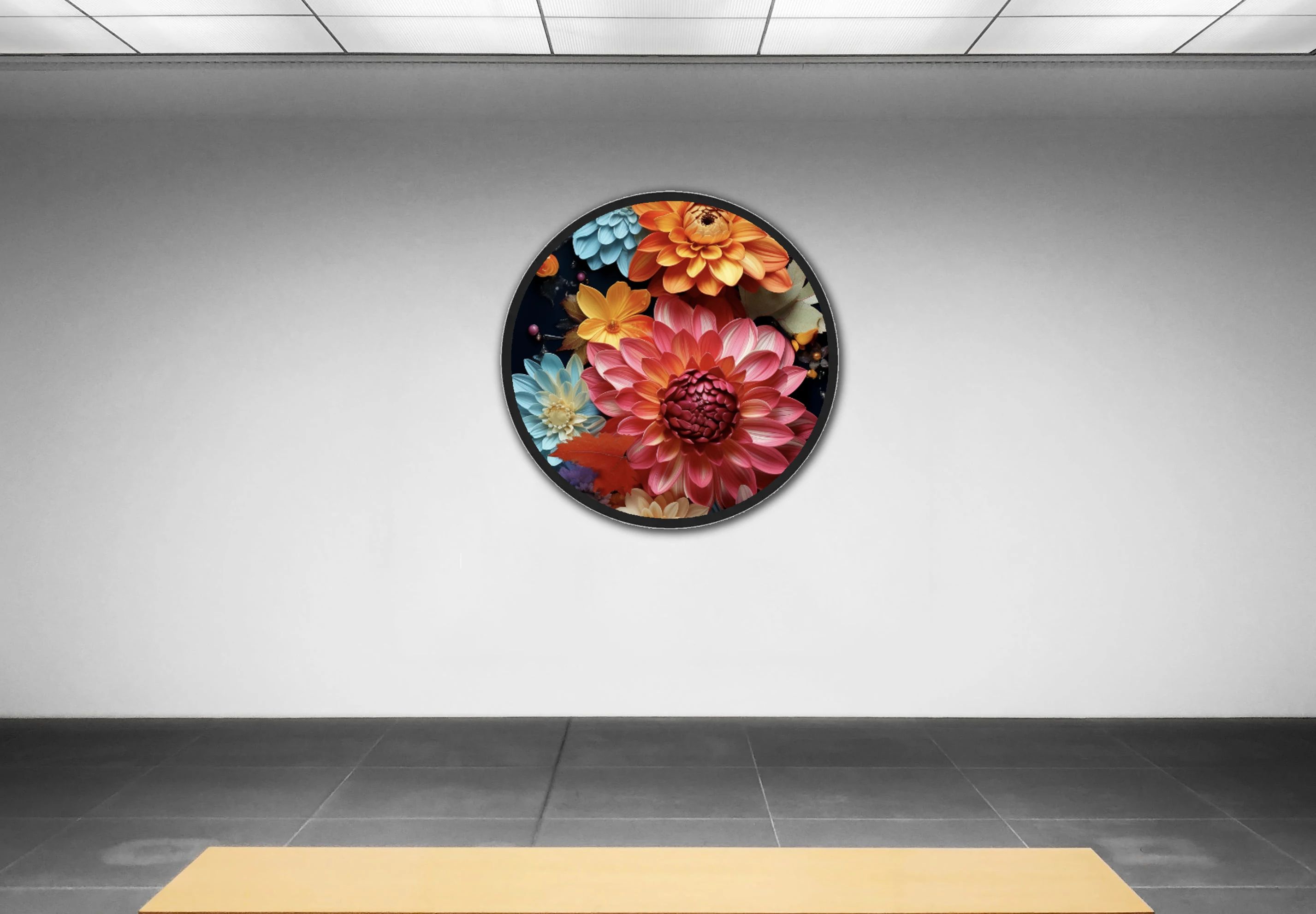

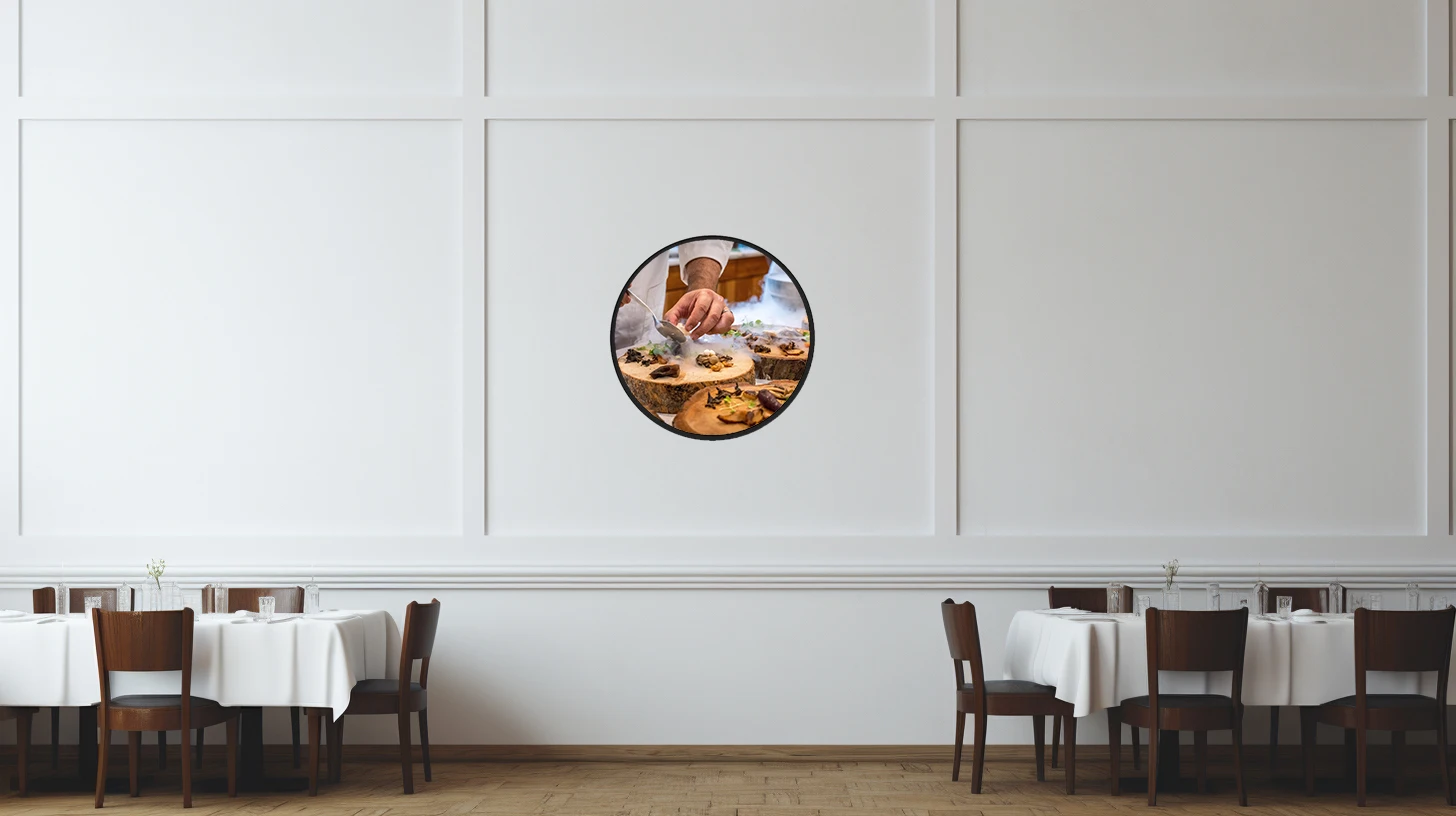

Application
More Products
FAQ
1. Does the product accept customization?
Yes, it accepts all kinds of customization.
2. Does the product have a MOQ?
No, it doesn't. But you can get a better price when you order more.
3. What kind of after-sales service do you offer?
We offer one year warranty and lifetime technical support.
