Product Overview
Description

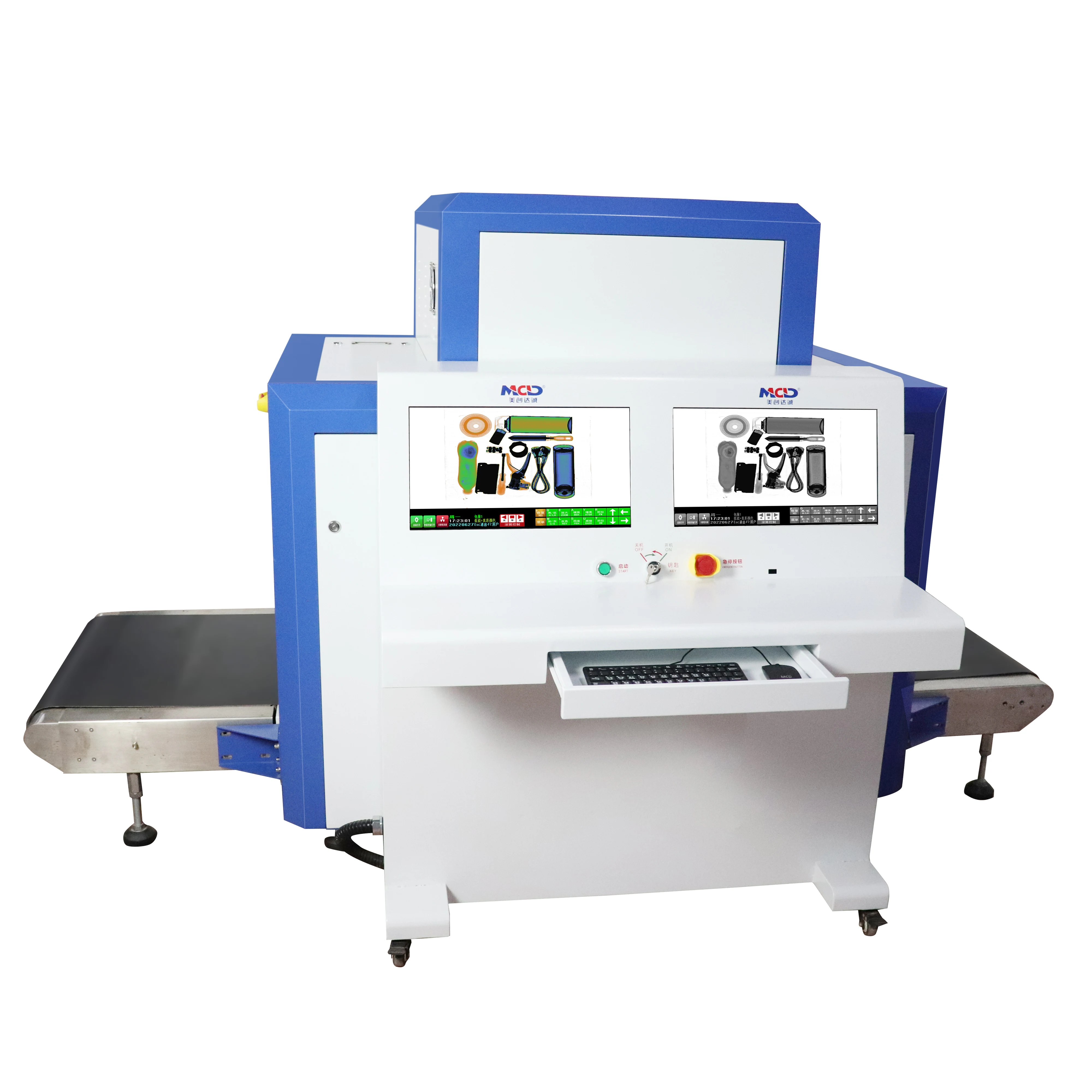

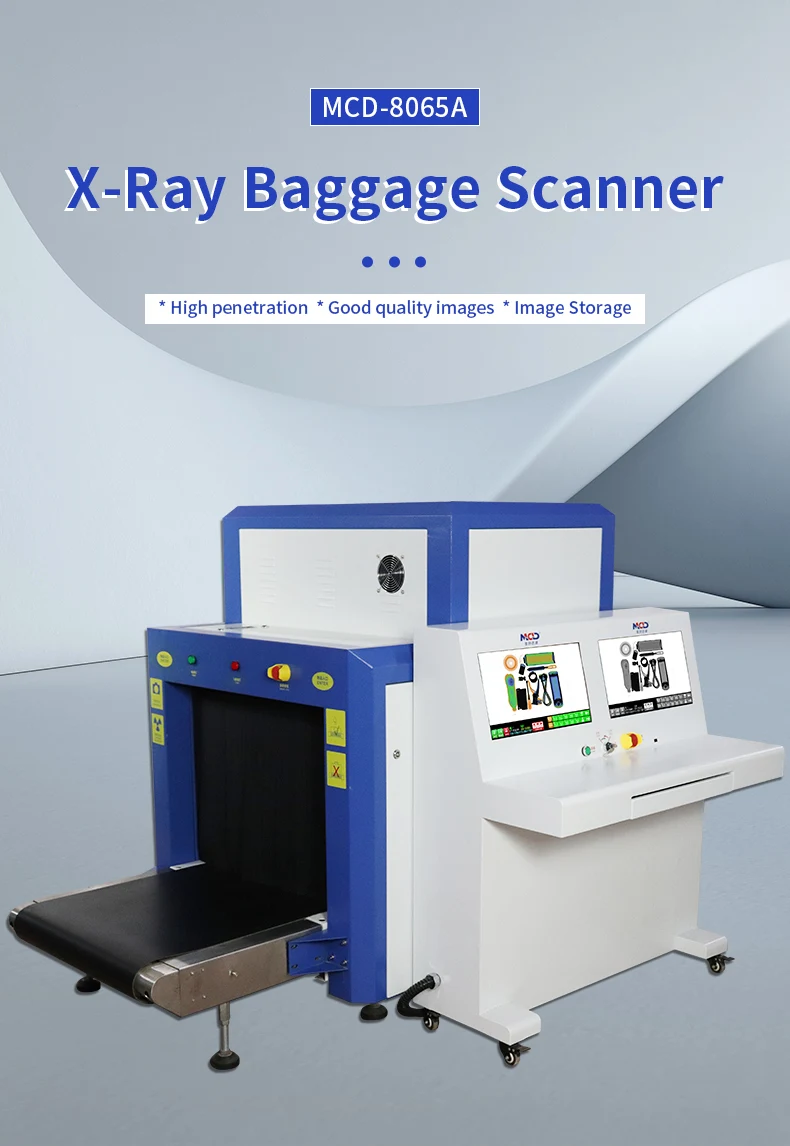

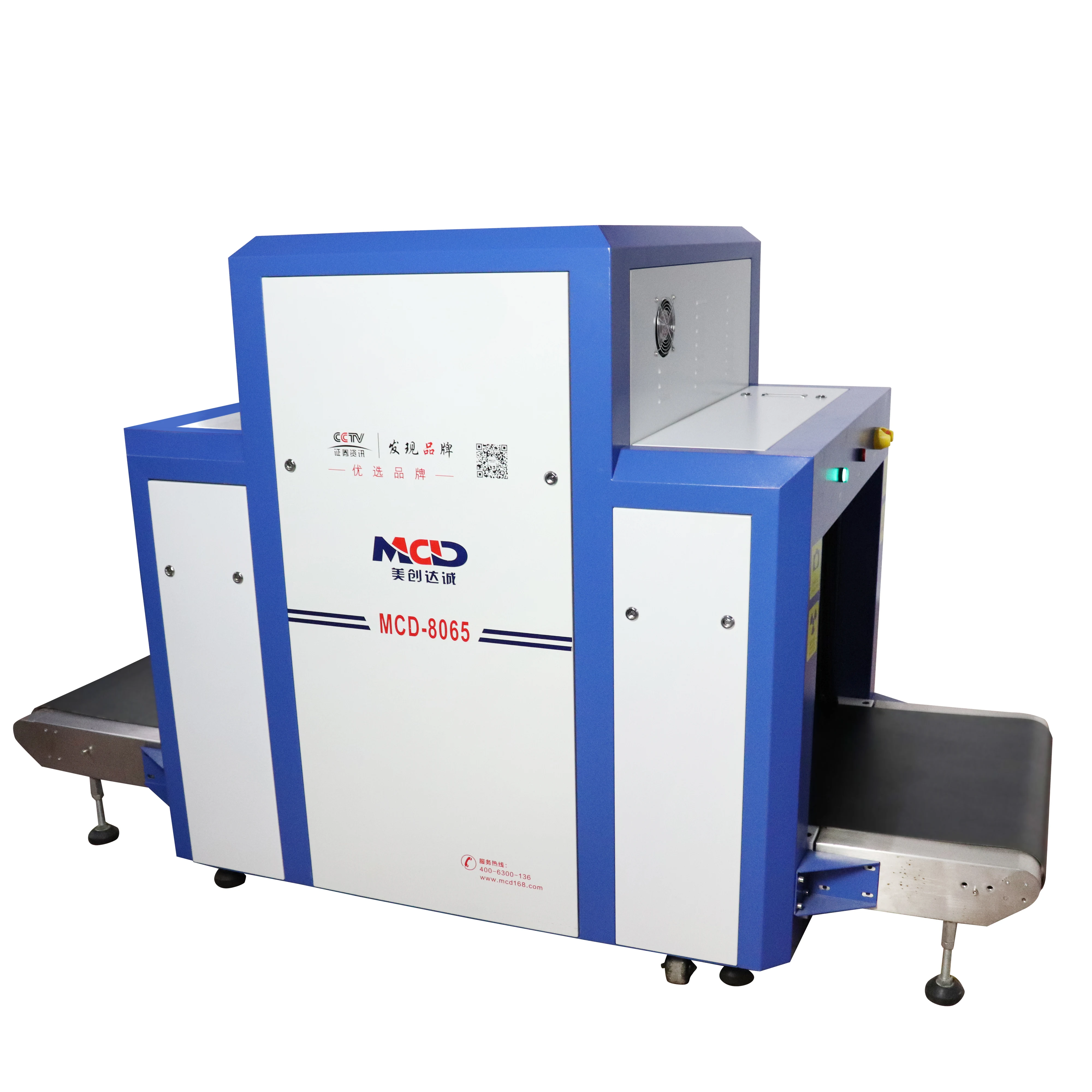

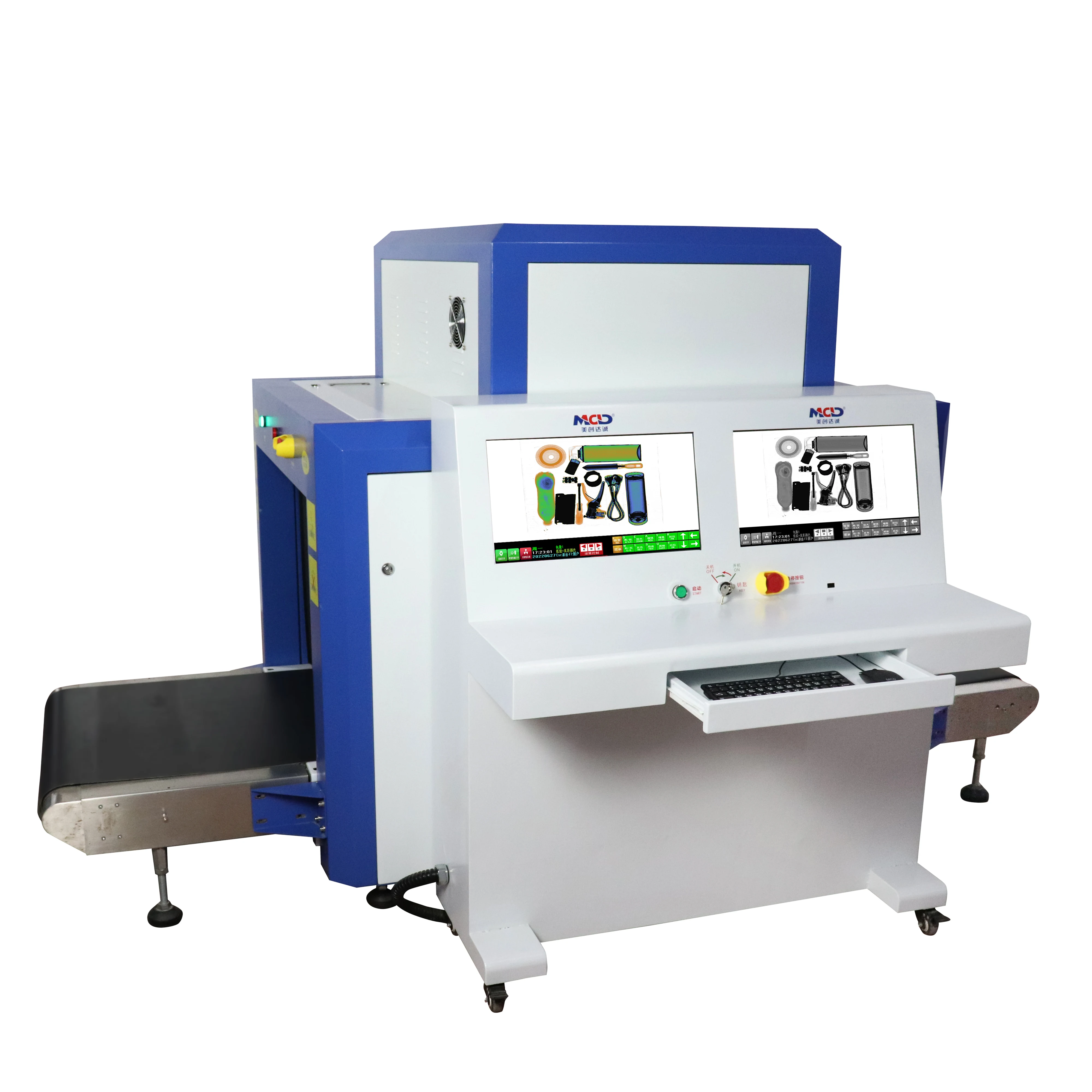

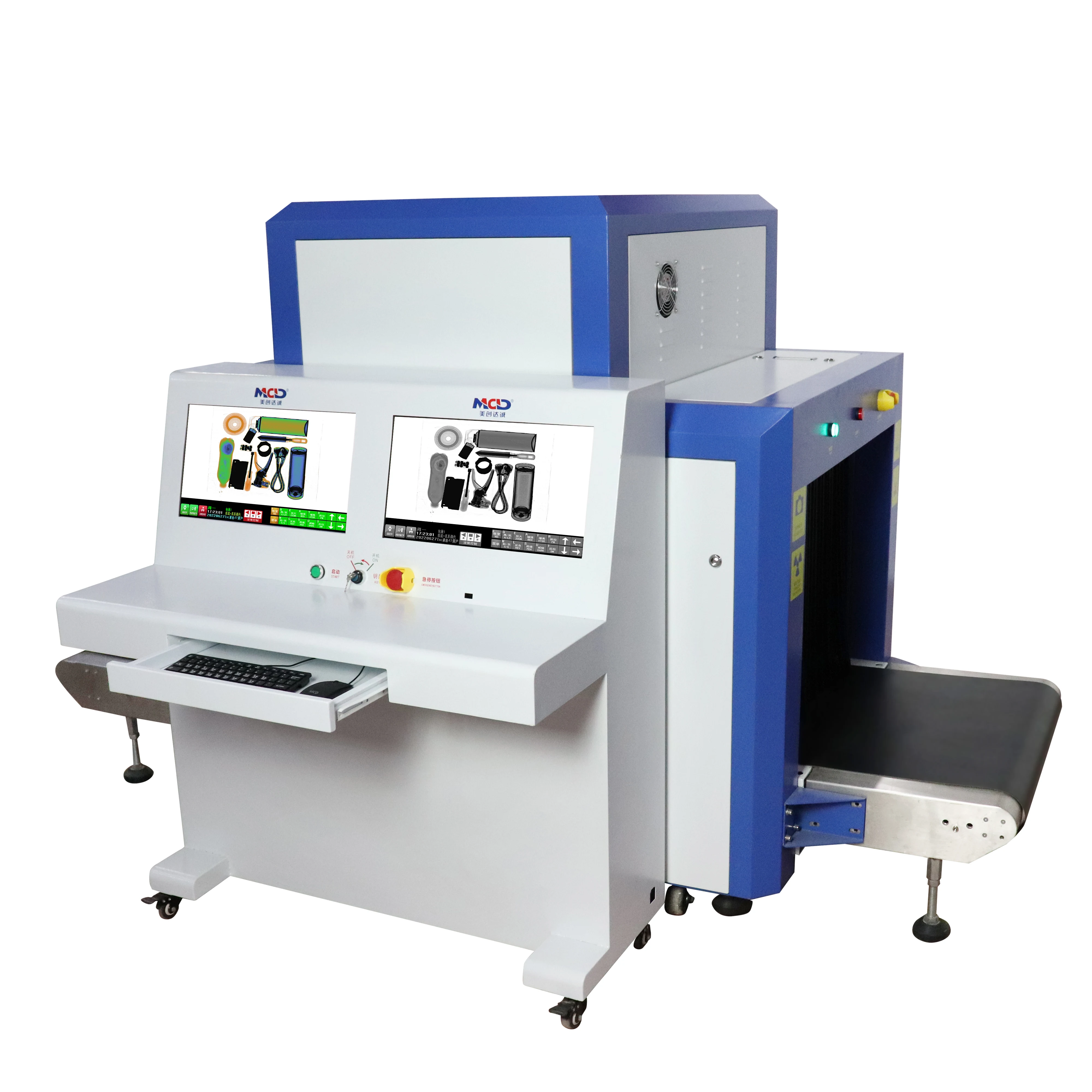

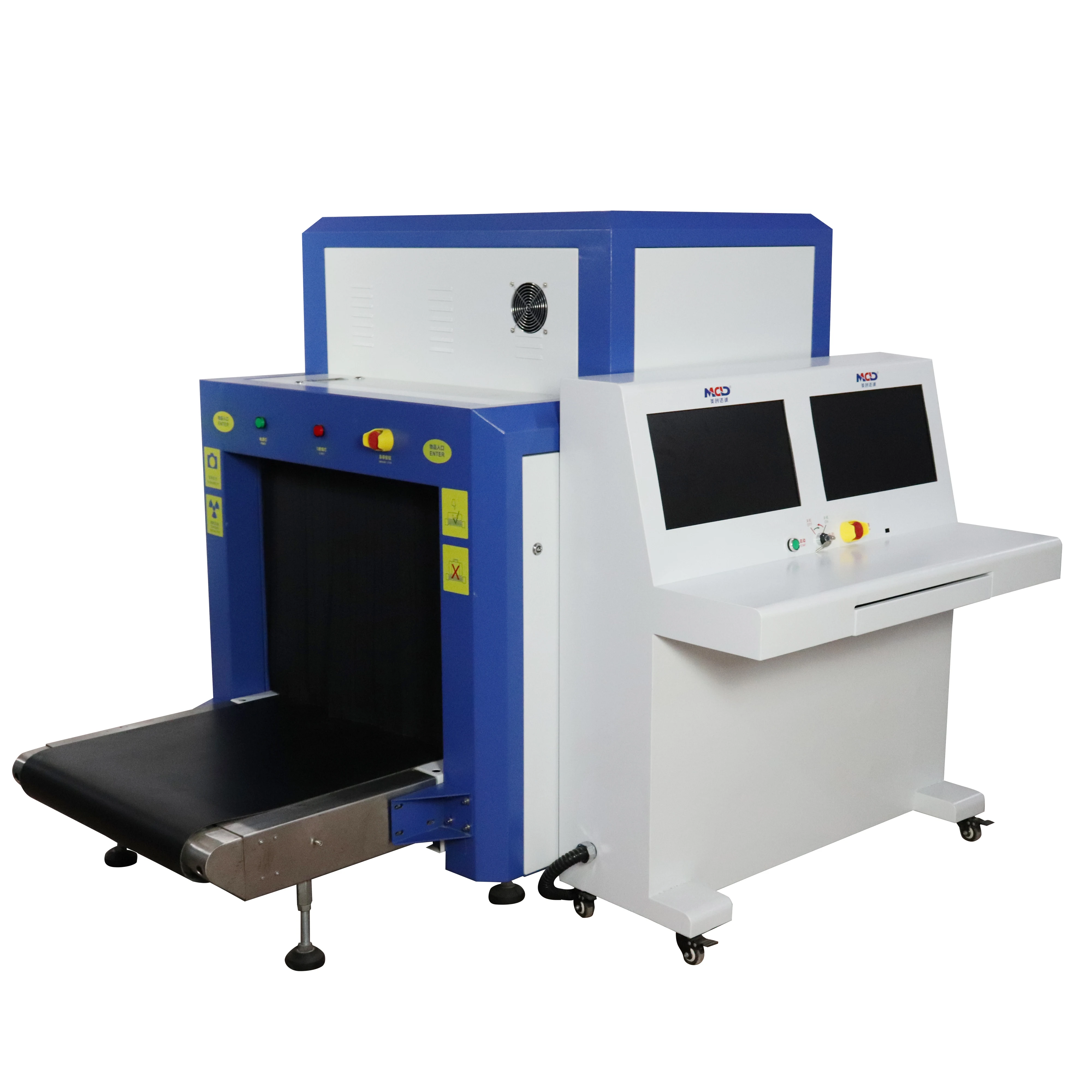

Security Equipment Cargo Inspection X ray Inspection Machine x-ray Scanner for Airport Train Station
Product Description
Specification:
- Tunnel Size :800(W)*650(H)mm
- Conveyor Speed :0.22m/s
- Conveyor Max Load :220kg
- Dose per Inspection :< 1.6* 10(-6)Gy/h
- Resolution :< 0.0787mm Copper Wire
- Spatial resolution Level: dia1.3mm, Vertical: dia1.0mm
- Penetrate resolution :Dia 0.511mm
- Penetration :34mm Steel

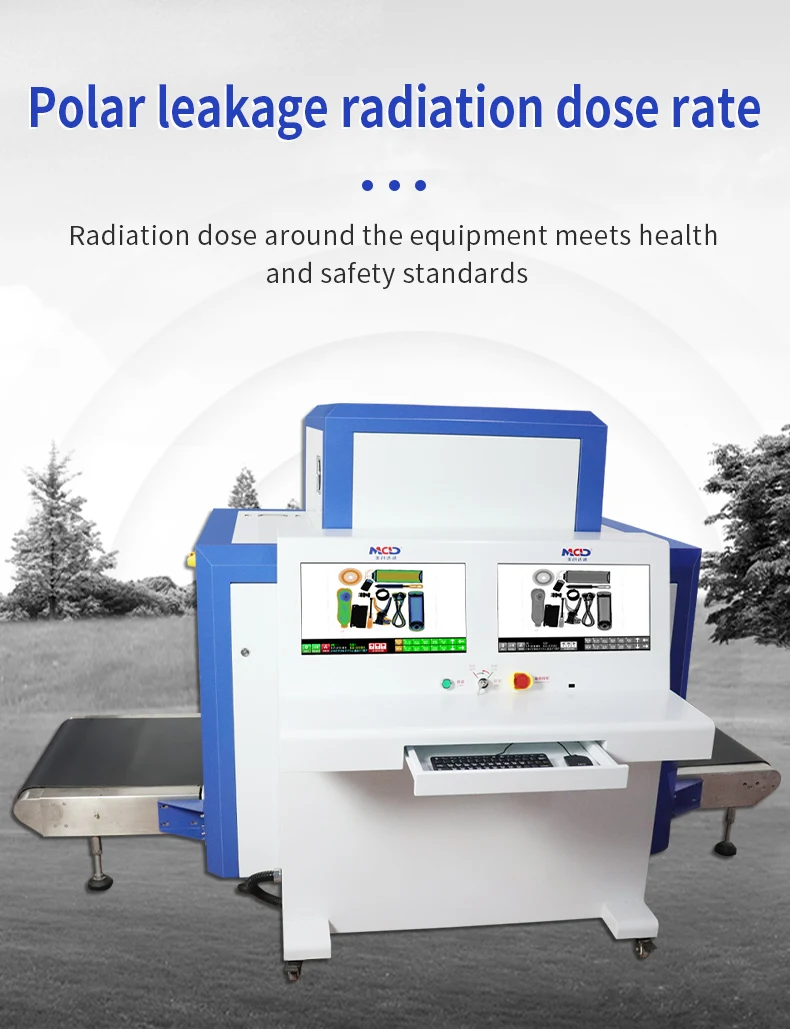

- Film Safety :Guarantee ISO1600 Film X-ray Leakage <0.1* 10(-6)Gy/h (at a distance of 5cm from external housing)
X-ray Generator:
- Generate direct: Bottom to up
- Generate angle: 80 degree
- Anode Voltage :100~160Kv
- Anode power :0.4 to 1.2mA
- Cooling / Duty Cycle Oil Cooling /100%
Image System:
- X-ray Sensor : L-Shaped Photodiode Array (multi-energetic), 12bit Deep
- Monitor :High Resolution Color,
- LCD Accord, 17 inch
- Image Processing:Edge enhancement,image strengthening, image lightening, reducing darkening, imagereturning, image retrieval.
- Image Grey Level :4096
- Image Max Resolution:1024 * 1280 pixel
- Image Processing :24bit for processing real time

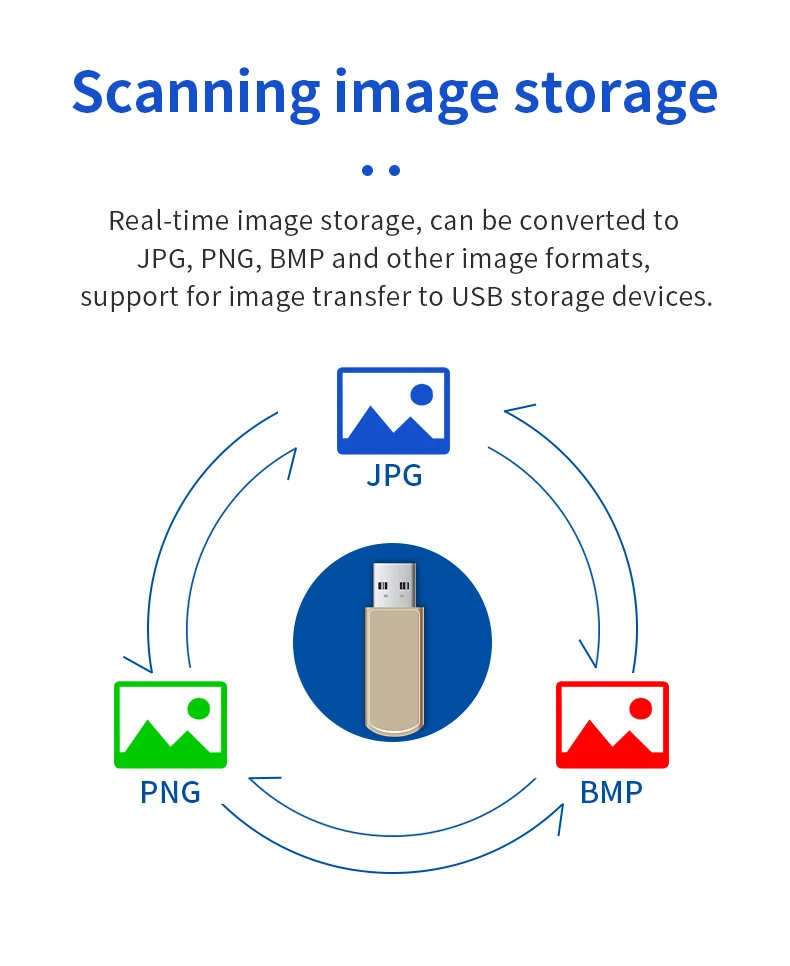

- Image storage Storage :60000 pictures in real time
- Zones & Zoom : 1-9 Image regions, 2,4,8,16 Times Enlarge,
- Whole screen continuous observation

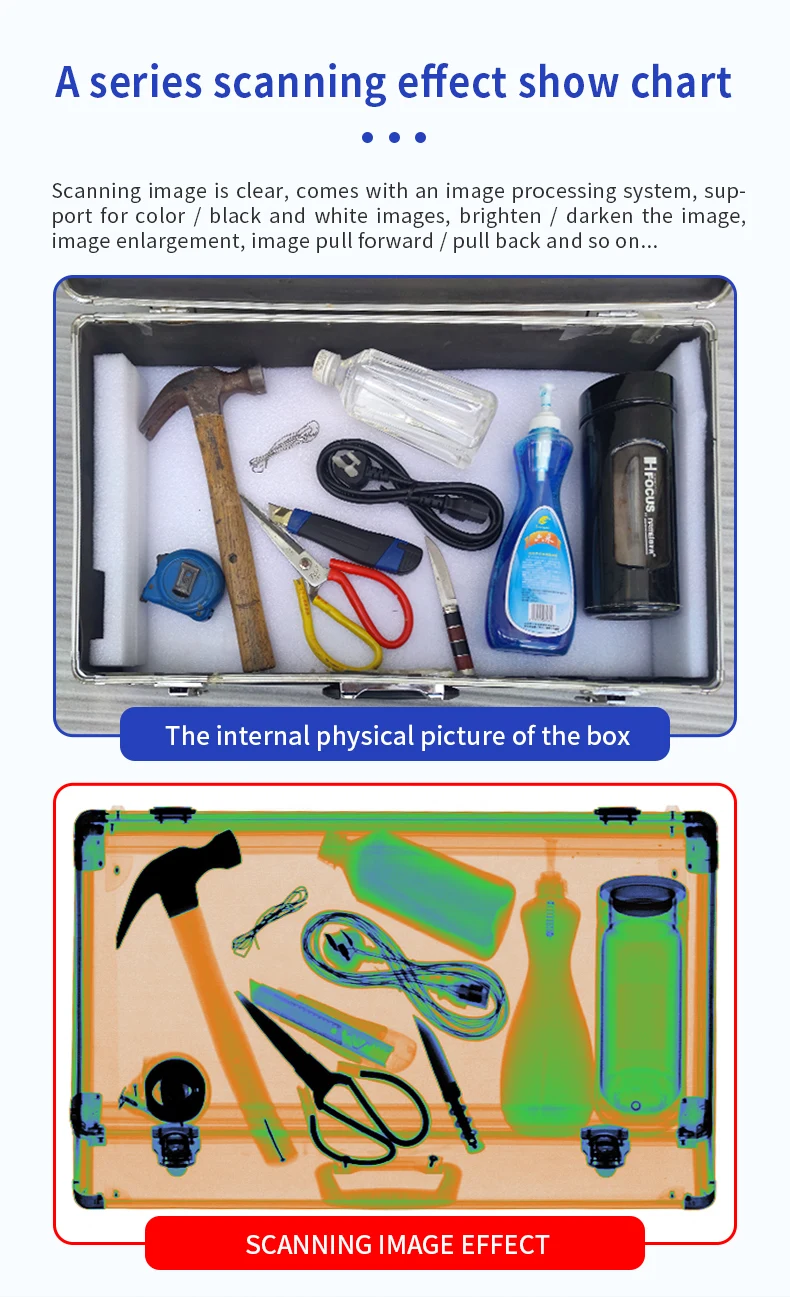

- Multi-energetic distinguish objects organic objects in orange,
- inorganic objects in blue, mixture in green,
- High-energy/low energy : switch from high energy to low energy
- Assist to detect drug and explosive powder
Installation Data
- Operation temperature/Humidity: 0-45/20%-95%(non-condensing)
- Storage Temperature/Humidity :20-60/20%-95%(non-condensing)
- Operation Power :220VAC(±10%)50±3Hz
- Power Consumption :1.0 KW (max)
- Noise: <58db

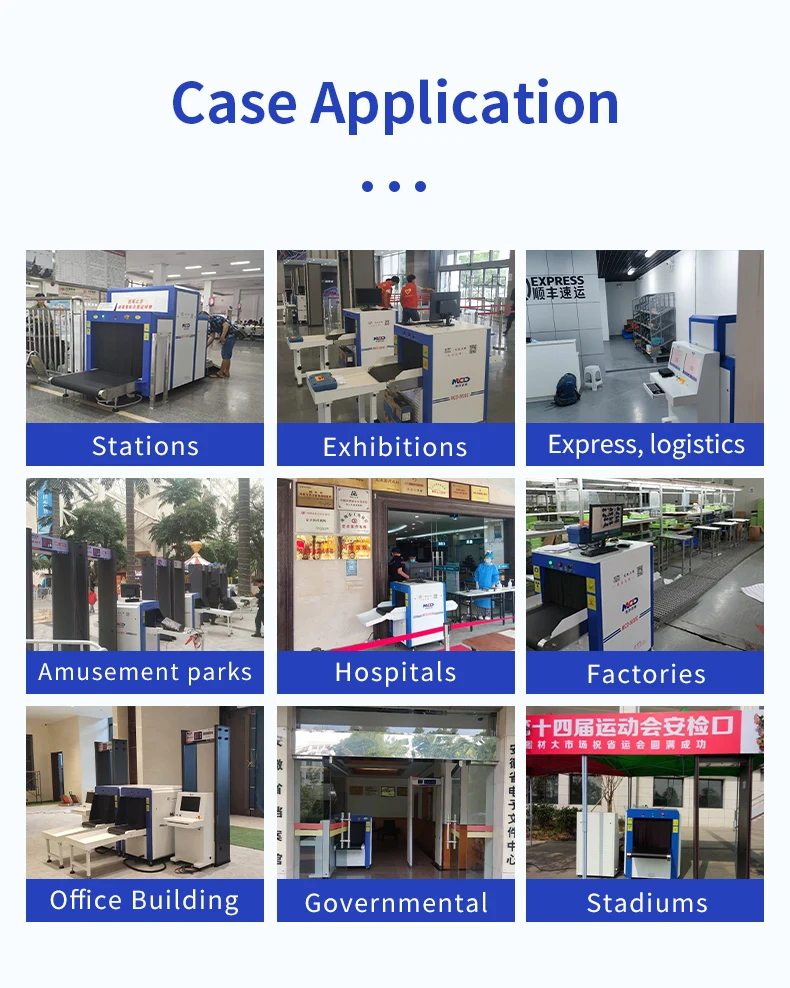

- Commercial buildings
- Factories
- Courthouses
- Embassies
- Government buildings
- Military installations
- Prisons
- Hotels
- Schools
- Convention centers
- Security checkpoints
Our Services
The Quality of Our Products:
- First of all, we promised that all the products are brand-new.
- Secondly, we have inspected quality before leaving the factory, those include but not limited to specifications, appearance, function, package, accessories and so on.
- Thirdly, we package the products by superior high quality carton or wooden case to ensure the completeness and low delivery loss.
- If you find out any problem when receive the products, we are in charge of securing service.
Shipping:
- We only support world-famous Express companies (EMS, DHL, UPS, FedEx), faster and safer by airline, except Long range detectors which set batteries inside (TX-MPI, VR1000BII, VR Long Range King). For reducing our shipping fee, large size articles (Walkthrough metal detector gates, X-ray security inspection machines, Needles inspection for Food industry, etc) will go Ocean shipping.
Warranty Policy:
- In one month, if you’re not satisfied with product or product damaged (Not man-made), you can change unconditionally. (About changing, please contact customer service.), return shipping cost is buyer’s responsibility.
- 12 months warranty for all accessories and lifelong service.
FAQ
1.Why will I choose to cooperate with you ?
- As a top brand, we supply products with high quality and super service as well as competitive price.
- And we have entered into the security industry for more than 10 years.
- Professional engineers accept your suggestion for customized design.
- 24 Hours after sales service support.
- Professional sales reply to you with any questions in time.
2. How about the packing for product? Is it easy damaged during transportation?
- For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box .
- For heavy structure products like conveyor belt needle detector. Food metal detector X-ray machine. Our packing is Standard Export ploy Wooden Case.
- Every prepackage have a plastic bags cover.
3. What’s your main product?
We are specialized in manufacturing X-ray Luggage Scanner, Conveyor Food Metal Detector, Walk Through Metal Detector, Hand Held Metal Detector, Underground Metal Detector, Under Vehicle Search System.
4. How about your after-sales policy?
Customer first is our always principle . All of our products normal warranty is 12months. We give necessaRy back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service.
5. Do you accept customer Logo and customized ?
we accept kinds of customized and logo of all of our products for customers.
welcome to contact us!
