Color Spectrophotometer Color Spectrum Analyzer Touch Screen Portable Benchtop TS Series
- Category: >>>
- Supplier: Foshan Kabadi Trade Co. Ltd.
Share on (1601023349889):
Product Overview
Description

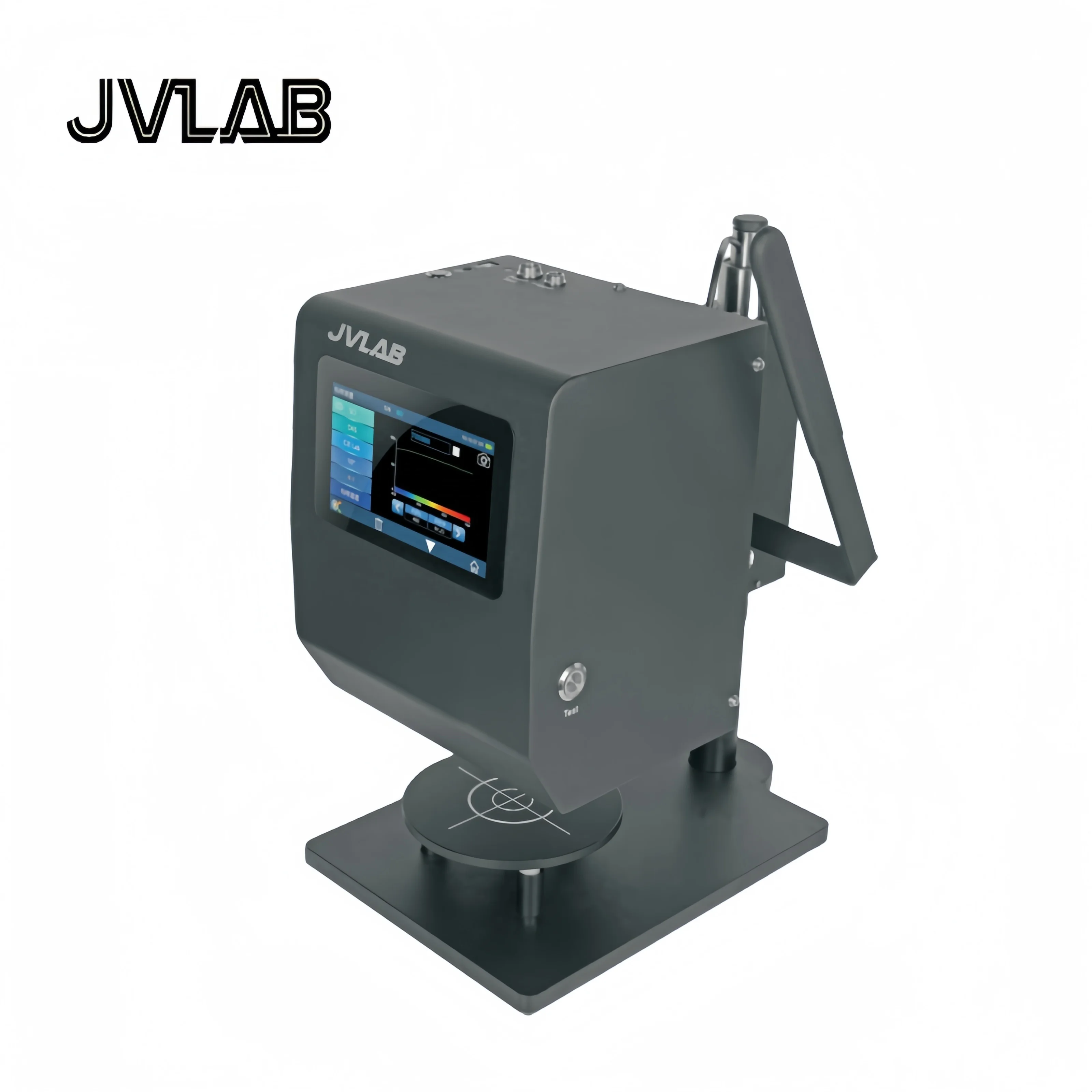

Protable Benchtop Color Spectrophotometer
The portable desktop spectrophotometer TS is a spectrophotometer developed by using independent spectroscopic core technology, which adopts a built-in silicon photodiode array (40 groups in two rows) sensor and an imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability of TS portable benchtop spectrophotometer is easily controlled within 0.025 and the inter-stage difference ΔE*ab is controlled within 0.2, which can be used for accurate color analysis and transmission in the laboratory.
Product Description
Features
1. It adopts the international D/8 structure, which is compatible with SCI/SCE measurement, and supports SCI+SCE simultaneous rapid measurement. TS portable desktop spectrophotometer adopts the internationally applicable D/8 illumination observation conditions, SCI/SCE (including specular reflection/without specular reflection) synthesis technology, and supports SCI+SCE simultaneous rapid measurement, with a test time of about 3.2 seconds.
2. Silicon photodiode array (dual 40 array) sensor. The larger area of the dual 40 array sensor, strong light will not be saturated, low light sensitivity is higher and the spectral response range is wider, which ensures the measurement speed, accuracy, stability and consistency of the instrument.
3. A variety of color measurement space, a variety of observation light sources. TS portable benchtop spectrophotometer provides CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, Munsell (C/2) color spaces, as well as D65, A, C, D50, F2 (CWF), F7 (DLF), F10 (TPL5), F11 (TL84), F12 (TL83/U30) observation light sources, which can meet the special measurement needs under different measurement conditions.
4. Adopt a combined full-spectrum LED light source.The all-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LEDs in a specific wavelength band, and ensures the measurement speed of the instrument and the accuracy of the measurement results.
2. Silicon photodiode array (dual 40 array) sensor. The larger area of the dual 40 array sensor, strong light will not be saturated, low light sensitivity is higher and the spectral response range is wider, which ensures the measurement speed, accuracy, stability and consistency of the instrument.
3. A variety of color measurement space, a variety of observation light sources. TS portable benchtop spectrophotometer provides CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, Munsell (C/2) color spaces, as well as D65, A, C, D50, F2 (CWF), F7 (DLF), F10 (TPL5), F11 (TL84), F12 (TL83/U30) observation light sources, which can meet the special measurement needs under different measurement conditions.
4. Adopt a combined full-spectrum LED light source.The all-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LEDs in a specific wavelength band, and ensures the measurement speed of the instrument and the accuracy of the measurement results.
Specification
Model | TS8210 | TS8260 | TS8450 | TS8280 | TS8290 | ||||
Lighting style | D/8 (diffuse illumination, 8° direction reception) | 45/0 (45 annular uniform illumination 0° reception) | D/8 (diffuse illumination, 8° direction reception) | ||||||
Integrating sphere size | Φ40mm | Φ152mm | Φ152mm | ||||||
Illumination light source | Combined full-spectrum LED light source | ||||||||
Spectroscopic method | Planar grating splitting | ||||||||
inductor | Silicon photodiode array (dual row 40 groups) | 256-pixel dual-array CMOS image sensor | Silicon photodiode array (dual row 40 groups) | ||||||
Wavelength range measurement | 400~700nm | ||||||||
Wavelength spacing | 10nm | ||||||||
Semi-bandwidth | 10nm | ||||||||
Reflectance measurement range | 0~200% | ||||||||
Measure the caliber | MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm | MAV:Φ25.4mm/Φ30mm；SAV:Φ8mm/Φ10mm | Φ30mm/Φ25.4mm | ||||||
Light-containing method | simultaneously testing SCI/SCE | 45/0 | simultaneously testing SCI/SCE | ||||||
Color space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2) | ||||||||
Chromatic aberration formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 | ||||||||
Observer perspective | 2°/10° | ||||||||
Observe light source | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) | ||||||||
TS8290
TS8280
