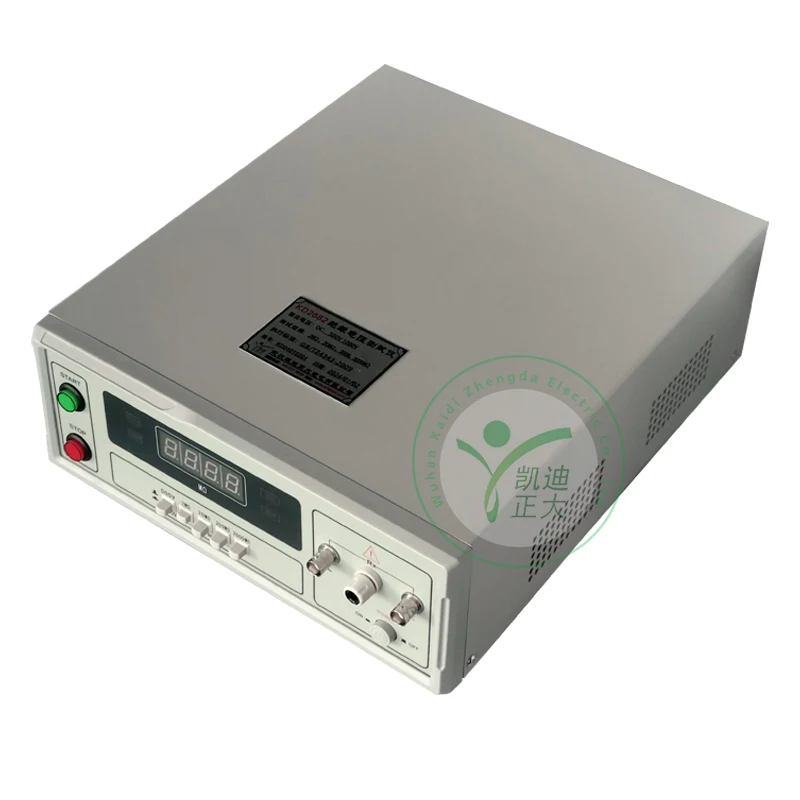

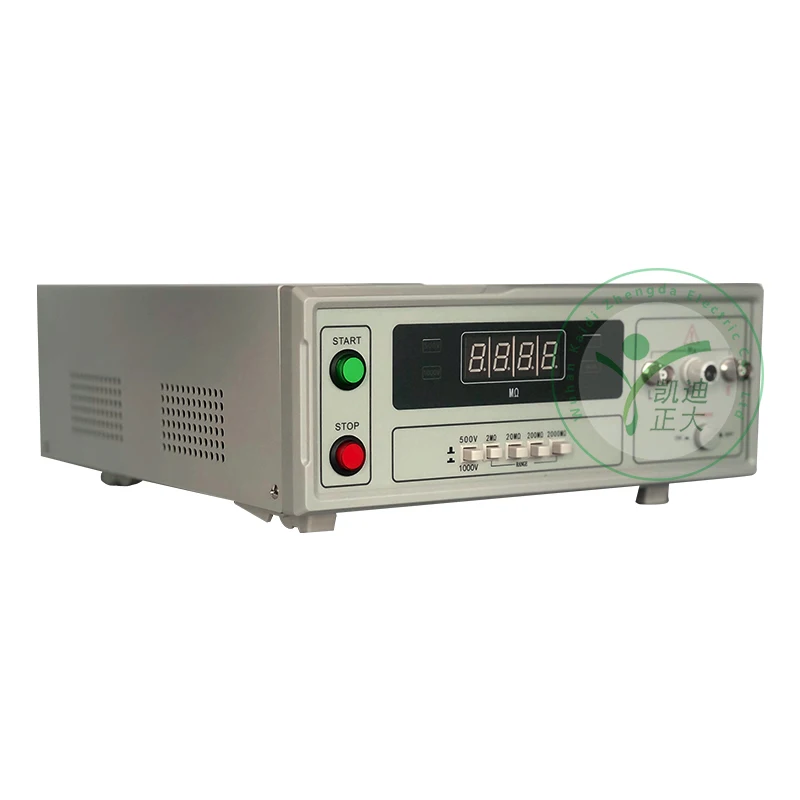

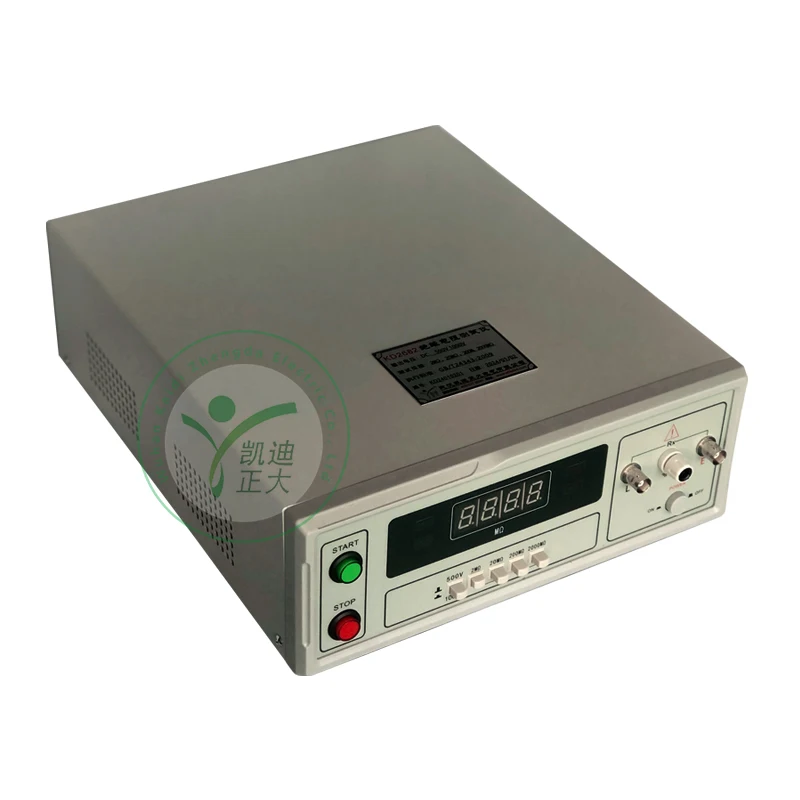

Insulation Resistance Tester AC Withstanding Voltage Tester
- Category: >>>
- Supplier: Wuhan Kaidi Zhengda Electric Co. Ltd.
Share on (1601023401832):
Product Overview
Description
Product Overview
On the basis of absorbing and digesting similar international insulation resistance testing instruments, this instrument has been improved and perfected in combination with the actual usage of many users. In terms of cost-effectiveness, we attach more importance to performance and quality, and in terms of price, we attach more importance to the actual purchasing ability of many users. It is a product with high cost-effectiveness in the same class of models.

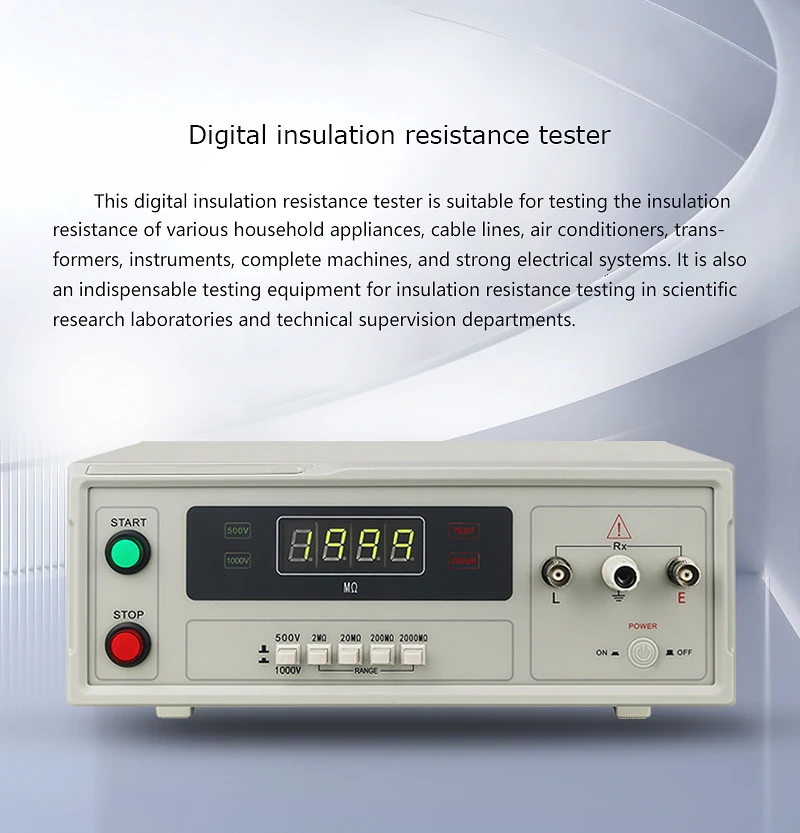

The instrument has strong DC high-voltage load capacity, high testing accuracy, easy operation, and under the careful planning of the designers, the integration level of the instrument has been improved, resulting in faster testing speed, better stability, more reasonable structure, and more beautiful and elegant appearance. It is suitable for testing the insulation resistance of various household appliances, cables, air conditioners, transformers, instruments, instrument machines, and strong electrical systems. It is also a research laboratory Test equipment commonly used by technical supervision departments for insulation resistance detection.
Rated usage conditions: A: ambient temperature: 0-40 ℃, B: relative temperature: ＜ 70%, C: atmospheric pressure: 86-106KPa.
Technical specifications
1. Insulation resistance test voltage: DC: 500V ± 5%; DC: 1000V ± 5%
2. Insulation resistance test range:
2M Ω 0 5M Ω~1. 999M Ω ± 5%+2 words
20M Ω 2M Ω~19 99M Ω ± 5%+2 words
200M Ω 20M Ω~199 9M Ω ± 5%+2 words
2000M Ω 200M Ω~1999M Ω ± 5%+2 words
3. Over range indication: Display flashing
4. Under range indication: The under range indicator light is on and the buzzer sounds
5. Working conditions: ambient temperature 0-40 ℃
6. Relative humidity: ≤ 75%
7. Atmospheric pressure: 101.25kPa
8. Volume: 140 × two hundred × 260mm
9. Weight: 10kg
10. Power supply: 220V ± 10% 50Hz ± 2Hz
11. Attachment: One set of testing cables, one manual, one warranty card, and one power cord.

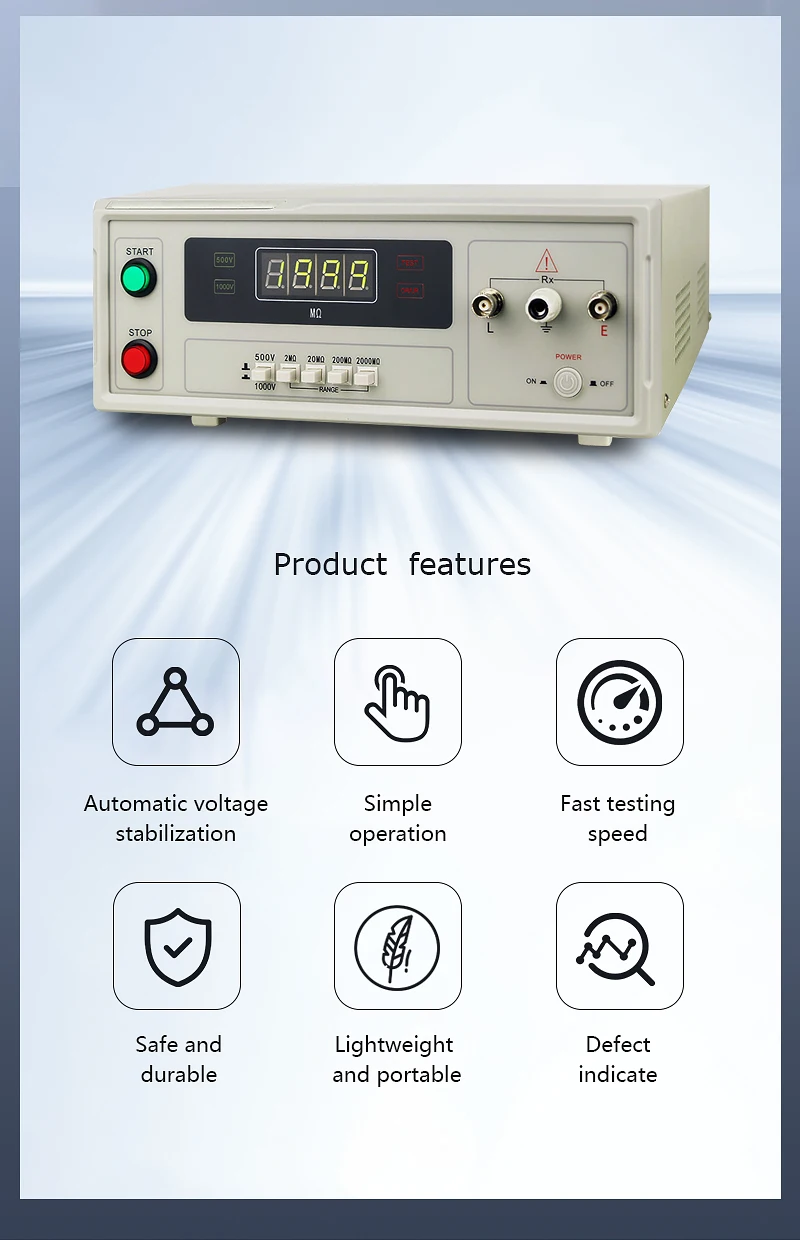

Performance characteristics
2. Equipped with automatic voltage stabilization function
3. Has the function of poor discrimination
4. Fast testing speed, fast stability, safe and durable
5. Portable, lightweight, and easy to connect.

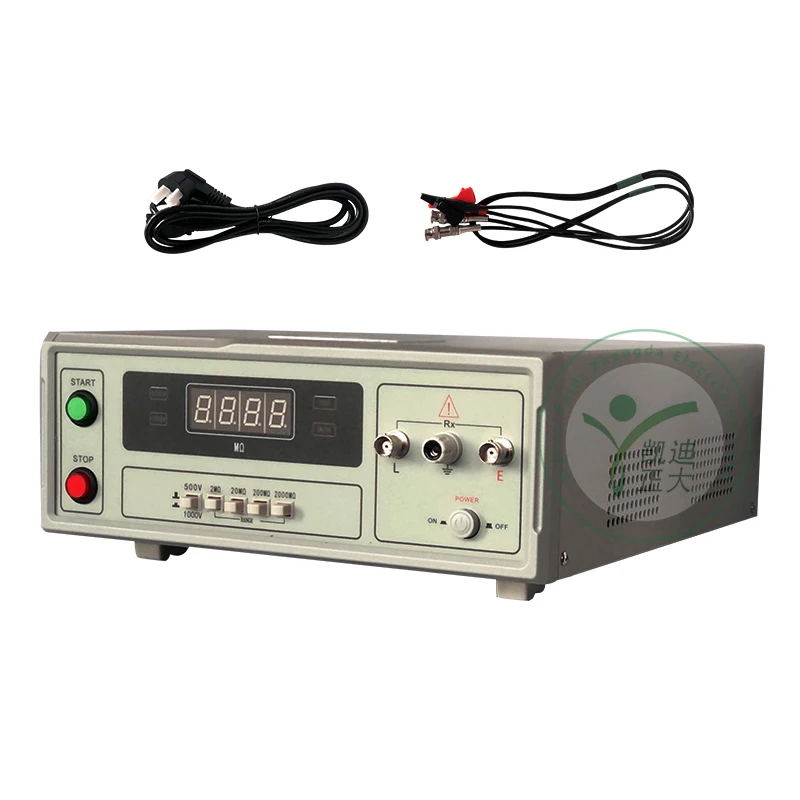

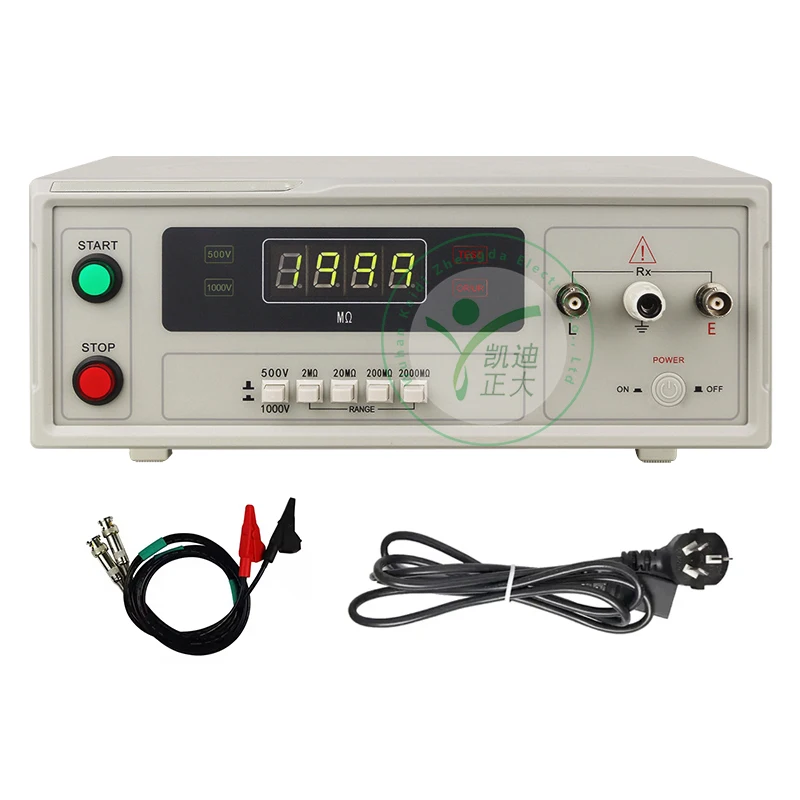

Packing list | ||
KD2682 insulation resistance tester | 1 unit | |
Special testing line for testers | 1 set | |
Power cord | 1 piece | |
Instructions | 1 copy | |
Certificate of conformity | 1 copy | |
File bag | 1 unit | |
