Price:73,50 US$ - 84,20 US$

Quantity:


Product Overview

Description

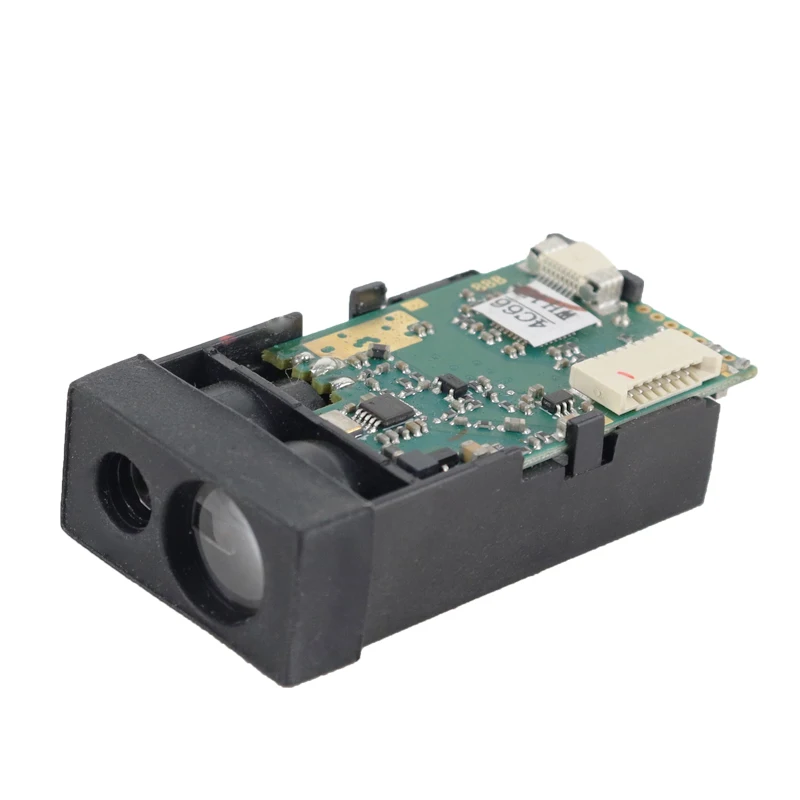

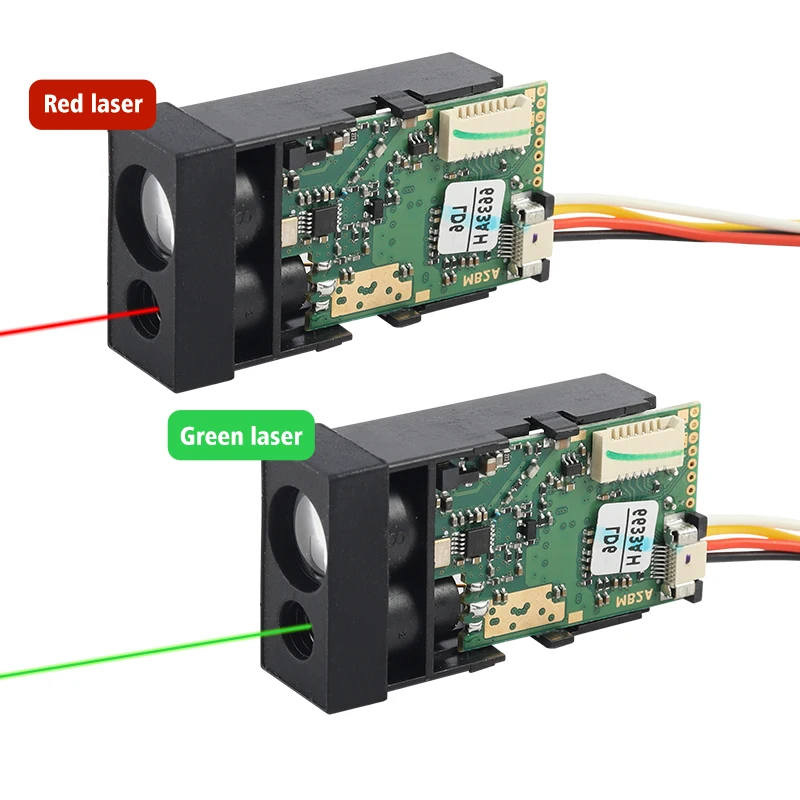

LDK Module

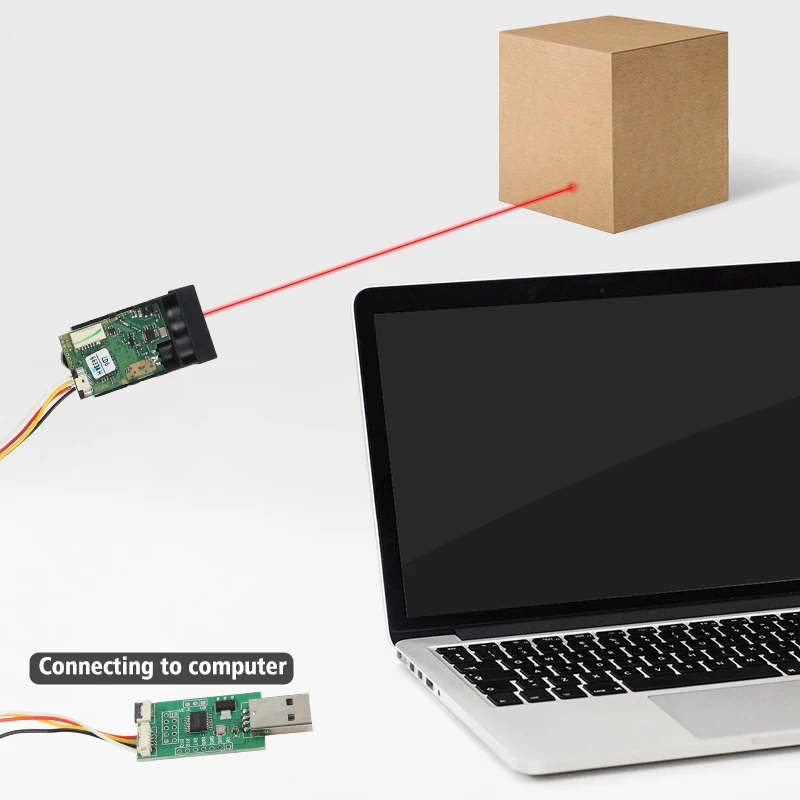

Laser Distance Module is designed for precise measurement, which has high accuracy, fast measuring speed, easy to install and operate. Our module has been widely used in daily measurement,industrial measurement, warehouse monitoring, traffic investigation, and robots etc.

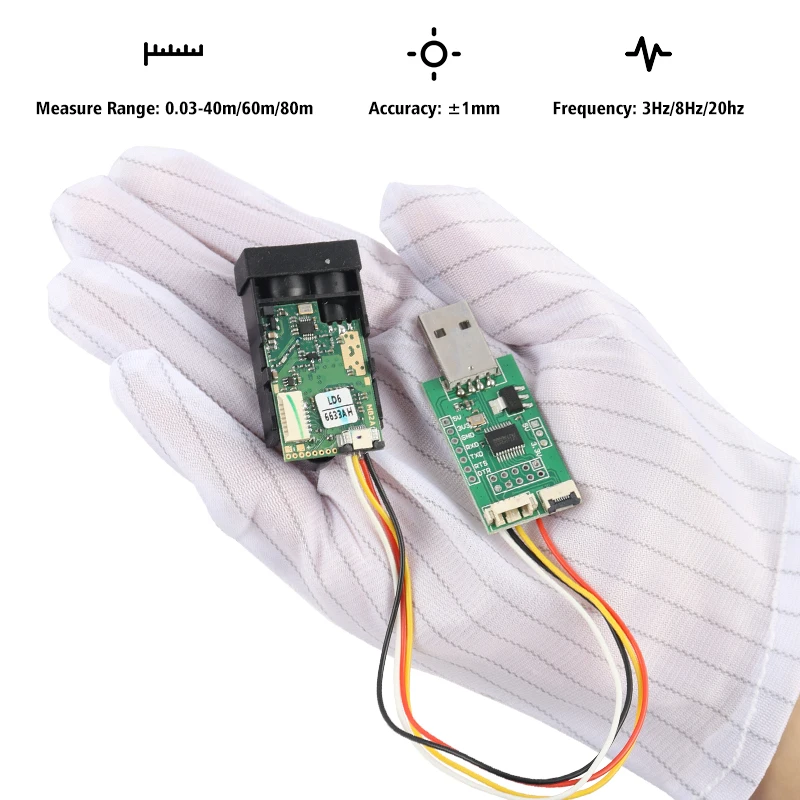

Indoor range
0.03-60m（90% Rate of reflection）
Output frequency
3Hz
Accuracy
2mm
Absolute accuracy
±2mm
Resolution
1mm
Blind area
3cm
Light
635nm，<1mW，Red laser, class II safety laser
Communication interface
UART TTL
Serial level
VTTL=3.3V
Operating temperature
-40~60 ℃
Working voltage
DC+3.3 V
Working current
80mA
Power
0.27W

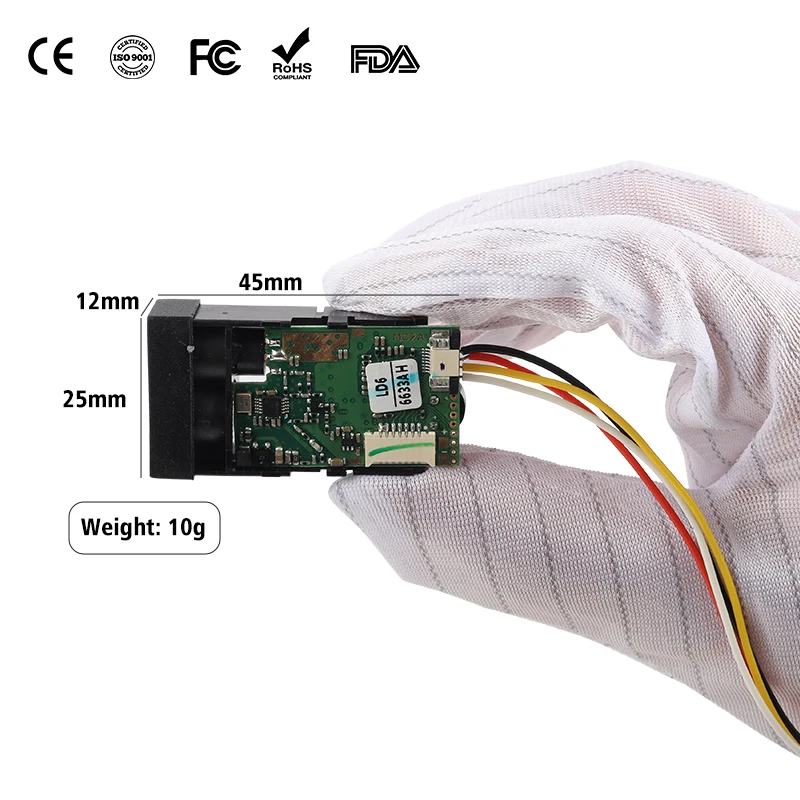

Volume
48*26*13mm
Weight
10g


Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+50PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Operating temperature -10 ℃~50 ℃ can be customized.
4. 8Hz only be activated when Fast continuous measuring mode is using.

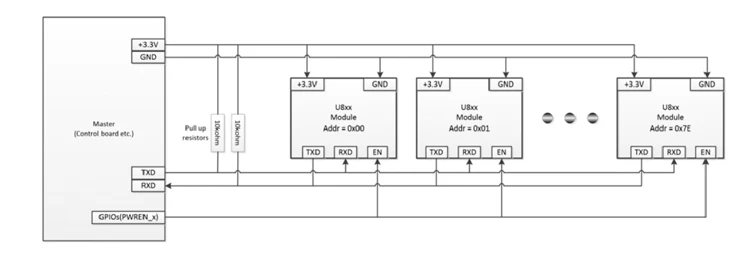

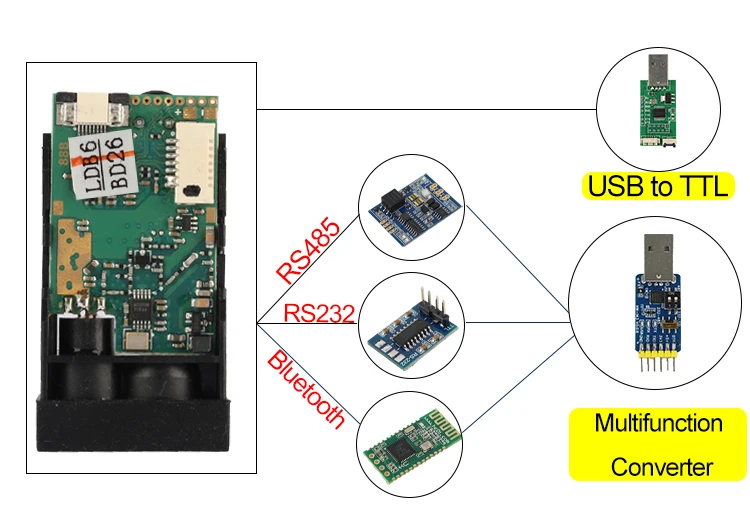

Communication Port

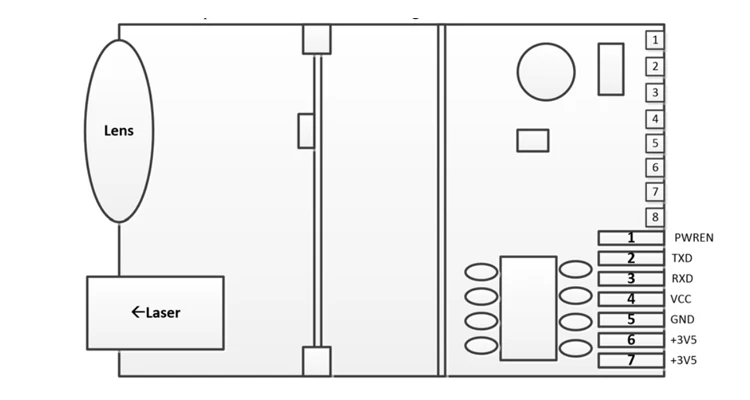

Product Pins And Connection Methods.




















COMPANY INFORMATION
Chengdu Meskernel Integrated Technology Co.,Ltd. is a high-tech enterprise specializing in the research, development, design and production of laser measurement (sensing) core chips and systems. It has now formed Laser Measurement Chips, Laser Measurement Modules (1D, 2D and 3D LiDAR)led series of products have been unanimously recognized and trusted by customers at domestic and abroad for their advantages such as high precision, small size, low power consumption, stable performance, and reasonable price.The company is headquartered in Chengdu, Sichuan Province, and currently has more than 70 employees, including more than 30 R&D engineers, accounting for more than 40%.

At present, it is a Gazelle Enterprise in Chengdu as a Specialized, Refined, and Innovative Enterprises in Sichuan Province, and has established the National Ultra-HD Video Innovation Center Joint Laboratory, obtained and qualified of Chengdu Enterprise Technology Center,ISO Management System Certification and more than 60 various intellectual property rights

We believe only by keeping your feet on the ground, you can look up at the stars.In the future, we will always uphold the values of "unity, focus, integrity, and common progress", focus on developing higher, faster, and stronger laser measurement cores, persist in R&D innovation, strengthen the market, and make every effort to create the most competitive world-renowned brand in the segmented fields.


















Q1. Are you trading company or manufacture?
A1：We are original manufacturer locates in Shuangliu District Chengdu. Our company was established in 2004 with more than 37 national patents and own brands, Welcome to visit us.

Q2. What is your main product?
A2: Our company has mainly focused on the field of laser measurement and control, Laser Ranging Module, Laser Distance Sensor, Laser Rangefinder Module as long as Laser Distance Meter, Laser Rang Finder and 2D 3D LiDAR.

Q3. What’s the warranty of your products?
A3: We provide 12 months of Factory Warranty for all our products since shipping date.

Q4. Can you offer customized service?
A4: Sure we can provide clients OEM and ODM products and solutions. For products function data like Distance, Precision, Frequency, interface of Bluetooth, Communication Protocol RS485, RS232, USB, TTL, we all provide ODM even the programming.

Q5. Can I have a sample for testing?
A5: Yes, we can provide 1-2 pcs samples for clients testing for its programming compatibility and stability.but clients will firstly pay the sample cost and shipping cost.

Q6. How much does it cost to ship to my country?
A6: You can send us your shipping address and we can calculate the shipping cost.

Q7. What is your payment method?
A7: T/T, Paypal, Western Union, L/C is available.

Q8. Can I be your distributor or agent?
A8: Yes, you are welcome to be our agent or distributors, we have some policy for the management of our agent or distributors.
