Mono Single High Pressure High Scosity Barrel Small Screw Pump Stainless Steel Pumps For High Viscosity Liquid
Mono Single High Pressure High Scosity Barrel Small Screw Pump Stainless Steel Pumps For High Viscosity Liquid
Mono Single High Pressure High Scosity Barrel Small Screw Pump Stainless Steel Pumps For High Viscosity Liquid
Mono Single High Pressure High Scosity Barrel Small Screw Pump Stainless Steel Pumps For High Viscosity Liquid
Mono Single High Pressure High Scosity Barrel Small Screw Pump Stainless Steel Pumps For High Viscosity Liquid
Mono Single High Pressure High Scosity Barrel Small Screw Pump Stainless Steel Pumps For High Viscosity Liquid
Mono Single High Pressure High Scosity Barrel Small Screw Pump Stainless Steel Pumps For High Viscosity Liquid

Mono Single High Pressure High Scosity Barrel Small Screw Pump Stainless Steel Pumps For High Viscosity Liquid

Share on (1601023410139):


Price:$300.00-1,500.00

Quantity:


Product Overview

Description





Categories


Click for more Mud pumps
Click for more Irrigation pumps
Click for more Sand pumps


Click for more Sewage pumps
Click for more Magnetic pumps


Product Introduction







Type: G
Warranty period: 2 years (except for wearing parts)
Maximum flow: 150m³/h
Maximum pressure： 1.2Mpa
Suitable for: conveying high-viscosity media; media containing solid particles or fibers.
.

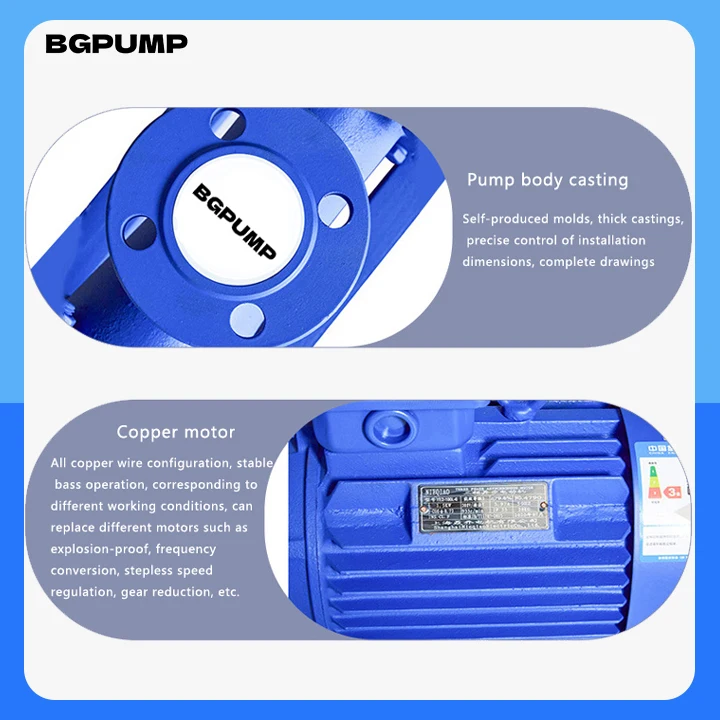

Copper motor:
Full copper wire configuration, stable bass operation,
Corresponding to different working conditions, it can be replaced with different motor adjustments such as explosion-proof, frequency conversion, stepless speed regulation, gear reduction, etc.



Stator optional:
Standard nitrile rubber or natural rubber stator,
The following materials are available:
Nitrile rubber Natural rubber stator
Silicone stator
Viton stator
White nitrile rubber stator




Product physical map








Warm reminder: The price of the product is mainly in kind! For details, consult our customer manager https://beigongpump.en.alibaba.com/contactinfo.html

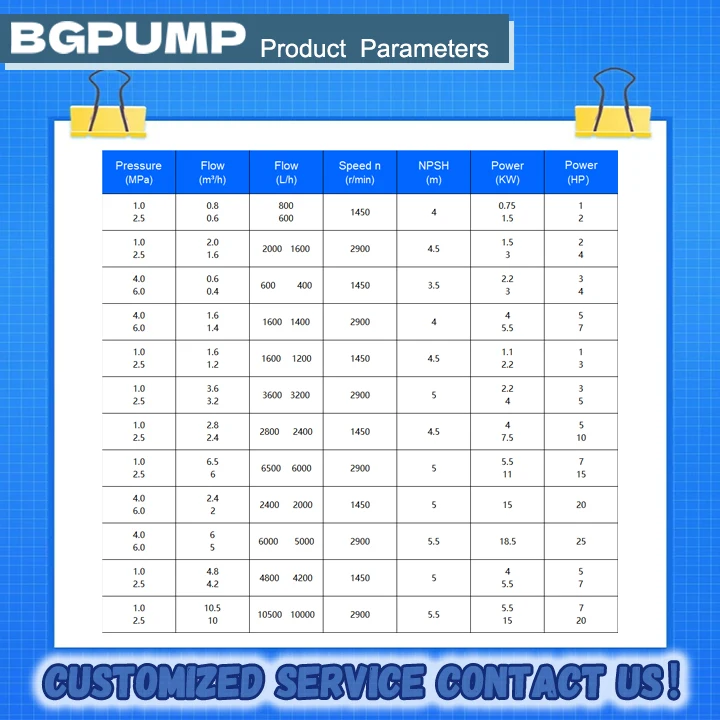

Product parameter table


Type
Cqpacity
pressure
Speed
Motor Power
NPSH
Inlet flange diameter
Outlet flange diameter
Allowable particle diameter
Allowable fiber length
(m³ / h)
(Mpa)
(r/min)
(kw)
(m)
(mm)
(mm)
(mm)
(mm)
G20-1
0.8
0.6
960
0.75
4
25
25
1.5
25
G25-1
2
0.6
1.5
32
25
2
30
G25-2
2
1.2
2.2
32
25
2
30
G30-1
5
0.6
2.2
50
40
2.5
35
G30-2
5
1.2
3
50
40
2.5
35
G35-1
8
0.6
3
65
50
3
40
G35-2
8
1.2
4
65
50
3
40
G40-1
12
0.6
4
80
65
3.8
45
G40-2
12
1.2
5.5
80
65
3.8
45
G50-1
20
0.6
5.5
4.5
100
80
5
50
G50-2
20
1.2
7.5
100
80
5
50
G60-1
30
0.6
11
5
125
100
6
60
G60-2
30
1.2
15
125
100
6
60
G70-1
45
0.6
720
11
150
125
8
70
G70-2
45
1.2
18.5
150
125
8
70
G85-1
65
0.6
15
150
150
10
80
G105-1
100
0.6
500
32
200
200
12
90
G135-1
150
0.6
400
32
200
250
12
90


* The performance parameter table only shows part of the products. For details, please consult our professional account managers to better select your model. *


Product application range:
G-type screw sludge pump is used in food, chemical industry, petroleum, power plant, papermaking, metallurgy, mining industry, sewage, river pond dredging, etc., supporting filter press, high-lift conveying materials (honey, bean paste, mud, mortar, chemical Liquid, liquid medicine)




You May Like




Our Company






Company office area
Integrated CNC machine tool
Heavy processing machine tools


CNC Castings
Product assembly
Quality inspection station


workshop corner
Product packing display

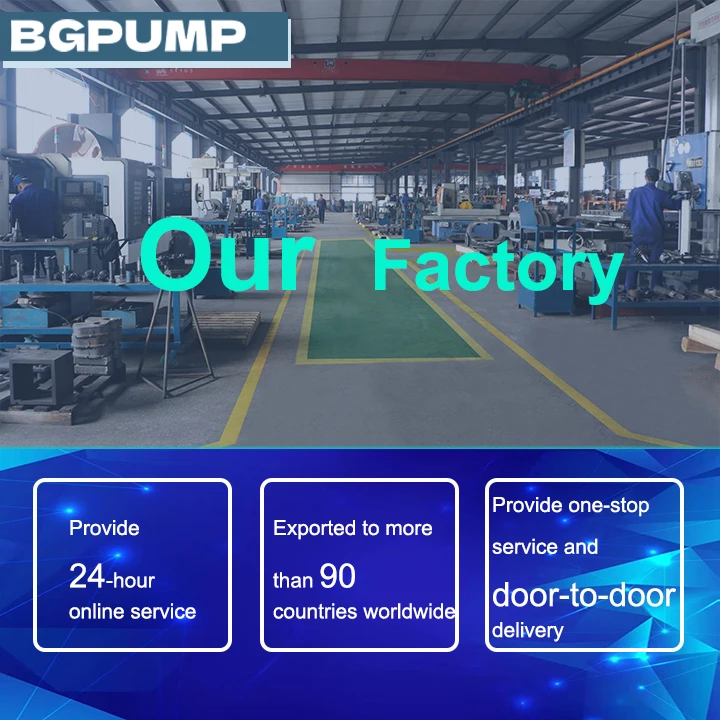

Factory Picture


Logistics transportation




Support freight, air, sea, express and other transportation methods to provide you with better service, which is the purpose of our company!
Hebei Beigong Pump Industry Co., Ltd. wins the trust of customers with quality. All products are strictly inspected before leaving the factory to ensure product quality. During the warranty period, if the product fails to work normally due to poor manufacturing, the company will replace and repair the product and parts for the user free of charge. Beigong Pump Industry has a complete after-sales service system to ensure that customers have no worries about using any product.


FAQ




Q: How can I order a screw pump online?
A: Send us an email or message (whatsApp/WeChat). You can ask any questions and after we confirm the details, we can place theorder.
Q: Do you have a minimum order quantity for screw pumps?
A: The minimum order quantity is 1 set.
Q: Which payment methods are acceptable for purchasing screw pumps?
A: T/T, L/C, Western Union, PayPal, Alibaba Trade Assurance.
Q: What are the conditions for shipping screw pumps?
A: Sea, Air, Express
Q: What is the time for delivery of screw pumps?
A: The delivery time is usually 3-7 working days after confirming the payment. Depends on your quantity.
Q: What is your guarantee for screw pumps?
A: The product warranty period is 2 years, except for wearing parts (if the product does not work properly due to poor
manufacturing, the company will replace and repair the product and parts for users free of charge. Product damage caused by human factors is not covered by the warranty).
Q: Can I buy parts for screw pumps separately?
A: Yes, all pump spare parts can be purchased separately.
