Product Overview
Description
Product Details
Pipe and tube welding system consists of HL-GS20 welding power source and closed pipe and tube welding head, mainly used for
thin-walled pipe welding below 3mm.HL-GS20 welding power source, using the touch screen gear track welding, easy to operate.
thin-walled pipe welding below 3mm.HL-GS20 welding power source, using the touch screen gear track welding, easy to operate.
Product Features

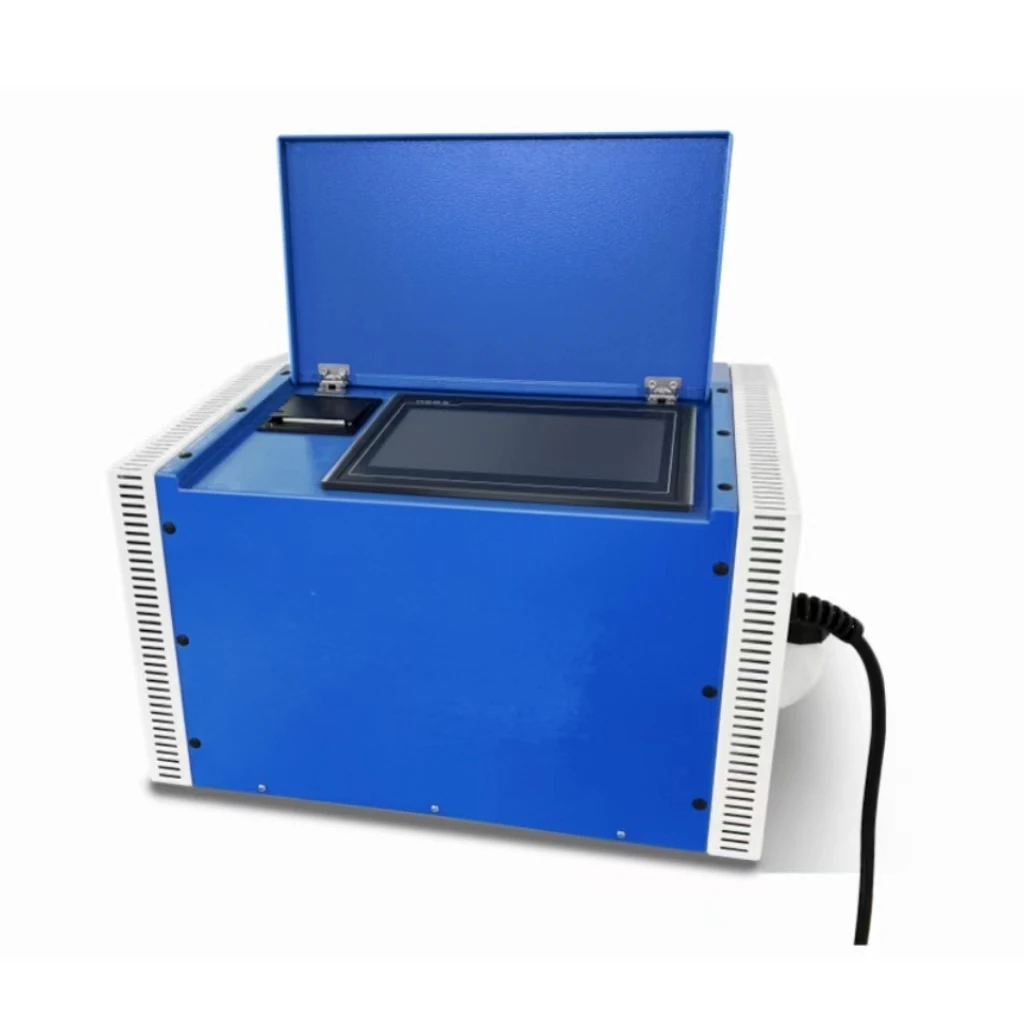

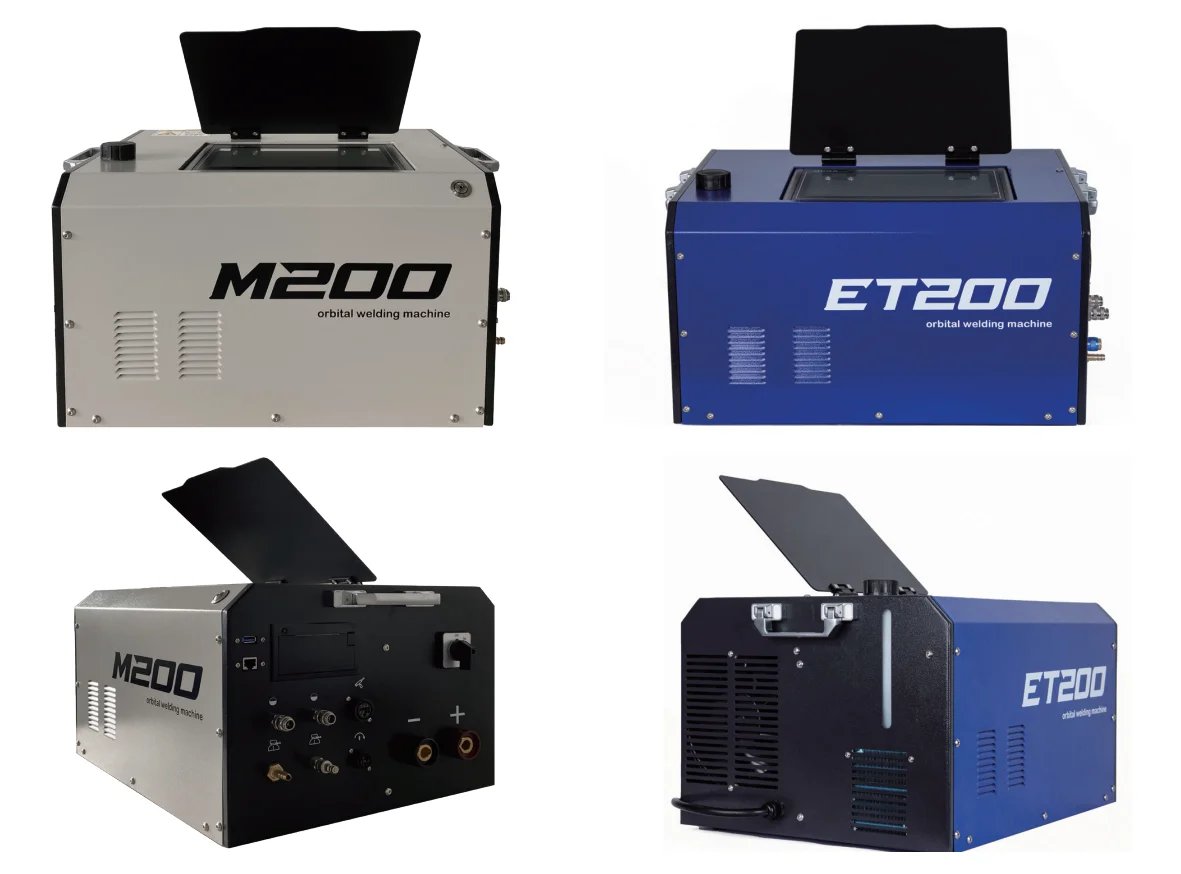

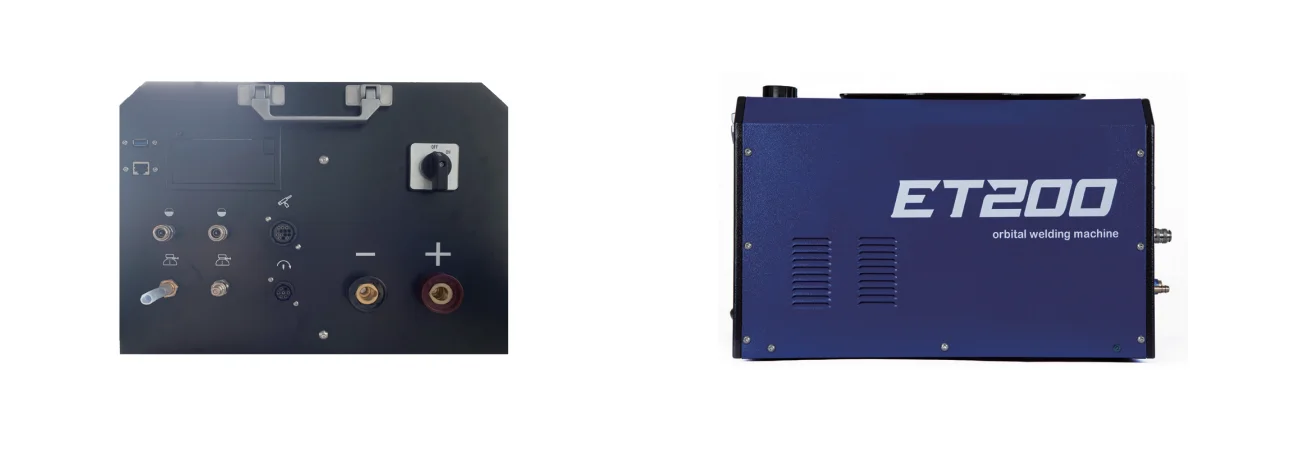

ET200/M200 digital program-controlled welding power supply is composed of control system, power supply system and cooling water tank, which has the characteristics of digitization, easy operation and reliability. The control system adopts an open and
upgradeable operating system to centrally set, store and synchronize the various functional parameters in all-position welding.This power supply is specially designed and manufactured for thin-walled tube/tube welding. Mainly used in semiconductor,chemical, food, medicine, electronic pipeline and other industries.The overall design tends to be convenient, energy-saving,intelligent, human-computer interaction. Compared with the original split type, the volume and weight of the 1/3 are reduced.Construction can still be carried out in a small on-site space.
upgradeable operating system to centrally set, store and synchronize the various functional parameters in all-position welding.This power supply is specially designed and manufactured for thin-walled tube/tube welding. Mainly used in semiconductor,chemical, food, medicine, electronic pipeline and other industries.The overall design tends to be convenient, energy-saving,intelligent, human-computer interaction. Compared with the original split type, the volume and weight of the 1/3 are reduced.Construction can still be carried out in a small on-site space.
⨠Chinese and English language switch to meet the needs of customers in different fields.
⨠Integrated structure design, for the construction of small space on site.
⨠10-inch Chinese (English) interface, graphical operation interface, built-in expert parameters, provide powerful user data and system parameters, easy operation makes programming simple.
⨠AC 220V 50Hz/60Hz single-phase power supply, the use of switching power supply for the system module to provide voltage and current, even in the external grid 20% range Internal fluctuations, can still ensure the repeatability of the weld.
⨠Built-in micro free maintenance printer, no need to change ink cartridges, one-button printing and automatic printing function.
⨠Fault protection function, automatic diagnosis function and maintain fault alarm information, reduce the electrical damage caused by misoperation.Parameter adjustment Memory save function.
⨠The parameter partition function can fine-tune the parameters of each interval to achieve the best welding effect.
⨠Adopting customized high pulse DSP modules for precise control and sampling of various output parameters.
Technical parameters | ||||||
Model | ET200/M200 Digital programmable power supply | |||||
Current input(V) | 220V ± 10% (AC) | Current output (A) | 5-200A(DC) | |||
No-load voltage (V) | 65 | Power(KVA) | 4.5 | |||
Temporary load rate | ||||||
Current input | Average output | Temporary load rate | ||||
220V/16A | 200A | 60% | ||||
220V/16A | 150A | 100% | ||||
Other | ||||||
Protective gas | argon | Cooling method of welding gun | water-cooling | |||
Overall dimension(mm) | 500x380x300 | Weight (KG) | 27 (Including 2.2L cooling water) | |||
control mode | PLC | Store parameters | 200 Groups | |||
Welding section | Optional 12 | Protection class | IP21 | |||
Function control | Current Control, Gas Control, Rotary Control,Printing control, Water cooling control | |||||
Safety functions | Over-voltage, overload, leakage, arc failure, tungsten pin short circuit protection, and defect detection | |||||

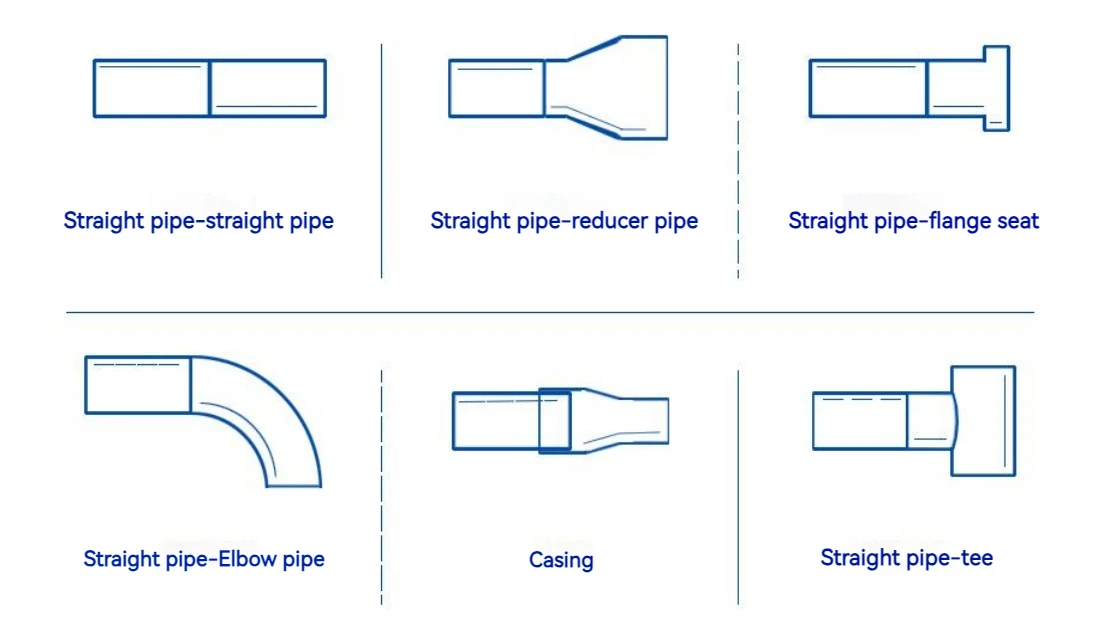

Solderable type

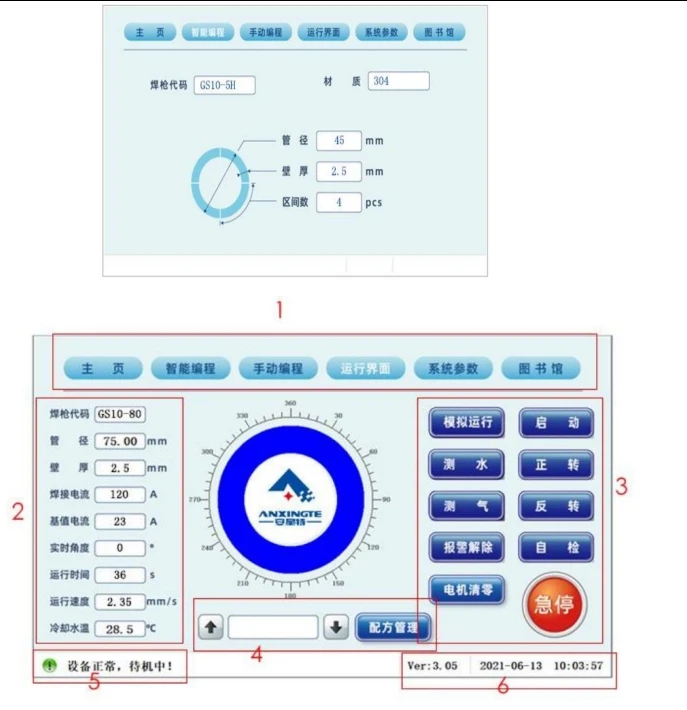

Kunlun Tongshi High-resolution Color Touch Screen
The layout of the main interface is reasonable, and the main interface is displayed in Chinese. Can be switched to English. Users can select intelligent programming or manual programming according to the actual welding pipe materials. The intelligent programming only needs to input the diameter and wall thickness of the pipe, and the welding parameters and automatic welding can be generated automatically. Manual programming requires the user to modify the welding current, welding speed and interval angle, which is suitable for the process improvement.
1.Main menu: "Library" is the built-in operating instructions, it is recommended that newcomers to the operation of the library before reading.
2.Welding parameter display: welding parameters are automatically generated, or manually entered as needed.
Control section: Before welding, you can check whether the water and gas are normal; whether the motor gears are in place; whether the welding head positive and negative rotation is normal.
Control section: Before welding, you can check whether the water and gas are normal; whether the motor gears are in place; whether the welding head positive and negative rotation is normal.
3.Recipe management: i.e. daily stored parameter library, which can be saved, called and modified. Equipment real-time status display:
4.System program version number and time: the version number of
the welding program, as the basis for program upgrade. If there is any system upgrade, our company will contact the user at the first time to provide free system upgrade. If there is any system upgrade, our company will contact the user at the first time to provide free system upgrade.
the welding program, as the basis for program upgrade. If there is any system upgrade, our company will contact the user at the first time to provide free system upgrade. If there is any system upgrade, our company will contact the user at the first time to provide free system upgrade.

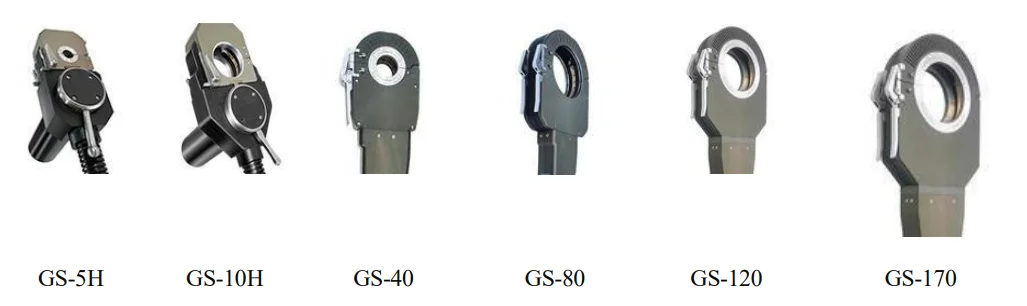

WELDED HEAD
Torch Model | GS-5H | GS-10H | GS-40 | GS-80 | GS-120 | GS-170 | |||||
Matching Power Supply | AXT-G20 | ||||||||||
Welded pipe diameter range (mm) | 3.175-15.88 | 6.35-25.4 | 6.35-38.1 | 10-76.1 | 19-114.3 | 38-168 | |||||
Wall Thickness (mm) | 0.5-1.5 | 0.5-2 | 0.5-2.5 | 0.5-3 | 0.5-3 | 0.5-3 | |||||
Weldable materials | Stainless steel, carbon steel, titanium alloy, etc. | ||||||||||
Cooling method | water cooling | ||||||||||
Weight (kg) | 1.3 | 1.8 | 3.5 | 5 | 6.5 | 9.5 | |||||
Outline Size Dimension (mm) | 155*70*50 | 170*100*55 | 377x129x42 | 438x155x44 | 540x195x54 | 620*290*65 | |||||
Why Choose Us
From the Customer Service Manager：
It is a great pleasure to have you visit our products. We are a laser equipment company in Henan, China--Henan FYD Intelligent Equipment Co. We were founded in 2011 and have been dedicated to the research, development, production and sales of metal processing equipment. Our main products are laser cutting machine, laser welding machine and laser cleaning machine, and we are very welcome customers from all countries to purchase from our factory or store. We will sincerely provide you with the best service and we cherish every customer.
It is a great pleasure to have you visit our products. We are a laser equipment company in Henan, China--Henan FYD Intelligent Equipment Co. We were founded in 2011 and have been dedicated to the research, development, production and sales of metal processing equipment. Our main products are laser cutting machine, laser welding machine and laser cleaning machine, and we are very welcome customers from all countries to purchase from our factory or store. We will sincerely provide you with the best service and we cherish every customer.
How to Transport
Dear customer, we know that you attach great importance to the choice of transportation mode. In order to meet your needs, we
offer two common transportation modes: FOB and DDP, if you are looking for affordable price and our company has the qualification
of customs clearance, FOB is the ideal choice for you, and you can pick up the goods by yourself after arriving at the port,
avoiding unnecessary costs. If you want to enjoy more convenient door-to-door service, DDP is your best choice, we will deal with
customs clearance and tax matters for you, you just need to collect the goods at your doorstep easily. Whichever way you choose,
we will be happy to serve you and make sure your goods are delivered safely and on time.
offer two common transportation modes: FOB and DDP, if you are looking for affordable price and our company has the qualification
of customs clearance, FOB is the ideal choice for you, and you can pick up the goods by yourself after arriving at the port,
avoiding unnecessary costs. If you want to enjoy more convenient door-to-door service, DDP is your best choice, we will deal with
customs clearance and tax matters for you, you just need to collect the goods at your doorstep easily. Whichever way you choose,
we will be happy to serve you and make sure your goods are delivered safely and on time.
After-sales Services
We provide a one-year long-distance warranty. Once the goods arrive, I will pull a group for you. There are our after-sales personnel and technology in it. We will train you and answer your questions at any time. Accessories support free replacement, only freight is required.
Also, if you need on-site installation, debugging and training, we also provide them free of charge. You only need to provide air tickets and accommodation.
One year later, we will also provide maintenance services as usual. In the future, we may set up maintenance points in North American,Europe and Southeast Asia, which is still under planning, because more and more our machines are sold to these places.
Also, if you need on-site installation, debugging and training, we also provide them free of charge. You only need to provide air tickets and accommodation.
One year later, we will also provide maintenance services as usual. In the future, we may set up maintenance points in North American,Europe and Southeast Asia, which is still under planning, because more and more our machines are sold to these places.
FOLLOW OUR SYORY | ||||||||
YouTube | https://www.youtube.com/channel/UCj5E1X4gF9uZgSqTu_PvN8A | |||||||
TikTok | https://www.tiktok.com/@hualonglaser2012 | |||||||
Linkedin | https://www.linkedin.com/in/%E6%BF%80%E5%85%89-%E5%8D%8E%E9%BE%99-776144297/ | |||||||
Twitter | https://twitter.com/pidwi183955 | |||||||
Click to follow and witness the machine's magic moments | ||||||||
FAQ
1、Are you a trading company or a manufacturer?
We are the laser manufactuer, welcome to visit our factory!
2、How can I choose the most suitable machine for me?
We have different laser power and size model for various material and needs of efficiency,etc.You can tell us your material by picture or video, so that we can make the best suggestion, and then we can find the similar material and take the testing video for you, and we also support real-time video, you can observe the cleaning effect more directly.
3、Can you give me a sample?
Yes, please contact customer service to inform the sample material thickness, we can sample shooting video, free of charge!
4、What payment methods do you support?
Credit/Debit Card /Online Transfer/Online Transfer /TT wire transfer .
5、How do you package it?
Sturdy wooden crate packaging.
6、I am a dealer, is there a dealer policy？
Yes, we welcome dealers with dealer exclusive pricing and annual step rebate policy, please contact customer service for details!
Contact us to get more details and the latest quotation.
Email：info@hualonglaser.com
Website: https://hualonglaser.com
Hualong Laser-Henan Feiyide Intelligent Equipment Co., Ltd.
We Recommend

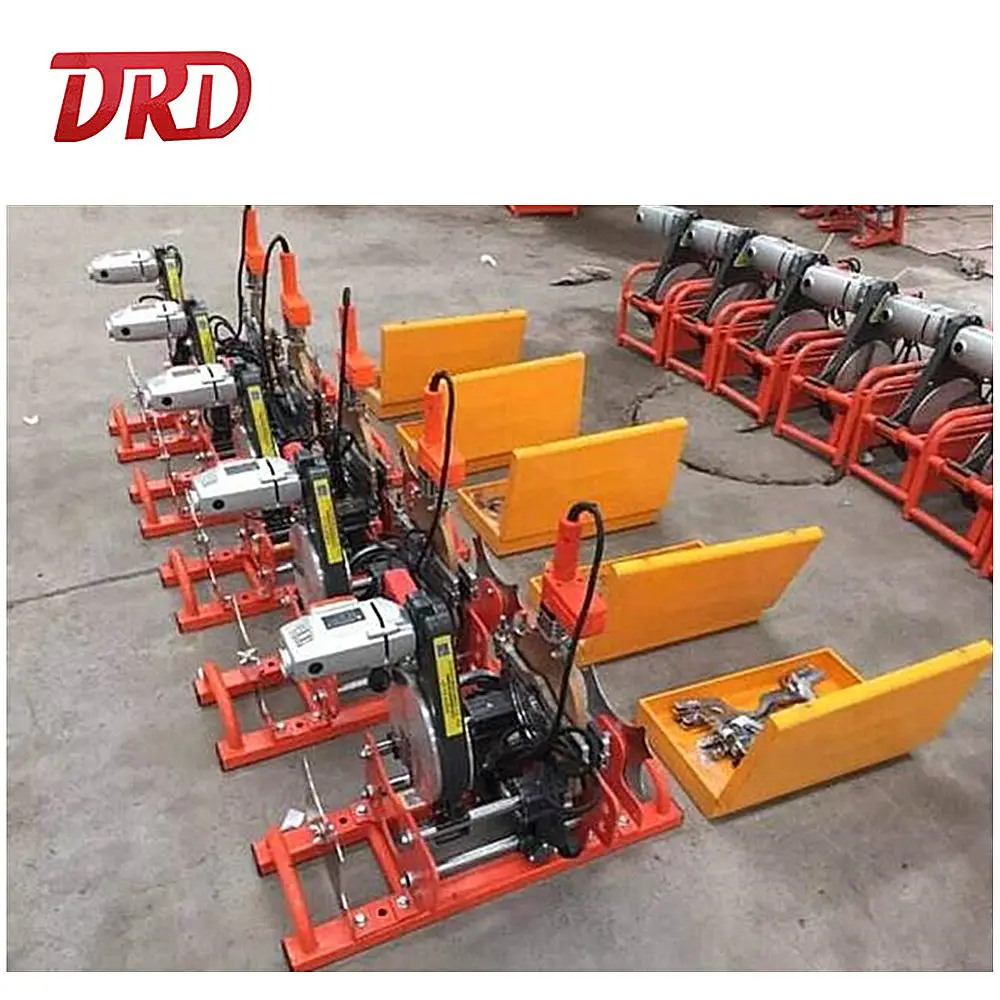

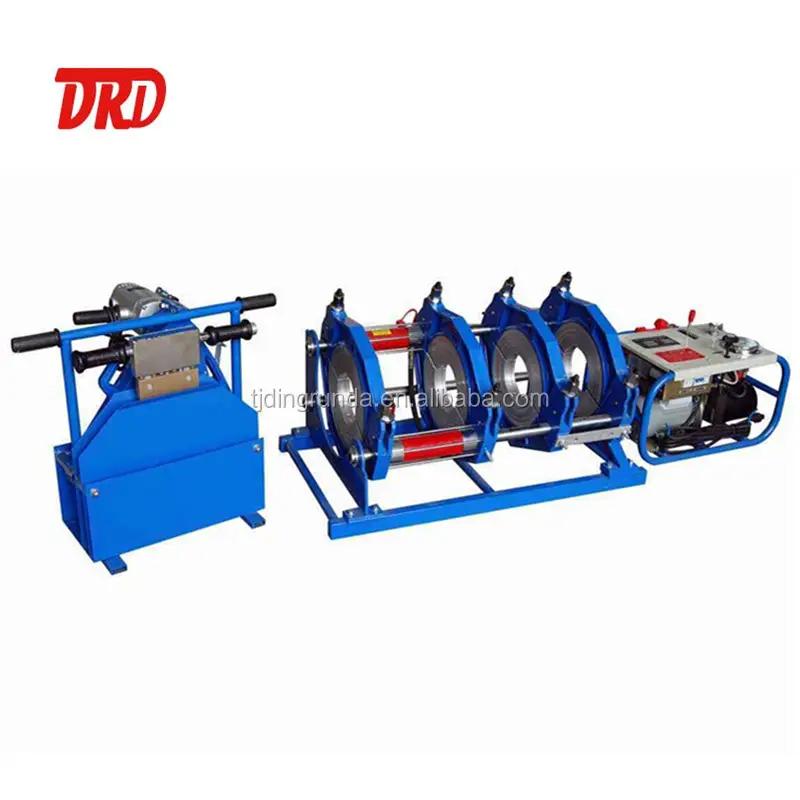

40mm-160mm HDPE pipe manual welding machine Plastic pipe welder
