48V 500A Solar Charge Controller with MPPT for 3.2V LiFePO4 Battery
48V 500A Solar Charge Controller with MPPT for 3.2V LiFePO4 Battery
48V 500A Solar Charge Controller with MPPT for 3.2V LiFePO4 Battery
48V 500A Solar Charge Controller with MPPT for 3.2V LiFePO4 Battery
48V 500A Solar Charge Controller with MPPT for 3.2V LiFePO4 Battery
48V 500A Solar Charge Controller with MPPT for 3.2V LiFePO4 Battery
48V 500A Solar Charge Controller with MPPT for 3.2V LiFePO4 Battery

48V 500A Solar Charge Controller with MPPT for 3.2V LiFePO4 Battery

Share on (1601023459112):


Price:$250.00-320.00

Quantity:

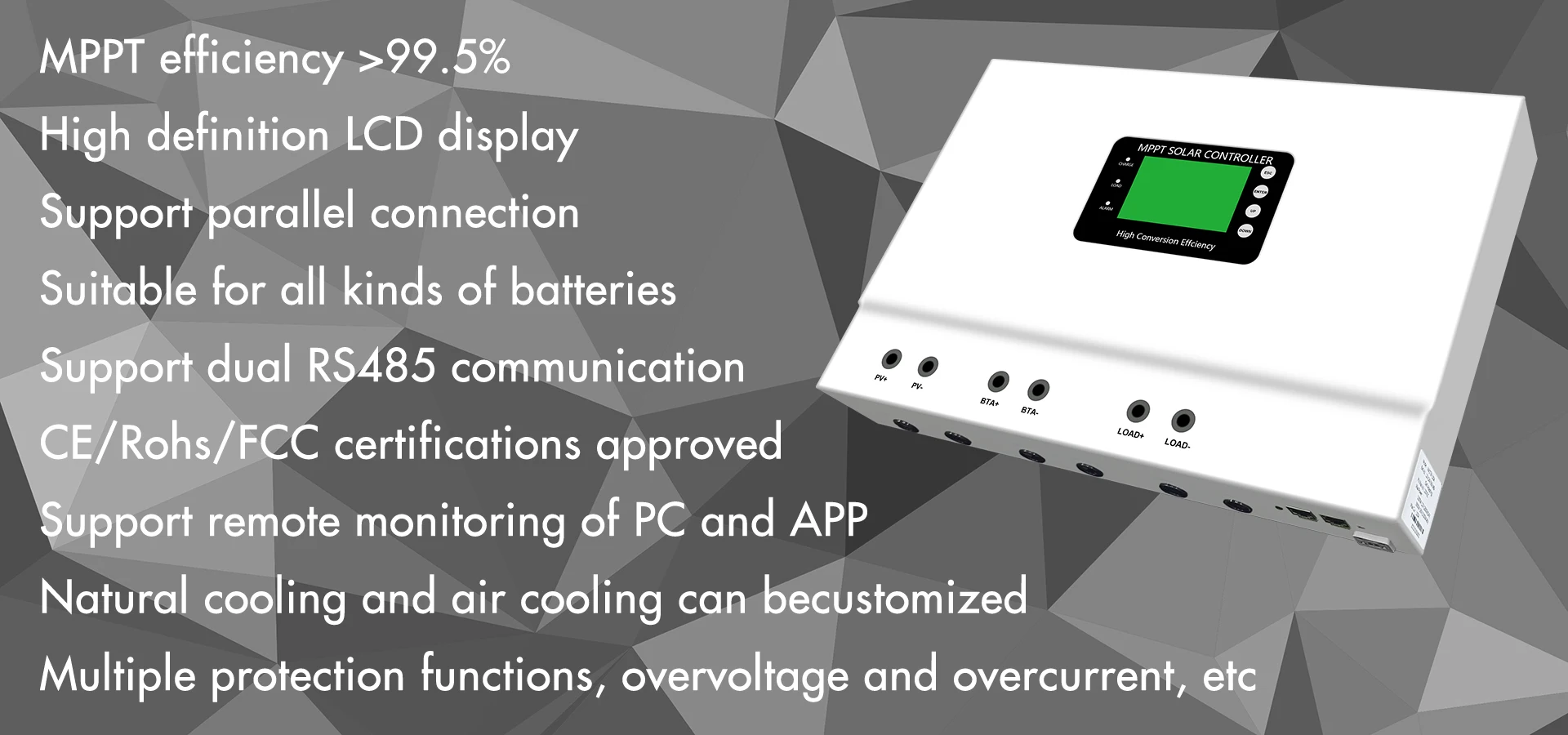

Product Overview

Description









Product Description

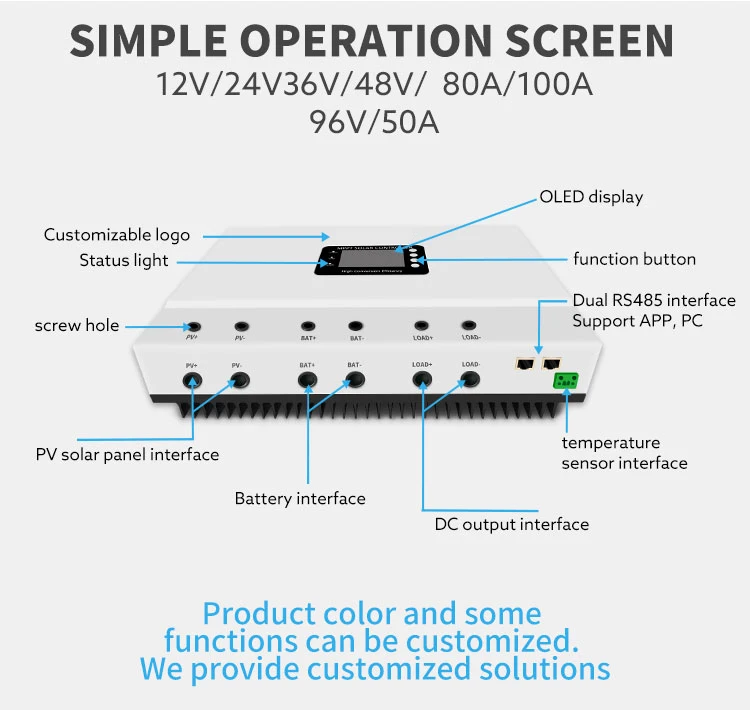

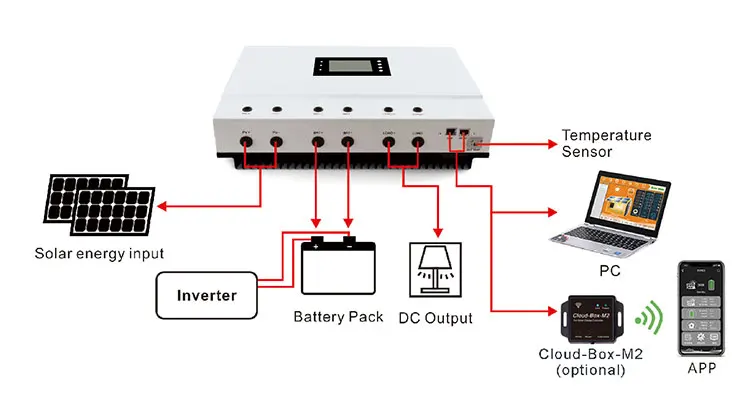

Monitoring Way





PC monitor: Through connect RS485 cable to realize PC software monitoring Mobile Phone monitor: Through WiFi module to realize APP cloud monitoring

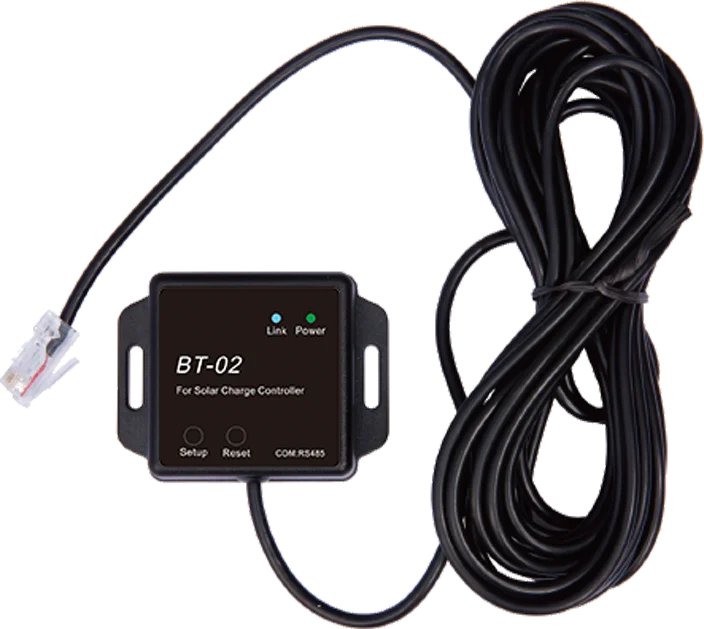

Optional blue-tooth monitor

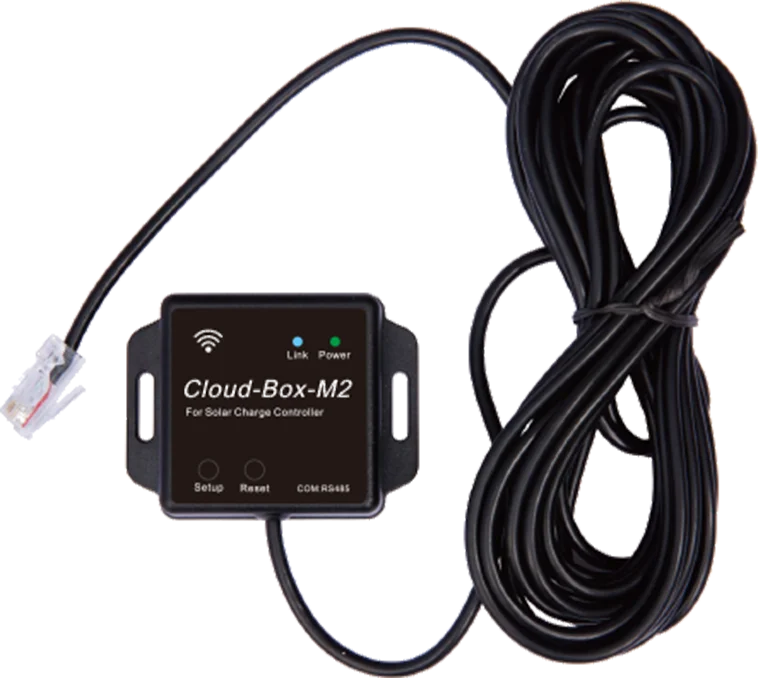

Optional wifi monitor










Parameters






































































































































































































































































































































M48L100


M48L120


M48H100


M48H120


Product Category

Controller type


Controller with Maximum Power Point Tracking (MPPT)


MPPT efficiency


≥99.5%


Standby power consumption


4W~5W


Heat-Dissipating method


Natural cooling


Natural cooling+Air cooling


System voltage


12V/24V/36V/48V Auto


48V


Input Characteristics

Max.PV input voltage(Voc)


150V


300V


Start-up charging voltage


Real-time battery voltage +3V


Real-time battery voltage +10V


Low input voltage protection


Real-time battery voltage +2V


Real-time battery voltage +5V


Over voltage protection / Recovery


150V


300V


Reted PV Power

12V system


1300W


1560W


—


—


24V system


2600W


3120W


—


—


36V system


3900W


4680W


—


—


48V system


5200W


6240W


5200W


6240W


Charging Characteristics

Battery types


Sealed(SEL),Gel(GEL),Flooded(FLD)User-defined(USER),Li-ion(LIT)


Temperature compensation


-3mV/℃/2V


Charge rated current


100A


120A


100A


120A


charging method


3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge)


Output voltage stability accuracy


≤±0.2V


Load Characteristics

load voltage


same as battery voltage


Rated load current


100A


120A


100A


120A


Load control mode


On/Off , PV voltage control mode, Dual-time control mode, PV + Time control mode


Low voltage protection


10.5V (default),11V (restored), settable(9V-15V)


Setting method


PC software / APP / Controller


Display/ Communication

Display method


High-definition LCD backlight display


communication method


Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APPcloud monitoring / support centralized


parallel monitoring


Other Parameters

Protections


Input & output over-volt / low-voltage protection, reverse polarity protection, over-heating protection, battery shedding protection etc.


Operating ambient temperature


-20℃~+55℃


Storage temperature


-40℃~+70℃


IP(Ingress protection)


IP31


Altitude


0~3000m


Max Wiring size


50mm²


N.weight /G.weight (KG)


7.4/9


12/13.4

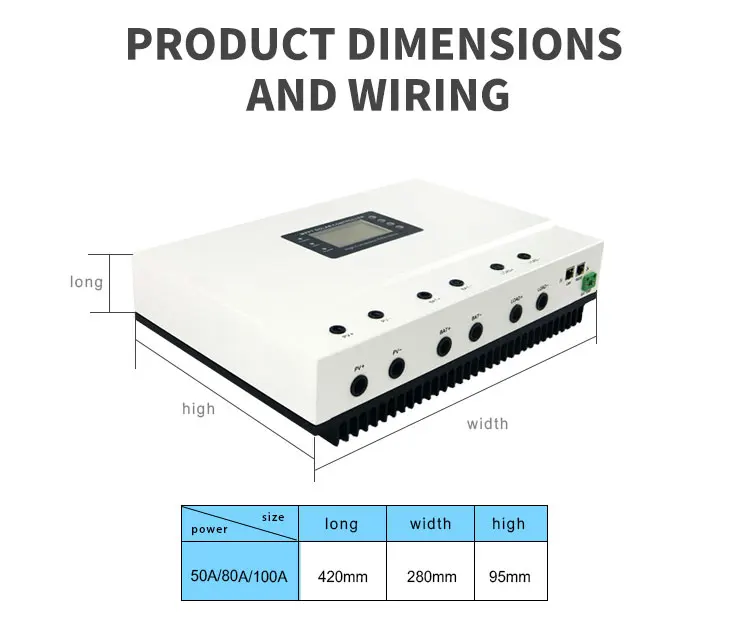

Product size (mm)


420x280x110


470x320x128


Packing size (mm)


510x368x225


613x440x250

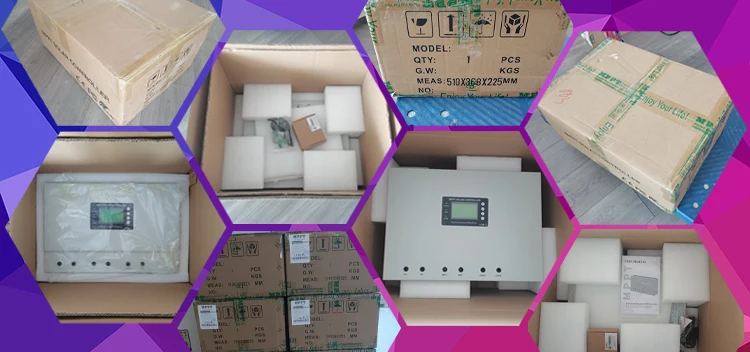

Packing & Delivery































Package Type:

carton
Container loading by pallet

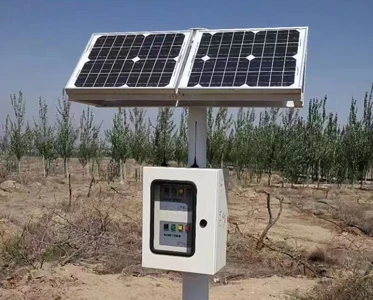

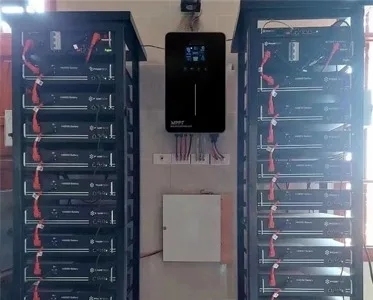

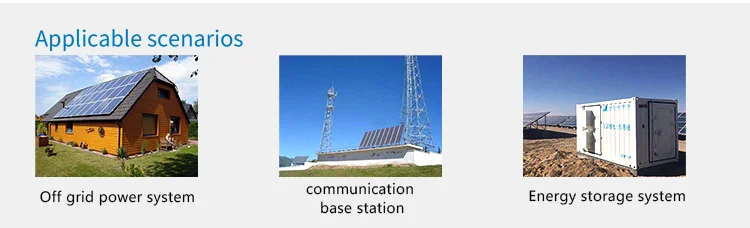

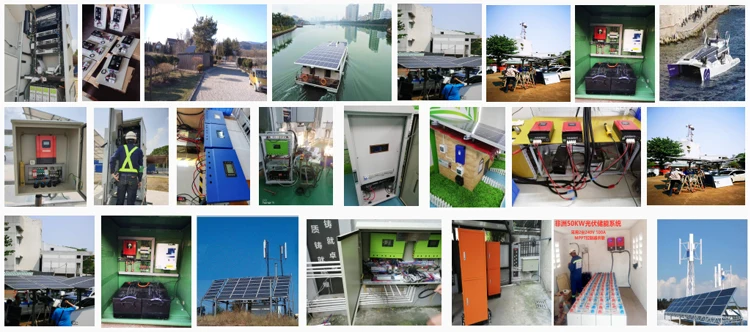

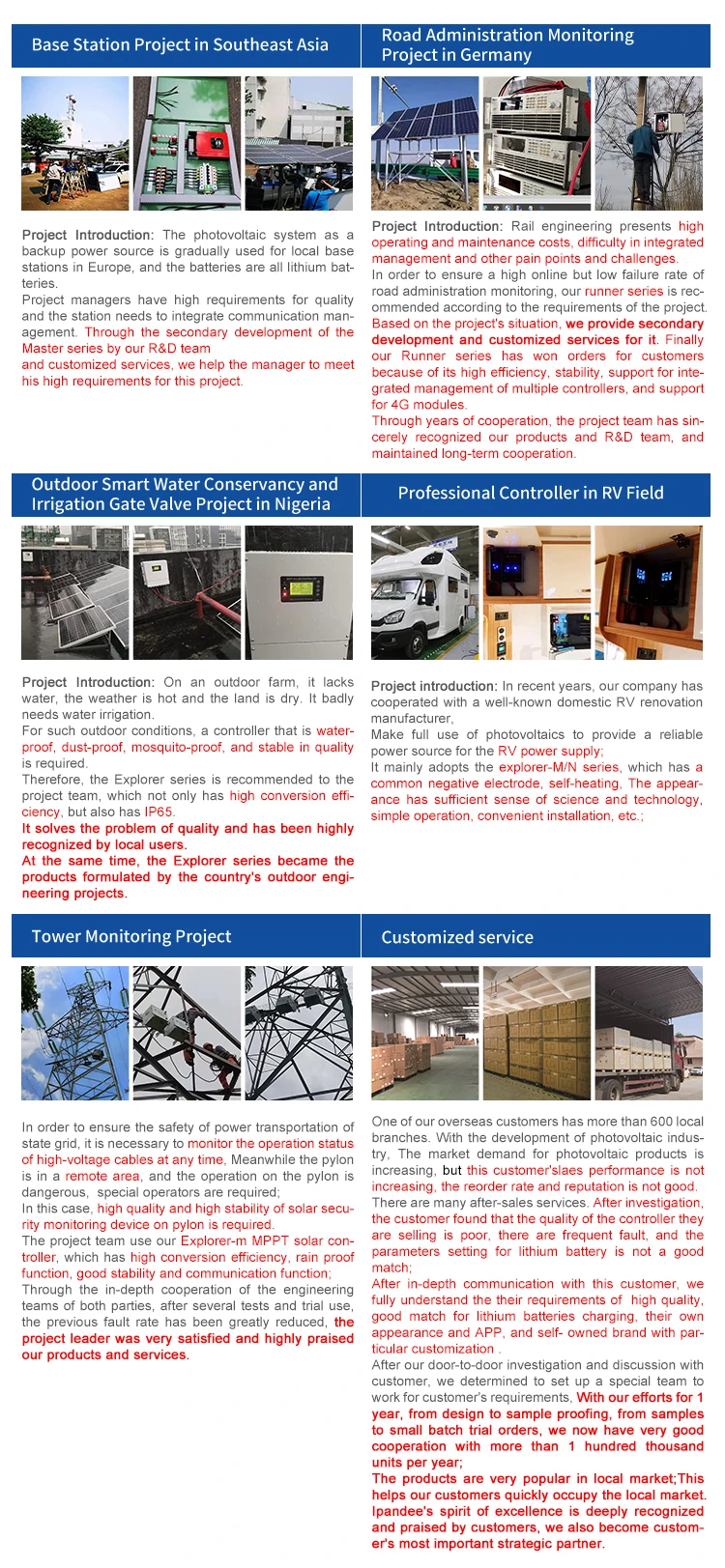

Projects













































Energy Storage System

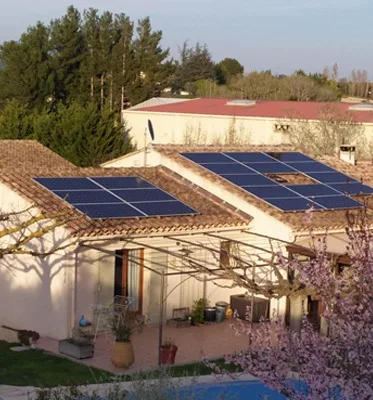

Home Solar Energy System

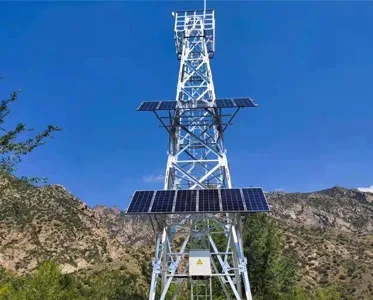

Communication Basestation
















Solar Monitoring System

























Certifications

















Our Company

















Related Products















































SOLAR PANEL















INVERTER















CONTROLLER











FAQ


















Q1. Are you a factory or trading company?
We have two modern factory. We have 120 factory workers and 10 of them are quality control and engineer guys. Welcome to visit our factory.

Q2. Is Your products the lowest price?
GT take the quality into consideration prior. The price is based on the quality level and the order quantity. We have different quality level products for buyers option and discount is available from us when the order is big.

Q3. All products have a warranty?
Yes, we supply 1 to 25 years warranty for our products. You will be satisfied with our quality.

Q4. What is the transportation?
By air, by Sea, by Express, by Train, all are ok to us.

Q5. If the goods in transit damage, how to do?
First of all, we will use stable packing, the possibility of the goods damaged during the shipping is low. If the goods is damaged during shipping and we covered the insurance, we will claim the insurance company and let them cover the loss. If there is no insurance cover, we will claim the shipping company and some times, we cover the loss of the goods for client.

Q6. Can we design packaging?
Yes, but there is with quantity limitation. We will make the packing free for the client, and if less , we can talk, the package is free or little money will be charged.

Q7. Can we add our logo on products?
Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.

Q8. can we customize product?
OEM and ODM are welcomed from GT. We have rich experiences in this area.
