Pressure Pipelines Steel Reinforced Concrete Jacking Pipes Cage Welding Machine
- Category: >>>
- Supplier: Shanghai Sinomac Machinery Industrial Co. Ltd.
Share on (1601023596303):
Product Overview
Description
Product Overview
Pressure Pipelines Steel Reinforced Concrete Jacking Pipes Cage Welding Machine
Our factory is a professional manufacturer of cement products complete sets equipment and molds. It has more than 40 years of experience in research and development, design and manufacture of cement products machinery and equipment. The company has strong technical strength and has a number of national patents. Our factory passed the ISO9001:2008 quality management system certification, and obtained a number of national invention patents. Our main products:
1. DN400-4000mm PCCP Pipe Production Line
2. Concrete Drainage Pipe Production Line
3. Concrete Pipe Cage Welding Machine
4. Concrete Pipe Culvert Mold
5. JCCP Jacking Concrete Pipe Production Line
In order to expand the international market, our company established SHANGHAI SINOMAC MACHINERY INDUSTRIAL CO.,LTD in Shanghai in 2015. Our company have sell more than 60sets complete PCCP pipe production line equipment to domestic and foreign market. Now our company's PCCP production line equipment has been exported to Canada, Egypt, India, Indonesia ,South America, Africa and so on.
Welcome all the customers to visit our factory and cements products production line working site.
3. Concrete Pipe Cage Welding Machine
4. Concrete Pipe Culvert Mold
5. JCCP Jacking Concrete Pipe Production Line
In order to expand the international market, our company established SHANGHAI SINOMAC MACHINERY INDUSTRIAL CO.,LTD in Shanghai in 2015. Our company have sell more than 60sets complete PCCP pipe production line equipment to domestic and foreign market. Now our company's PCCP production line equipment has been exported to Canada, Egypt, India, Indonesia ,South America, Africa and so on.
Welcome all the customers to visit our factory and cements products production line working site.
FEATURES AT A GLANCE

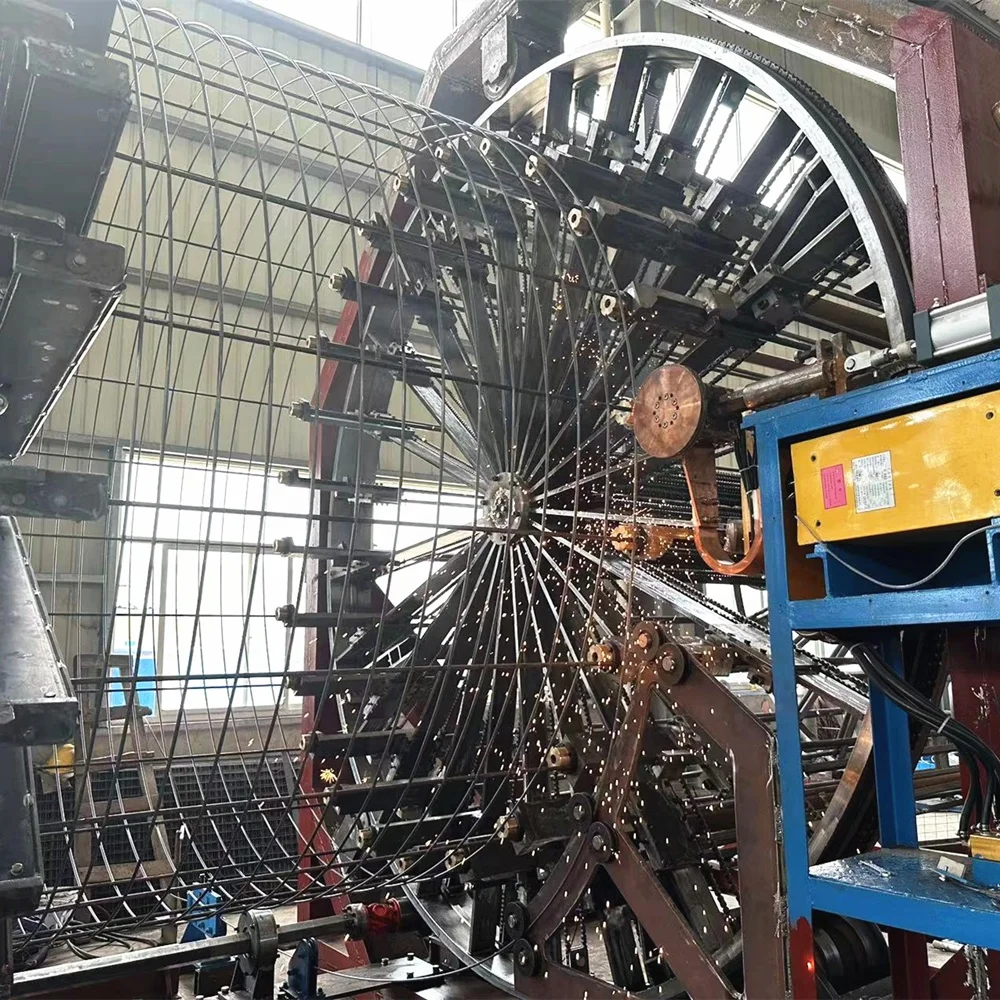

Concrete Pipe Cage Welding Machine
Application range: suitable for DN300-3600mm spigot and bell port reinforcement cage and
DN400-3600 flat/tongue-groove/steel socket reinforcement cage. The welding cage diameter:DN425-3850mm.Suitable
Diameter: ring and longitudinal wire:4-12mm
Spigot/Bell Angle:0-15 degree
Welding longitudinal reinforcement: 6 or 12 or 18 or 24 or 36 pieces
Welding Length: 0-6000mm
Ring reinforce gap distance:40-110mm
Steel Bar should be low carbon cold wire drawing (meet GB/T343-94 Standard). The steel bar should be clean, no oil and rust.
DN400-3600 flat/tongue-groove/steel socket reinforcement cage. The welding cage diameter:DN425-3850mm.Suitable
Diameter: ring and longitudinal wire:4-12mm
Spigot/Bell Angle:0-15 degree
Welding longitudinal reinforcement: 6 or 12 or 18 or 24 or 36 pieces
Welding Length: 0-6000mm
Ring reinforce gap distance:40-110mm
Steel Bar should be low carbon cold wire drawing (meet GB/T343-94 Standard). The steel bar should be clean, no oil and rust.
The machine inluding control box,PLC touch screen,air compressor, cooling tower.etc

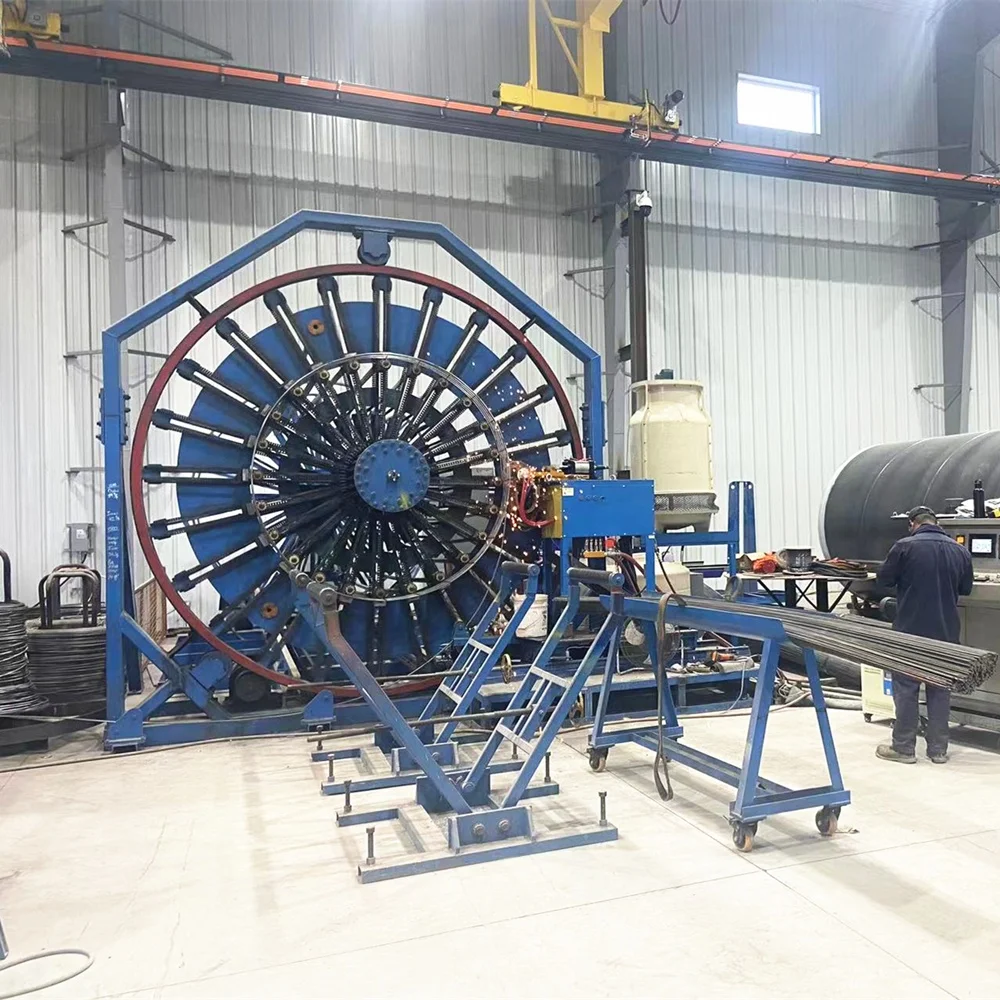

DN800-2400X3000MM Cage Welding Machine
DN800-2400X6000MM
Cage Welding Machine
DN300-1200X3000MM
Export to India
Export to India
PRODUCT SPECIFICATIONS
Precast RCP JCCP Concrete Pipe Cage Welding Machine | Power | ||||
Model | SMC-1200 | SMC-2400 | SMC-3600 | ||
Application Range | DN600-1200 | DN800-2400MM | DN2400-3600 | ||
Nominal Length(mm) | 3000/6000MM | 3000/6000MM | 3000/6000MM | ||
Number of longitudinal bar(pieces) | 6/12 | 8/12/24 | 8/12/24/36 | ||
Steel Bar Thickness(mm) | 4-12mm | 4-12mm | 4-12mm | ||
Ring Pitch(mm) | 40-110 | 40-110 | 40-110 | ||
Socket Angle | 0-15degree | 0-15 degree | 0-15degree | ||
Power | Less than 6KW | Less than 10KW | Less than 20KW | ||
Transformer(KVA) | 75 | 100 | 150 | ||
Reference Weight(ton) | About 7.5tons | About 9tons | About 10tons | ||
Dimension(mm) | 7700X3410X2475 | 8580X3990X3231 | 8755X4650X3660 | ||
PRODUCT CONFIGURATION

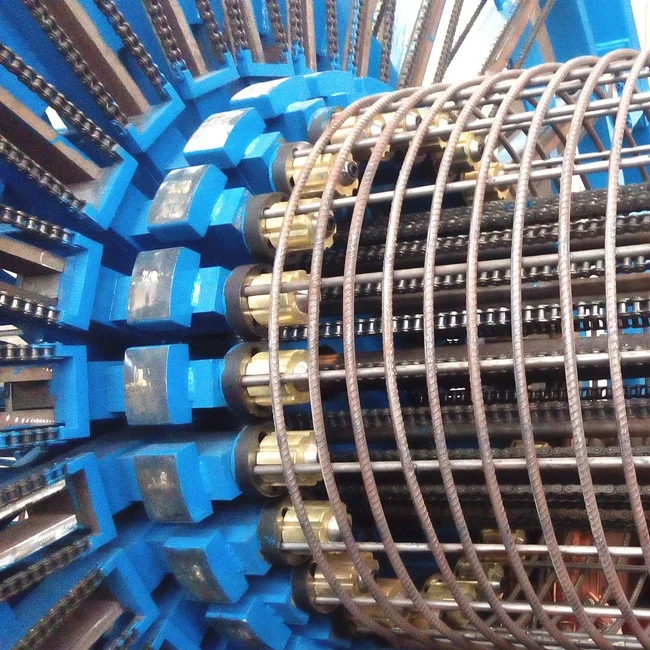

Round Disc Welding Head

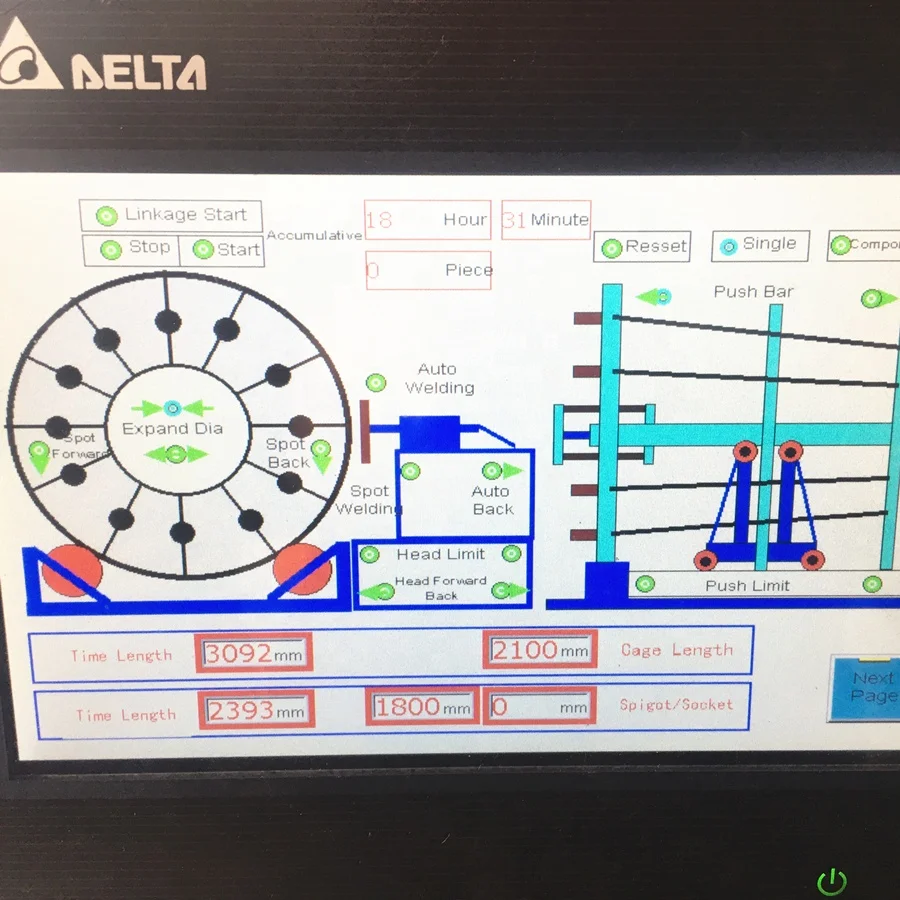

English Version Control System

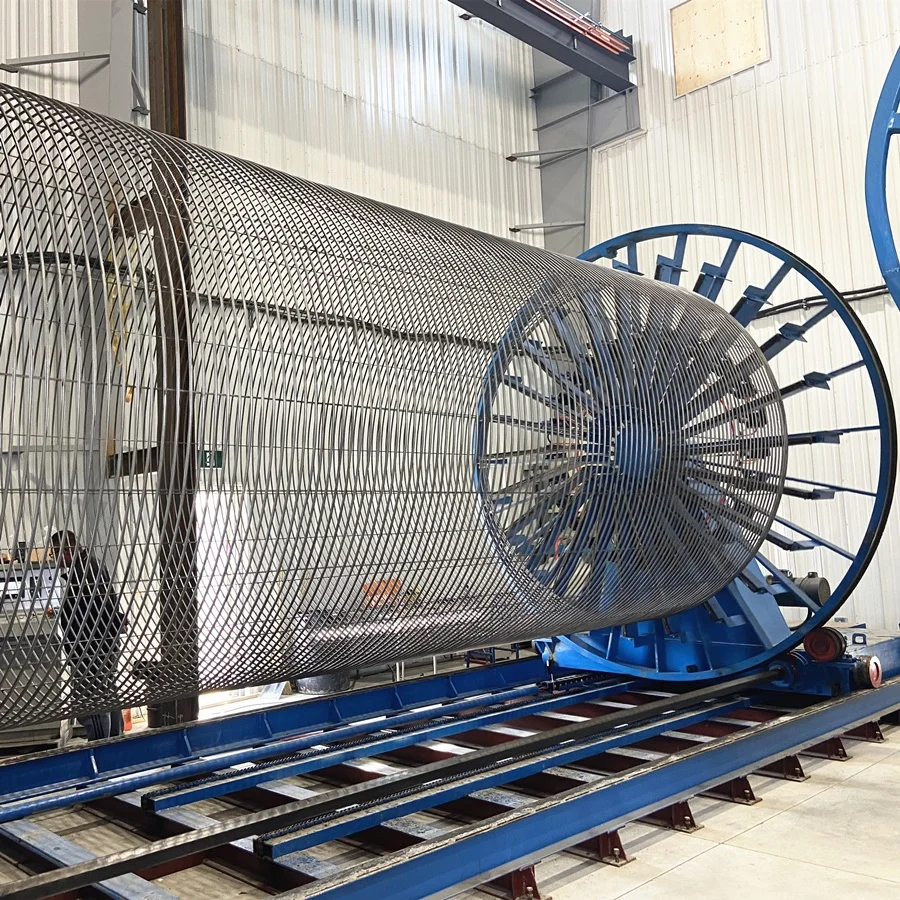

Finished Concrete Pipe Cage
SALES AND SERVICE NETWORK
Successful Project
Concrete Pipe Mold in Canada
Project in India
Jacking Pipe Mold in Indonesia
SIMILAR PRODUCTS
FAQ
Q1：Why choose our factory?
A1：Our factory is a professional manufacturer of cement products complete sets equipment and molds. It has more than 40 years of experience in research and development, design and manufacture of cement products machinery and equipment. The company has strong technical strength and has a number of national patents. Our factory passed the ISO9001:2008 quality management system certification, and obtained a number of national invention patents.
Our main products:
1. DN600-4000mm PCCP Pipe Production Line
2. DN600-4000MM JCCP Concrete Production Line
3. Concrete Drainage Pipe Production Line
4. Reinforced Steel Cage Welding Machine
5. Concrete Pipe Mold/Concrete Culvert Mold
Our company have sell more than 100sets complete PCCP pipe production line equipment to domestic and foreign market. Now our company's PCCP/JCCP/RCP production line equipment has been exported to Canada, Indonesia, Philippines,Egypt, India, Africa and so on.
Welcome all the customers to visit our factory and cements products production line working site.
Our main products:
1. DN600-4000mm PCCP Pipe Production Line
2. DN600-4000MM JCCP Concrete Production Line
3. Concrete Drainage Pipe Production Line
4. Reinforced Steel Cage Welding Machine
5. Concrete Pipe Mold/Concrete Culvert Mold
Our company have sell more than 100sets complete PCCP pipe production line equipment to domestic and foreign market. Now our company's PCCP/JCCP/RCP production line equipment has been exported to Canada, Indonesia, Philippines,Egypt, India, Africa and so on.
Welcome all the customers to visit our factory and cements products production line working site.
