YCLTOUCH Multi touch Capacitive Touch Screen Ip65 Waterproof Front Panel Pc Fanless Industrial Computer
- Category: >>>
- Supplier: Shenzhen Yongchuangli Electronic Technology Co. Ltd.
Share on (1601023728791):
Product Overview
Description
Details Images
YCL TOUCH
Over 10 years of experience R&D, Production and Sales one-stop solution manufacturer.
Strong R&D capacity, Good quality control, Competitive price, and Fast delivery time.
Support factory visiting, OEM & ODM service
Strong R&D capacity, Good quality control, Competitive price, and Fast delivery time.
Support factory visiting, OEM & ODM service

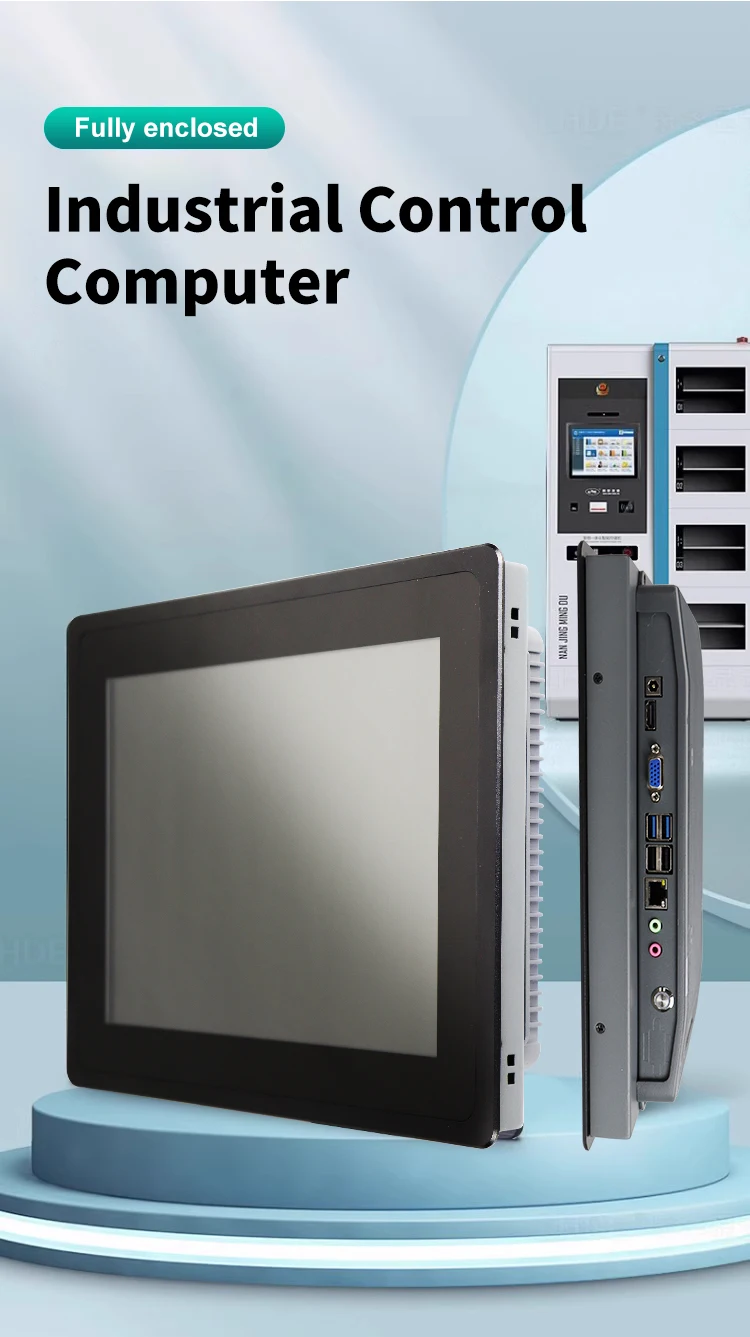

Industrial Computer advantage

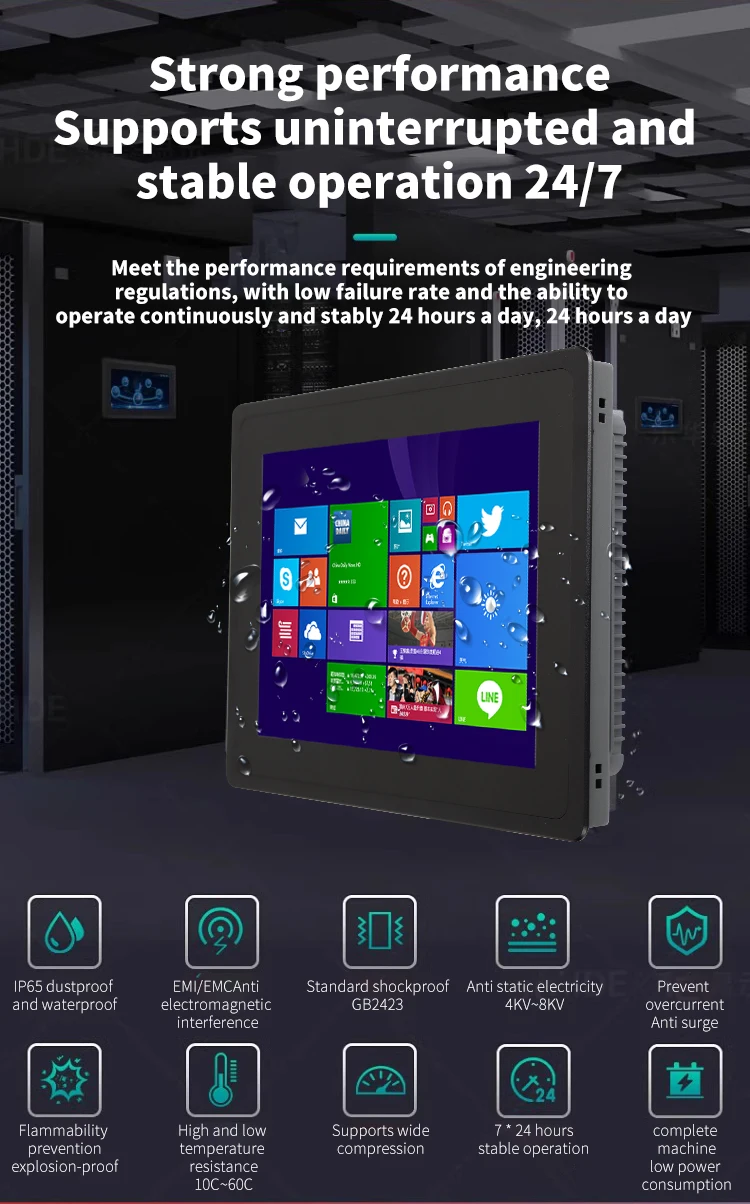

1、10 point capacitive touch, high sensitivity, 24 hours continuous operation.

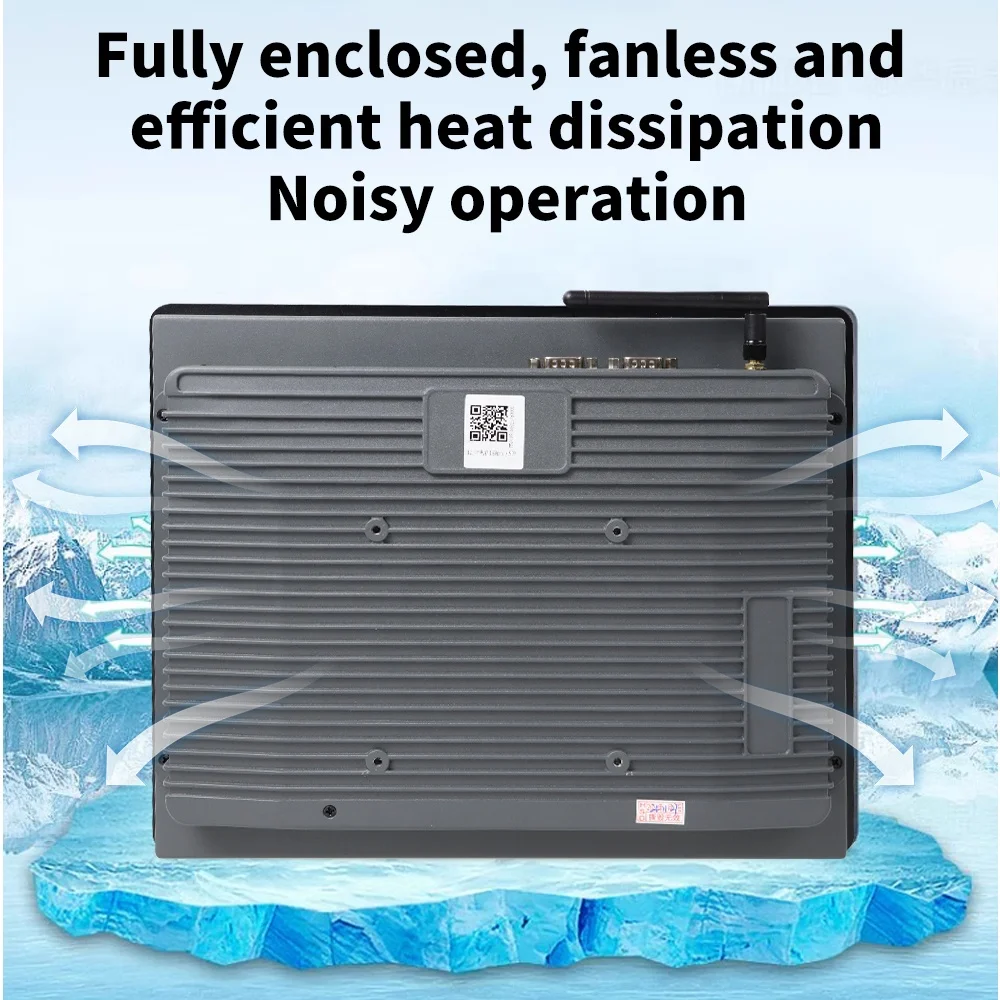

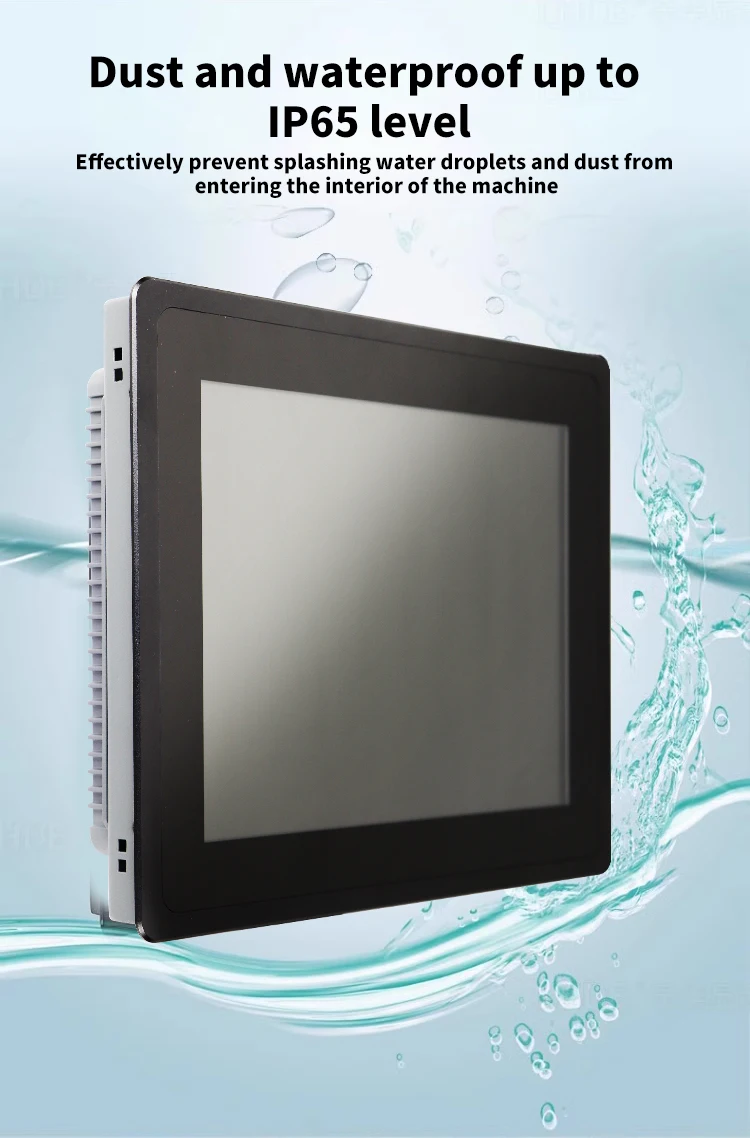

2、The panel is dustproof, waterproof, anti-slip and anti-collision, high and low temperature anti-interference, anti-impact and anti-vibration.

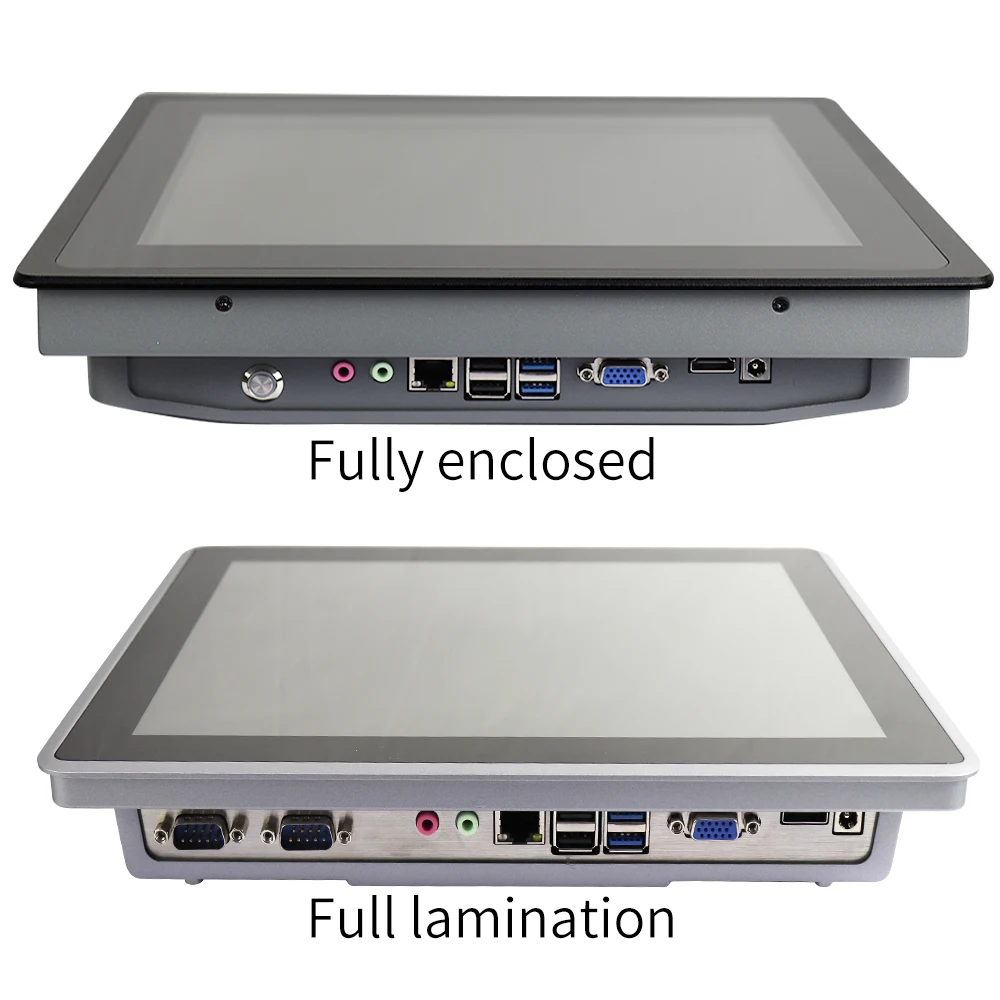

3、Rich interface: can be customized to install serial port, USB, network port, Phoenix terminal, aviation interface, GPIO.
3、Rich interface: can be customized to install serial port, USB, network port, Phoenix terminal, aviation interface, GPIO.

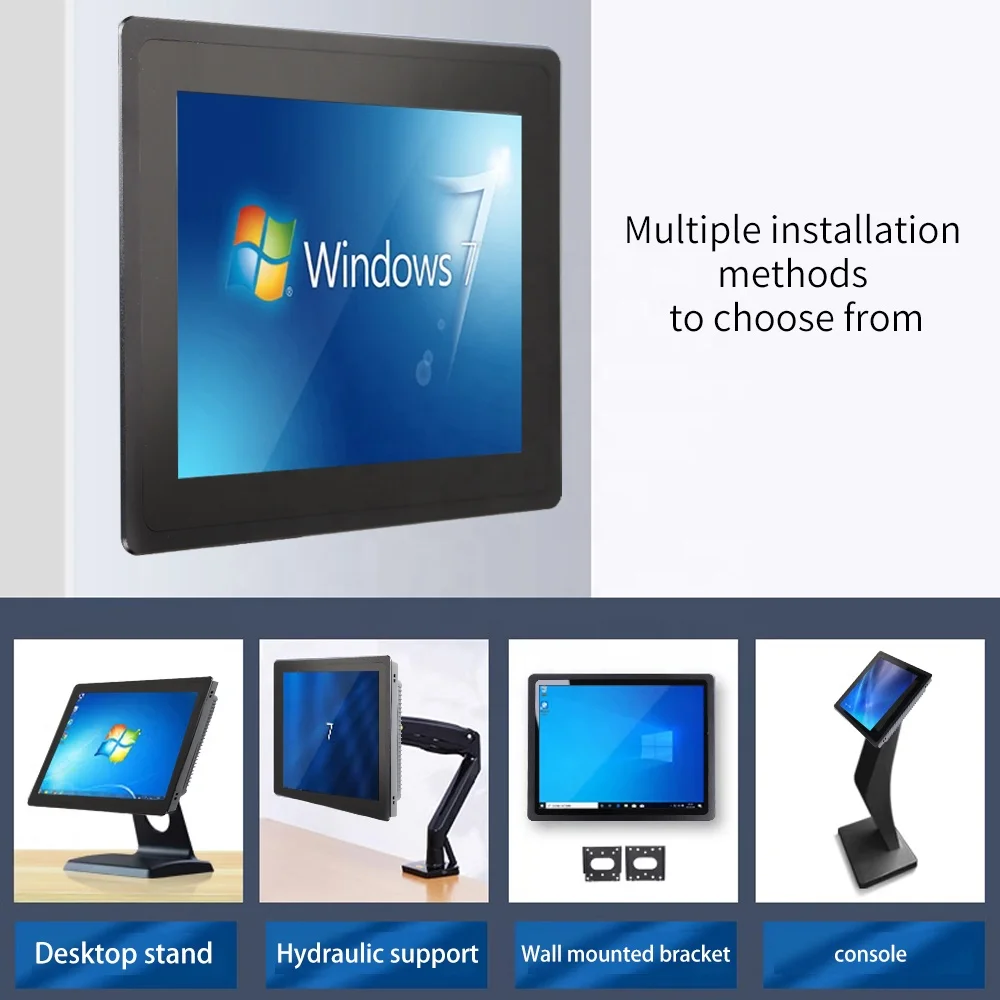

4、Android/Windows dual system optional, a variety of personalized installation methods.
5、Security protection, multi-scenario application.
Product Description
Quick Details
Display | Model | BGDR-15.6 | Size | 15.6 inch | |||

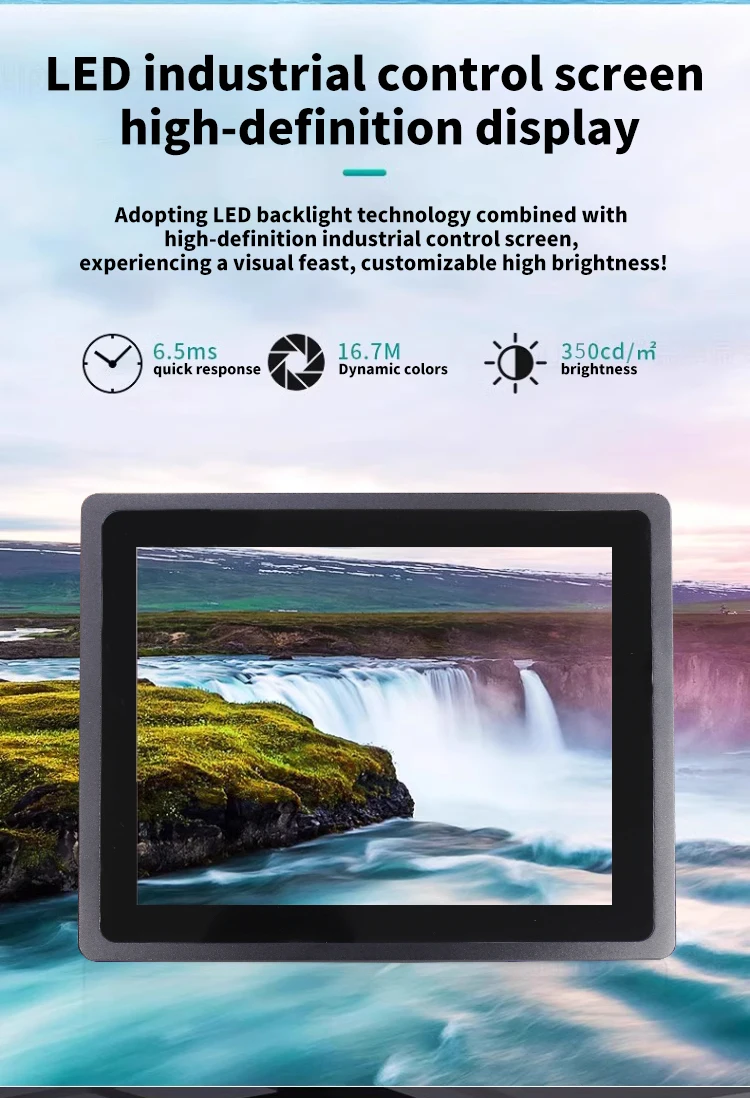

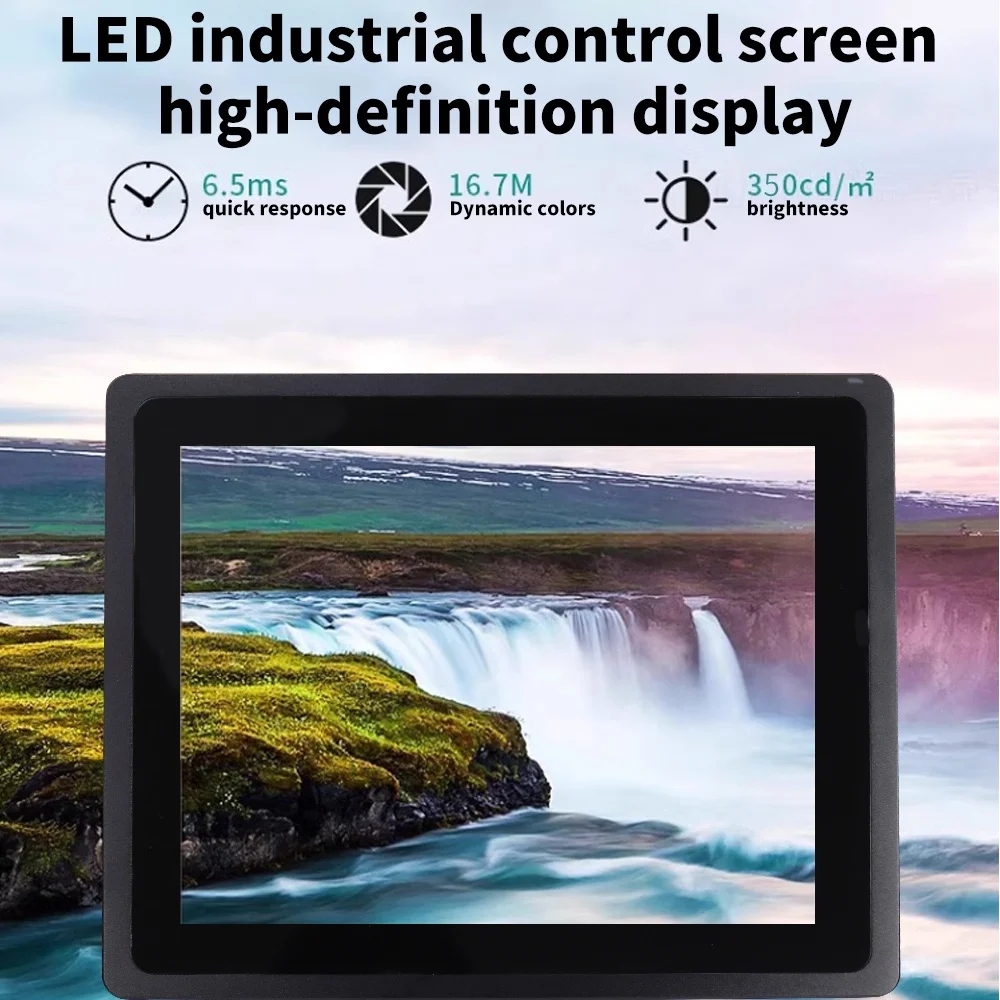

Screen type | LED LCD screen | Backlight type | E-LED | ||||
display | Display area | 344.16(H)×193.59(V)mm | Resolution | 1920×1080（FHD） | |||
brightness | 350cd/m² | Response time | 6.5 ms | ||||
Contrast | 1200:1 | Colour gamut | 73% NTSC | ||||
Visual Angle | 89/89/89/89 (Min.)(CR≥10) | Working life | >60000H | ||||
Android system (Optional) | chip | RK3568 | CPU | Quad-core 64-bit Cortex-A55， Main frequency up to 2.0GHz | |||
GPU | ARM G52 2EE | NPU | Supports 1T computing power | ||||
System support | Android 11.0 | Random access memory | 2G+16GB | ||||

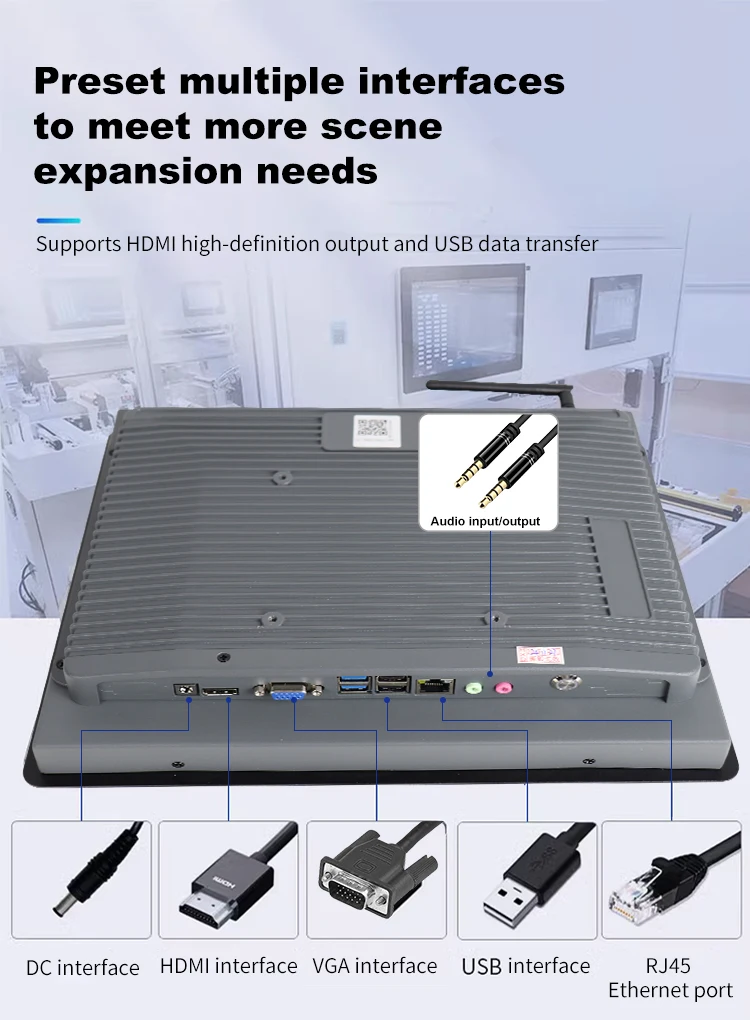

Motherboard interface | DC、TYPE-C、USB3.0、USB2.0*2、RJ45、HDMI OUT、Headset holder (rear SIM card holder） | Network | Support Gigabit Ethernet, 4G mobile network, WIFI2.4, BT-4.2(optional WIFI5.8, BT-5.0) | ||||
Windows system (Optional) | Chip | Intel | CPU | Core i5-3 generation | |||
Random access memory | 4G DDR3（Optional） | Hard disk memory | 128G SSD(Optional） | ||||
Motherboard interface | DC、HDMI、VGA、USB2.0上、USB3.0下、USB2.0与LAN CO-LAY、LAN、HP OUT、MIC IN | ||||||
Body extension interface | Android: TTL serial port (optional RS232)\\ WIFI Windows:RS232*2 (Optional RS485)\\WIFI\\ Dual network port optional | ||||||
Touch screen parameters | Input mode | Finger input | Touch points | 10 point touch | |||
Response time | ≤15ms | Positional accuracy | More than 90% of the touch area is ±2mm | ||||

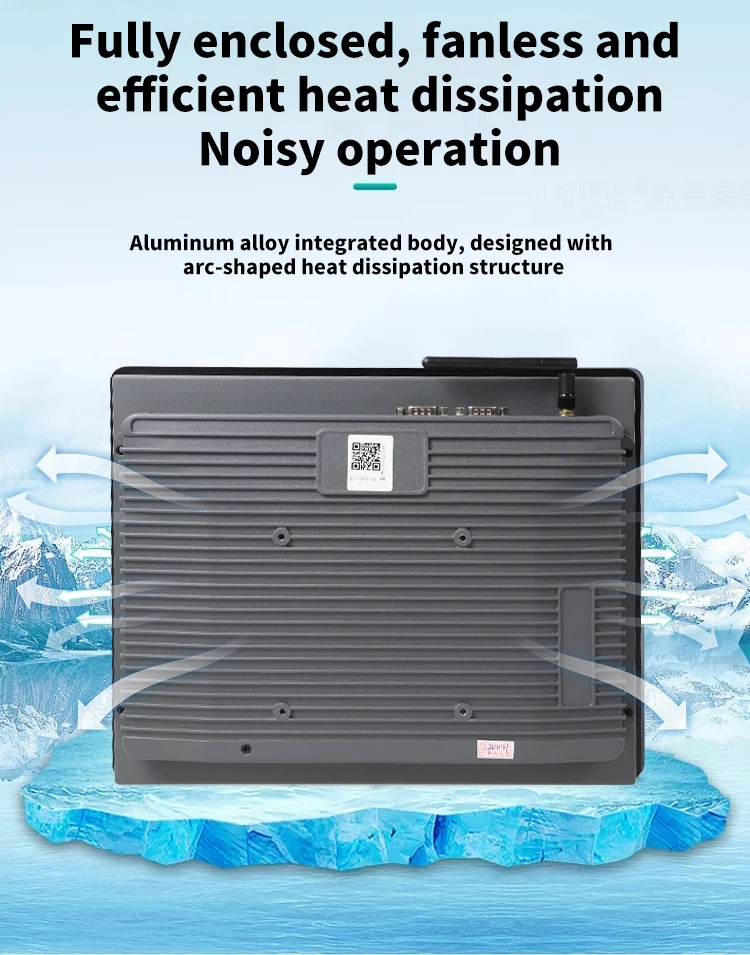

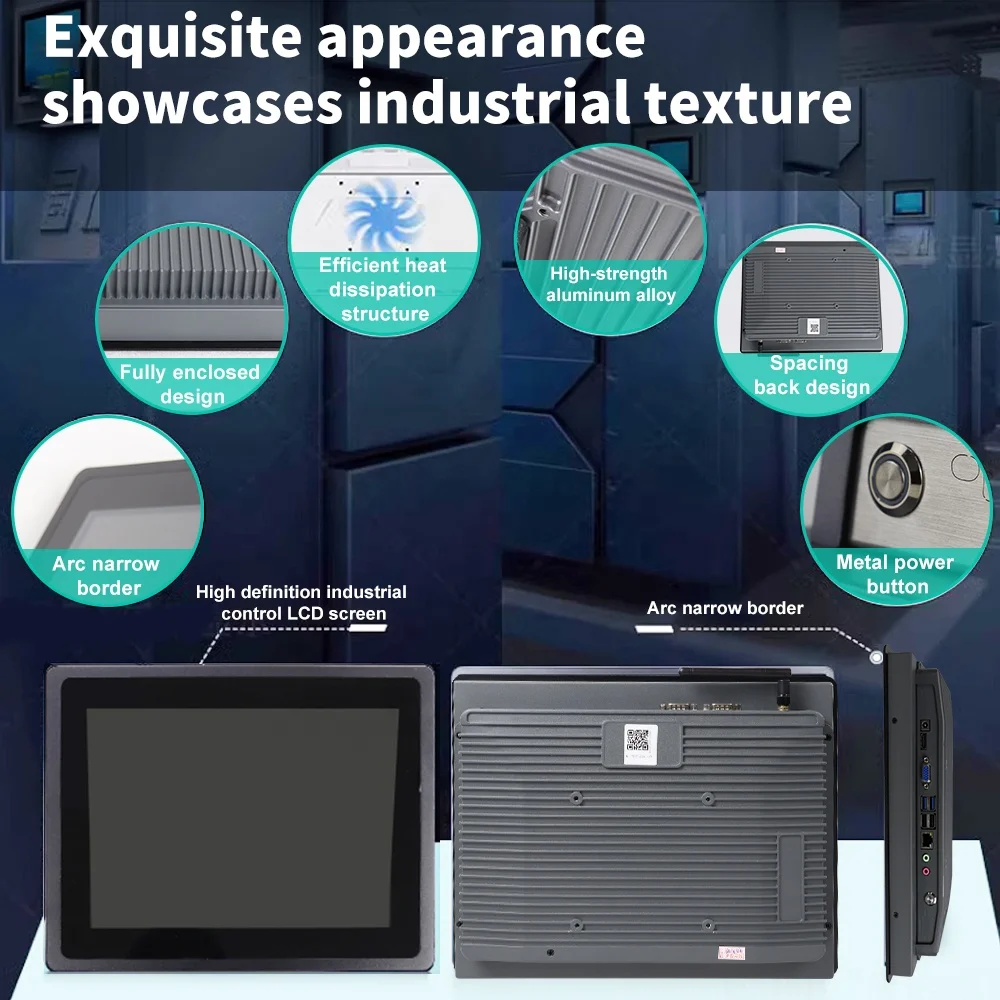

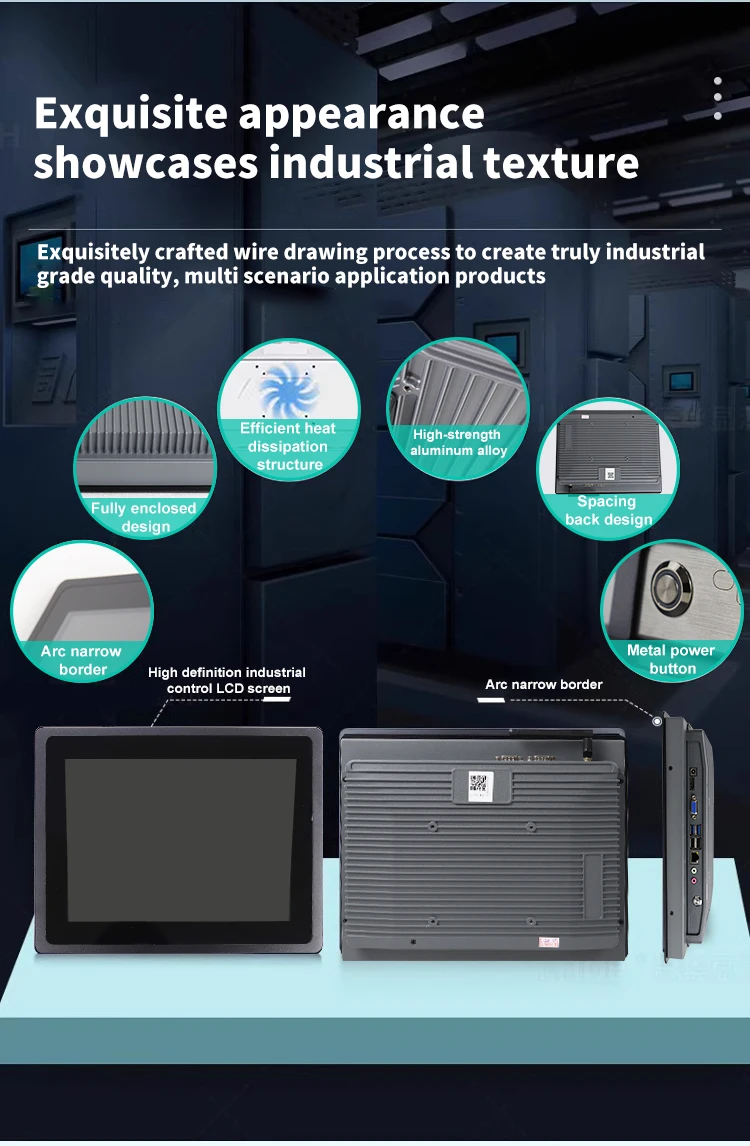

Tractor parameter | Bare machine size (L * W * H) | 378(L)×297(W)×**(T)mm | Shell material (face frame/back shell) | Aluminum alloy/sheet metal | |||
Shell color (face frame/back shell) | Black/cold grey | Switching power supply | AC100-240V~(+/-10%),50/60Hz adapter | ||||

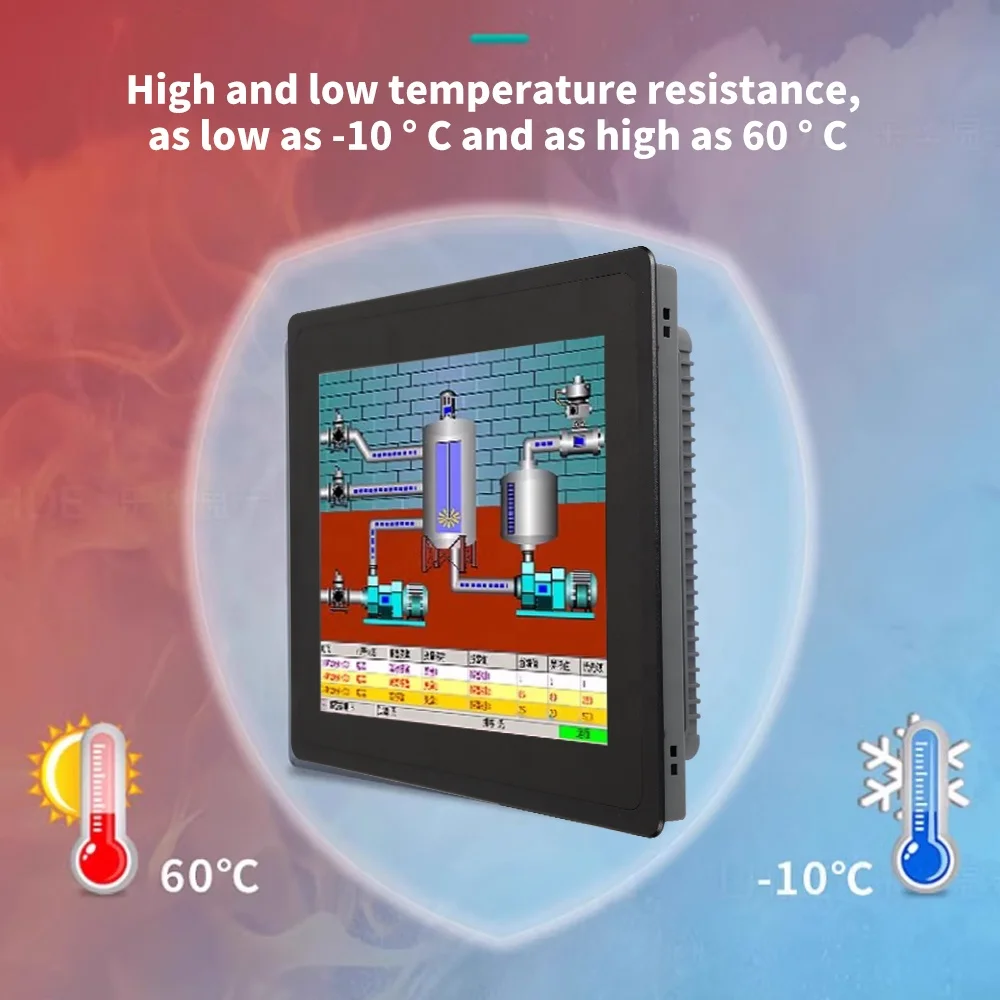

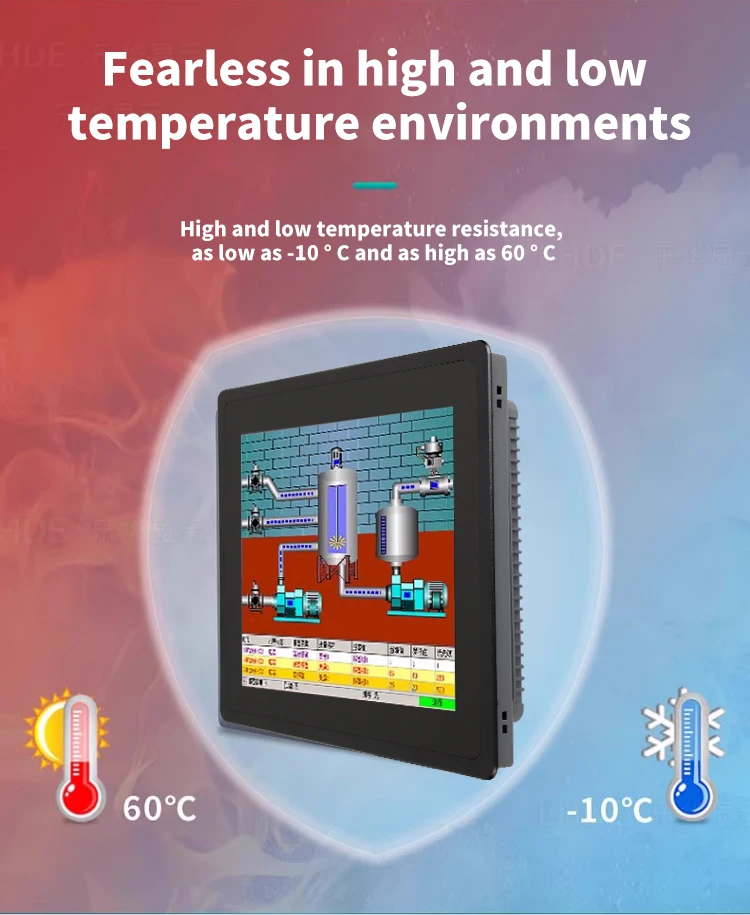

Power port | DC 12V / 5A/7A | Operating temperature | -10°C ～ 60°C | ||||
Storage temperature | -20°C ～ 70°C | Accessory | 1、Product specification*1； 2、Power cord *1； 3、Warranty card*1； 4、Certificate *1； 5、WIFI head *1; 6、Wall hanging plate + wall hanging screws *1 set | ||||
Product certification | CCC, Energy-saving Certification, Environmental System Certification | ||||||
Company Introduction
Shenzhen Yongchuangli Electronic Technology CO., Ltd.(YCL Touch) was established on August 2nd, 2013. YCL Touch is a high-tech enterprise that specialized in the R&D, production and sales of infrared PCBA modules, touch frames, touch screens, splicing screens, interactive whiteboards(projection type) and G+G, G+F, G+F+F capacitive touch screens.
YCL Touch is its brand. YCL Touch has gained more than 35 practical software copyrights and utility model patents and becomes a supplier for 16/20/32/40/64 touch points. All the products reached CE, UL, FCC, CCC, ROHS and Reach standards.
YCL Touch is its brand. YCL Touch has gained more than 35 practical software copyrights and utility model patents and becomes a supplier for 16/20/32/40/64 touch points. All the products reached CE, UL, FCC, CCC, ROHS and Reach standards.
And passed ISO9001:2015 certification. YCL always keep improving existing products and developing innovative products to meet the new trend.
YCL Touch always values the views of its customer and puts customers' opinions first. It provides professional services such as OEM or ODM customization to make widely fit the customer's needs. High-quality products and thoughtful services make YCL Touch win
many customers no matter in domestically or overseas.
YCL Touch always values the views of its customer and puts customers' opinions first. It provides professional services such as OEM or ODM customization to make widely fit the customer's needs. High-quality products and thoughtful services make YCL Touch win
many customers no matter in domestically or overseas.
Packing and delivery
Standard packaging with foam and boxes
FAQ
1. Are you a manufacturer or trading company?
We are a one-stop manufacturer, factory directly sale.
4. Can we provide customized services?
✱.The panel is dustproof, waterproof, anti-slip and anti-collision, high and low temperature anti-interference, anti-impact and anti-vibration.
✱.Rich interface: can be customized to install serial port, USB, network port, Phoenix terminal, aviation interface, GPIO.
✱.Android/Windows dual system optional, a variety of personalized installation methods.
✱.Security protection, multi-scenario application.
✱.Support SDK services
We are a one-stop manufacturer, factory directly sale.
2. How can we guarantee quality?
Our products have been strictly tested high quality by QC before shipping to customers,
We attach great importance to product quality.
3.What's the MOQ?
MOQ is 1 pcs, large quantities can enjoy discounts.
Our products have been strictly tested high quality by QC before shipping to customers,
We attach great importance to product quality.
3.What's the MOQ?
MOQ is 1 pcs, large quantities can enjoy discounts.
4. Can we provide customized services?
Yes, we have an R&D team ,we can provide the OEM/ODM services.
Tell us your requirements, then we can provide the products you want
5.What are the advantages of our products?
✱. 10 point capacitive touch, high sensitivity, 24 hours continuous operation
✱.The panel is dustproof, waterproof, anti-slip and anti-collision, high and low temperature anti-interference, anti-impact and anti-vibration.
✱.Rich interface: can be customized to install serial port, USB, network port, Phoenix terminal, aviation interface, GPIO.
✱.Android/Windows dual system optional, a variety of personalized installation methods.
✱.Security protection, multi-scenario application.
✱.Support SDK services
