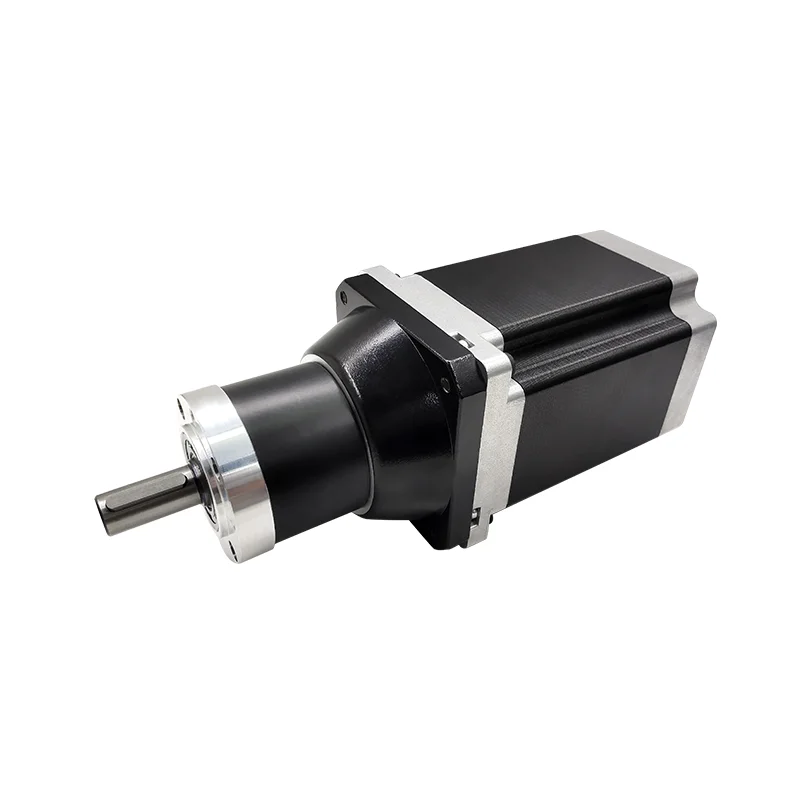

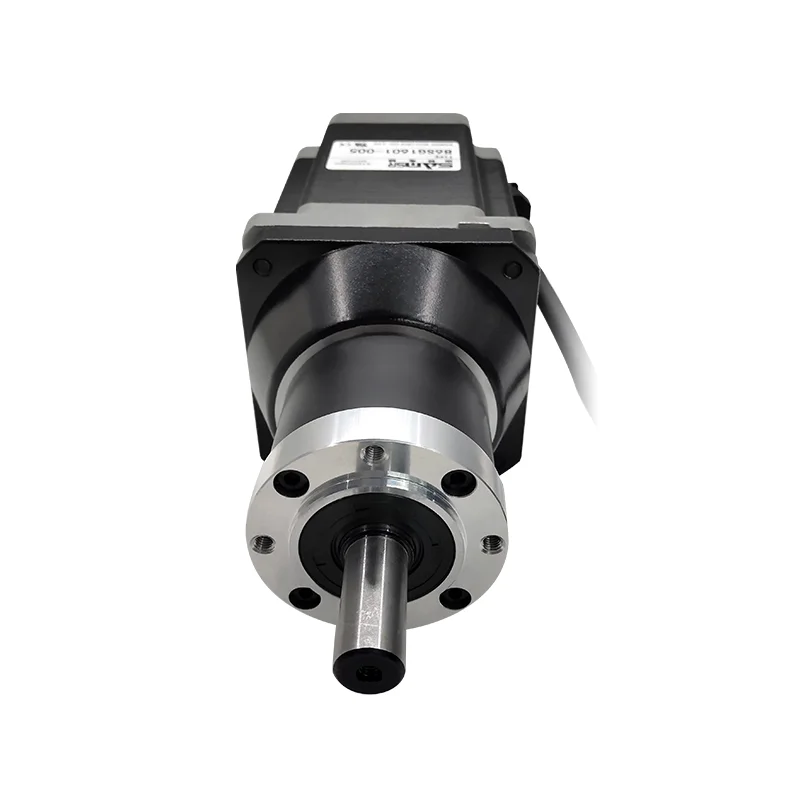

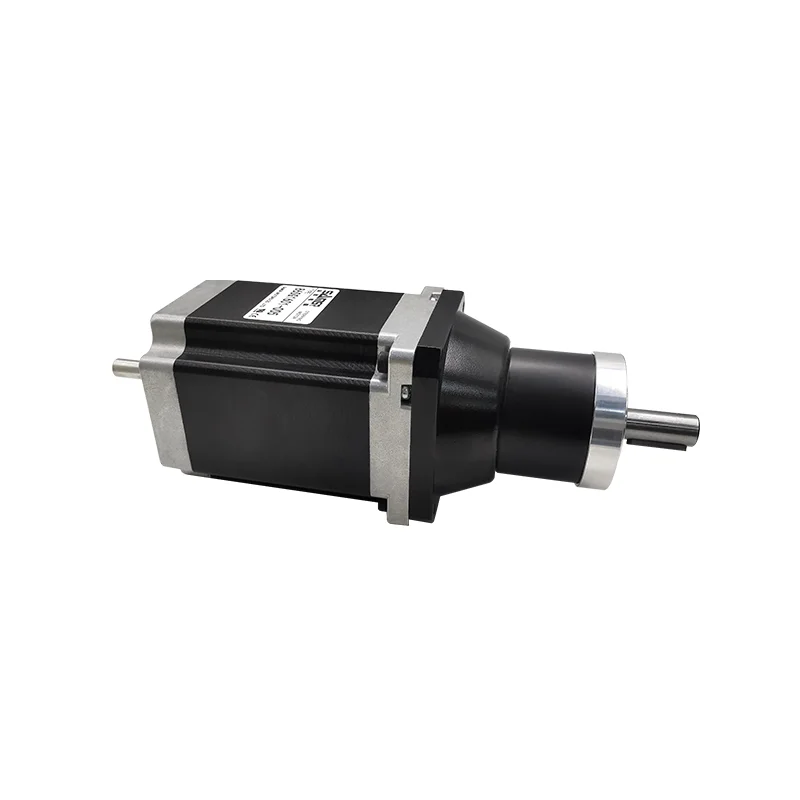

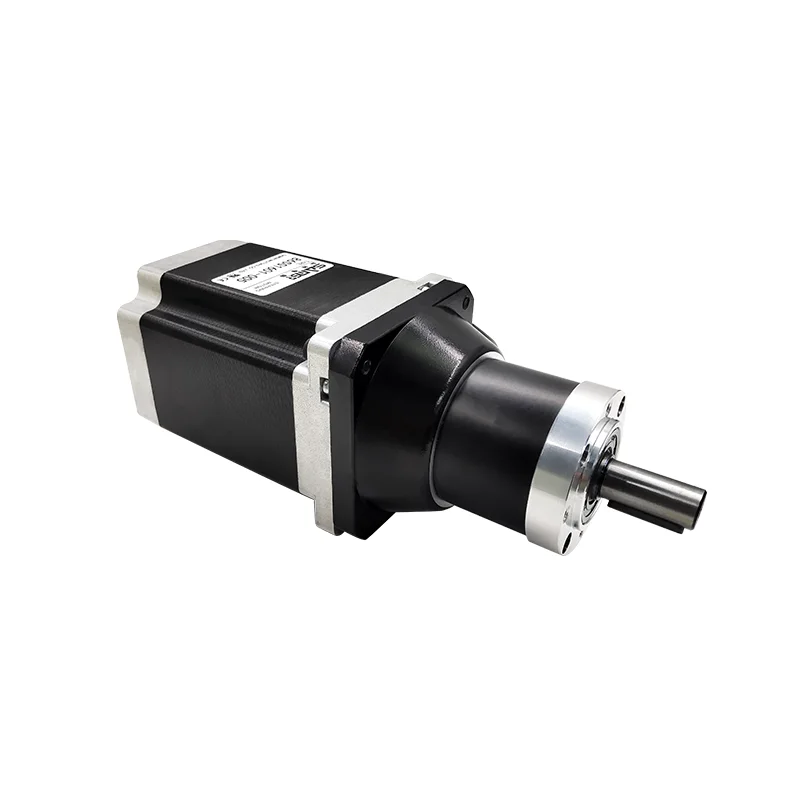

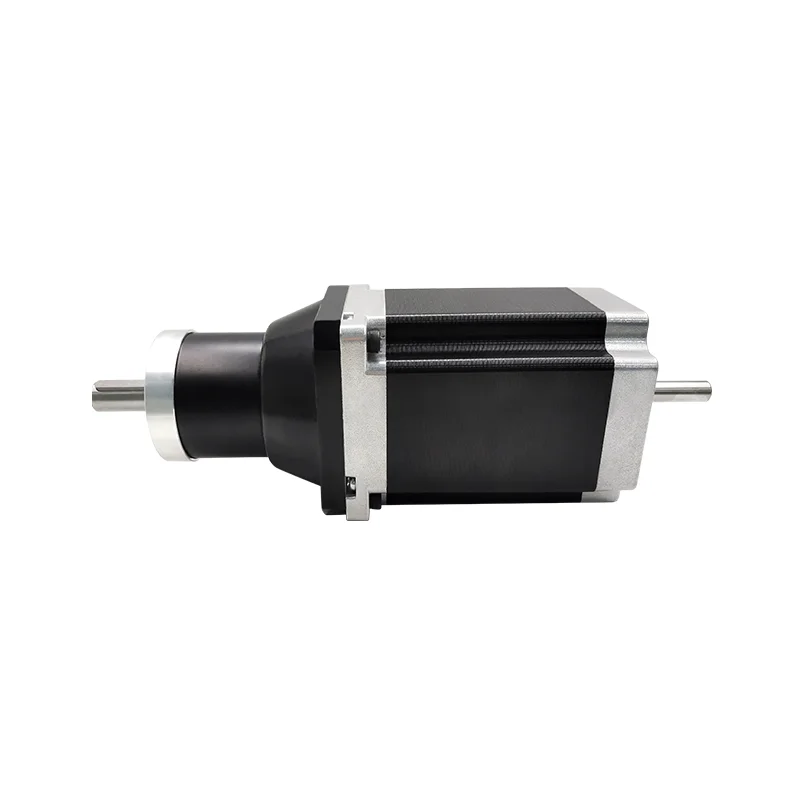

10 Nm 1:5 reducer ratio 2 phase 6A 3.6V 86mm NEMA 34 CNC machine planetary eccentric gearbox stepper motor



Brand	Samsr
Model	86SG1601-005
Supply voltage	24-75VDC
Motor size	86*86*158.5MM
Certification	CE, ISO, ROHS





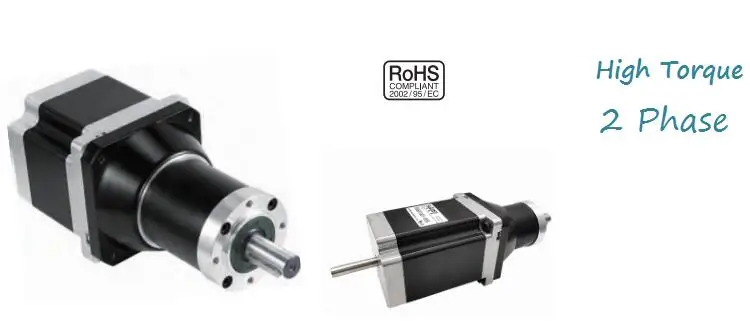

Feature:

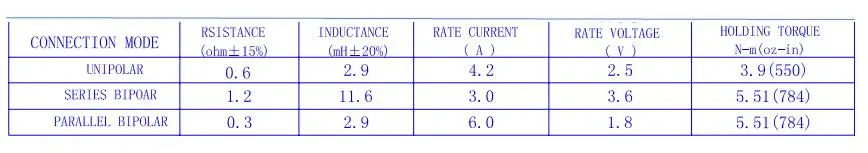

Step angle:0.36°                                                               No of phases: 2

Rated voltage: 2.52V                                                               Rated current: 4.2A

Resistance:  0.6ohm   (AT 20°C)                                             Inductance: 2.9 mH

Holding torque: 3.9N.m(oz.in)                                                Dielectric strength: 500V A.C

Insulation resistance: 100 MΩ                                                 Insulation class: Class B

Temperature rise: 80K (Max)                                                  Rotor inertia: 2775g.cm

Gearbox mounting hole:M5                                                    Gearbox ratio: 1:5

Allowable thrust load: 60N                                             Allowable radial load:220N(on the shaft end)

Operation ambient temp:0°C~+50°C                                      Operation ambient hum: 15%~90%

Life: 5000Hours                                                                      Weight: 1.34Kg



Product Detail





Optional ---Nema 23 stepper motor with planetary gearbox parameters:

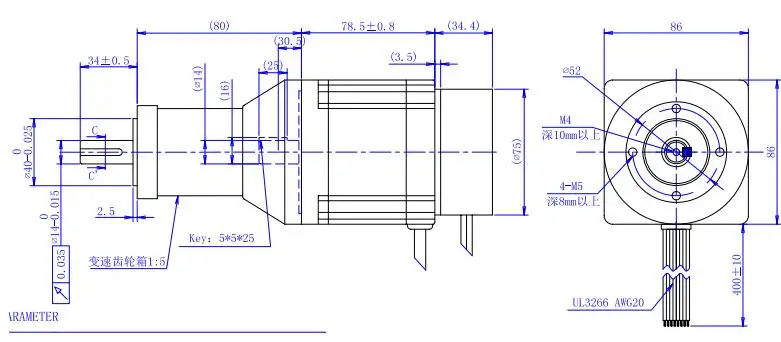

DDimension: Unit(mm)

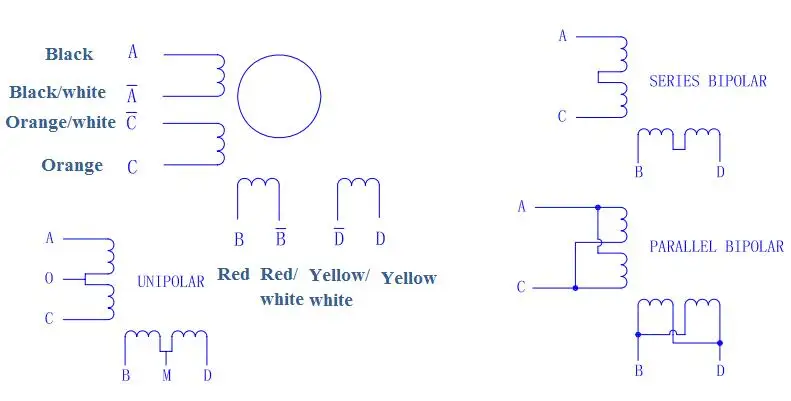

Wiring Diagram







Advantage:

1.Planetary gear motor with high torque,high precision, compact structure, low operating noise

2. First reduction backlash ≤15arcmin; second reduction backlash ≤25arcmin

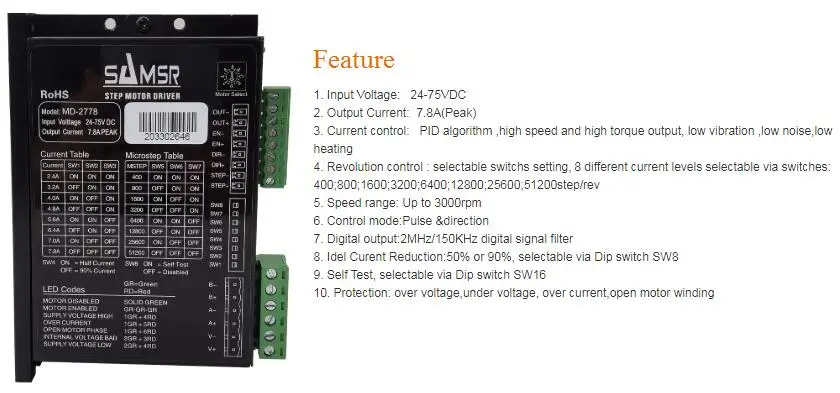

Recommend driver:MD-2778
