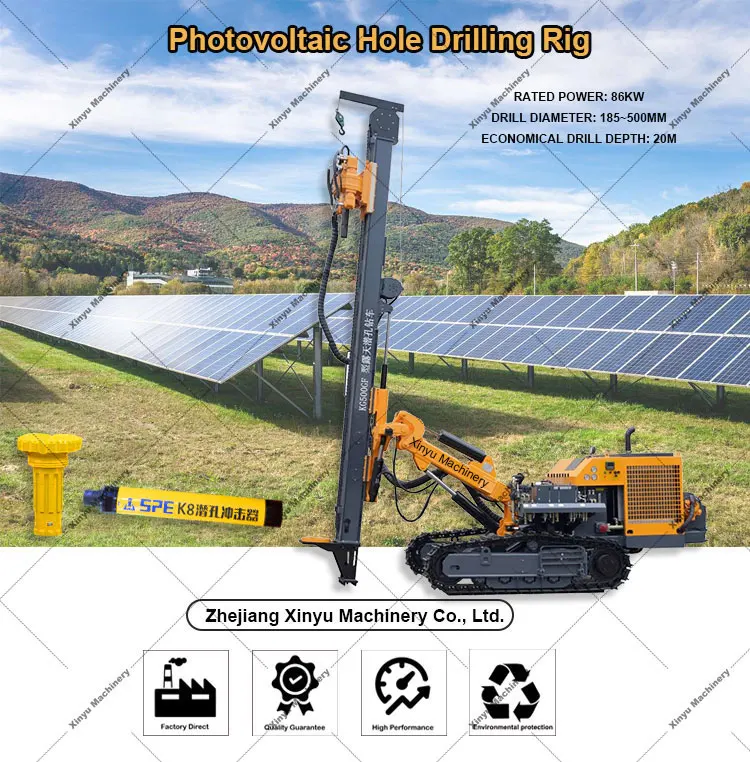

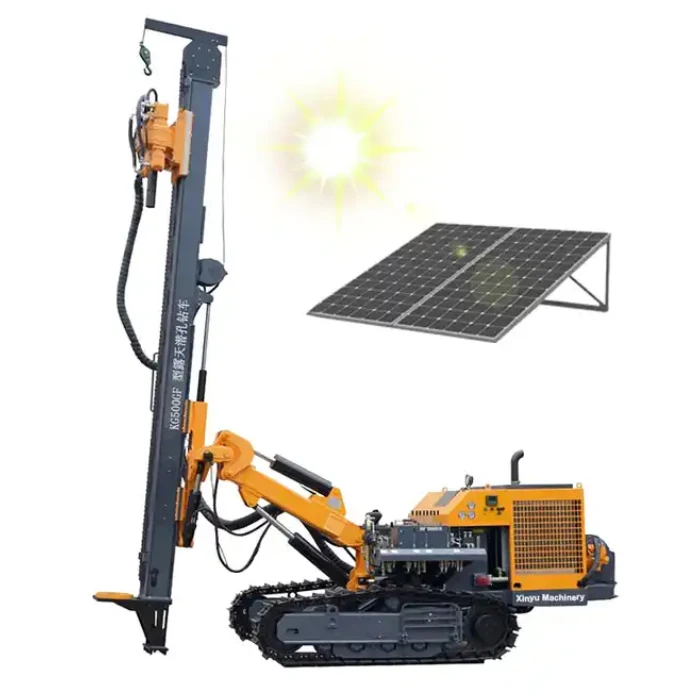

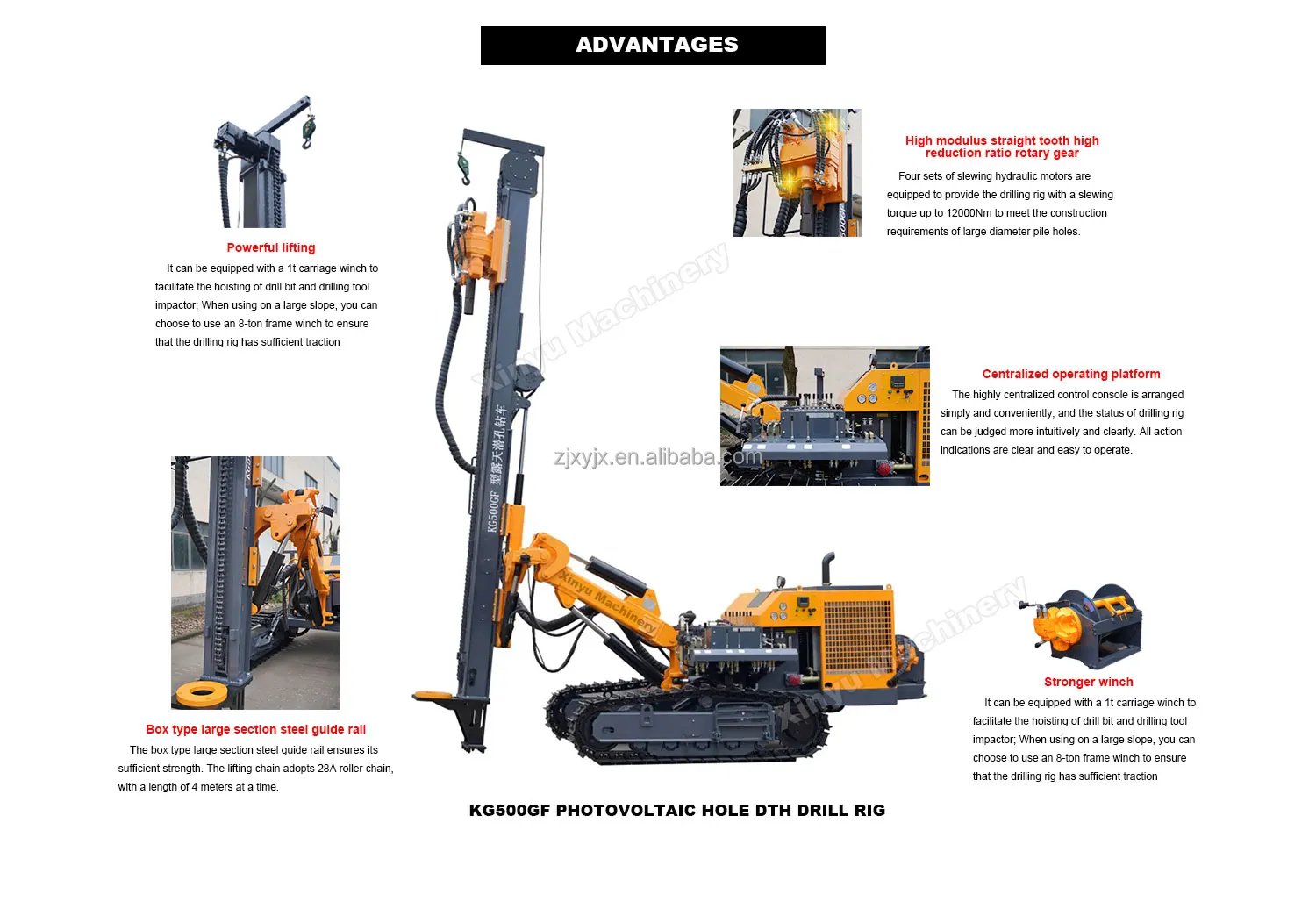

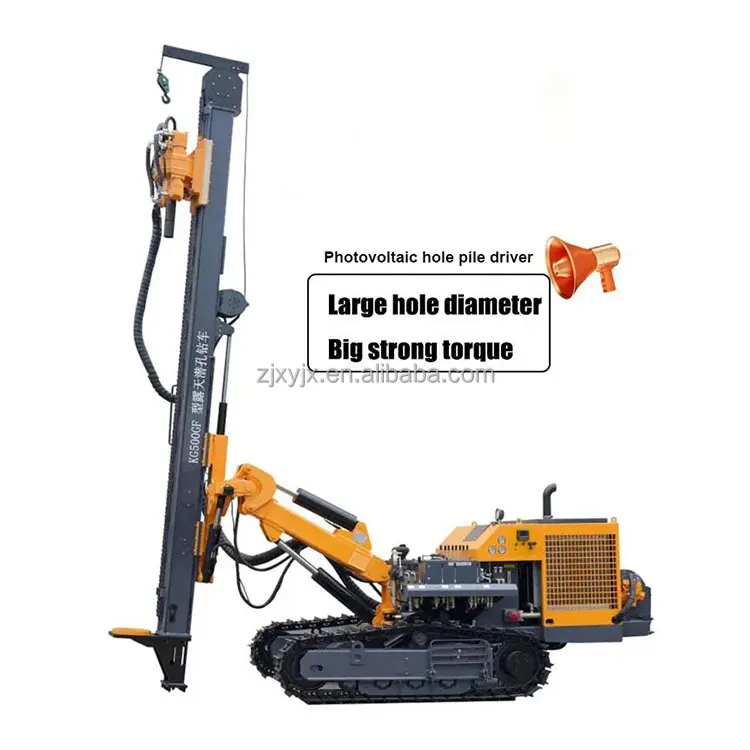

China Kaishan drill rig KG500GF bore pile photovoltaic drilling rig machine
China Kaishan drill rig KG500GF bore pile photovoltaic drilling rig machine
China Kaishan drill rig KG500GF bore pile photovoltaic drilling rig machine
China Kaishan drill rig KG500GF bore pile photovoltaic drilling rig machine

China Kaishan drill rig KG500GF bore pile photovoltaic drilling rig machine

Share on (1601023862804):


Price:$36,999.99 - $37,499.99

Quantity:


Product Overview

Description



Products Description




spcifications


Model
KG500GF
Weight
7500kg
Outer size
6680*2450*2710mm
Rock hardness
f=6~20
Drilling diameter
185-500mm
Rotary speed
0-80 rpm
Rotary torque(Max)
12000 N.m(Max)
Lifting force
25KN
Lifting system
Motor and roller chain
Feeding stoke
4275mm
Walking speed
0-3Km/h
Engine
Yuchai DKC940
Supporting power
86KW/2200 r/min
Ground clearance
440mm
Slide frame compensation length
1200mm
DTH Hammer
6-12 inch
Drill rod
102*1.5m
Air consumption
15*45 m3/min

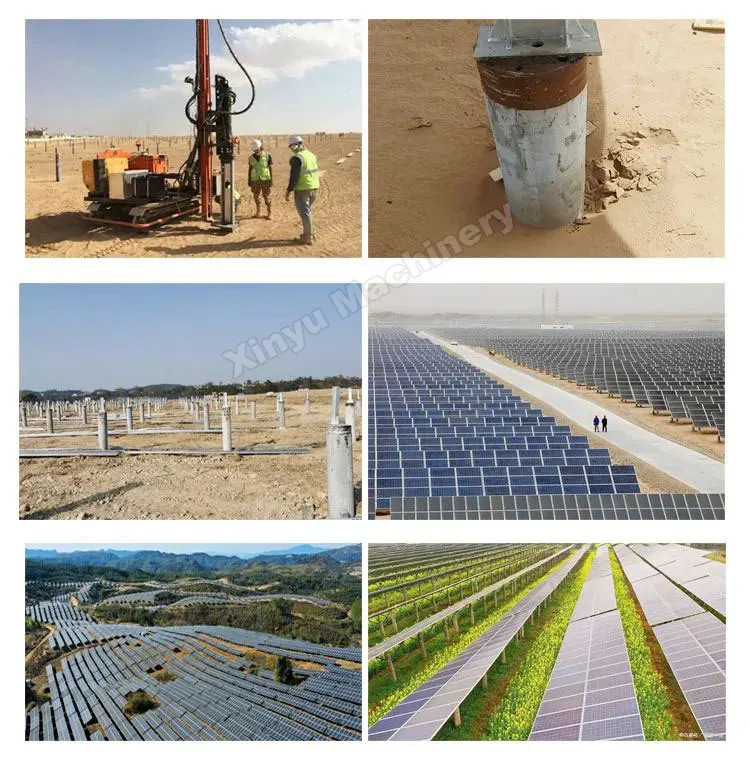

Product Application
