Tongveo Video Conferencing Kit 1080P USB3.0 HDM1 12X Optical Zoom PTZ Conference Camera with Wireless BT Speakerphone
- Category: >>>
- Supplier: Shenzhen Tongveo Innovation Technology Co. Ltd.
Share on (1601023901979):
Product Overview
Description
Product Overview

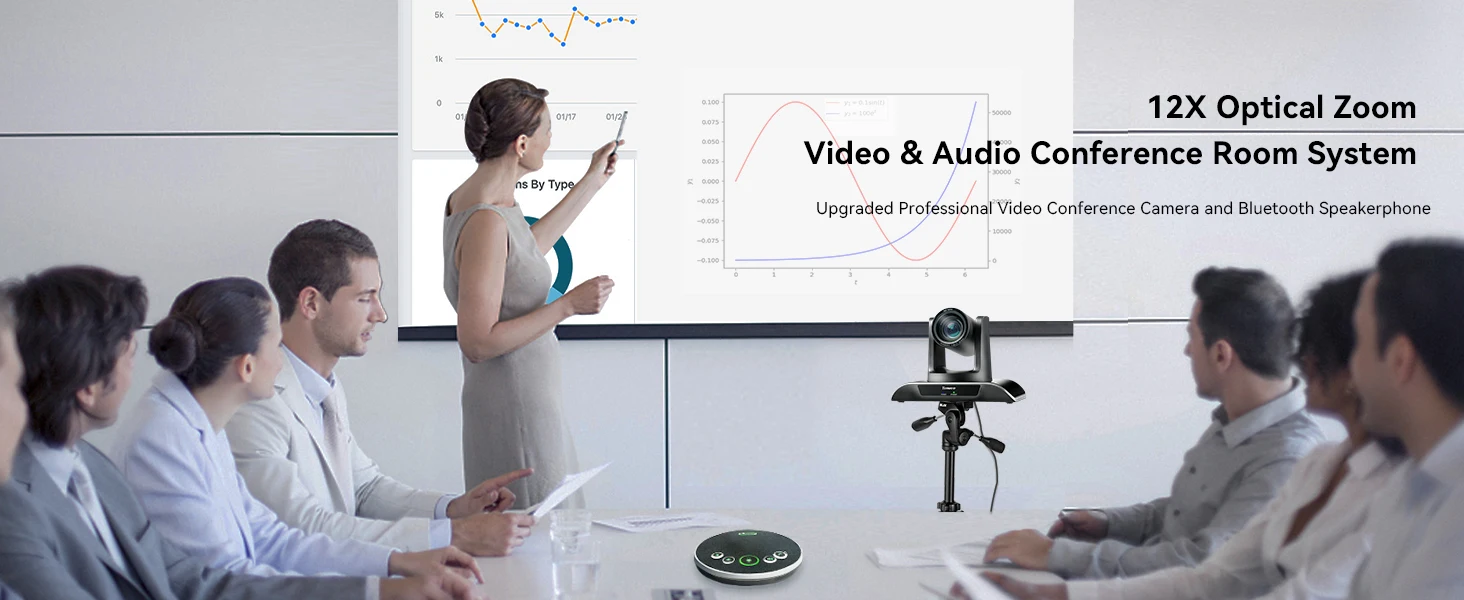

This video conferencing kit is a combination of 1080p60fps ptz camera and Bluetooth speakerphone. The camera can be connected to computer or TV via USB3.0 and HDMI, while the speakerphone can either be connected by USB or Bluetooth or wireless Dongle. The camera features sharp full HD image resolution, 12X optical zoom and various video output interfaces to fit in different application requirements. It can also be conveniently operated by remote control, either by infrared remote controller or PC or a joystick-equipped remote controller (not included in the kit, needs to be bought separately). The duplex and noise reduction speakerphone houses 2x professional Mics array to pick up voices from 5 meters range. It is equipped with a 2400mAH built-in lithium battery which can play music for up to 8 hours.
Key Features:
-Camera
*Smooth motorized pan, tilt and zoom, controlled from remote or Joystick keyboard
*350 ° pan, 180 ° tilt
*12x lossless zoom with 1080p full HD resolution
*89.51 ° Field of View
*Max 255 presets (IR remote 10 presets)
*Far-end wireless IR remote control

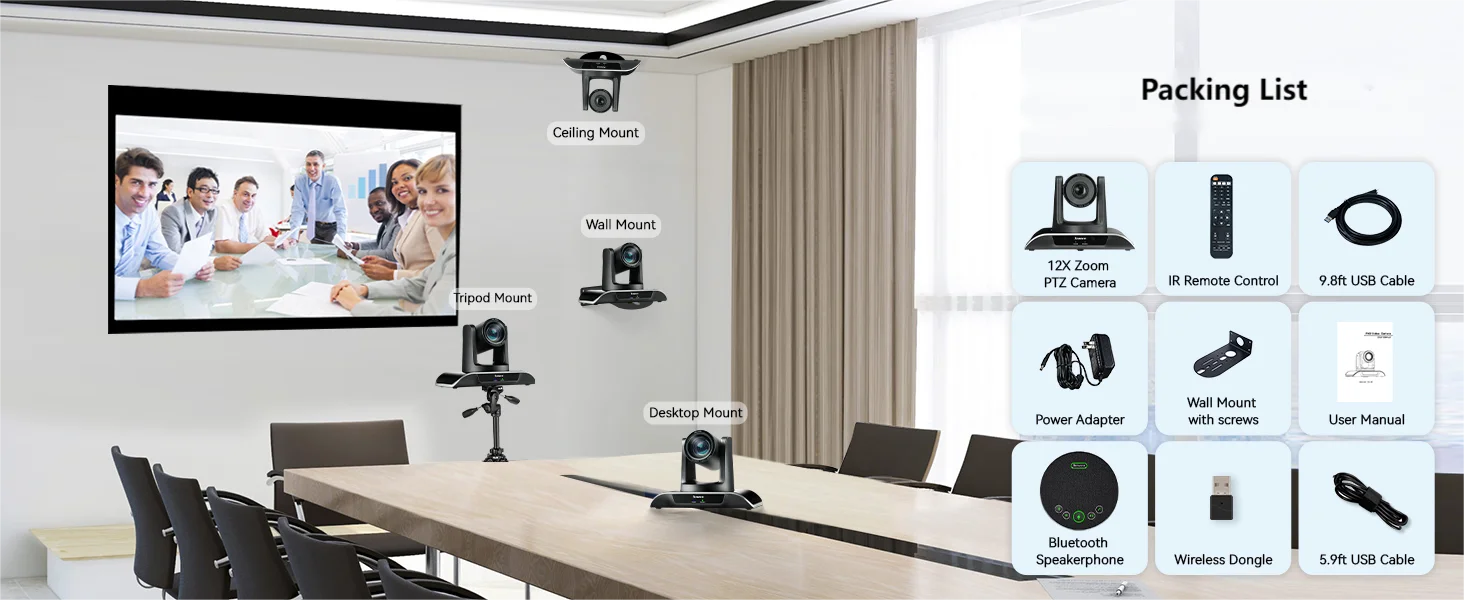

*Available to install on desk, monitor, wall, tripod, or up-side-down on the ceiling
-Speakerphone
*Bluetooth/wireless Dongle/USB connectivity
*2x Professional Mics Array and 1x 5W/95dB speaker
*2400mAH built-in lithium battery
*Full-duplex performance
*Acoustic echo cancellation and noise reduction
*Touch controls for call answer/end, volume and mute
*Supports connected to cellphone through audio port
-Camera
*Smooth motorized pan, tilt and zoom, controlled from remote or Joystick keyboard
*350 ° pan, 180 ° tilt
*12x lossless zoom with 1080p full HD resolution
*89.51 ° Field of View
*Max 255 presets (IR remote 10 presets)
*Far-end wireless IR remote control
*Available to install on desk, monitor, wall, tripod, or up-side-down on the ceiling
-Speakerphone
*Bluetooth/wireless Dongle/USB connectivity
*2x Professional Mics Array and 1x 5W/95dB speaker
*2400mAH built-in lithium battery
*Full-duplex performance
*Acoustic echo cancellation and noise reduction
*Touch controls for call answer/end, volume and mute
*Supports connected to cellphone through audio port
Details Images

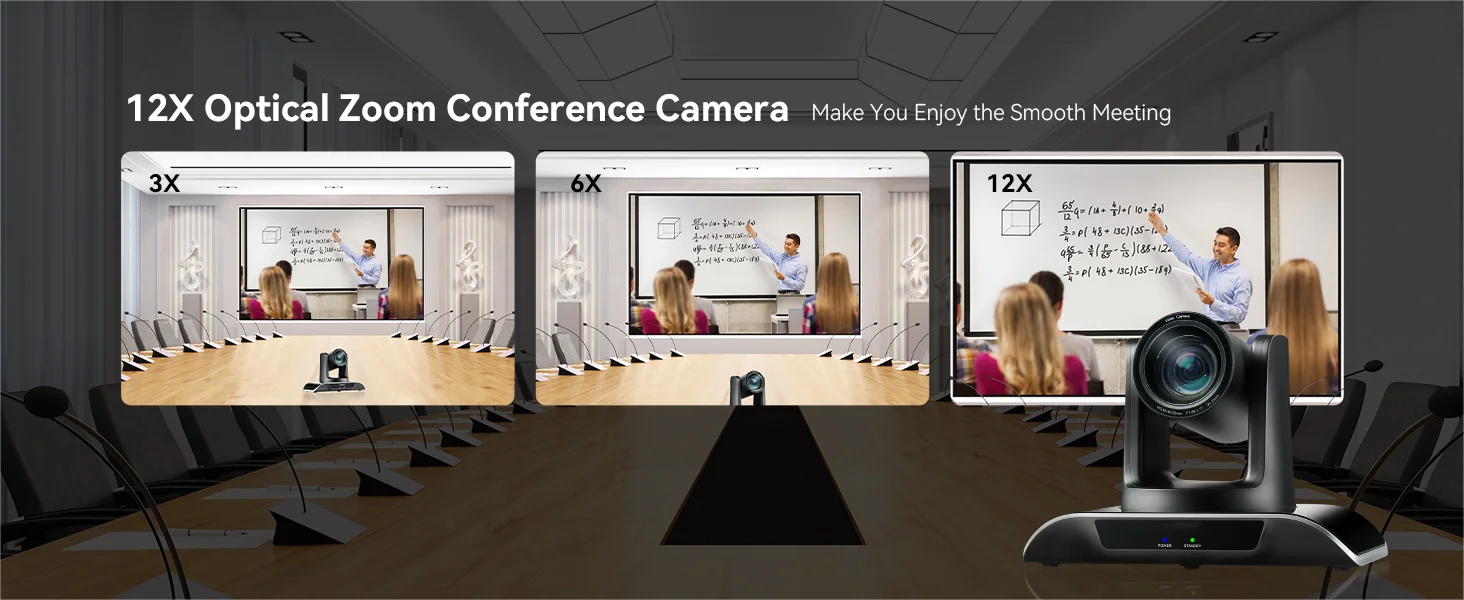

12X Optical Zoom Video Conference Camera
The 1080p60fps camera supports the 12X Optical magnification function. Just focus on what you want via pressing the button to enlarge images in turn, maximum zoom up to 12X. It provides you with more professional conferencing recording and streaming videos.
Sony1/2.8" CMOS, 2.38MP HD 1080P60FPS Resolution
With HD imaging system, the 1080p60fps camera helps you enjoy extraordinary clear and realistic video conference experience.
Supports Preset Position Setting
(0-9)10 preset positions can be saved with the IR remote control: Just set the PTZ camera to the desired position, then press [PRESET], then press one of the numbers 0-9, and the setting is complete. Max 255 presets can be set via joystick controller.

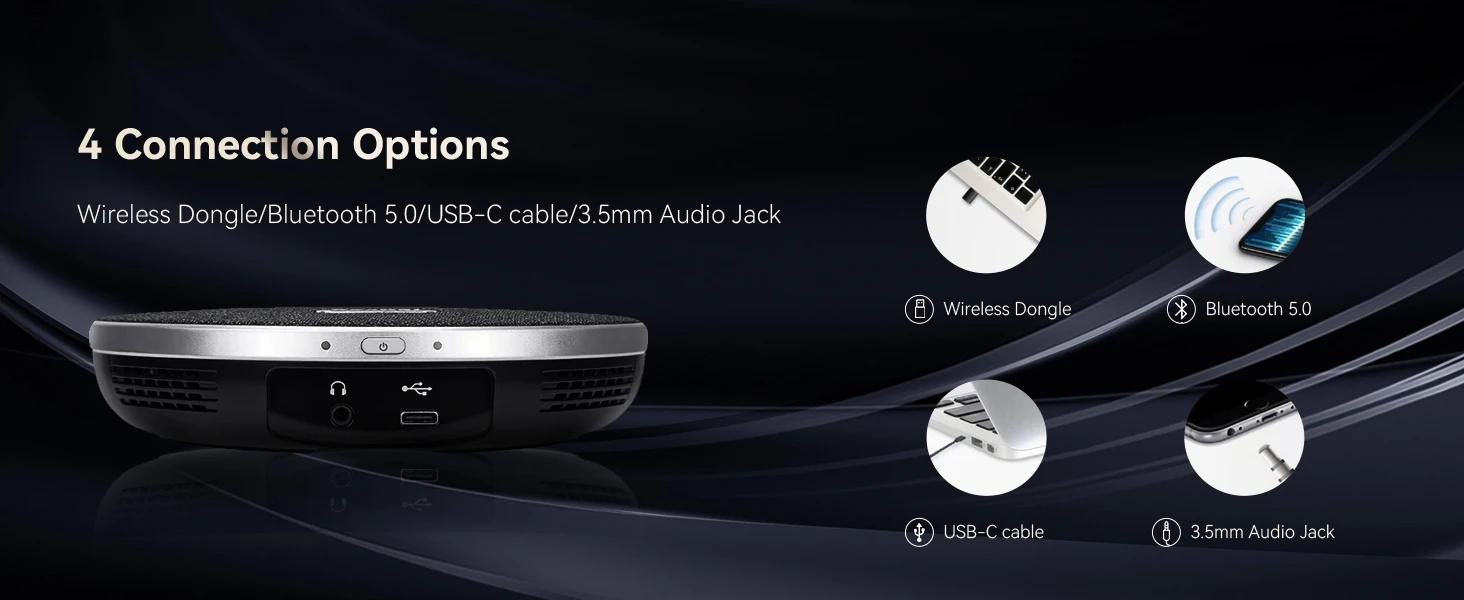

Easy Connections
Pair the Bluetooth-enabled speakerphone with a Bluetooth-compatible device or connect it directly to your laptop using the included USB Type-C cable. With its plug-and-play design, the speakerphone works with popular applications such as Zoom, Microsoft Teams, Skype, and others.

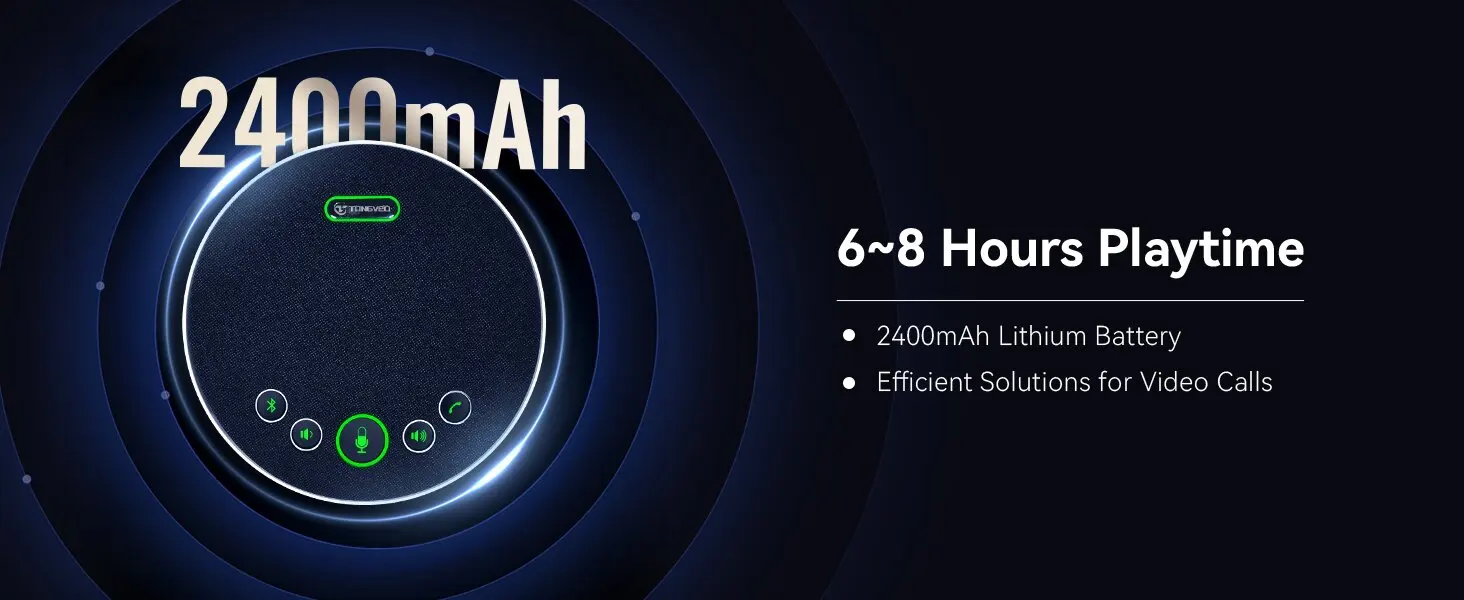

Long-Lasting Power
The integrated 2400 mAH lithium-ion battery is designed to deliver up to 8 hours of Music time.
HD Conference Audio
The speakerphone's distributed echo cancellation and noise cancellation, along with full-duplex performance guarantee your conference calls to sound natural with audio clarity free of any distractions.
Specification
Camera | ||
Item name | 1080p USB3.0+HDMI ptz camera with 12x optical zoom | |
Model No. | VHD12U | |
Sensor | 1/2.8''SONY CMOS | |
Effective pixel | 2.38 mega pixel | |
Video resolution | 1080p@60/50/30/25fps, 720p@60/50/30/25fps | |
Zoom | 12x optical zoom | |
Lens | f=3.42-40.02mm | |
Aperture | F1.88-3.77 | |
Video output | USB3.0+HDMI | |
Video encoding format | H.264, H.265, MJPG, YUY2 | |
Siginal standard | NTSC/PAL | |
Preset position | User can set up to 255 presets (IR remote 10 presets) | |
Control terminal | RS-232 (input only), RS-485, USB | |
Control protocol | VISCA, PELCO-D, PELCO-P(RS-232, RS485) | |
USB protocol | UVC1.1 | |
SNR | ≥50dB | |
Horizontal rotation | 80.56(W)-7.89°(T) | |
Vertical rotation | 49.61°(W)-4.46°(T) | |
Diagonal Angle | 89.51°(W)-9.04°(T) | |
Power supply | DC 12V/2A | |
Power consumption | 12W | |
Product size | 247.1*152*169.6mm/285*217*197mm(before / after packing) | |
Product weight | 1.37kg/2.45kg (net / gross weight) | |
Speakerphone | ||
Item name | USB / Bluetooth Speakerphone | |
Bluetooth | BT5.0 | |
Battery | 2400mAH(Built-in lithium battery) | |
Connection type | USB/Bluetooth/AUX | |
Pickup range | 5 meters (16.4 feet) | |
Mics | 2x Professional Mics Array | |
Microphone type | Omni-directional (360 degree pickup range) | |
Microphone sensitivity | -29dBFS | |
Noise reduction | Yes | |
Full duplex audio | Yes | |
AEC | Yes | |
Frequency range | 100Hz to 22kHz | |
Speaker | 5W/95dB | |
Interface | 1 x Type-C, 1 x 3.5mm audio port | |
Power supply | USB:5V DC @ 500 mA Maximum | |
Product size | 160mm*160mm*38mm/221mm*190mm*55mm((before / after packing) | |
Product weight | 0.44KG / 0.77KG(Net / Gross Weight) | |
Application Scenarios
Multiple Use Scenes
The kit is ideal for Video Conferencing, Church Activities, Live Streaming, Remote Meetings, Distance Education, Remote Consultation, Remote Medical Treatment, etc.
Packing & Delivery
Company Profile
Contact us
Oscar Liu
International Sales Representative | Shenzhen Tongveo Innovation Technology Co., LTD
Tel: +86 15991741839
Email: sales03@tongveo.com
Website: www.tongveo.com
Address: B-8th, A-1th Floor, Fukang Technology Mansion, Yousong Road, Fukang Community, Longhua Dist., ShenZhen, China
International Sales Representative | Shenzhen Tongveo Innovation Technology Co., LTD
Tel: +86 15991741839
Email: sales03@tongveo.com
Website: www.tongveo.com
Address: B-8th, A-1th Floor, Fukang Technology Mansion, Yousong Road, Fukang Community, Longhua Dist., ShenZhen, China
FAQ
Q1: Which kind of software does your camera compatible with?
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3: What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operate?
A:Yes. Easy to Plug-in, Driver free, Plug&Play.
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years.
Q7:Can I put my own logo on products?
A:Yes. We Provide OEM/ODM service. We accept customer’s design, logo,lable,package, etc.
Q8: How about your delivery time?
A: We have samples in stock for the same day shipping. For bulk order, please contact us for the delivery time.
Q9: Do you test all your video conferencing camera before delivery?
A: Yes. We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3: What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operate?
A:Yes. Easy to Plug-in, Driver free, Plug&Play.
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years.
Q7:Can I put my own logo on products?
A:Yes. We Provide OEM/ODM service. We accept customer’s design, logo,lable,package, etc.
Q8: How about your delivery time?
A: We have samples in stock for the same day shipping. For bulk order, please contact us for the delivery time.
Q9: Do you test all your video conferencing camera before delivery?
A: Yes. We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod.
