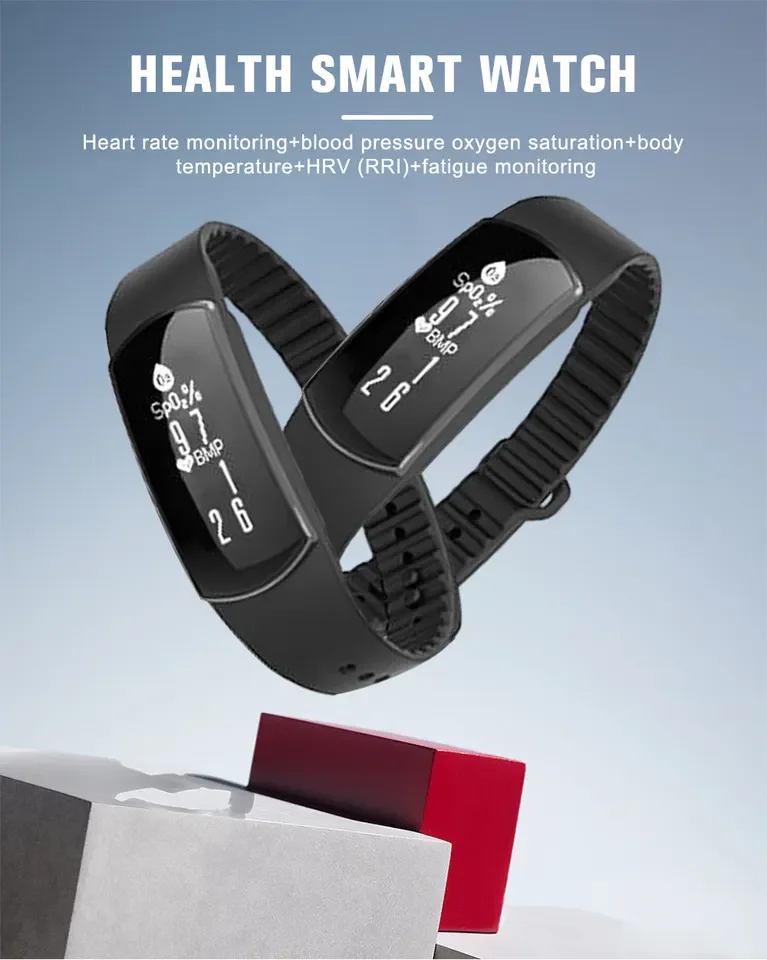

IOT SDK Medical Health Bluetooth LORA GPS Positioning Watch Social Distance HRV HRV Heart Rate Blood Pressure Oxygen Bracelet

contents

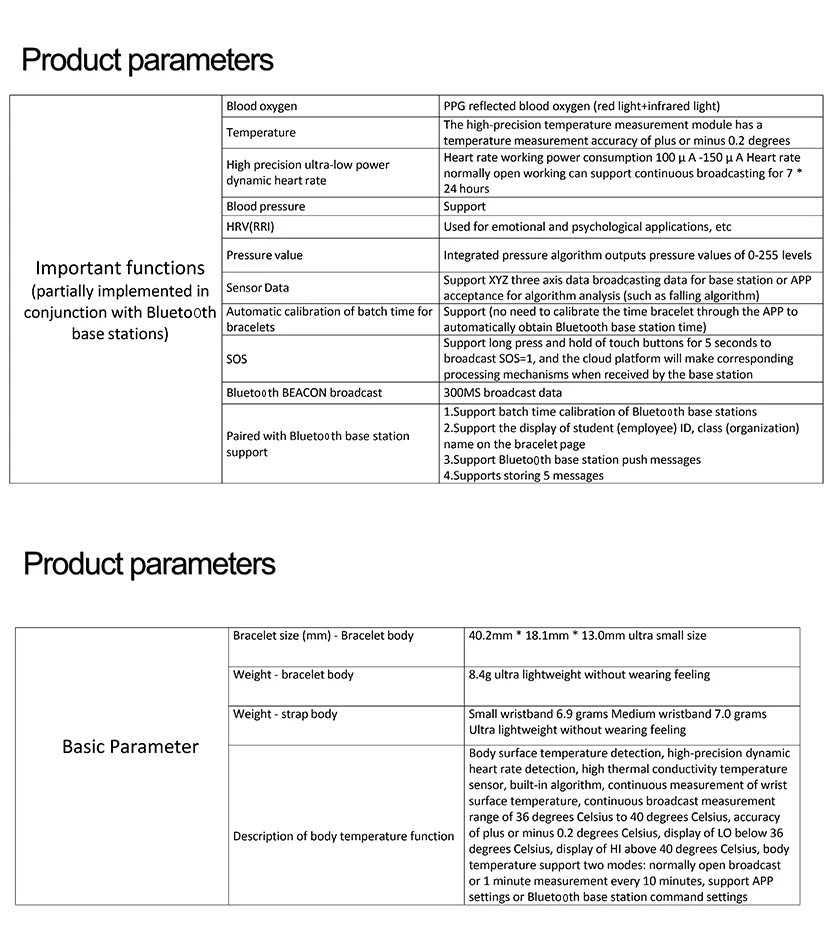

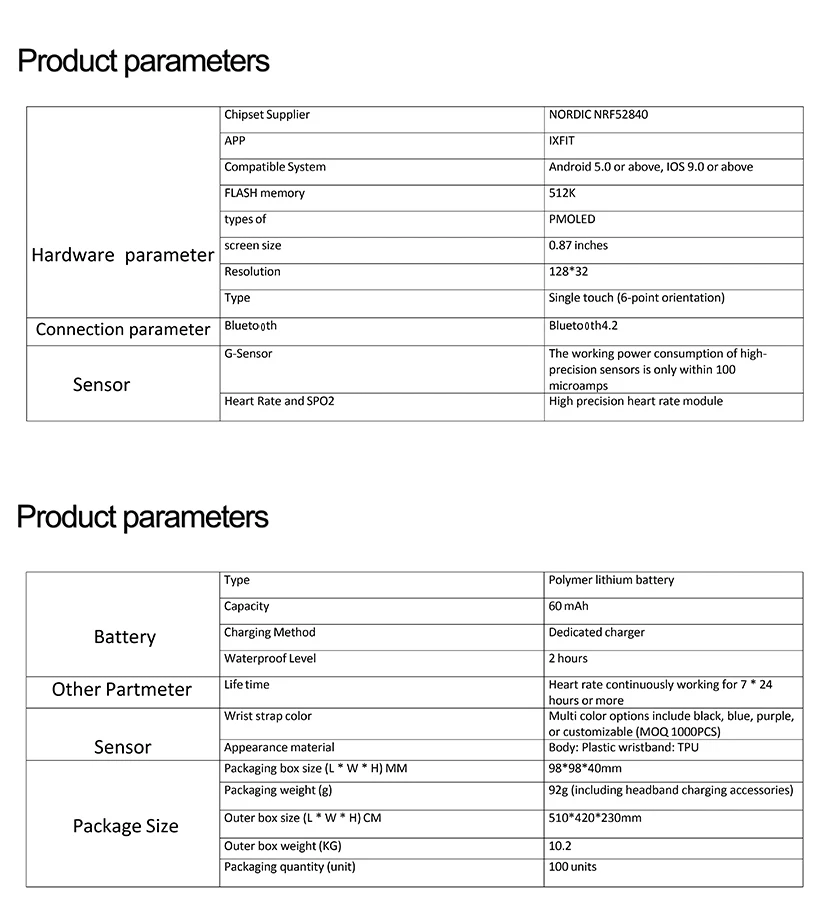

Product Specification

Blood Oxygen Saturation (SpO2)

Photoplethysmography (PPG) reflected light blood oxygen (red & light + infrared light)

Body Temperature

High-precision temperature measurement module, with accuracy + 0.2 degrees Celsius.

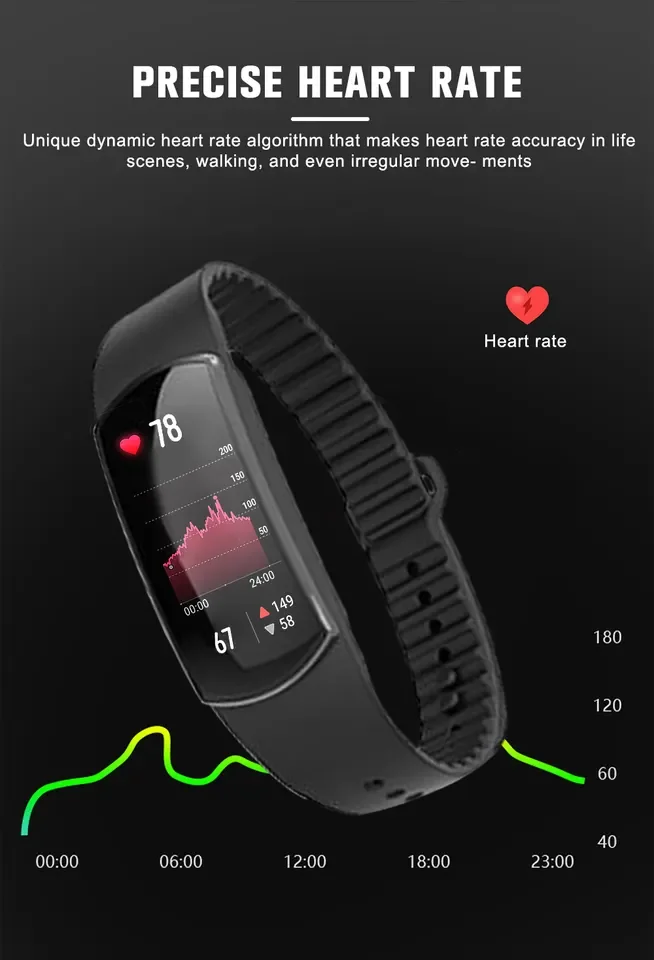

High-precision dynamic heart rate with ultra low-power consumption

Support

Blood Pressure

YES(Not Accurate,To be updated, please contact us)

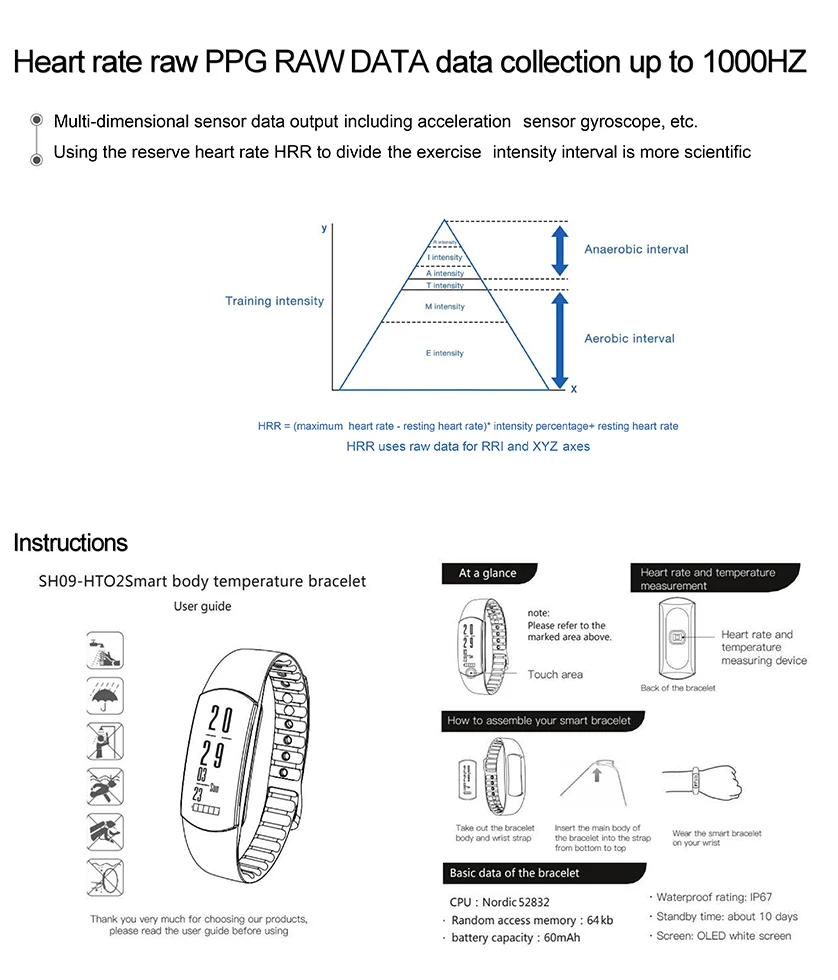

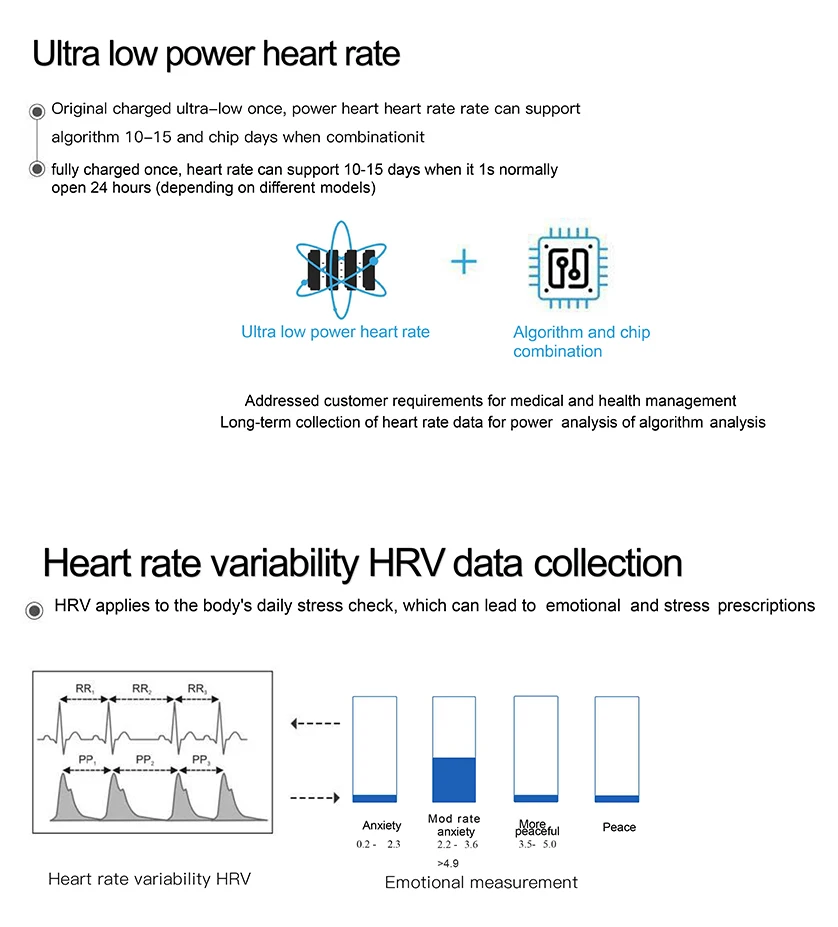

Heart Rate Variablity, HRV(RRI)

YES, for evaluating the emotional stress, and psychological status.

Stress Level

YES, from leve 0 - 255

Social Distancing

1.Vibration alert if below the social distance setting.

2.Peer to Peer Technology

3.Distance alert zone setting for 1.5m/2m/3m

Steps and Sleep Monitoring

Support

NFC 13.56MHZ M1 TAG

Support

SOS

Long press of touch key for 5 seconds to broadcast SOS = 1 and, which will be transmited to the cloud baesd platform through

Bluetooth gateway(Optional)

Sensor data

XYZ three-axis data broadcast for analysis (such as fall algorithm)-(Optional)

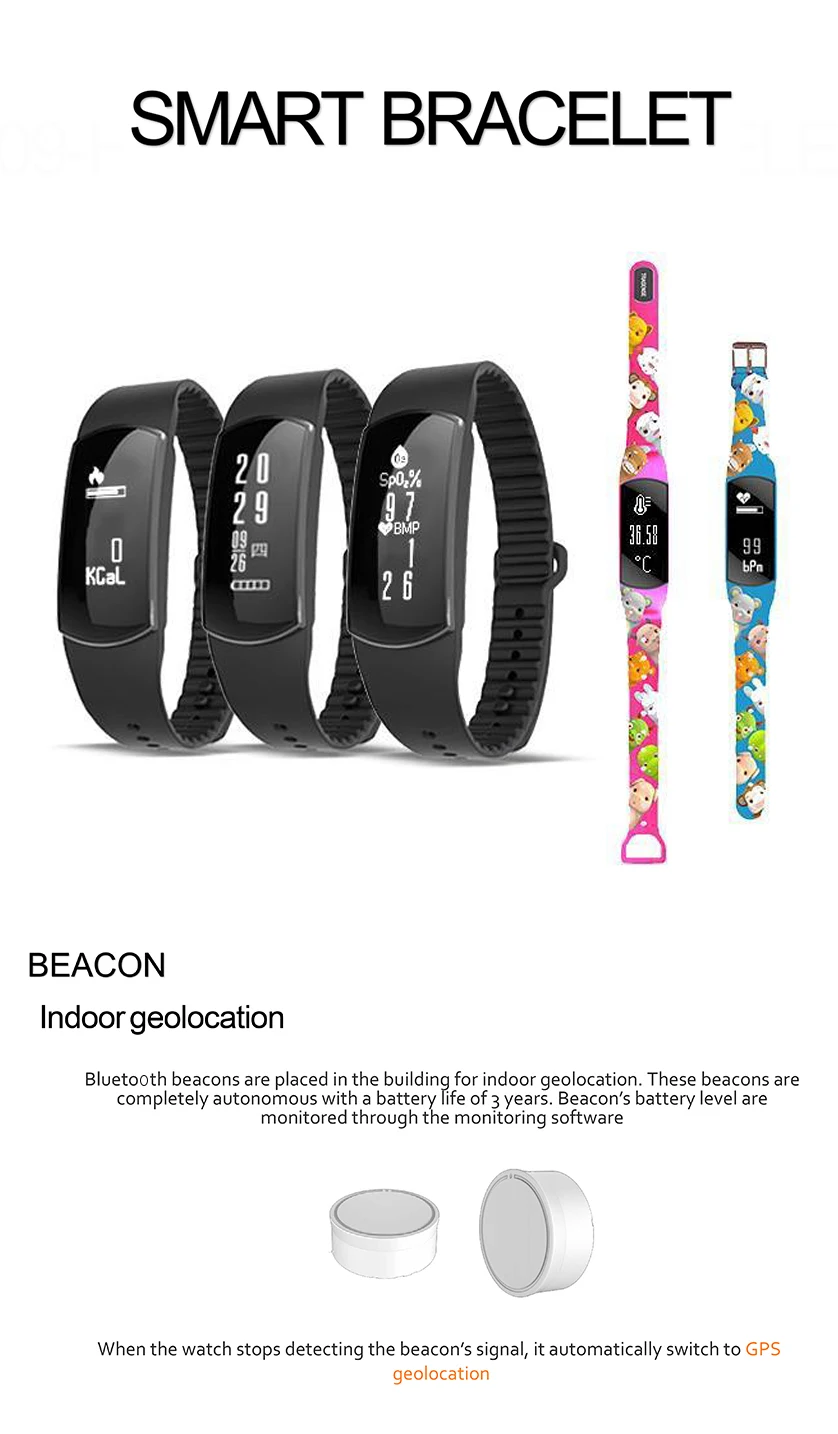

Bluetooth BEACON Broadcast

300ms

Support with Bluetooth Gateway(Optional)

1. Time calibration through Bluetooth gateway

2. Student or employee's ID displayed on the bracelet page

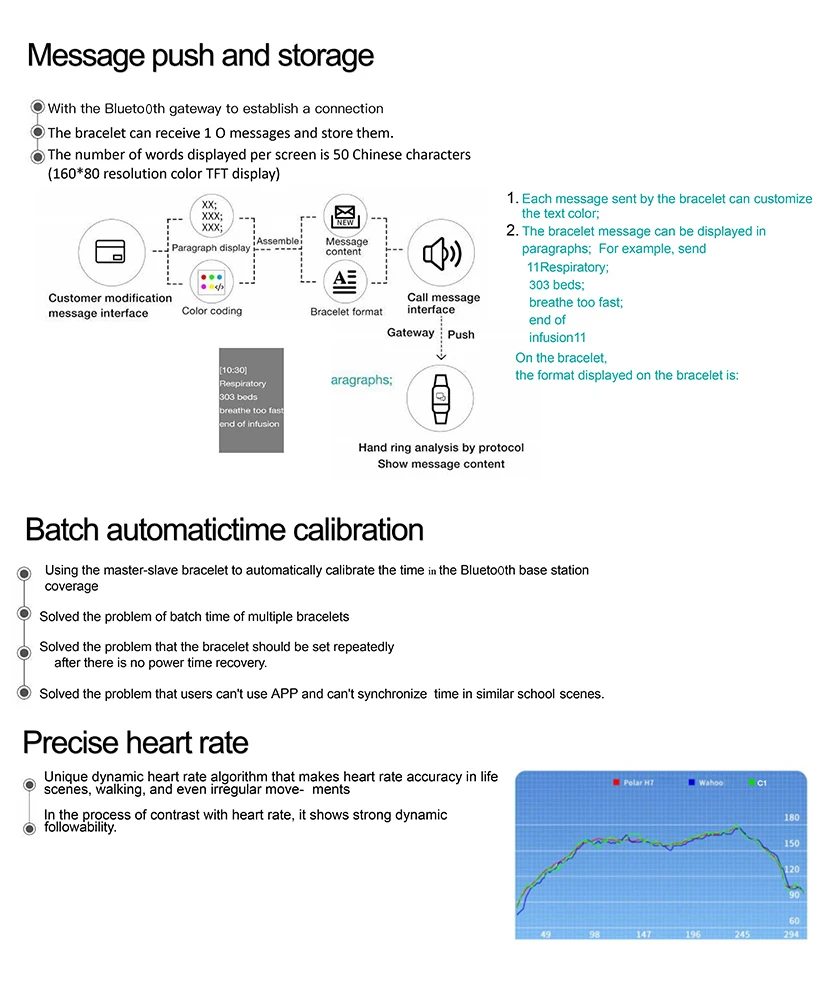

3. Messages pushed from Bluetooth gateway

4. Max. of five messages storage

Chipset Supplier

NORDIC NRF52832

APP

IXFIT（Download at App Store or Google Play Store）

App System reqirement

Android5.0 or Above、IOS9.0 or Above

FLASH memory

512K

Display type

PMOLED

screen size

0.87 inch

Resolution

128*32

touch Type

Single point
