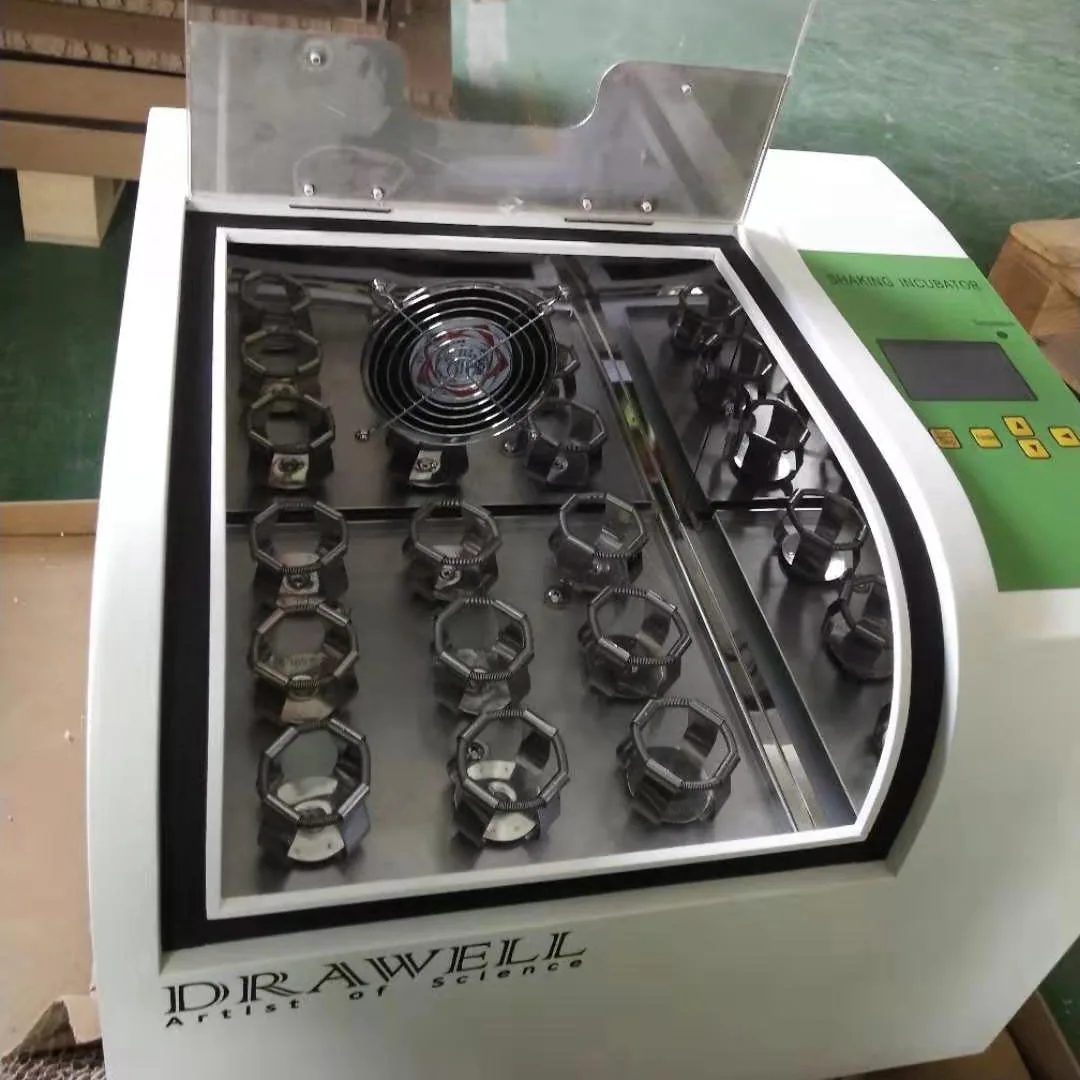

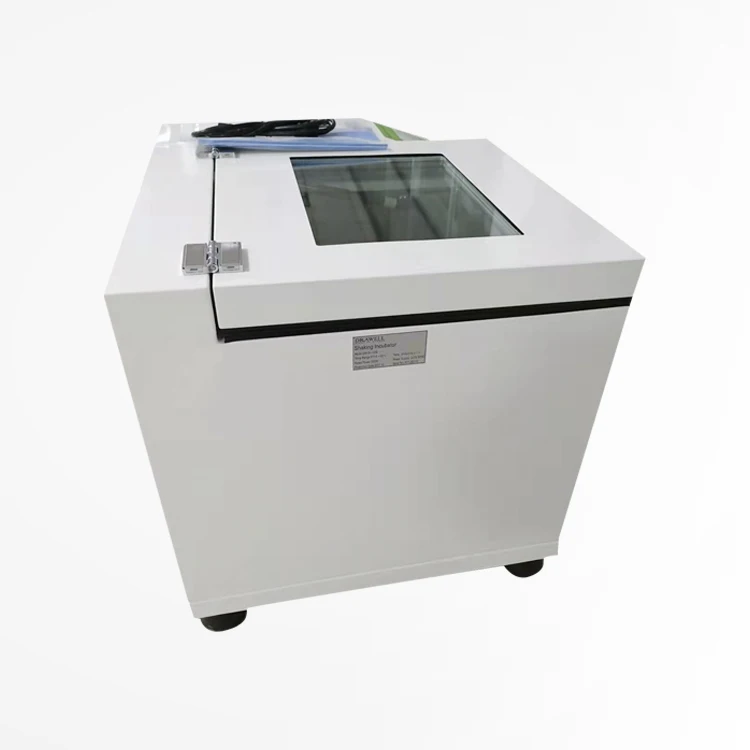

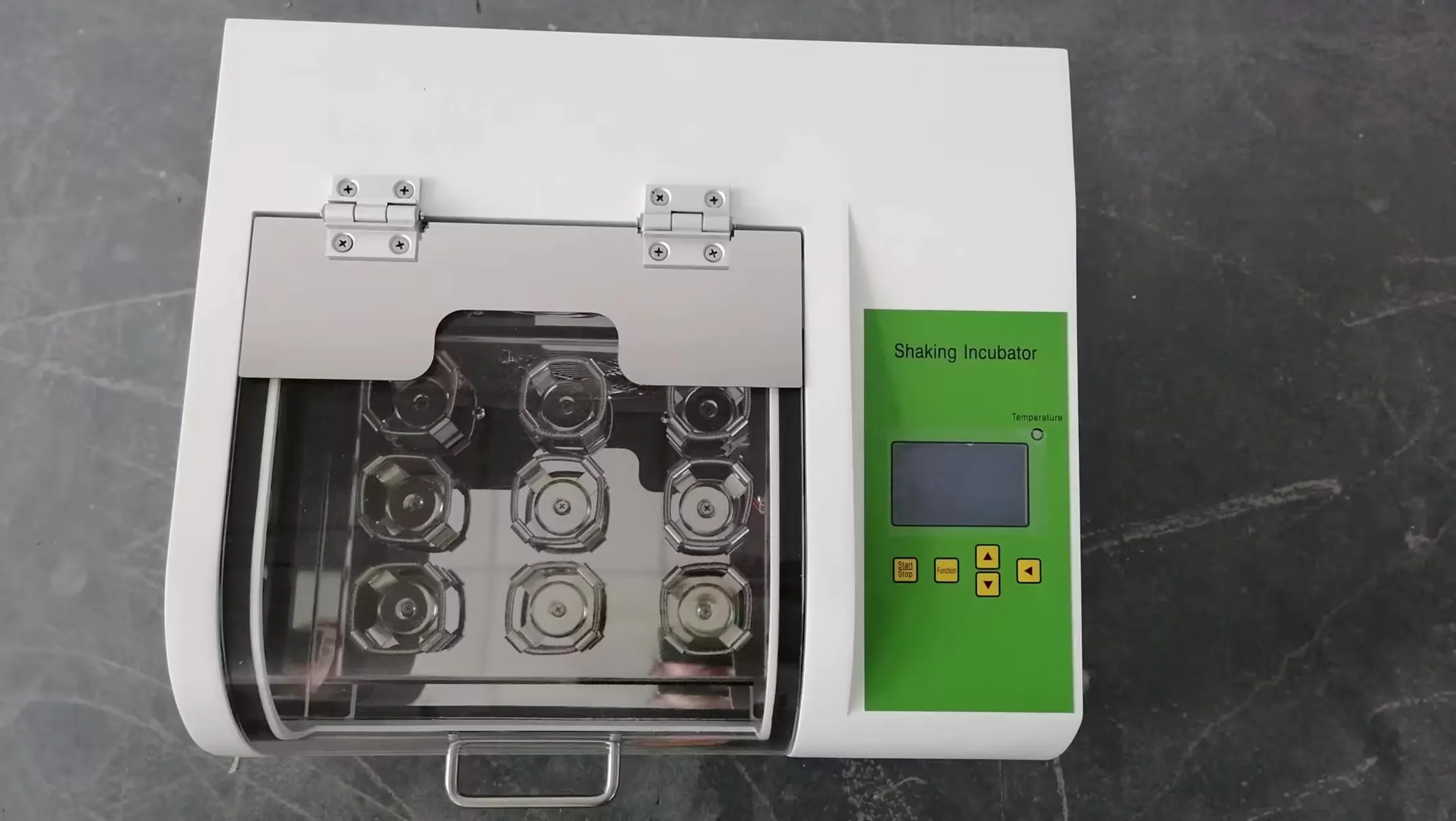

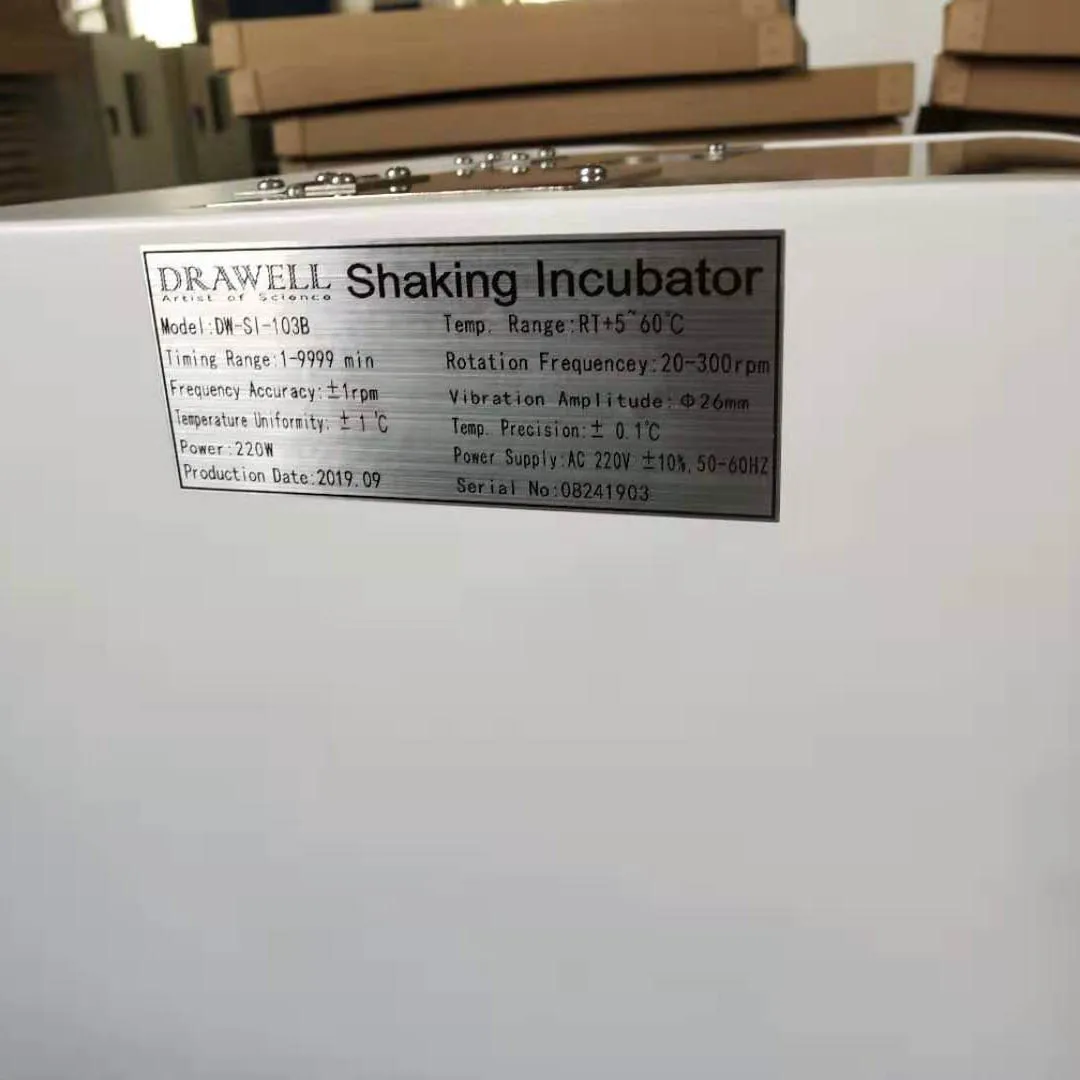

SI 103B Mini Shaker Incubator Laboratory Incubated Shakers
- Category: >>>
- Supplier: Chongqing Drawell Instrument Co. Ltd.
Share on (1601024412544):
Product Overview
Description
Application Field
Product Description

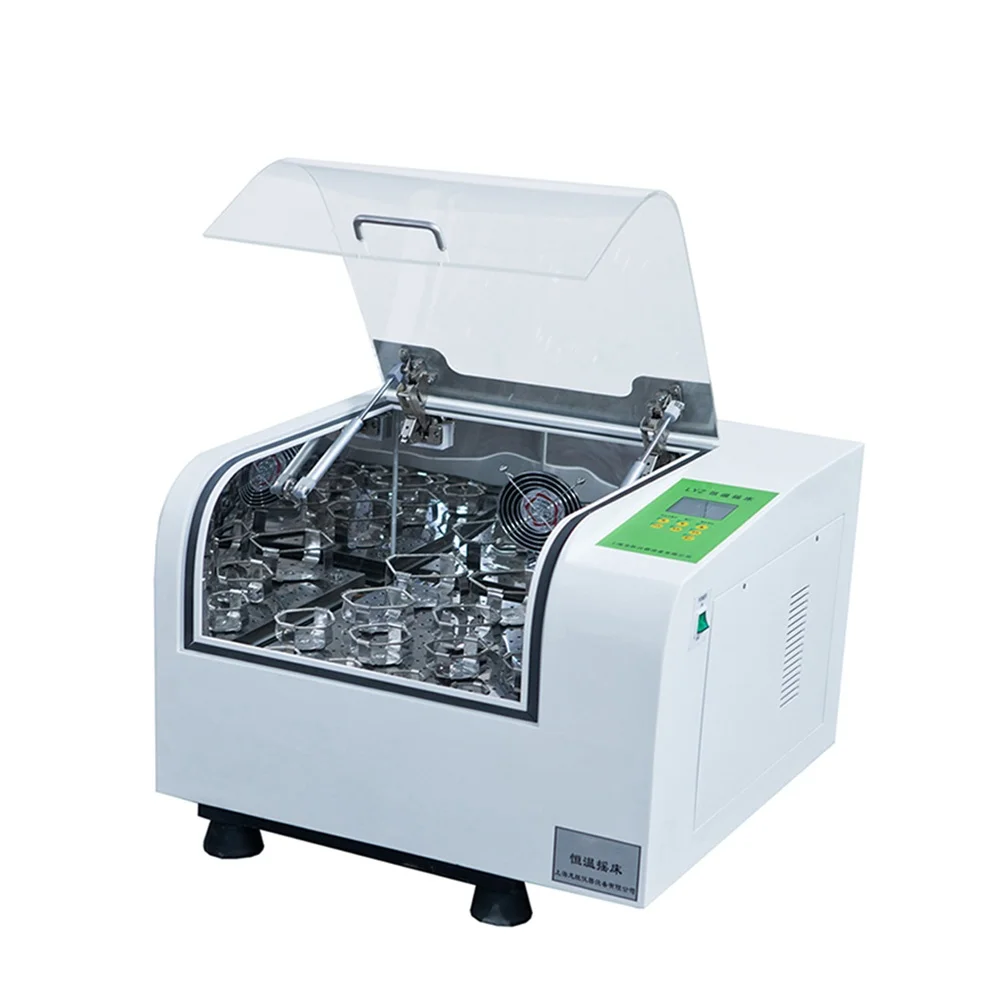

DW-SI Series Thermostatic Horizontal Shaking Incubator
1. Integrated with incubator and shaker to save space and cost.

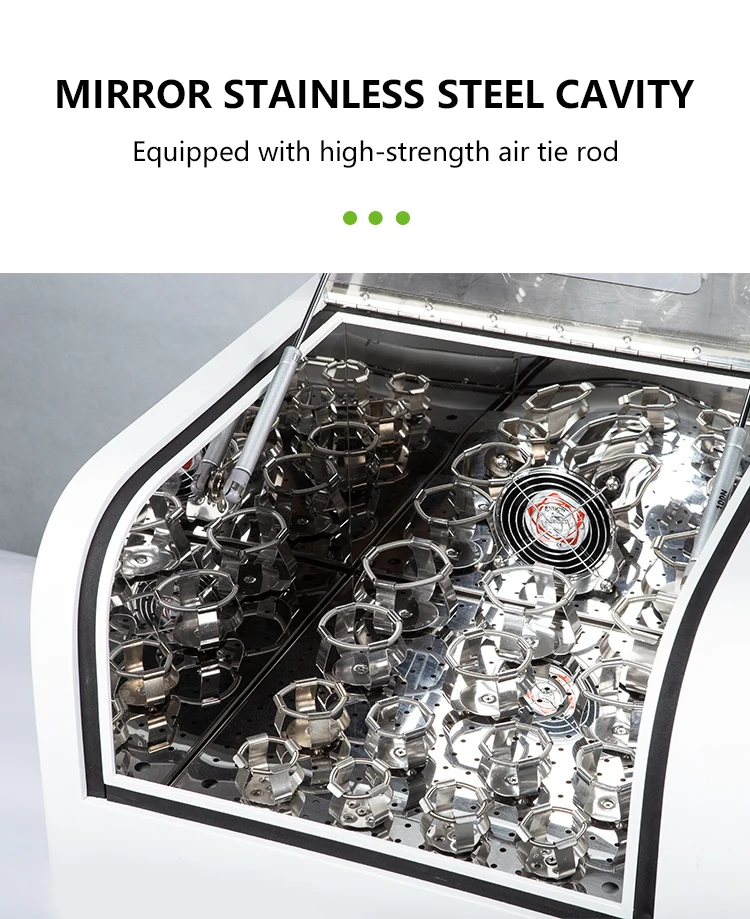

2. High quality steel shell, polished stainless steel chamber.

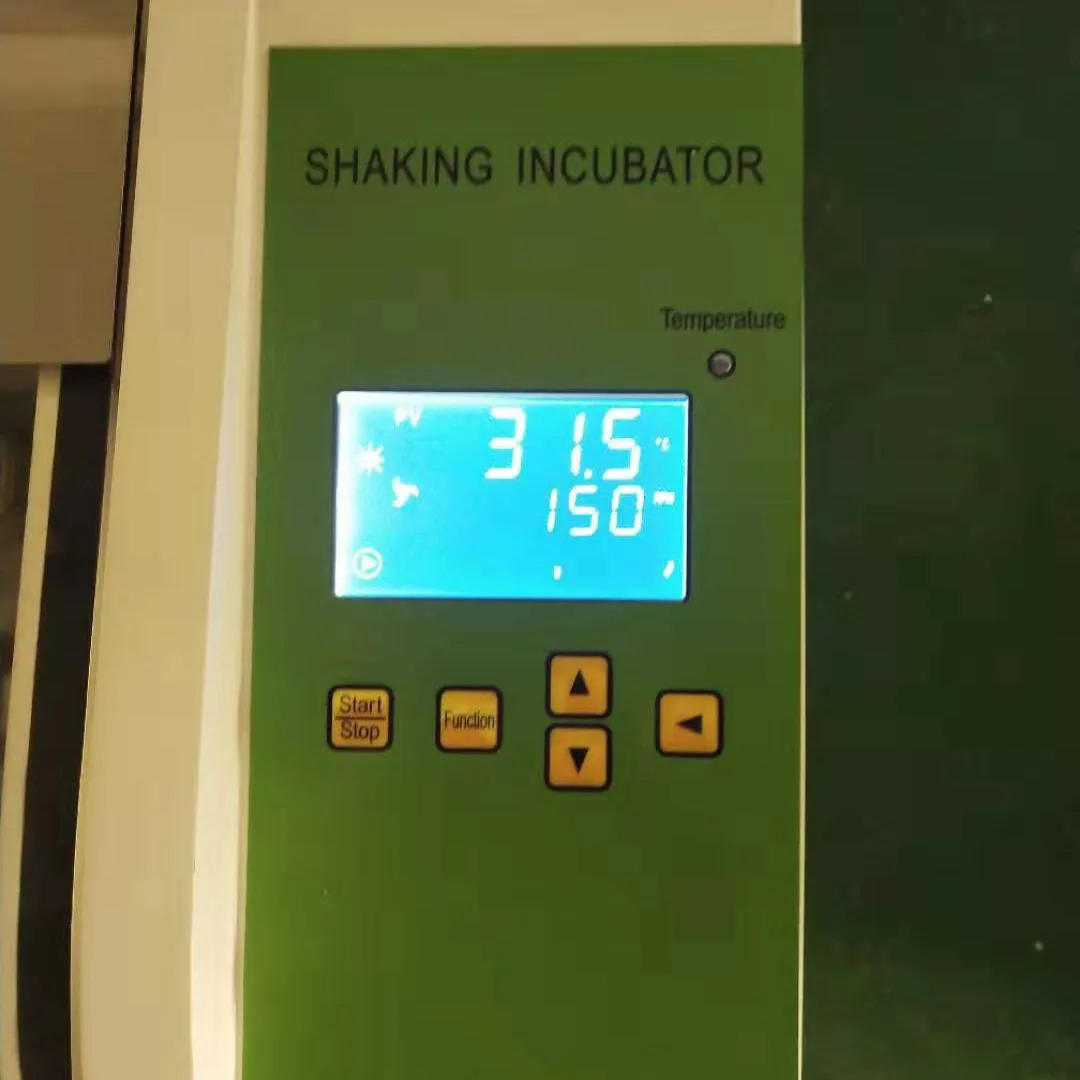

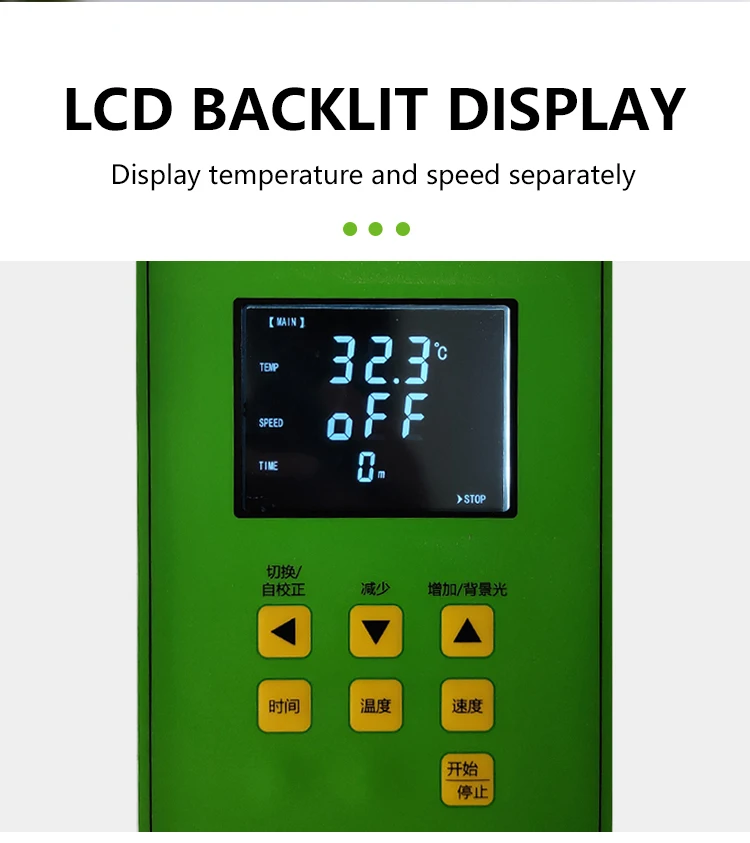

3. Large LCD screen to display temperature and shaking speed.
4. With operation data memory function to eliminate faulty operation.
5. Non-volatile memory saves settings during a power outage and automatically restarts the unit as originally programmed after power is restored.

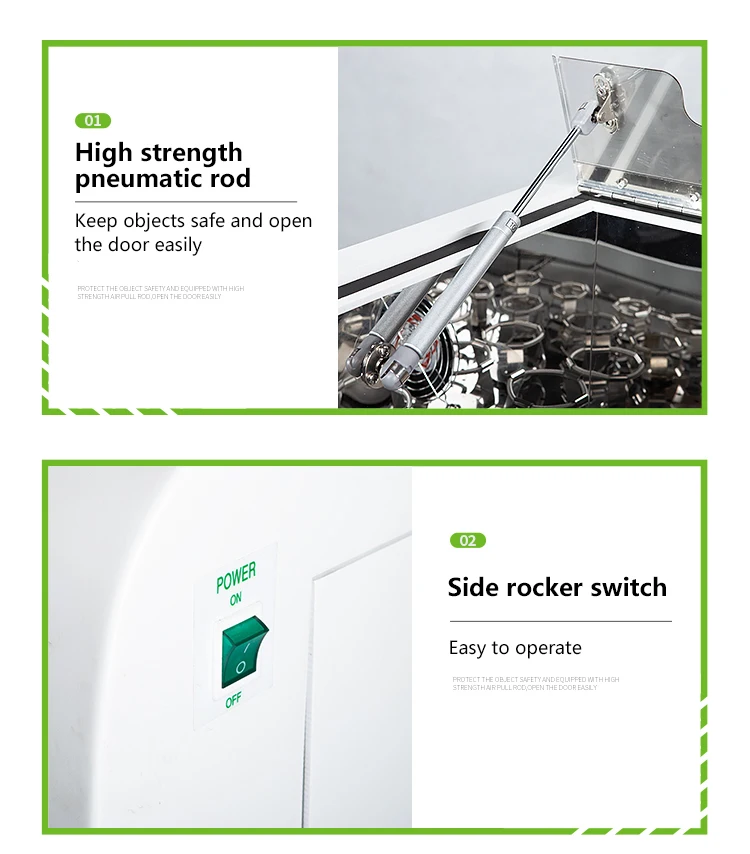

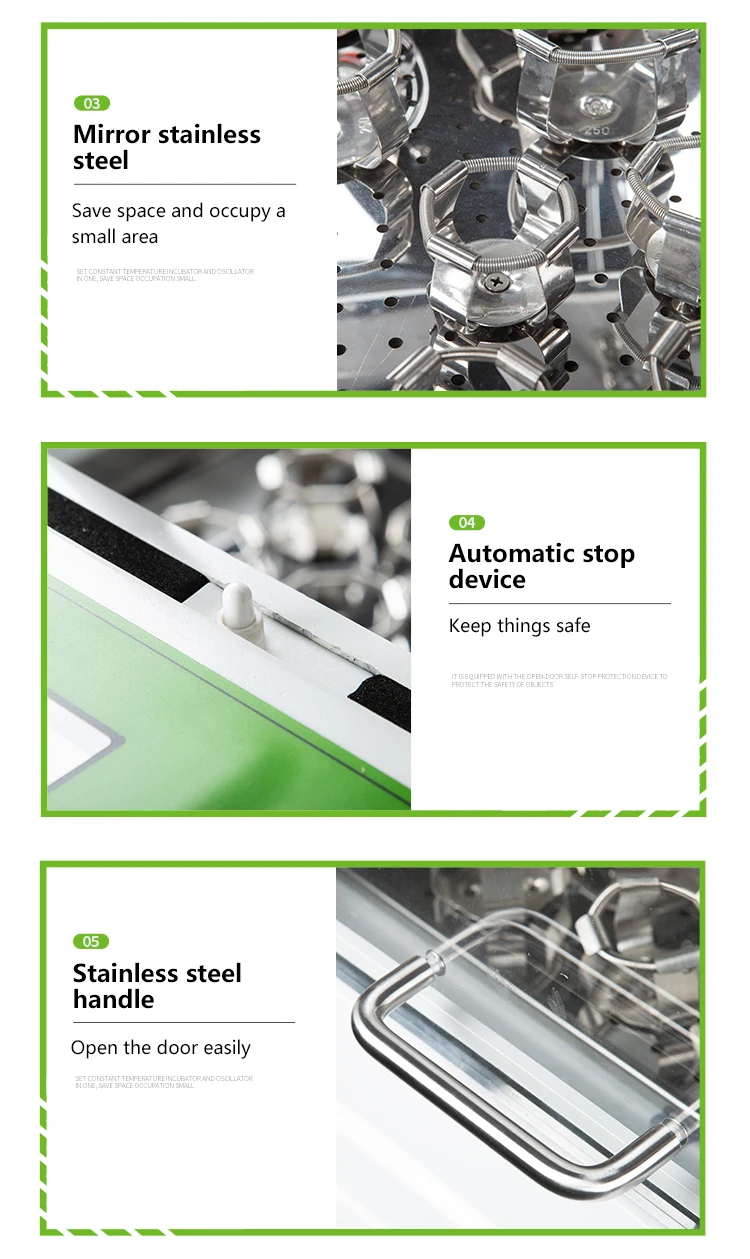

6. Auto-stop operation when door is opened. Strong air spring rod with easy opening and closing.
7. Equipped with leakage protection.
DW-SI-100/200 type:
1.ABS engineering plastic shell and stainless steel chamber.

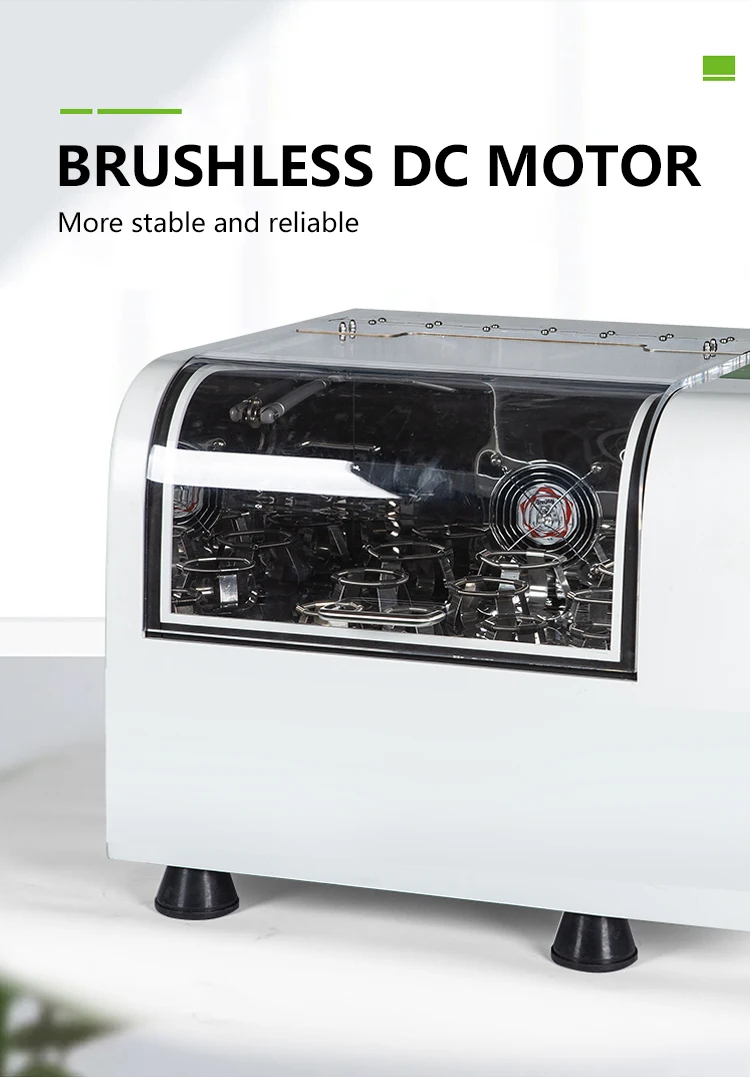

2.DC brushless motor, stable and reliable.
2. High quality steel shell, polished stainless steel chamber.
3. Large LCD screen to display temperature and shaking speed.
4. With operation data memory function to eliminate faulty operation.
5. Non-volatile memory saves settings during a power outage and automatically restarts the unit as originally programmed after power is restored.
6. Auto-stop operation when door is opened. Strong air spring rod with easy opening and closing.
7. Equipped with leakage protection.
DW-SI-100/200 type:
1.ABS engineering plastic shell and stainless steel chamber.
2.DC brushless motor, stable and reliable.
DW-SI--211/111 type:
1.Big torque motor, more reliable.
2.UV disinfection function.
Model | DW-SI-103B | DW-SI-100B | DW-SI-200B | DW-SI-211B |
Shaking Speed | 20-300rpm | 20-300rpm | 20-300rpm | 20-300rpm |
Speed Precision | ±1 rpm | ±1 rpm | ±1 rpm | ±1 rpm |
Swing Amplitude （mm） | φ26mm | φ26mm | φ26mm | φ26mm |

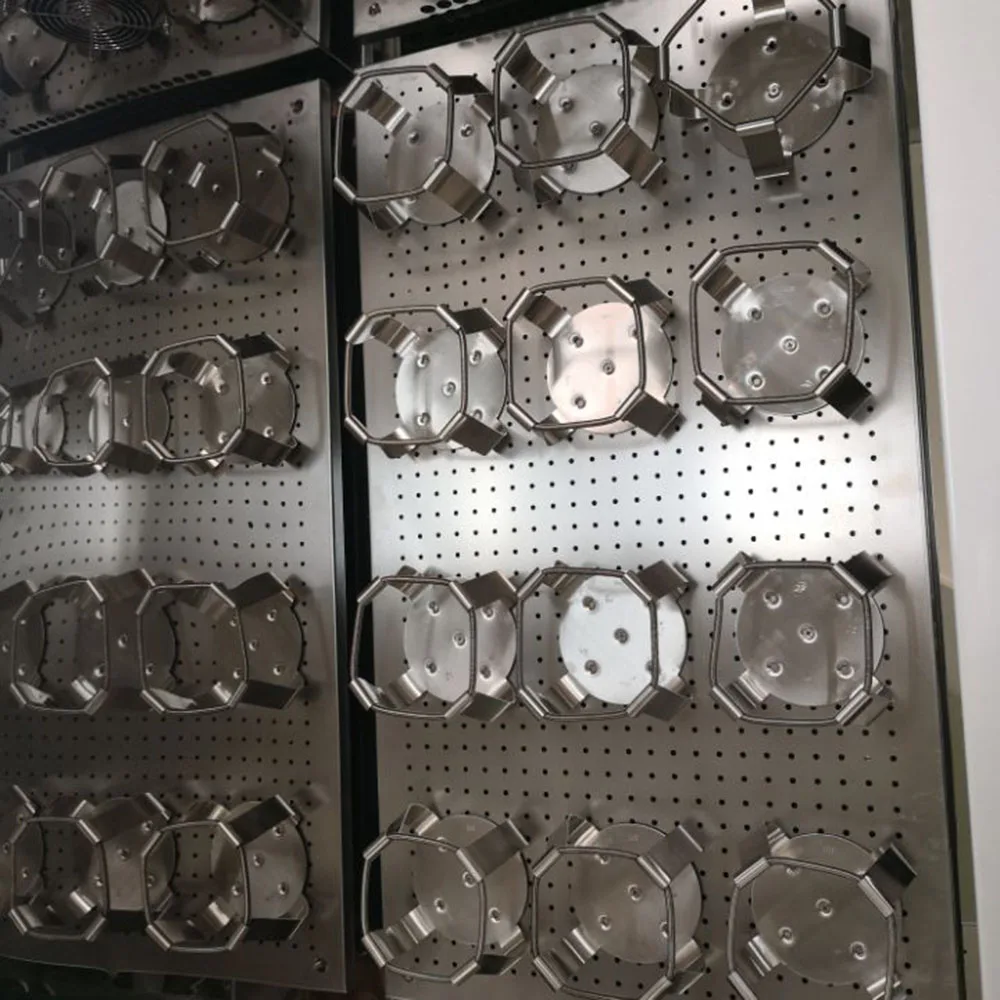

Standard Configuration for Flasks | 100ml×9 | 50ml×4, 100ml×4, 250ml×3, 500ml×3 | 50ml×5, 100ml×5, 250ml×4, 500ml×3 | 500ml×28 |
Max. Volume | 50ml×12,100ml×9 | 50ml×20, 100ml×16, 250ml×12, 500ml×9 | 100ml×20, 250ml×16, 500ml×12, 1000ml×5, 2000ml×4 | 250ml×36, 500ml×28, 1000ml×18 |
Tray Size(mm) | 295×253 | 400×370 | 450×410 | 920×510 |
Timing Range | 1~9999min | 1~9999min | 1~9999min | 1~9999min |
Temperature Range | RT+5~60℃ (RT:25℃) | RT+5~60℃ | 4~60℃ (cooling) | 4~60℃ (cooling) |
Temperature Precision | ±0.1℃(constant temperature) | ±0.1℃(constant temperature) | ±0.1℃(constant temperature) | ±0.1℃(constant temperature) |
Temperature Precision | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
Outer Size(cm) | 44×41×39 | 60×58×51 | 78×68×56 | 120×74×80 |
N.W/G.W（kg） | 31/41 | 72/88 | 100/125 | 174 |
Chamber Volume (L) | 20 | 48 | 70 | 970×565×280(155L) |
Power Consumption | 220W | 320W | 580W | 866W |
Power Supply | AC220V ±10% 50~60HZ | AC220V ±10% 50~60HZ | AC220V ±10% 50~60HZ | AC220V ±10% 50~60HZ |
Display | LCD | LCD | LCD | LCD |
Model | DW-SI-111B | DW-SI-211C | DW-SI-111C |
Shaking Speed | 20-300rpm | 20-300rpm | 20-300rpm |
Speed Precision | ±1 rpm | ±1 rpm | ±1 rpm |
Swing Amplitude （mm） | φ26mm | φ26mm | φ26mm |
Standard Configuration for Flasks | 500ml×28 | 2000ml×12 | 2000ml×12 |
Max. Volume | 250ml×36, 500ml×28, 1000ml×18 | 1000ml×18, 2000ml×12, 3000ml×8, 5000ml×6 | 1000ml×18, 2000ml×12, 3000ml×8, 5000ml×6 |
Tray Size(mm) | 920×510 | 920×510 | 920×510 |
Timing Range | 1~9999min | 1~9999min | 1~9999min |
Temperature Range | RT+5~60℃ (RT:25℃) | 4~60℃ | RT+5~60℃ (RT:25℃) |
Temperature Precision | ±0.1℃(constant temperature) | ±0.1℃(constant temperature) | ±0.1℃(constant temperature) |
Temperature Precision | ±1℃ | ±1℃ | ±1℃ |
Outer Size(cm) | 120×74×80 | 120×74×100 | 120×74×100 |
N.W/G.W（kg） | 160 | 183 | 168 |
Chamber Volume (L) | 970×565×280(155L) | 970×565×480(265L) | 970×565×480(265L) |
Power Consumption | 570W | 951W | 676W |
Power Supply | AC220V ±10% 50~60HZ | AC220V ±10% 50~60HZ | AC220V ±10% 50~60HZ |
Display | LCD | LCD | LCD |
