Flexible Rubber Buckle Soft Joint Flexible Connection Fan Hose Flexible Blade Flexible Rubber Flexible Connection

Share on (1601024429093):


Price:$1.00 - $2.90

Quantity:


Product Overview

Description



Product Description

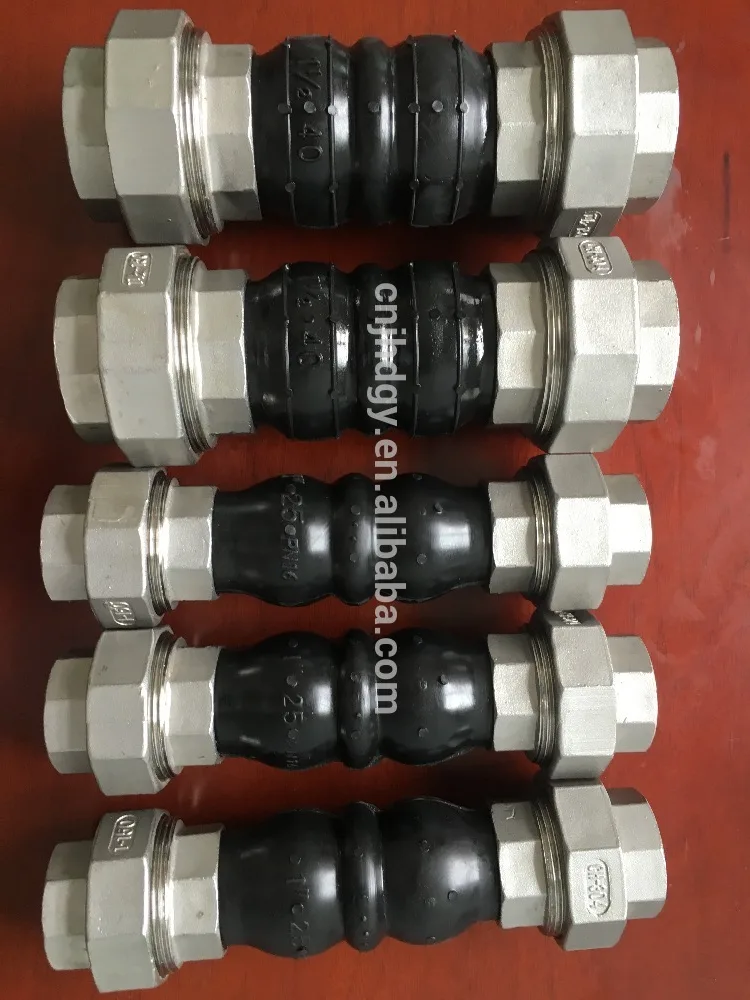

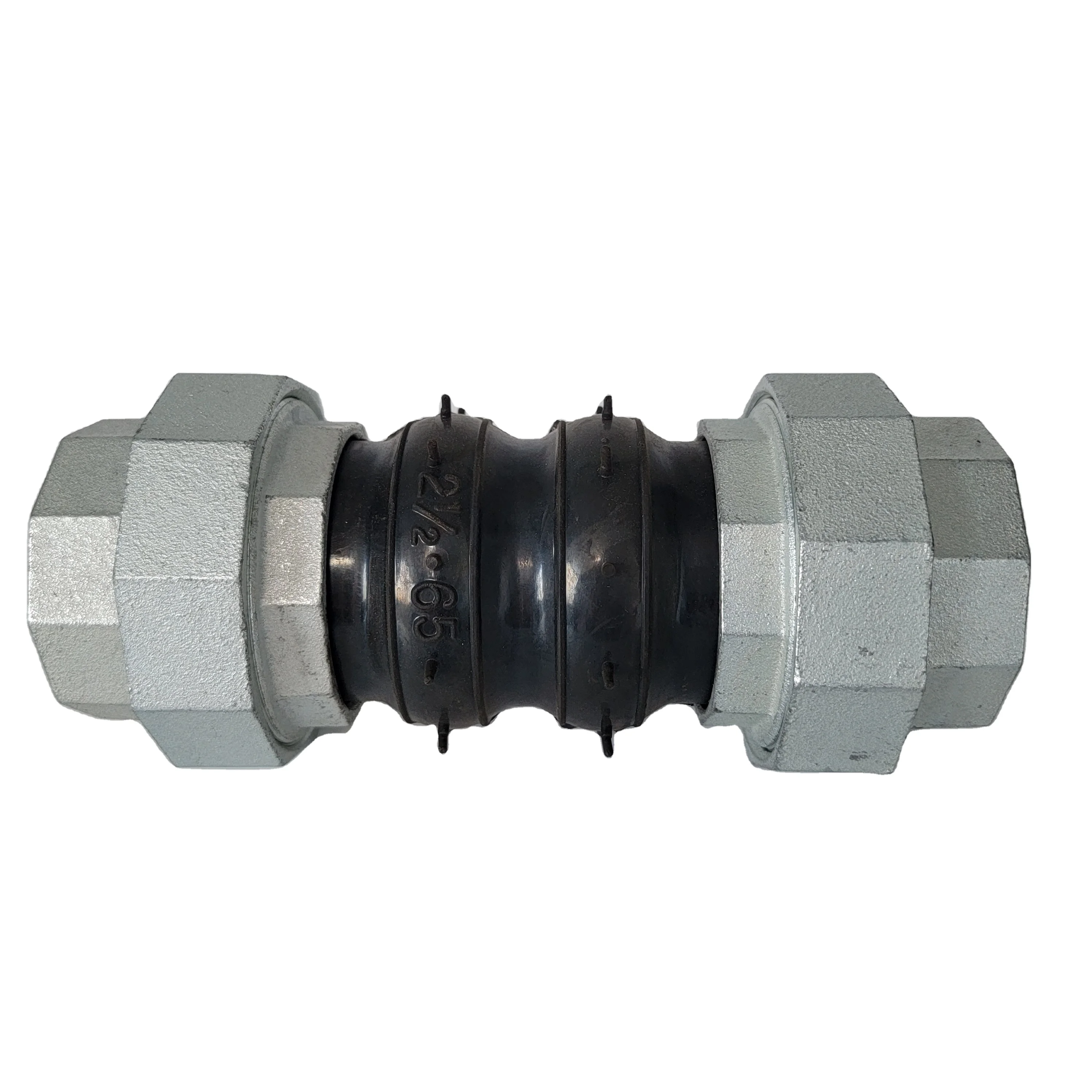

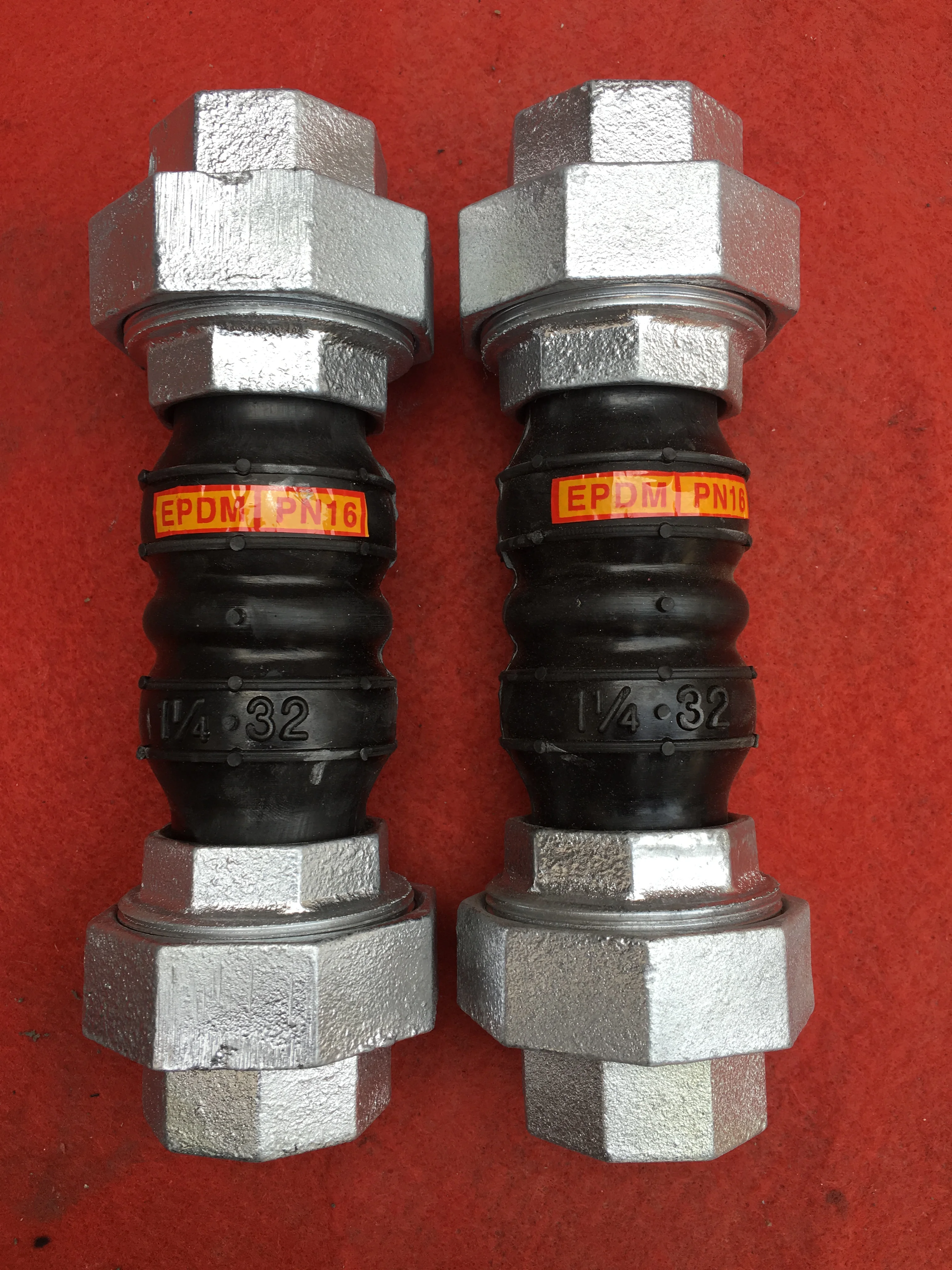

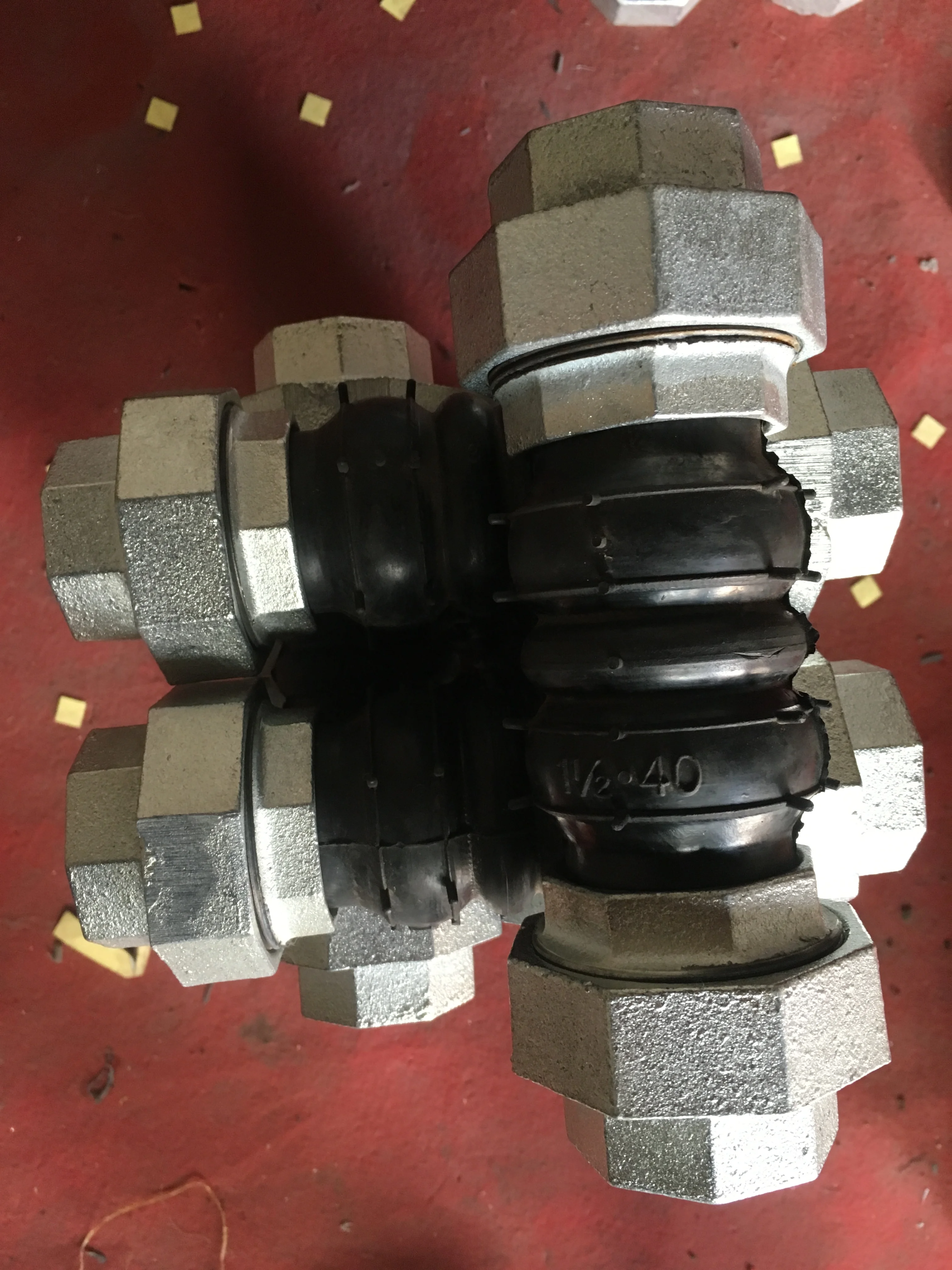

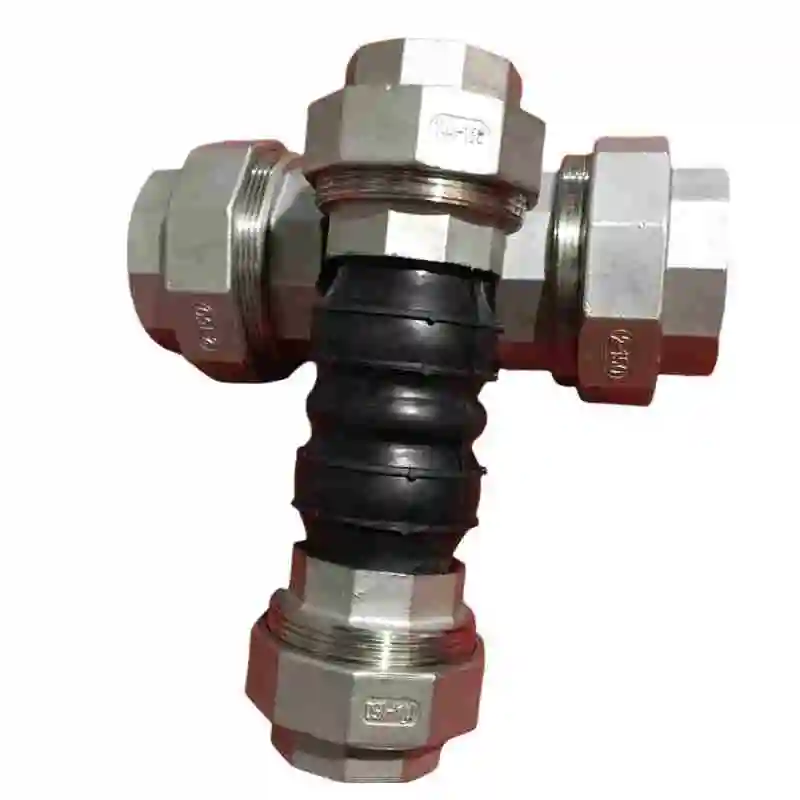

Screw rubber flexible joint is also called threaded rubber expansion joint, shock absorber, shock absorber throat, screw soft joint, screw rubber pipe joint, etc. Threaded rubber expansion joint is composed of elastic rubber joint, plane movable joint, loose metal flange or threaded pipe flange, which is used for vibration isolation, noise reduction and displacement compensation.

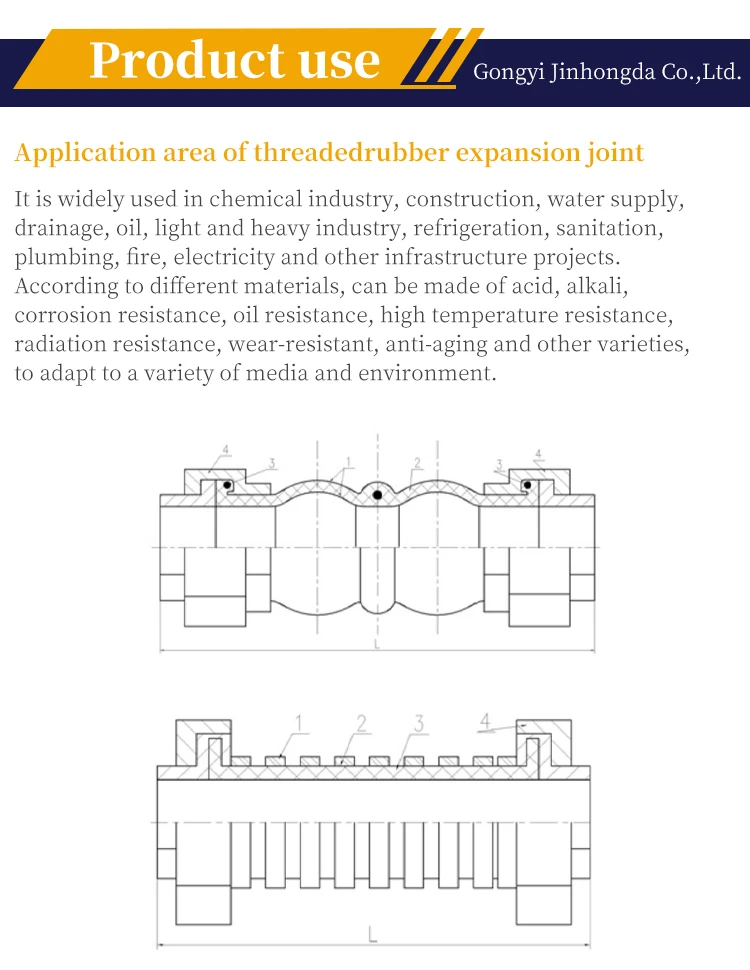

threaded rubber expansion joint is a kind of pipe joint with high elasticity, high air tightness, medium resistance and weather resistance. The flexible rubber expansion joint is composed of inner rubber, polyester cord reinforcing layer, outer rubber and composite rubber tube. The flexible rubber expansion joint of threaded rubber expansion joint can choose any kind of inner and outer rubber materials, such as IIR, Cr, EPDM, NR, NBR, etc. the outer and inner layers of rubber materials can be different.

However, the frame layer of the threaded rubber expansion joint is made of polyester fabric, and the reinforcing layer has steel rings. It can be made into acid, alkali, corrosion, oil, heat and other varieties according to different materials, and can adapt to a variety of media and environment. There are many kinds of threaded rubber expansion joint flange materials, including Q235, SS304 and SS316.

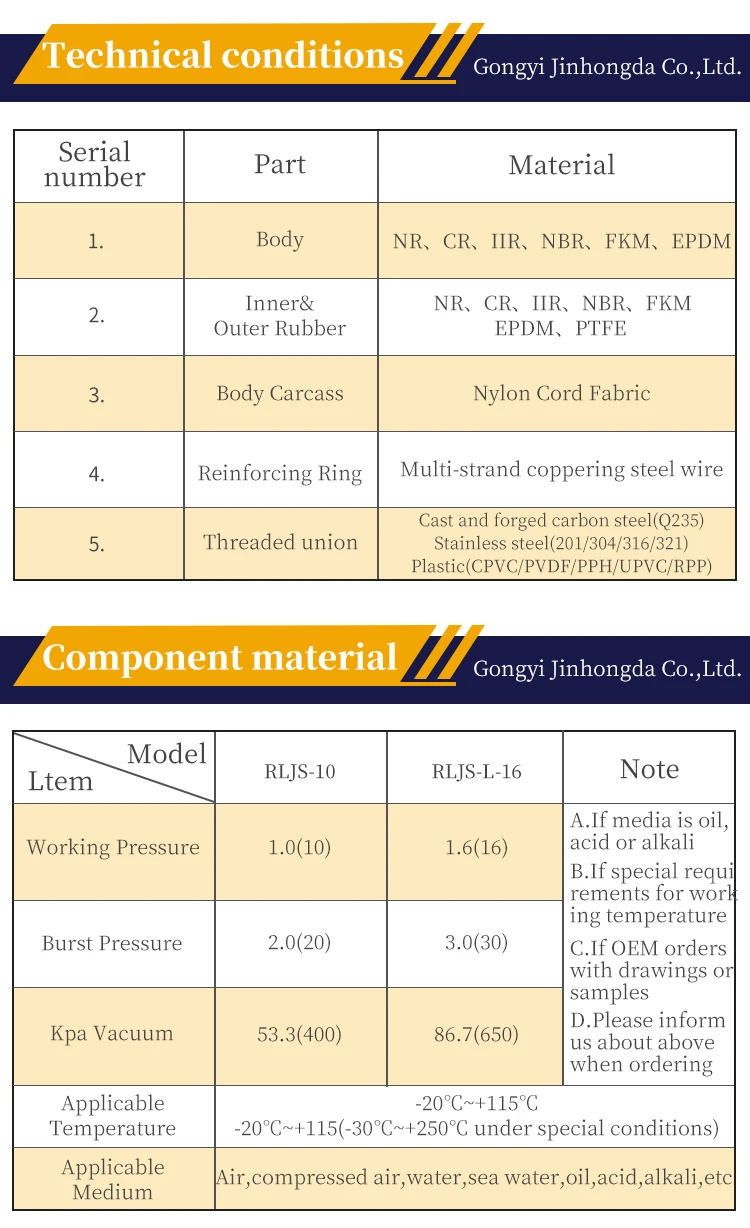

Specification


item
value
Warranty
1 year
Customized support
OEM, ODM
Place of Origin
China
Brand Name
jinhongda
Model Number
FPT
Shape
Equal
Flange
DIN, ANSI, JIS,etc.
Working pressure
PN6-PN40
Operating temperature
-15~+80 ℃ (special:-30~+150℃ )

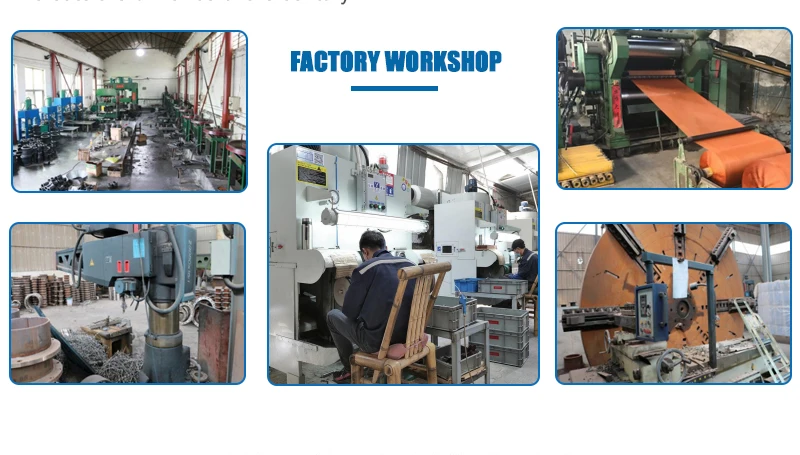

Company View
