Free sample EEL25 EEL22 EEL19 mn zn high frequency transformer ee ferrite core
- Category: >>>
- Supplier: Xuyi Ouge Electronic Co. Ltd.
Share on (1601024577631):
Product Overview
Description
EELferrite core
EEL TYPE CORE 200+ models, using scenarios covering lighting, smart home, industrial control, instrument machinery and so on.，More sizes can be obtained by contacting us directly

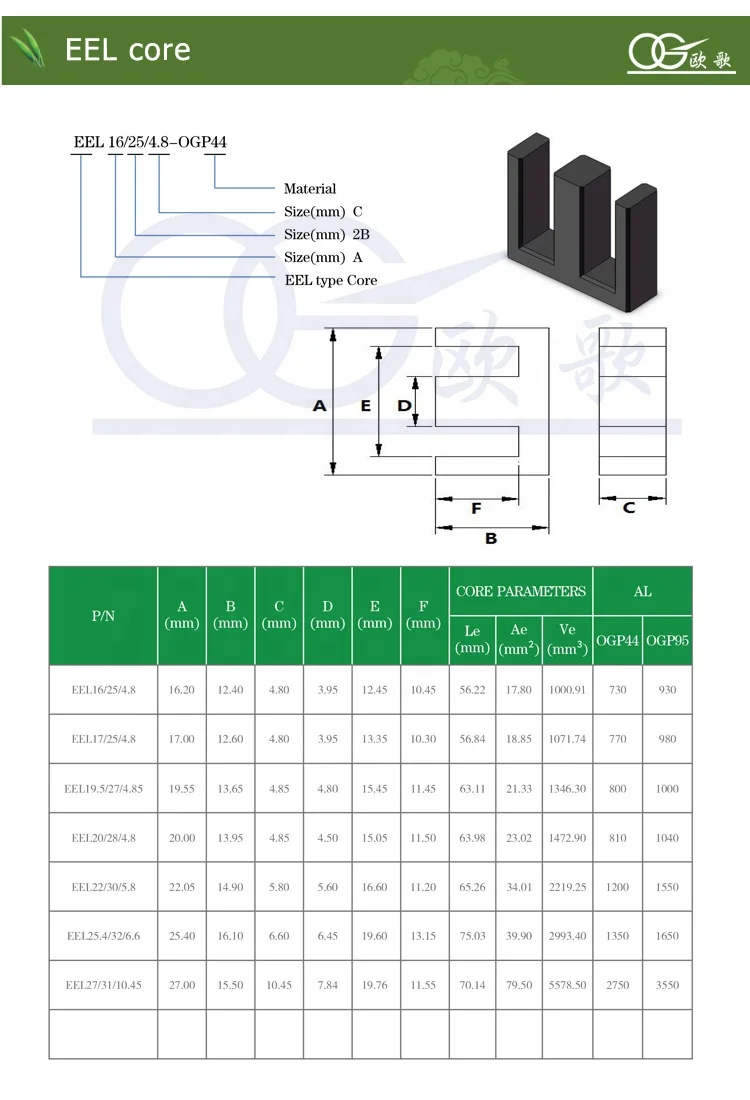

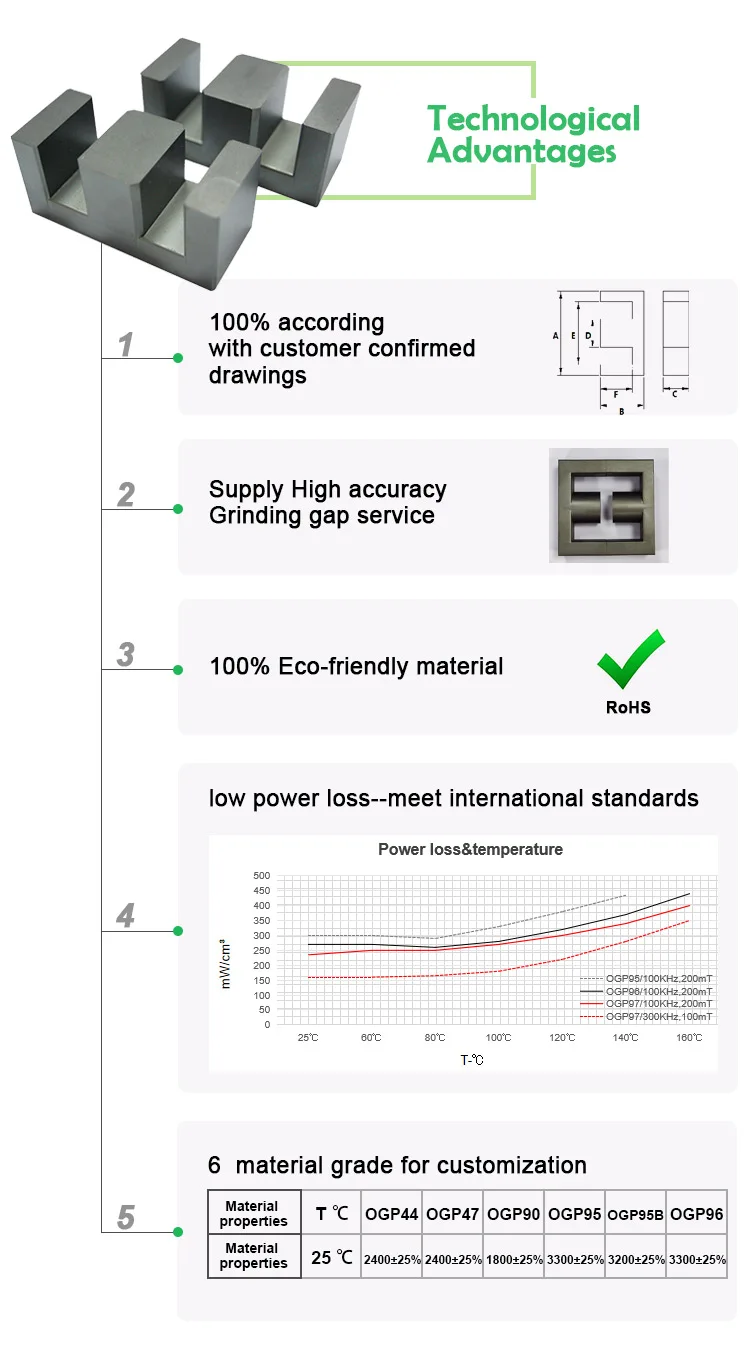

TYPE | Size | LE | AE | VE | AL | ||||||||
A | B | C | D | E | OGP44 | ||||||||
EEL22-5.8 | 22.05 | 14.90 | 5.80 | 5.60 | 16.60 | 56.22 | 17.8 | 1000.91 | 700 | ||||
EEL16.2/24.8/4.8 | 16.20 | 12.40 | 4.80 | 3.95 | 12.45 | 57.03 | 20.12 | 1147.4 | 790 | ||||
EEL17.5/25/4.8 | 17.50 | 12.50 | 4.80 | 4.00 | 13.20 | 63.11 | 21.33 | 1346.3 | 850 | ||||
EEL19-4.85 | 19.55 | 13.65 | 4.85 | 4.80 | 15.45 | 75.03 | 38.08 | 2857.4 | 1200 | ||||
EEL25-6.3 | 25.40 | 16.10 | 6.30 | 6.45 | 19.60 | 75.03 | 39.9 | 2993.4 | 1400 | ||||
EEL25-6.6 | 25.40 | 16.10 | 6.60 | 6.45 | 19.60 | 70.14 | 79.5 | 5578.5 | 2800 | ||||
EEL27-10.45 | 27.00 | 15.50 | 10.45 | 7.84 | 19.76 | 44.1 | 38 | 1674.5 | 1700 | ||||
22.21 | 15.50 | 6.10 | 5.70 | 16.40min | 65.26 | 34.01 | 2219.25 | 1200 | |||||
OGP Material | T ℃ | OGP44 | OGP47 | OGP90 | OGP95 | OGP95B | OGP96 |
μi-（10KHZ） | 25℃ | 2400±25% | 2400±25% | 1800±25% | 3300±25% | 3200±25% | 3300±25% |
BS-（H=1194A/m） | 25℃ | 500 | 500 | 530 | 500 | 510 | 500 |
100℃ | 400 | 400 | 440 | 400 | 410 | 410 | |
Core Loss Pcv（Kw/m³）-100KHZ,200mT | 25℃ | 650 | 650 | 700 | 350 | 360 | 350 |
60℃ | 430 | 430 | 520 | 290 | 350 | 300 | |
100℃ | 310 | 300 | 380 | 320 | 340 | 300 | |
120℃ | 400 | 400 | 520 | 350 | 380 | 340 |
