Supercapacitor Module 48V 165F Ultracapacitor Module
- Category: >>>
- Supplier: Dongguan City Gonghe Electronics Co. Ltd.
Share on (1601024609366):
Product Overview
Description
Supercapacitor Module 48V 165F Ultracapacitor Module
Product Description
| PRODUCT NAME: | GH 48V 165F MODULE |
| RATED CAPACITANCE: | 165F(-5%~+20%) |
| RATED VOLTAGE: | 48.6V |
| ENERGY STORAGE: | 54WH |
| SURGE VOLTAGE | 51.3V |
| CAPACITANCE RANGE | 165F-200F |
| INTERNAL RESISTANCE(AC): | LESS THAN 6.2mOhm |
| 25℃ LEAKAGE CURRENT | 5.8mA |
| HIGH VOLTAGE INSULATION TEST | 2500VDC |
| SAFETY TEST: | QC/T741 GB/T31484 GB/T31485 CE |
| MAXIMUM CONTINUOUS CURRENT: | 130A |
| WORKING TEMPERATURE RANGE: | -40~+65℃ |
| STORAGE TEMPERATURE RANGE: | -40~+70℃ |
| CYCLE LIFE | MORE THAN 500,000 |
| PROTECTION CLASS | IP65 |
| PRODUCT WEIGHT: | 13.3KG |

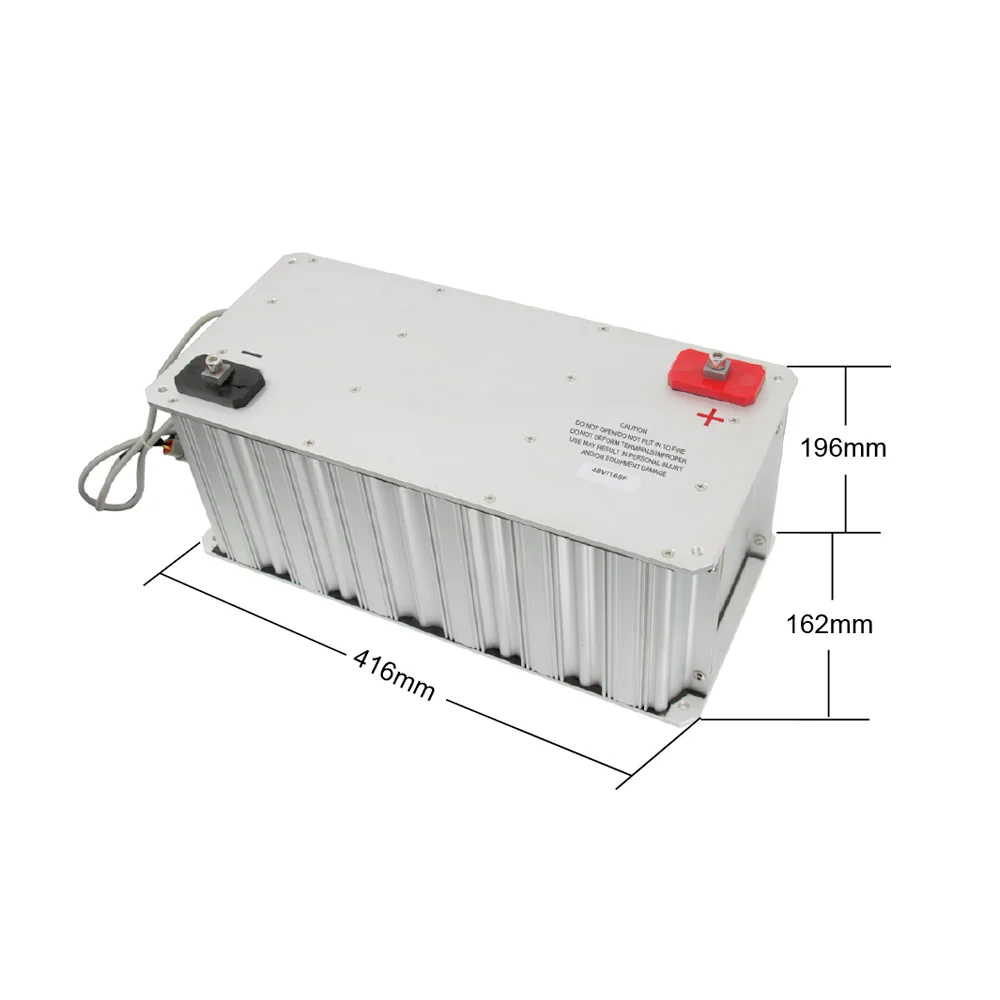

| PRODUCT SIZE ±5mm | 416*196*162MM |
| WARRANTY TIME | 5 YEARS |

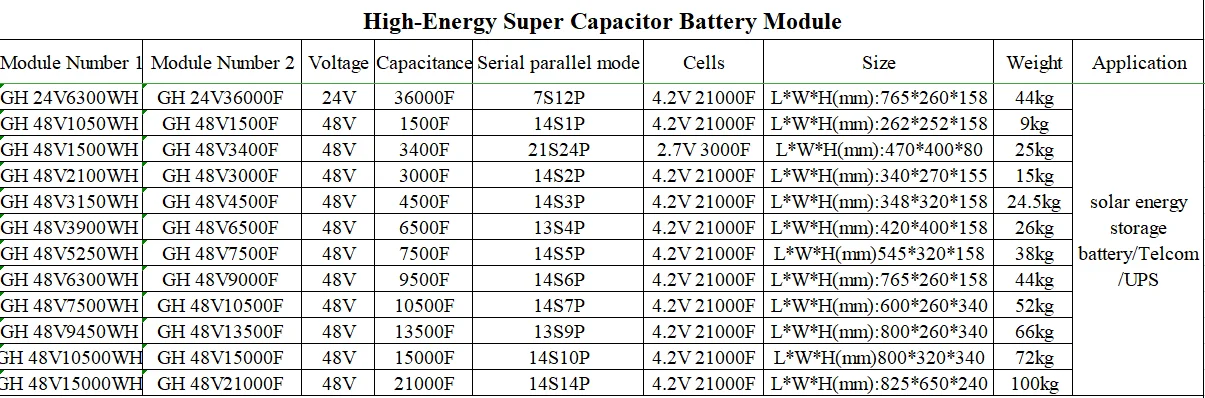

Other modules
Ultra Super Capacitor 48V 165F
Company Information

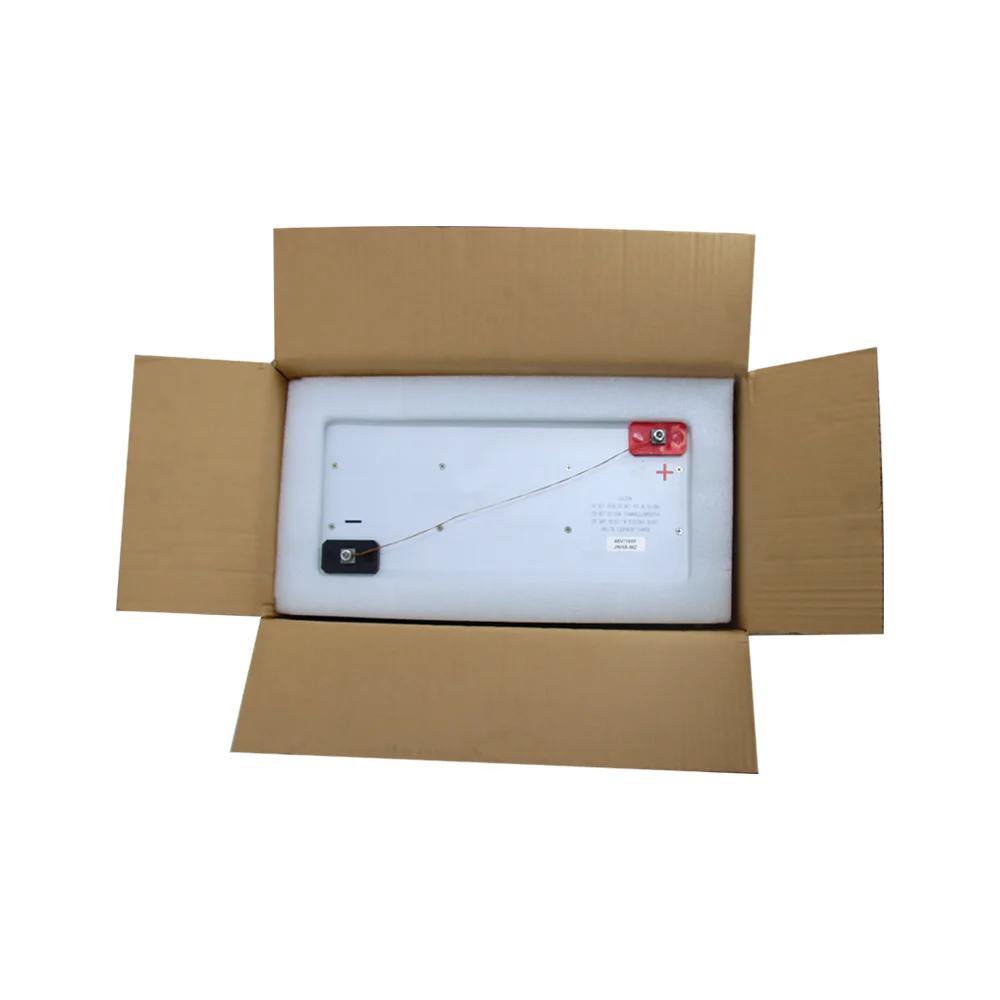

Packaging & Shipping
