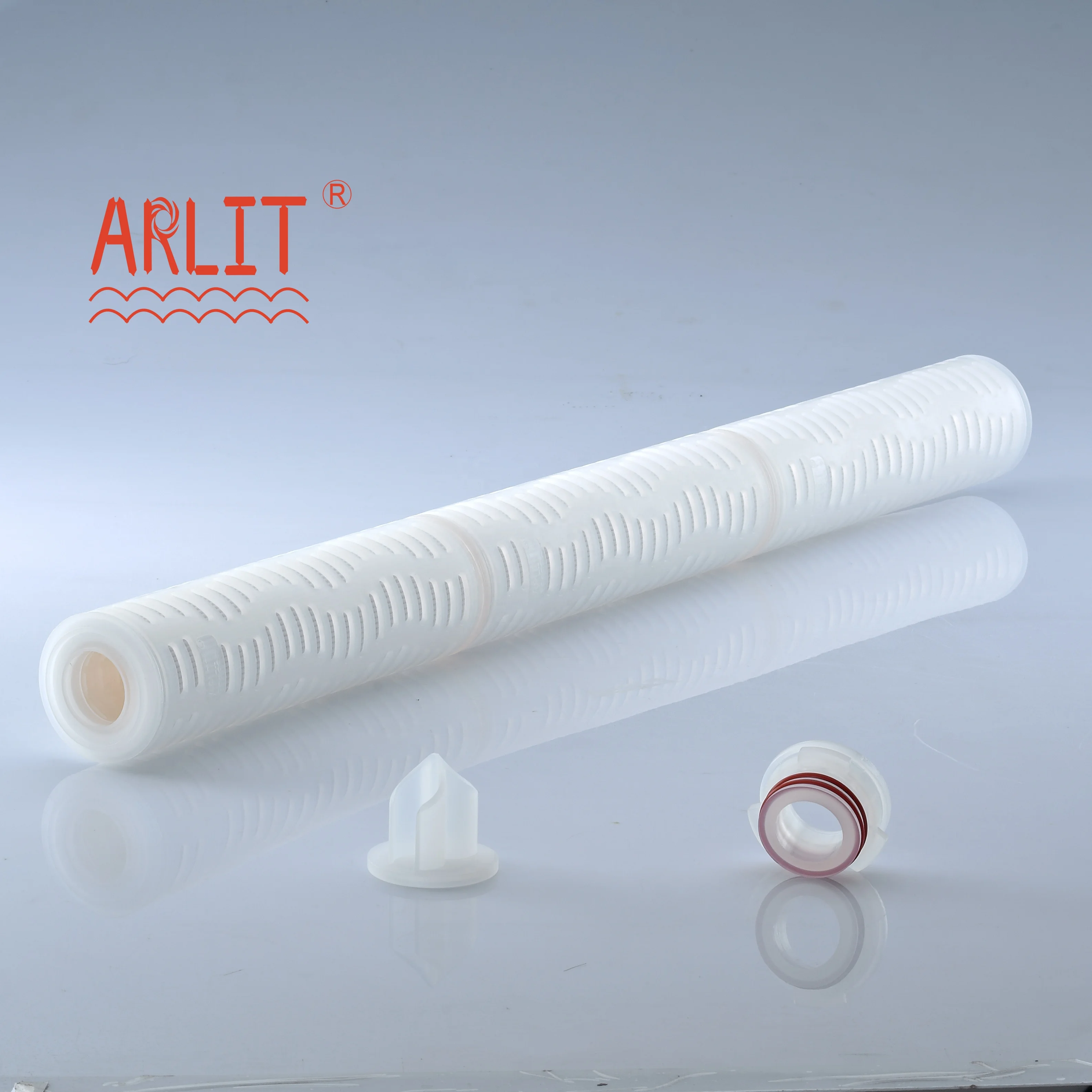

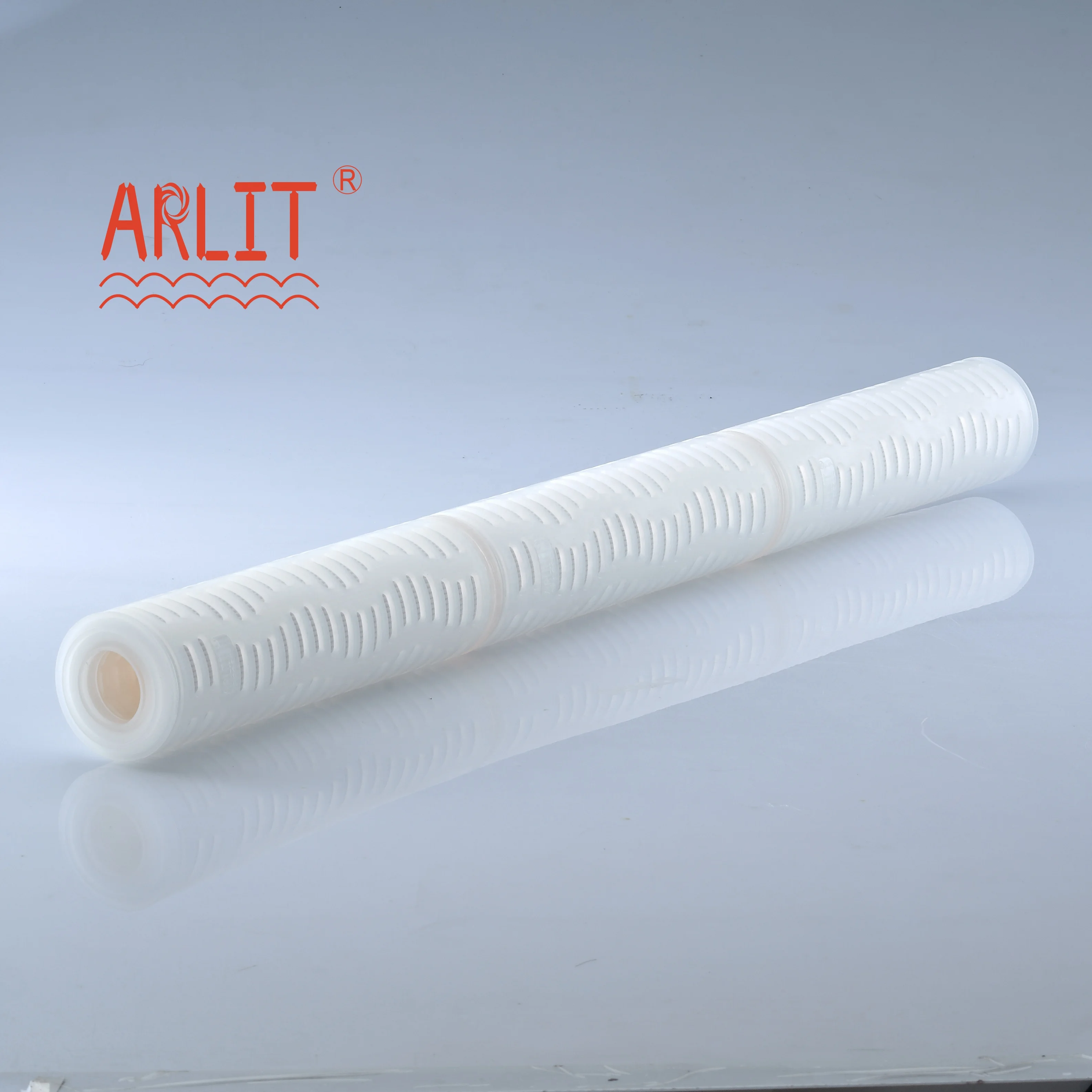

ARLIT BRAND 30 Inch 0.22 Micron Hydrophobic PTFE Membrane Pleated Filter Cartridge for Air Water Filter
- Category: >>>
- Supplier: Shantou Yalida Filtration Equipment Co. Ltd.
Share on (1601024628378):
Product Overview
Description
ARLIT 30 Inch 0.22 Micron Hydrophobic PTFE Pleated Filter Cartridges For Air/Water Filter
Details Images
Specification
Filter medium | Hydrophobic PTFE Membrane |
Support layer | Polypropylene (PP) |
Filter cage | Polypropylene (PP) |
Pore size | 0.1,0.2,0.45,1µm |

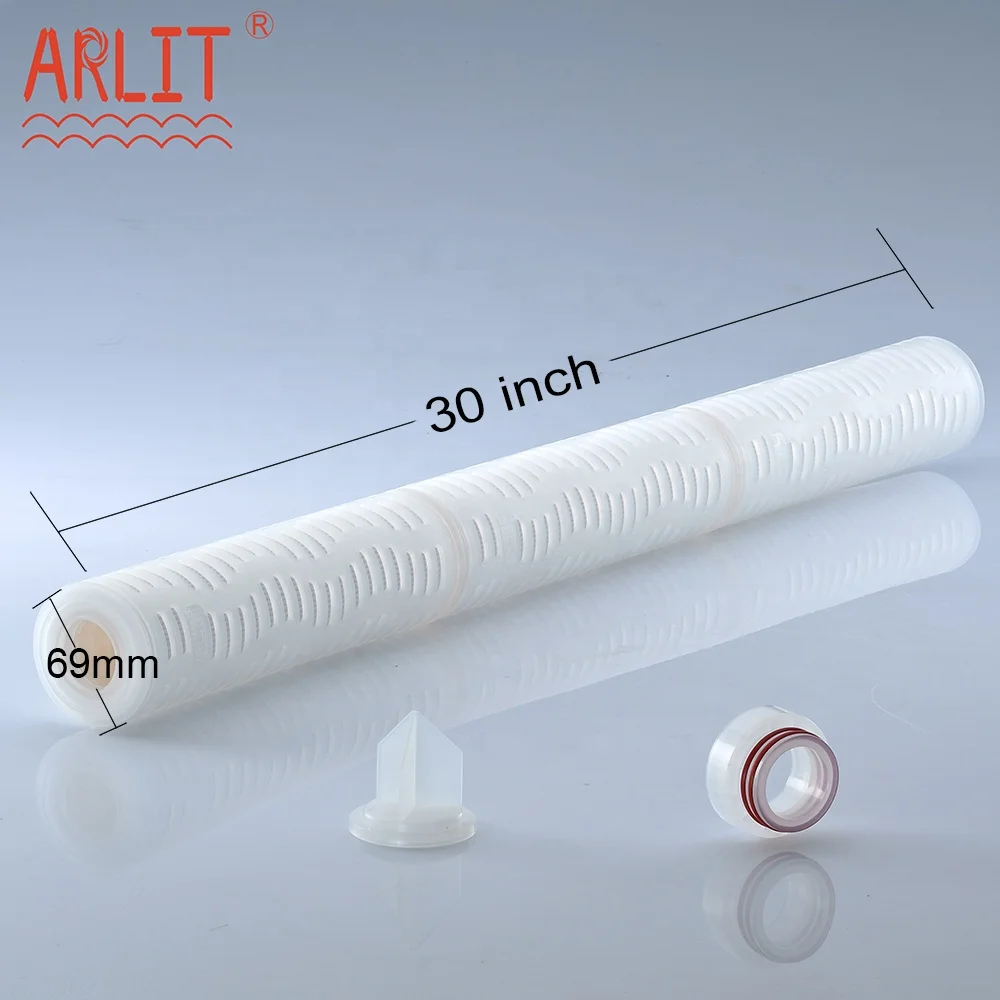

Length | 5/10/20/30/40 inches |
OD/ID | 69 mm-34 mm |
Gasket / O - rings | Silicone , EPDM,NBR,E-FKM |
Interface | DOE,215,222,226flat/fins |
End caps | DOE,0050,0050A,0050B |
Sealing method | thermal bonding technique |
Effective filtration area | 0.6 m2/10" |
Max. operating temperature | 140℃, 0.27 Mpa |
Max. forwarder differential pressure | 0.42 Mpa (25℃) |
Max. reverse differential pressure | 0.28 Mpa (25℃) |
Sterilizing temperature | 121℃ 30min |
Typical Applications
Chemical industry:filtration for organic solvent,various alcohols, chemical reagent
Gas filtration: sterile filtration of compressed air,nitrogen, carbon dioxide.
Filtration for sterile tank respirator, air fermentation tank.
Pure water flow rate reference table: the initial value of 10" cartridge L/min (△P=0.01MPa, 1cP, 25℃)
Micro rating (μm) | 0.1 | 0.2 | 0.45 | 1 |
Flow rate (L/min) | 7 | 9 | 18 | 25 |
Air flow rate reference table: the initial value of 10" cartridge m³/min (△P=0.01MPa)
Micro rating (μm) | 0.1 | 0.2 | 0.45 | 1 |
Flow rate (m³/min) | 6 | 8 | 10 | 12 |
