FMZ vfd inverter vector frequency inverter 11kw plastic injection molding machine ac servo motor driver
- Category: >>>
- Supplier: Shanghai Fmz Industry Co. Ltd.
Share on (1601024656134):
Product Overview
Description
Product Description
H580 Series
1. General Purpose Frequency Inverter
2. Open Loop Elevator Frequency Inverter
3. AC Servo Drive(Plastic injection machine)

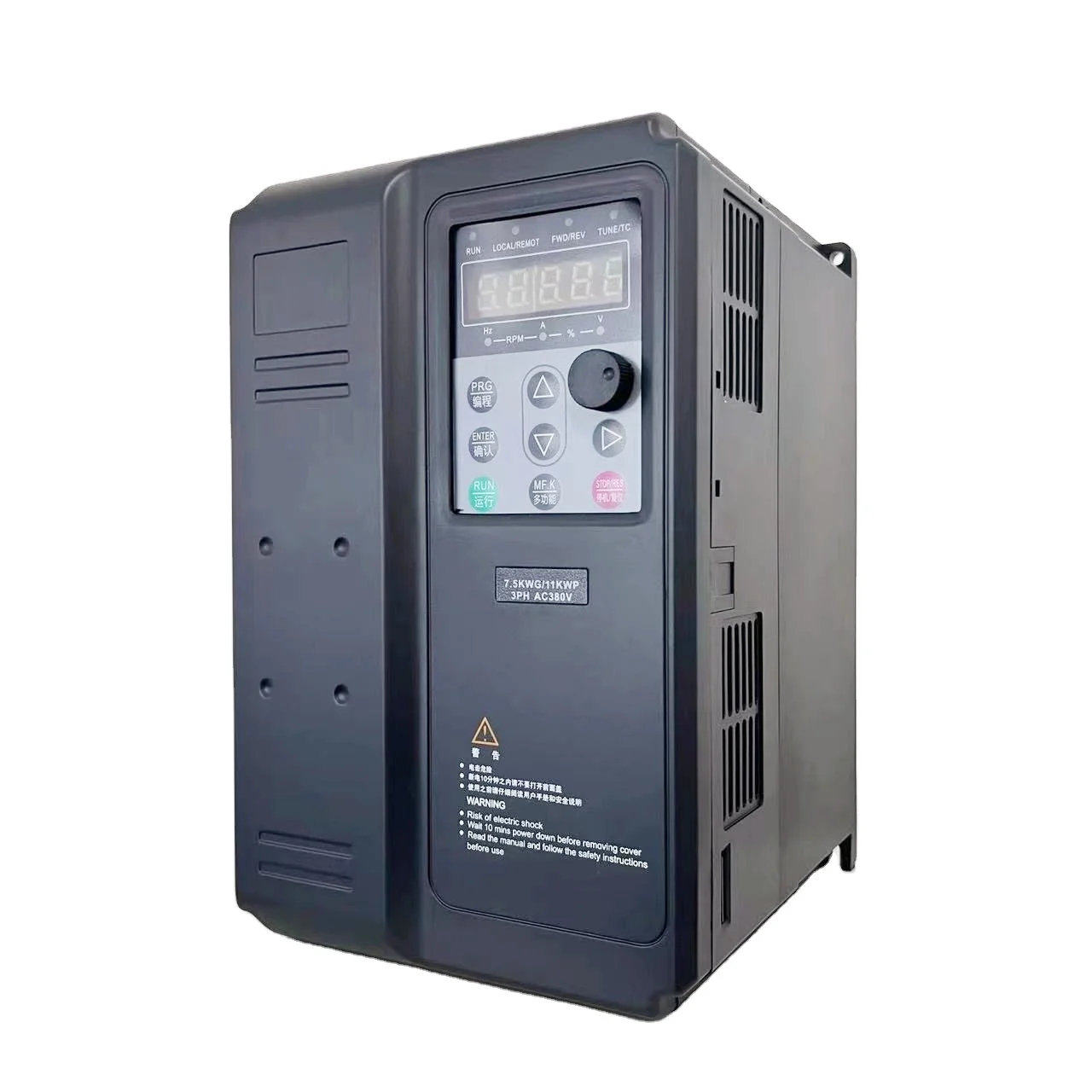

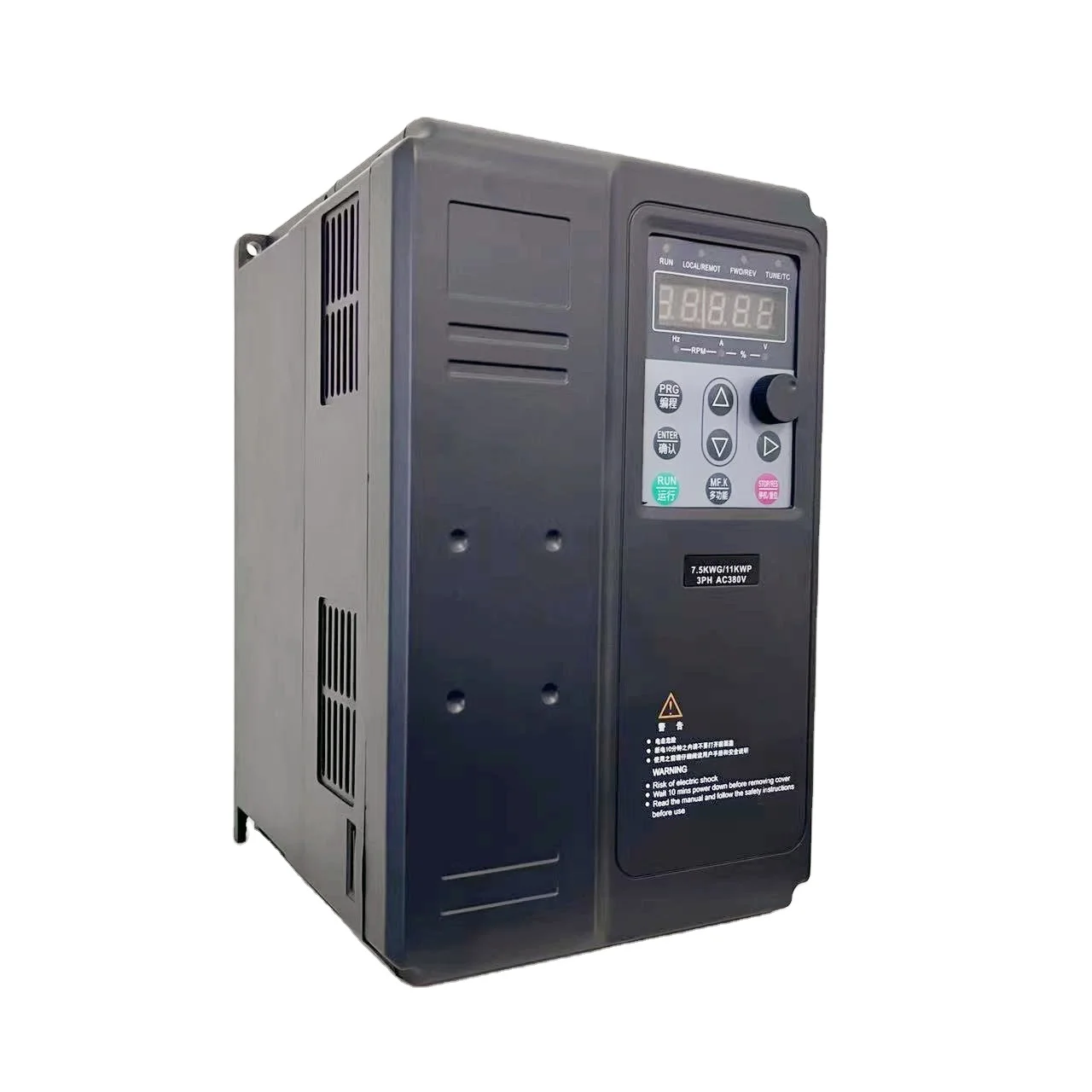

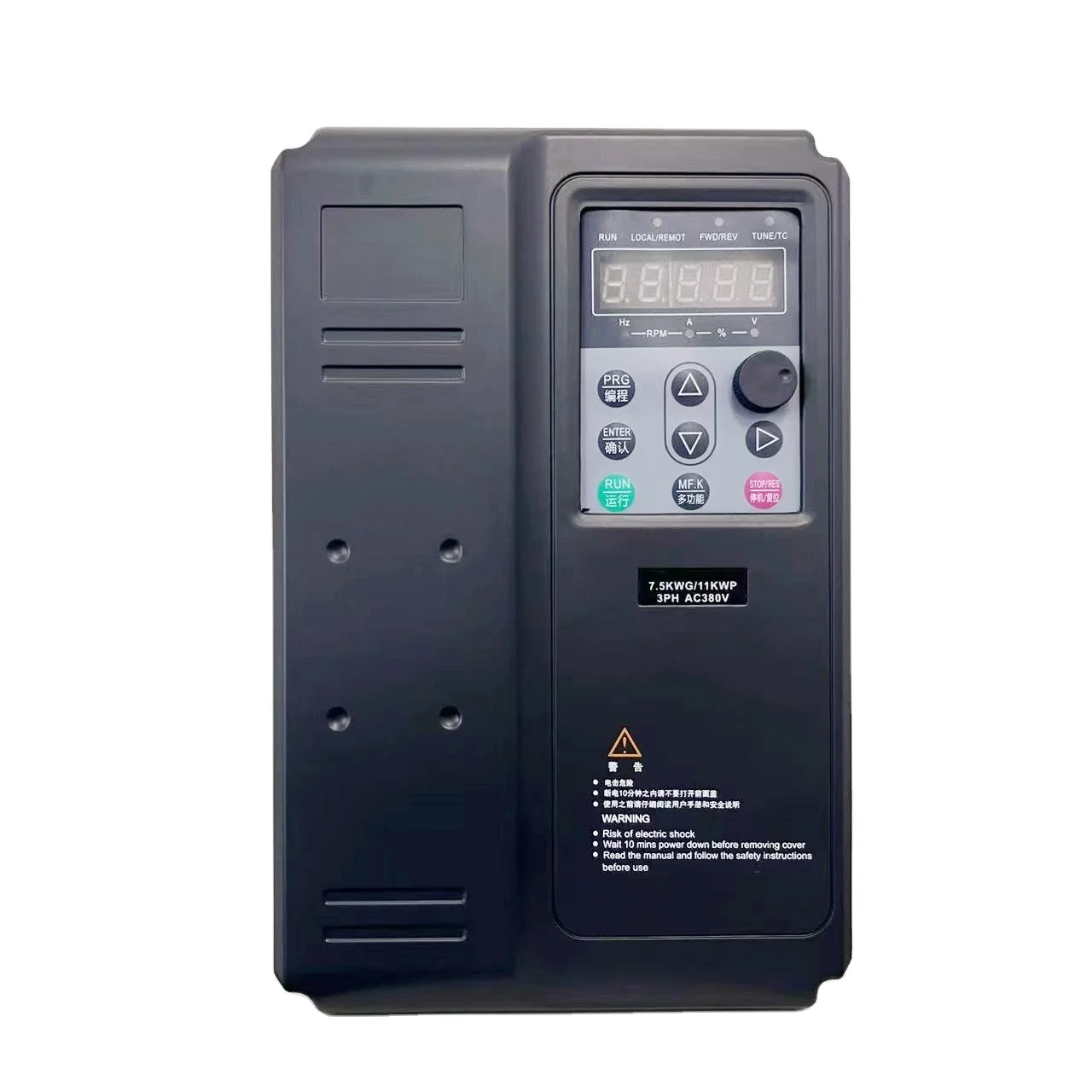

H580 Series Vector Frequency Inverter
Voltage: -15% 220V+15% 1Phase
-15% 380V+15% 3Phase
-15% 380V+15% 3Phase
Power Range:
● 380VAC 3PH To 3PH 3.7~15KW
Typical Technical Characteristics:
1)Single-phase 220V input, three-phase 380V output (up to 15kW)
2)General Purpose frequency inverter VFD
3)Special for Open loop elevator VFD
4)Special for AC Servo drive(Plastic injection machine)
FLAME RETARDANT
● Industrial Grade ABS Plastic,
● Shock Resistant,
● Safe and Secure
● High Temperature Resistant,
QUALITY ELEMENT
●Industrial Grade PCB Board
●Conductive Strong
●High Welding Reliability
●Conductive Strong
●High Welding Reliability

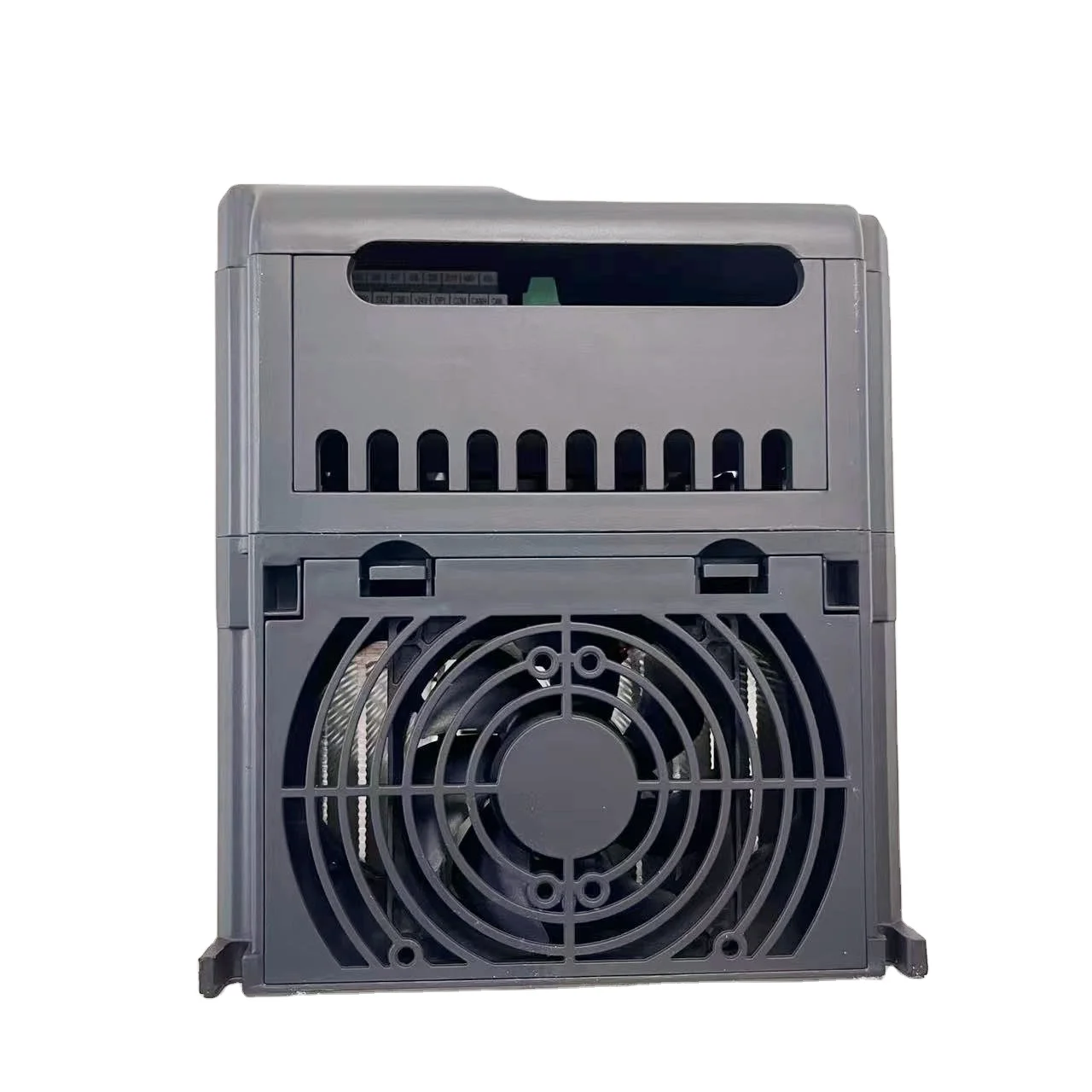

GOOD HEAT DISSIPATION
● Double Roller Ball Bearing
● Long Service Life
● Large air volume
● Long Service Life
● Large air volume
Product Features
Model No | Motor Power(kW) | Rated Current(A) | Outline Dimensions （H*W*D）（mm) | Package Dimensions （H*W*D）（mm) | ||||
220V 1-phase input & 3-phase output （Voltage Range: -15% 220V~220+15%） | ||||||||
H580-2R2G-S2 | 2.2 | 9 | 248*160*183 | 320*220*220 | ||||
H580-4R0G-S2 | 3.7 | 13 | 248*160*183 | 320*220*220 | ||||
380V 3-phase input & 3-phase output （Voltage Range: -15% 380V~380+15%） | ||||||||
H580-4R0G-T4 | 3.7 | 9 | 248*160*183 | 320*220*220 | ||||
H580-5R5G-T4 | 5.5 | 13 | 248*160*183 | 320*220*220 | ||||
H580-7R5G-T4 | 7.5 | 17 | 322*208*192 | 380*280*220 | ||||
H580-11RGT4 | 11 | 25 | 322*208*192 | 380*280*220 | ||||
H580-15RG-T4 | 15 | 32 | 322*208*192 | 380*280*220 | ||||
Product Name | H580 Series Vector Frequency Converter |
Model Number | H580-11RG/15RP-T4 |
Control Mode | SVC, V/F Control |
Torque Rise | Auto Torque Rise, Manual Torque Rise 0~30%V/F Mode |
Rated Power | 11kW |
Input Voltage | 3PH 380V 50/60Hz |
Output Voltage | 3PH 380V |
Operating Temperature | -10-50℃ |
IP Protection | IP20 |
Application | Fan, Pump, Conveyor, Packing Machinery, Textile machinery... |

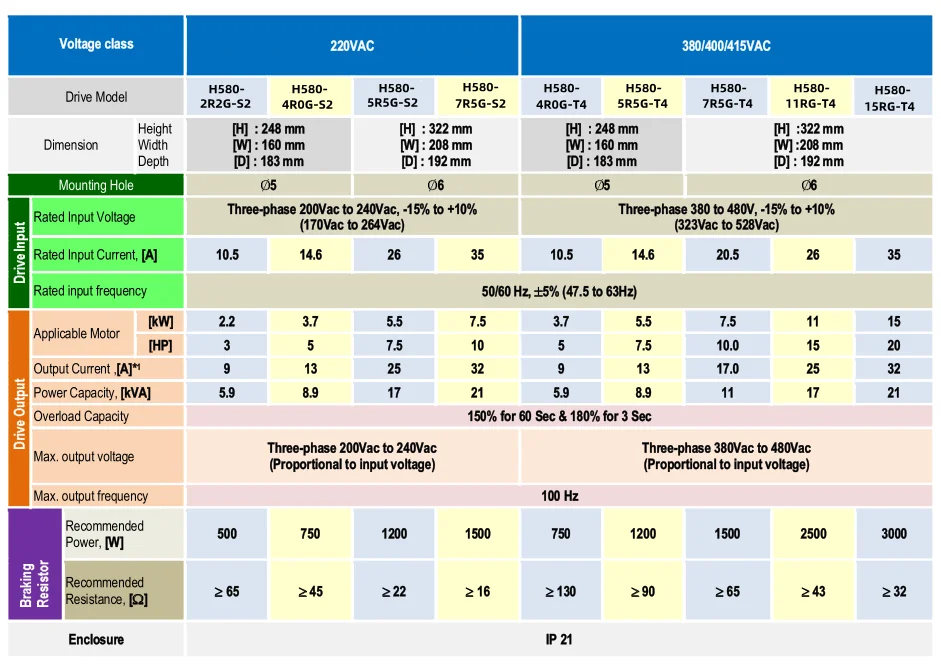

Product specifications

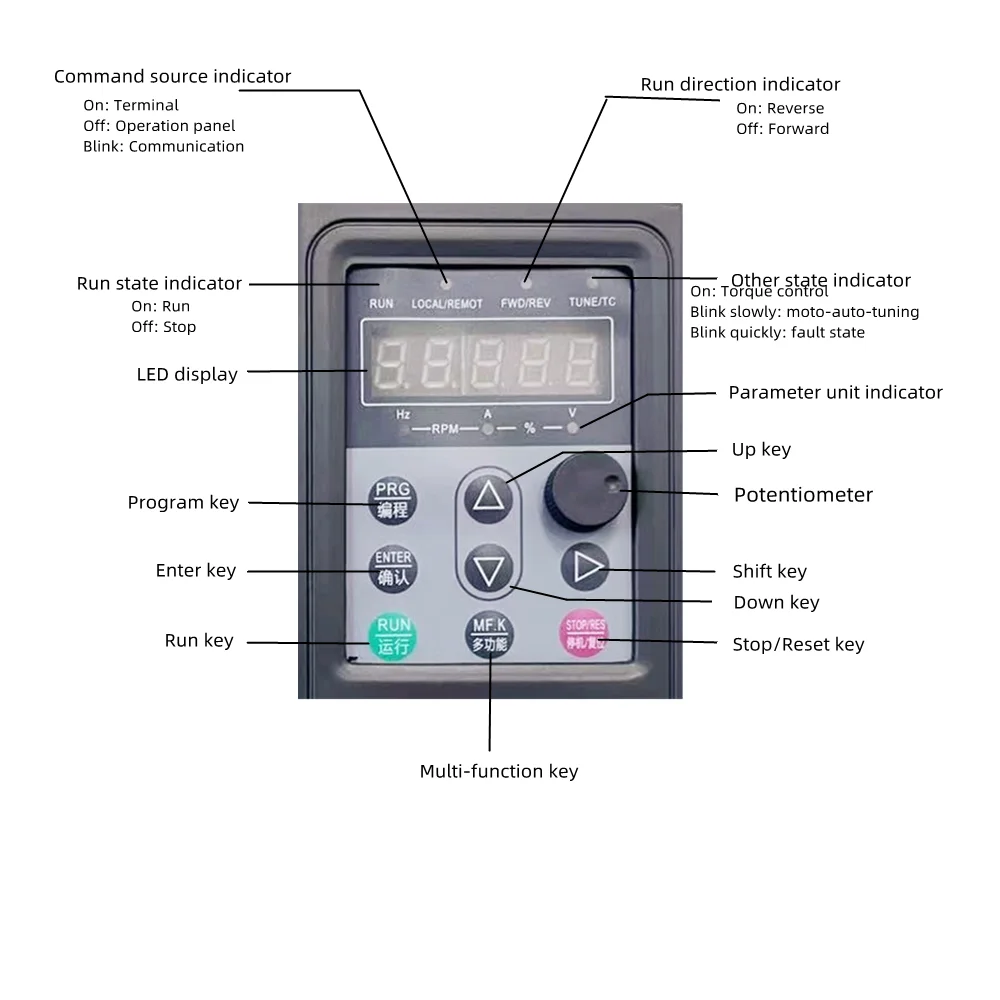

Keypad panel

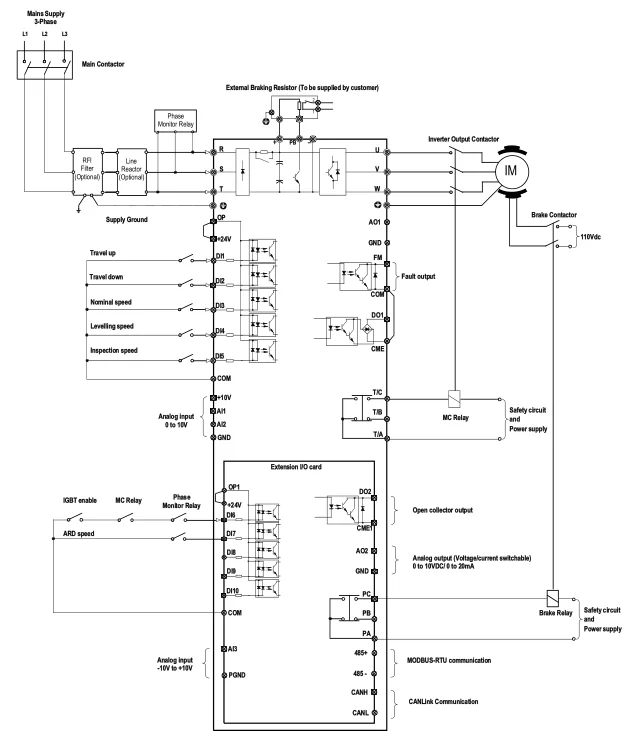

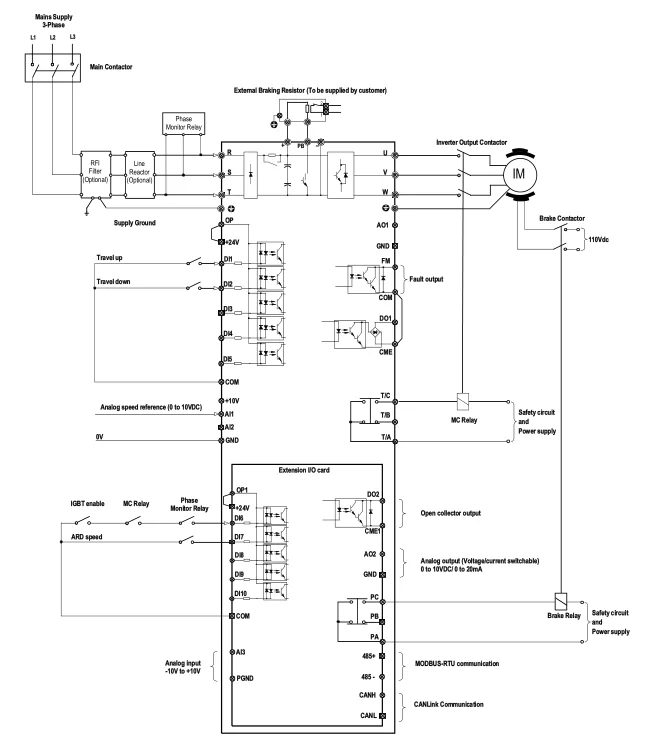

Typical wiring 1 (use multi-reference input as frequency reference)
Typical wiring 2 (use analog input as frequency reference)

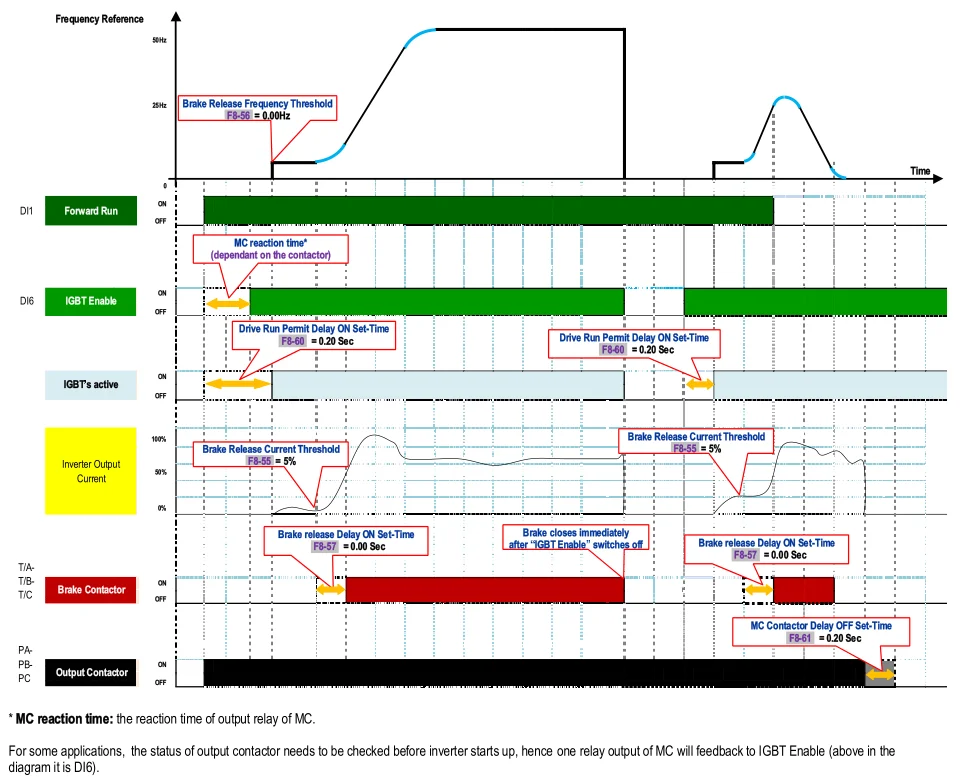

IGBT Enable

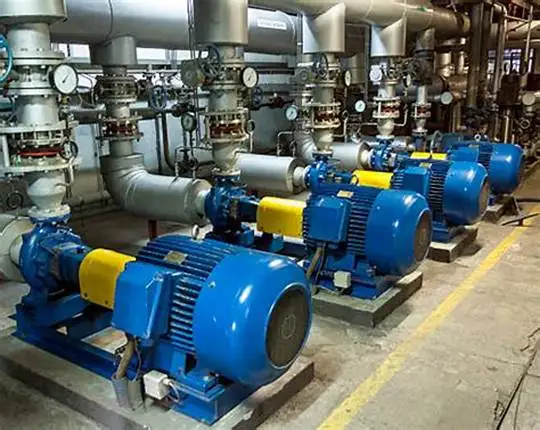

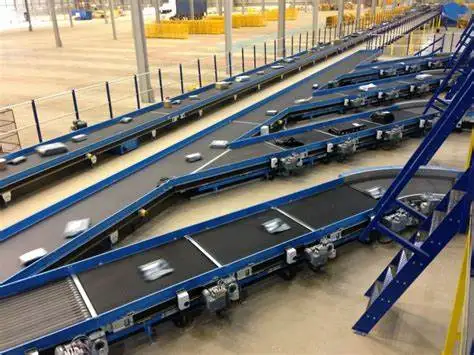

Application
Product packaging
Carton packing 1
Carton packing 2
Carton packing 3
Company Profile
Shanghai FMZ Industry Co., Ltd specializes in R&D, manufacture, sales and professional technical services upon industrial
automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts.
Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil,plastics, chemicals, municipal project and other industries.
We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world.
About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training.
Our business philosophy is to ‘Always be with you and enjoy success together.
automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts.
Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil,plastics, chemicals, municipal project and other industries.
We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world.
About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training.
Our business philosophy is to ‘Always be with you and enjoy success together.
FAQ
1.what's the payment term? | T/T,L/C,D/P,WEST UNION,CASH Alibaba |
2.what's the delivery time? | 3-15 days. |
3.what is the standard of package? | Export standard package or special package according to customer. |
4.what is the warranty? | 18 months after delivery. |
5.what is the export experience? | Europe(Denmark,Poland,Russia,etc),Middle East(Iran,SA,UAE,etc),south America(Mexico,Columbia,Brasil,etc),Asia(India,Pakistan,Bangladesh,Vietnam,Thailand,Indonesia,Malaysia,etc),Afria(Kenya,Zimbabwe,Negeria,etc) |
6.What is trade Term? | EX-Works, FOB China, CFR & CIF |
7.Do you accept OEM business? | We accept OEM under your autherization. |
8.what about the aftersales service? | We have one mature after-sales service team. Normally we offerquick technical support via email or online talking tools like whatsapp, wechat or others. If urgent or necessary, we also can send our technician to your site with full-time support. |
9.Do you accept OEM/ODM service request? | OEM or ODM service is available |
10.Is it training available for your technician? | Yes. Definitely we warmly welcome your technician to accept related maintenance and repair training in our factory. We will help arrange the hotel and food. |
