LED SMD Downlight Recessed Ceiling Aluminium Led Down Light Supermarket 7W 12W 15W 24W 30W Dali Dimmable LED Downlight
- Category: >>>
- Supplier: Guangdong Nice Lighting Technology Co. Ltd.
Share on (1601024690195):
Product Overview
Description
Products Description
Recessed led downlight
Features
■High quality LED with high luminous efficiency
■Recessed and flushed with flat ceiling to keep the ceiling outlook more tidy
■Deeply concealed lamp source and anti-glare accessories for visual comfort
■85% high efficiency light distribution with mellow light output
■Integrated heat dissipation structure, ensures stable and long lifespan of the light source
■Size in series for different ceiling heights and illumination
■Simple installation structure design makes the construction process convenient and ensures that the lamps are installed firmly
Product Name | EMBEDDED DOWNLIGHT TQ014 7-30W RECESS | DOWNLIGHT SP046 7-40W RECESS | |||||||||
Item No. | NC-TQ014 | ||||||||||
Input Voltage | AC85V-265V | AC85V-265V | |||||||||
Nominal Wattage | 5-7W | 10-12W | 12-15W | 20-24W | 25-30W | / | |||||
Diameter (mm) | 88 | 105 | 130 | 185 | 220 | / | |||||
Height (mm) | 46 | 60 | 68 | 93 | 98 | / | |||||
Cutout (mm) | 75 | 90 | 110 | 165 | 195 | / | |||||
Body Material | Aluminum | ||||||||||
Beam Angle | 70° | 8°/15°/24°/38°/60° | 15°/24°/38°/60° | ||||||||
Color Temperature | 2700K/3000K/4000K/4500K/5000K/6000K | 2700K/3000K/4000K/4500K/5000K/6000K | |||||||||
Luminous Flux (lm) | 500 | 900 | 1100 | 1500 | 2100 | / | |||||

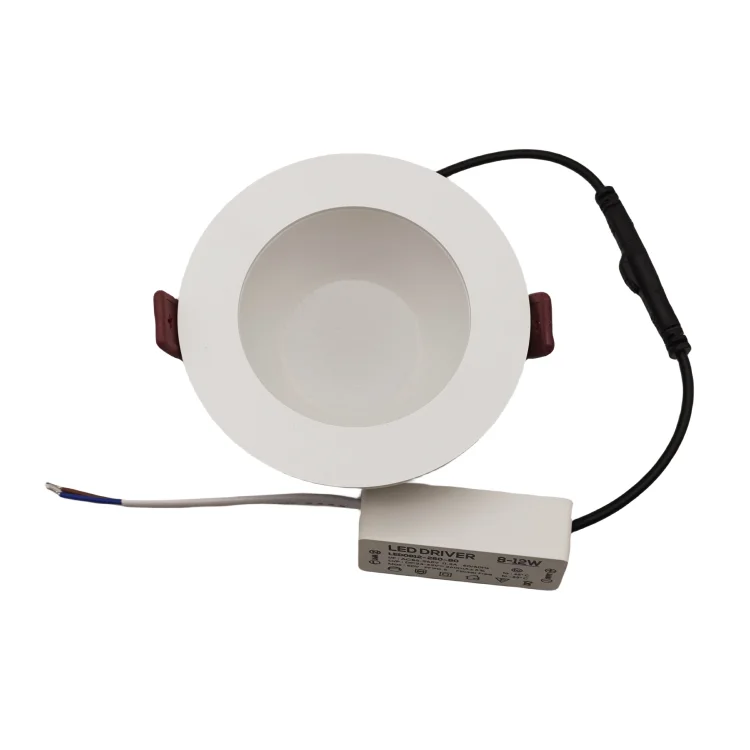

Operating Mode | External LED driver | External LED driver | |||||||||
Configuration | Sanan Chip+Dark energy driver | Bridgelux Chip+Eaglerise driver | |||||||||
Working Temperature | -20 to +50C | -20...+50C | |||||||||
Lifespan at 25 ℃ | 50000 h | 50000 h | |||||||||
In addition to standard products, we can also customize your size, color temperature, power function, luminous efficacy of light source, connection method, label style, your logo, packaging and so on. | |||||||||||
