Product Overview
Description
Product Description
No scratches.No crystallinity.
Short cycle time.
Consistent weight.
High quality surface.
Strong dimensional stability.
Minimum eccentricity (thickness difference).
Gate inserts：High quality stainless steel with highly polished surfaces.
Cores and cavities：High quality stainless steel with highly polished surfaces.
Neck rings：High quality stainless steel with water cooled channel and air channel.
HANYU molds meet these criteria as a result of our long-standing experience in designing and manufacturing PET molds
Item | Name | Description | Hardness | |
1 | Preform mold material using: | P 20 | 28-32 28-32 | |
2 | Core, cavity and neck | S136 | 48-52 | |
3 | Moving part | P20 | ||
4 | Cooling method | Core, neck cooling | ||
5 | Cooling method for Core plate and cavity plate | 1 in, 1 out | ||
6 | Off-centre(mm) | +/-0.08mm | ||
7 | Cycle time one injection | 18-23 seconds | ||
8 | Delivery time | 60 days after confirmed the design | ||
Products Show
Products Show
MOLD MATERIAL

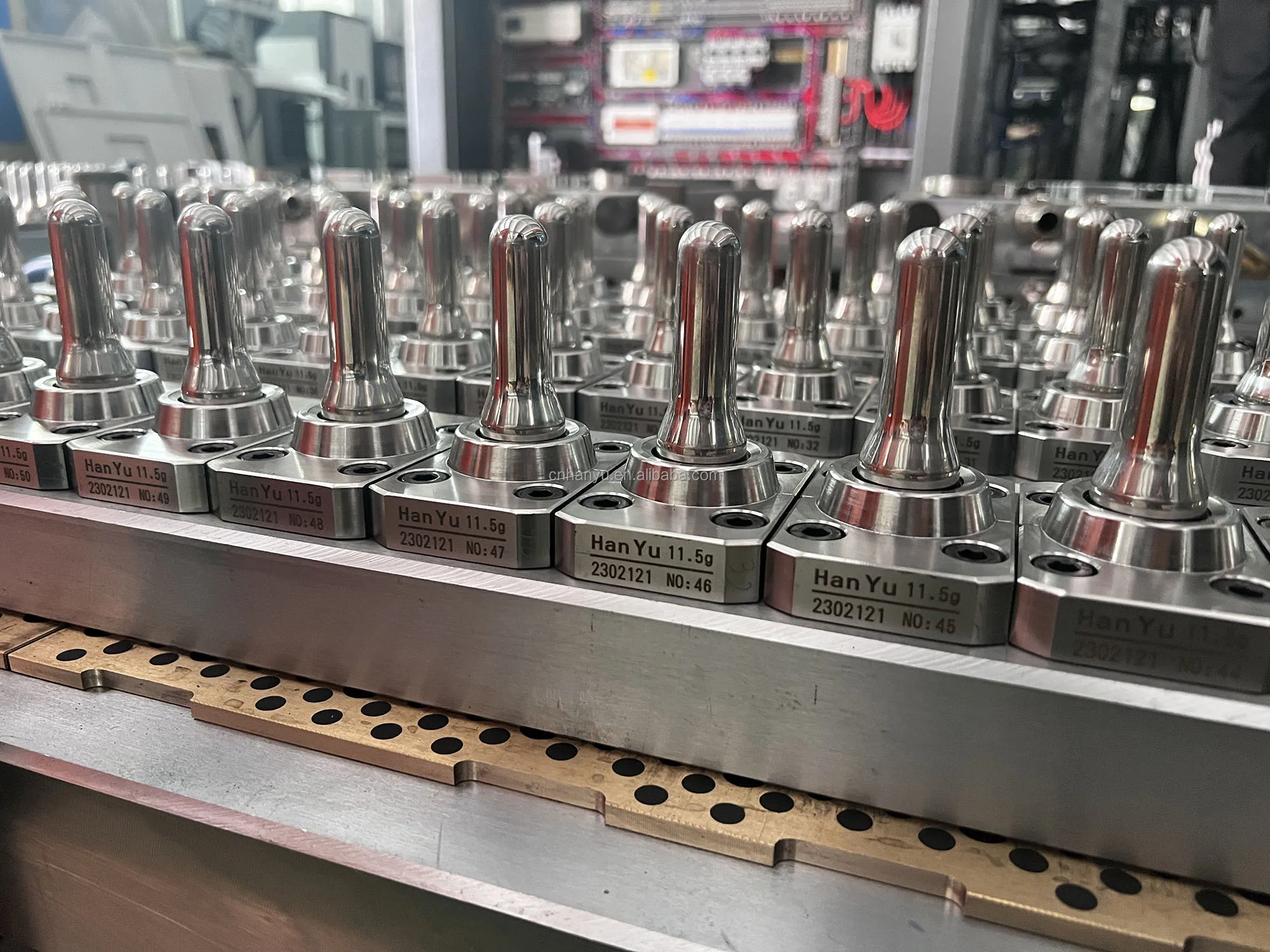

Core: S136 Hardness: 42-45HRC
Cavity: S136 Hardness: 42-45HRC
Threaded port: S136 Hardness: 48-52HRC
Cavity: S136 Hardness: 42-45HRC
Threaded port: S136 Hardness: 48-52HRC
Hot runner insulation Material/Brand: DuPont, USA
Hot runner thermocouple Material/Brand: OMEGA, USA
Processing technology
hot runner nozzle ：Beryllium bronze with nickel plating on the surface
Mold processing mainly includes turning, milling, grinding, electric discharge and other processes, which have high requirements for the machining accuracy and surface finish of the mold. At the same time, high-quality processing equipment and advanced CNC technology should be used to ensure the machining quality of the mold.assembly and commissioning stage
After the mold processing is completed,
Including adjusting the opening and closing degree, positioning accuracy, etc. of the mold to ensure normal use.
Mold processing mainly includes turning, milling, grinding, electric discharge and other processes, which have high requirements for the machining accuracy and surface finish of the mold. At the same time, high-quality processing equipment and advanced CNC technology should be used to ensure the machining quality of the mold.assembly and commissioning stage
After the mold processing is completed,
Including adjusting the opening and closing degree, positioning accuracy, etc. of the mold to ensure normal use.
Title goes here.
1) Easy in maintaining: self- lock and shut-off individually for each cavity.
2) Adopting advanced components in hot runner and main mould parts.
3) Good cooling to control the mould cycle time and ensure high efficiency when producing preforms.
4) Running in a high automatization and preform drops from mould automatically.
5) High precision of preform thickness difference < 0.05mm.
6) Preform thickness and height is reasonably and perfectly designed to ensure the final bottles weigh light but feel hard.
2) Adopting advanced components in hot runner and main mould parts.
3) Good cooling to control the mould cycle time and ensure high efficiency when producing preforms.
4) Running in a high automatization and preform drops from mould automatically.
5) High precision of preform thickness difference < 0.05mm.
6) Preform thickness and height is reasonably and perfectly designed to ensure the final bottles weigh light but feel hard.
FAQ
Q1: Where is your factory located? How can I visit there?
Yes warmly welcome to visit us ，we are in Taizhou City, Zhejiang Province, China.
Q2: How long is the warranty ?
A2: All of products have one years warranty.
Q3: How can I install my machine when it arrives?
A3: We will provide detailed installation videos for semi-automatic machine and provide 24-hour online support.
and if you need we will send our engineer to your side as soon as you get all your machines to testing and teaching your technicians how to run the machines.
Q4: How long is the delivery time?
Q4: How long is the delivery time?
A4: Under normal conditions, products are delivered within 45 working days for fully-auto machine，15days for semi-automatic machine
Q5: Where is the Shipping departure port?
Q5: Where is the Shipping departure port?
A5: Ningbo or shanghai port.
Q6: What’s the payment
Q6: What’s the payment
A6: T/T, L/C,Western Union, paypal.
Q7. What products does your company offer by yourself?
Q7. What products does your company offer by yourself?
A7: We are specialized in PET Blow Molding Machine, PET Blow Mold, Injection Machine, PET Preform Mold,Cap mold.
Q8: How about the quality of machine?
Q8: How about the quality of machine?
A8: We have been producing bottle blowing machines since 1996 with extensive experience and
undergo repeated testing and inspection before shipment
Packing & Delivery
Our Factory
Zhejiang Hanyu Automation Technology Co., Ltd
Zhejiang Hanyu Automation Technology Co., Ltd is a professional manufacturer of blow molding machines, Our team have been involved in blow molding machine and mould industry since 1996 Machine manufacturing. integrating development and production together. Our main products include P E T full- automatic blow molding machine, semi-automatic blow molding machine, B O P P blow molding machine, hot-filling bottle blow molding machine, 5 gallon blow molding machine, preform mold, cap mold, bottle mold, plastic mold, injection machine and other related products. Hanyu Machinery has perfect manufacturing equipment and manufacturing system, with a high-quality, professional , persistent team.we can provide all technology to the customers from design to successful install.
