China Chip IGBT Transistor wafer 1200V 40A Low EMI For UPS Converters and Inverters

IGBT chips are the core part of IGBT devices, usually made of silicon materials. It consists of four regions: N+collector region, P-drain region, N-channel region, and P+gate region. The key technologies of IGBT chips include channel control, carrier injection, and structural design to withstand high voltage. The IGBT chip integrates the driving circuit, control circuit, and protection circuit of the IGBT devices. It is the foundation of IGBT devices, responsible for switching power and controlling current.

ADVANTAGES:

• High voltage capability: IGBT can withstand high voltages, typically ranging from hundreds to thousands of volts. This enables IGBT to be widely used in power transmission and transformation applications.


• High current capability: IGBT has a high current tolerance and can be used to control and switch high current loads. That makes IGBT be widely used in industrial applications such as motor drives and welding equipment.


• Quick switching characteristics: IGBT has a fast switching speed and can quickly switch on/off states. This makes IGBT perform well in applications that require high-frequency switching operations, such as frequency converters and AC drives.


• Low conduction voltage drop: The conduction voltage drop of IGBT is relatively low,so it can reduce power consumption and heat loss. This makes IGBT an ideal choice for high-efficiency applications, such as solar inverters and electric vehicle drive systems.

APPLICATIONS:

UPS, welding converters, high frequency converters,PV inverters, etc.

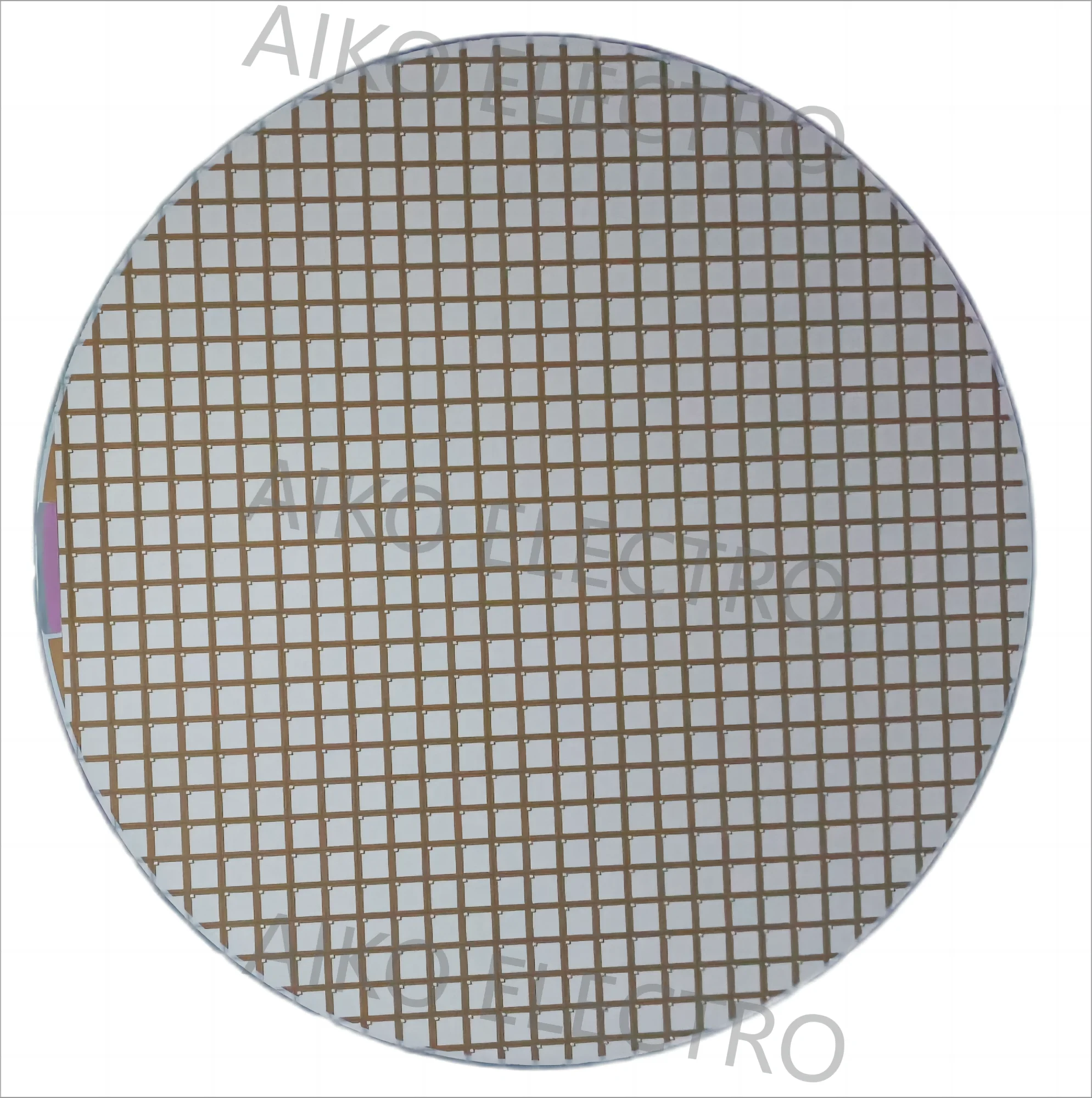

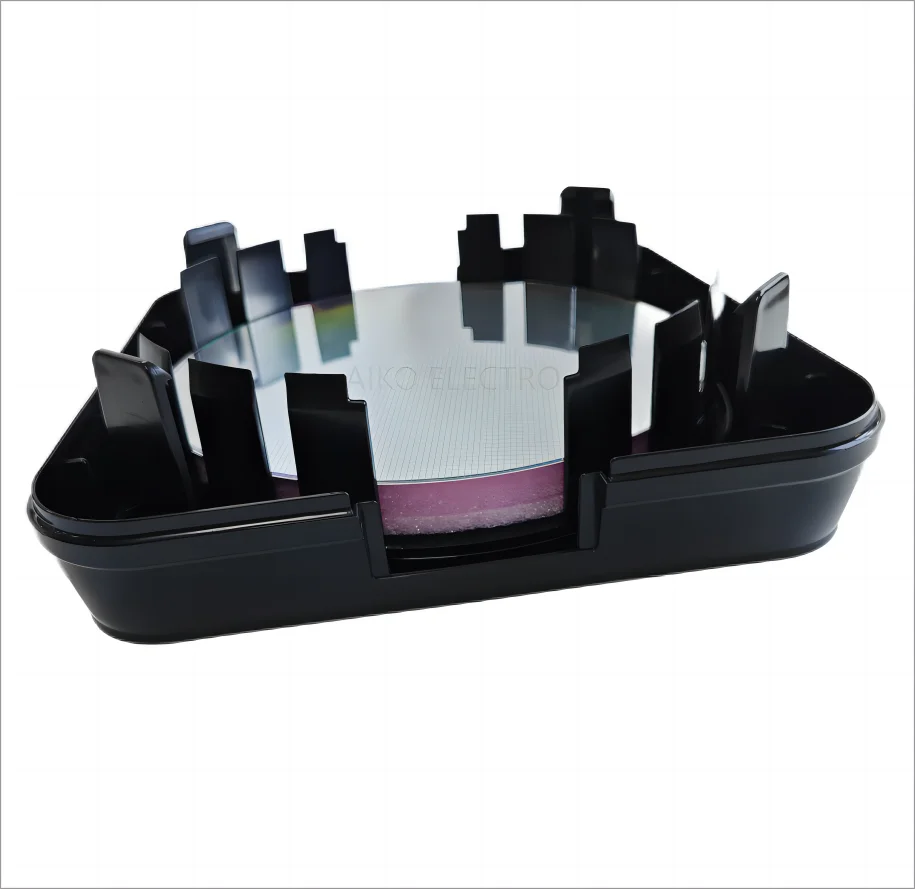

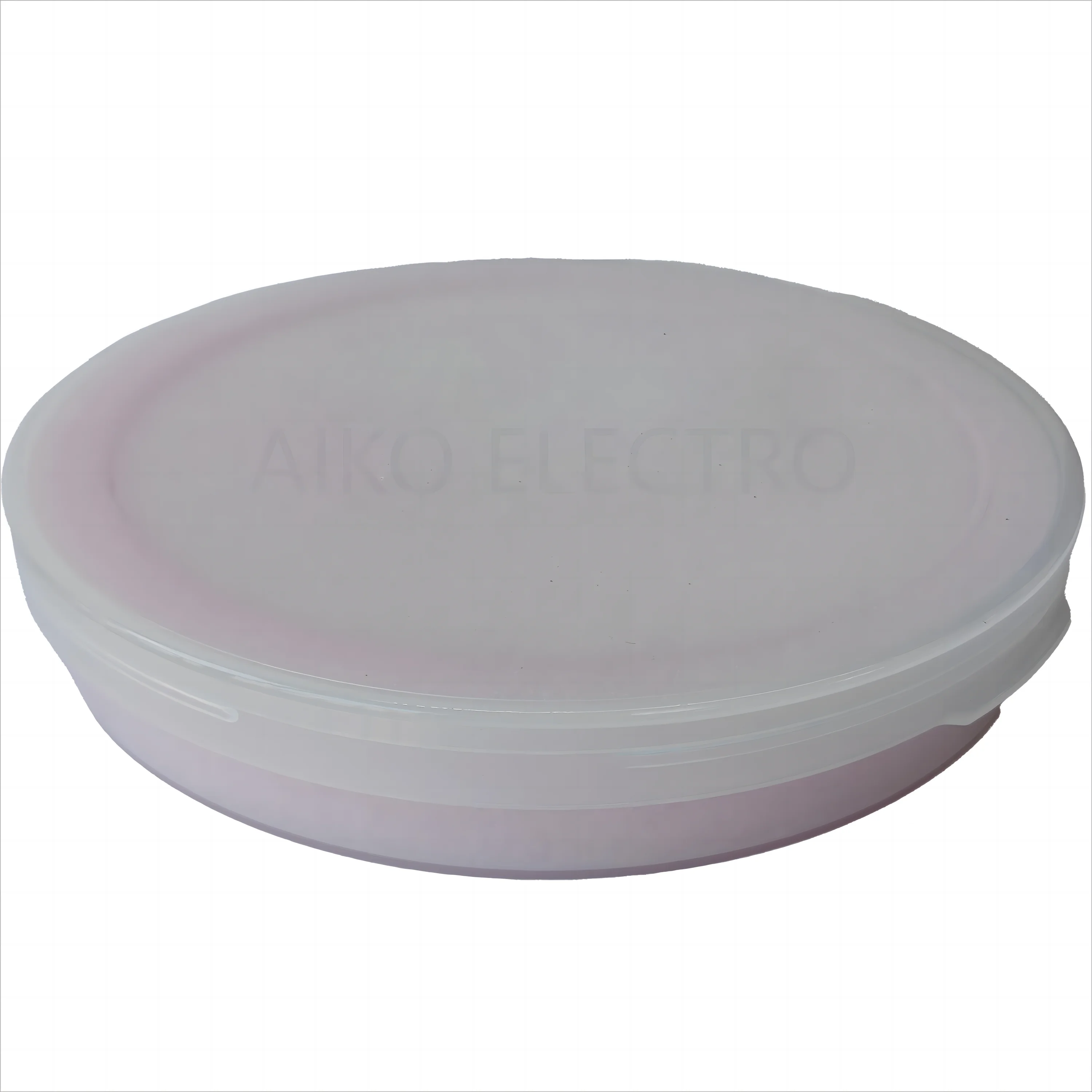

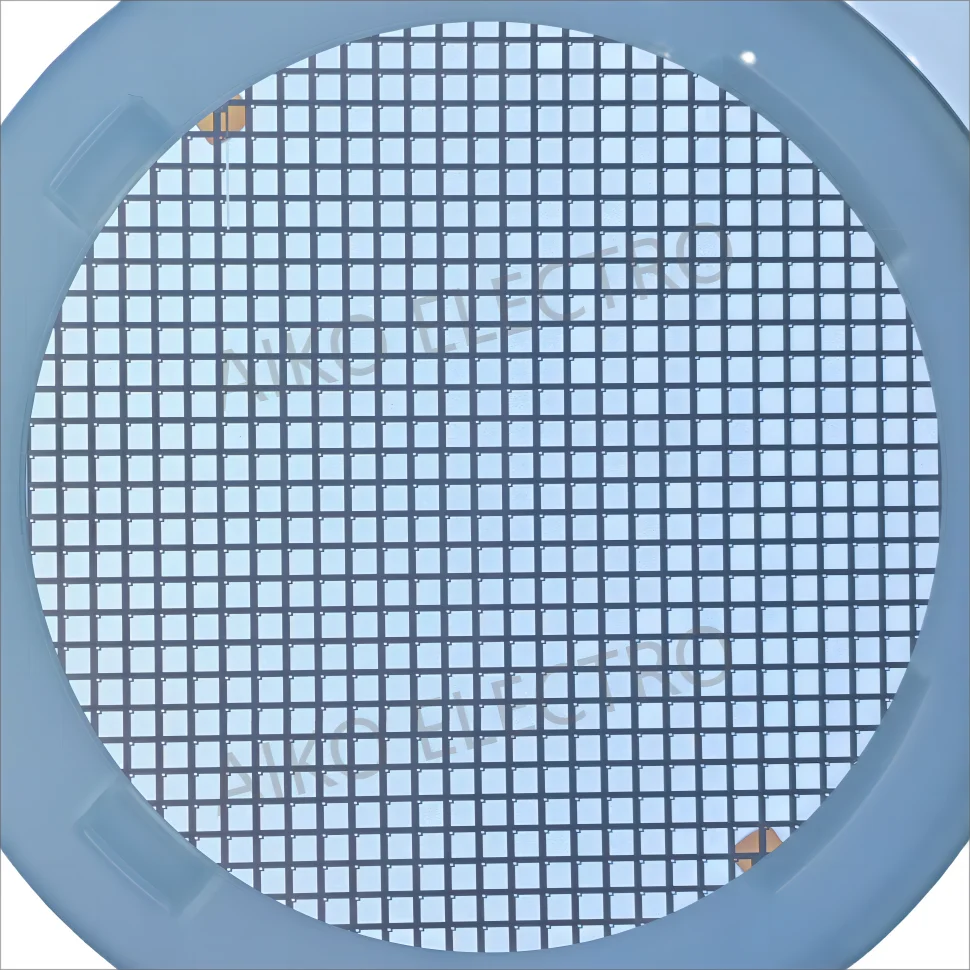

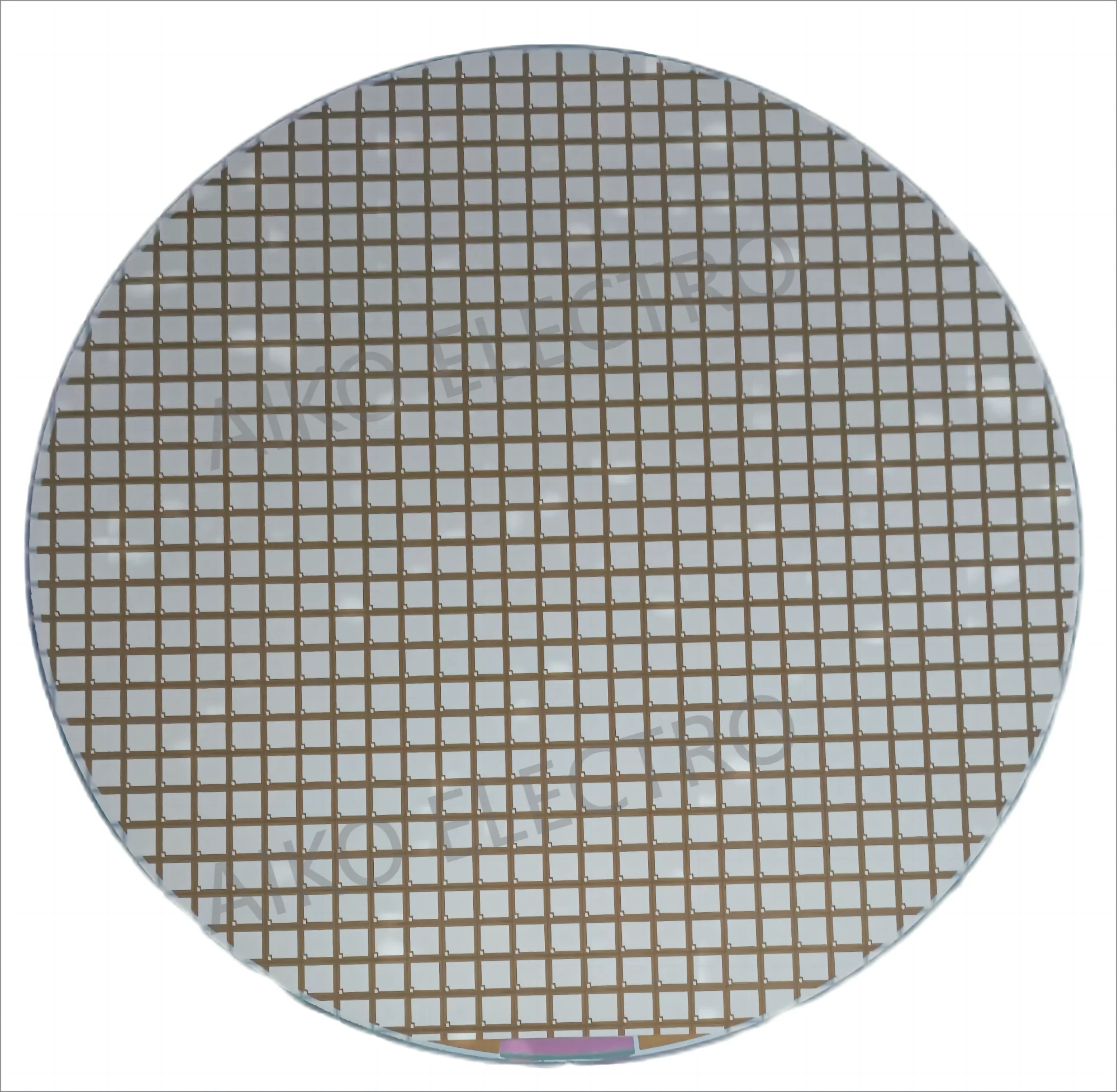

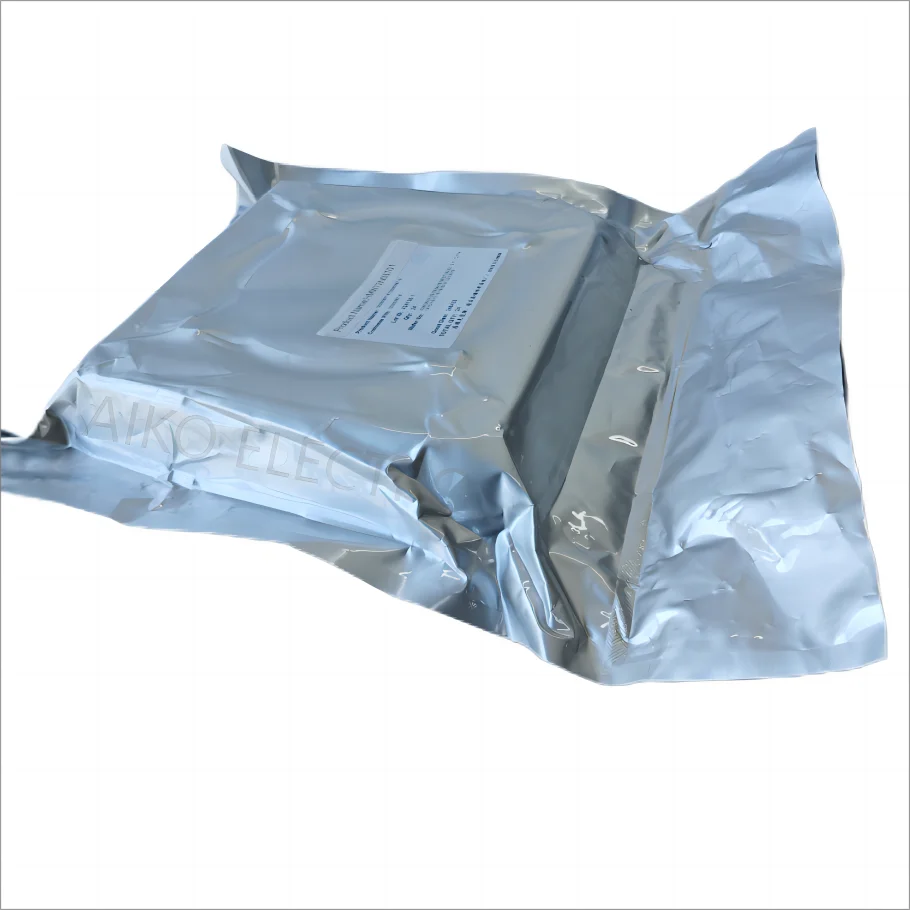

PRODUCT SHOW:
