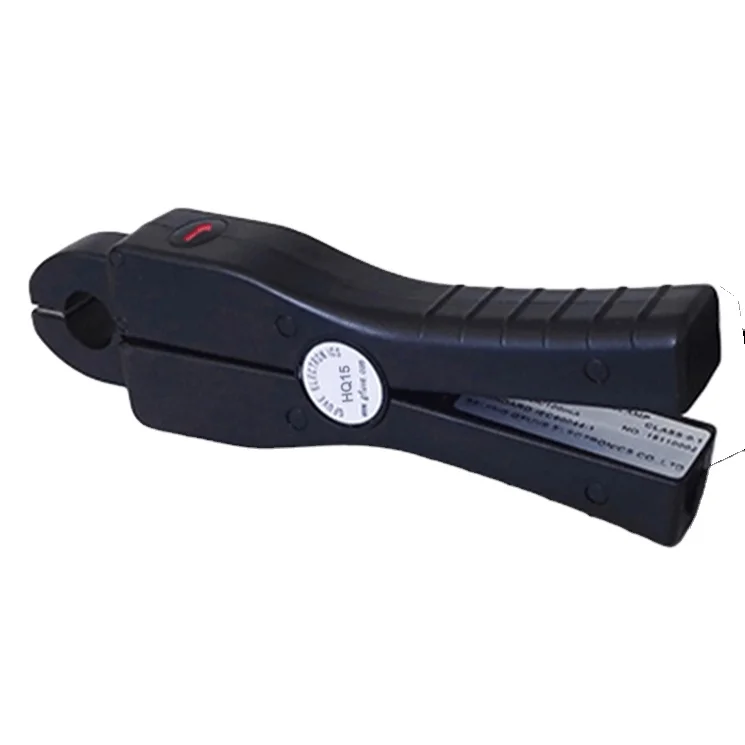

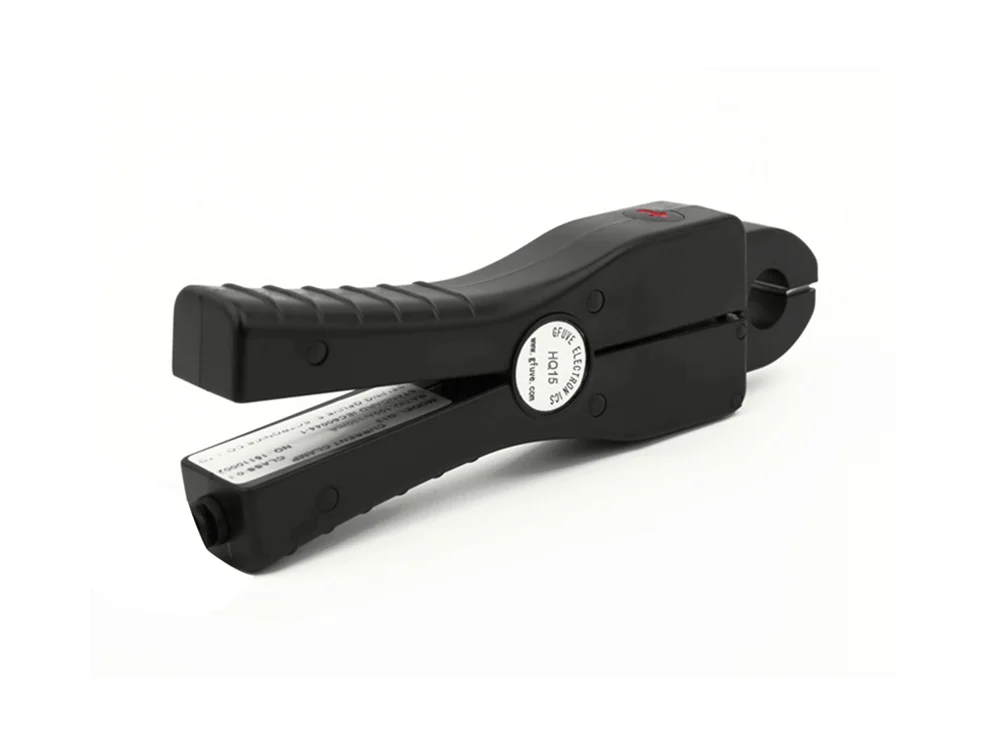

HQ15 5A & 100A HIGH PRECISION CURRENT PROBE SENSOR

The HQ15 100a current probe sensor is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables. The sensing head uses sliding push-fit clamp structure, safety isolation to avoid the user to contact with charged objects directly. It complies with CE standards and meets 300V CAT III safety class. This model HQ15 current sensor is a high accuracy mini current probe for measurements up to 130A AC. This current probe uses a special magnetic core to provide higher accuracy and lower phase shift. The HQ15 Series is an excellent probe sensor to be used in power and low level current measurement applications.

UL, CE CNAS mark;

Excellent linearity;

High content permalloy core;

Holding wire diameter: φ15mm;

Frequency 10Hz-5kHz Bandwidth;

High time harmonics measurement;

Easy &quick installation in tight spaces;

Measurement range of 1mA to 130A AC;

Low phase shift for power measurement;

EN 61010-2-032 , 300V CAT III Standard;

Improved ergonomic design & easy operation;

High precision 0.1% for current measurement;

Flexible and light weights, exquisite appearance;

Designed for DMMs, loggers, oscilloscopes, power & harmonic meters;

Power meter;

Waveform analysis;

Phase angle meter;

Energy sub-meters;

Oscilloscopes meter;

Power load monitoring;

Data logging/recording;

Energy meter calibrator;

Power quality monitoring;

Power and harmonic meters;

Power quality analyzer(PQA);

CT secondary current detection;
