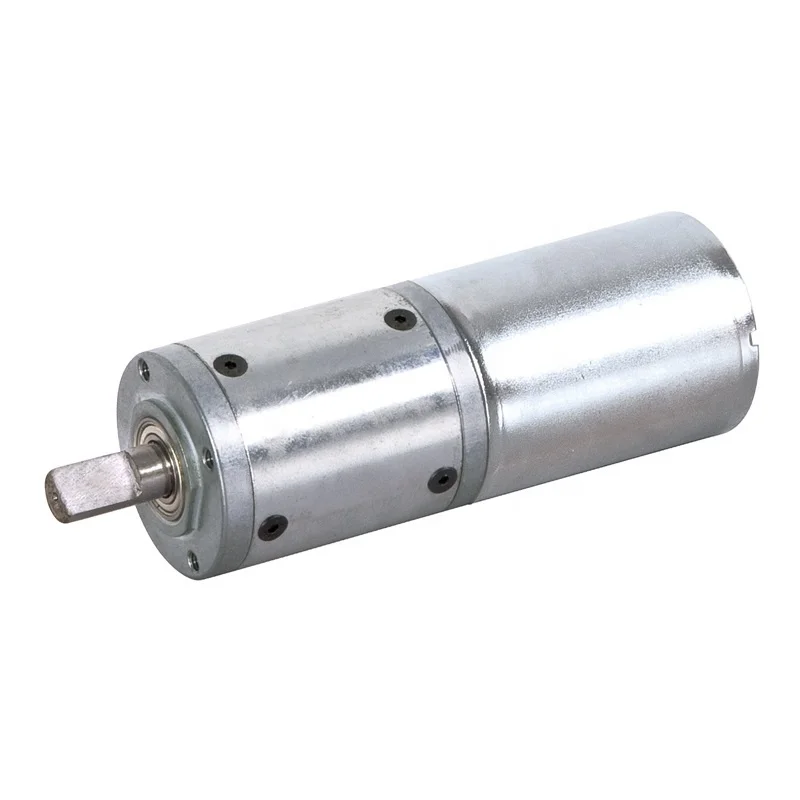

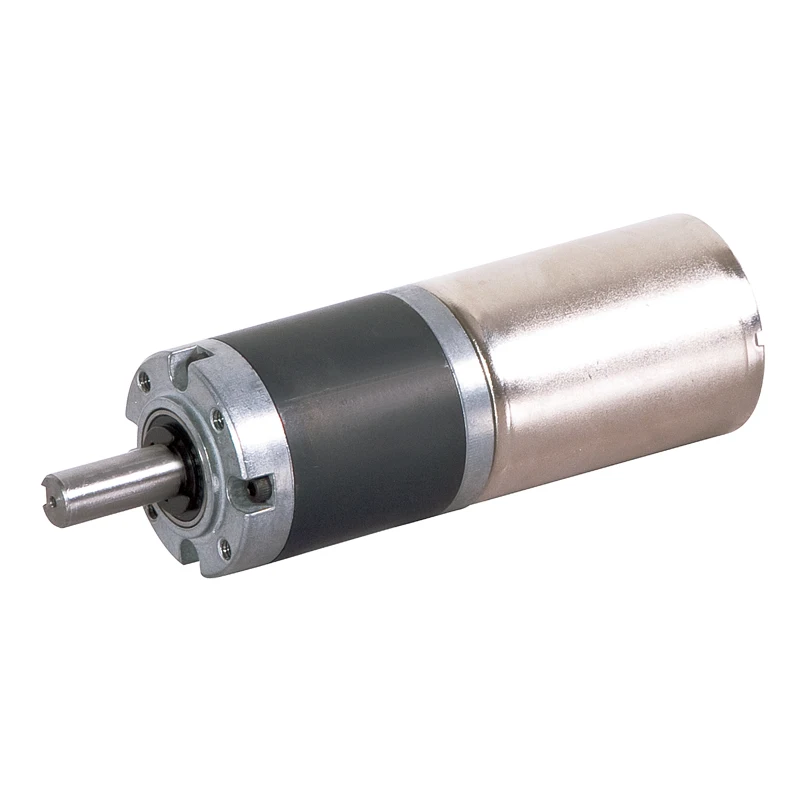

  • 42JXGT200K/42ZWNP59 12V, 24V Micro High Torque Brushless DC Planetary Gear Motor
42JXGT200K/42ZWNP59 12V, 24V Micro High Torque Brushless DC Planetary Gear Motor
42JXGT200K/42ZWNP59 12V, 24V Micro High Torque Brushless DC Planetary Gear Motor
42JXGT200K/42ZWNP59 12V, 24V Micro High Torque Brushless DC Planetary Gear Motor
42JXGT200K/42ZWNP59 12V, 24V Micro High Torque Brushless DC Planetary Gear Motor
42JXGT200K/42ZWNP59 12V, 24V Micro High Torque Brushless DC Planetary Gear Motor
42JXGT200K/42ZWNP59 12V, 24V Micro High Torque Brushless DC Planetary Gear Motor
42JXGT200K/42ZWNP59 12V, 24V Micro High Torque Brushless DC Planetary Gear Motor

42JXGT200K/42ZWNP59 12V, 24V Micro High Torque Brushless DC Planetary Gear Motor

Share on (1601024832997):


Price:$24.19 - $25.99

Quantity:


Product Overview

Description



Product Description




High Torque Built-in or External Driver Brushless DC Planetary Gear Motor
Model: 42JXGT200K/42ZWNP59
Voltage: 12 ~ 400V DC
Rated torque up to 20N.m for continuous running
CE, UKCA, Reach and RoHS approval
Optional components: 2-channel-magnetic/optical encoder; power-on or power-off brake; cable connector; built-in/external driver
Customized flange & shaft dimensions and technical specs. are available upon requested.
Typical application: robot lawn mower


Only Motor Technical Data:


电机型号
Type
额定电压
Rated voltage
(VDC)
空载转速
No-load speed
(r/min)
额定转速
Rated speed
(r/min)
额定转矩
Rated torque (mN.m)
额定电流
Rated current
(A)
输出功率Output power (W)
10-pole, 3-phase 42ZWNP59-2440
24
4000
3000
68
1.2
21






Gear Motor Technical Data:


型号
Model No.
减速比
Reduction ratio
减速级数
Number of gear trains
减速器长度
Length(L)
mm
空载转速
No-load speed
r/min
额定转速
Rated speed r/min
额定转矩
Rated torque
N.m
最大瞬间允许负载
N.m Max. permissible load in a short time







10-pole, 3-phase 42ZWNP59-2440
4.44
1
37.5
901
676
0.27
6
17
2
48
235
176
0.94
25
22
2
48
182
136
1.2
25
65
3
58.3
62
46
3.2
50
83
3
58.3
48
36
4.1
50
106
3
58.3
38
28
5.3
50
247
4
68.6
16
12
11
60
316
4
68.6
13
9
14
60
403
4
68.6
10
7
18
60
515
4
68.6
7.8
5.8
20
60

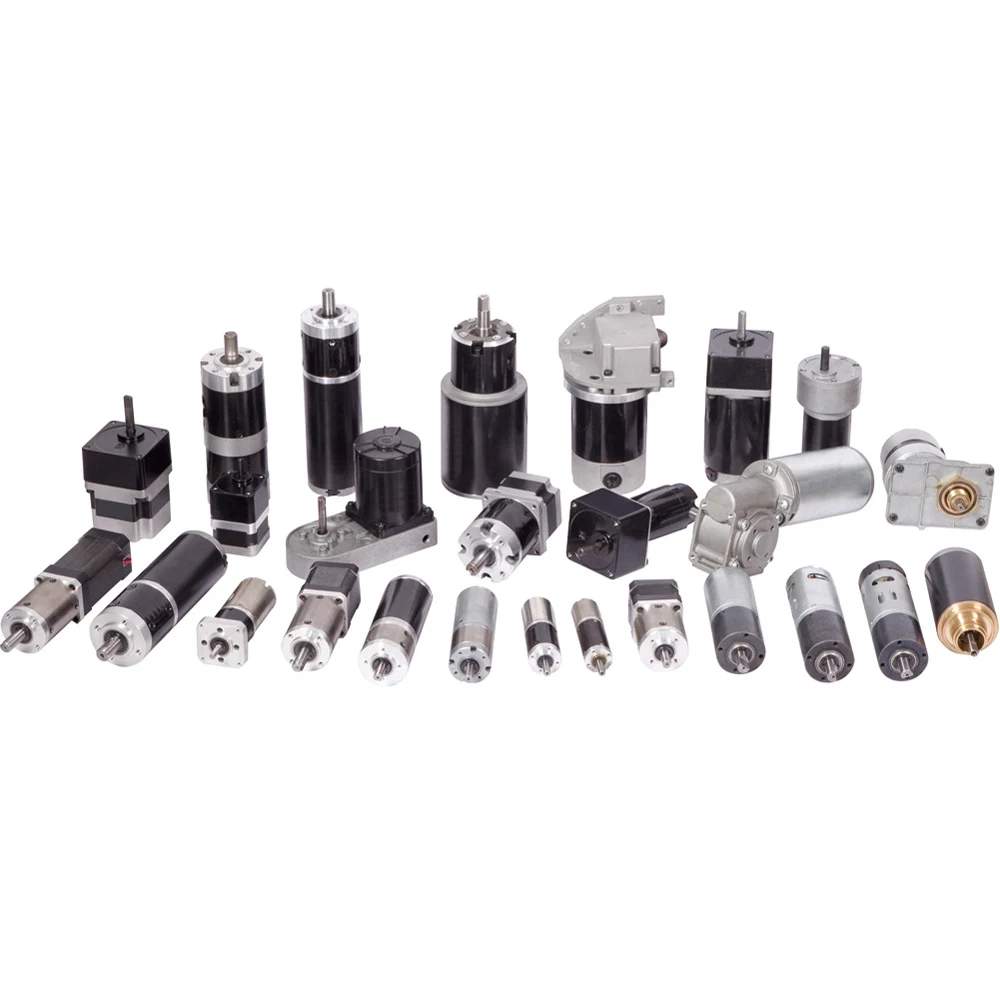

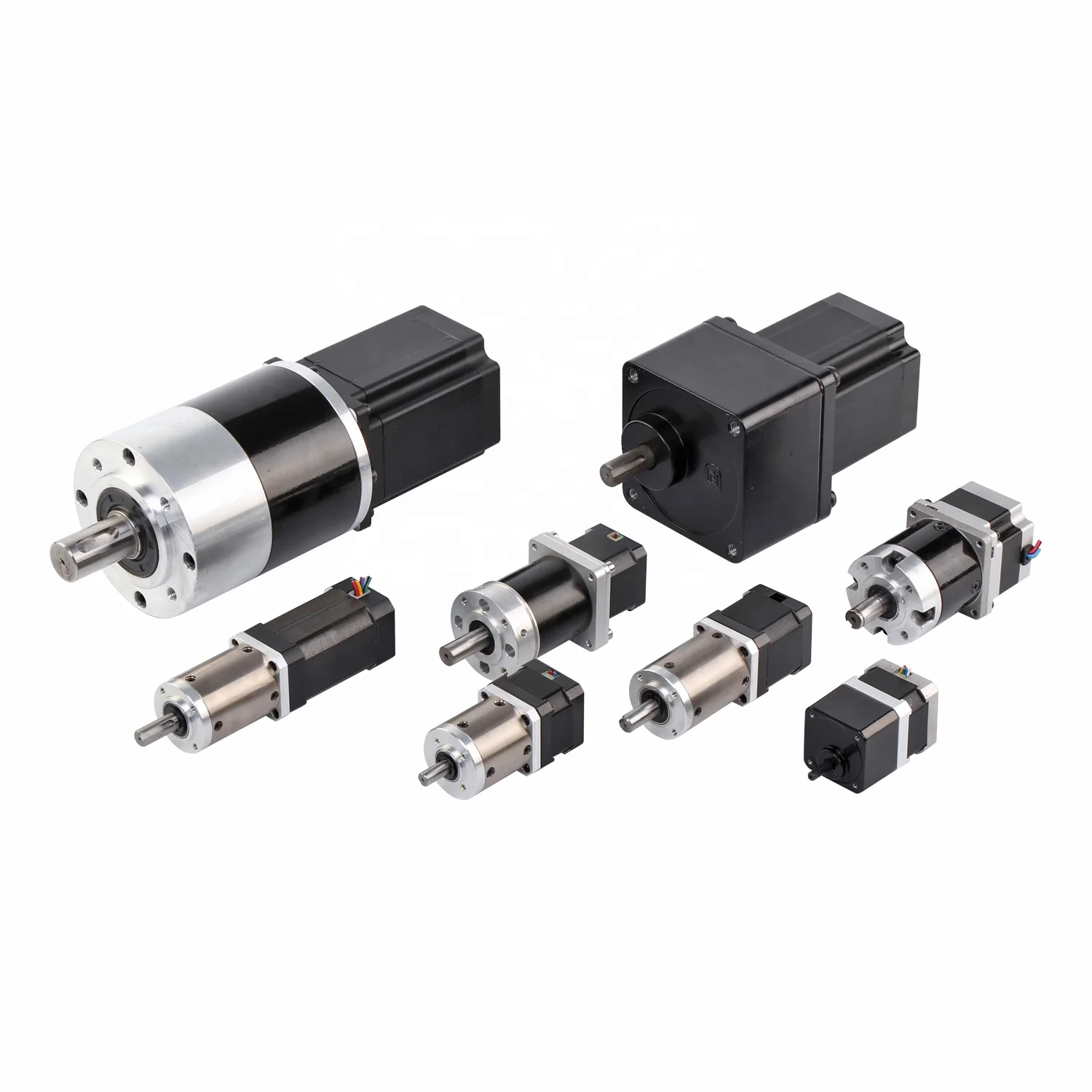

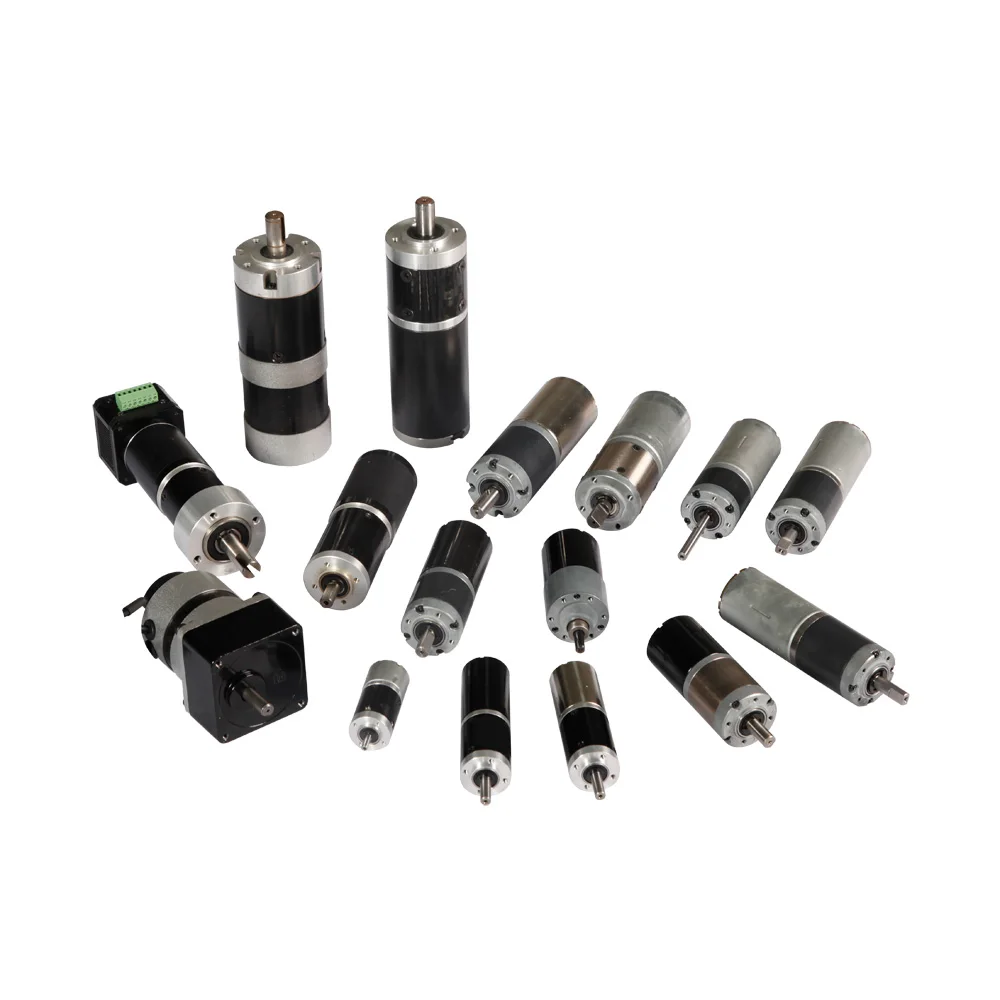

More Products:


DC Planetary Gear Motors Characteristics
Gearbox diameter
16 ~ 120MM
Gear ratio
3.6 : 1 ~ 2000 : 1
Motor type
Brushed DC Motors, Brushless DC Motors, Stepper Motor
Motor diameter
20 ~ 170mm
Nominal voltage
6V ~ 400V DC
Nominal speed
1 ~ 900rpm
Rated torque
Up to 1000N.m
Nominal power
Up to 5KW
IP rating
Up to IP68
Option
Magnetic/optical encoder, power-on/power-off brake, connector


Customized Gear Motors for Typical Applications
Tarp Gear Motors


Slow Juicer Motors

Curtain & Window Motors
Robot Pool Cleaner Motors
Door & Gate Motors


Robot Lawn Mower Motors

Automatic Pool Cover Motors
Solar Tracking System Motors
