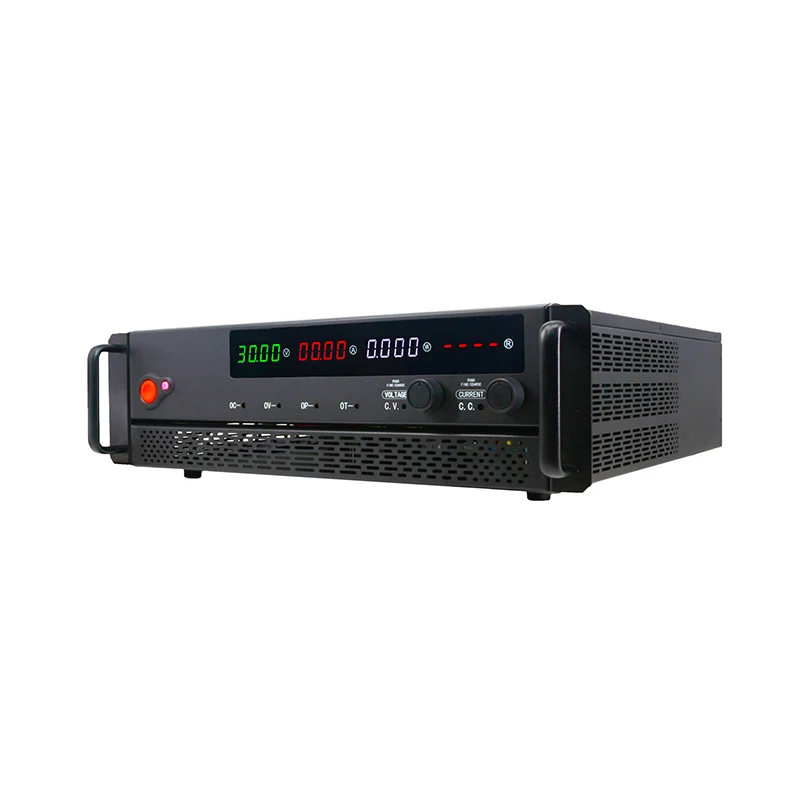

MYAMI MY-K60003U 600V 3A 1800W dc rectifier power supply High power programmable cabinet type DC power supply rectifier
0-600V/0-3A variable/1800W
4 LED digital
4 LED digital
Application:
(1) Aerospace Testing
(1) Aerospace Testing
(2) Photovoltaic and energy storage system
(3) New energy vehicle
(4) Data center
(5) Industrial motor
(6) Power semiconductor module
(7) Automated test system (ATE)
(8) Lithium fuel cell
(9) Aging of electronic equipment
(10) Precision electroplating, splashing and surface treatment
(3) New energy vehicle
(4) Data center
(5) Industrial motor
(6) Power semiconductor module
(7) Automated test system (ATE)
(8) Lithium fuel cell
(9) Aging of electronic equipment
(10) Precision electroplating, splashing and surface treatment
Feature:

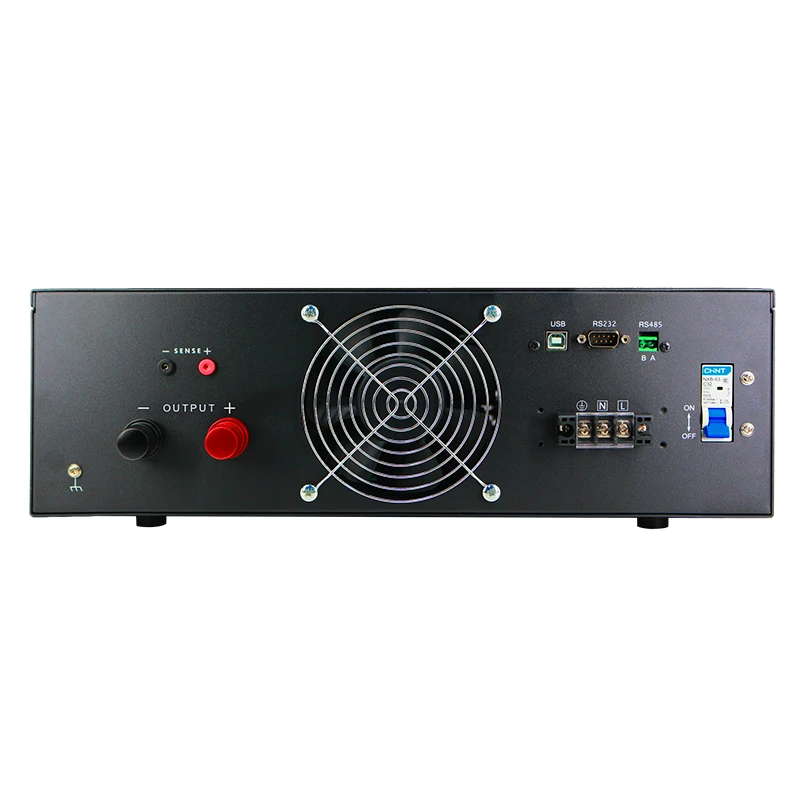

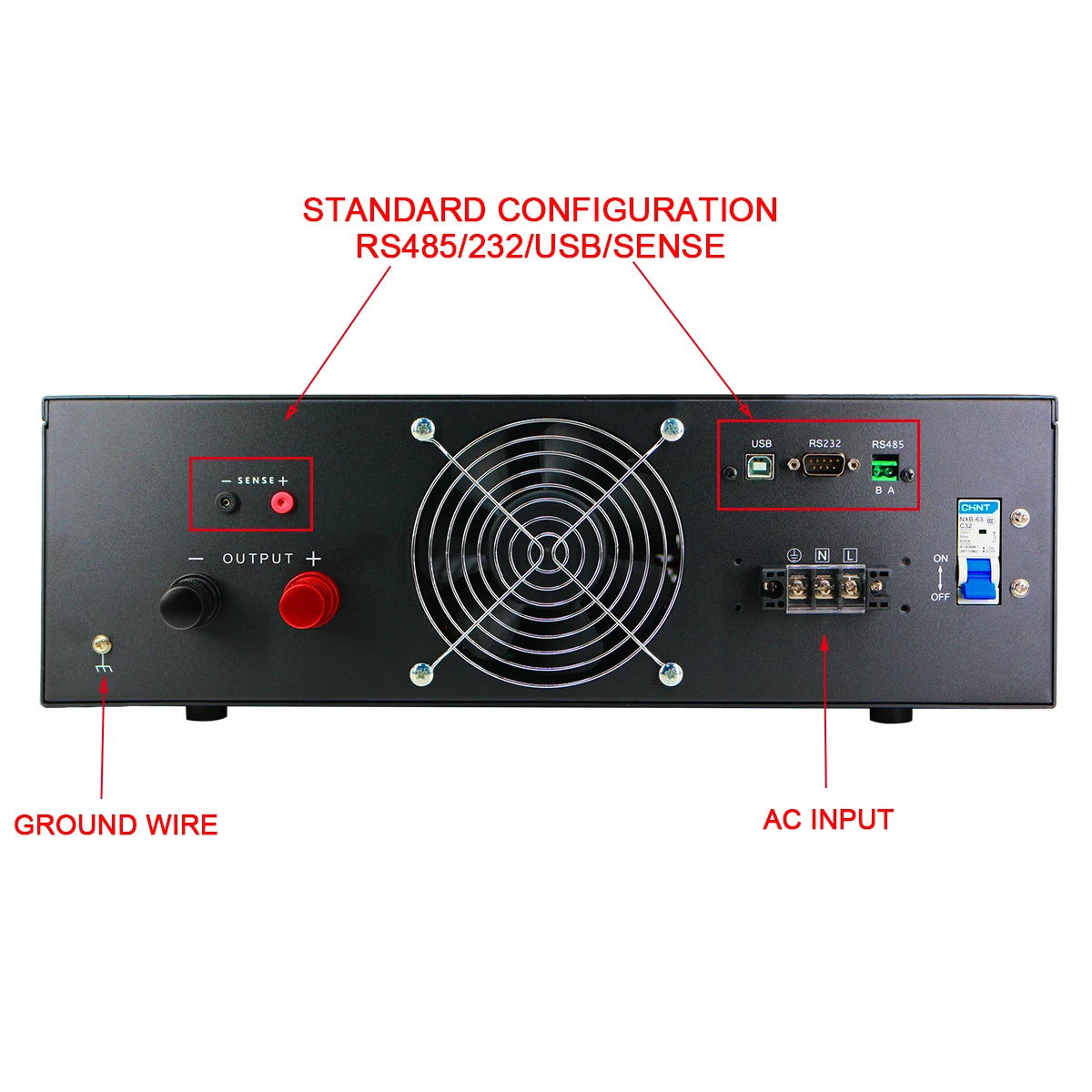

(1) RS485/RS232/USB serial port is standard;(3 select 1 to use, cannot be used at the same time)
(2) SENSE serial port is standard;
(3) MUDBUS communication protocol;
(2) SENSE serial port is standard;
(3) MUDBUS communication protocol;
Specification
Rated DC output (0℃~ 40℃) | ||
Voltage | 0-600V | |
Current | 0-3A | |
Voltage stability | ≤±(0.2%+5 digits) | |
Current stability | ≤±(0.5%+5 digits) | |
Load stability | ≤0.5% | |
Ripple & noise | ≤1% | |
Display resolution | ||
Voltage resolution | 10mV | |
Current resolution | 10mA | |
Power resolution | 1mW | |
Load resistance | 1mR | |
Operating environment | ||
Elevation | ≤2000m | |
Relative humidity | ＜80% | |
Environment temperature | 5℃~ 40℃ | |
Storage environment | ||
Environment temperature | -20~ 80℃ | |
Relative humidity | ≤80% | |
Power input | ||
Input | AC220V±10%,50/60Hz | |
Size | ||

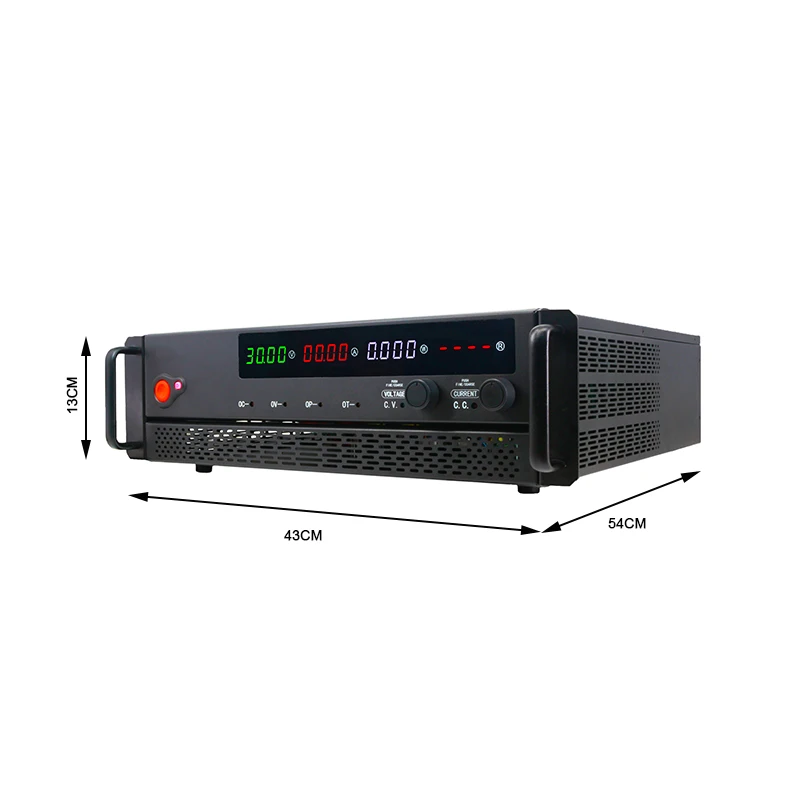

Fuselage size | 540(D)×430(W)×130(H)mm | |
Package size | 600(D)×540(W)×234(H)mm | |
Weight | 15Kg | |
Model | Voltage | Current | Display | Accuracy |
MY-K15100U | 0-15V | 0-100A | 4 LED | ≤±(0.2%+5 digits) |
MY-K2050U | 0-20V | 0-50A | 4 LED | ≤±(0.2%+5 digits) |
MY-K3050U | 0-30V | 0-50A | 4 LED | ≤±(0.2%+5 digits) |
MY-K3060U | 0-30V | 0-60A | 4 LED | ≤±(0.2%+5 digits) |
MY-K3080U | 0-30V | 0-80A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30100U | 0-30V | 0-100A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30150U | 0-30V | 0-150A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30200U | 0-30V | 0-200A | 4 LED | ≤±(0.2%+5 digits) |
MY-K5020U | 0-50V | 0-20A | 4 LED | ≤±(0.2%+5 digits) |
MY-K5030U | 0-50V | 0-30A | 4 LED | ≤±(0.2%+5 digits) |
MY-K5050U | 0-50V | 0-50A | 4 LED | ≤±(0.2%+5 digits) |
MY-K5060U | 0-50V | 0-60A | 4 LED | ≤±(0.2%+5 digits) |
MY-K6020U | 0-60V | 0-20A | 4 LED | ≤±(0.2%+5 digits) |
MY-K6030U | 0-60V | 0-30A | 4 LED | ≤±(0.2%+5 digits) |
MY-K6050U | 0-60V | 0-50A | 4 LED | ≤±(0.2%+5 digits) |
MY-K6060U | 0-60V | 0-60A | 4 LED | ≤±(0.2%+5 digits) |
MY-K8030U | 0-80V | 0-30A | 4 LED | ≤±(0.2%+5 digits) |
MY-K10005U | 0-100V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K10010U | 0-100V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K10020U | 0-100V | 0-20A | 4 LED | ≤±(0.2%+5 digits) |
MY-K10030U | 0-100V | 0-30A | 4 LED | ≤±(0.2%+5 digits) |
MY-K12010U | 0-120V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K12020U | 0-120V | 0-20A | 4 LED | ≤±(0.2%+5 digits) |
MY-K12030U | 0-120V | 0-30A | 4 LED | ≤±(0.2%+5 digits) |
MY-K15005U | 0-150V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K15010U | 0-150V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K20002U | 0-200V | 0-2A | 4 LED | ≤±(0.2%+5 digits) |
MY-K20003U | 0-200V | 0-3A | 4 LED | ≤±(0.2%+5 digits) |
MY-K20005U | 0-200V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K22010U | 0-220V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K22020U | 0-220V | 0-20A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30002U | 0-300V | 0-2A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30003U | 0-300V | 0-3A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30005U | 0-300V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30010U | 0-300V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30020U | 0-300V | 0-20A | 4 LED | ≤±(0.2%+5 digits) |
MY-K40002U | 0-400V | 0-2A | 4 LED | ≤±(0.2%+5 digits) |
MY-K40003U | 0-400V | 0-3A | 4 LED | ≤±(0.2%+5 digits) |
MY-K40005U | 0-400V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K40010U | 0-400V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K50002U | 0-500V | 0-2A | 4 LED | ≤±(0.2%+5 digits) |
MY-K50003U | 0-500V | 0-3A | 4 LED | ≤±(0.2%+5 digits) |
MY-K50005U | 0-500V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K50010U | 0-500V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K60002U | 0-600V | 0-2A | 4 LED | ≤±(0.2%+5 digits) |
MY-K60003U | 0-600V | 0-3A | 4 LED | ≤±(0.2%+5 digits) |
MY-K60005U | 0-600V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K80001U | 0-800V | 0-1A | 5 LED | ≤±(0.2%+5 digits) |
MY-K80002U | 0-800V | 0-2A | 6 LED | ≤±(0.2%+5 digits) |
MY-K80003U | 0-800V | 0-3A | 7 LED | ≤±(0.2%+5 digits) |
MY-K80005U | 0-800V | 0-5A | 8 LED | ≤±(0.2%+5 digits) |
MY-K80006U | 0-800V | 0-6A | 9 LED | ≤±(0.2%+5 digits) |
