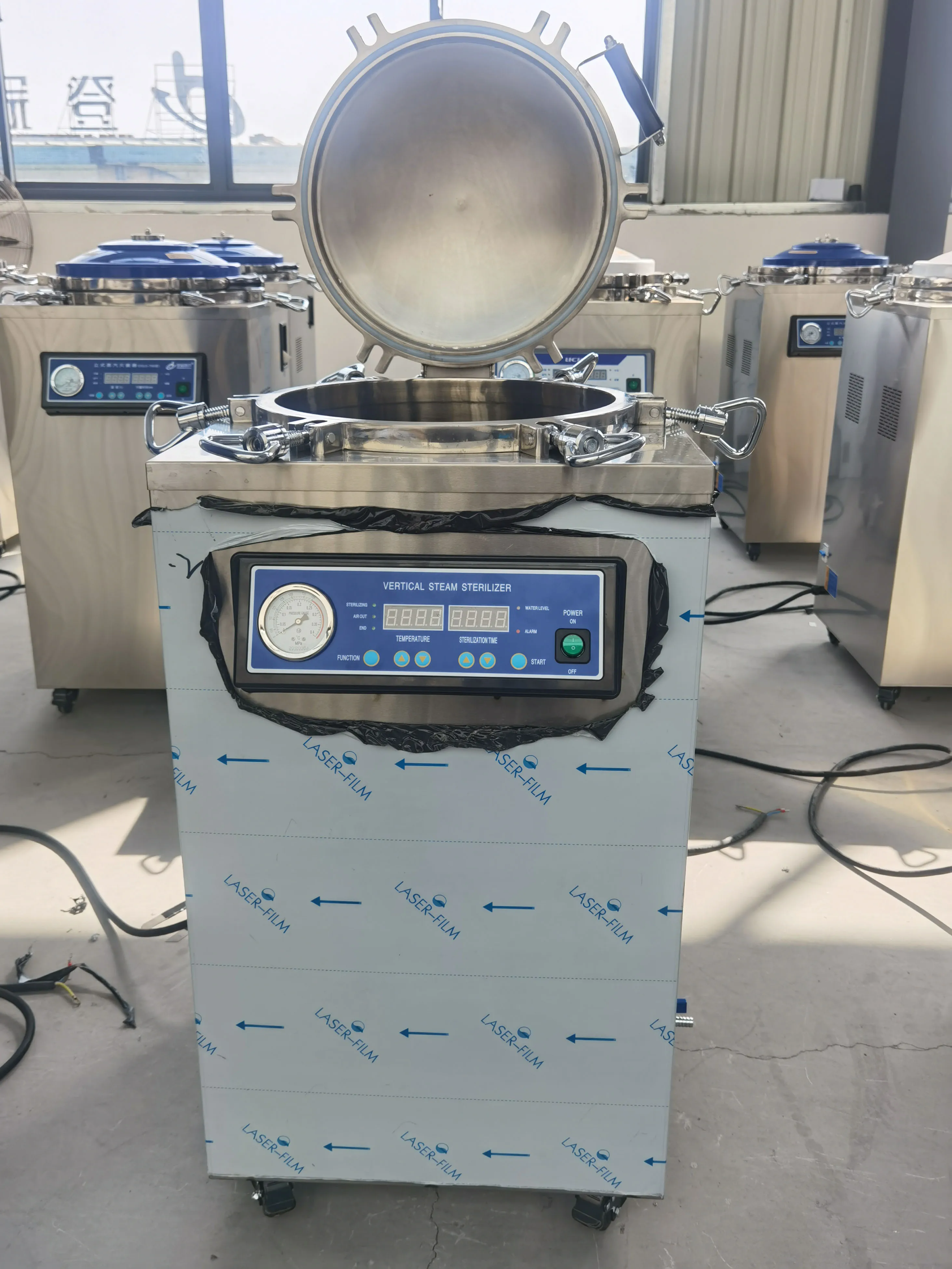

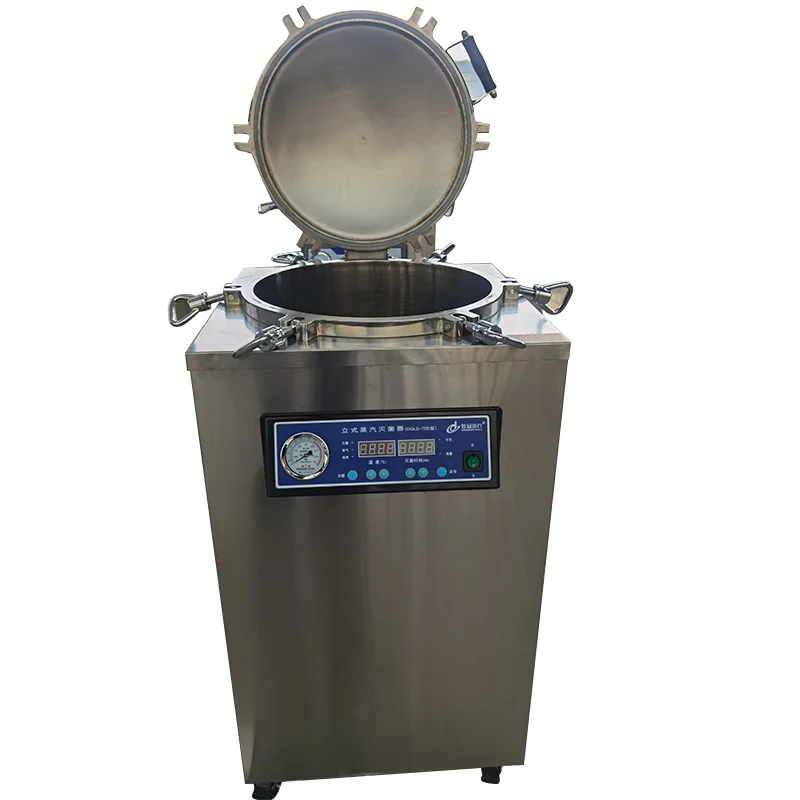

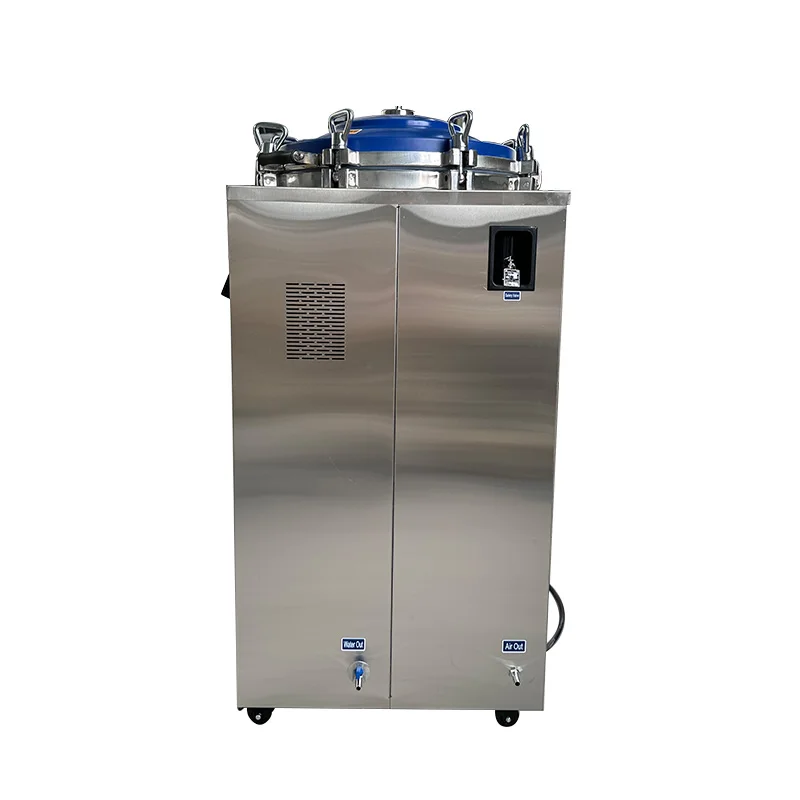

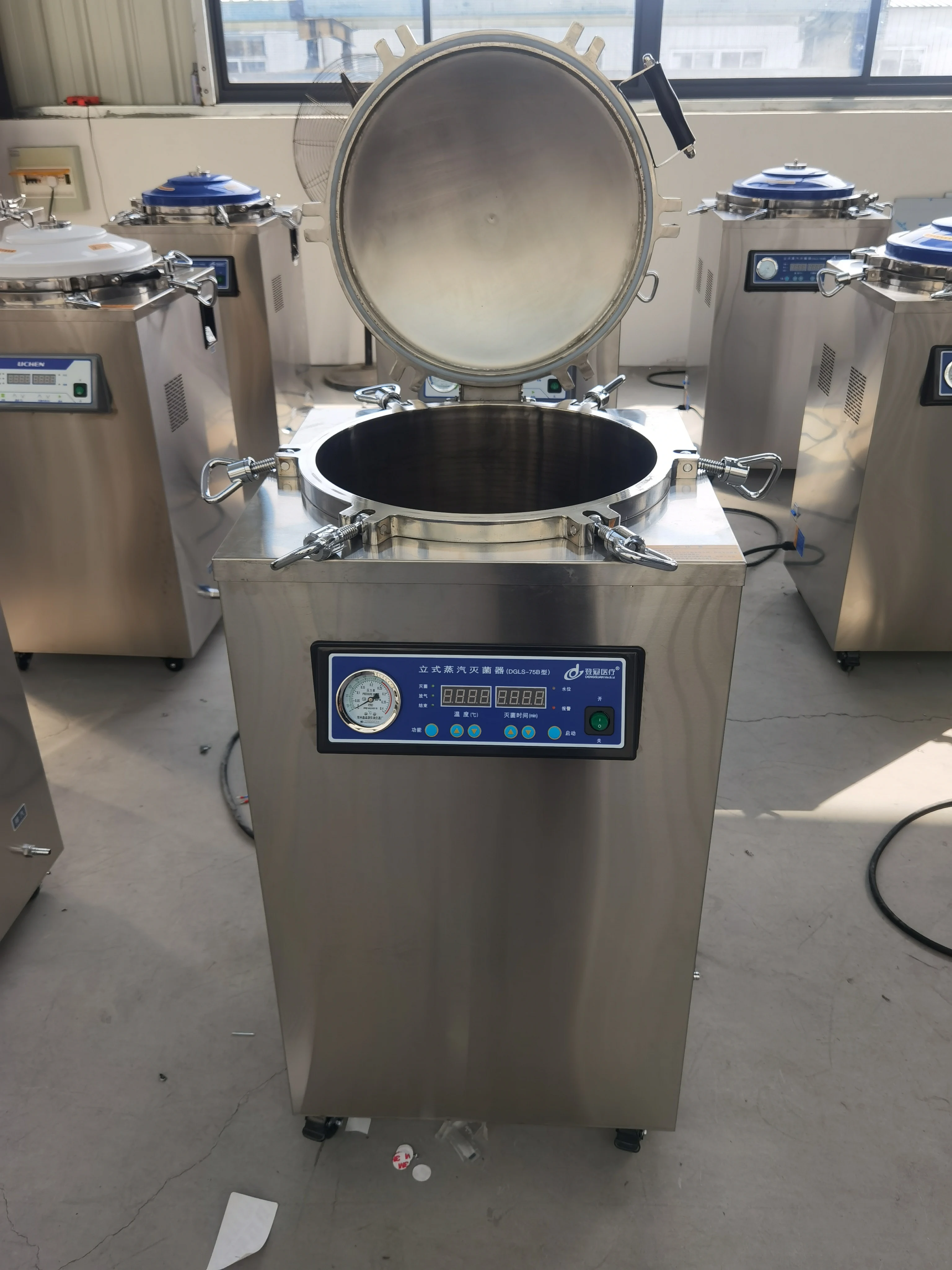

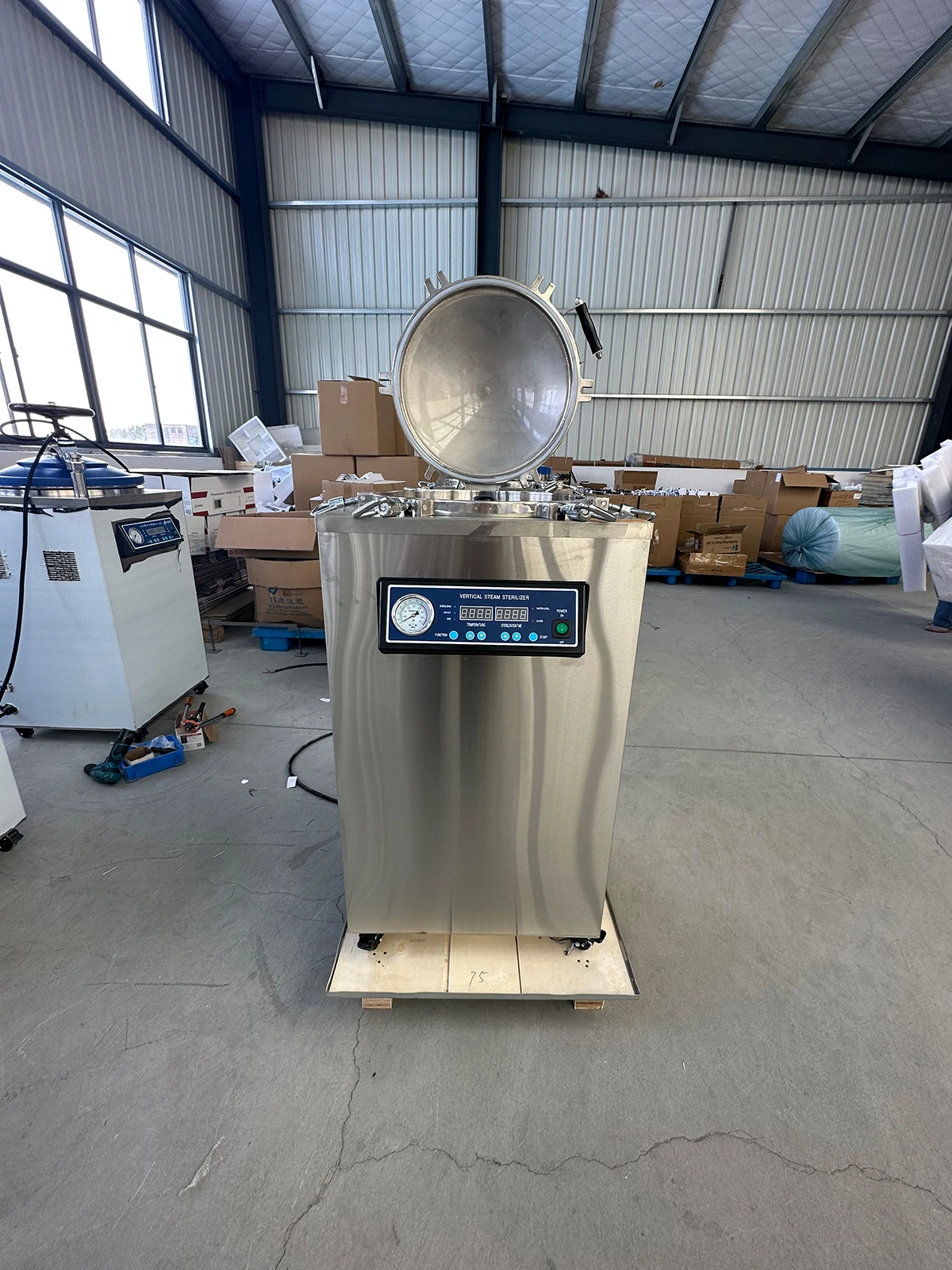

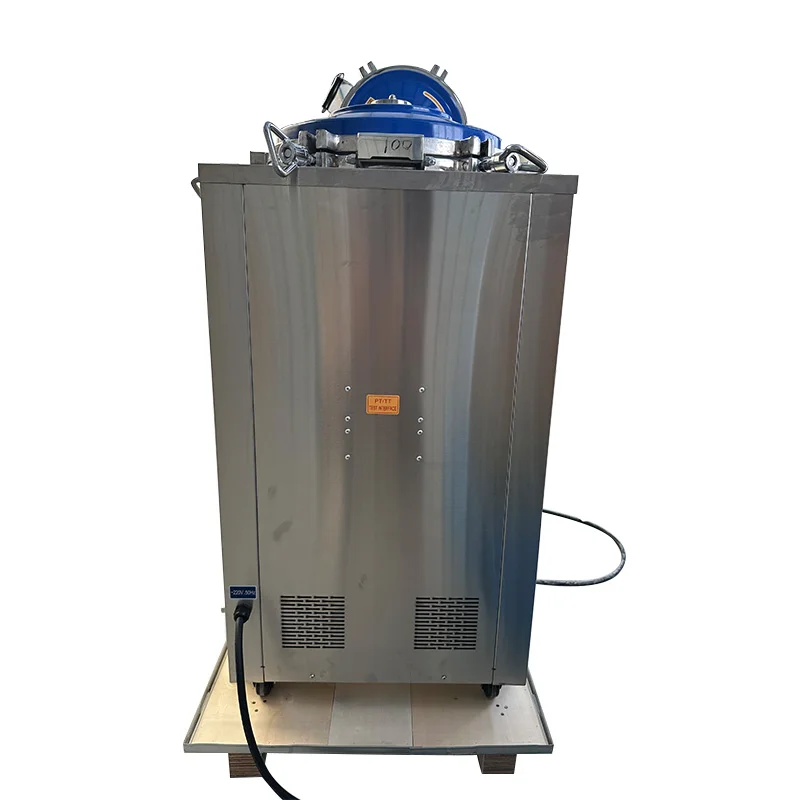

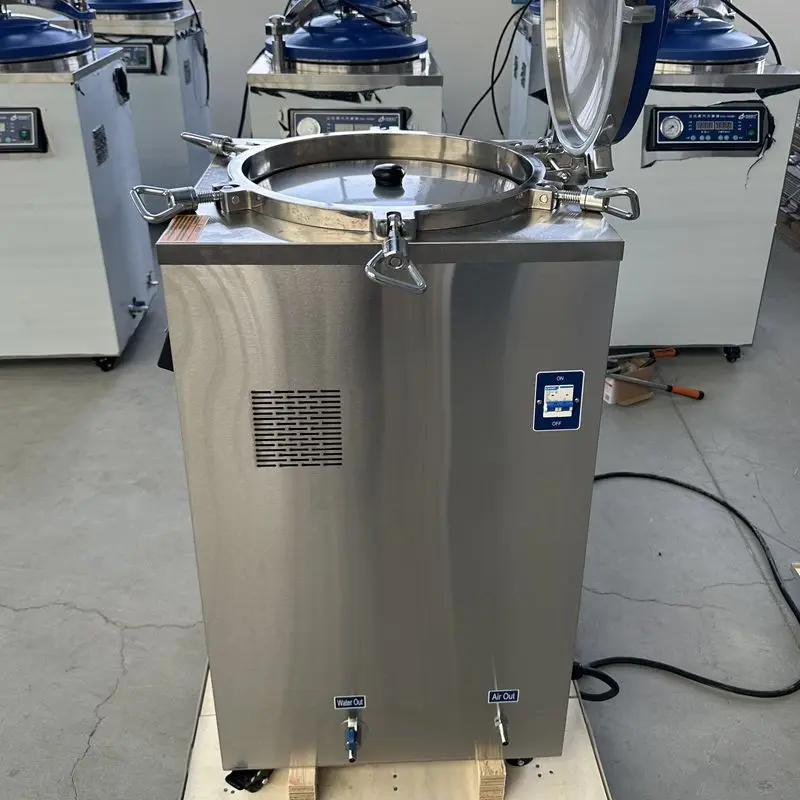

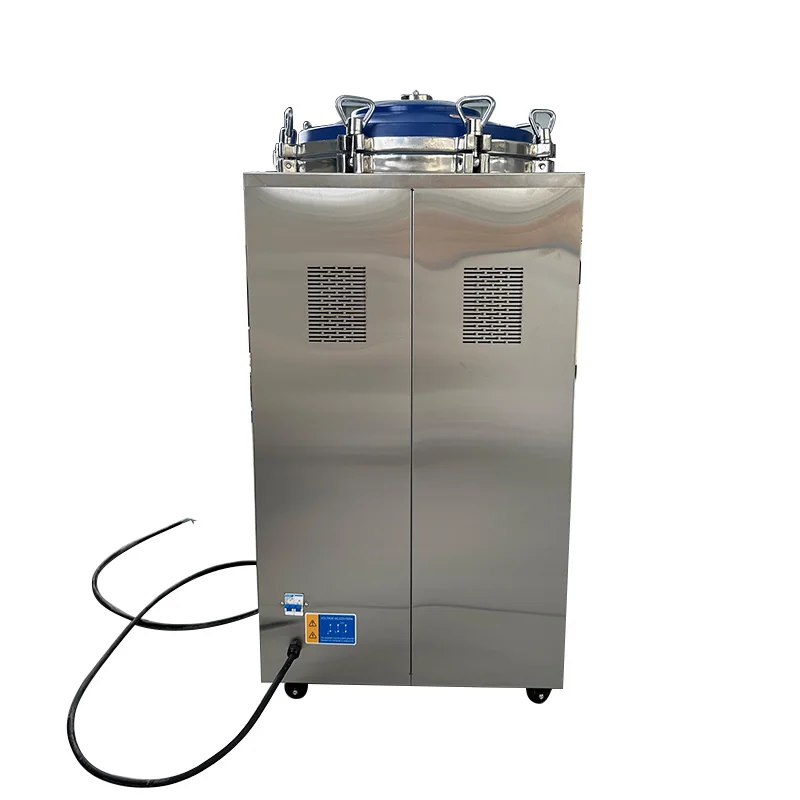

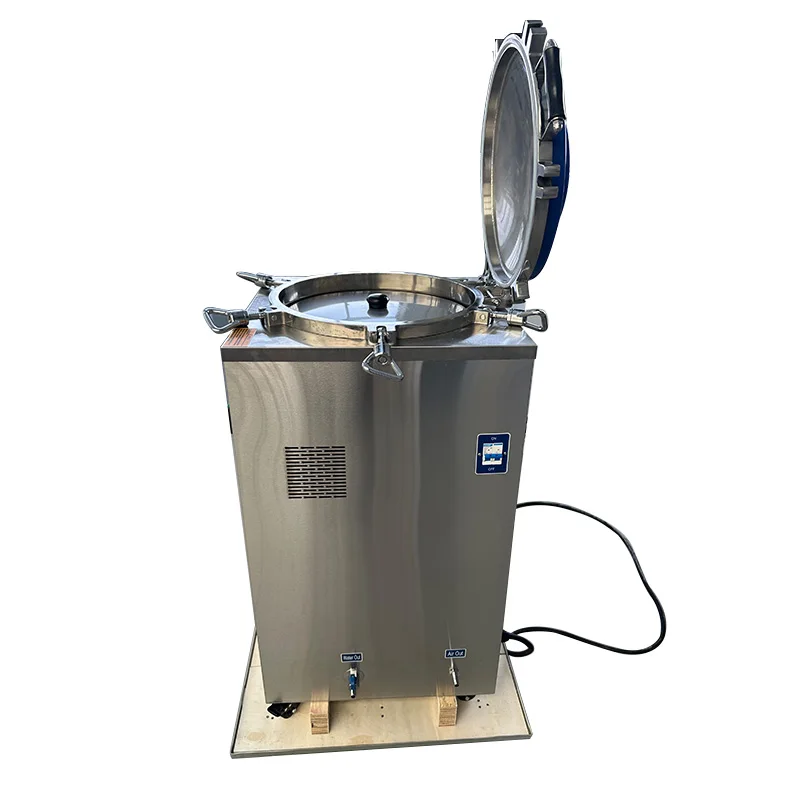

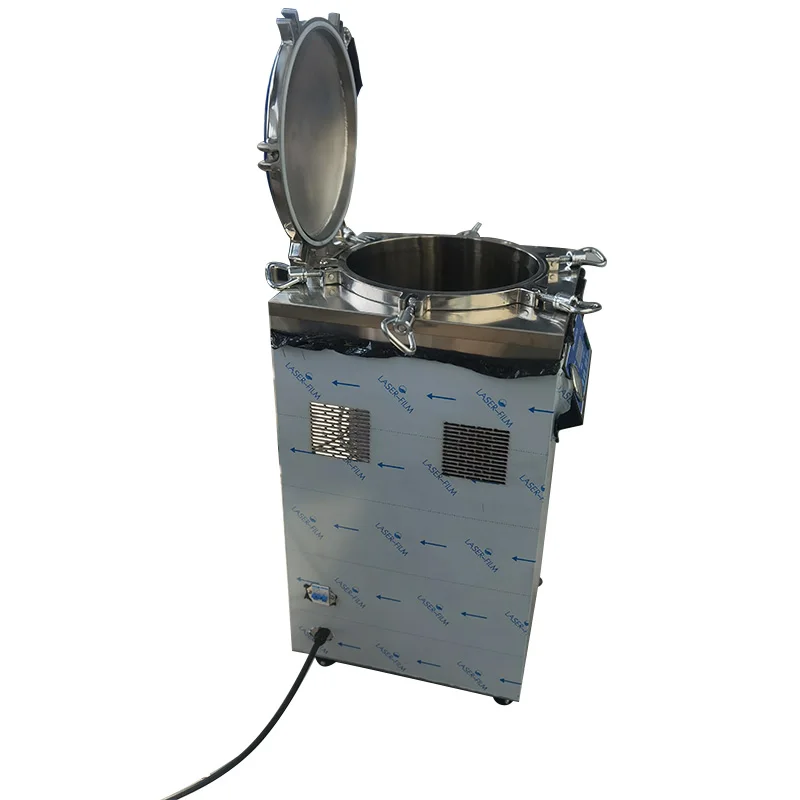

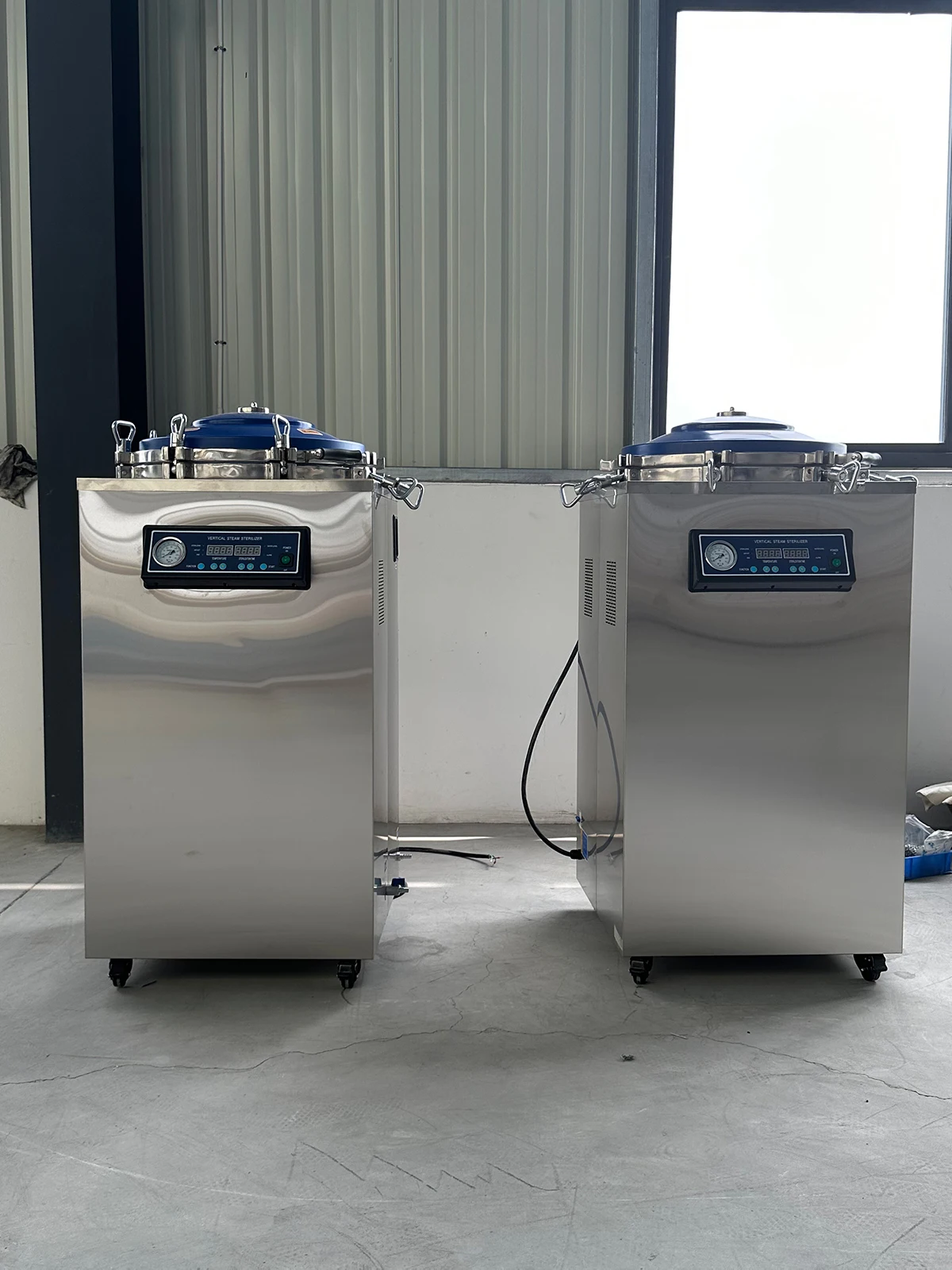

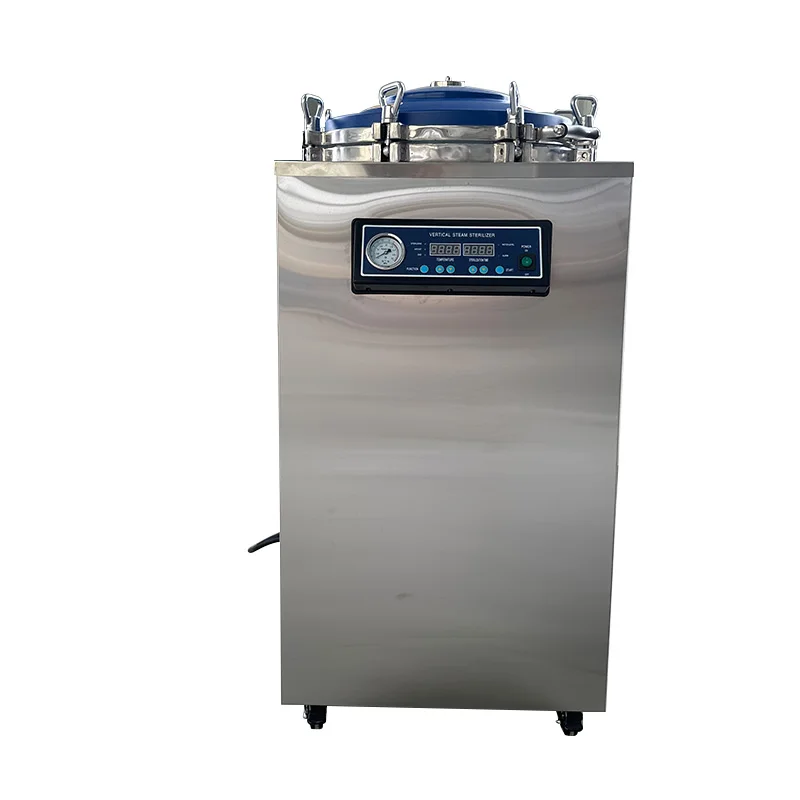

Professional manufacturer vertical high pressure steam sterilizer autoclave lab instrument vertical autoclave
- Category: >>>
- Supplier: Hefei Sada Medical Equipment Co. Ltd.
Share on (1601024894909):
Product Overview
Description
Model Technical parameter | VA-FB35 | VA-FB50 | VA-FB75 | VA-FB100 | VA-FB120 | VA-FB150 | |||||
Volume | 35L | 50L | 75L | 100L | 120L | 150L | |||||
Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW | 4.5kW | 6.0KW | |||||
Voltage | AC 220V/50HZ | ||||||||||
Rated working pressure | 0.22Mpa | ||||||||||
Rated working temperature | 134℃ | ||||||||||
Sterilization temperature | 50℃~134℃ | ||||||||||
Sterilization time setting range | 4~120 min | ||||||||||
Chamber volume | Ø300×500 | Ø350×525 | Ø400×625 | Ø450×650 | Ø450×760 | Ø500×780 | |||||
Bucket dimension | Ø280×400 | Ø330×480 | Ø380×560 | Ø420×540 | Ø420×660 | Ø470×720 | |||||
Basket dimension（optional） | Not optional | Ø320×240×2 | Ø360×280×2 | Ø410×300×2 | Ø410×350×2 | Ø460×350×2 | |||||
Outer dimension | 400×400×860 | 480×480×960 | 525×567×1020 | 555×555×1080 | 555×599×1200 | 605×649×1210 | |||||
Packing size(L× W× H )mm | 550×500×1030 | 580×630×1100 | 630×680×1190 | 690×650×1230 | 690×650×1330 | 750×700×1370 | |||||
Gross/net weight | 58/41KG | 75/53KG | 82/61KG | 103/78KG | 108/82KG | 116/90KG | |||||
Safety Features:

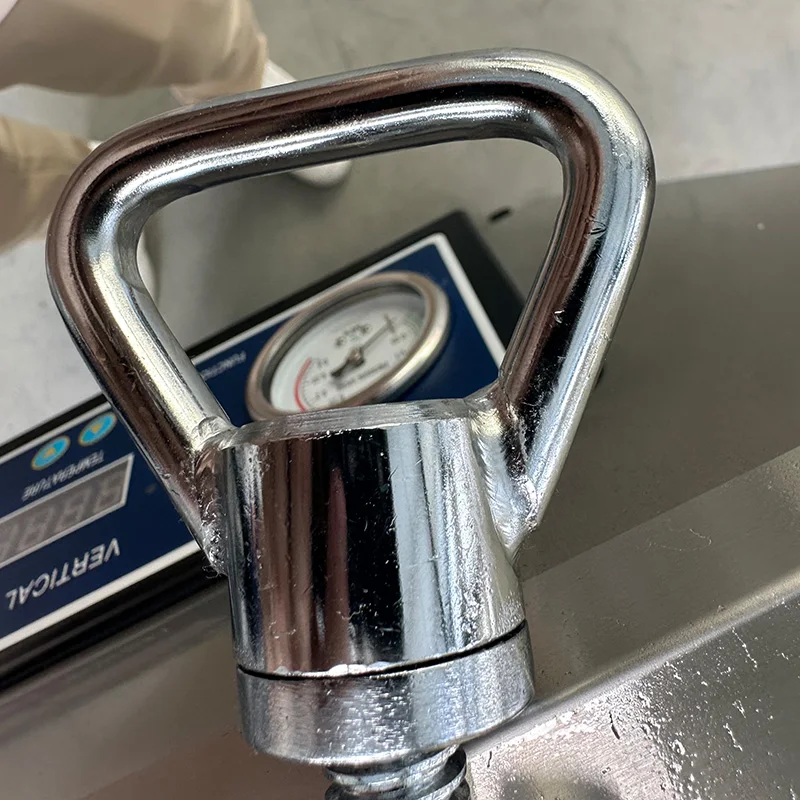

1、Bolt structure
2、High quality stainless steel material
3、Microcomputer automatic control, arbitrary set of sterilization parameters
4、Safety interlocking device

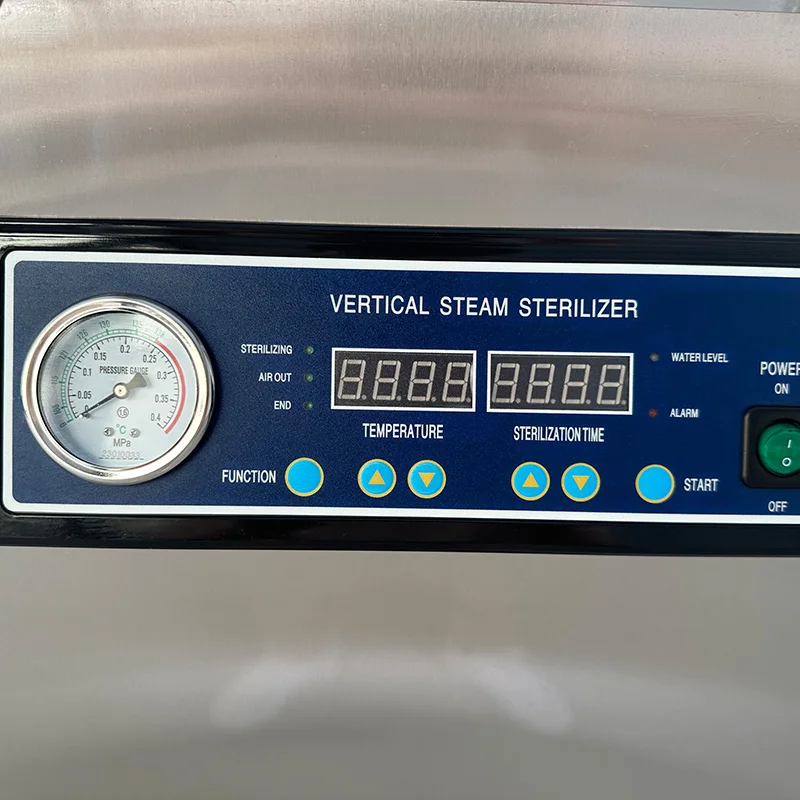

5、Digital display and touch buttons
6、Standard test interface
7、Self-expanding seal
8、The container with automatic protection function: over temperature protection; over pressure protection self discharge; low water level protection, anti dry burning
9、With stainless steel bucket or basket
10、Buzzer reminder after sterilization, automatic stop.
11、Automatic cooling air，sterilization end automatic exhaust steam
2、High quality stainless steel material
3、Microcomputer automatic control, arbitrary set of sterilization parameters
4、Safety interlocking device
5、Digital display and touch buttons
6、Standard test interface
7、Self-expanding seal
8、The container with automatic protection function: over temperature protection; over pressure protection self discharge; low water level protection, anti dry burning
9、With stainless steel bucket or basket
10、Buzzer reminder after sterilization, automatic stop.
11、Automatic cooling air，sterilization end automatic exhaust steam
Application:
Medical Instrument Sterilization Autoclave are widely used in microbiology, medicine, podiatry, tattooing, body piercing,
veterinary science, mycology, funeral homes, dentistry, and prosthetics fabrication.
They vary in size and function depending on the media to be sterilized. Typical loads include laboratory glassware, other
equipment and waste, surgical instruments and medical waste.
Sterilization Objects: Unwrapped or Wrapped instruments, Sugircal instruments, Glassware, Liquid , Culture Media, Rubber Material, Gowns, Dressing, Gloves, etc.
Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.
Lead Time：10 – 15 working days.
veterinary science, mycology, funeral homes, dentistry, and prosthetics fabrication.
They vary in size and function depending on the media to be sterilized. Typical loads include laboratory glassware, other
equipment and waste, surgical instruments and medical waste.
Sterilization Objects: Unwrapped or Wrapped instruments, Sugircal instruments, Glassware, Liquid , Culture Media, Rubber Material, Gowns, Dressing, Gloves, etc.
Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.
Lead Time：10 – 15 working days.
1. What is your payment term ?
–We accept T/T, L/C, Western Union, etc.
2.What is your delivery time ?
— 15-35 working days based on order qty.
3.Would you offer FROM A , FROM E or C/O and other Embassy certification ?
–No problem , we would apply for this certificate to government .
4.Can you use our LOGO ?
— YES, we can use your logo.
5.Where is your market ?
— Our products are popular in Africa, South America, Russia,the Middle East, Southeast Asia and more than 70 countries and regions all over the world.
6. Can you supply OEM items?
— We can supply OEM items because we have our own R&D team.
7. Which country can you delivery?
— We delivery the order to the worldwide.
–We accept T/T, L/C, Western Union, etc.
2.What is your delivery time ?
— 15-35 working days based on order qty.
3.Would you offer FROM A , FROM E or C/O and other Embassy certification ?
–No problem , we would apply for this certificate to government .
4.Can you use our LOGO ?
— YES, we can use your logo.
5.Where is your market ?
— Our products are popular in Africa, South America, Russia,the Middle East, Southeast Asia and more than 70 countries and regions all over the world.
6. Can you supply OEM items?
— We can supply OEM items because we have our own R&D team.
7. Which country can you delivery?
— We delivery the order to the worldwide.
