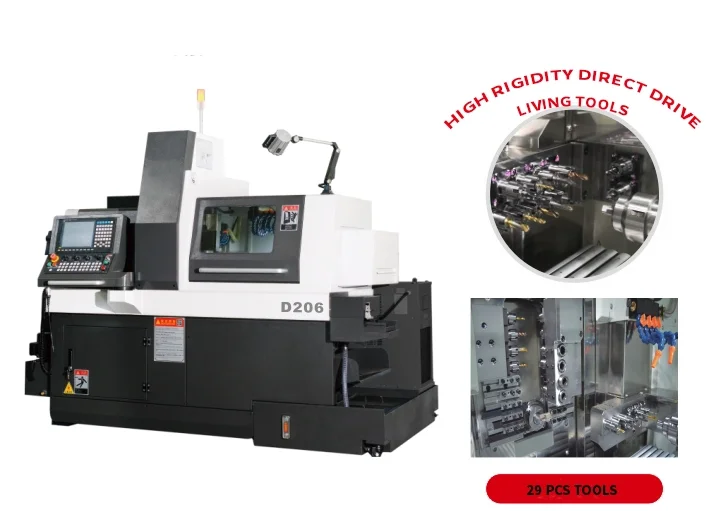

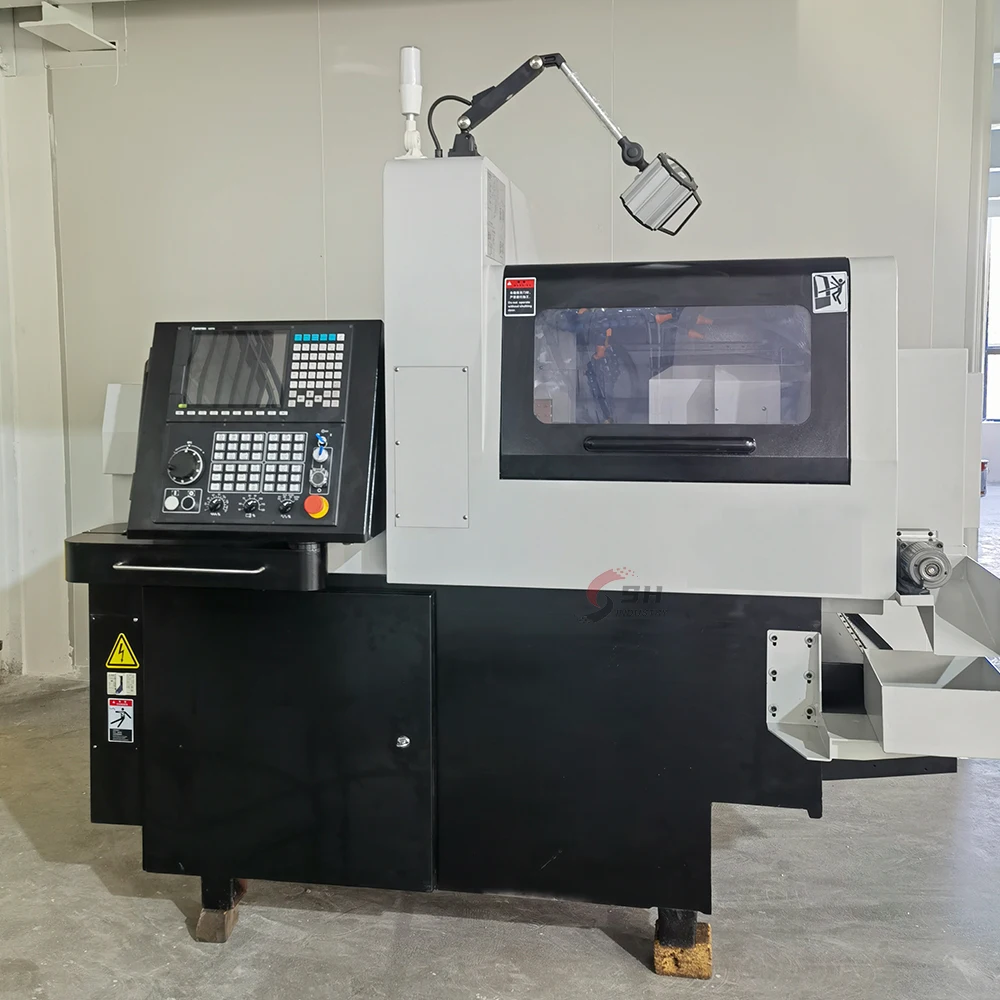

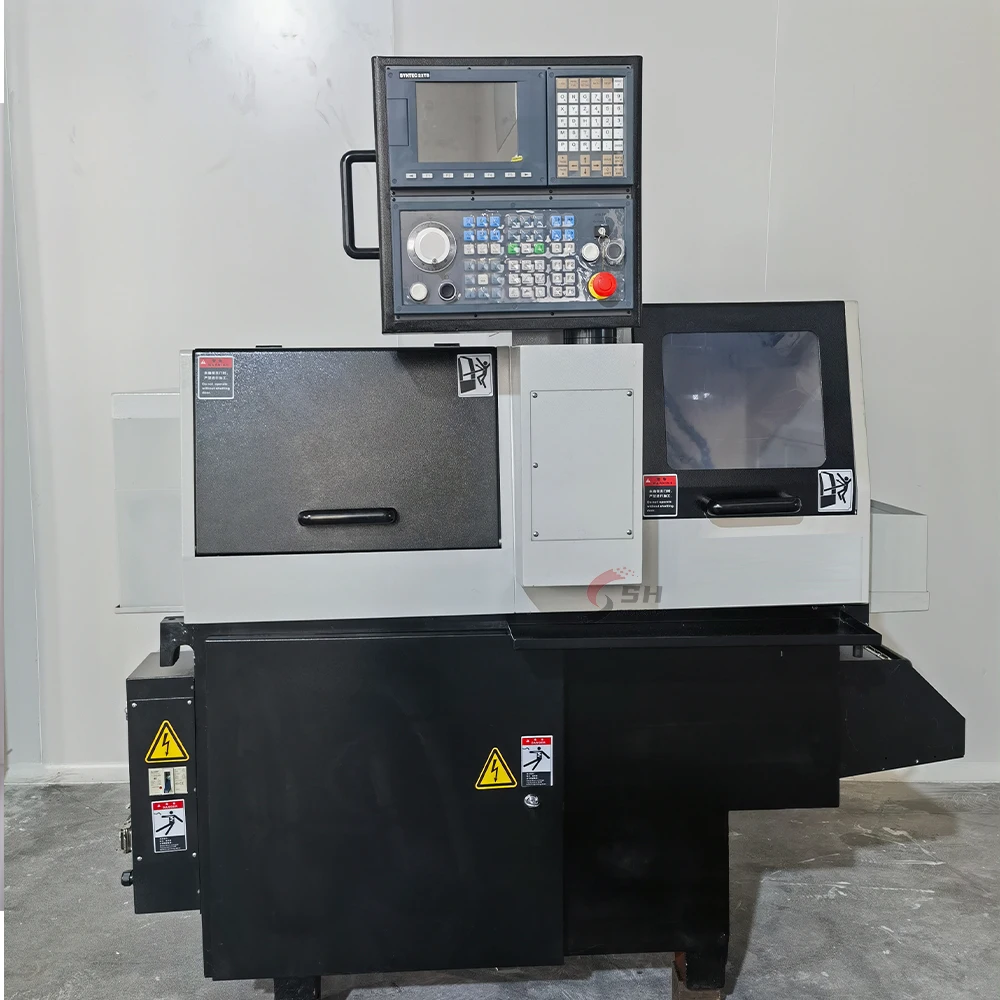

Good Quality CNC lathe machine D206 CNC Swiss type lathe for metal
- Category: >>>
- Supplier: Zaozhuang Shenghuan Cnc Machine Tool Co. Ltd.
Share on (1601024902165):
Product Overview
Description
FEATURES AT A GLANCE
6 Axis powerful function, super high efficient processing mode;
X/Y/ Z axial motor high power 850W /750W large inertia servo motor;
The screw nut is a dual nut, strong rigid cutting; bearing fixing method, maintaining high accuracy;
The screw guide rail is 25mm, the large guide 10mm thread distance is fast, the movement speed of the trailer workbench is 30m/min;
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | unit | D206 |
Control system | Fanuc/ Syntec | |
Rapid traverse speed | M/min | X axis 24/ other axis 30 |
Main/Sub-main spindle clamping bar diameter | mm | 5-20 |
Main/Sub-main spindle max.tapping diameter | M8 | |
Side milling living tools max.drilling diameter | mm | 10 |
Side milling living tools max.tapping diameter | M6 | |
Main/Sub-main spindle power | kw | 7.5 |
Main/Sub-main spindle speed | rpm | 10000 |
Subdivy connecting movement guide set travel | mm | 130 |
No guided set(optional) | mm | 290 |
Fixed guide set(optional) | mm | 190 |
Tools number | 8 pcs 12x12 | |
Side living tools | 4 pcs ER16 | |
Living tools max.speed | rpm | 6000 |
Spindle end tools | 4 pcs ER16 fixed tools + 2 pcs ER16 living tools | |
Sub-spindle end tools | 4 pcs ER16 fixed tools + 5 pcs ER16 fixed drilling rod | |
Machine size | mm | 2000x1100x1700 |
Machine weight | kg | 2600 |
SALES AND SERVICE NETWORK
Packing & Delivery
FAQ
1.How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,EDM Wire cutting machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,EDM Wire cutting machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
