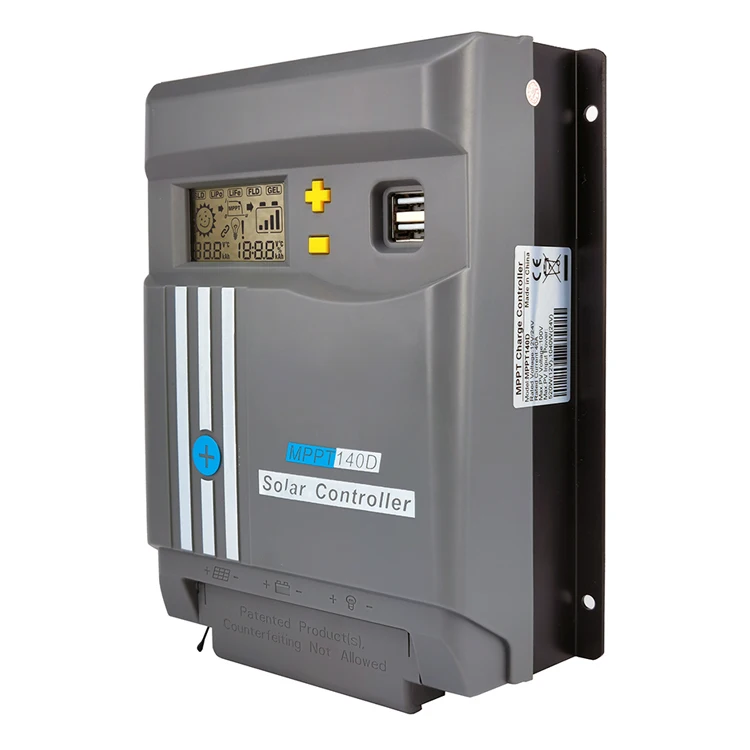

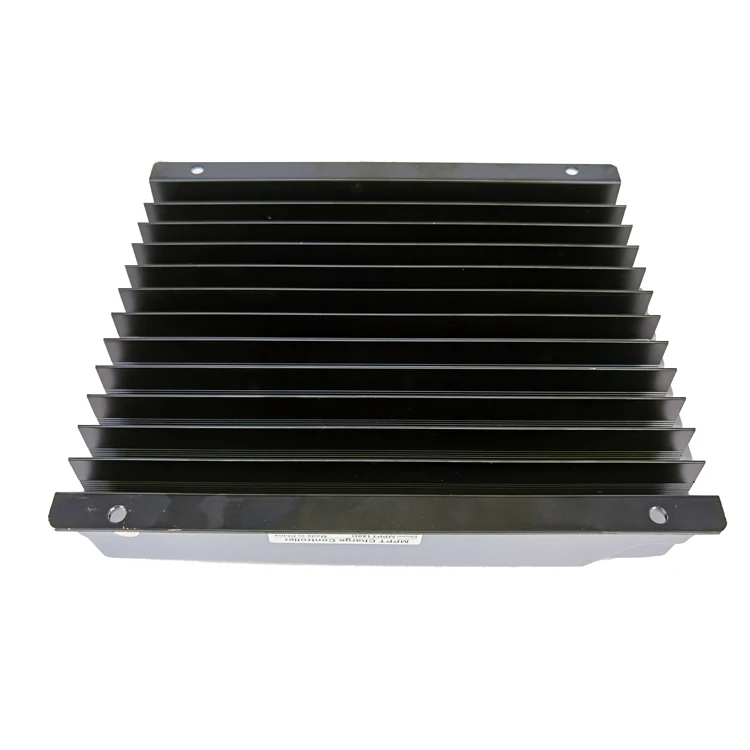

Kungf Solar Custom PCB 10 20 30 40 amp 12V 24V Auto lifepo4 Gel Lead Acid Lithium pwm Solar Battery Charger Controller
- Category: >>>
- Supplier: Jiangxi Gongtu New Energy Co. Ltd
Share on (1601024909556):
Product Overview
Description
Rated charge current | Rated charge current | 10A | 20A | 30A | 40A | 50A | 60A | |||||||
Input | ||||||||||||||
Maximum input power | 12V | 130W | 260W | 390W | 520W | 650W | 780W | |||||||
24V | 260W | 520W | 780W | 1040W | 1300W | 1560W | ||||||||
Max open voltage of solar panel | <100v | <100v | ||||||||||||
System rated voltage | 12/24V Auto recognized | |||||||||||||
Battery voltage range | 8V-32V | |||||||||||||
Output | ||||||||||||||
Rated Discharge Current | 10A | 20A | 30A | 40A | 50A | 60A | ||||||||
Battery type | User default,Sealed,Flooded,GEL,LiFePO4,Li(NiCoMn)O2 | |||||||||||||
Equalized charging voltage ※ | Maintenance-free lead-acid battery:14.6V GEL:No;Lead-acid Flooded battery:14.8V | |||||||||||||
Absorption charging voltage ※ | Maintenance-free lead-acid battery:14.4V GEL:14.2V;Lead-acid Flooded battery:14.6V | |||||||||||||
Float charging voltage ※ | Maintenance-free lead-acid battery,GEL,lead-acid Flooded battery: 13.8V | |||||||||||||
Rated charge current | 10A | 20A | 30A | 40A | 50A | 60A | ||||||||
LVR※ | Maintenance-free lead-acid battery,GEL,lead-acid Flooded battery 12.6V | |||||||||||||
LVD ※ | Maintenance-free lead-acid battery,GEL,lead-acid Flooded battery: 10.8V | |||||||||||||
Static loss | ≤50mA | |||||||||||||
HVD | Lead acid battery 16V | |||||||||||||
Light control voltage | 5V/10V | |||||||||||||
Temperature compensation coefficient | -4mV/°C/2V(25°C) | |||||||||||||
Discharge loop voltage drop | ≤0.2V | |||||||||||||
LCD temperature | -20℃~+70 ℃ | |||||||||||||
Operating temperature | -20*℃~+55℃ | |||||||||||||
Storage temperature | -30～+80 ℃ | |||||||||||||
Working humidity | ≤90%,No condensation | |||||||||||||
Protection class | IP30 | |||||||||||||
Grounded type | Positive grounded | |||||||||||||
Aperture for installation | 中 5 mm | |||||||||||||
※ Above the parameters are in 12V system at 25°C,twice in 24V system | ||||||||||||||
