Machine for 200m Drilling Water Well Drilling Rig Drill Pipe with Twin Cylinder Air Cooled Engine
Machine for 200m Drilling Water Well Drilling Rig Drill Pipe with Twin Cylinder Air Cooled Engine
Machine for 200m Drilling Water Well Drilling Rig Drill Pipe with Twin Cylinder Air Cooled Engine
Machine for 200m Drilling Water Well Drilling Rig Drill Pipe with Twin Cylinder Air Cooled Engine
Machine for 200m Drilling Water Well Drilling Rig Drill Pipe with Twin Cylinder Air Cooled Engine
Machine for 200m Drilling Water Well Drilling Rig Drill Pipe with Twin Cylinder Air Cooled Engine
Machine for 200m Drilling Water Well Drilling Rig Drill Pipe with Twin Cylinder Air Cooled Engine

Machine for 200m Drilling Water Well Drilling Rig Drill Pipe with Twin Cylinder Air Cooled Engine

Share on (1601024918604):


Price:$6,899.00 - $6,999.00

Quantity:


Product Overview

Description





Special Notice：
The listed price is only a deposit for the product and does not include shipping fees. if you want to know the specific price of the product, please provide us with your specific requirements and click here to contact us. We will promptly provide you with a detailed quotation. We hope to have a pleasant cooperation!

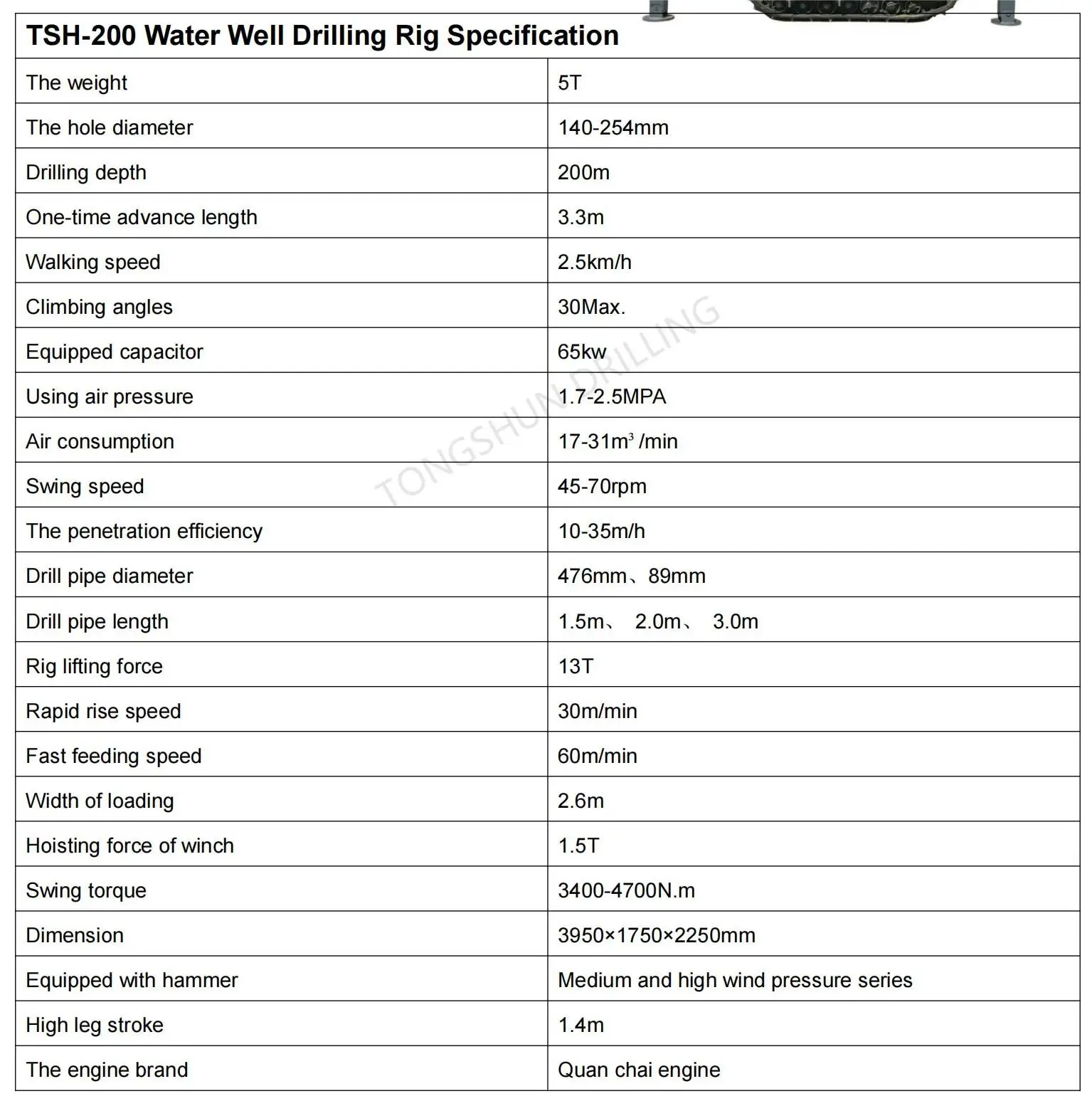

Product Specifications


Spec
Unit
Prameter
The weight
T
5
The hole diameter
mm
140-254
Drilling depth
m
200
One-time advance length
m
3.3
Walking speed
km/h
2.5
Climbing angles
Max.
30
Equipped capacitor
kW
65
Using air pressure
MPa
1.7-2.5
Air consumption
m³/min
17-31
Swing speed
RPM
45-70
The penetration efficienc
m/h
10-35
Drill pipe diameter
m
76, 89
Drill pipe length
m
1.5, 2.0, 3.0
Rig lifting force
T
13
Rapid rise speed
m/min
30
Fast feeding speed
m/min
60
Width of loading
m
2.6
Hoisting force of winch
T
1.5
Swing torque
N.m
3400-4700
Dimension
mm
3950×1750×2250
Equipped with hammer
-
Medium and high wind
pressure series
High leg strok
m
1.4
The engine brand
-
Quan chai engine


Products Detail










Products Description


Machine for 200m Drilling Water Well Drilling Rig Drill Pipe with Twin Cylinder Air Cooled Engine

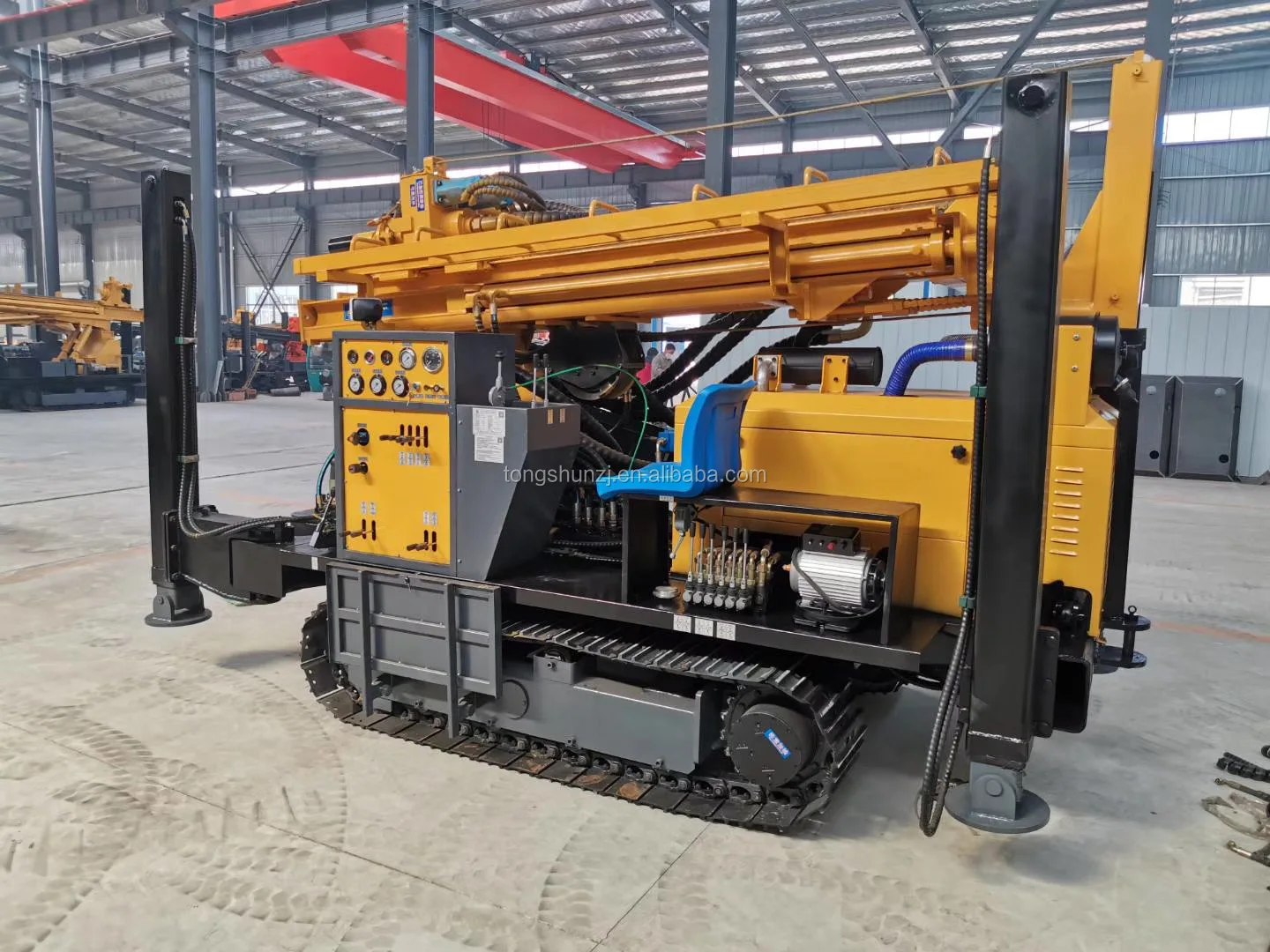

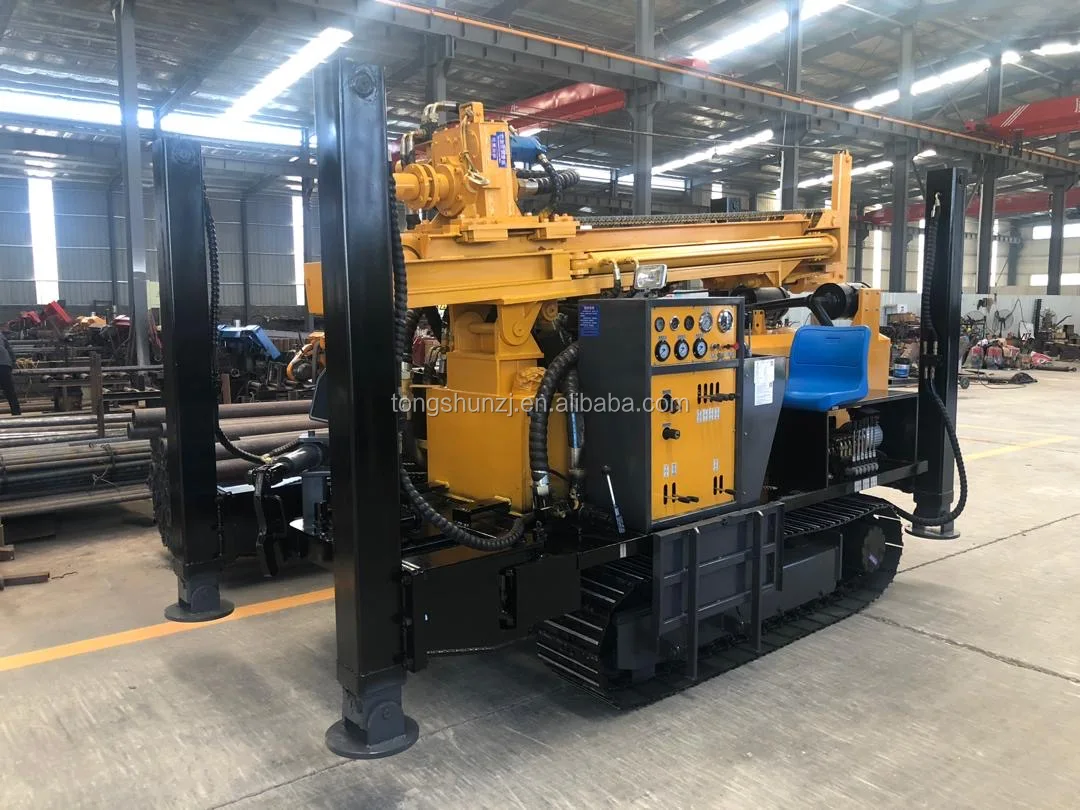

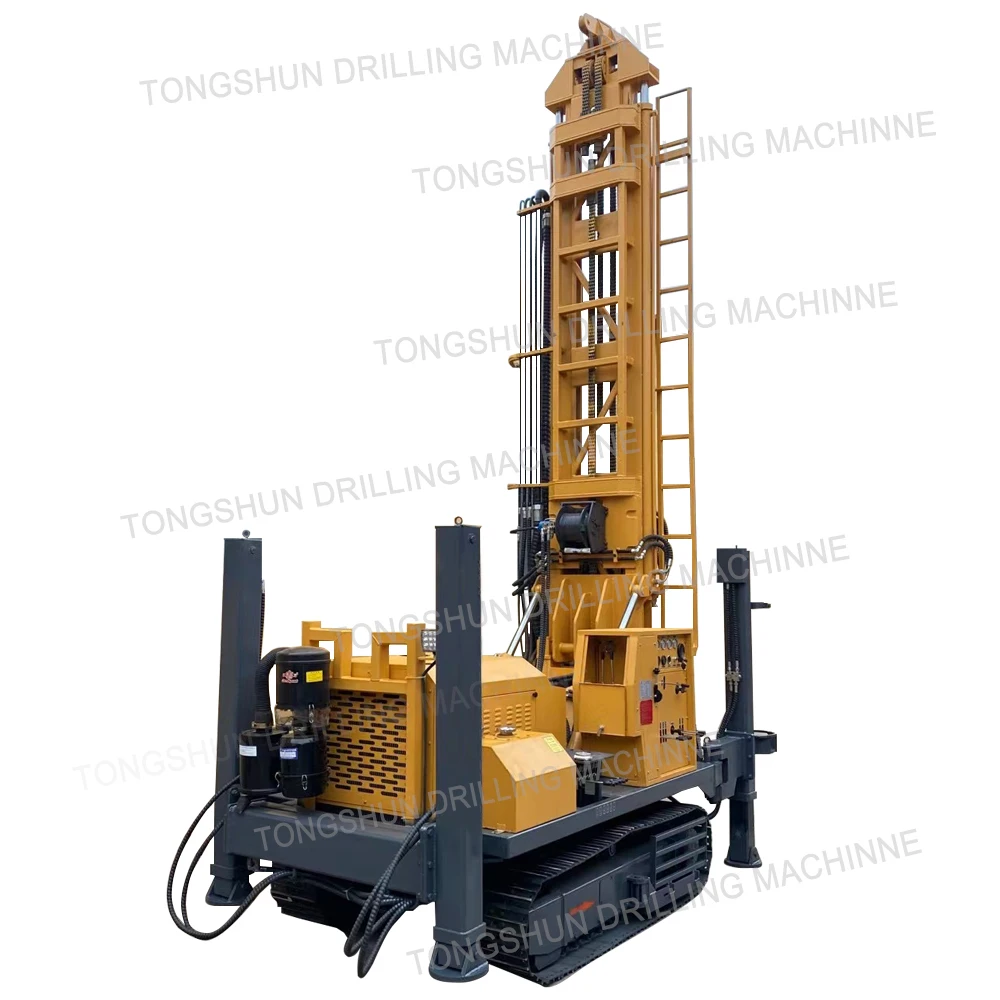

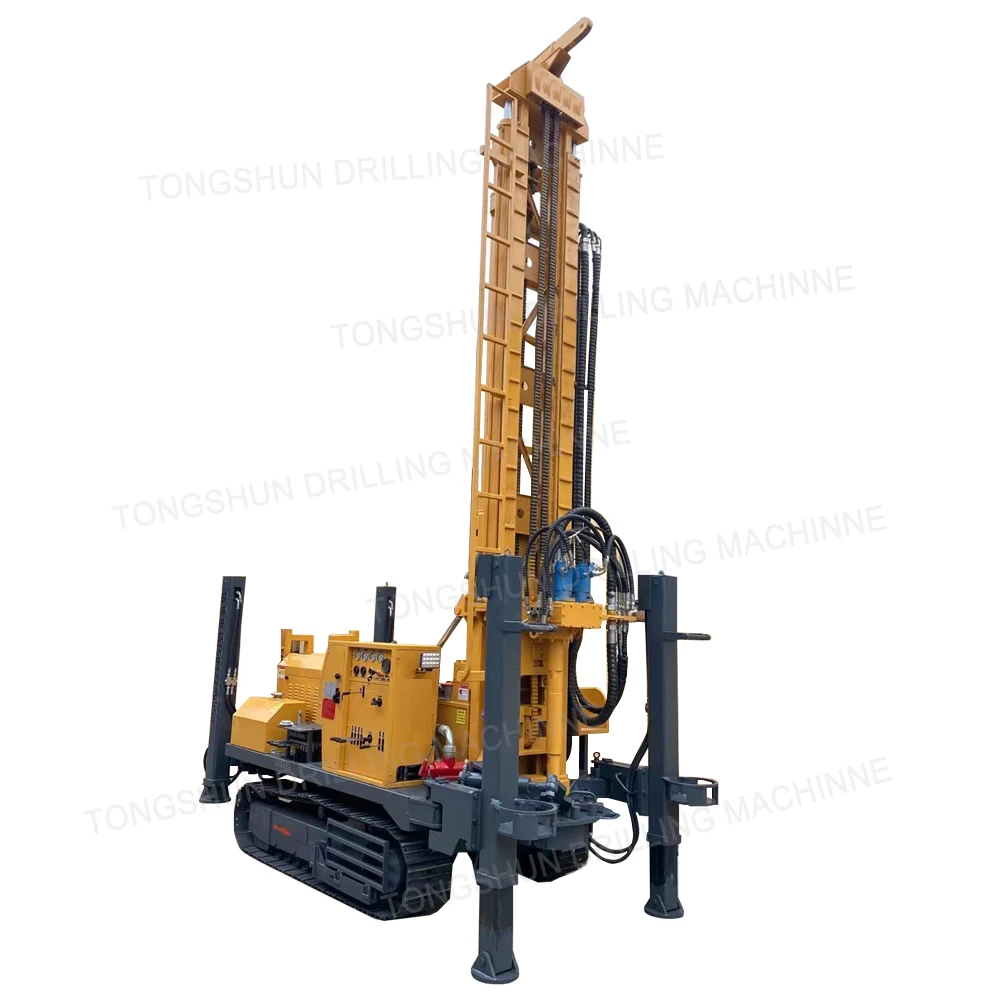

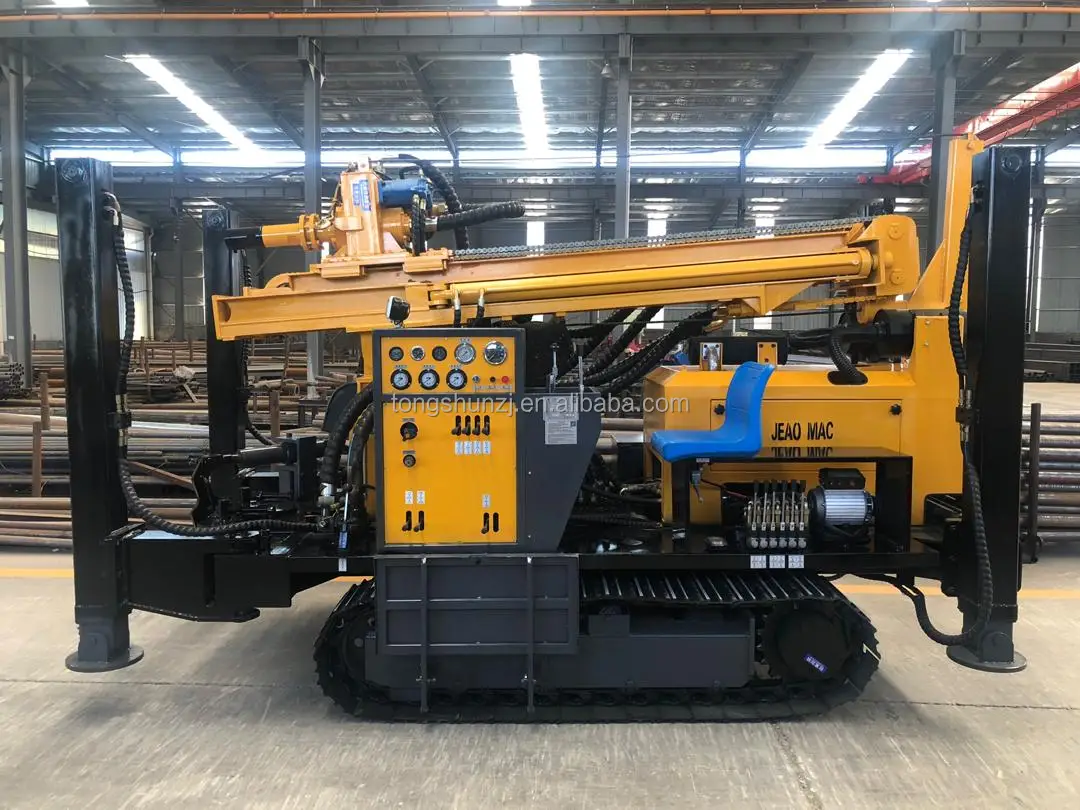

TSH-200 Multi-functional track mounted water well drilling rig is a efficient, multi-function full hydraulic water well drillingrig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry andagriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, itispopular at home and abroad.


Drilling Machine More :

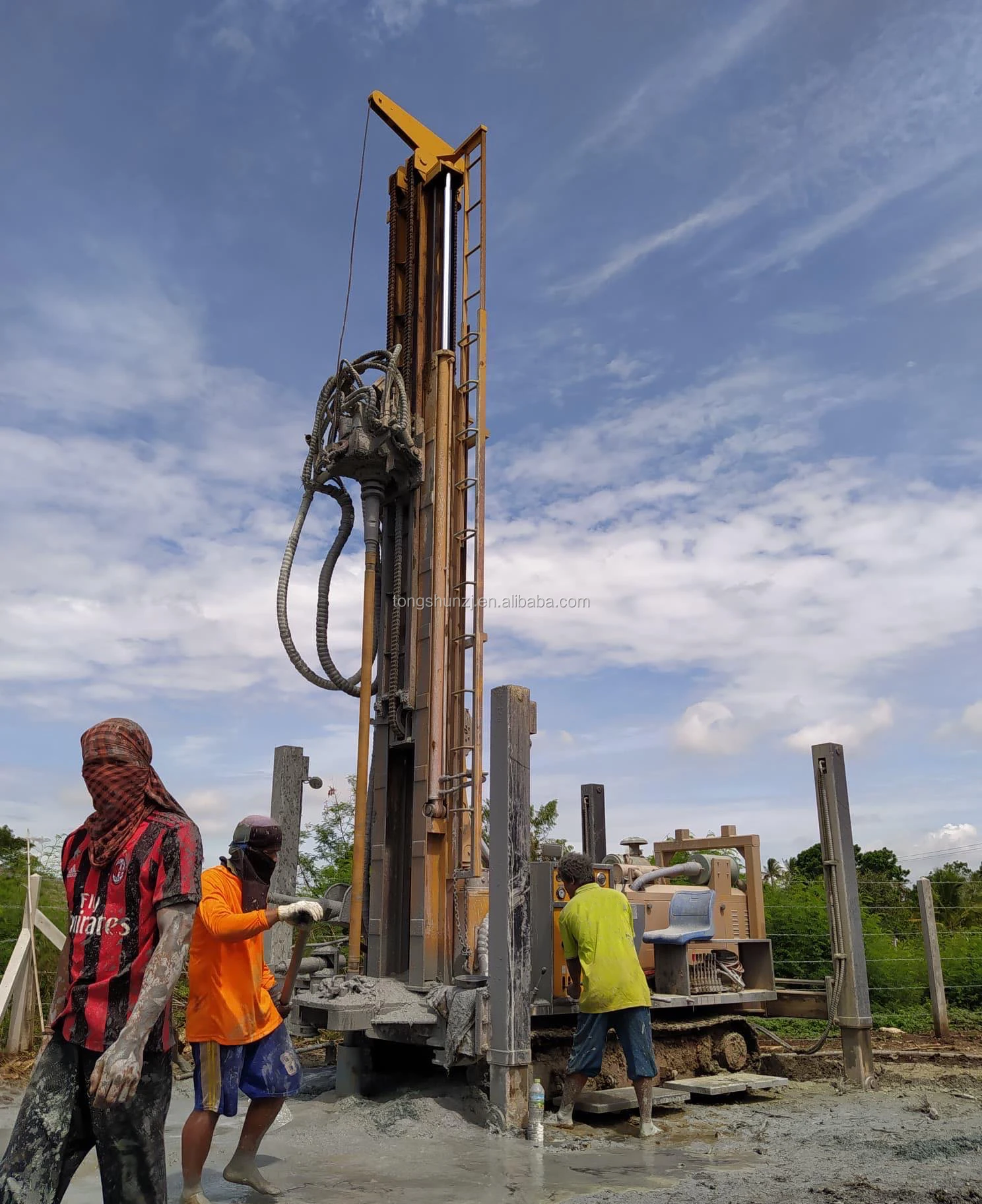

1. It is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well,
agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratumwater sourcing project.
2. This machine can drill in different stratum, The maximum bore diameter can be 305mm.

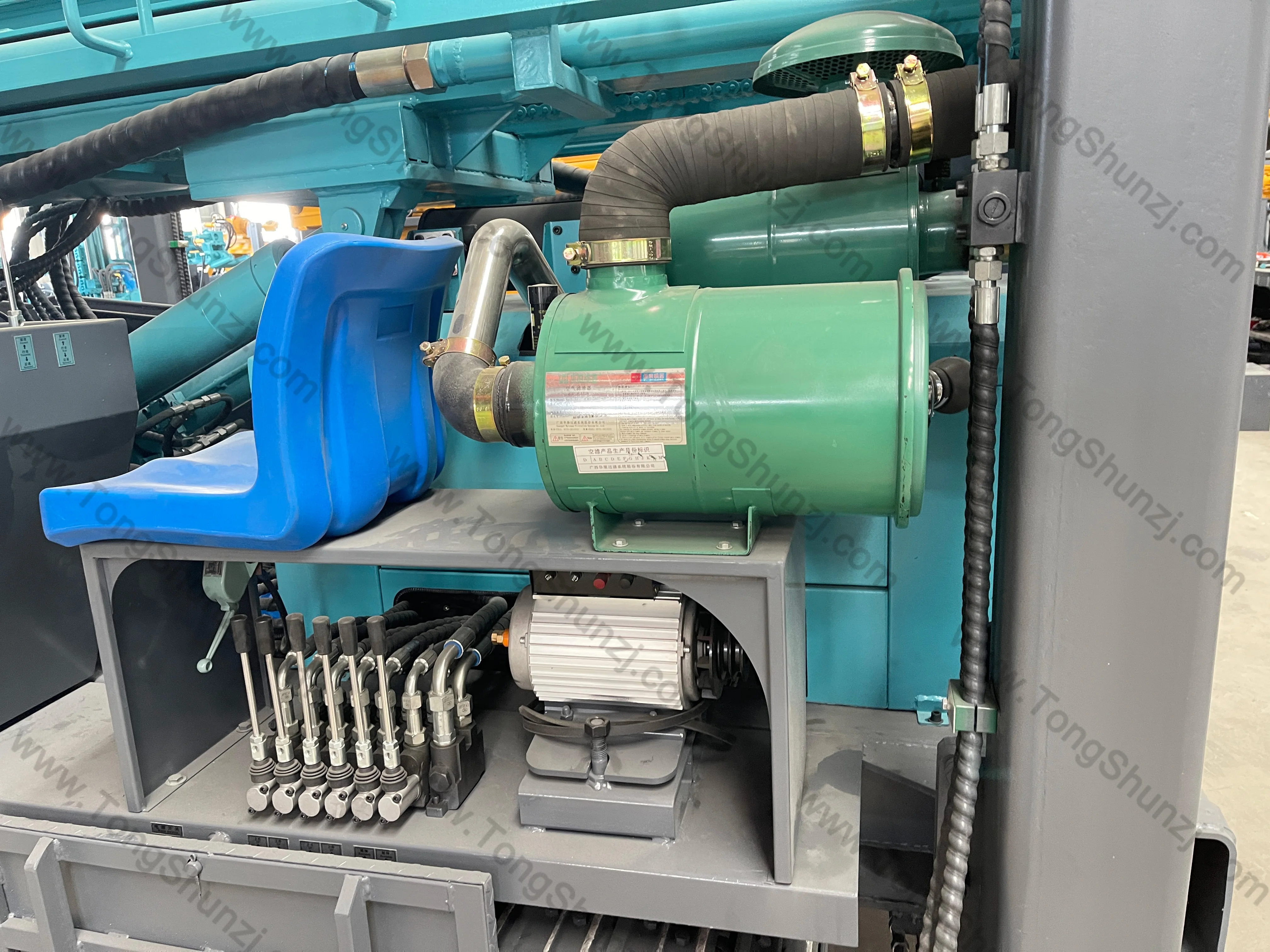

3. This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.

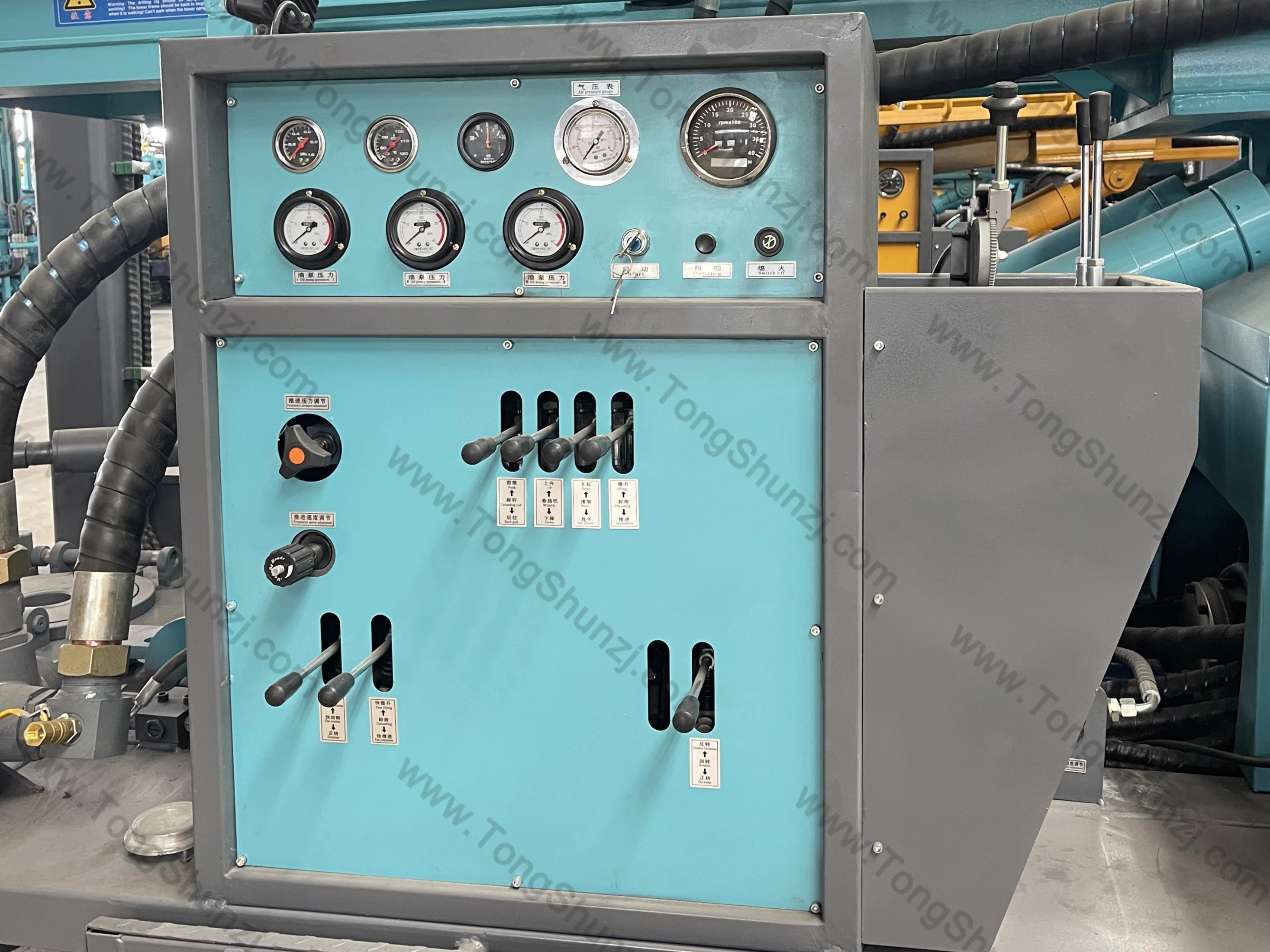

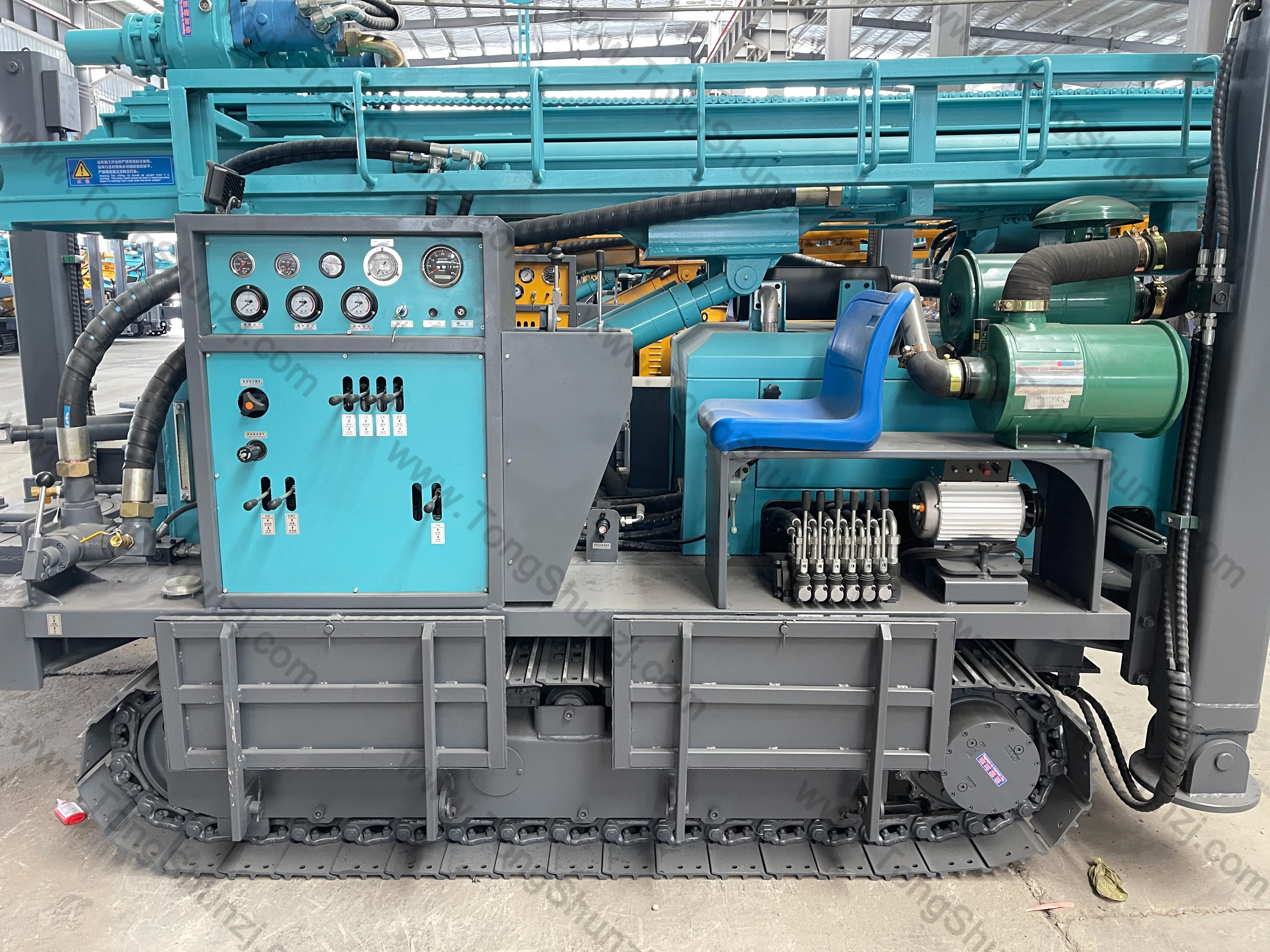

4. Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.

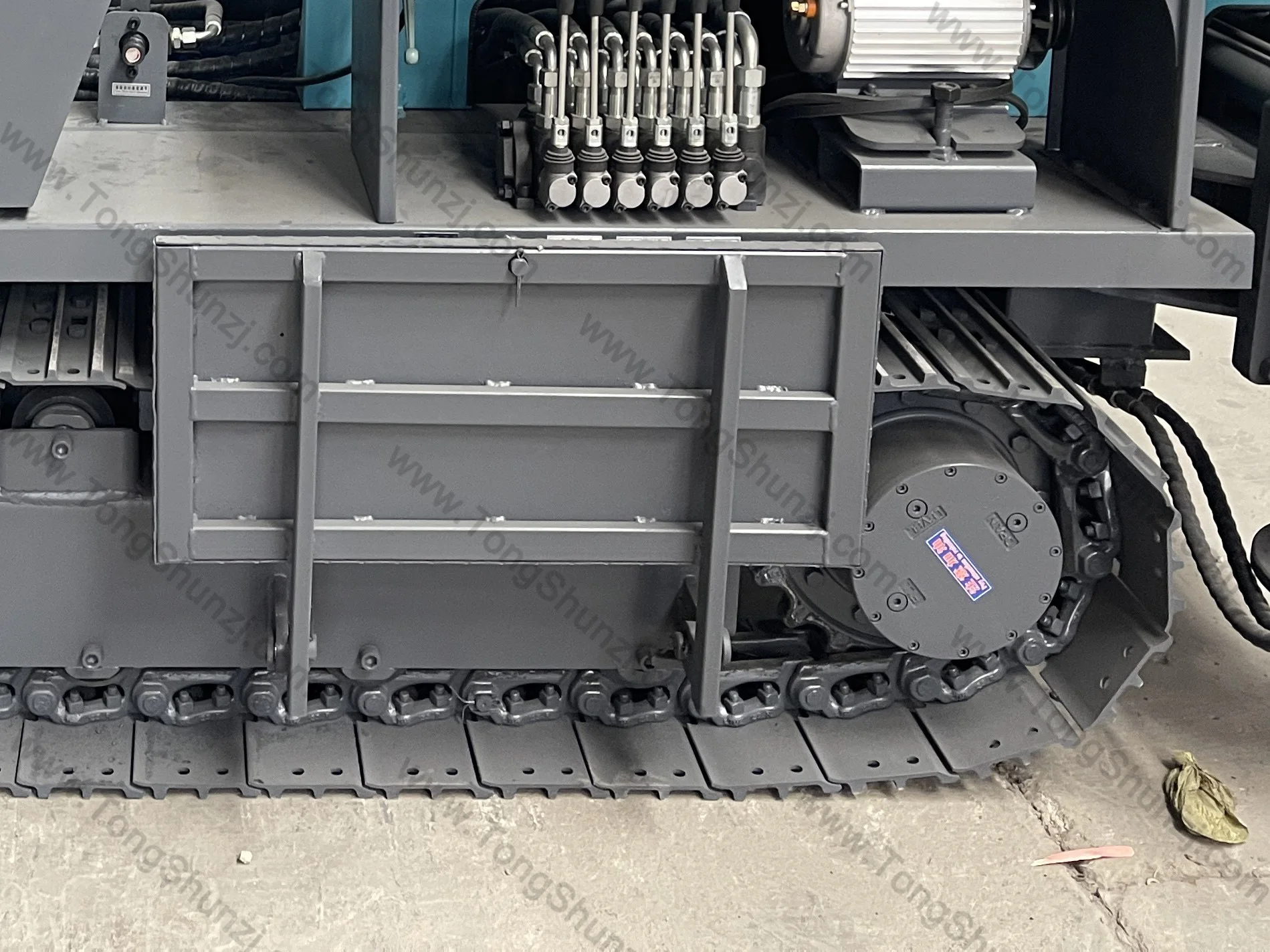

5. This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on atruck to make it more maneuverability.
6. Two gears rotation and feeding speed makes it work in soil and rock layers.


Recommend Products




Customers Feedback








FAQ


Q1: What are your main products, and used for?
A1: Our products include core barrel, casing, drill rod, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling.

Q2: How about the delivery terms?
A2: 1.Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By sea, train.

Q3: Do you accept sample order?
A3: Yes sure, please contact us for details.

Q4: How about your after-sales service?
A4: As a manufacturer has 32 years of history we offer prompt technology support for all problems and questions. Besides, we acceptgoods return or replace for quality problem.

Q5: How does your company control the quality?
A5: Quality first. In order to guarantee high quality for our products, our always make a serious inspection for all products andraw materials in strict procedure. We have obtained certificate of ISO9001.




Contact Us&Our Services






Our Services:
1. Drill pipe strictly according to ISO9001 standard
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us.
