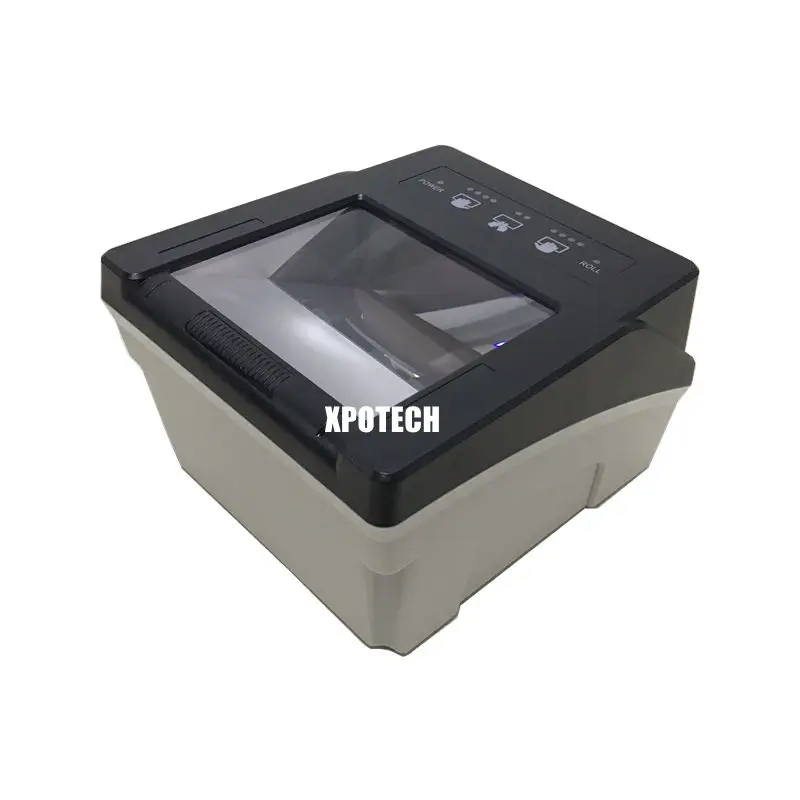

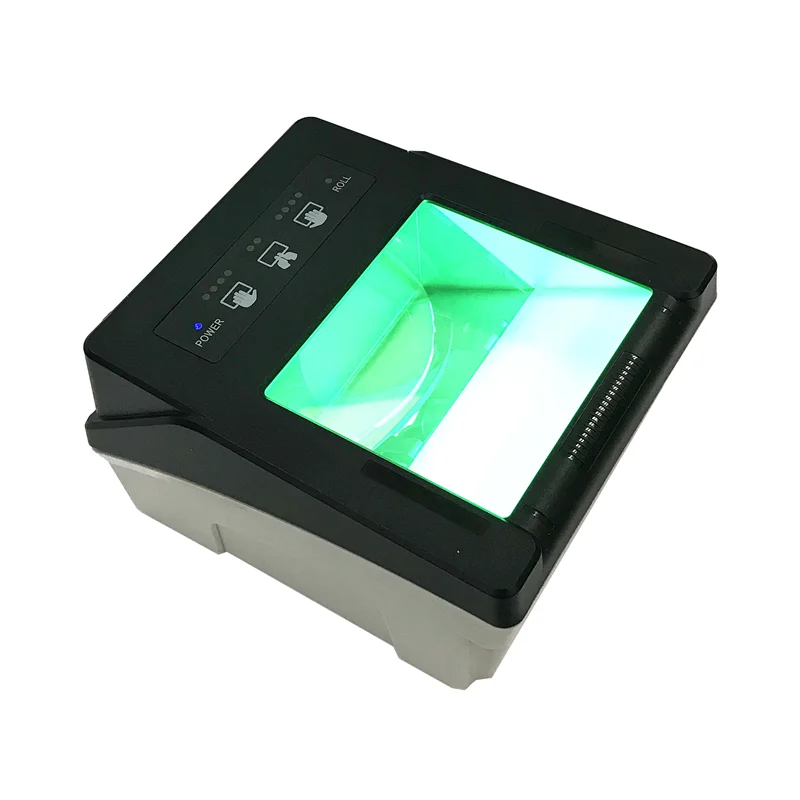

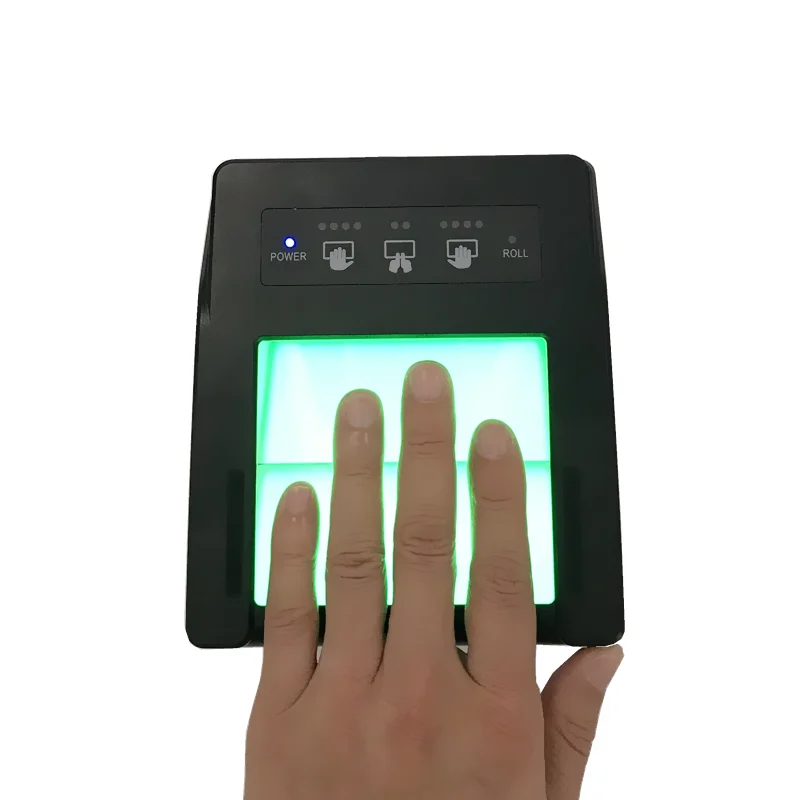

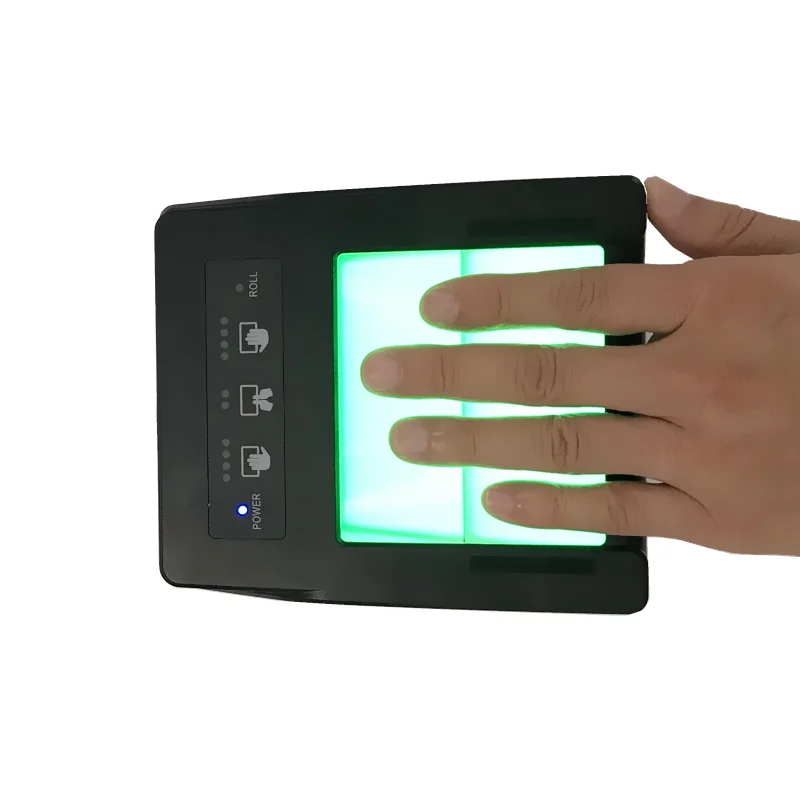

Dual Fingerprint Scanner Compact Fbi Fap 60 Fingerprint Live Scanner Finger Print Device Fbi Scanner Lcd Fingerprint
- Category: >>>
- Supplier: Shenzhen Tengshun Jiahong Technology Co. Ltd.
Share on (1601024929213):
Product Overview
Description
introduce
Technical Specifications
The DF500 fingerprint livescan is a lightweight, compact, optical fingerprint device. Its 91mm height should be the ultrathin in optical four fingerprint scanner. USB 2.0 interface eliminates excessive cables. All these allow it to be easily integrated into new or existing applications. There are finger indications to guide operators to capture rolled and flat fingerprints on the panel of DF500 scanner. The software guides the operator through the capture process with on-screen prompts and graphical displays. Real-time image quality check, sequence verification, auto-positioning, auto-rotating, and auto-cutting functions ensure the capture of high-quality prints which is convenient to operators.
Features
Supports single, rolled and flat capture capabilities
Automatic calibration
Automatic positioning fingerprints
Automatic segmentation
Automatic elimination of latent prints.
Fingerprint quality feedback
Prompting of error finger placing
Optional automatic or manual capture
Mist elimination
Fully compliant with ANSI/NIST ITL-1-2007 standards
Automatic calibration
Automatic positioning fingerprints
Automatic segmentation
Automatic elimination of latent prints.
Fingerprint quality feedback
Prompting of error finger placing
Optional automatic or manual capture
Mist elimination
Fully compliant with ANSI/NIST ITL-1-2007 standards
Certified for FBI IAFIS Appendix F
Fully compliant with ISO/IEC 19794-4; IP 54 compliant
Fully compliant with ISO/IEC 19794-4; IP 54 compliant
parameter
Resolution | 500 dpi ±1% | ||||||
Active Platen Area | 3.2 X 3.0 in.（81.3 X 76.2 mm） | ||||||
Platen Size | 3.62 X 3.11 in. (92 X 79mm) | ||||||
Rolled Area | 1.6X 1.5 in. (40.64x 38.1 mm) | ||||||
Image Pixel Size | 1600 X 1500 pixel（Flat Image） | ||||||
800 X 750 pixel（Rolled Image) | |||||||
Image Distortion | ≤1% | ≤1% | |||||
Image gray Range | ≥200 grayscales Grayscale: 8-bit, 256 levels | ||||||
Collection Rate | Single finger rolling frame rate: 20 Rate/sec. | ||||||
Flat four fingers frame rate: 5 Rate/sec. | |||||||
Interface | USB 2.0 | ||||||
Capture Mechanism | Automatic | ||||||
LED Indicators | Power, status, and fingerprint indications | ||||||
Capture Format | Single fingerprint rolls, single fingerprint flats, four fingers, two thumbs | ||||||
Available SDKs | DTFScanner | ||||||
