LED UV Curing Oven with 200*200mm LED UV Lamp for 3D Printing Dental UV Resin Fast Curing
- Category: >>>
- Supplier: Zhongshan Enbo Optoelectronics Co. Ltd.
Share on (1601024938975):
Product Overview
Description
Products Description

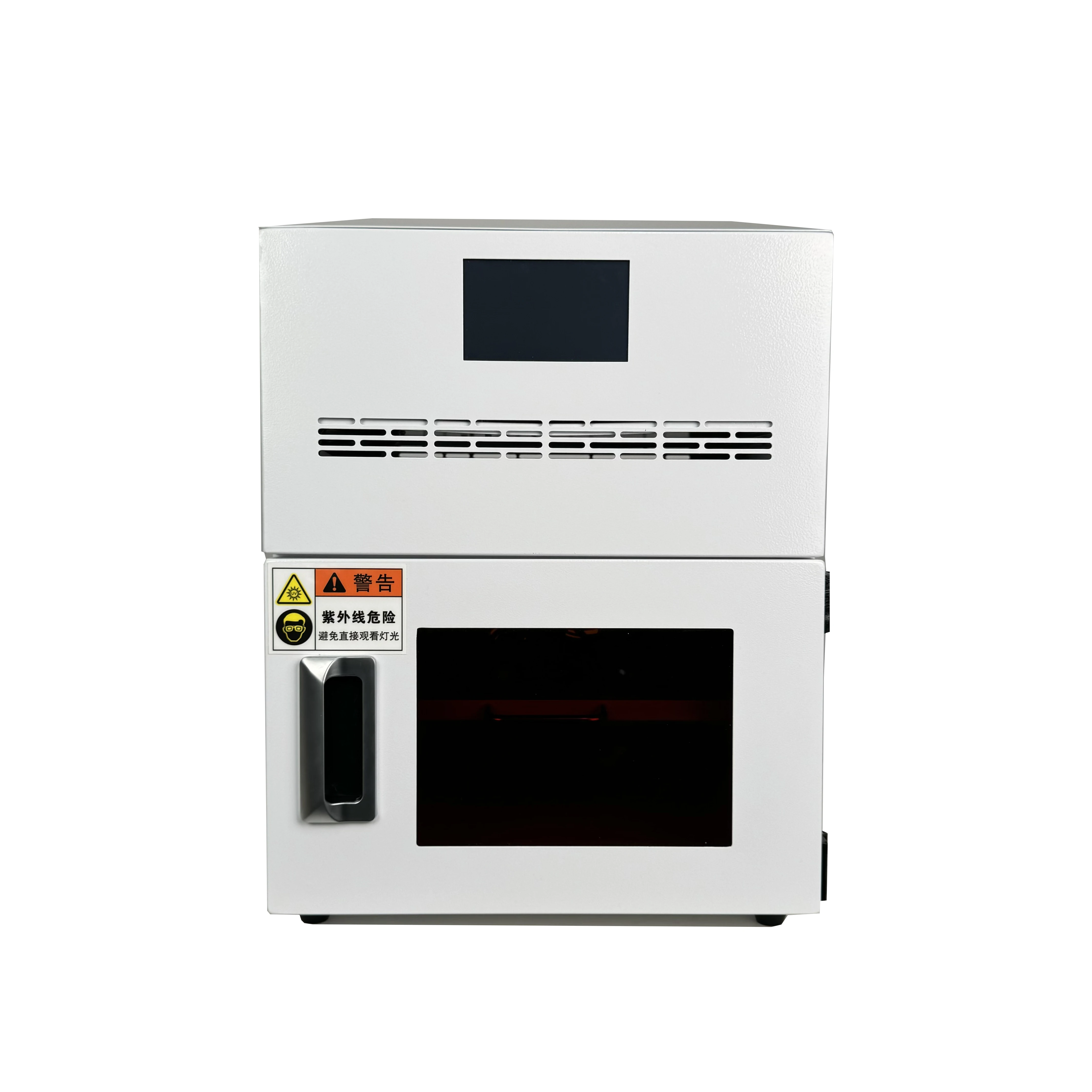

LED UV Curing Oven
Introducing our LED UV Curing Oven, a highly efficient solution designed for simplicity and safety in UV material curing. This product is perfect for various professional settings including the medical field, electronics manufacturing, and laboratory environments.
Oven System
The Oven is composed of a robust enclosure and a high-intensity LED UV light system, offering a selection of multiple UV wavelengths (365nm, 395nm, 405nm, etc.) to cater to different material requirements. Its tri-layer interior design allows for flexible accommodation of varying heights for curing processes.

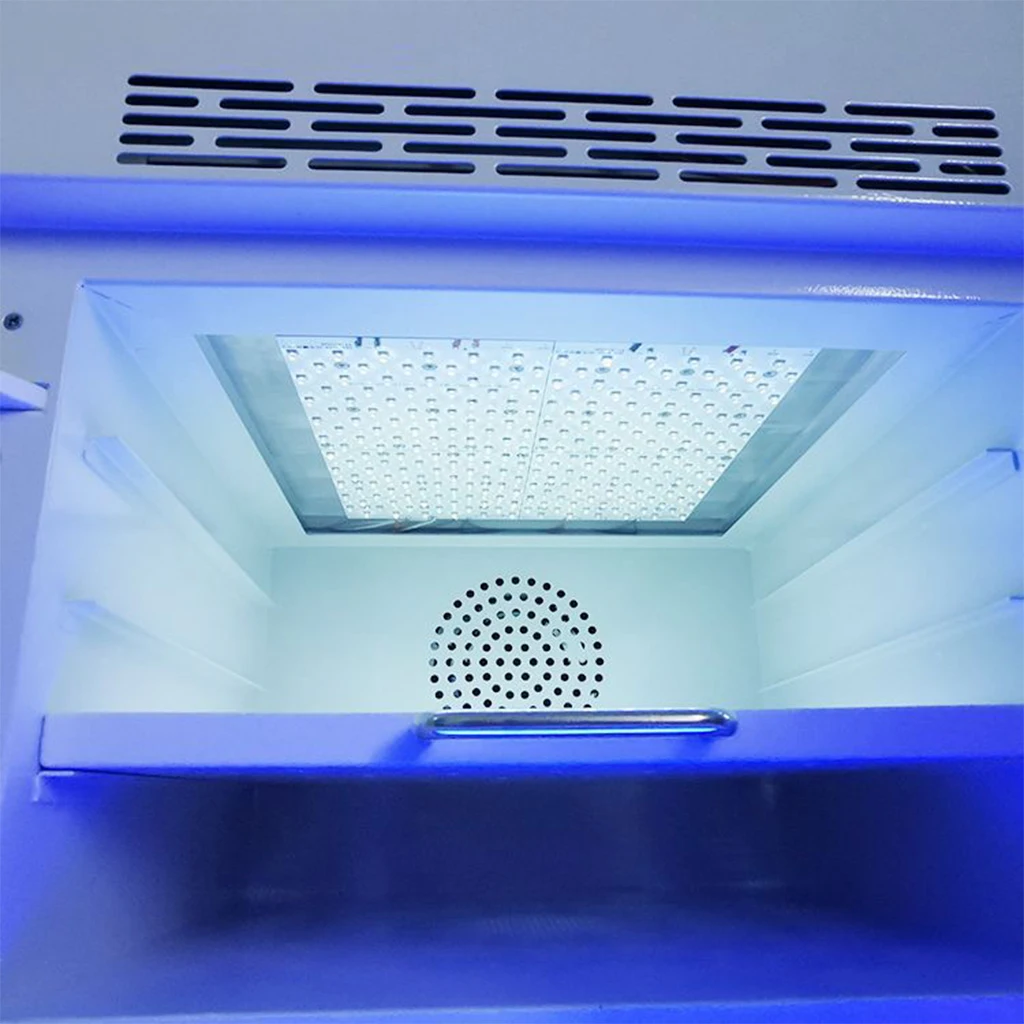

200*200mm LED UV Lamp Head

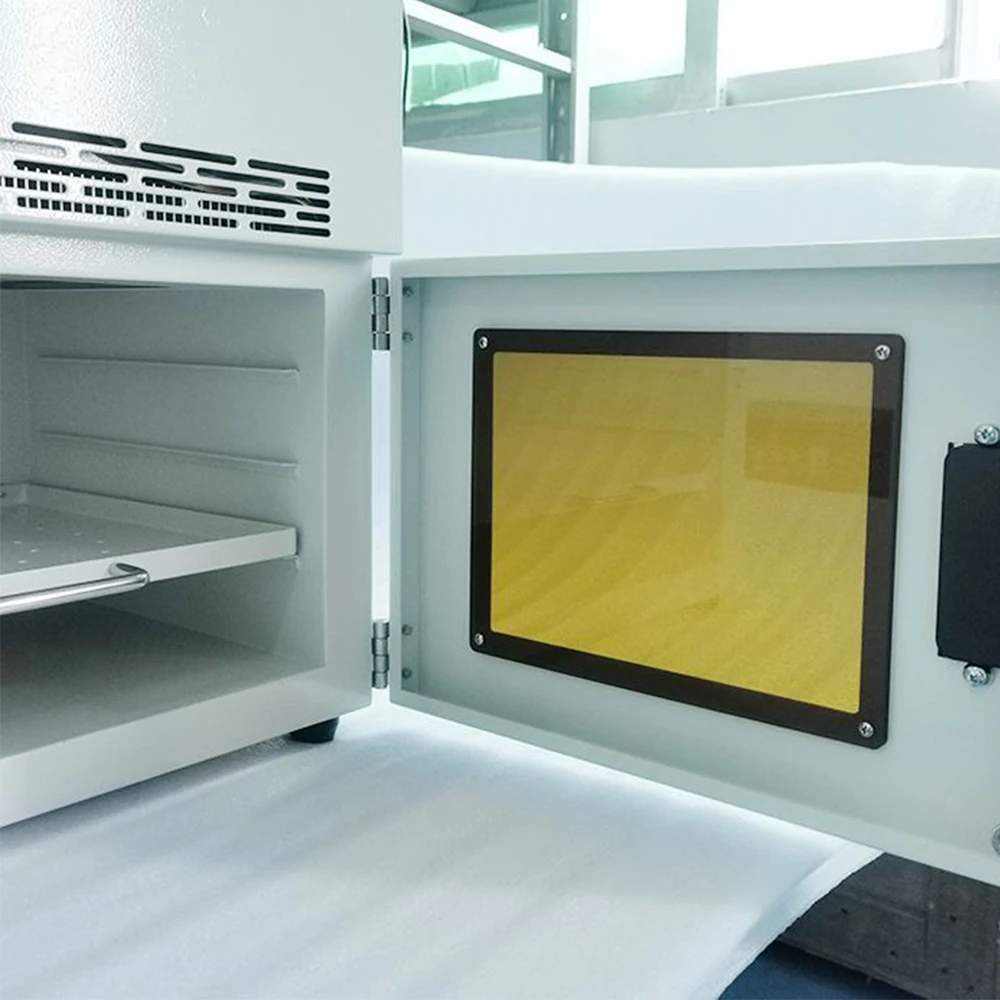

Equipped with a 5-inch touch control display and a glass door, the chamber allows for 0-100% control of the internal working power. Users can clearly observe the curing process of the materials inside, and safety is further ensured by an automatic pause function that activates when the door is opened, halting the curing process.
Details Images

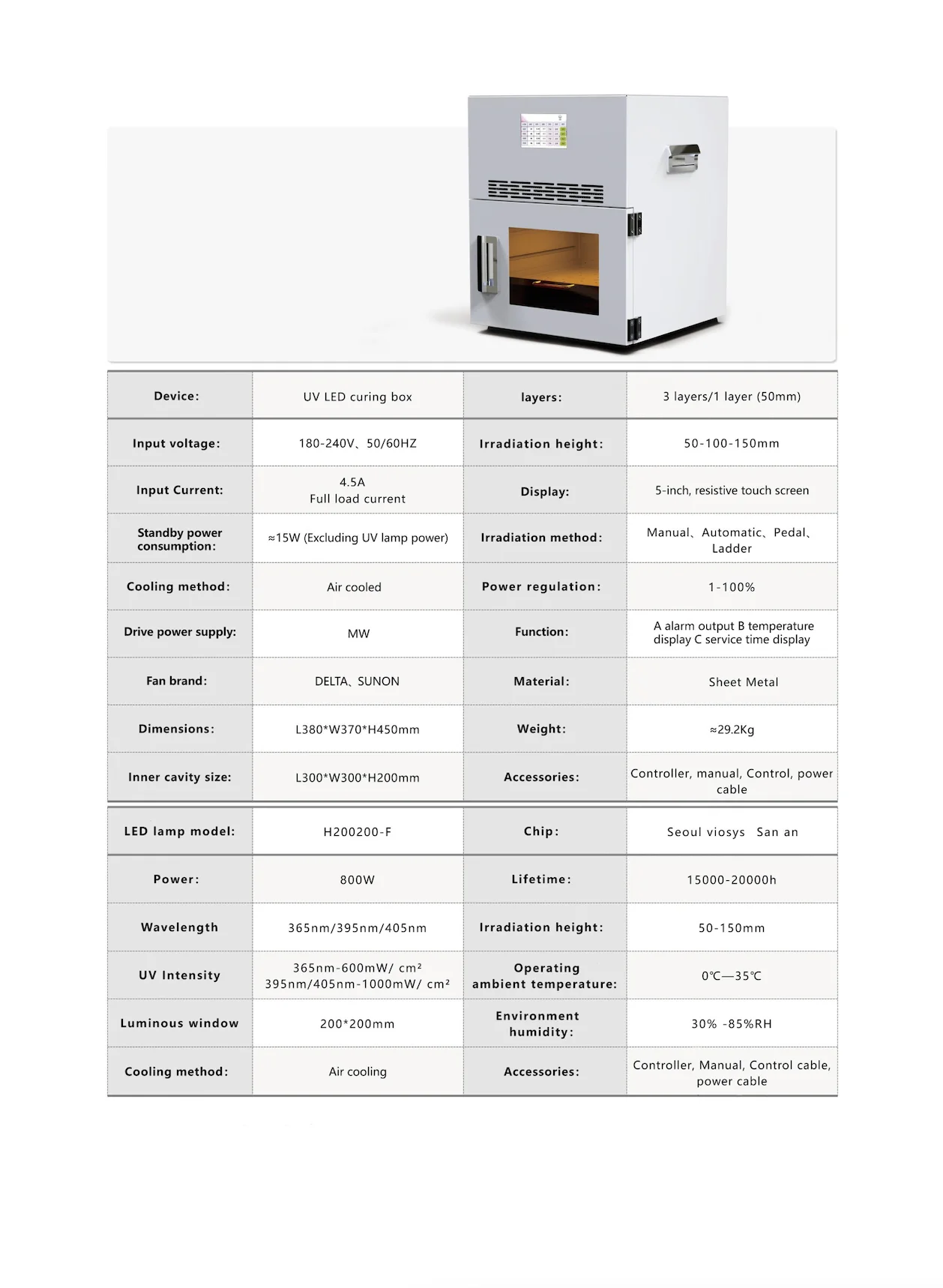

Product Paramenters
Features
1. High Efficiency: Capable of reaching a UV intensity of up to 1000w/cm² for rapid curing of UV materials.
2. Versatility: Offers multiple UV wavelength options (365nm, 395nm, 405nm, etc.) to accommodate a variety of material requirements.
3. User-Friendly Design: Features a 5-inch touch control display for easy operation and power control from 0-100%.
4. Safety Measures: Automatic pause function when the door is opened to ensure operator safety during the curing process.
5. Visibility: Glass door allows users to monitor the curing process clearly.
6. Flexible Interior: Three-layer design to meet different height requirements for curing processes.
7. Professional Suitability: Ideal for use in medical, electronic, and laboratory settings.
2. Versatility: Offers multiple UV wavelength options (365nm, 395nm, 405nm, etc.) to accommodate a variety of material requirements.
3. User-Friendly Design: Features a 5-inch touch control display for easy operation and power control from 0-100%.
4. Safety Measures: Automatic pause function when the door is opened to ensure operator safety during the curing process.
5. Visibility: Glass door allows users to monitor the curing process clearly.
6. Flexible Interior: Three-layer design to meet different height requirements for curing processes.
7. Professional Suitability: Ideal for use in medical, electronic, and laboratory settings.
FAQ
1. What's the whole UV LED curing system including?
The whole UV LED curing system including UV LED Curing Oven + UV LED Lamp
2. Can I use my own PLC and Electric cabinet?
Yes, of coures. Our UV LED driver provide RS485 communication.
3.How to proceed an order for UV LED curing system?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
For product trials or customization, please contact us.
The whole UV LED curing system including UV LED Curing Oven + UV LED Lamp
2. Can I use my own PLC and Electric cabinet?
Yes, of coures. Our UV LED driver provide RS485 communication.
3.How to proceed an order for UV LED curing system?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
4. Is it OK to print my logo on UV LED curing system?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
5. Do you offer guarantee and installation service for the products?
Yes, we offer 20000HRS service and 1 year free warranty. The installation service can provided but should be payed according different country and different system.
Yes, we offer 20000HRS service and 1 year free warranty. The installation service can provided but should be payed according different country and different system.
For product trials or customization, please contact us.
Recommend Products
Company Profile
Zhongshan Enbo Optoelectronics Co., Ltd. is a manufacturer specializing in the production of LED functional lighting used in professional equipment. We have more than ten years of LED production and 8 years of foreign trade experience, and have been actively recognized and trusted by many partners. We have begun to focus on the professional equipment-LED UV Curing lighting solutions, and continue to optimize and innovate products. Our products are all CE and ROHS certificated , some of our lights are UL compliant, we strictly follow EU electrical safety standard. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Attentions
1. General precautions
In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
Under the standard test conditions, the bending performance of the cable is satisfied.
However, its performance under any conditions of actual use cannot be guaranteed.
Do not disassemble, modify or set up inside.
Breakdown, modification and use caused by failure, damage and other circumstances, will not be within the scope of warranty.
2. Install the environment
● Installation and use of ambient temperature and humidity 0℃ -+ 45℃, ≤85%RH (no condensation, freezing)
● Temperature and humidity of storage environment -10℃ -+ 60℃, ≤85%RH (non-condensation, freezing)
● Dust, soot, conductive dust, corrosive, flammable gas, salt, iron, etc
● No contact with water, oil, medicine and other places
● No severe temperature change and vibration, impact of the place without direct sunlight, no strong magnetic field, strong electric field
3. About power supply and wiring
● Please supply single-phase 180V-240V (frequency 50Hz-60Hz) power supply voltage, and grounding.
● Do not use the same power cord with the motor and the induction machinery or the high-power device.
● For the wiring between the controller and the LED irradiation head, please use the attached cable and connect. In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
● When used in bending, as a minimum bending radius greater than 110mm, please execute the design of the system. Bending with radius less than recommended, there is a possibility of rupture occurring in a very short time period.
4. About installation
● When installing the controller and irradiation head, keep it level. Do not tilt, tip or reverse install. Otherwise, it may lead to fever and damage.
● Do not install in a confined space. Do not block the radiator vents.
5. Precautions for power connection
● Before switching on the power supply, please confirm all connections are correct.
In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
Under the standard test conditions, the bending performance of the cable is satisfied.
However, its performance under any conditions of actual use cannot be guaranteed.
Do not disassemble, modify or set up inside.
Breakdown, modification and use caused by failure, damage and other circumstances, will not be within the scope of warranty.
2. Install the environment
● Installation and use of ambient temperature and humidity 0℃ -+ 45℃, ≤85%RH (no condensation, freezing)
● Temperature and humidity of storage environment -10℃ -+ 60℃, ≤85%RH (non-condensation, freezing)
● Dust, soot, conductive dust, corrosive, flammable gas, salt, iron, etc
● No contact with water, oil, medicine and other places
● No severe temperature change and vibration, impact of the place without direct sunlight, no strong magnetic field, strong electric field
3. About power supply and wiring
● Please supply single-phase 180V-240V (frequency 50Hz-60Hz) power supply voltage, and grounding.
● Do not use the same power cord with the motor and the induction machinery or the high-power device.
● For the wiring between the controller and the LED irradiation head, please use the attached cable and connect. In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
● When used in bending, as a minimum bending radius greater than 110mm, please execute the design of the system. Bending with radius less than recommended, there is a possibility of rupture occurring in a very short time period.
4. About installation
● When installing the controller and irradiation head, keep it level. Do not tilt, tip or reverse install. Otherwise, it may lead to fever and damage.
● Do not install in a confined space. Do not block the radiator vents.
5. Precautions for power connection
● Before switching on the power supply, please confirm all connections are correct.
