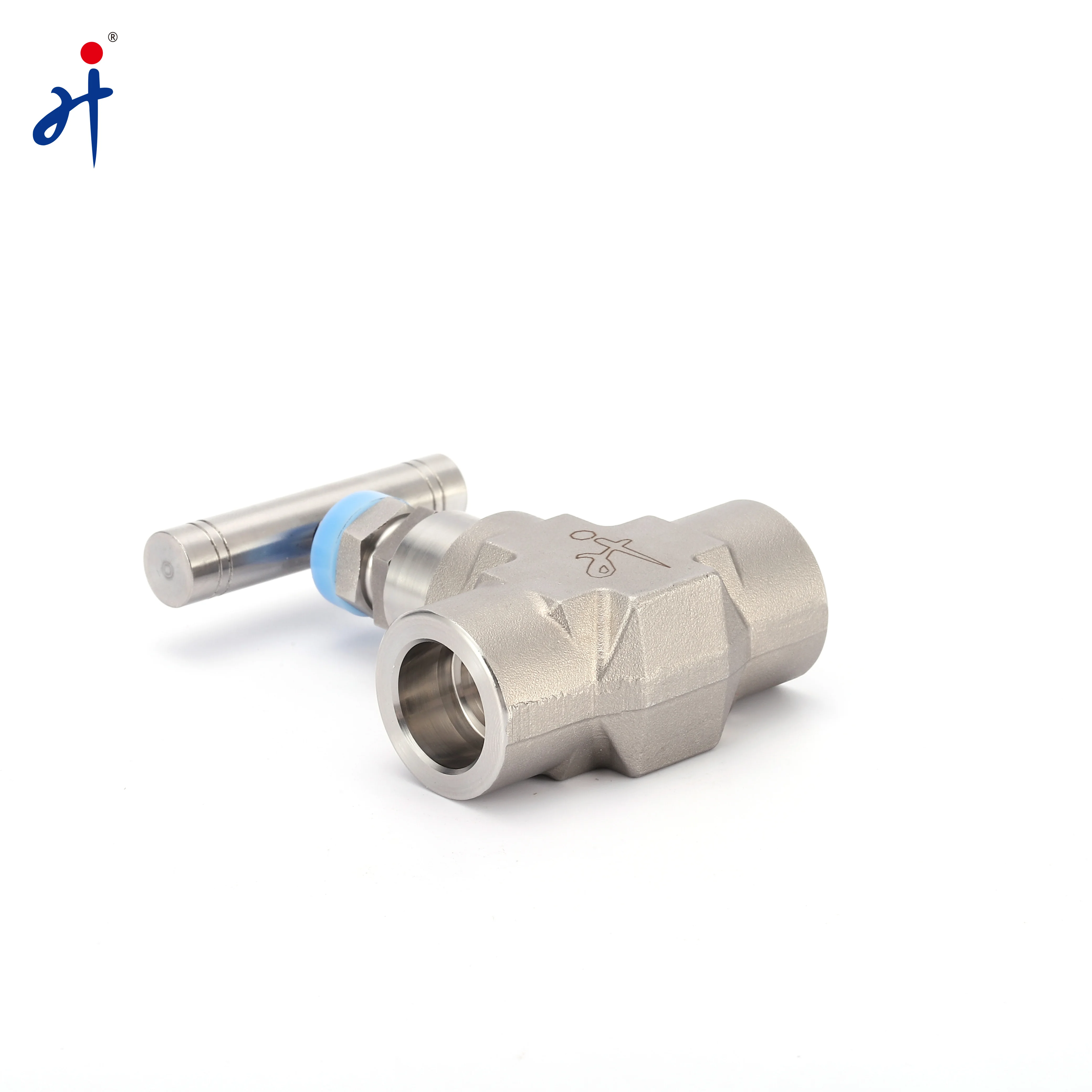

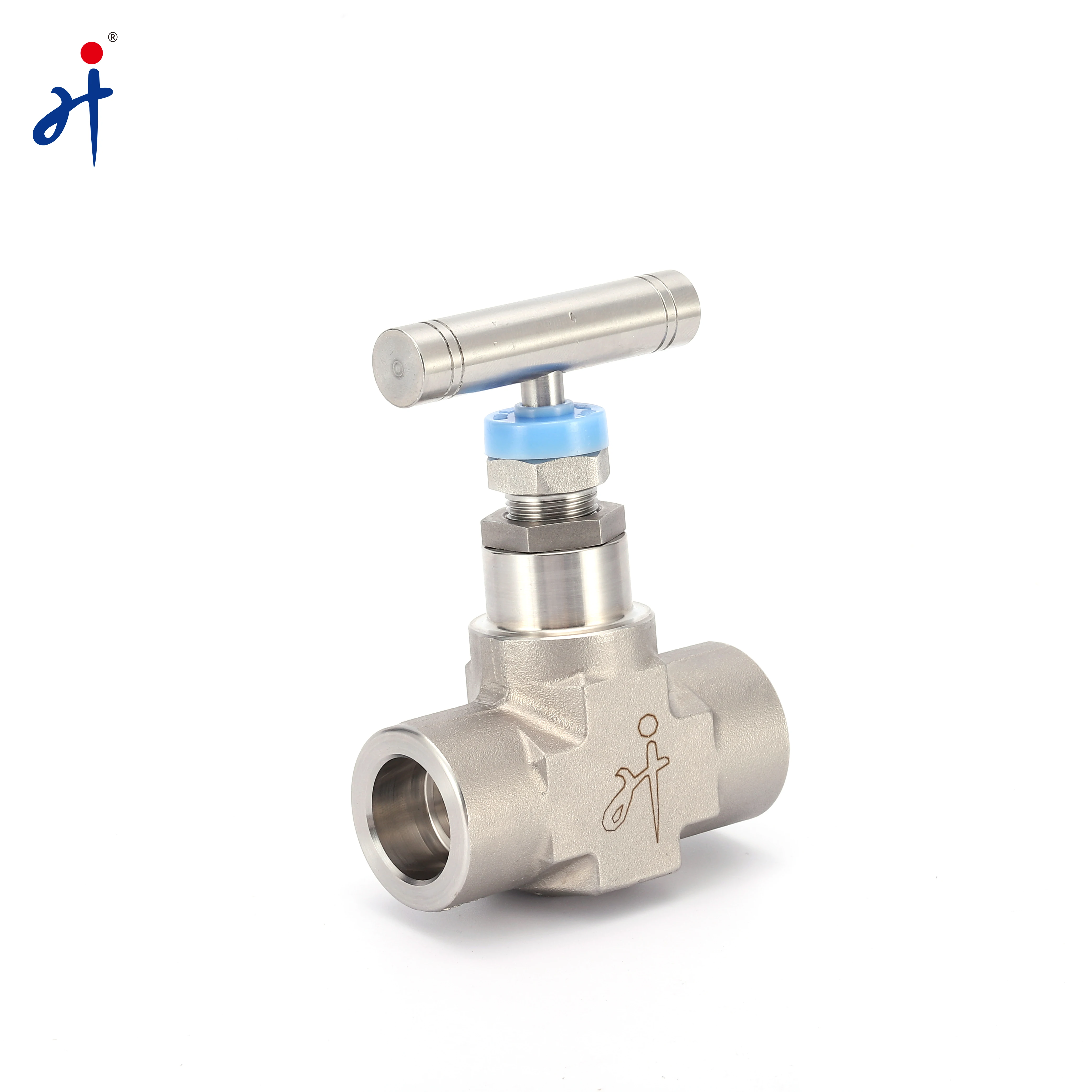

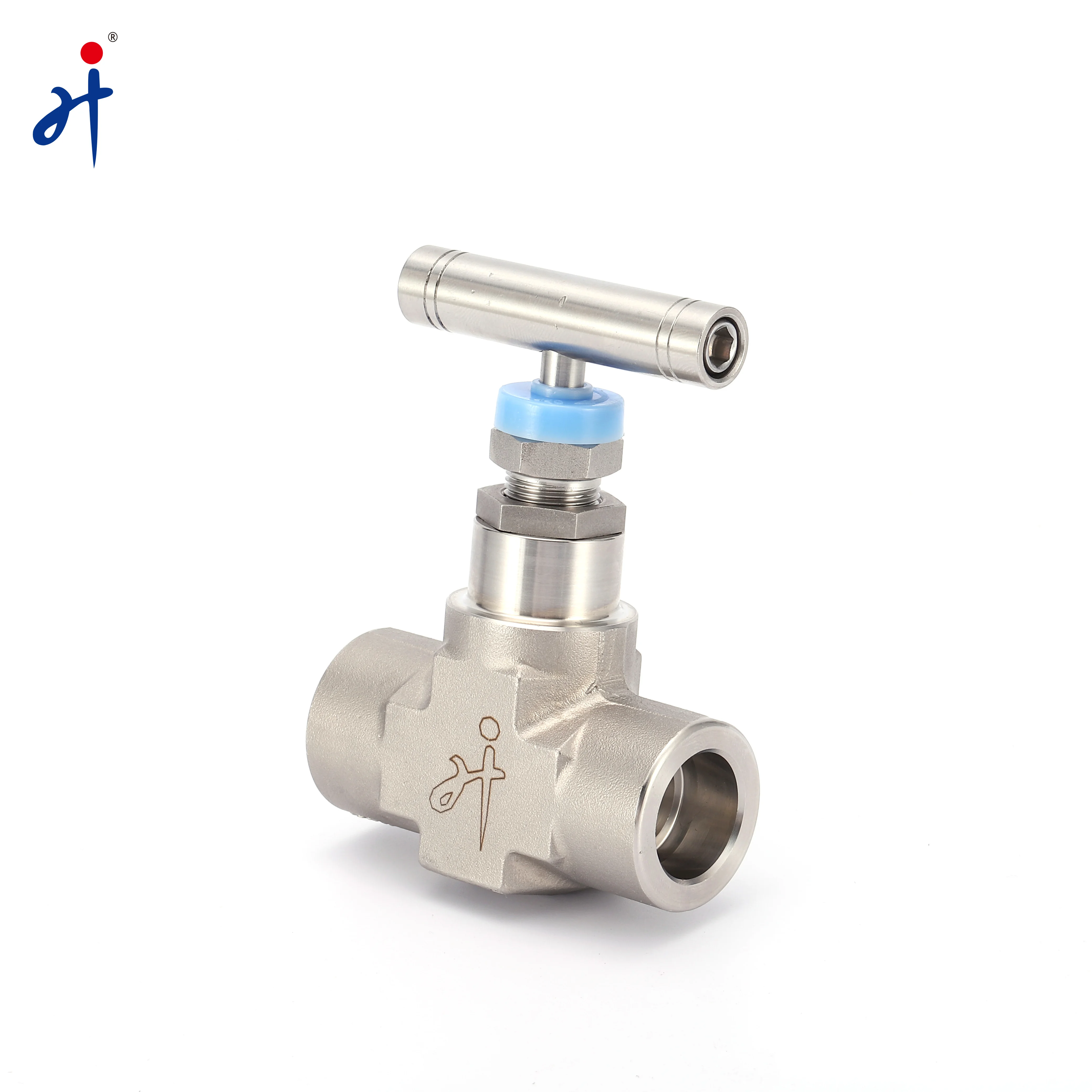

High Pressure 6000psi Stainless Steel 316 General Hydraulic 3/4 Inch Control Needle Valves for Petroleum
- Category: >>>
- Supplier: Anhui Hongji Intrustment Valve Co. Ltd.Anhui Ltd.
Share on (1601024964656):
Product Overview
Description
Product Overview
The needle valve is a type of valve with a small port and a threaded, needle-shaped plunger. It allows precise regulation of
flow, They are also usually used in flow-metering applications, especially when a constant, calibrated, low flow rate must be maintained for a certain duration, such as the idle fuel flow in a carburetor, steam in the pipe from the power plant, as well as to provide shut off for the pressure gauge or on applicators in many industries.
FEATURES AT A GLANCE
* Accurate& Precise control flow rate and pressure.
* Provide reliable cutoff.
* Precise adjustment of flow, bearing resistance, and pressure regulation.
* Also can be used in pump start, turbine by-pass, flow discharge, air regulation, and Reservoir inlet.
* Small Size.
Top

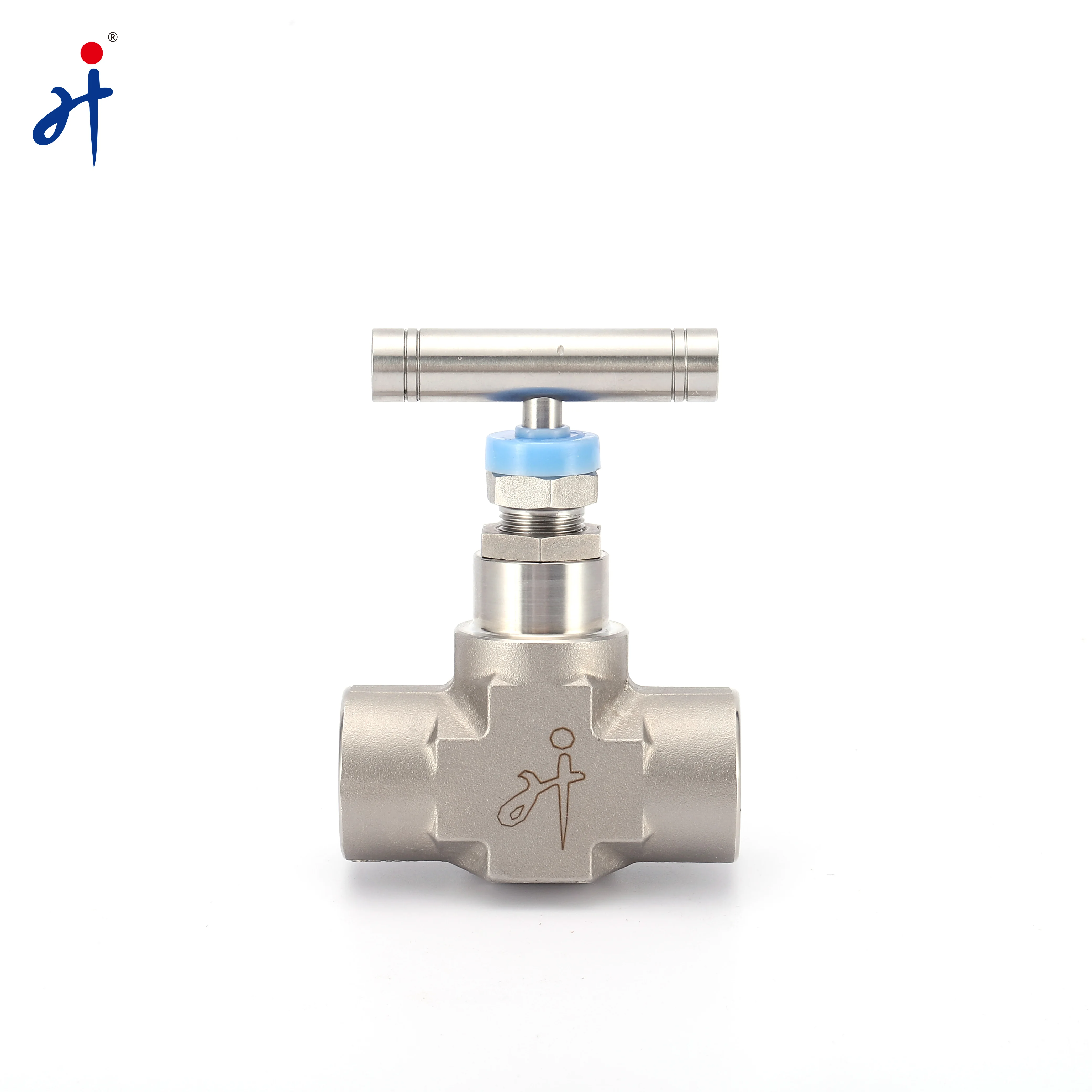

Front
Series
Product Paramenters
Model | HJZF1-FNPT6-8-SS | Volume Size | 65*85*27mm | |||
Type | Needle Valve | Net Weight | 382g(NPT1/4) | |||
Body Material | 316, A105/A350, HC276, Monel400, Enel600/625, 2205(S31803), 2507 | Manufacturing Capacity | 5000/Month | |||
Type of Connection | Female Thread | Warranty | 1 year | |||
Seal Type | Hard Sealing | Norms | ISO/GB/JB/DIN | |||
Manufacturing | Forging and CNC | Test Norms | API 598/ GBT-13927-2008 | |||
Application | Nontoxic Liquid or Gas, Steam, Oil | Certificate | ISO/TUV | |||
Pressure Range | 6000psi/414bar-10000Psi/690bar | Manufacturing Standard | GB/T12224-2005 JB/T7747-1995 | |||
Model： | Orifice | Flow coefficient | ||||
(In) | (mm) | Cv | ||||
NPT1/8 | 0.09 | 2.4 | 0.15 | |||
NPT1/4 | 0.17 | 4.4 | 0.37 | |||
NPT3/8 | 0.25 | 6.4 | 0.73 | |||
NPT1/2 | 0.37 | 9.5 | 1.8 | |||
SIMILAR PRODUCTS

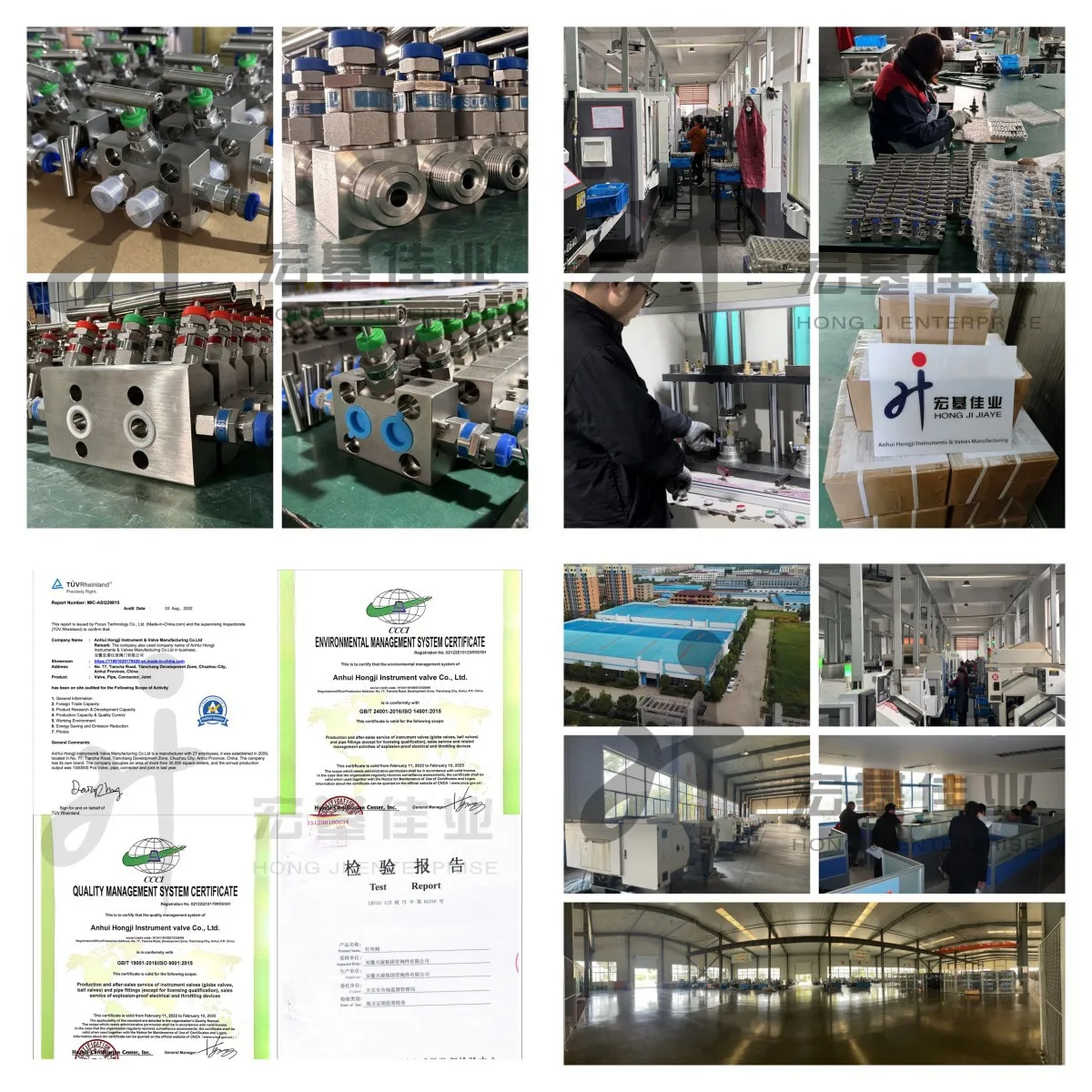

Company Profile
