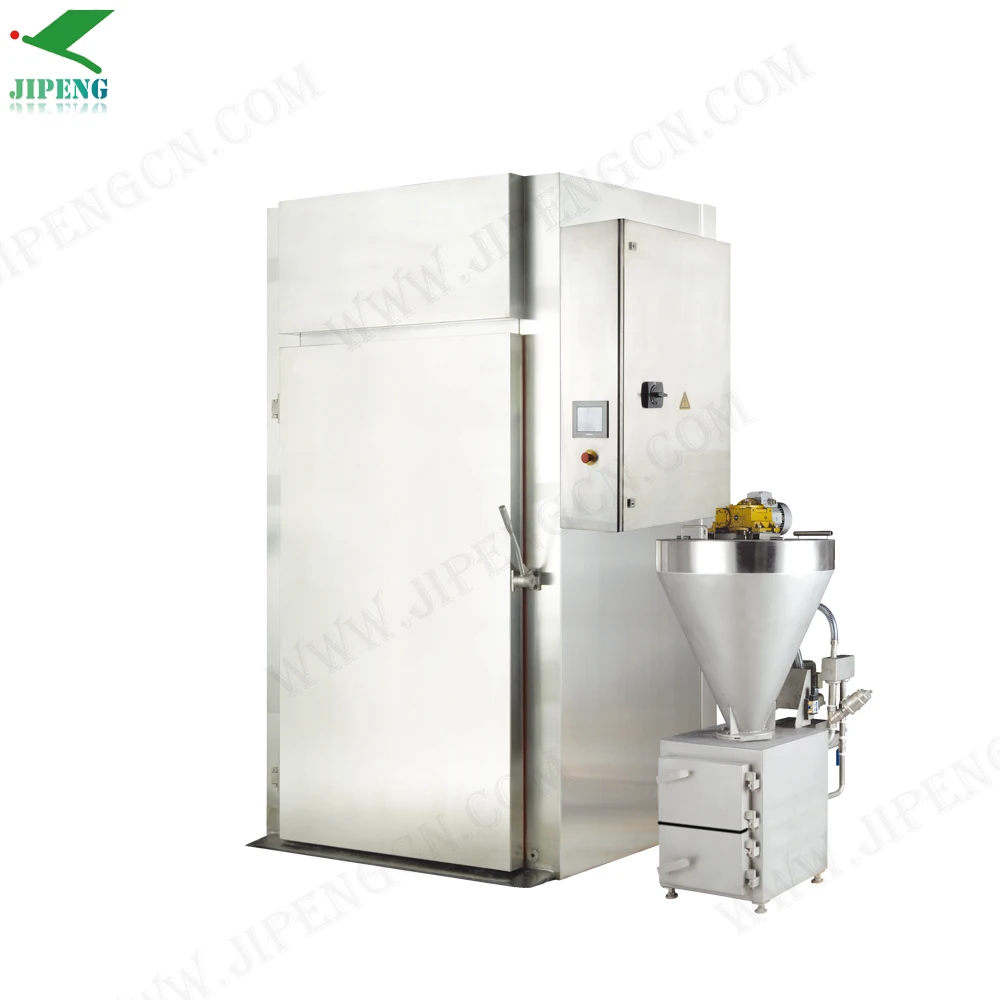

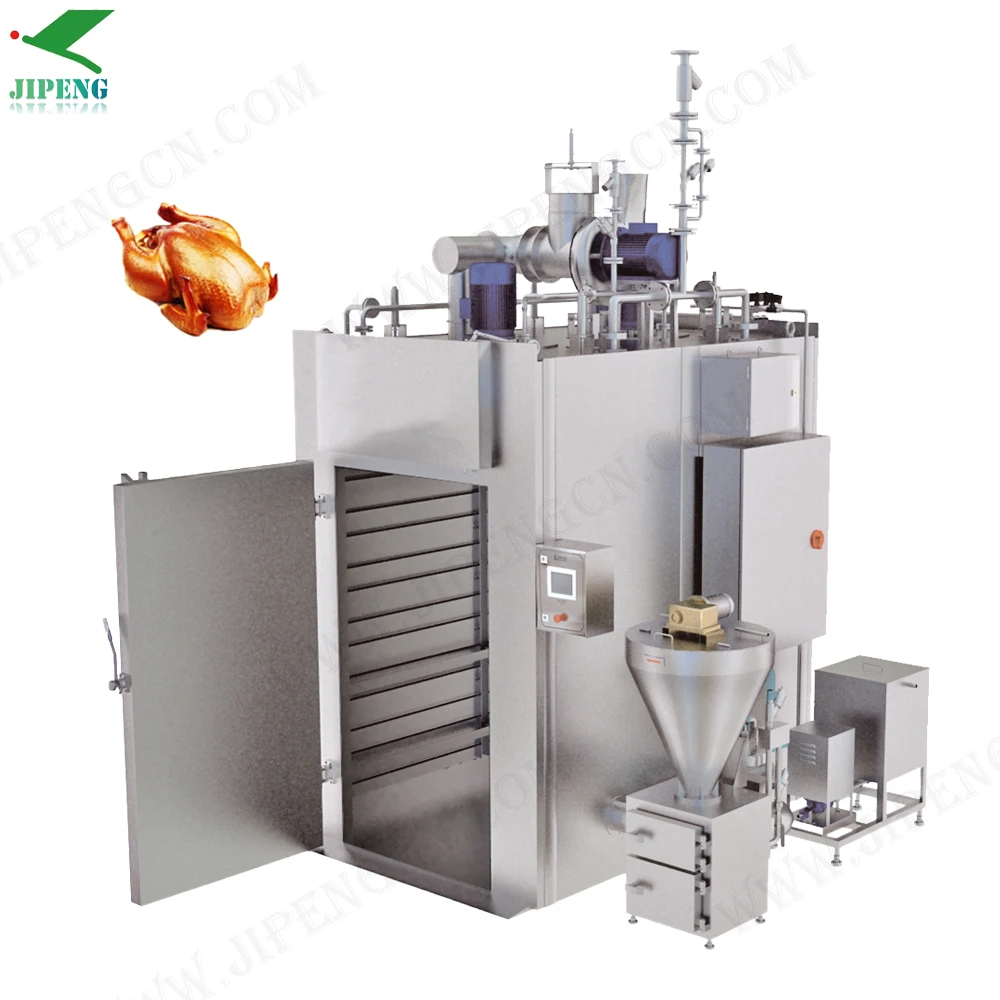

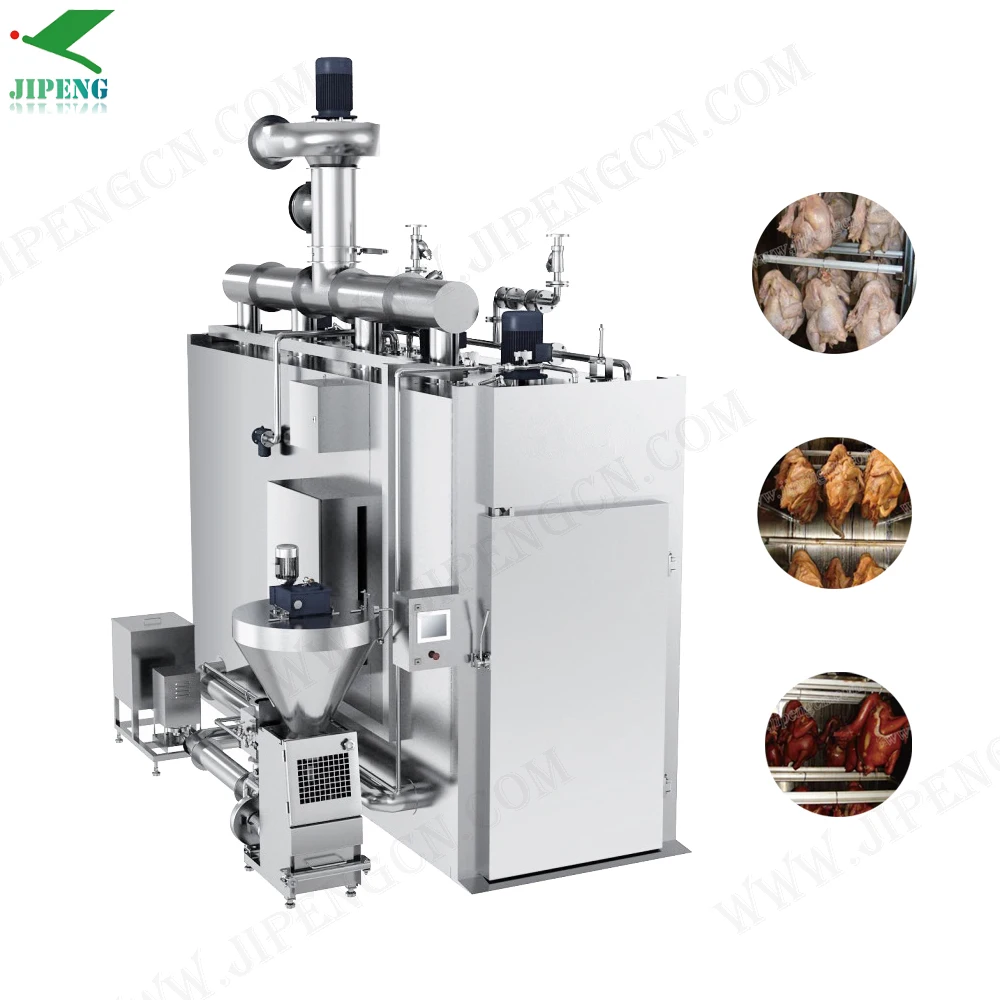

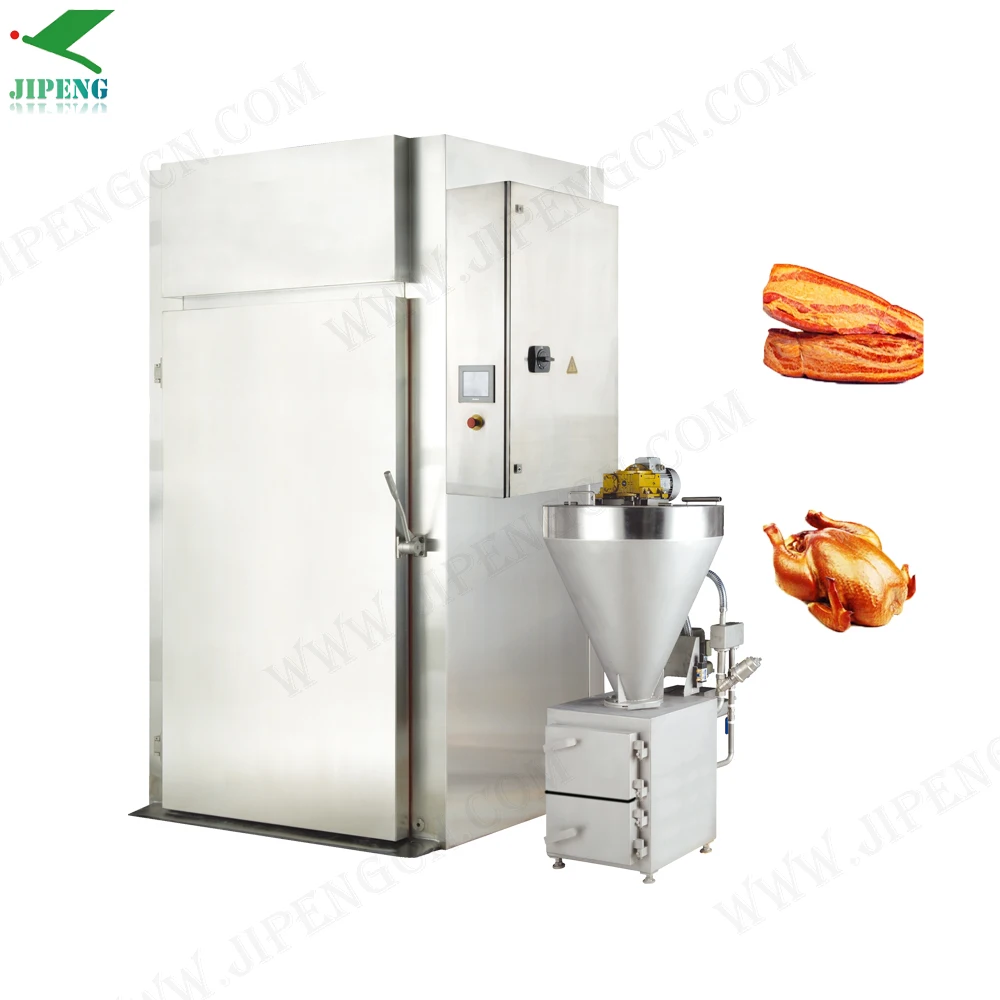

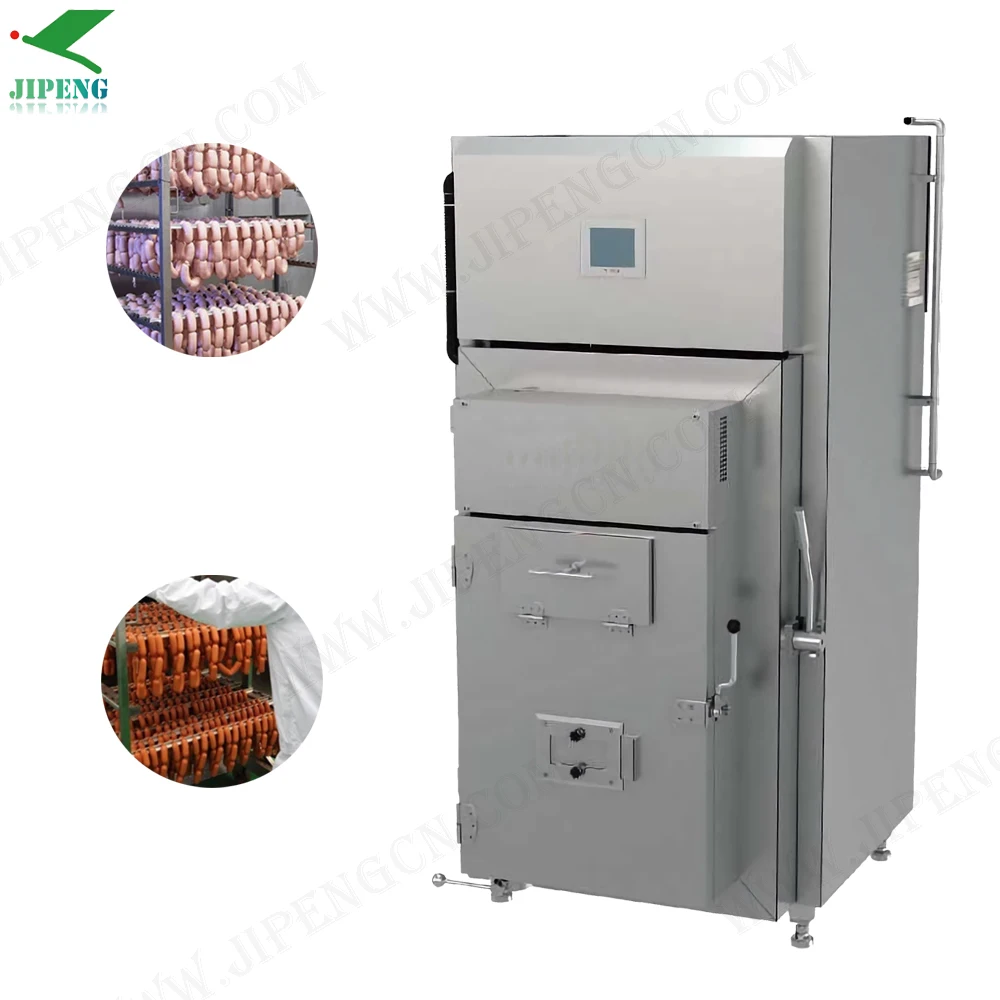

Automatic Multi Function Smoke Room Smoke meat machine smoke oven
- Category: >>>
- Supplier: Shijiazhuang Jipeng Import And Export Co. Ltd.
Share on (1601024973281):
Product Overview
Description
Product Description

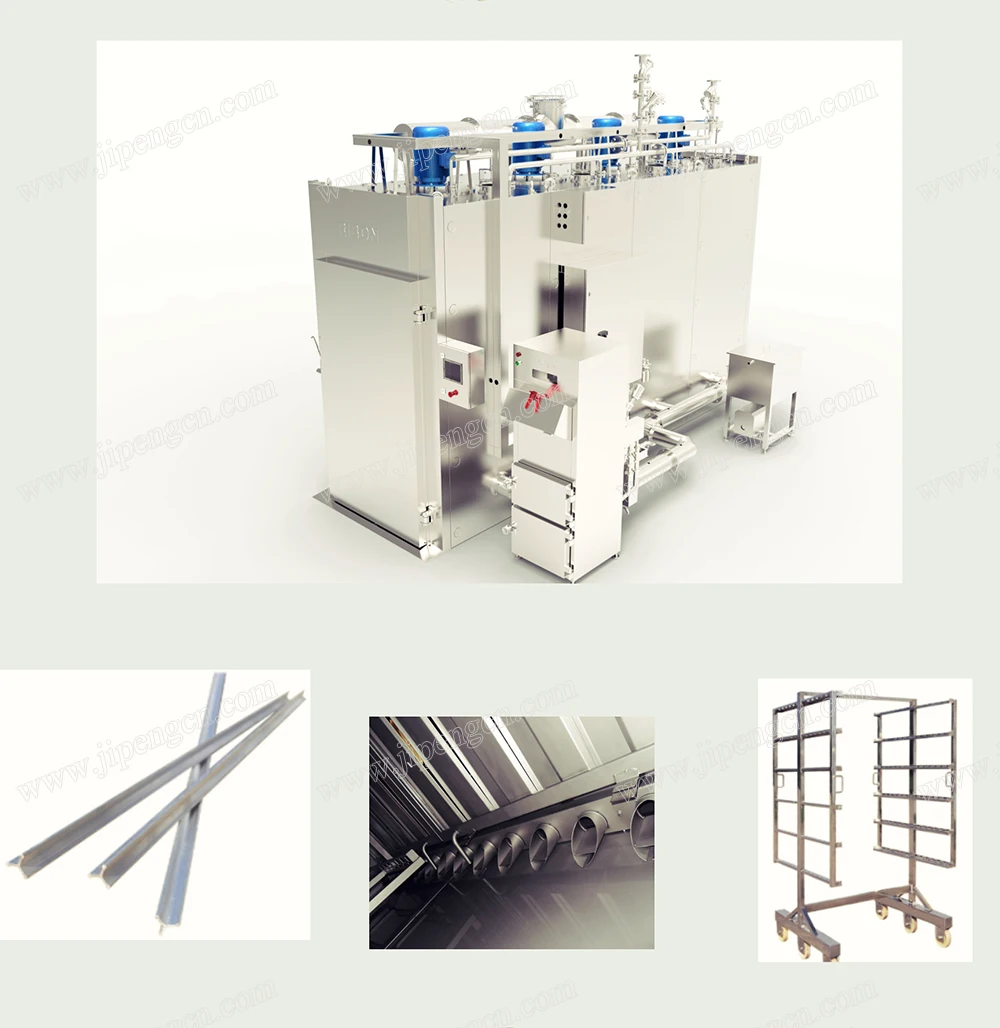

Cooking & Smoking House or System / Meat Smokehouse
High-efficient Heating & Uniform Blowing Circulation
Excellent Smoke Result & Thorough Cleaning Process
High-efficient Heating & Uniform Blowing Circulation
Excellent Smoke Result & Thorough Cleaning Process
1. Advance International Leading Control System: PLC & HMI with 10”color big screen;
2. 9 Processing Technology, More than 100 Programs combinations
3. Much High-efficient and Heating evenly, Energy consumption can be saved approximate 15
4. Independent open-style smoke generator: excellent color coating;Automatic Firefighting, No smoke choking occurred.
5. Adopting two-speed motor and Special Structure, air circulation is rapid and uniform.
6. Adopting multi-layer cleaning and spraying system provides: Sufficient cleaning all over the inside chamber, including blower impeller, electric heater, steam diversion board and side wall.
7. Spaying system for cooling can be selected.
8. SS316L used for steam diversion board: hygiene, corrosion resident and longer working life.
9. Remote data monitoring center is optional, to realize the collection, storage and analysis of data.
10. The frequency conversion is optional.
2. 9 Processing Technology, More than 100 Programs combinations
3. Much High-efficient and Heating evenly, Energy consumption can be saved approximate 15
4. Independent open-style smoke generator: excellent color coating;Automatic Firefighting, No smoke choking occurred.
5. Adopting two-speed motor and Special Structure, air circulation is rapid and uniform.
6. Adopting multi-layer cleaning and spraying system provides: Sufficient cleaning all over the inside chamber, including blower impeller, electric heater, steam diversion board and side wall.
7. Spaying system for cooling can be selected.
8. SS316L used for steam diversion board: hygiene, corrosion resident and longer working life.
9. Remote data monitoring center is optional, to realize the collection, storage and analysis of data.
10. The frequency conversion is optional.
Application
Specification
Model | QZX-250IV | QZX-500IV | QZX-750IV | QZX-1000IV |
Capacity(kg/House) | 250 | 500 | 750 | 1000 |
Power(kW) | 7.33 | 10.83 | 16.53 | 20.03 |
HP Steam(MPa) | 0.3~0.6 | 0.3~0.6 | 0.3~0.6 | 0.3~0.6 |
LP Steam(MPa) | 0.1~0.2 | 0.1~0.2 | 0.1~0.2 | 0.1~0.2 |
LP Temp.(℃) | ＜100 | ＜100 | ＜100 | ＜100 |
HP Temp.(℃) | ＜85 | ＜85 | ＜85 | ＜85 |
Steam Consumption(kg/h) | ≈75 | ≈150 | ≈225 | ≈300 |
Compressed Air(MPa) | ＞0.4 | ＞0.4 | ＞0.4 | ＞0.4 |
Water Pressure(MPa) | ＞0.2 | ＞0.2 | ＞0.2 | ＞0.2 |
Smoke-ignition Time(min) | ＜4 | ＜4 | ＜4 | ＜4 |
External Dim.(mm) | 1440*1500*2720 | 2700*1500*2720 | 3810*1500*2720 | 4910*1500*2720 |
Installation Dim.(mm) | 5000*3000*360 (Single door) | 9000*3000*3600 (Two doors) | 10000*3000*3600 (Two doors) | 12000*3000*3900 (Two doors) |
Weight(kg) | ≈1800 | ≈2800 | ≈3400 | ≈4200 |
Recommend Products
Company Profile
Packing&Delivery
Our Advantage
FAQ
1. How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.How long is the warranty period?
A: Warranty period is 12 months.During the warranty period, we will undertake replacement of the defect parts.
3. Can you provided the worldwide service?
A: Yes, the worldwide service can be provided. If you want the start-up or repair of our machine at site, you just need to pay the traveling costs for our service engineer(s).
4. Why should you buy from us not from other suppliers?
A: high quality, unbelievable service, excellent reputation
5.What services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
6. Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.How long is the warranty period?
A: Warranty period is 12 months.During the warranty period, we will undertake replacement of the defect parts.
3. Can you provided the worldwide service?
A: Yes, the worldwide service can be provided. If you want the start-up or repair of our machine at site, you just need to pay the traveling costs for our service engineer(s).
4. Why should you buy from us not from other suppliers?
A: high quality, unbelievable service, excellent reputation
5.What services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
6. Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
