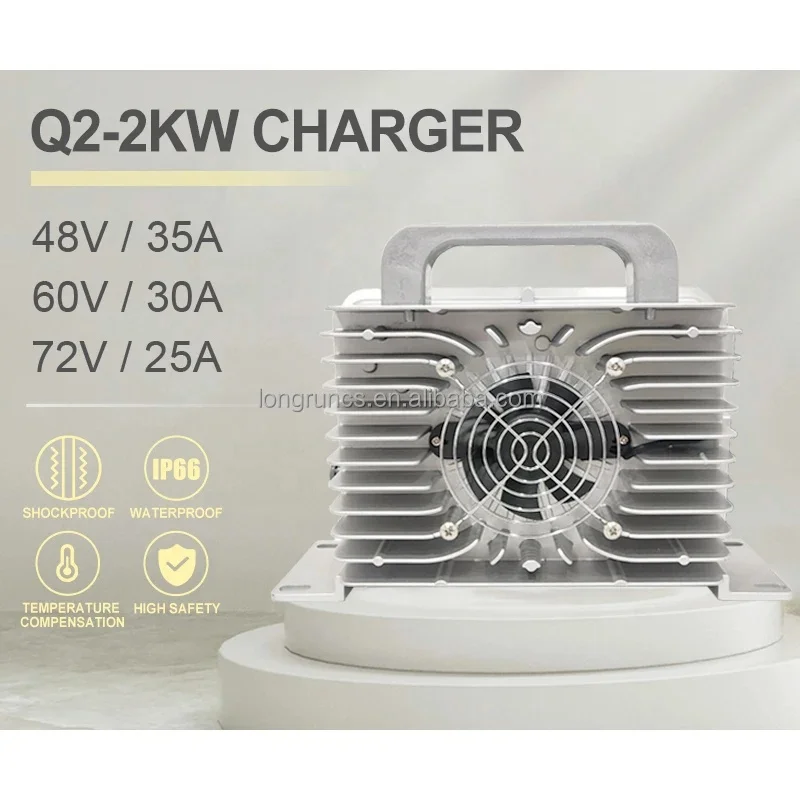

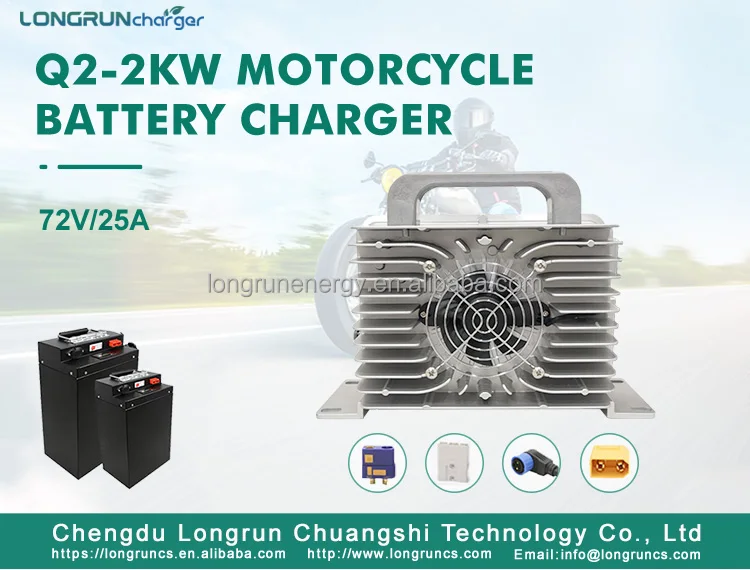

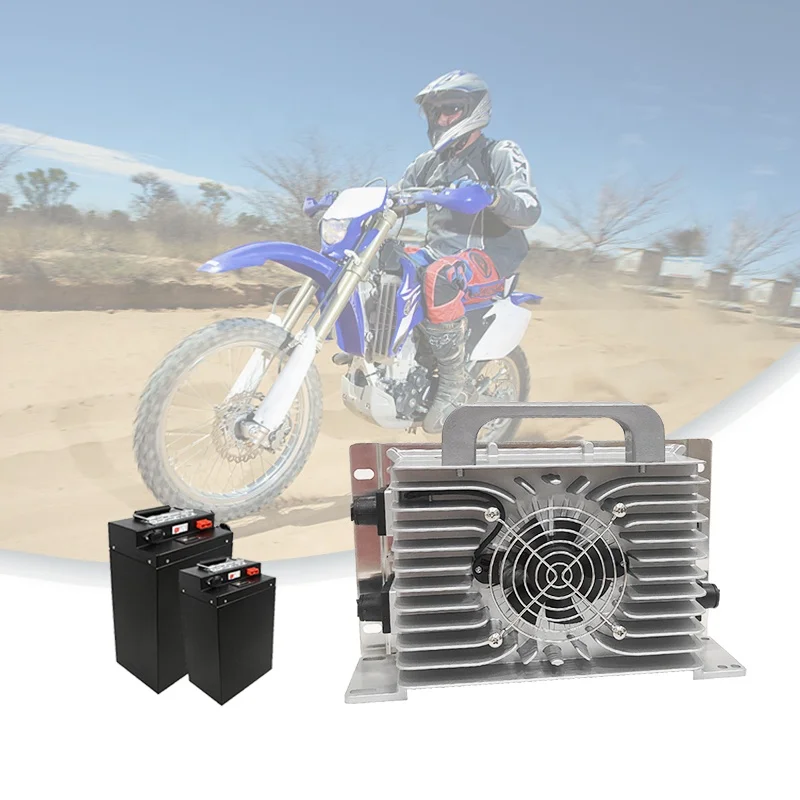

Electric Motorcycles 48v 72v 25a 20S Li ion LFP Battery Charger IP67 Waterproof On Board Charger
- Category: >>>
- Supplier: Chengdu Longrun Chuangshi Technology Co. Ltd.Chengdu Ltd.
Share on (1601024989558):
Product Overview
Description
Product Paramenters
Q2-2KW Input ≤11a CAN/12v3a Optional | ||||||||||
Rated Voltage(v) | Battery Type(Strings) | Max Charging Voltage(v) | Max Output Current(a) | Others | ||||||
24 | 8S LiFePO4 | 30 | 40 | 40 | Size:282x168x90mm Net Weight:3.8kg | |||||
36 | 12S LiFePO4 | 45 | 40 | 30 | ||||||
48 | 15S/16S LiFePO4 | 60 | 35 | 25 | ||||||
60 | 18S Li-ion | 75 | 30 | 20 | ||||||
72 | 20S Li-ion | 90 | 25 | 15 | ||||||
80 | 22S/23S Li-ion | 100 | 22 | 12 | ||||||
96 | 30S LiFePO4 | 120 | 18 | 10 | ||||||
Technical Parameters | ||||||
Input | Output | |||||
Input Voltage | 90-264v(220v/110v) | Max Output Current（a） | 40a | |||
Input Frequency | 40-70HZ | Charge Code | CC-CV | |||
Power Factor | ≥0.98 | Efficiency | ≥93 | |||
Plug | Schuko plug(EU), UK,US,India plug,ZA plug,BR plug, AU plug..... | Connector | Andersen 50, M8/10,C13/14,T60/90...... | |||
Indicator | Red:Charging Green:Fully Charge | |||||

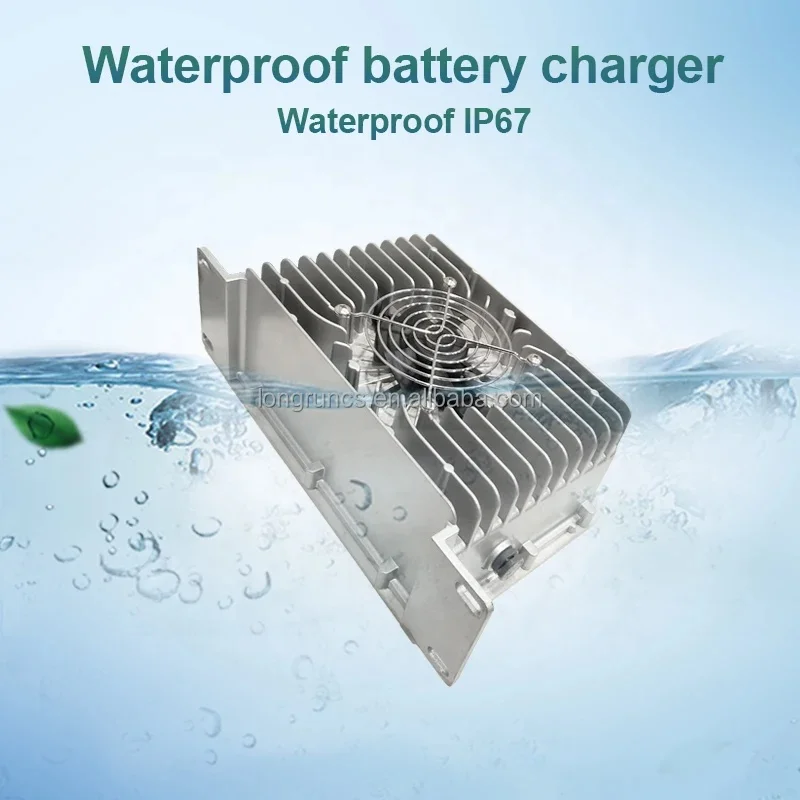

Features | IP 66 Waterproof/shockproof Onboard/Off board Fast Charging | |||||

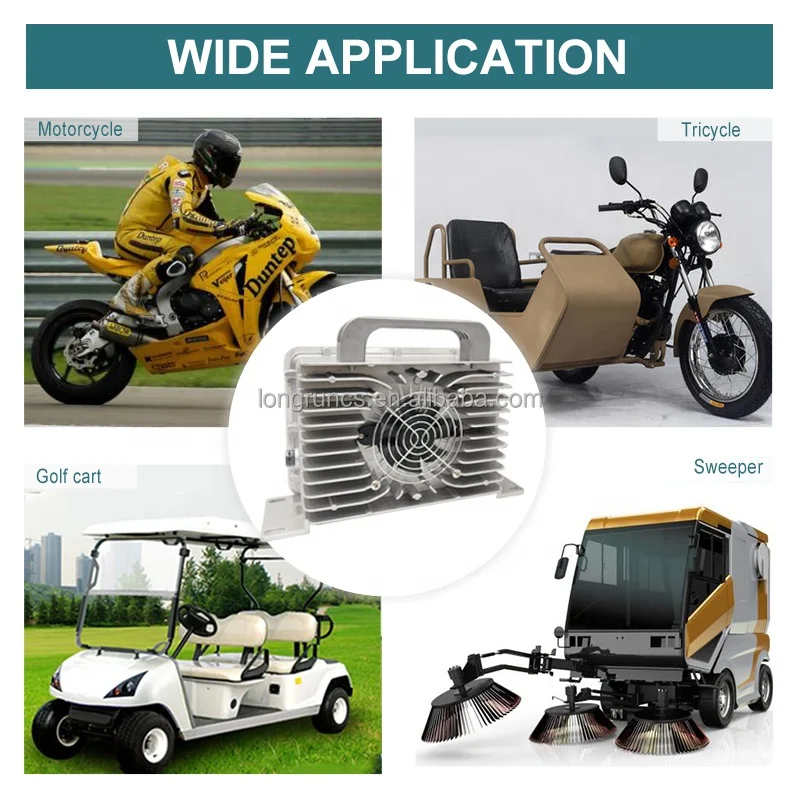

Application | For Battery: 24V/36V/48V LiFePO4 Charger, 60V/72V/84V Li-ion Charger,20S NMC Charger, 48V/60V/72V Lead acid Charger,LTO Charger For Electric Vehicle: 12v30a RV Charger24v30a AGV Charger 48v25a Golf Cart Charger 48v20a Golf Cart Charger 72v18a Motorcycle Charger 84v Motorcycle Charger | |||||
Service | Fast shipping(1-3 days) Within 12 hours response 15 months warranty 36 months after-sale tracking OEM /ODM Trail order avaiable Charging system solutions CO-Branding cooperation | |||||
Details Images

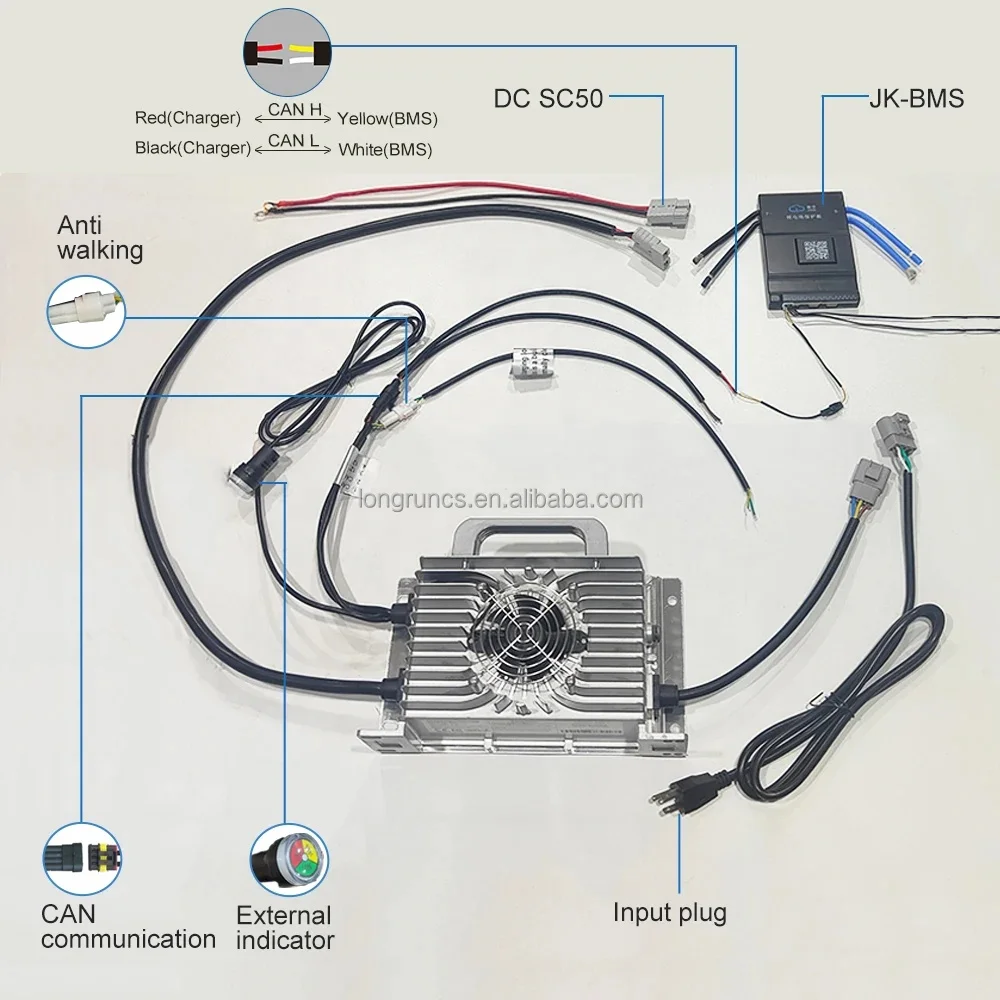

On-board charger standard： AC 90V - 264V
1, Input plug (optional)
2, PP and CP signal (need marked)
3, Output connector (optional)
4, Charging indicator (Built -in or External)
5. Anti-walking line
6, Handle (optional)
7, Auxiliary power 12v 3a/5a (optional)
8, CANBUS: Yes (optional)
9, Temperature sensor (only for lead acid battery)
1, Input plug (optional)
2, PP and CP signal (need marked)
3, Output connector (optional)
4, Charging indicator (Built -in or External)
5. Anti-walking line
6, Handle (optional)
7, Auxiliary power 12v 3a/5a (optional)
8, CANBUS: Yes (optional)
9, Temperature sensor (only for lead acid battery)
Function | 1).Over Current Protection 2).Over Voltage Protection 3).Over Charge Protection 4).Short Circuit Protection 5).Reverse Connect Protection 6).Over Temperature Protection 7).0V start Fuction 8).Up to IP66 /67 high protection level |
Features | 1. Up to 95% efficiency2. Wide range of operating temperatures 3. 100% full load aging test 4. Strong protection function 5. Up to IP66 /67 high protection level 6. The seismic rating of automobile 7. In the process of charging the battery for intelligent pulse repair, intelligent temperature compensation, maximize the battery life 8. The charging curve will be set and uploaded according to the battery parameters. |
Packaging & Delivery
Company Profile

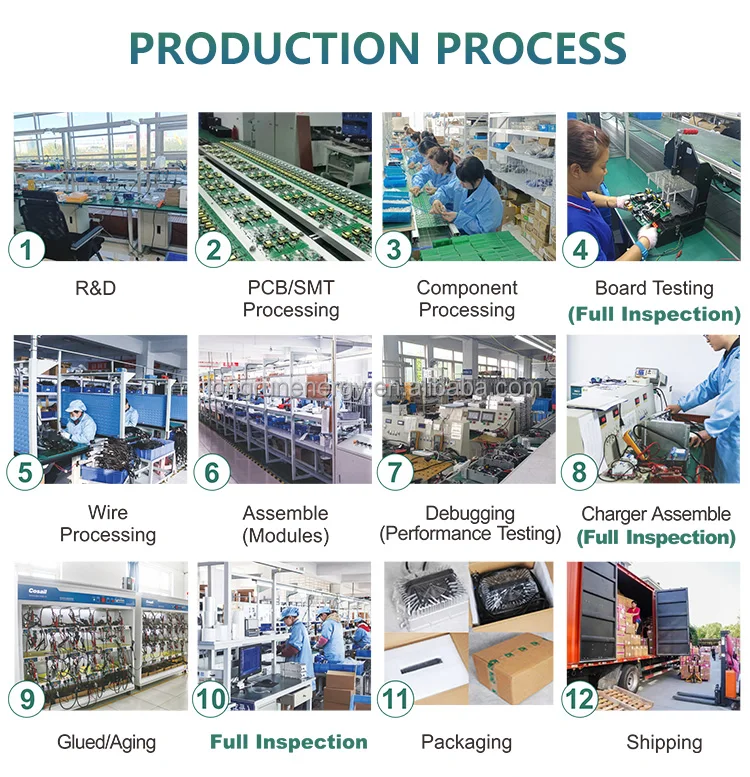

Production Process
Certifications
FAQ
Q1: How's the lead time and services?
a. Samples: Fast dispatch in 2 days from our factory after payment.
b. Mass order: Usually fast dispatch in 15 days from our factory after payment, will be depends on your order quantity.
c. 8hrs response & 48hrs solution.
Q2: What's the payment term?
TT, L/C, West Union, Paypal etc.
Q3: Do you accept ODM/OEM orders?
Yes, we can accept OEM/ODM, you can change the logo and function as you want.
Q4: How's your quality control system?
100% PCM test by IQC. 100% Capacity test by OQC.
Q5: What is your warranty?
b. Mass order: Usually fast dispatch in 15 days from our factory after payment, will be depends on your order quantity.
c. 8hrs response & 48hrs solution.
Q2: What's the payment term?
TT, L/C, West Union, Paypal etc.
Q3: Do you accept ODM/OEM orders?
Yes, we can accept OEM/ODM, you can change the logo and function as you want.
Q4: How's your quality control system?
100% PCM test by IQC. 100% Capacity test by OQC.
Q5: What is your warranty?
Battery Charger & BMS: 15months
Growatt & TBB inverter: 2 years.
Deye inverter & nRuiT battery: 5 years.
It depends on what product you buy.
Q6: Why choose us?
a. Company Members: At present, the company has 118 technicians, sales personnel and management personnel in
total. We also cooperate with the research team of universities, with 14 members.
b. Company Equipment: We have a variety of professional equipment, including cell detection equipment, battery matc- hing equipment, lithium battery spot welder, fifinished product integrator.
c. Corporate Performance: With the increasing global demand for energy storage batteries, our company's
performance has also experienced three consecutive years of growth. From 2019 to 2022, the company's annual growth value of performance was 26%, 44%, 82%.
d. Operating Market: Our company's main market is in Europe, Germany and France have the largest
demand for our products, and the United States also has a large demand for our products. In the past two years, we have been devel- oping the Southeast Asian market and want to sellour products to all parts of the world.
Q7: How do I know whether you've shipped my order or not?
Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the pack-ing
status, photo you the done order and let you know the forwarder picked it up.
Growatt & TBB inverter: 2 years.
Deye inverter & nRuiT battery: 5 years.
It depends on what product you buy.
Q6: Why choose us?
a. Company Members: At present, the company has 118 technicians, sales personnel and management personnel in
total. We also cooperate with the research team of universities, with 14 members.
b. Company Equipment: We have a variety of professional equipment, including cell detection equipment, battery matc- hing equipment, lithium battery spot welder, fifinished product integrator.
c. Corporate Performance: With the increasing global demand for energy storage batteries, our company's
performance has also experienced three consecutive years of growth. From 2019 to 2022, the company's annual growth value of performance was 26%, 44%, 82%.
d. Operating Market: Our company's main market is in Europe, Germany and France have the largest
demand for our products, and the United States also has a large demand for our products. In the past two years, we have been devel- oping the Southeast Asian market and want to sellour products to all parts of the world.
Q7: How do I know whether you've shipped my order or not?
Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the pack-ing
status, photo you the done order and let you know the forwarder picked it up.
