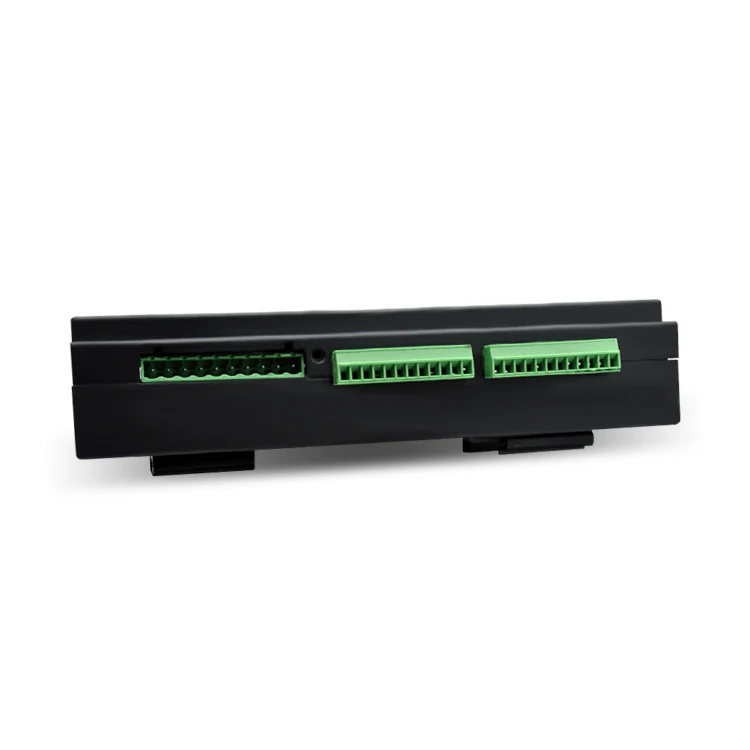

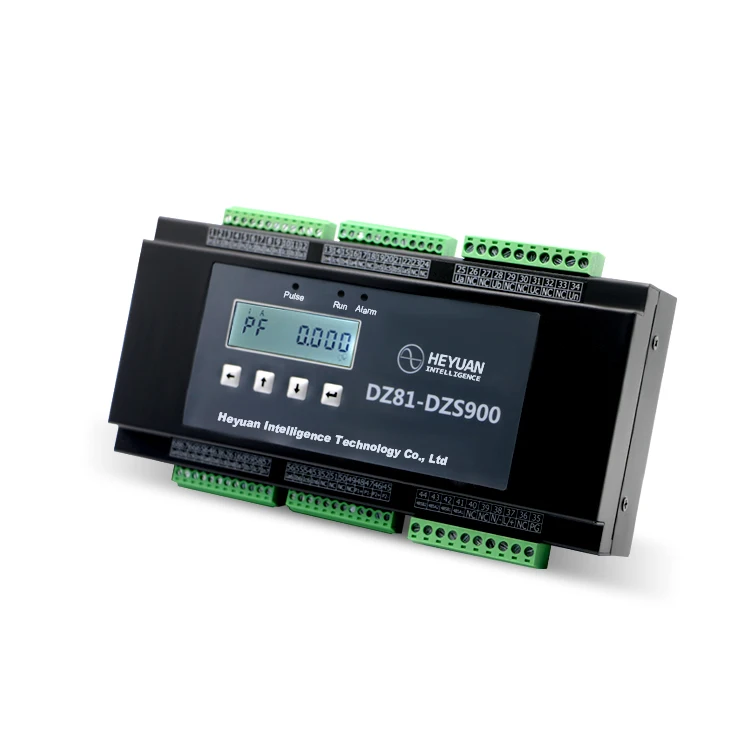

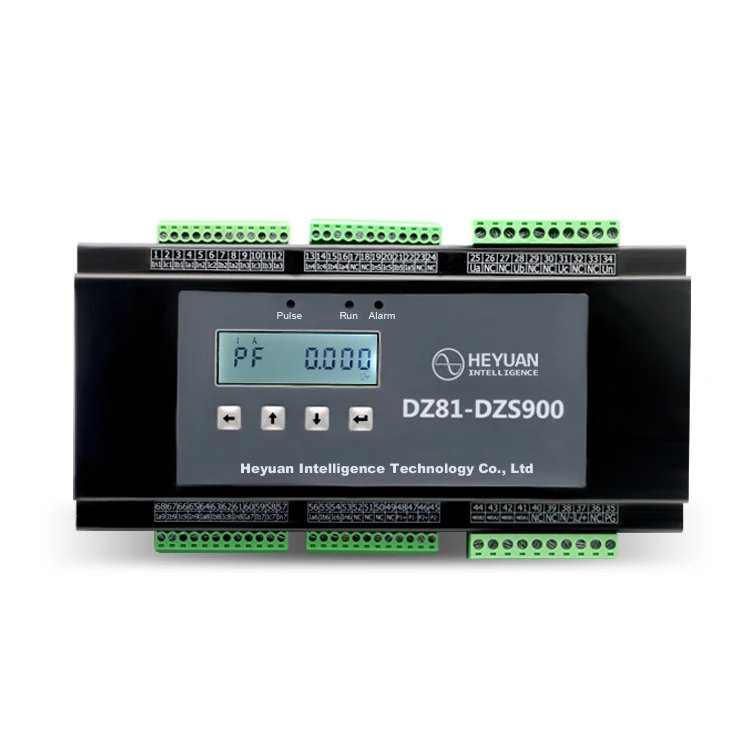

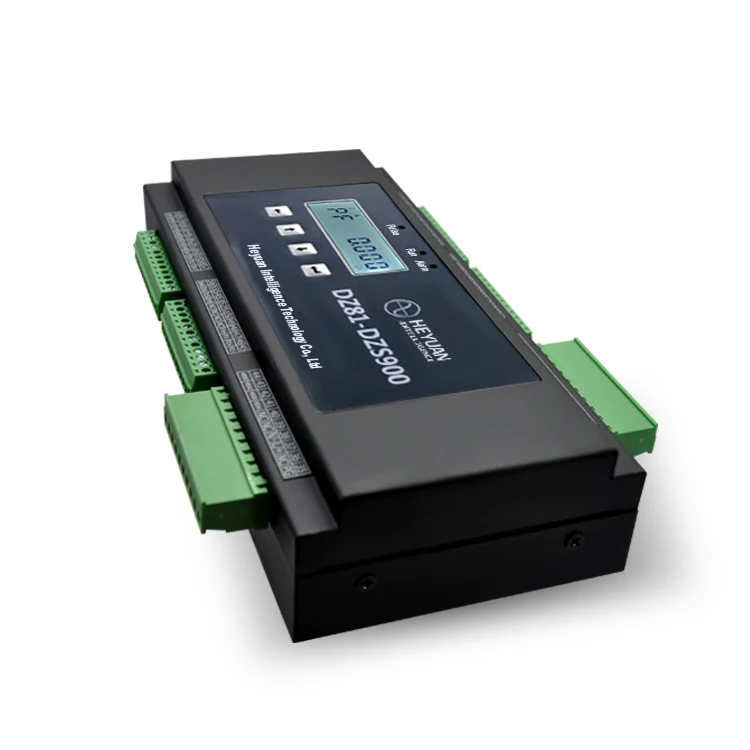

HEYUAN Worth Buying Electric Meter Smart DZS900 electric power consumption meter Smart Meter 3 Phase
- Category: >>>
- Supplier: Heyuan Intelligence Technology Co. Ltd.
Share on (1601025032433):
Product Overview
Description
PRODUCT DESCRIPTION

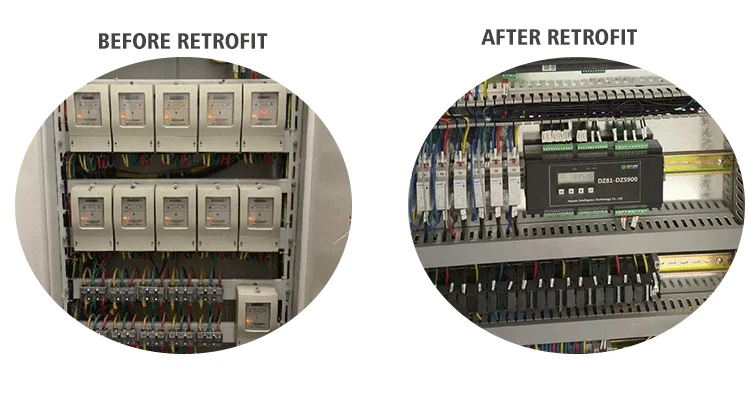

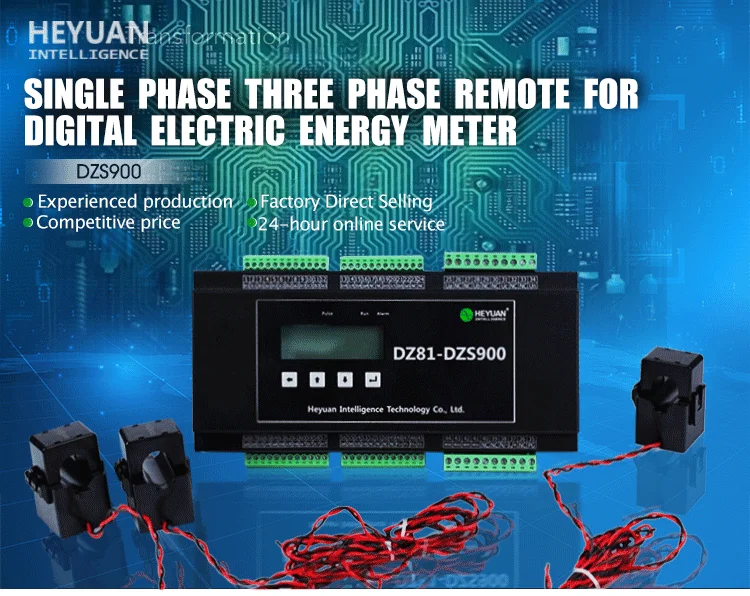

It is designed for multiple circuits AC electrical parameters measurement and monitors up to 9 three phase circuits or 27 single phase circuits, or any combination of single or three phase circuits. DZS900 is equipped with an external split current transformer, which can monitor the current without interrupting the power supply. There is no need for removing and redoing the wiring. The compact and flexible design means they fit easily in small spaces such as multi-branch distribution panels, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device. The unique features of DZS900 make it perfect for retrofitting existing multi-circuit electrical facilities such as residential projects, office buildings, and shopping malls.

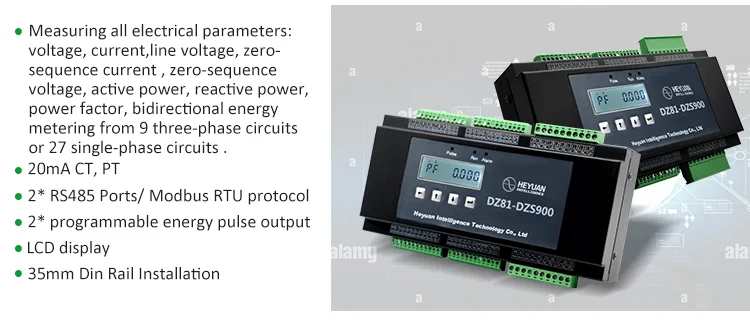

FEATURES & FUNCTIONS
PRODUCT APPLICATION

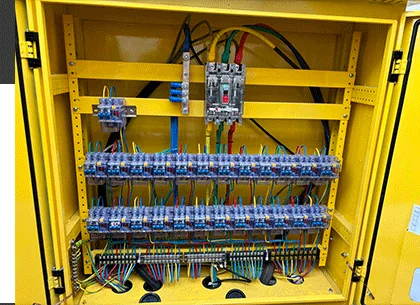

HAVE YOU ENCOUNTERED ANY OF THESE DIFFICULTIES ON THE SITE?
distribution cabinet
Much loops
Limited Space
Difficult construction
Single-phase three-phase
outlets of the same incoming
ine are mixed together and
difficult to measure.
PRODUCT PARAMETERS
Technical Parameters-DZS900 | ||||
Accuracy Class | Voltage: 0.2; Current: 0.2; Frequency: 0.05 Hz; Power Factor: 0.5 | |||
Active Power: 0.5; Reactive Power: 0.5; Apparent Power: 0.5 | ||||
Active Energy: 0.5S/1; Reactive Energy: 2 | ||||
Inputs | Rated Value | Voltage: 100 V/400 V Current: 20mA | ||
Overload | Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 10 times of the rated value | |||
Frequency | 45-60Hz | |||
Functional Module | Pulse Outputs | 2 | ||
Interface | 2* RS485; Modbus RTU communication protocol; Baud rate: 1200-19200bps | |||
Power Supply | Working Range | AC: 85-265V; DC: 85-300V | ||
Consumption | < 3W | |||
Working Condition | Temperature | Operating: -20°C~+65°C. Storage: -40°C~ +85°C | ||
Humidity | Relative Humidity: < 93% (place without corrosive gas) | |||
Altitude | <4000m | |||
Dimensions: | 210×100×45mm | |||
PRODUCT ADVANTAGES

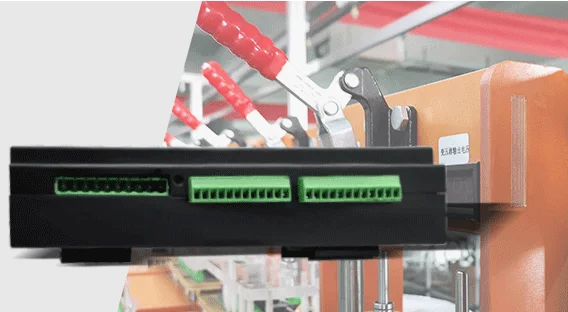

Compact terminal
PRODUCT DETAILS

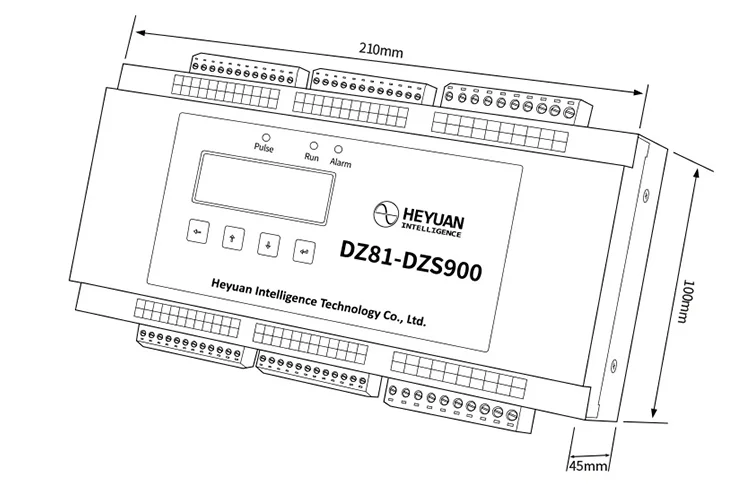

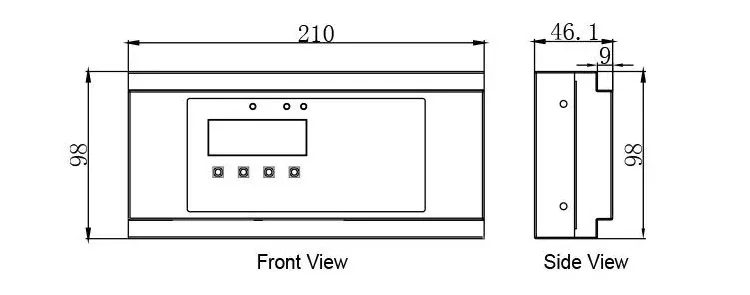

DIMENSIONS

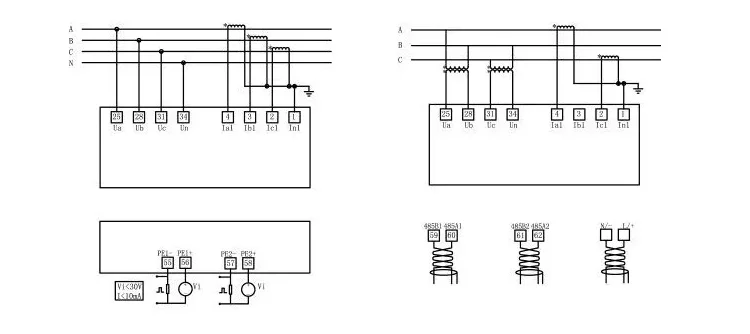

WIRING DIAGRAM

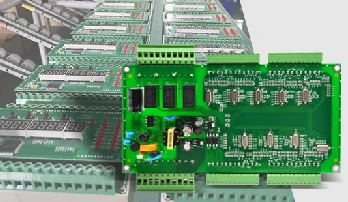

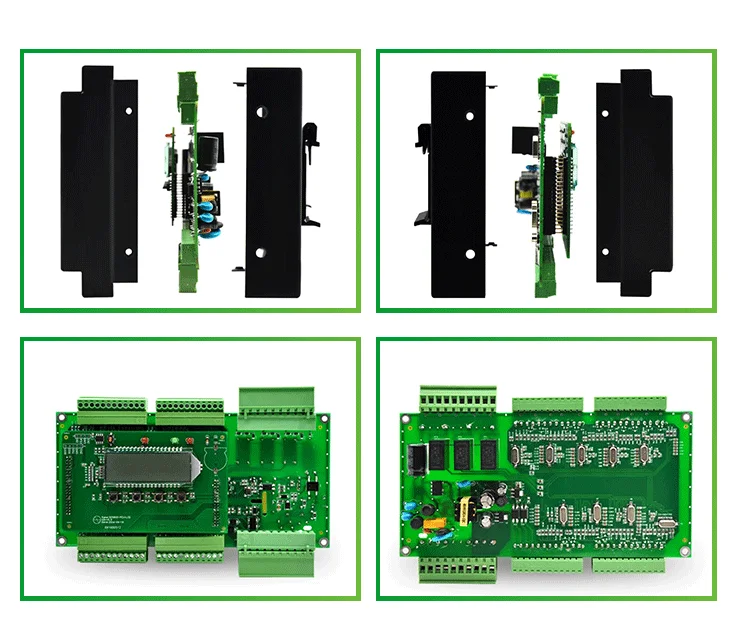

PRODUCT BREAKDOWN DIAGRAM

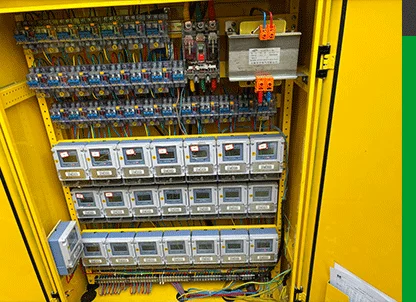

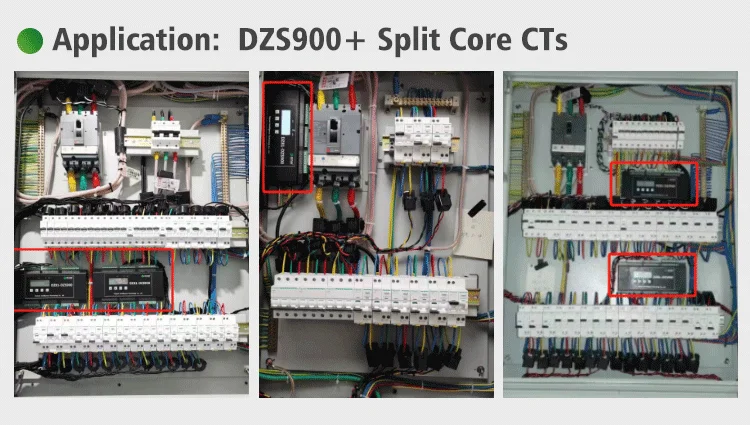

APPLICATION SCENARIOS

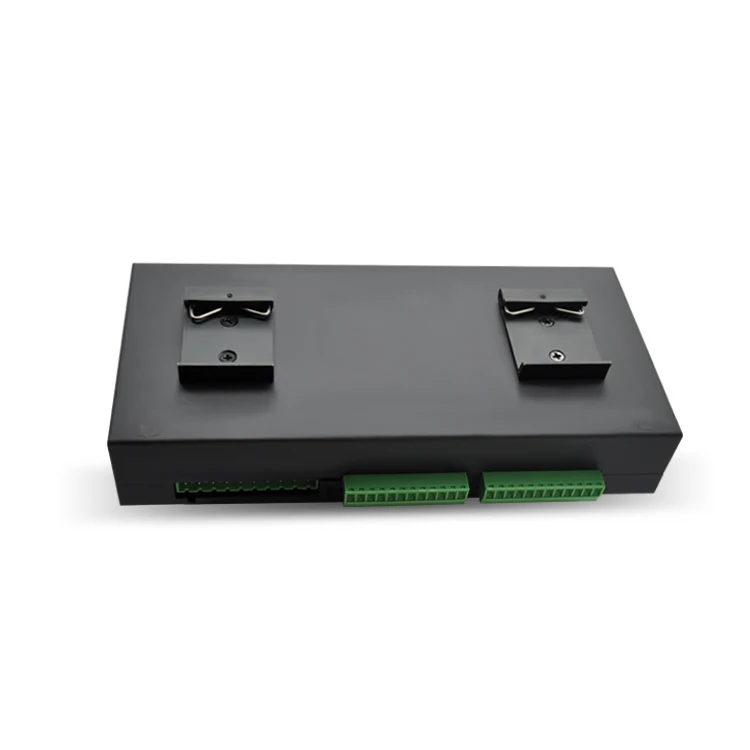

With standard 35mm Din-rail installation. the meter can be installed in distribution cabinet and small distribution box. lt is suitable for sub metering in single device, school dormitories,tenants and large public buildings etc. lt can also be used for energy management examination in enterprises and public institutions.
COMPANY PROFILE
Equipped with advanced production, calibration & packaging equipment, and efficient production lines, Heyuan’s factory has a strong daily production capacity. Heyuan’s QC inspectors and workers do their best in each procedure to guarantee quality. Its advanced warehouse management system ensures a fast delivery cycle. Our products are approved by the ISO9001 international quality system.
Since its establishment in 1997, the company has always adhered to the core values of "innovation, efficiency, unity, and integrity", adhered to the business philosophy of customer first and win-win cooperation, committed to digitizing all scenarios, making all data valuable, and providing better services for power system users and microgrids.
Since its establishment in 1997, the company has always adhered to the core values of "innovation, efficiency, unity, and integrity", adhered to the business philosophy of customer first and win-win cooperation, committed to digitizing all scenarios, making all data valuable, and providing better services for power system users and microgrids.
PRODUCTION PROCESS
FAQ
Q 1: Can I get a sample to test firstly?
A: Yes, Sample order is available.
Q 2 Can you provide solution for our site application?
A: yes, we can provide you solution & system with harware and software.
We have been focusing on electricity industry for 18 years.
Successful cases can be shared for your reference firstly.
Q 3: Can you customize according to our design?
A: Yes, our great R&D team can support you.
Q 4 Can you source for me and ship it with your goods?
A: Yes, we are pleased to help source CTs or other accessories.
If you assign the supplier, that will be great !
Q 5: What is the lead time?
A: 1-3days for sample order, 10~20days for bulk order.
Q 6: Do you accept OEM with our logo printing and packaging?
A :Yes, we can make it for bulk order.
A: Yes, Sample order is available.
Q 2 Can you provide solution for our site application?
A: yes, we can provide you solution & system with harware and software.
We have been focusing on electricity industry for 18 years.
Successful cases can be shared for your reference firstly.
Q 3: Can you customize according to our design?
A: Yes, our great R&D team can support you.
Q 4 Can you source for me and ship it with your goods?
A: Yes, we are pleased to help source CTs or other accessories.
If you assign the supplier, that will be great !
Q 5: What is the lead time?
A: 1-3days for sample order, 10~20days for bulk order.
Q 6: Do you accept OEM with our logo printing and packaging?
A :Yes, we can make it for bulk order.
