AOTELEC Battery Equipment Company focused on lithium battery lab line and its surrounding, we supply full kinds of lithium-ion battery lab equipment, battery materials and provide lithium-ion battery research and development technology. Our products are known for their high quality, reliability, and exceptional performance.
We strive to provide excellent customer service and ensure that our valued customers always have access to the products they need. Your satisfaction is of utmost importance to us, and we want to make sure we are meeting your expectations.
We strive to provide excellent customer service and ensure that our valued customers always have access to the products they need. Your satisfaction is of utmost importance to us, and we want to make sure we are meeting your expectations.
Product Display

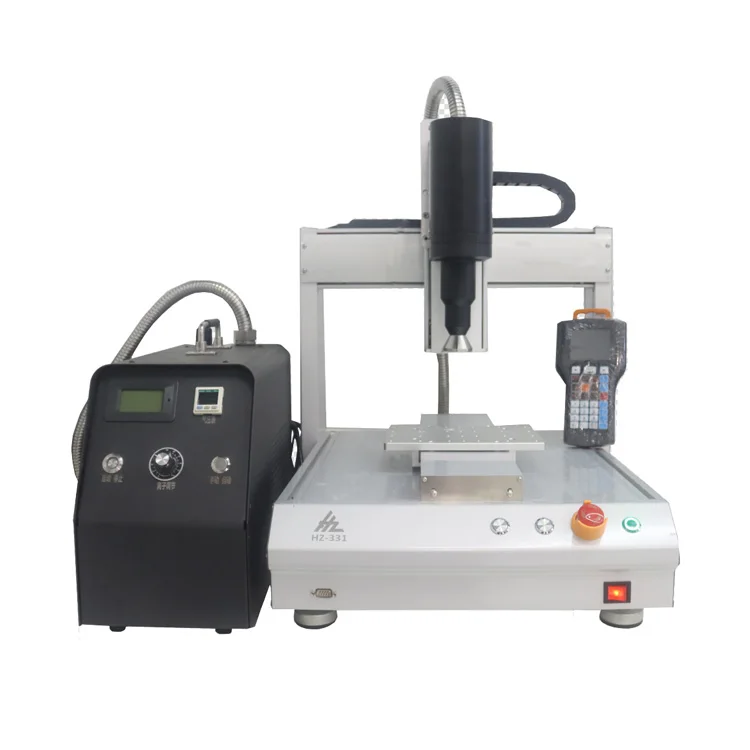

Three-axis table plasma treatment equipment plasma cleaning machine
Specification
Three-axis table plasma treatment equipment | ||
Model | AOT-HZ331 | |
Whole machine structure | Triaxial profile desktop type | |
Program editing mode | Hand-held teaching device | |
Type of plasma spray gun | Rotary jet (20mm-80mm) | |
Plasma power | 600W/25KHZ | |
Sprinkler processing height | 5-20mm | |
Sprinkler handles wide width | 20-80mm | |
Maximum processing speed | 300-500mm/s | |
External control mode | Start and stop I/O, communication port, RS485/RS232 | |
Effective working schedule | 300*300*100mm | |
Mode of work | X/Y/Z triaxial motion | |
Working transmission mode | Guide + belt / screw + motor | |
Input air pressure | ≥0.3Mpa | |
Guide rail specification | HIWIN Brand | |
Use temperature range | -10℃～50℃ | |
Frequency | 18～25kHz | |
Weight | 75 Kg | |
Jet AP plasma treatment system | ||
Model | AOT-XP80-M | |
Nozzle type | Rotary nozzle | |
Plasma power | Analogue circuit | |
Power supply | 220V/AC,50/60Hz,0.7kw | |
Power | 0∽1000W/25KHz (Stepless regulation) | |
Power factor | ≥0.63 | |
Processing height | About 10mm | |
Processing width | 80mm | |
Internal control mode | Analog control | |
External control mode | With analog communication port | |
Working Gas | Compressed air | |
Gas pressure | 0.2-0.4 Mpa | |
Jet-gun weight | About 5kg | |
Power box weight | About 10kg | |
Power box size | L*W*H=467mm*203mm*370mm | |
Recommend Related Products
Battery Equipment Recommended

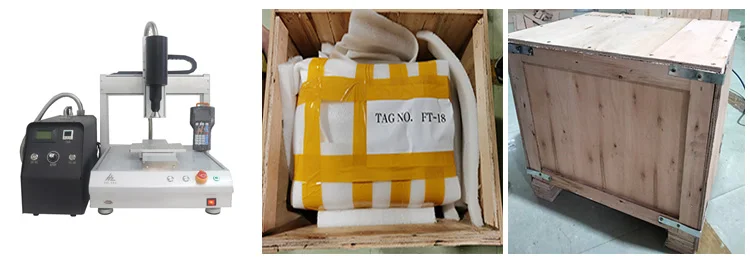

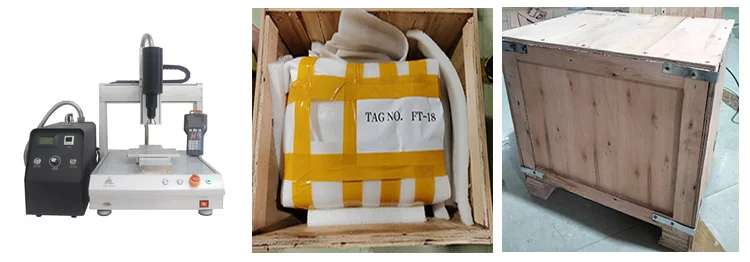

Packing & Delivery
Certifications
FAQ
1.How long do you need to prepare my goods?
3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
2.Can we have our logo or company name to be printed on products or package?
Sure. your logo could be printed on your products by hot stamping, printing, embossing, uv coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
3.How can I install and operate the machine by myself?
Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
4.How to get technical support after purchasing?
Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
5.What's the warranty for the items?
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
2.Can we have our logo or company name to be printed on products or package?
Sure. your logo could be printed on your products by hot stamping, printing, embossing, uv coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
3.How can I install and operate the machine by myself?
Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
4.How to get technical support after purchasing?
Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
5.What's the warranty for the items?
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
