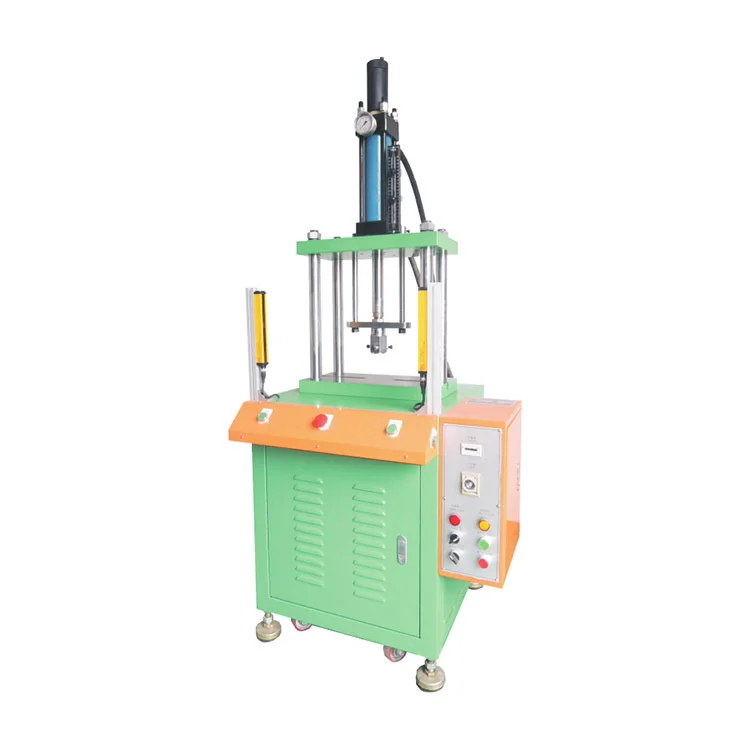

Multifunctional Hardware Parts Pressing Four column Hydraulic Press/Metal Parts Stamping and Forming Hydraulic Press
- Category: >>>
- Supplier: Guangdong Hongyu International Trade Co. Ltd.
Share on (1601025252706):
Product Overview
Description
Product Paramenters
Scope of application:
widely used in riveting, embossing, forming, shallow drawing and force assembly of metal or non-metal parts; pressing of glasses, locks and hardware parts, electronic connectors, electrical parts, motor rotors,
Features
Using a four-column open space, the mold head is easy to assemble and disassemble, and the operation is simple; the hydraulic circuit design is simple and the horsepower The demand is small and maintenance is easy; the pressure, stroke, pressure holding, etc. can be adjusted according to the requirements of the pressing process; imported hydraulic pressure,
Electrical components and seals have long service life; two-hand manual operation, equipped with emergency stop and inching functions, safe and fast; mechanical The bottom of the table is equipped with a caster base, which is easy to move, labor-saving and high-energy; optional photoelectric safety protectors, load cells, Displacement sensor, etc.
Electrical components and seals have long service life; two-hand manual operation, equipped with emergency stop and inching functions, safe and fast; mechanical The bottom of the table is equipped with a caster base, which is easy to move, labor-saving and high-energy; optional photoelectric safety protectors, load cells, Displacement sensor, etc.
Standard model | unit | HJ-01T | HJ-03T | HJ-05T | HJ-10T | HJ-15T | HJ-20T | ||
Pressure range | ton | 0.4-1.3 | 1.5-3.5 | 2.5-6 | 5-11 | 7-16 | 8.5-21 | ||
Cylinder stroke (adjustable) | mm | 75-150 | 75-150 | 100-200 | 100-200 | 100-200 | 100-200 | ||
Opening height | mm | 250 | 250 | 300 | 300 | 300 | 300 | ||
Cylinder down speed | mm/s | 100 | 95 | 89 | 69 | 52 | 52 | ||
Cylinder rise speed | mm/s | 100 | 95 | 89 | 69 | 52 | 52 | ||
Die shank hole size | mm | φ16*40 | φ19*40 | φ19*40 | φ25*50 | φ30*60 | φ30*60 | ||
Table area | Left and right | mm | 350 | 350 | 350 | 400 | 450 | 450 | |
Front and back (edge) | mm | 240 | 240 | 240 | 300 | 350 | 350 | ||
Workbench height from ground | mm | 850 | 850 | 850 | 850 | 850 | 850 | ||
using electric | V | 380 | 380 | 380 | 380 | 380 | 380 | ||
Motor Power | KW | 1.5 | 2.25 | 2.25 | 3.75 | 3.75 | 3.75 | ||
Machine weight (reference) | Kg | 350 | 380 | 420 | 480 | 550 | 580 | ||
